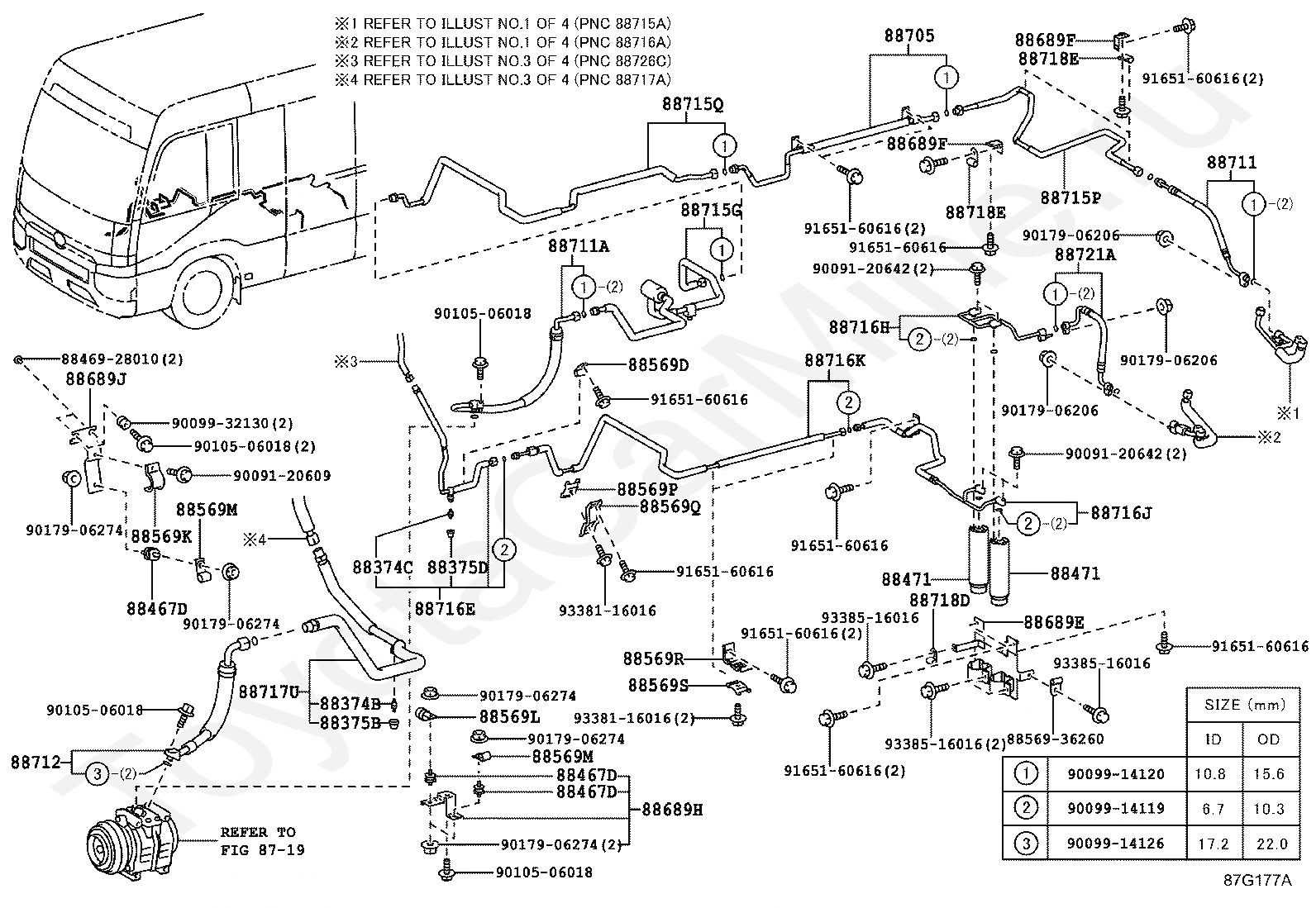

Кондиционер: охлаждающие трубки TOYOTA COASTER, 2017/01 - 2026, 4,1 литра, сжиженный газ, STANDARD TYPE, BZB70, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

COASTER

Двигатель

4,1 литра, сжиженный газ

Класс

STANDARD TYPE

Фрейм

BZB70

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль высокая крыша WITH COOLER LPG GEN IV5 675W

Код

Описание

8844636050

Крепеж

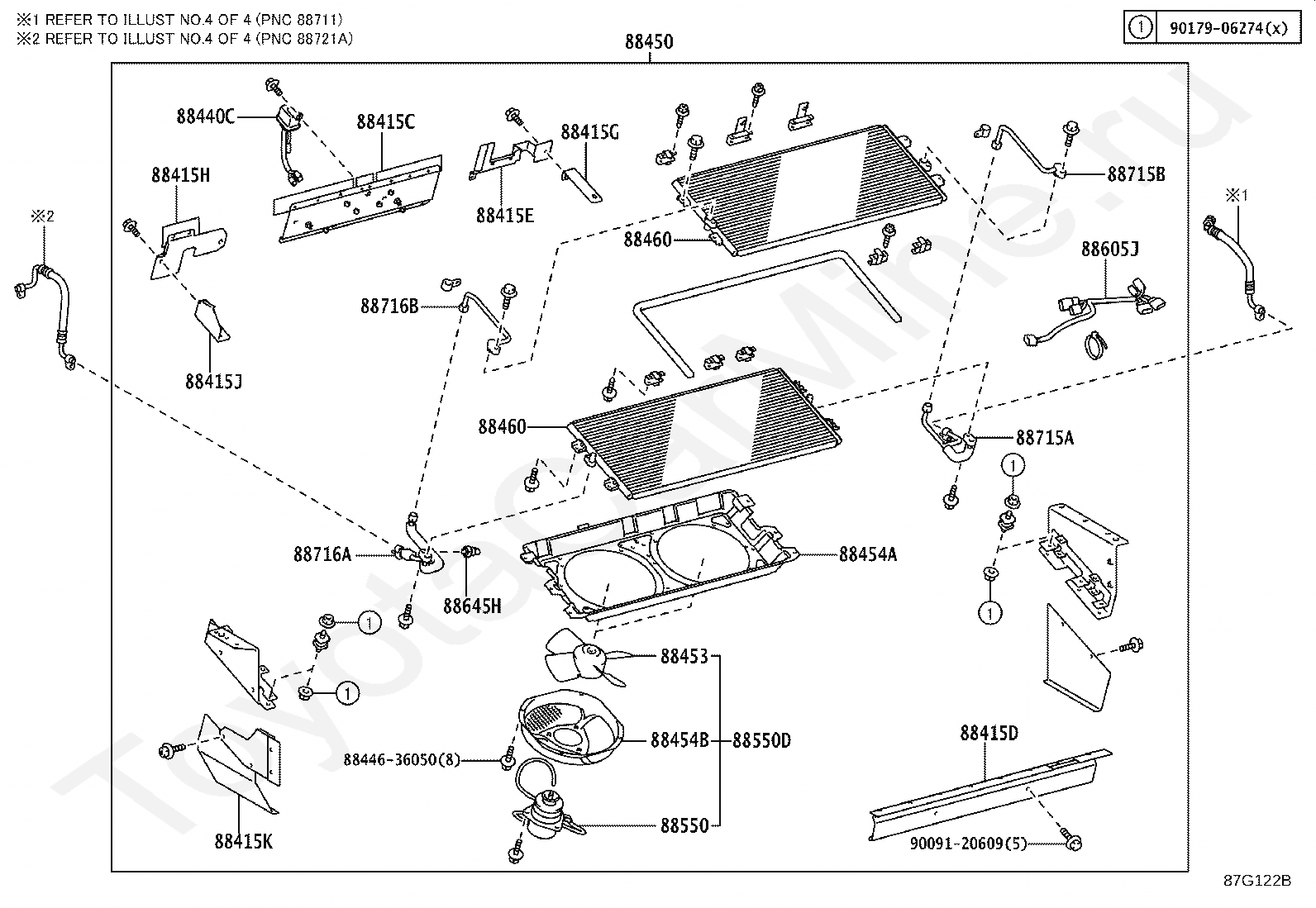

88450

CONDENSER ASSY, W/RECEIVER

88453

FAN, COOLING (FOR CONDENSER)

88454A

SHROUD, FAN

88454B

SHROUD, FAN

88461A

CORE, COOLER CONDENSER

88461C

CORE, COOLER CONDENSER, NO.2

88461D

CORE, COOLER CONDENSER, NO.3

88463C

BRACKET, COOLER CONDENSER, NO.4

8846928010

Крепеж

88471

TANK, RECEIVER AIR CONDITIONER

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88550D

MOTOR ASSY, BLOWER

88605J

HARNESS SUB-ASSY, AIR CONDITIONER WIRING

8861936060

Крепеж

88645H

SWITCH, PRESSURE NO.1

88706G

RING, O(FOR LIQUID TUBE)

88706H

RING, O, NO.2(FOR LIQUID TUBE)

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88715B

PIPE, COOLER REFRIGERANT DISCHARGE, B

88715R

RING, O(FOR DISCHARGE TUBE)

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

9009932130

Крепеж

9011906330

Крепеж

9165140625

Крепеж

9165140630

Крепеж

9338516016

Крепеж

Код

Описание

88415C

COVER, DUST, NO.1

88415D

COVER, DUST, NO.2

88415E

COVER, DUST, NO.3

88415G

COVER, COOLER CONDENSER DUST, NO.4

88415H

COVER, COOLER CONDENSER DUST, NO.5

88415J

COVER, COOLER CONDENSER DUST, NO.6

88415K

COVER, COOLER CONDENSER DUST, NO.7

88440C

RELAY ASSY, COOLER CONDENSER FAN

8844636050

Крепеж

88450

CONDENSER ASSY, W/RECEIVER

88453

FAN, COOLING (FOR CONDENSER)

88454A

SHROUD, FAN

88454B

SHROUD, FAN

88460

CONDENSER ASSY, COOLER

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88550D

MOTOR ASSY, BLOWER

88605J

HARNESS SUB-ASSY, AIR CONDITIONER WIRING

88645H

SWITCH, PRESSURE NO.1

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88715B

PIPE, COOLER REFRIGERANT DISCHARGE, B

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

9009120609

Крепеж

9017906274

Крепеж

Код

Описание

8844636060

Крепеж

88450

CONDENSER ASSY, W/RECEIVER

88453

FAN, COOLING (FOR CONDENSER)

88453A

FAN, COOLING

88454B

SHROUD, FAN

88461A

CORE, COOLER CONDENSER

88461C

CORE, COOLER CONDENSER, NO.2

88463C

BRACKET, COOLER CONDENSER, NO.4

8846928010

Крепеж

88471

TANK, RECEIVER AIR CONDITIONER

88550D

MOTOR ASSY, BLOWER

8856936260

Крепеж

88590B

BLOWER ASSY, W/SHROUD

88605J

HARNESS SUB-ASSY, AIR CONDITIONER WIRING

8861936060

Крепеж

88645H

SWITCH, PRESSURE NO.1

88688E

BRACKET, COOLER REFRIGERANT HOSE, NO.1

88706G

RING, O(FOR LIQUID TUBE)

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88715B

PIPE, COOLER REFRIGERANT DISCHARGE, B

88715R

RING, O(FOR DISCHARGE TUBE)

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88716L

PIPE, COOLER REFRIGERANT LIQUID, L

88716M

PIPE, COOLER REFRIGERANT LIQUID, M

9009932130

Крепеж

9011906330

Крепеж

9165140625

Крепеж

9165140630

Крепеж

9338516016

Крепеж

Код

Описание

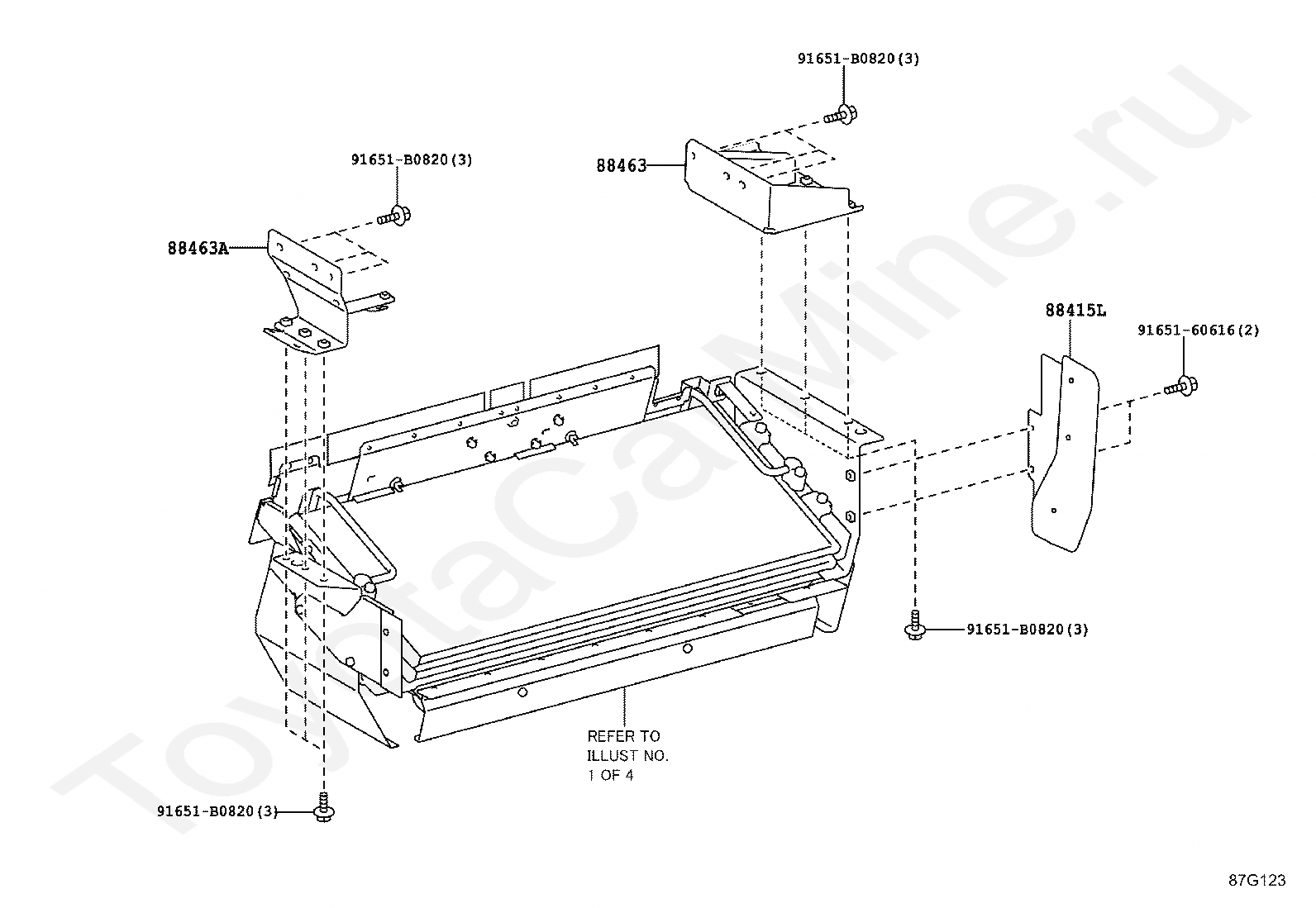

88415L

COVER, DUST, NO.8

88463

BRACKET, COOLER CONDENSER, NO.1

88463A

BRACKET, COOLER CONDENSER, NO.2

9165160616

Крепеж

91651B0820

Крепеж

Код

Описание

8714

переход к группе запчастей

8856936110

Крепеж

88578D

PACKING, COOLER PIPE, NO.1

88716D

PIPE, COOLER REFRIGERANT LIQUID, D

88717A

PIPE, COOLER REFRIGERANT SUCTION, A

88717B

PIPE, COOLER REFRIGERANT SUCTION, B

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88718L

CLAMP, PIPING

88726C

PIPE, COOLER REFRIGERANT LIQUID, C

88897T

GROMMET, COOLER

8963936030

Крепеж

9009914119

Крепеж

9009914126

Крепеж

9167380616

Крепеж

Код

Описание

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88467D

CUSHION, COOLER REFRIGERANT PIPE CLAMP

8846928010

Крепеж

88471

TANK, RECEIVER AIR CONDITIONER

8856936260

Крепеж

88569D

CLAMP, COOLER, NO.1

88569K

CLAMP, COOLER, NO.2

88569L

CLAMP, COOLER, NO.3

88569M

CLAMP, PIPING, NO.1

88569P

CLAMP, COOLER, NO.4

88569Q

CLAMP, COOLER, NO.5

88569R

CLAMP, COOLER, NO.6

88569S

CLAMP, COOLER, NO.7

88689E

BRACKET, COOLER, NO.1

88689F

BRACKET, COOLER, NO.2

88689H

BRACKET, COOLER, NO.4

88689J

BRACKET, COOLER, NO.5

88705

PIPE SUB-ASSY, DISCHARGE

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711A

HOSE, COOLER REFRIGERANT DISCHARGE, NO.2

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88715G

TUBE, DISCHARGE, G

88715P

TUBE, DISCHARGE, P

88715Q

TUBE, DISCHARGE, Q

88716E

PIPE, COOLER REFRIGERANT LIQUID, E

88716H

PIPE, COOLER REFRIGERANT LIQUID, H

88716J

PIPE, COOLER REFRIGERANT LIQUID, J

88716K

PIPE, COOLER REFRIGERANT LIQUID, K

88717U

TUBE, SUCTION, NO.1

88718D

CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

88718E

CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

88721A

HOSE, LIQUID, A

9009120609

Крепеж

9009120642

Крепеж

9009914119

Крепеж

9009914120

Крепеж

9009914126

Крепеж

9009932130

Крепеж

9010506018

Крепеж

9017906206

Крепеж

9017906274

Крепеж

9165160616

Крепеж

9338116016

Крепеж

9338516016

Крепеж
