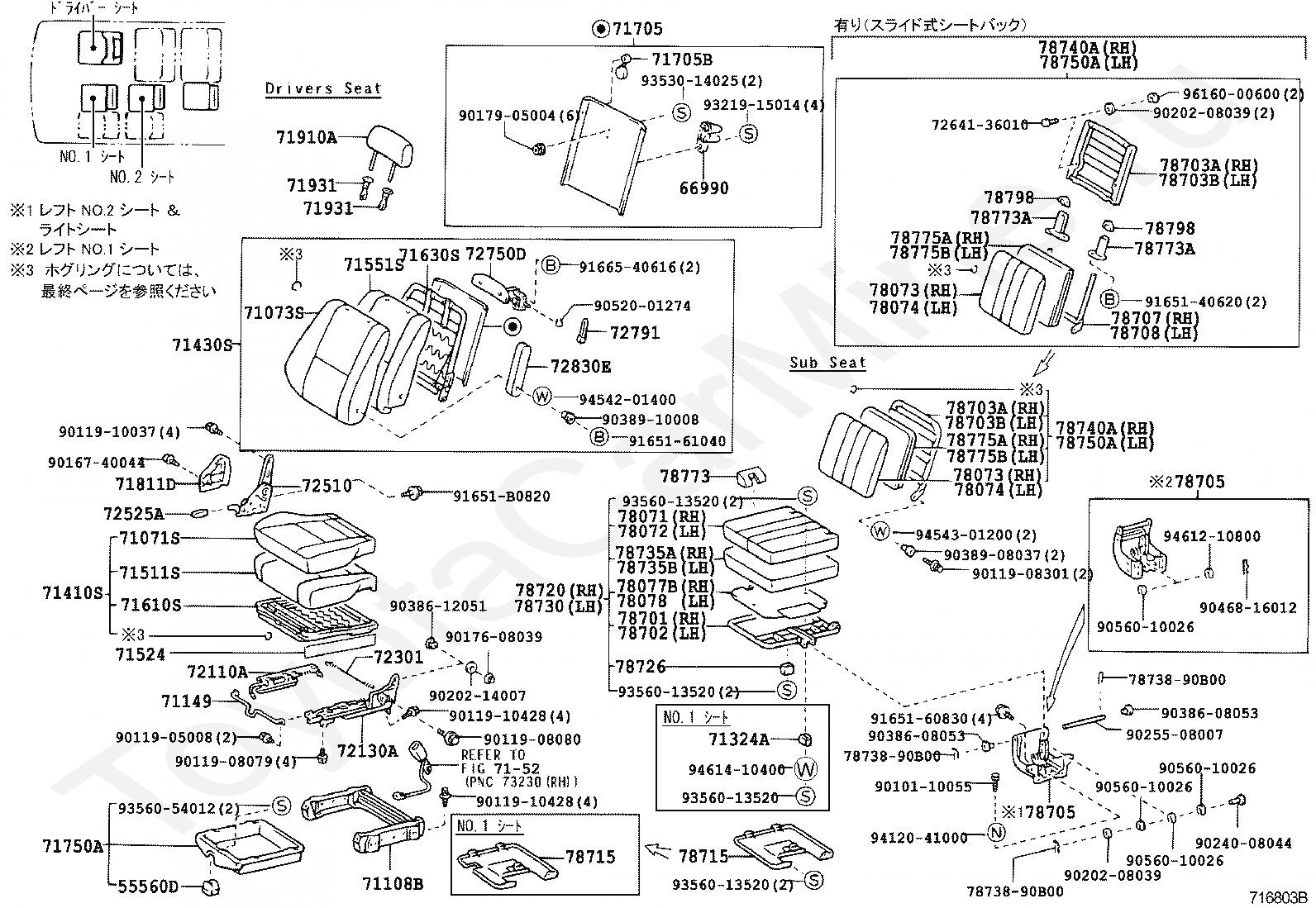

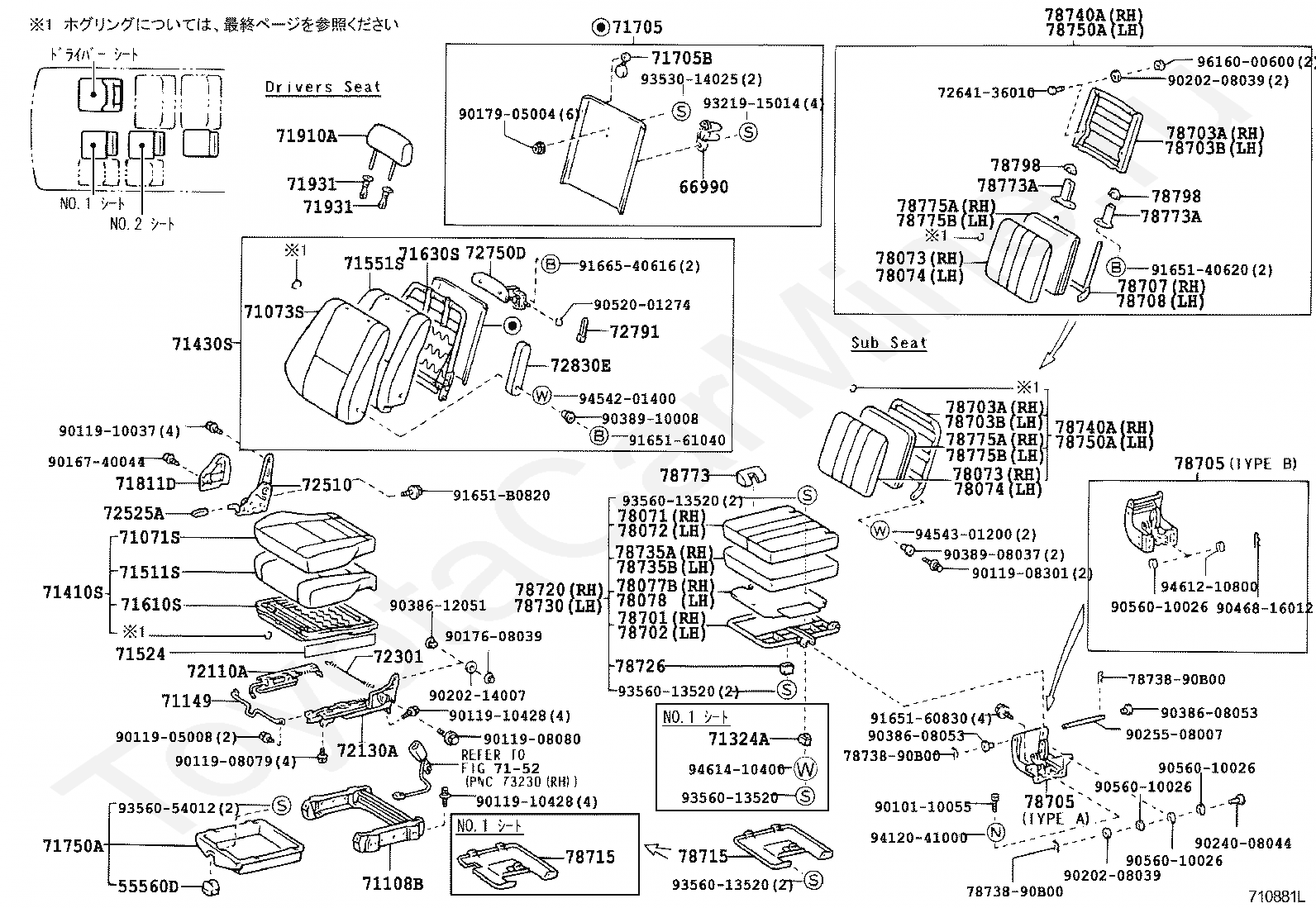

Кресла TOYOTA COASTER, 1995/05 - 2004/08, 4,2 литра, дизель, LX SPECIFICATION, HZB50, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

COASTER

Двигатель

4,2 литра, дизель

Класс

LX SPECIFICATION

Фрейм

HZB50

Трансмиссия

механика МКПП, 5 скоростей

Опции

высокая крыша 29-местный WITH COOLER дизель, два клапана WT CBU

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

66990

HOLDER ASSY, CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71149

WIRE, FRONT SEAT CUSHION CONNECTING

71324A

CUSHION, REAR SEAT

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71524

PAD, FRONT SEAT CUSHION SILENCER, D

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705B

CAP(FOR FRONT SEAT BACK BOARD)

71750A

TRAY ASSY, FRONT SEAT UNDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7264136010

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72830E

ARMREST ASSY, FRONT SEAT

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78077B

BOARD SUB-ASSY, SUB SEAT CUSHION, RH

78078

BOARD SUB-ASSY, SUB SEAT CUSHION, LH

78701

FRAME SUB-ASSY, SUB SEAT CUSHION, RH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703A

FRAME SUB-ASSY, SUB SEAT BACK, RH

78703B

FRAME SUB-ASSY, SUB SEAT BACK, LH

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78708

FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH

78715

PANEL, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78730

CUSHION ASSY, SUB SEAT, LH

78735A

PAD, SUB SEAT CUSHION, RH

78735B

PAD, SUB SEAT CUSHION, LH

7873890B00

Крепеж

78740A

BACK ASSY, SUB SEAT, RH

78750A

BACK ASSY, SUB SEAT, LH

78773

COVER, SUB SEAT HINGE, RH

78773A

HOOP, SUB SEAT BACK GUIDE

78775A

PAD, SUB SEAT BACK, RH

78775B

PAD, SUB SEAT BACK, LH

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011905008

Крепеж

9011908079

Крепеж

9011908080

Крепеж

9011908301

Крепеж

9011910037

Крепеж

9011910428

Крепеж

9016740044

Крепеж

9017608039

Крепеж

9017905004

Крепеж

9020208039

Крепеж

9020214007

Крепеж

9024008044

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038612051

Крепеж

9038908037

Крепеж

9038910008

Крепеж

9046816012

Крепеж

9052001274

Крепеж

9056010026

Крепеж

9165140620

Крепеж

9165160830

Крепеж

9165161040

Крепеж

91651B0820

Крепеж

9166540616

Крепеж

9321915014

Крепеж

9353014025

Крепеж

9356013520

Крепеж

9356054012

Крепеж

9412041000

Крепеж

9454201400

Крепеж

9454301200

Крепеж

9461210800

Крепеж

9461410400

Крепеж

9616000600

Крепеж

Код

Описание

55560D

LOCK ASSY, SEAT UNDER TRAY

66990

HOLDER ASSY, CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71108B

LEG SUB-ASSY, FRONT SEAT, RH

71149

WIRE, FRONT SEAT CUSHION CONNECTING

71324A

CUSHION, REAR SEAT

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71524

PAD, FRONT SEAT CUSHION SILENCER, D

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705B

CAP(FOR FRONT SEAT BACK BOARD)

71750A

TRAY ASSY, FRONT SEAT UNDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7264136010

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72830E

ARMREST ASSY, FRONT SEAT

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78077B

BOARD SUB-ASSY, SUB SEAT CUSHION, RH

78078

BOARD SUB-ASSY, SUB SEAT CUSHION, LH

78701

FRAME SUB-ASSY, SUB SEAT CUSHION, RH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703A

FRAME SUB-ASSY, SUB SEAT BACK, RH

78703B

FRAME SUB-ASSY, SUB SEAT BACK, LH

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78708

FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH

78715

PANEL, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78730

CUSHION ASSY, SUB SEAT, LH

78735A

PAD, SUB SEAT CUSHION, RH

78735B

PAD, SUB SEAT CUSHION, LH

7873890B00

Крепеж

78740A

BACK ASSY, SUB SEAT, RH

78750A

BACK ASSY, SUB SEAT, LH

78773

COVER, SUB SEAT HINGE, RH

78773A

HOOP, SUB SEAT BACK GUIDE

78775A

PAD, SUB SEAT BACK, RH

78775B

PAD, SUB SEAT BACK, LH

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011905008

Крепеж

9011908079

Крепеж

9011908080

Крепеж

9011908301

Крепеж

9011910037

Крепеж

9011910428

Крепеж

9016740044

Крепеж

9017608039

Крепеж

9017905004

Крепеж

9020208039

Крепеж

9020214007

Крепеж

9024008044

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038612051

Крепеж

9038908037

Крепеж

9038910008

Крепеж

9046816012

Крепеж

9052001274

Крепеж

9056010026

Крепеж

9165140620

Крепеж

9165160830

Крепеж

9165161040

Крепеж

91651B0820

Крепеж

9166540616

Крепеж

9321915014

Крепеж

9353014025

Крепеж

9356013520

Крепеж

9356054012

Крепеж

9412041000

Крепеж

9454201400

Крепеж

9454301200

Крепеж

9461210800

Крепеж

9461410400

Крепеж

9616000600

Крепеж

Код

Описание

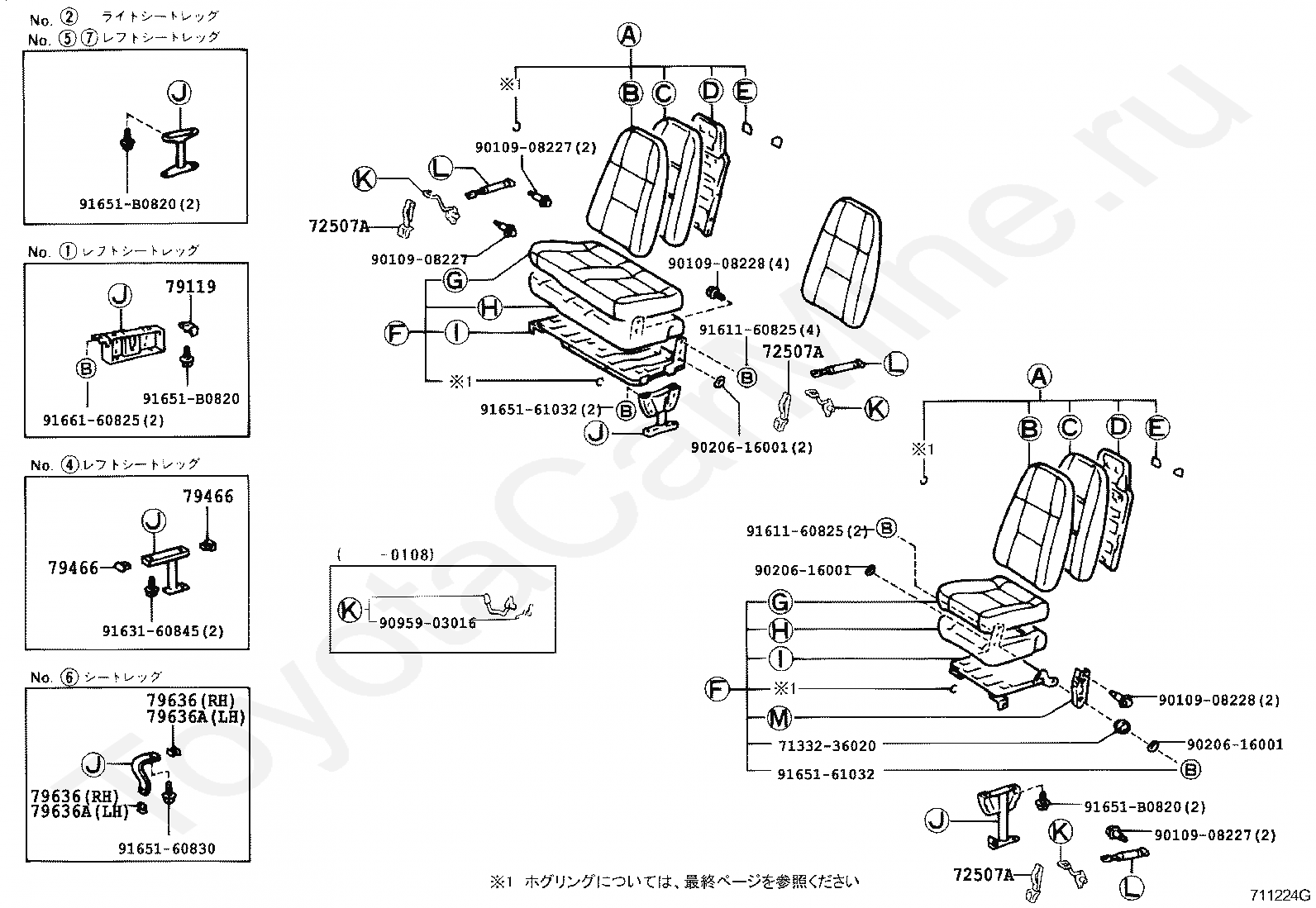

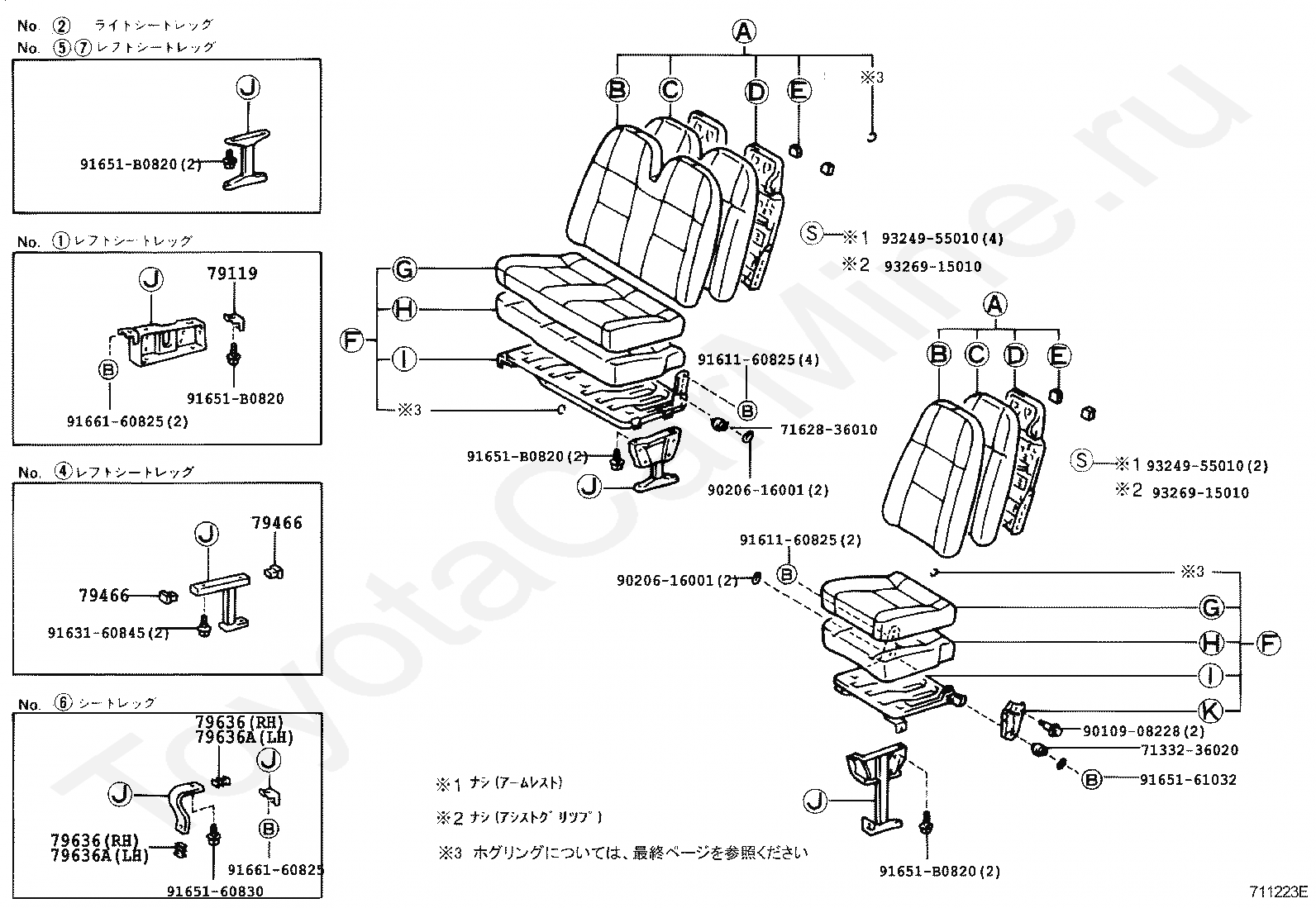

7133236020

Крепеж

7162836010

Крепеж

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

9010908228

Крепеж

9020616001

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9324955010

Крепеж

9326915010

Крепеж

Код

Описание

7133236020

Крепеж

7162836010

Крепеж

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

9010908228

Крепеж

9020616001

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9324955010

Крепеж

9326915010

Крепеж

Код

Описание

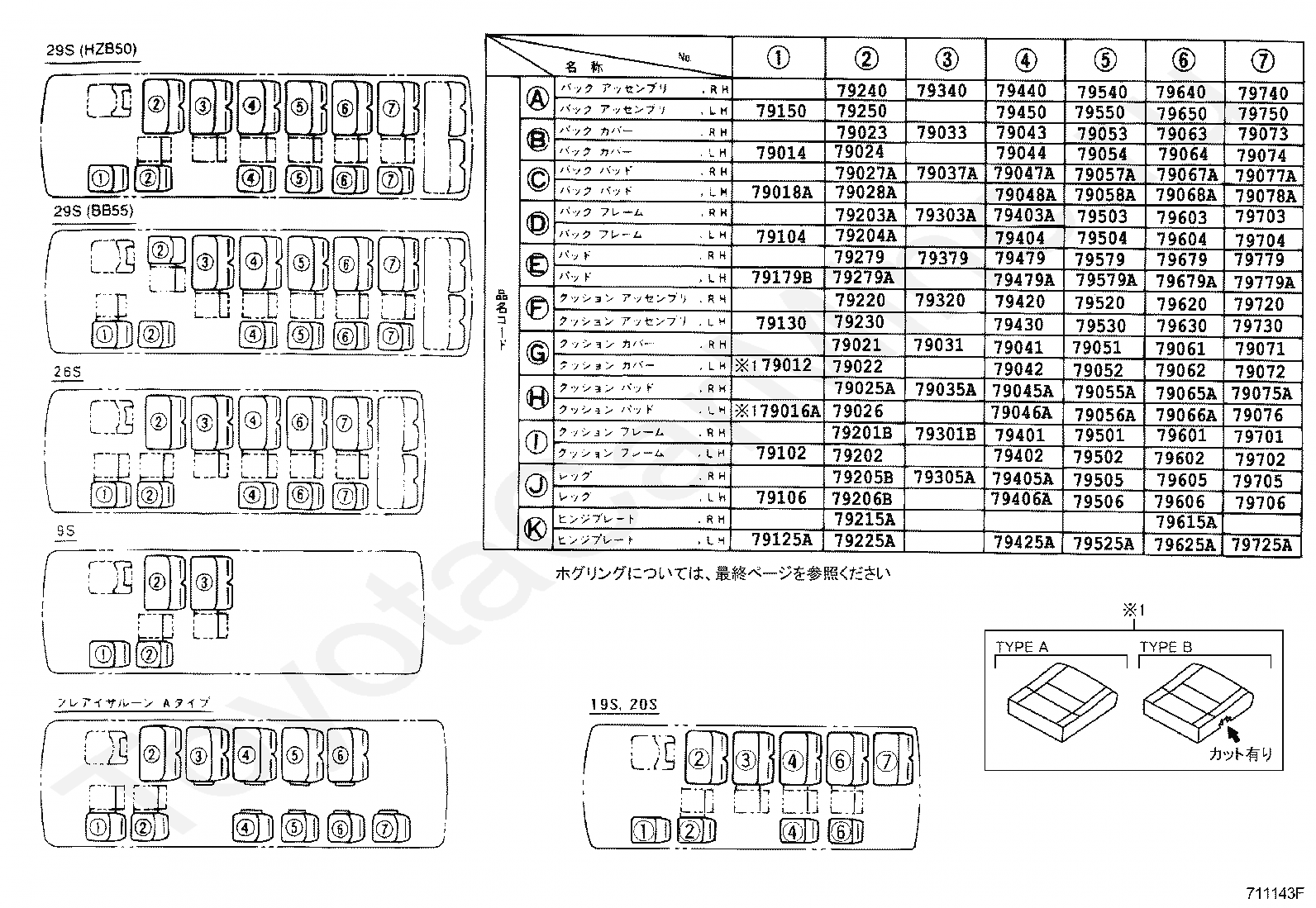

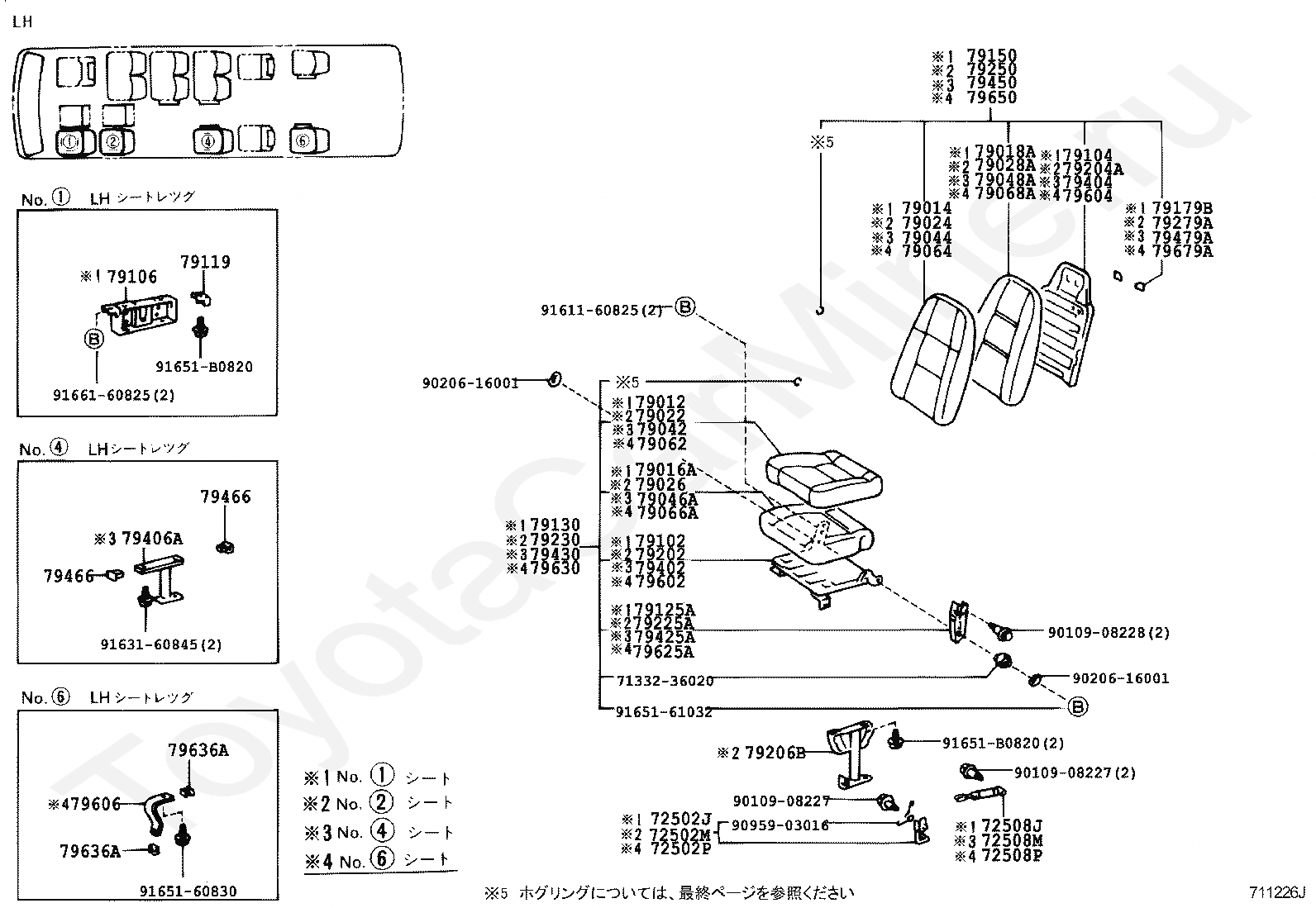

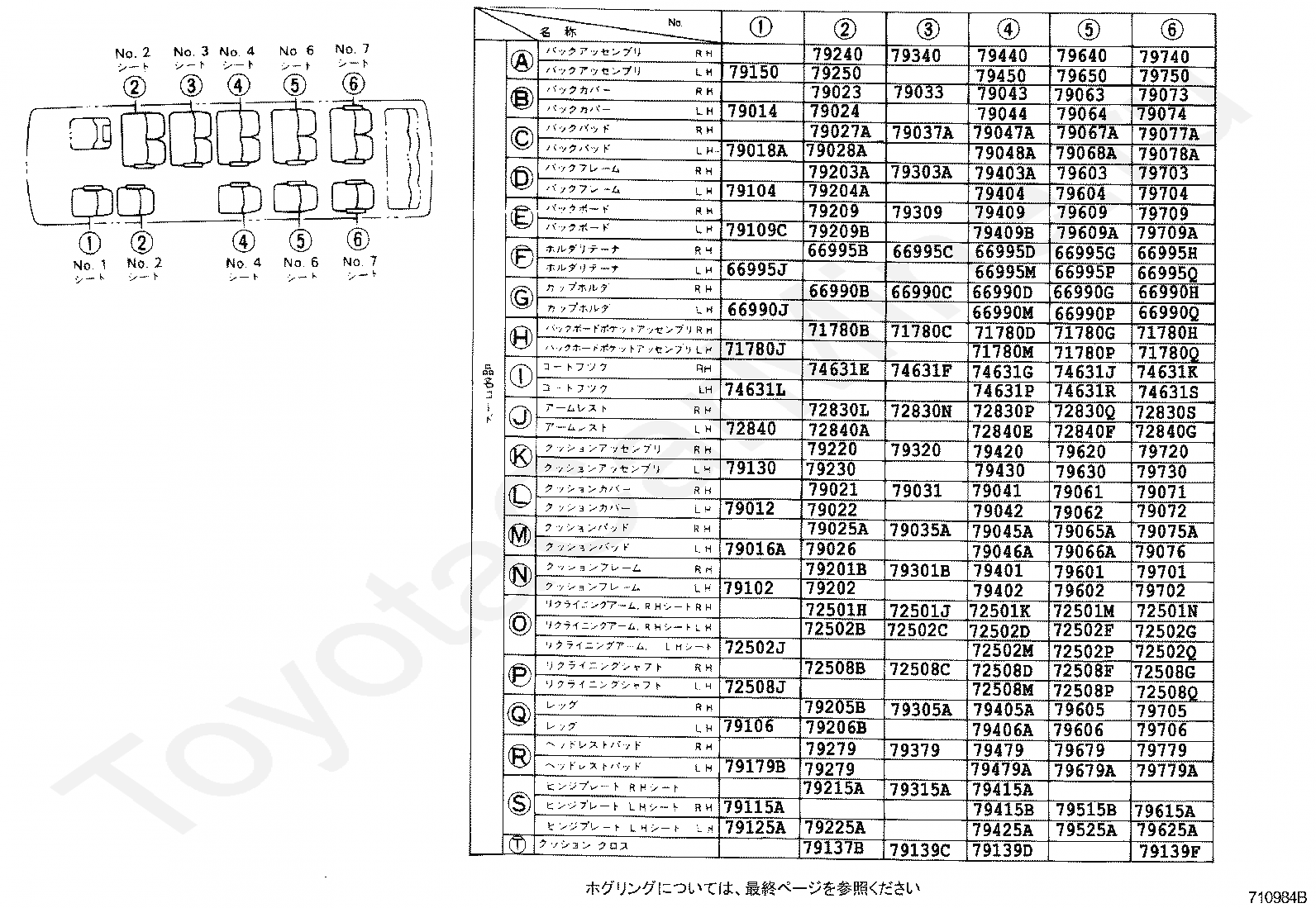

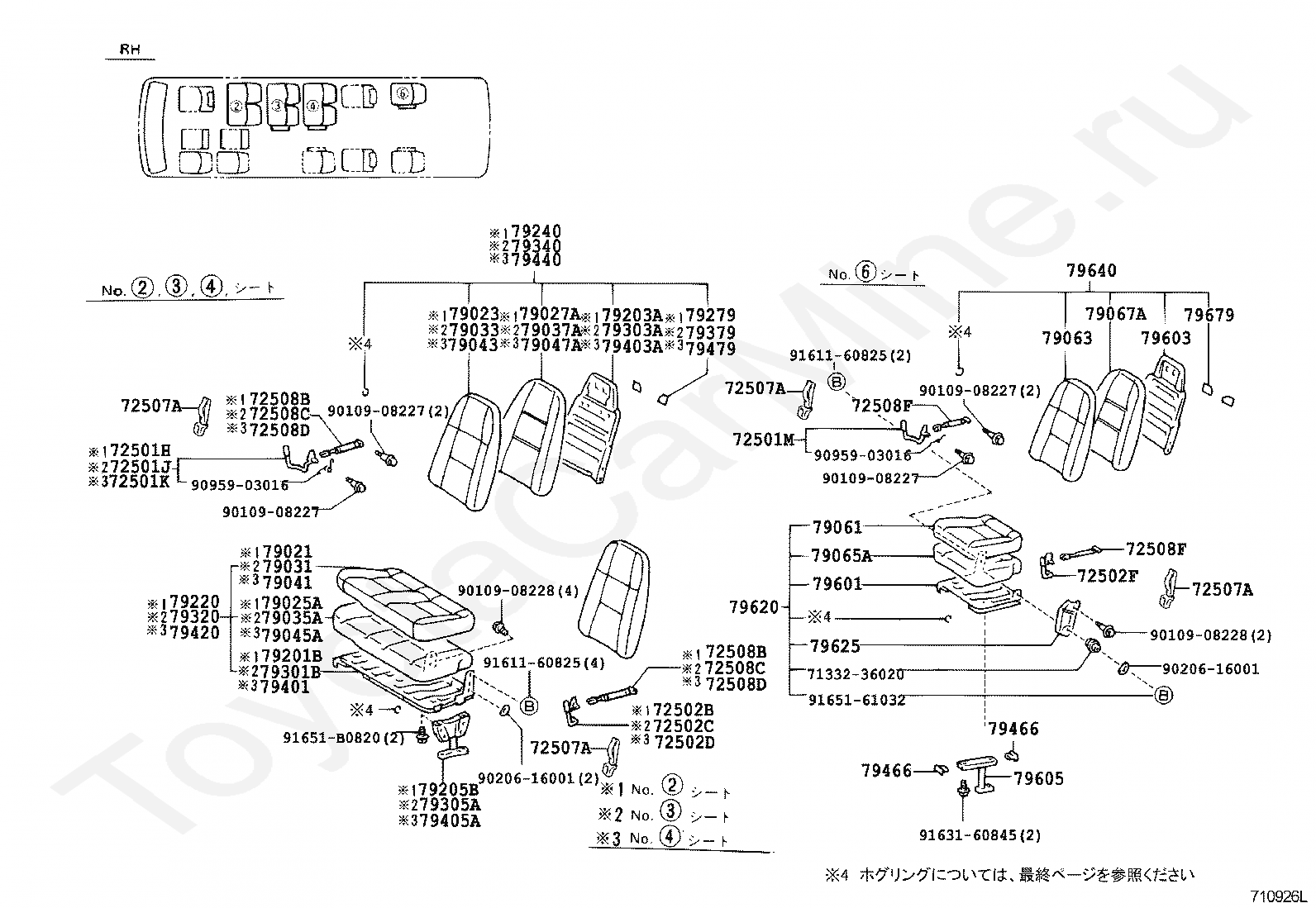

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79215A

PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79279

PAD, NO.2 SEAT BACK HEADREST

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

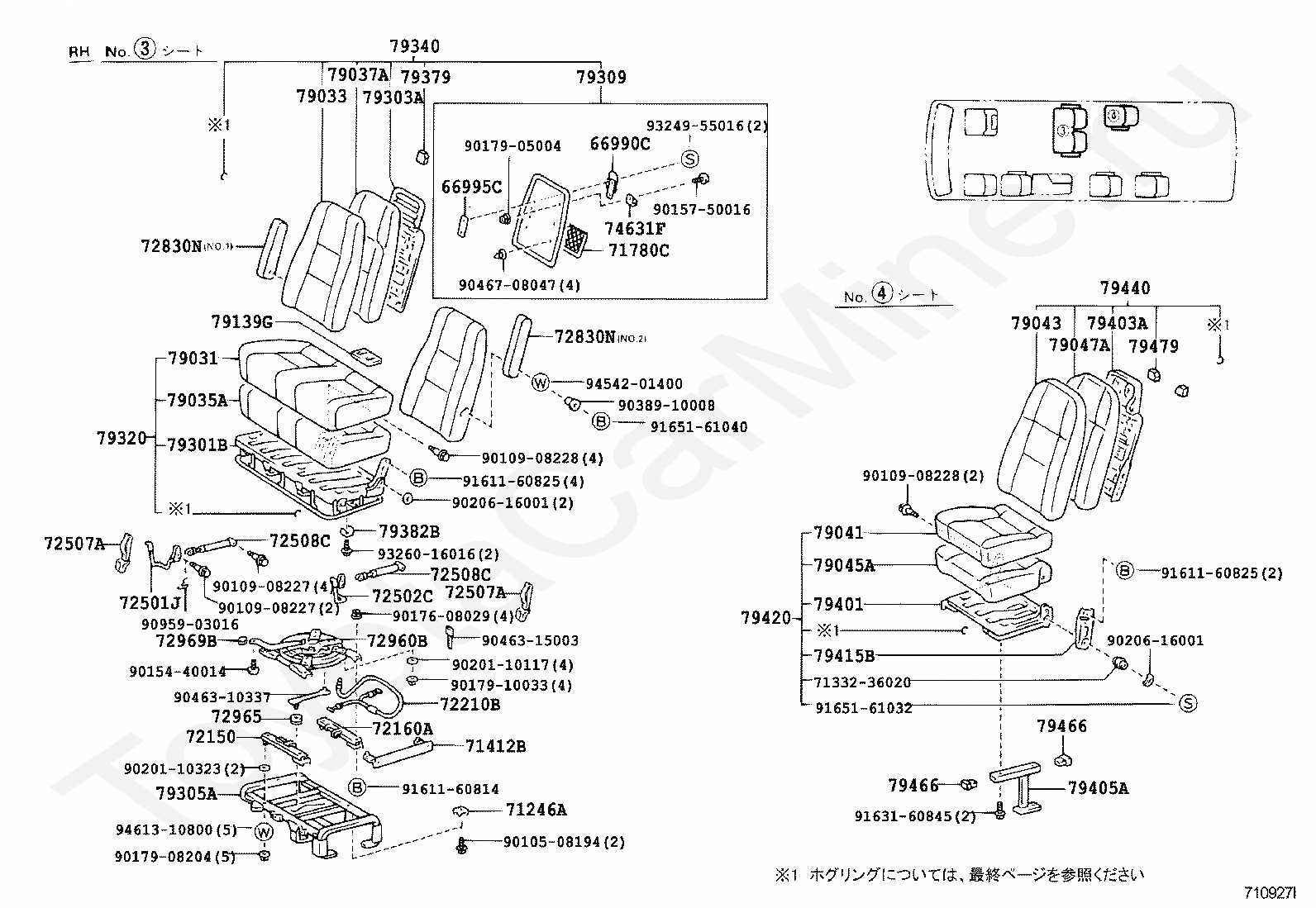

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79420

CUSHION ASSY, NO.4 SEAT, RH

79425A

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79520

CUSHION ASSY, NO.5 SEAT, RH

79525A

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 LH

79530

CUSHION ASSY, NO.5 SEAT, LH

79540

BACK ASSY, NO.5 SEAT, RH

79550

BACK ASSY, NO.5 SEAT, LH

79579

PAD, NO.5 SEAT BACK HEADREST, RH

79579A

PAD, NO.5 SEAT BACK HEADREST, LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79620

CUSHION ASSY, NO.6 SEAT, RH

79625A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

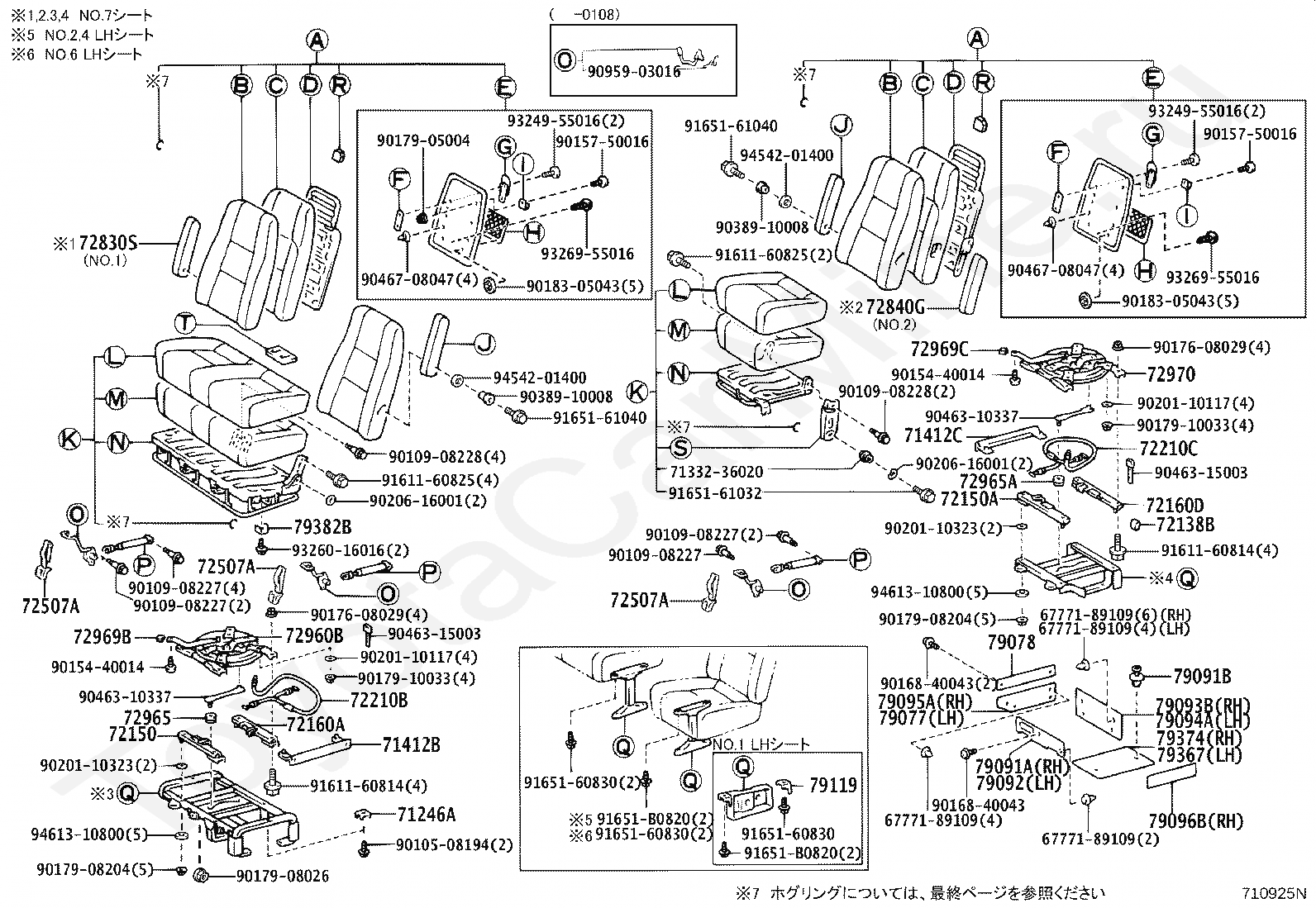

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79720

CUSHION ASSY, NO.7 SEAT, RH

79725A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79779

PAD, NO.7 SEAT BACK HEADREST, RH

79779A

PAD, NO.7 SEAT BACK HEADREST, LH

Код

Описание

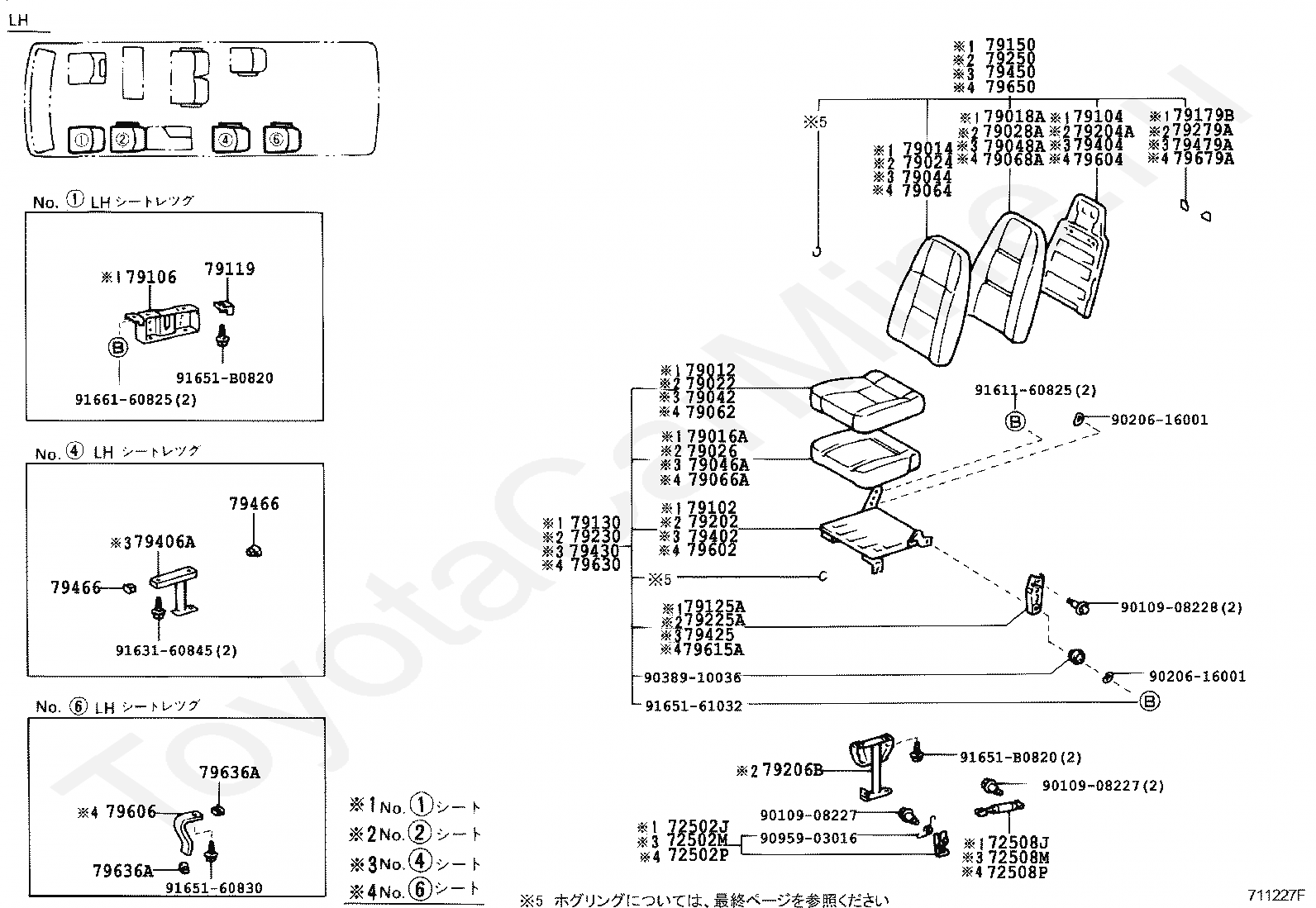

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79215A

PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79279

PAD, NO.2 SEAT BACK HEADREST

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79420

CUSHION ASSY, NO.4 SEAT, RH

79425A

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79520

CUSHION ASSY, NO.5 SEAT, RH

79525A

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 LH

79530

CUSHION ASSY, NO.5 SEAT, LH

79540

BACK ASSY, NO.5 SEAT, RH

79550

BACK ASSY, NO.5 SEAT, LH

79579

PAD, NO.5 SEAT BACK HEADREST, RH

79579A

PAD, NO.5 SEAT BACK HEADREST, LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79620

CUSHION ASSY, NO.6 SEAT, RH

79625A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79720

CUSHION ASSY, NO.7 SEAT, RH

79725A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79779

PAD, NO.7 SEAT BACK HEADREST, RH

79779A

PAD, NO.7 SEAT BACK HEADREST, LH

Код

Описание

7133236020

Крепеж

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

9010908227

Крепеж

9010908228

Крепеж

9020616001

Крепеж

9095903016

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

Код

Описание

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501L

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502E

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502G

ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502N

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508E

SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508N

SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79115A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79215A

PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79279

PAD, NO.2 SEAT BACK HEADREST

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79415B

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH

79420

CUSHION ASSY, NO.4 SEAT, RH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79515B

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH

79520

CUSHION ASSY, NO.5 SEAT, RH

79530

CUSHION ASSY, NO.5 SEAT, LH

79540

BACK ASSY, NO.5 SEAT, RH

79550

BACK ASSY, NO.5 SEAT, LH

79579

PAD, NO.5 SEAT BACK HEADREST, RH

79579A

PAD, NO.5 SEAT BACK HEADREST, LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79620

CUSHION ASSY, NO.6 SEAT, RH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79715A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH

79720

CUSHION ASSY, NO.7 SEAT, RH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79779

PAD, NO.7 SEAT BACK HEADREST, RH

79779A

PAD, NO.7 SEAT BACK HEADREST, LH

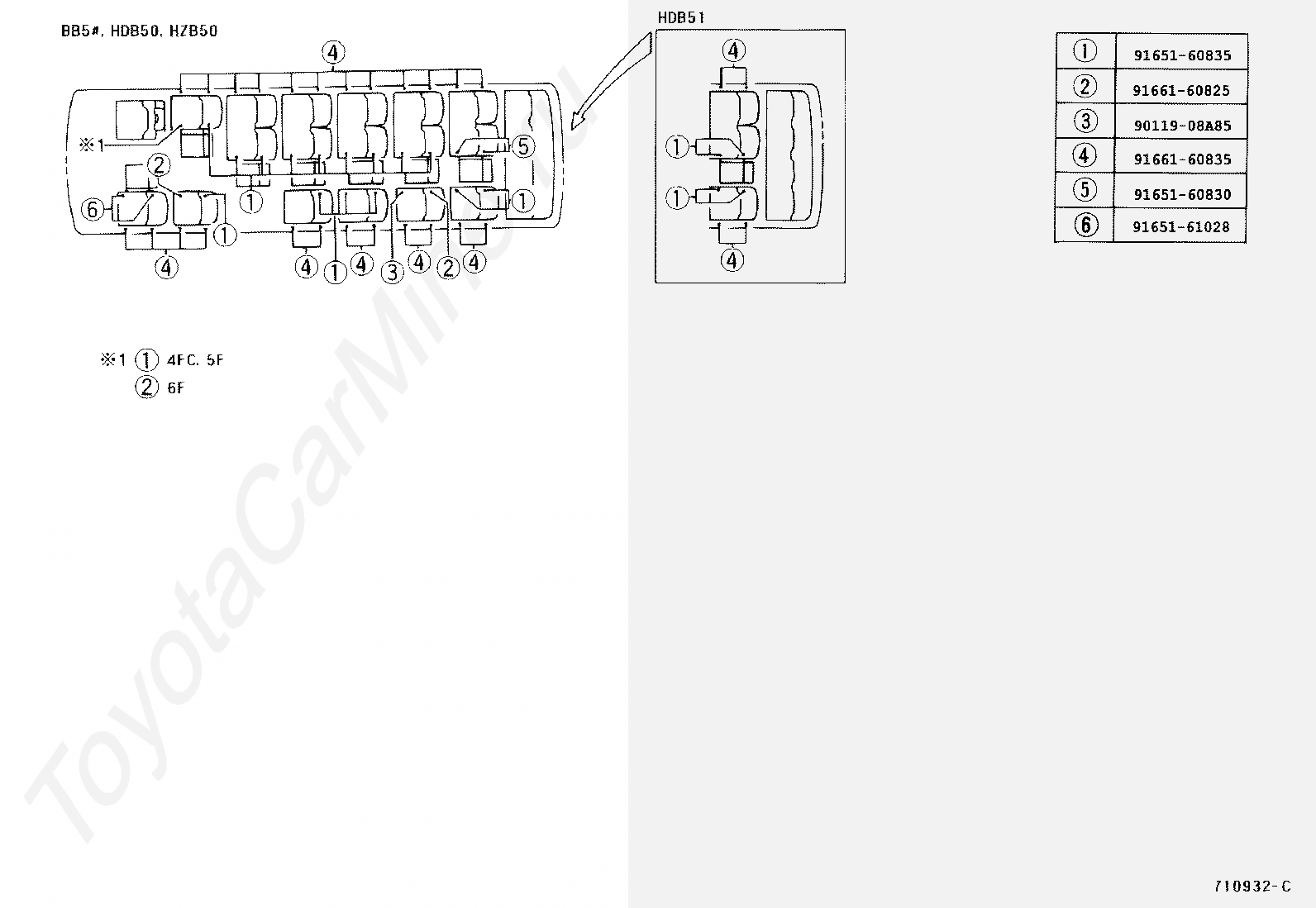

Код

Описание

7133236020

Крепеж

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

79119

BRACKET, NO.1 SEAT LEG, NO.2

79466

COVER, NO.4 SEAT LEG, NO.1

79636

COVER, NO.6 SEAT LEG, RH

79636A

COVER, NO.6 SEAT LEG, LH

79736D

COVER, NO.7 SEAT LEG, LH

9010908227

Крепеж

9010908228

Крепеж

9015750016

Крепеж

9017905042

Крепеж

9018305043

Крепеж

9020616001

Крепеж

9046708047

Крепеж

9054010022

Крепеж

9095903016

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

9324955016

Крепеж

9326955016

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990F

HOLDER ASSY, CUP, NO.5 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

66990J

HOLDER ASSY, CUP, NO.1 LH

66990M

HOLDER ASSY, CUP, NO.4 LH

66990N

HOLDER ASSY, CUP, NO.5 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

66995B

RETAINER, CUP HOLDER, NO.2 RH

66995C

RETAINER, CUP HOLDER, NO.3 RH

66995D

RETAINER, CUP HOLDER, NO.4 RH

66995F

RETAINER, CUP HOLDER, NO.5 RH

66995G

RETAINER, CUP HOLDER, NO.6 RH

66995H

RETAINER, CUP HOLDER, NO.7 RH

66995J

RETAINER, CUP HOLDER, NO.1 LH

66995M

RETAINER, CUP HOLDER, NO.4 LH

66995N

RETAINER, CUP HOLDER, NO.5 LH

66995P

RETAINER, CUP HOLDER, NO.6 LH

66995Q

RETAINER, CUP HOLDER, NO.7 LH

71780B

POCKET ASSY, SEAT BACK BOARD, NO.2 RH

71780C

POCKET ASSY, SEAT BACK BOARD, NO.3 RH

71780D

POCKET ASSY, SEAT BACK BOARD, NO.4 RH

71780F

POCKET ASSY, SEAT BACK BOARD, NO.5 RH

71780G

POCKET ASSY, SEAT BACK BOARD, NO.6 RH

71780H

POCKET ASSY, SEAT BACK BOARD, NO.7 RH

71780J

POCKET ASSY, SEAT BACK BOARD, NO.1 LH

71780M

POCKET ASSY, SEAT BACK BOARD, NO.4 LH

71780N

POCKET ASSY, SEAT BACK BOARD, NO.5 LH

71780P

POCKET ASSY, SEAT BACK BOARD, NO.6 LH

71780Q

POCKET ASSY, SEAT BACK BOARD, NO.7 LH

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501L

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502E

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502G

ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502N

ARM SUB-ASSY, NO.5 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508E

SHAFT SUB-ASSY, NO.5 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508N

SHAFT SUB-SEAT, NO.5 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

74631E

HOOK, COAT, NO.2 RH

74631F

HOOK, COAT, NO.3 RH

74631G

HOOK, COAT, NO.4 RH

74631H

HOOK, COAT, NO.5 RH

74631J

HOOK, COAT, NO.6 RH

74631K

HOOK, COAT, NO.7 RH

74631L

HOOK, COAT, NO.1 LH

74631P

HOOK, COAT, NO.4 LH

74631Q

HOOK, COAT, NO.5 LH

74631R

HOOK, COAT, NO.6 LH

74631S

HOOK, COAT, NO.7 LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79051

COVER SUB-ASSY, NO.5 SEAT CUSHION, RH

79052

COVER SUB-ASSY, NO.5 SEAT CUSHION, LH

79053

COVER SUB-ASSY, NO.5 SEAT BACK, RH

79054

COVER SUB-ASSY, NO.5 SEAT BACK, LH

79055A

PAD SUB-ASSY, NO.5 SEAT CUSHION, RH

79056A

PAD SUB-ASSY, NO.5 SEAT CUSHION, LH

79057A

PAD SUB-ASSY, NO.5 SEAT BACK, RH

79058A

PAD SUB-ASSY, NO.5 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109C

BOARD SUB-ASSY, NO.1 SEAT BACK, LH

79115A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79137B

COVER, NO.3 SEAT HINGE

79139C

CLOTH, NO.3 SEAT CUSHION

79139D

CLOTH, NO.4 SEAT CUSHION

79139F

CLOTH, NO.6 SEAT CUSHION

79139G

CLOTH, NO.7 SEAT CUSHION

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79209B

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79215A

PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79279

PAD, NO.2 SEAT BACK HEADREST

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79315A

PLATE, NO.3 SEAT CUSHION HINGE, NO.1 RH

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79409

BOARD SUB-ASSY, NO.4 SEAT BACK

79409B

BOARD SUB-ASSY, NO.4 SEAT BACK, LH

79415A

PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH

79415B

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH

79415C

PLATE, NO.1 SEAT CUSHION HINGE, RH

79420

CUSHION ASSY, NO.4 SEAT, RH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79501

FRAME SUB-ASSY, NO.5 SEAT CUSHION, RH

79502

FRAME SUB-ASSY, NO.5 SEAT CUSHION, LH

79503

FRAME SUB-ASSY, NO.5 SEAT BACK, RH

79504

FRAME SUB-ASSY, NO.5 SEAT BACK, LH

79505

LEG SUB-ASSY, NO.5 SEAT, RH

79506

LEG SUB-ASSY, NO.5 SEAT, LH

79509

BOARD SUB-ASSY, NO.5 SEAT BACK, RH

79509A

BOARD SUB-ASSY, NO.5 SEAT BACK, LH

79515B

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH

79520

CUSHION ASSY, NO.5 SEAT, RH

79530

CUSHION ASSY, NO.5 SEAT, LH

79540

BACK ASSY, NO.5 SEAT, RH

79550

BACK ASSY, NO.5 SEAT, LH

79579

PAD, NO.5 SEAT BACK HEADREST, RH

79579A

PAD, NO.5 SEAT BACK HEADREST, LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79609

BOARD SUB-ASSY, NO.6 SEAT BACK, RH

79609A

BOARD SUB-ASSY, NO.6 SEAT BACK, LH

79615

PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79620

CUSHION ASSY, NO.6 SEAT, RH

79625A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79709

BOARD SUB-ASSY, NO.7 SEAT BACK, RH

79709A

BOARD SUB-ASSY, NO.7 SEAT BACK, LH

79715

PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH

79715A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH

79720

CUSHION ASSY, NO.7 SEAT, RH

79725A

PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79779

PAD, NO.7 SEAT BACK HEADREST, RH

79779A

PAD, NO.7 SEAT BACK HEADREST, LH

Код

Описание

6777189109

Крепеж

71246A

PLATE, REAR SEAT CUSHION SET

7133236020

Крепеж

71412B

PLATE, NO.7 REAR SEAT SIDE, NO.1

71412C

PLATE, NO.7 REAR SEAT SIDE, NO.2

72138B

COVER, SEAT TRACK, LH

72150

TRACK ASSY, REAR SEAT, RH

72150A

TRACK ASSY, REAR SEAT, RH

72160A

TRACK ASSY, REAR SEAT, LH

72160D

TRACK ASSY, REAR SEAT, LH

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72210C

CABLE ASSY, SEAT TRACK CONTROL, LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72830S

ARMREST ASSY, NO.7 SEAT, NO.2 RH

72840G

ARMREST ASSY, NO.7 SEAT, NO.1 LH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72965

ROLLER, REAR SEAT TURN GUIDE, RH

72965A

ROLLER, REAR SEAT TURN GUIDE, LH

72969B

KNOB, REAR SEAT TURN LOCK, RH

72969C

KNOB, REAR SEAT TURN LOCK, LH

72970

TABLE ASSY, REAR SEAT TURN, LH

79077

COVER SUB-ASSY, NO.7 SEAT LEG, NO.1

79078

COVER SUB-ASSY, NO.7 SEAT LEG, NO.2

79091A

GARNISH SUB-ASSY, REAR SEAT LEG SIDE

79091B

CLIP, REAR SEAT LEG SIDE GARNISH

79092

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.2

79093B

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.3

79094A

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.4

79095A

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.5

79096B

GARNISH SUB-ASSY, REAR SEAT LEG SIDE, NO.6

79119

BRACKET, NO.1 SEAT LEG, NO.2

79367

COVER, NO.3 SEAT LEG, NO.2

79374

COVER, NO.3 SEAT LEG, REAR RH

79382B

COVER, NO.2 SEAT FRONT BRACKET, LH

9010508194

Крепеж

9010908227

Крепеж

9010908228

Крепеж

9015440014

Крепеж

9015750016

Крепеж

9016840043

Крепеж

9017608029

Крепеж

9017905004

Крепеж

9017908026

Крепеж

9017908204

Крепеж

9017910033

Крепеж

9018305043

Крепеж

9020110117

Крепеж

9020110323

Крепеж

9020616001

Крепеж

9038910008

Крепеж

9046310337

Крепеж

9046315003

Крепеж

9046708047

Крепеж

9095903016

Крепеж

9161160814

Крепеж

9161160825

Крепеж

9165160830

Крепеж

9165161032

Крепеж

9165161040

Крепеж

91651B0820

Крепеж

9324955016

Крепеж

9326016016

Крепеж

9326955016

Крепеж

9454201400

Крепеж

9461310800

Крепеж

Код

Описание

66990B

HOLDER ASSY, CUP, NO.2 RH

66990C

HOLDER ASSY, CUP, NO.3 RH

66990D

HOLDER ASSY, CUP, NO.4 RH

66990G

HOLDER ASSY, CUP, NO.6 RH

66990H

HOLDER ASSY, CUP, NO.7 RH

66990J

HOLDER ASSY, CUP, NO.1 LH

66990M

HOLDER ASSY, CUP, NO.4 LH

66990P

HOLDER ASSY, CUP, NO.6 LH

66990Q

HOLDER ASSY, CUP, NO.7 LH

66995B

RETAINER, CUP HOLDER, NO.2 RH

66995C

RETAINER, CUP HOLDER, NO.3 RH

66995D

RETAINER, CUP HOLDER, NO.4 RH

66995G

RETAINER, CUP HOLDER, NO.6 RH

66995H

RETAINER, CUP HOLDER, NO.7 RH

66995J

RETAINER, CUP HOLDER, NO.1 LH

66995M

RETAINER, CUP HOLDER, NO.4 LH

66995P

RETAINER, CUP HOLDER, NO.6 LH

66995Q

RETAINER, CUP HOLDER, NO.7 LH

71780B

POCKET ASSY, SEAT BACK BOARD, NO.2 RH

71780C

POCKET ASSY, SEAT BACK BOARD, NO.3 RH

71780D

POCKET ASSY, SEAT BACK BOARD, NO.4 RH

71780G

POCKET ASSY, SEAT BACK BOARD, NO.6 RH

71780H

POCKET ASSY, SEAT BACK BOARD, NO.7 RH

71780J

POCKET ASSY, SEAT BACK BOARD, NO.1 LH

71780M

POCKET ASSY, SEAT BACK BOARD, NO.4 LH

71780P

POCKET ASSY, SEAT BACK BOARD, NO.6 LH

71780Q

POCKET ASSY, SEAT BACK BOARD, NO.7 LH

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501N

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502G

ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502Q

ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

72508G

SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

72508Q

SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH

72830L

ARMREST ASSY, REAR NO.2 SEAT, RH

72830N

ARMREST ASSY, NO.3 SEAT, RH

72830P

ARMREST ASSY, NO.4 SEAT, RH

72830Q

ARMREST ASSY, NO.6 SEAT, RH

72830S

ARMREST ASSY, NO.7 SEAT, NO.2 RH

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72840A

ARMREST ASSY, REAR NO.2 SEAT, LH

72840E

ARMREST ASSY, NO.4 SEAT, LH

72840F

ARMREST ASSY, NO.6 SEAT, LH

72840G

ARMREST ASSY, NO.7 SEAT, NO.1 LH

74631E

HOOK, COAT, NO.2 RH

74631F

HOOK, COAT, NO.3 RH

74631G

HOOK, COAT, NO.4 RH

74631J

HOOK, COAT, NO.6 RH

74631K

HOOK, COAT, NO.7 RH

74631L

HOOK, COAT, NO.1 LH

74631P

HOOK, COAT, NO.4 LH

74631R

HOOK, COAT, NO.6 LH

74631S

HOOK, COAT, NO.7 LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076

PAD SUB-ASSY, NO.7 SEAT CUSHION, LH

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109C

BOARD SUB-ASSY, NO.1 SEAT BACK, LH

79115A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79137B

COVER, NO.3 SEAT HINGE

79139C

CLOTH, NO.3 SEAT CUSHION

79139D

CLOTH, NO.4 SEAT CUSHION

79139F

CLOTH, NO.6 SEAT CUSHION

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79209

BOARD SUB-ASSY, NO.2 SEAT BACK

79209B

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79215A

PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79279

PAD, NO.2 SEAT BACK HEADREST

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79315A

PLATE, NO.3 SEAT CUSHION HINGE, NO.1 RH

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79409

BOARD SUB-ASSY, NO.4 SEAT BACK

79409B

BOARD SUB-ASSY, NO.4 SEAT BACK, LH

79415A

PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH

79415B

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH

79420

CUSHION ASSY, NO.4 SEAT, RH

79425A

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79515B

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 RH

79525A

PLATE, NO.5 SEAT CUSHION HINGE, NO.2 LH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79609

BOARD SUB-ASSY, NO.6 SEAT BACK, RH

79609A

BOARD SUB-ASSY, NO.6 SEAT BACK, LH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79620

CUSHION ASSY, NO.6 SEAT, RH

79625A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

79701

FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH

79702

FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH

79703

FRAME SUB-ASSY, NO.7 SEAT BACK, RH

79704

FRAME SUB-ASSY, NO.7 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79709

BOARD SUB-ASSY, NO.7 SEAT BACK, RH

79709A

BOARD SUB-ASSY, NO.7 SEAT BACK, LH

79720

CUSHION ASSY, NO.7 SEAT, RH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79779

PAD, NO.7 SEAT BACK HEADREST, RH

79779A

PAD, NO.7 SEAT BACK HEADREST, LH

Код

Описание

7133236020

Крепеж

72501H

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501K

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72501M

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502B

ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502D

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72502F

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72508B

SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72508D

SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH

72508F

SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79240

BACK ASSY, NO.2 SEAT, RH

79279

PAD, NO.2 SEAT BACK HEADREST

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79420

CUSHION ASSY, NO.4 SEAT, RH

79440

BACK ASSY, NO.4 SEAT, RH

79466

COVER, NO.4 SEAT LEG, NO.1

79479

PAD, NO.4 SEAT BACK HEADREST, RH

79601

FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH

79603

FRAME SUB-ASSY, NO.6 SEAT BACK, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79620

CUSHION ASSY, NO.6 SEAT, RH

79625

PLATE, NO.6 SEAT CUSHION HINGE, NO.1 LH

79640

BACK ASSY, NO.6 SEAT, RH

79679

PAD, NO.6 SEAT BACK HEADREST, RH

9010908227

Крепеж

9010908228

Крепеж

9020616001

Крепеж

9095903016

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

Код

Описание

7133236020

Крепеж

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79119

BRACKET, NO.1 SEAT LEG, NO.2

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79250

BACK ASSY, NO.2 SEAT, LH

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79425A

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH

79430

CUSHION ASSY, NO.4 SEAT, LH

79450

BACK ASSY, NO.4 SEAT, LH

79466

COVER, NO.4 SEAT LEG, NO.1

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79625A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH

79630

CUSHION ASSY, NO.6 SEAT, LH

79636A

COVER, NO.6 SEAT LEG, LH

79650

BACK ASSY, NO.6 SEAT, LH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

9010908227

Крепеж

9010908228

Крепеж

9020616001

Крепеж

9095903016

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

Код

Описание

66990C

HOLDER ASSY, CUP, NO.3 RH

66995C

RETAINER, CUP HOLDER, NO.3 RH

71246A

PLATE, REAR SEAT CUSHION SET

7133236020

Крепеж

71412B

PLATE, NO.7 REAR SEAT SIDE, NO.1

71780C

POCKET ASSY, SEAT BACK BOARD, NO.3 RH

72150

TRACK ASSY, REAR SEAT, RH

72160A

TRACK ASSY, REAR SEAT, LH

72210B

CABLE ASSY, SEAT TRACK CONTROL, RH

72501J

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 RH

72502C

ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72508C

SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH

72830N

ARMREST ASSY, NO.3 SEAT, RH

72960B

TABLE ASSY, REAR SEAT TURN, RH

72965

ROLLER, REAR SEAT TURN GUIDE, RH

72969B

KNOB, REAR SEAT TURN LOCK, RH

74631F

HOOK, COAT, NO.3 RH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79139G

CLOTH, NO.7 SEAT CUSHION

79301B

FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79379

PAD, NO.3 SEAT BACK HEADREST

79382B

COVER, NO.2 SEAT FRONT BRACKET, LH

79401

FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH

79403A

FRAME SUB-ASSY, NO.4 SEAT BACK, RH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79415B

PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH

79420

CUSHION ASSY, NO.4 SEAT, RH

79440

BACK ASSY, NO.4 SEAT, RH

79466

COVER, NO.4 SEAT LEG, NO.1

79479

PAD, NO.4 SEAT BACK HEADREST, RH

9010508194

Крепеж

9010908227

Крепеж

9010908228

Крепеж

9015440014

Крепеж

9015750016

Крепеж

9017608029

Крепеж

9017905004

Крепеж

9017908204

Крепеж

9017910033

Крепеж

9020110117

Крепеж

9020110323

Крепеж

9020616001

Крепеж

9038910008

Крепеж

9046310337

Крепеж

9046315003

Крепеж

9046708047

Крепеж

9095903016

Крепеж

9161160814

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165161032

Крепеж

9165161040

Крепеж

9324955016

Крепеж

9326016016

Крепеж

9454201400

Крепеж

9461310800

Крепеж

Код

Описание

72502J

ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502M

ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72502P

ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 LH

72508J

SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH

72508M

SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH

72508P

SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79026

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79119

BRACKET, NO.1 SEAT LEG, NO.2

79125A

PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79179B

PAD, NO.1 SEAT BACK HEADREST, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79225A

PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH

79230

CUSHION ASSY, NO.2 SEAT, LH

79250

BACK ASSY, NO.2 SEAT, LH

79279A

PAD, NO.1 SEAT BACK HEADREST, LH

79402

FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH

79404

FRAME SUB-ASSY, NO.4 SEAT BACK, LH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79425

PLATE, NO.4 SEAT CUSHION HINGE, NO.1 LH

79430

CUSHION ASSY, NO.4 SEAT, LH

79450

BACK ASSY, NO.4 SEAT, LH

79466

COVER, NO.4 SEAT LEG, NO.1

79479A

PAD, NO.4 SEAT BACK HEADREST, LH

79602

FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH

79604

FRAME SUB-ASSY, NO.6 SEAT BACK, LH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79615A

PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH

79630

CUSHION ASSY, NO.6 SEAT, LH

79636A

COVER, NO.6 SEAT LEG, LH

79650

BACK ASSY, NO.6 SEAT, LH

79679A

PAD, NO.6 SEAT BACK HEADREST, LH

9010908227

Крепеж

9010908228

Крепеж

9020616001

Крепеж

9038910036

Крепеж

9095903016

Крепеж

9161160825

Крепеж

9163160845

Крепеж

9165160830

Крепеж

9165161032

Крепеж

91651B0820

Крепеж

9166160825

Крепеж

Код

Описание

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79820A

CUSHION ASSY, NO.8 SEAT

79840

BACK ASSY, NO.8 SEAT, RH

79850

BACK ASSY, NO.8 SEAT, LH

79860

SPRING ASSY, NO.8 SEAT CUSHION

79915

BRACKET, SEAT LEG

79974

BRACKET, SEAT BACK ASSIST, RH

79984

BRACKET, SEAT BACK ASSIST, LH

9010908145

Крепеж

9015960536

Крепеж

9017910033

Крепеж

9165160835

Крепеж

9165161020

Крепеж

9165161030

Крепеж

9361053520

Крепеж

Код

Описание

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

7296960010

Крепеж

78903

STRIKER SUB-ASSY, FOLD SEAT LEG LOCK

78904

STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78910A

LOCK ASSY, FOLD SEAT, RH

78920A

LOCK ASSY, FOLD SEAT, LH

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

78970

BAND ASSY, SEAT LOCK

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79803

FRAME SUB-ASSY, NO.8 SEAT BACK, RH

79804

FRAME SUB-ASSY, NO.8 SEAT BACK, LH

79805A

LEG SUB-ASSY, FOLD SEAT, FRONT

79806B

LEG SUB ASSY, FOLD SEAT REAR

79820A

CUSHION ASSY, NO.8 SEAT

79840

BACK ASSY, NO.8 SEAT, RH

79850

BACK ASSY, NO.8 SEAT, LH

79860

SPRING ASSY, NO.8 SEAT CUSHION

79885

HINGE, FOLD SEAT BACK SET, RH

79886

HINGE, FOLD SEAT BACK SET, LH

79915

BRACKET, SEAT LEG

79916

BRACKET, SEAT LEG, NO.2

8271112120

Крепеж

9010908145

Крепеж

9011910493

Крепеж

9015960035

Крепеж

9015960058

Крепеж

9015960536

Крепеж

9016735014

Крепеж

9016840043

Крепеж

9017908204

Крепеж

9020612003

Крепеж

9020615002

Крепеж

9038710070

Крепеж

9038910031

Крепеж

9050608035

Крепеж

9165160835

Крепеж

9165161020

Крепеж

9165161022

Крепеж

9165161030

Крепеж

Код

Описание

9011908A85

Крепеж

9165160830

Крепеж

9165160835

Крепеж

9165161028

Крепеж

9166160825

Крепеж

9166160835

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA COASTER, 1995/05 - 2004/08, 4,2 литра, дизель, LX SPECIFICATION, HZB50, механика, МКПП, 5 скоростей

Товар добавлен в корзину!

Заполните форму
