Каталог
ЯпонияМодель
COASTERДвигатель
4,2 литра, турбо-дизельКласс
EX SPECIFICATIONФрейм
HDB51Трансмиссия
автомат АКПП, 4 ступениОпции
высокая крыша 29-местный WITH COOLER TURBO DIESEL 4 VALVE WT CBU

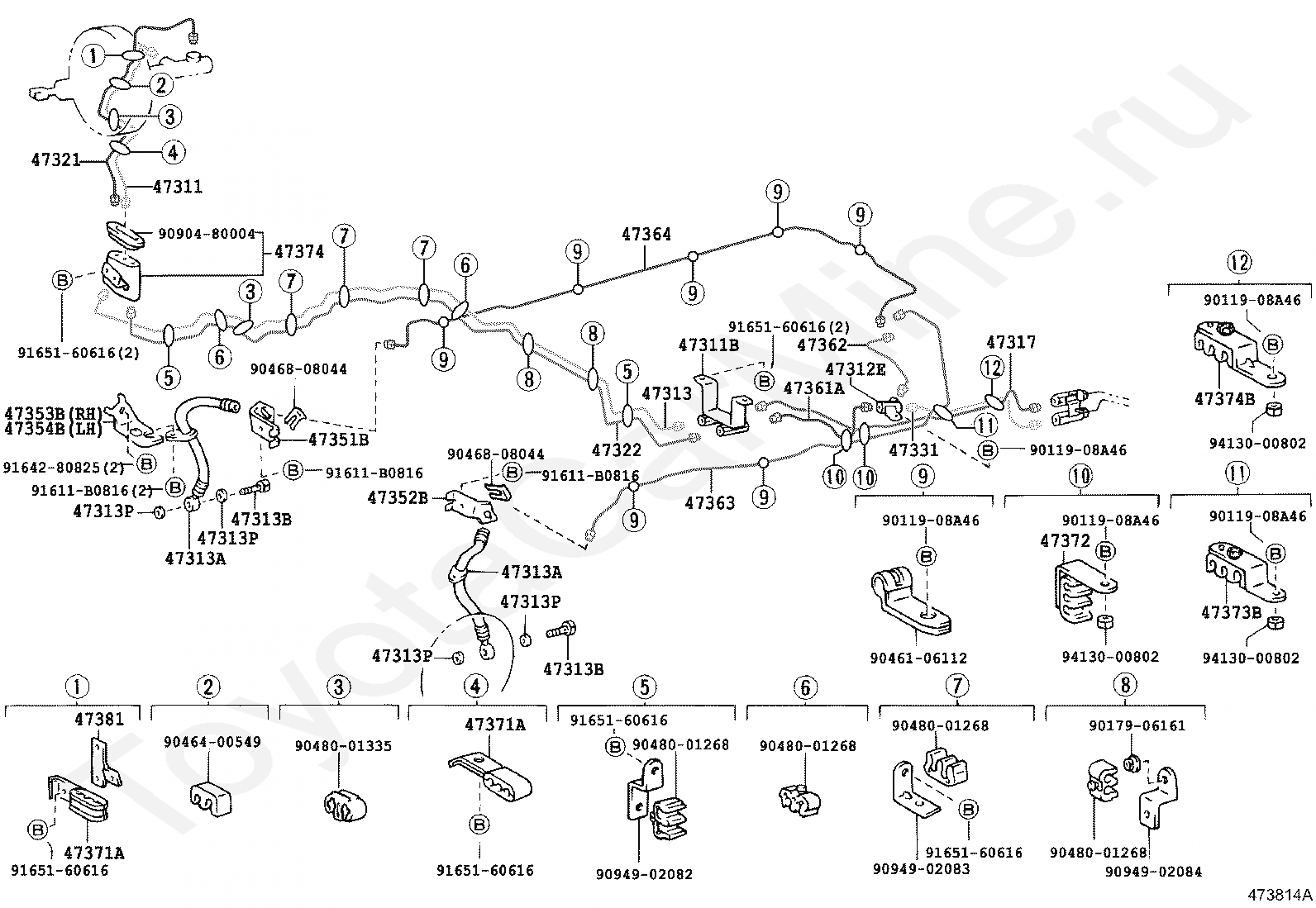

Код
Описание
47311
TUBE, FRONT BRAKE, NO.1
47311B
WAY, NO.1(FOR FRONT BRAKE TUBE)
47312
TUBE, FRONT BRAKE, NO.2
47312E
WAY, NO.2(FOR FRONT BRAKE TUBE)
47313
TUBE, FRONT BRAKE, NO.3
47313A
HOSE, FLEXIBLE, NO.1(FOR FRONT)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313H
WAY, NO.3(FOR FRONT BRAKE TUBE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47314
TUBE, FRONT BRAKE, NO.4
47315
TUBE, FRONT BRAKE, NO.5
47316
TUBE, FRONT BRAKE, NO.6
47317
TUBE, FRONT BRAKE, NO.7
47321
TUBE, REAR BRAKE, NO.1
47322
TUBE, REAR BRAKE, NO.2
47324
TUBE, REAR BRAKE, NO.4
47342
TUBE, WHEEL CYLINDER, FRONT RH NO.2
47351B
BRACKET, FLEXIBLE HOSE, NO.1
47352B
BRACKET, FLEXIBLE HOSE, NO.2
47353B
BRACKET, FLEXIBLE HOSE, NO.3
47354B
BRACKET, FLEXIBLE HOSE, NO.4
47371A
CLAMP, BRAKE TUBE, NO.1
47372
CLAMP, BRAKE TUBE, NO.2
47373B
CLAMP, BRAKE TUBE, NO.3
47374
CONNECTOR, TUBE
47374B
CLAMP, BRAKE TUBE, NO.4
47381
BRACKET, BRAKE TUBE CLAMP NO.1
9011908A46
Крепеж
9017906161
Крепеж
9046106112
Крепеж
9046206017
Крепеж
9046400549
Крепеж
9046808044
Крепеж
9048001187
Крепеж
9048001335
Крепеж
9048001359
Крепеж
9090480004
Крепеж
9094902081
Крепеж
9094902085
Крепеж
9094902086
Крепеж
91611B0816
Крепеж
9164280825
Крепеж
9165160614
Крепеж
9165160616
Крепеж
9413000802
Крепеж
Код
Описание
47311
TUBE, FRONT BRAKE, NO.1
47311B
WAY, NO.1(FOR FRONT BRAKE TUBE)
47312E
WAY, NO.2(FOR FRONT BRAKE TUBE)
47313
TUBE, FRONT BRAKE, NO.3
47313A
HOSE, FLEXIBLE, NO.1(FOR FRONT)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47317
TUBE, FRONT BRAKE, NO.7
47321
TUBE, REAR BRAKE, NO.1
47322
TUBE, REAR BRAKE, NO.2
47331
TUBE, REAR BRAKE, NO.10
47351B
BRACKET, FLEXIBLE HOSE, NO.1
47352B
BRACKET, FLEXIBLE HOSE, NO.2
47353B
BRACKET, FLEXIBLE HOSE, NO.3
47354B
BRACKET, FLEXIBLE HOSE, NO.4
47361A
TUBE, FRONT BRAKE, NO.10
47362
TUBE, FRONT BRAKE, NO.11
47363
TUBE, FRONT BRAKE, NO.12
47364
TUBE, FRONT BRAKE, NO.13
47371A
CLAMP, BRAKE TUBE, NO.1
47372
CLAMP, BRAKE TUBE, NO.2
47373B
CLAMP, BRAKE TUBE, NO.3
47374
CONNECTOR, TUBE
47374B
CLAMP, BRAKE TUBE, NO.4
47381
BRACKET, BRAKE TUBE CLAMP NO.1
9011908A46
Крепеж
9017906161
Крепеж
9046106112
Крепеж
9046400549
Крепеж
9046808044
Крепеж
9048001268
Крепеж
9048001335
Крепеж
9090480004
Крепеж
9094902082
Крепеж
9094902083
Крепеж
9094902084
Крепеж
91611B0816
Крепеж
9164280825
Крепеж
9165160616
Крепеж
9413000802
Крепеж

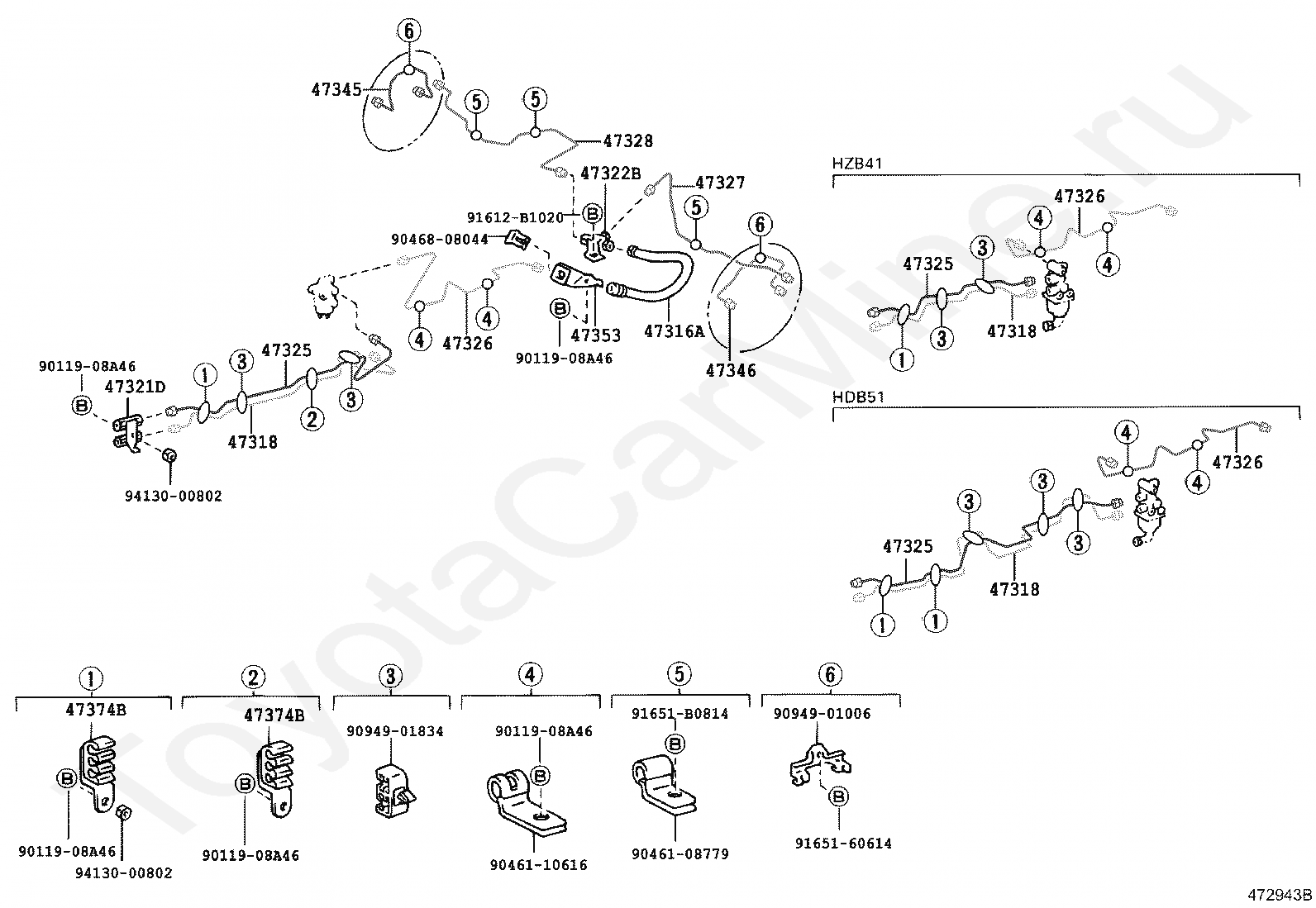

Код
Описание
47316A
HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47318
TUBE, FRONT BRAKE, NO.8
47321D
WAY, NO.1(FOR REAR BRAKE TUBE)
47322B
WAY, NO.2(FOR REAR BRAKE TUBE)
47325
TUBE, REAR BRAKE, NO.5
47326
TUBE, REAR BRAKE, NO.6
47327
TUBE, REAR BRAKE, NO.7
47328
TUBE, REAR BRAKE, NO.8
47345
TUBE, WHEEL CYLINDER, REAR RH
47346
TUBE, WHEEL CYLINDER, REAR LH
47353
BRACKET, FLEXIBLE HOSE(FOR REAR)
47374B
CLAMP, BRAKE TUBE, NO.4
9011908A46
Крепеж
9046108779
Крепеж
9046110616
Крепеж
9046808044
Крепеж
9094901006
Крепеж
9094901834
Крепеж
91612B1020
Крепеж
9165160614
Крепеж
91651B0814
Крепеж
9413000802
Крепеж

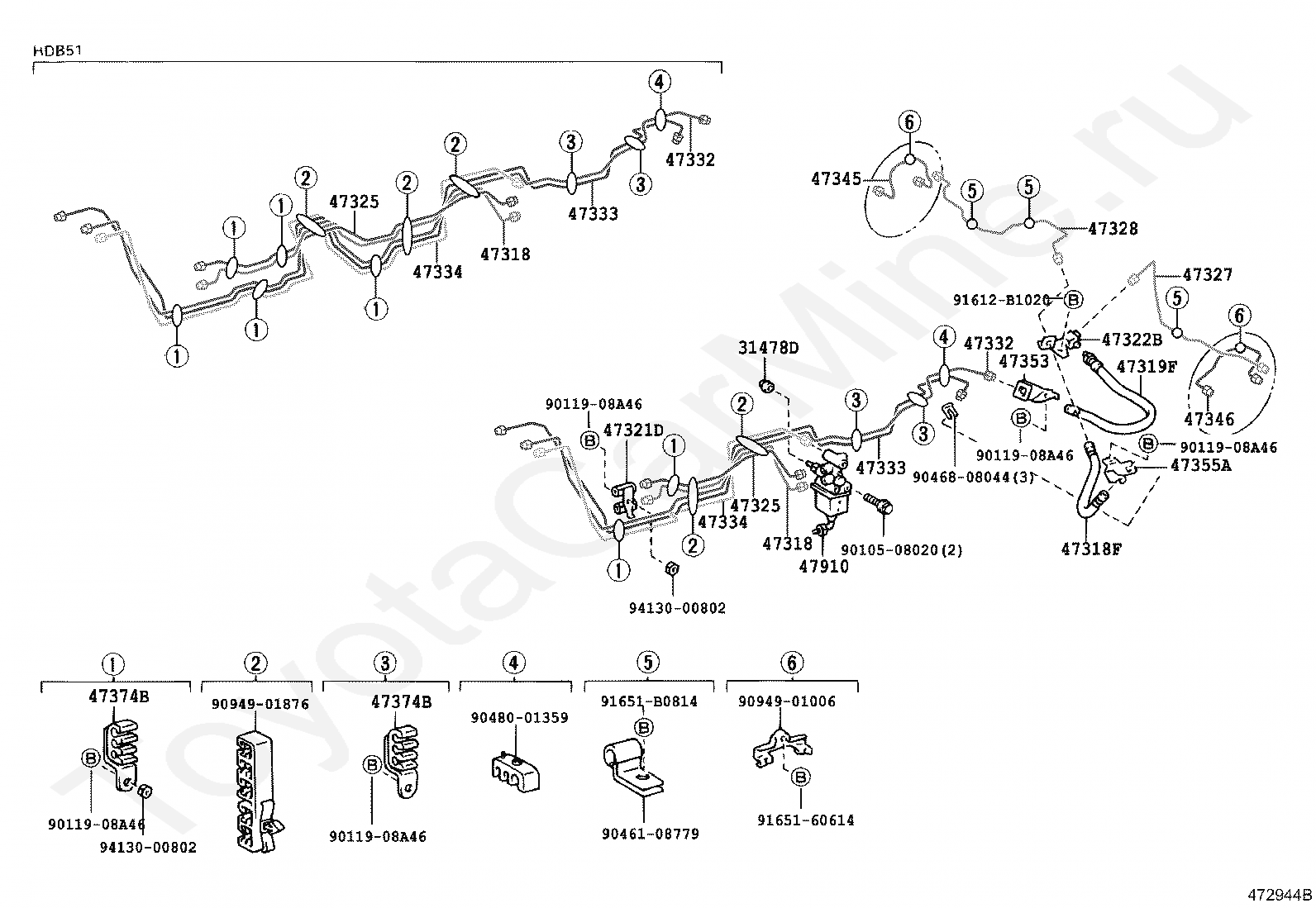

Код
Описание
31478D
CAP, BLEEDER PLUG(FOR LSPV)
47318
TUBE, FRONT BRAKE, NO.8
47318F
HOSE, FLEXIBLE(FOR REAR RH)
47319F
HOSE, FLEXIBLE(FOR REAR LH)
47321D
WAY, NO.1(FOR REAR BRAKE TUBE)
47322B
WAY, NO.2(FOR REAR BRAKE TUBE)
47325
TUBE, REAR BRAKE, NO.5
47327
TUBE, REAR BRAKE, NO.7
47328
TUBE, REAR BRAKE, NO.8
47332
TUBE, REAR BRAKE, NO.11
47333
TUBE, REAR BRAKE, NO.12
47334
TUBE, REAR BRAKE, NO.13
47345
TUBE, WHEEL CYLINDER, REAR RH
47346
TUBE, WHEEL CYLINDER, REAR LH
47353
BRACKET, FLEXIBLE HOSE(FOR REAR)
47355A
BRACKET, FLEXIBLE HOSE, NO.5
47374B
CLAMP, BRAKE TUBE, NO.4
47910
VALVE ASSY, LOAD SENSING PROPORTIONING
9010508020
Крепеж
9011908A46
Крепеж
9046108779
Крепеж
9046808044
Крепеж
9048001359
Крепеж
9094901006
Крепеж
9094901876
Крепеж
91612B1020
Крепеж
9165160614
Крепеж
91651B0814
Крепеж
9413000802
Крепеж

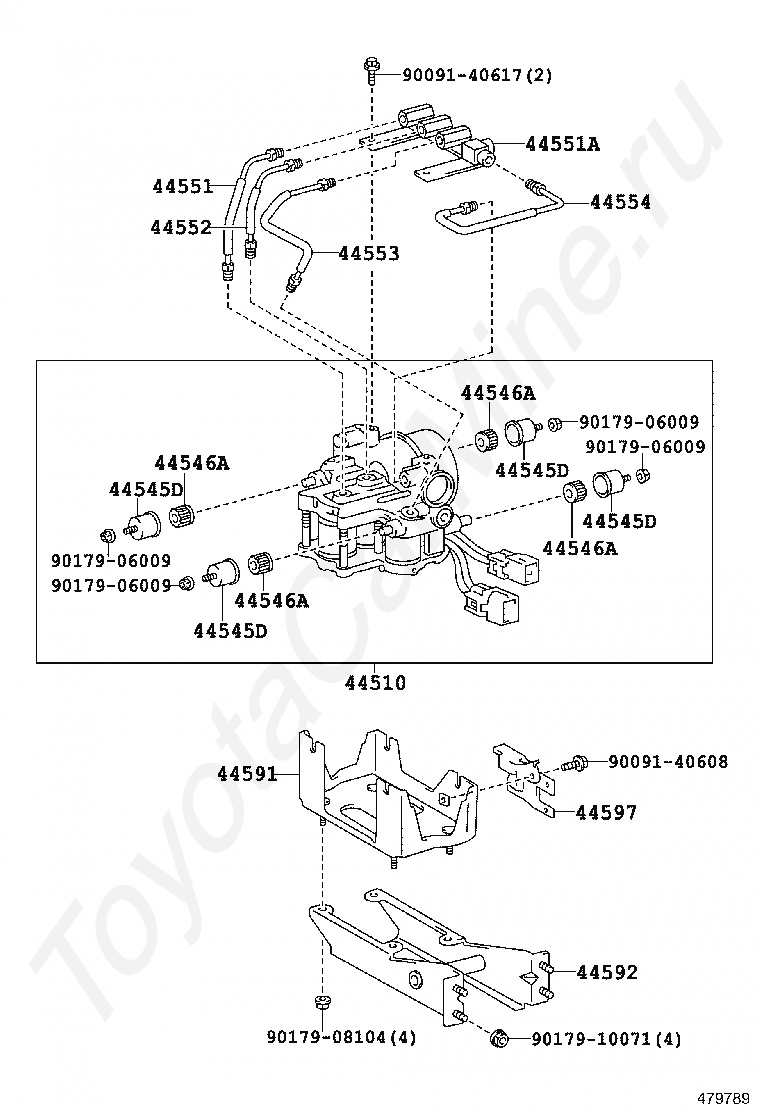

Код
Описание
44510
ACTUATOR ASSY, BRAKE
44545D
HOLDER, BRAKE ACTUATOR BOLT
44546A
CUSHION, BRAKE ACTUATOR BOLT
44551
TUBE, BRAKE ACTUATOR, NO.1
44551A
WAY, NO.1(FOR BRAKE ACTUATOR)
44552
TUBE, BRAKE ACTUATOR, NO.2
44553
TUBE, BRAKE ACTUATOR, NO.3
44554
TUBE, BRAKE ACTUATOR, NO.4
44591
BRACKET, BRAKE ACTUATOR, NO.1
44592
BRACKET, BRAKE ACTUATOR, NO.2
44597
CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1
9009140608
Крепеж
9009140617
Крепеж
9017906009
Крепеж
9017908104
Крепеж
9017910071
Крепеж
Код
Описание
31478D
CAP, BLEEDER PLUG(FOR LSPV)
47910
VALVE ASSY, LOAD SENSING PROPORTIONING
4805
переход к группе запчастей
9010508020
Крепеж
