Тормозная магистраль TOYOTA CHASER, 1993/10 - 1996/09, 2,5 литра, 24 клапана DOHC, EFI, AVANT TYPE, JZX93, автомат

Каталог

Япония

Модель

CHASER

Двигатель

2,5 литра, 24 клапана DOHC, EFI

Класс

AVANT TYPE

Фрейм

JZX93

Трансмиссия

автомат

Опции

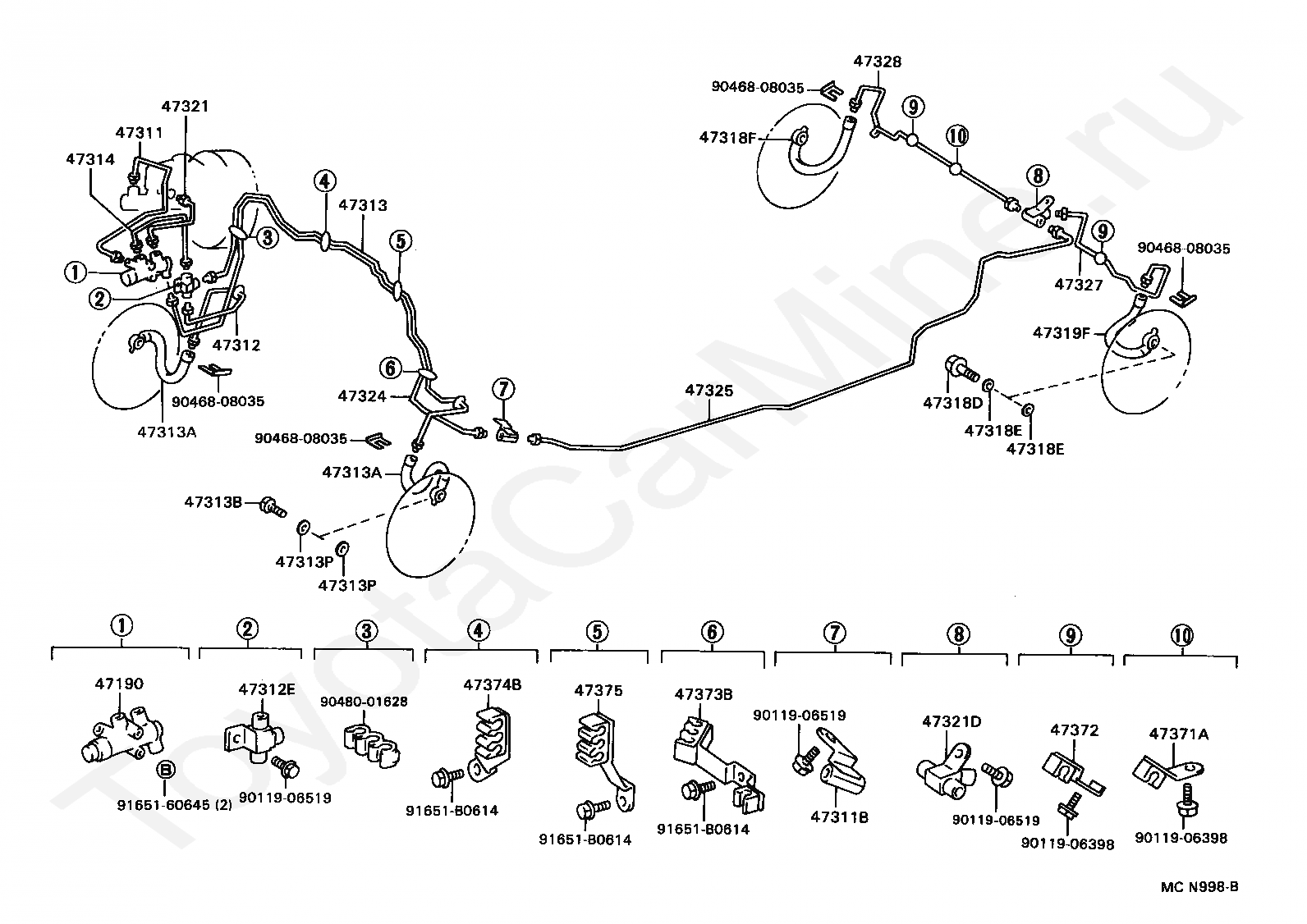

Код

Описание

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9011906398

Крепеж

9011906519

Крепеж

9046808035

Крепеж

9048001628

Крепеж

9165160645

Крепеж

91651B0614

Крепеж

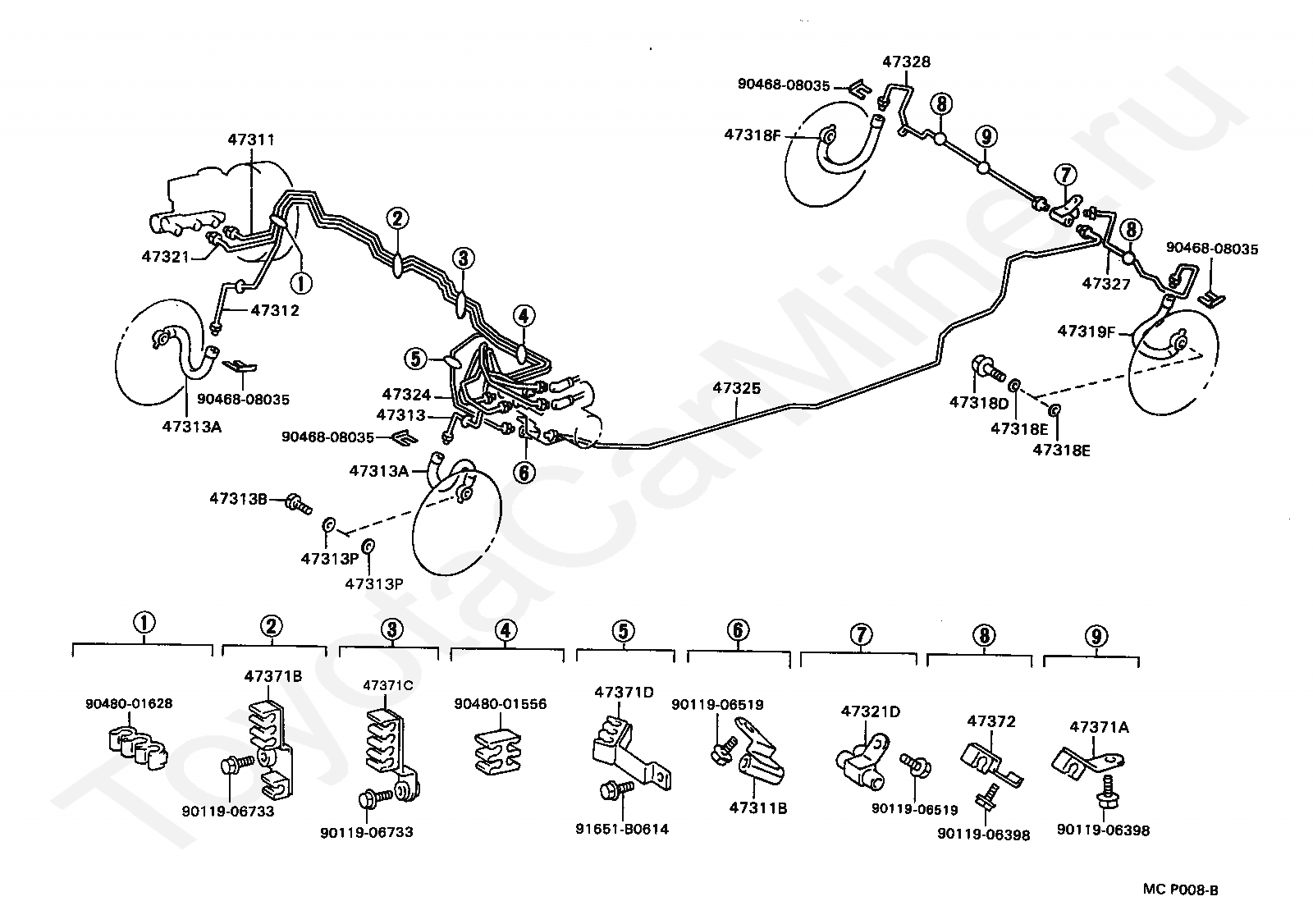

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47372

CLAMP, BRAKE TUBE, NO.2

9011906398

Крепеж

9011906519

Крепеж

9011906733

Крепеж

9046808035

Крепеж

9048001556

Крепеж

9048001628

Крепеж

91651B0614

Крепеж

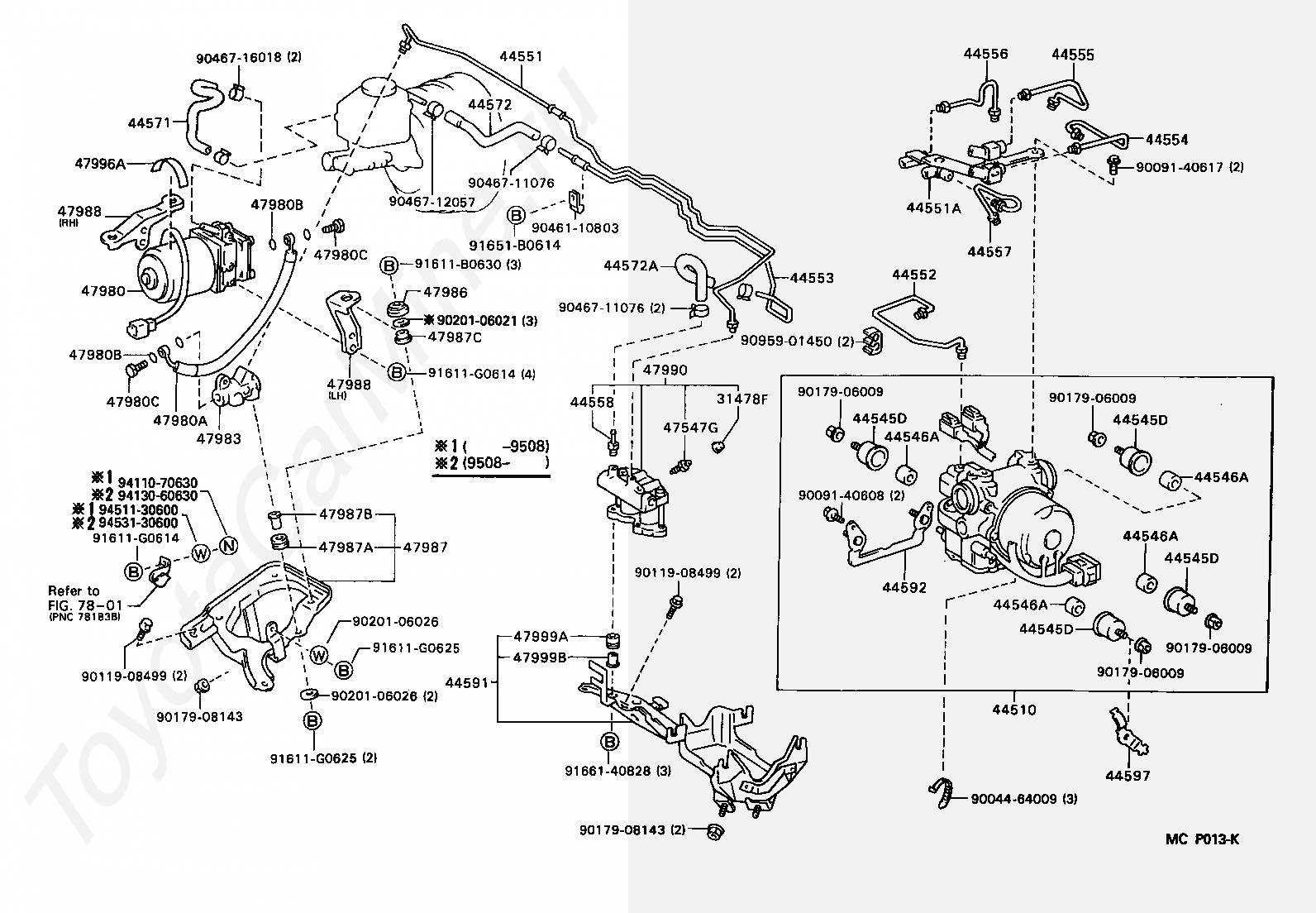

Код

Описание

31478F

CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR)

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44551

TUBE, BRAKE ACTUATOR, NO.1

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44552

TUBE, BRAKE ACTUATOR, NO.2

44553

TUBE, BRAKE ACTUATOR, NO.3

44554

TUBE, BRAKE ACTUATOR, NO.4

44555

TUBE, BRAKE ACTUATOR, NO.5

44556

TUBE, BRAKE ACTUATOR, NO.6

44557

TUBE, BRAKE ACTUATOR, NO.7

44558

TUBE, BRAKE ACTUATOR, NO.8

44571

HOSE, BRAKE ACTUATOR

44572

HOSE, BRAKE ACTUATOR, NO.2

44572A

HOSE, BRAKE ACTUATOR, NO.3

44591

BRACKET, BRAKE ACTUATOR, NO.1

44592

BRACKET, BRAKE ACTUATOR, NO.2

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

47547G

PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)

47980

PUMP ASSY, BRAKE TRACTION

47980A

HOSE, PRESSURE(FOR BRAKE TRACTION PUMP)

47980B

RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)

47980C

BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE)

47983

DAMPER, BRAKE TRACTION

47986

COVER, BRAKE TRACTION PUMP, NO.2

47987

BRACKET, BRAKE TRACTION PUMP, NO.1

47987A

BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET)

47987B

SPACER(FOR BRAKE TRACTION PUMP BRACKET)

47987C

BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET)

47988

BRACKET, BRAKE TRACTION PUMP, NO.2

47990

ACTUATOR ASSY, BRAKE TRACTION

47996A

LABEL, BRAKE BLEED NOTICE

47999A

BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)

47999B

SPACER(FOR BRAKE TRACTION ACTUATOR BRACKET)

7801

переход к группе запчастей

9004464009

Крепеж

9009140608

Крепеж

9009140617

Крепеж

9011908499

Крепеж

9017906009

Крепеж

9017908143

Крепеж

9020106021

Крепеж

9020106026

Крепеж

9046110803

Крепеж

9046711076

Крепеж

9046712057

Крепеж

9046716018

Крепеж

9095901450

Крепеж

91611B0630

Крепеж

91611G0614

Крепеж

91611G0625

Крепеж

91651B0614

Крепеж

9166140828

Крепеж

9411070630

Крепеж

9413060630

Крепеж

9451130600

Крепеж

9453130600

Крепеж

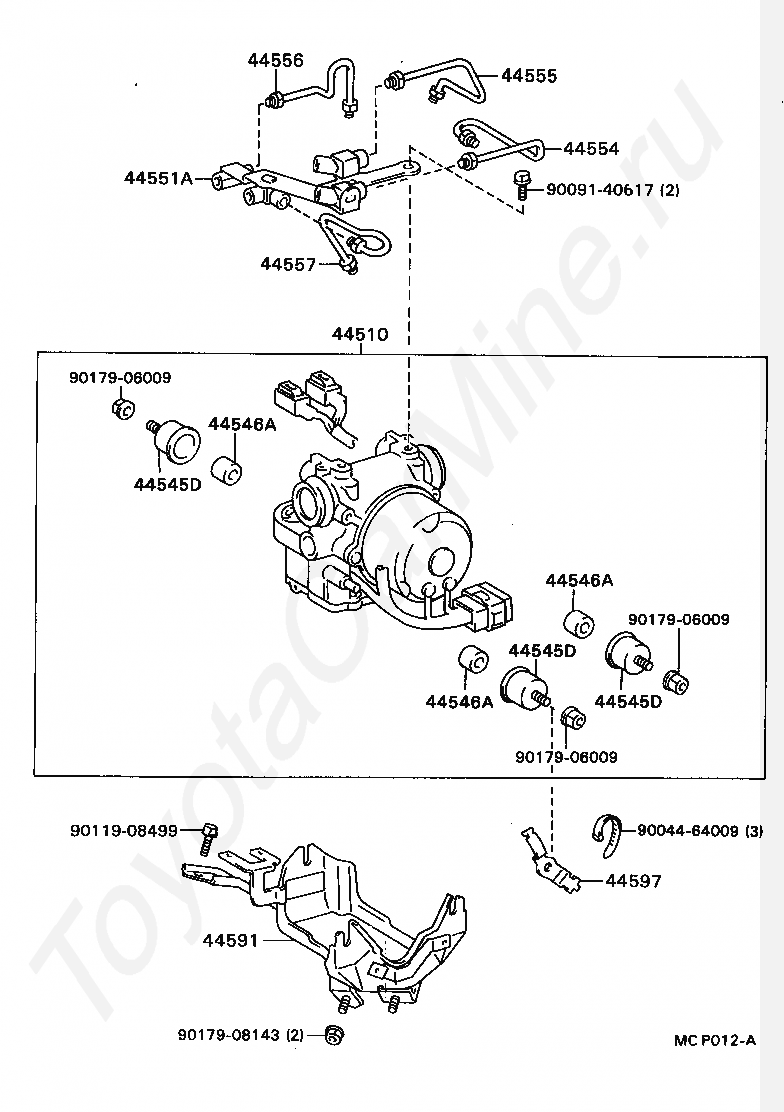

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44551A

WAY, NO.1(FOR BRAKE ACTUATOR)

44554

TUBE, BRAKE ACTUATOR, NO.4

44555

TUBE, BRAKE ACTUATOR, NO.5

44556

TUBE, BRAKE ACTUATOR, NO.6

44557

TUBE, BRAKE ACTUATOR, NO.7

44591

BRACKET, BRAKE ACTUATOR, NO.1

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

9004464009

Крепеж

9009140617

Крепеж

9011908499

Крепеж

9017906009

Крепеж

9017908143

Крепеж

Тормозная магистраль TOYOTA CHASER, 1993/10 - 1996/09, 2,5 литра, 24 клапана DOHC, EFI, AVANT TYPE, JZX93, автомат
