Рулевая колонка TOYOTA CHASER, 1993/10 - 1996/09, 2,5 литра, 24 клапана DOHC, EFI, AVANT TYPE, JZX93, автомат

Каталог

Япония

Модель

CHASER

Двигатель

2,5 литра, 24 клапана DOHC, EFI

Класс

AVANT TYPE

Фрейм

JZX93

Трансмиссия

автомат

Опции

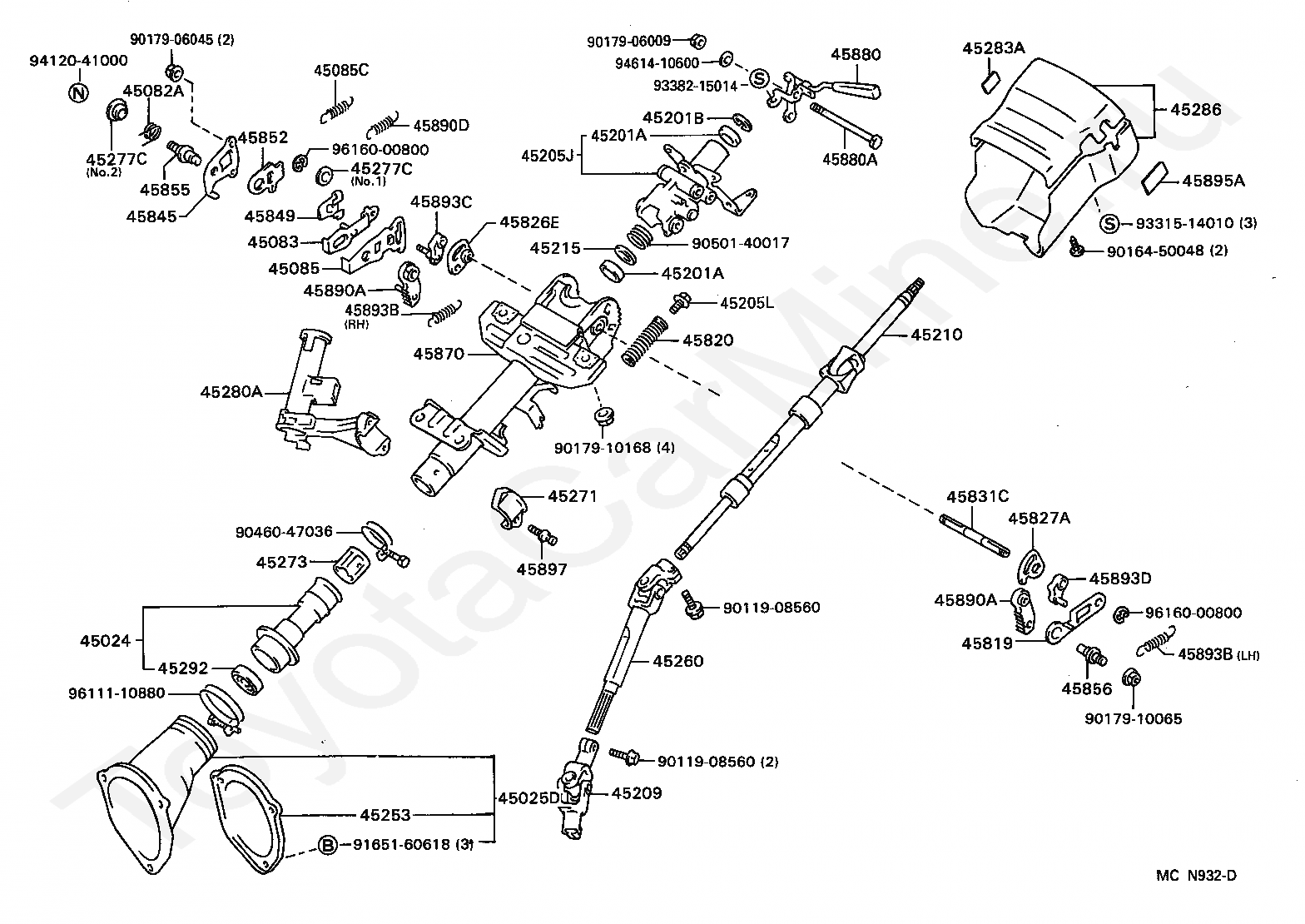

Код

Описание

45024

COVER SUB-ASSY, STEERING COLUMN, LOWER

45025D

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

45082A

SPRING, TORSION(FOR TILT STEERING RETURN)

45083

PLATE SUB-ASSY, TILT RELEASE MEMORY

45085

PLATE SUB-ASSY, TILT MEMORY, NO.1

45085C

SPRING, TENSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45205J

TUBE SUB-ASSY, STEERING COLUMN, UPPER

45205L

SCREW(FOR STEERING COLUMN TUBE)

45209

YOKE SUB-ASSY, STEERING SLIDING

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45273

BUSH, STEERING MAIN SHAFT

45277C

SPACER(FOR TILT STEERING SUPPORT)

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45283A

PLATE, BEAM CHANGE & TURN SIGNAL CAUTION

45286

COVER, STEERING COLUMN

45292

SEAL, MAIN SHAFT LOWER DUST

45819

RETAINER, TILT LEVER

45820

SPRING ASSY, TILT STEERING SUPPORT

45826E

LEVER, STEERING TILT(FOR TILT ADJUST)

45827A

LEVER, STEERING TILT SUB

45831C

SHAFT, TILT LEVER LOCK

45845

SUPPORT, TILT MEMORY

45849

RETAINER, TILT ADJUSTER MEMORY SPRING

45852

PLATE, TILT MEMORY, NO.2

45855

BOLT, TILT STEERING, NO.1

45856

BOLT, TILT STEERING, NO.2

45870

TUBE ASSY, STEERING COLUMN

45880

LEVER ASSY, STEERING TILT

45880A

BOLT(FOR STEERING TILT LEVER)

45890A

PAWL ASSY, TILT STEERING

45890D

SPRING, TENSION(FOR TILT STEERING PAWL ASSY)

45893B

SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

45893C

STOPPER, STEERING PAWL, RH

45893D

STOPPER, STEERING PAWL, LH

45895A

PLATE, TILT STEERING CAUTION

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9016450048

Крепеж

9017906009

Крепеж

9017906045

Крепеж

9017910065

Крепеж

9017910168

Крепеж

9046047036

Крепеж

9050140017

Крепеж

9165160618

Крепеж

9331514010

Крепеж

9338215014

Крепеж

9412041000

Крепеж

9461410600

Крепеж

9611110880

Крепеж

9616000800

Крепеж

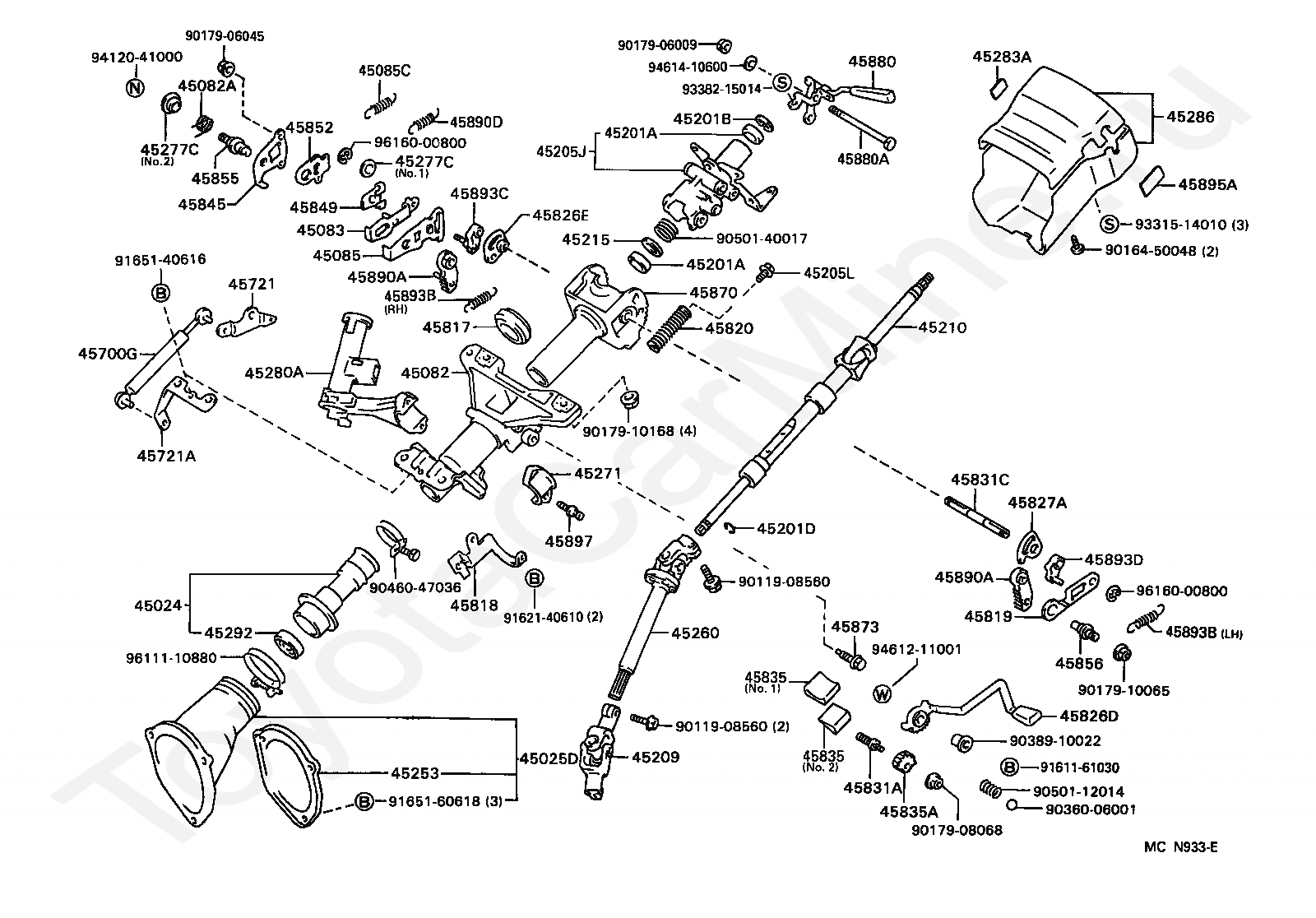

Код

Описание

45024

COVER SUB-ASSY, STEERING COLUMN, LOWER

45025D

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

45082

BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

45082A

SPRING, TORSION(FOR TILT STEERING RETURN)

45083

PLATE SUB-ASSY, TILT RELEASE MEMORY

45085

PLATE SUB-ASSY, TILT MEMORY, NO.1

45085C

SPRING, TENSION(FOR TILT MEMORY PLATE SUB-ASSY NO.1)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201D

RING(FOR STEERING MAIN SHAFT)

45205J

TUBE SUB-ASSY, STEERING COLUMN, UPPER

45205L

SCREW(FOR STEERING COLUMN TUBE)

45209

YOKE SUB-ASSY, STEERING SLIDING

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271

CLAMP, STEERING COLUMN, UPPER

45277C

SPACER(FOR TILT STEERING SUPPORT)

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45283A

PLATE, BEAM CHANGE & TURN SIGNAL CAUTION

45286

COVER, STEERING COLUMN

45292

SEAL, MAIN SHAFT LOWER DUST

45700G

DAMPER ASSY, STEERING

45721

BRACKET, STEERING DAMPER

45721A

BRACKET, STEERING DAMPER, NO.2

45817

STOPPER, STEERING SHAFT THRUST

45818

BRACKET, CONNECTOR

45819

RETAINER, TILT LEVER

45820

SPRING ASSY, TILT STEERING SUPPORT

45826D

LEVER, STEERING TELESCOPIC

45826E

LEVER, STEERING TILT(FOR TILT ADJUST)

45827A

LEVER, STEERING TILT SUB

45831A

BOLT, TELESCOPE LEVER LOCK

45831C

SHAFT, TILT LEVER LOCK

45835

WEDGE, LOCK

45835A

ATTACHMENT, TILT LEVER SERRATION

45845

SUPPORT, TILT MEMORY

45849

RETAINER, TILT ADJUSTER MEMORY SPRING

45852

PLATE, TILT MEMORY, NO.2

45855

BOLT, TILT STEERING, NO.1

45856

BOLT, TILT STEERING, NO.2

45870

TUBE ASSY, STEERING COLUMN

45873

STOPPER, STEERING COLUMN TUBE

45880

LEVER ASSY, STEERING TILT

45880A

BOLT(FOR STEERING TILT LEVER)

45890A

PAWL ASSY, TILT STEERING

45890D

SPRING, TENSION(FOR TILT STEERING PAWL ASSY)

45893B

SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

45893C

STOPPER, STEERING PAWL, RH

45893D

STOPPER, STEERING PAWL, LH

45895A

PLATE, TILT STEERING CAUTION

45897

BOLT, STEERING LOCK SET

9011908560

Крепеж

9016450048

Крепеж

9017906009

Крепеж

9017906045

Крепеж

9017908068

Крепеж

9017910065

Крепеж

9017910168

Крепеж

9036006001

Крепеж

9038910022

Крепеж

9046047036

Крепеж

9050112014

Крепеж

9050140017

Крепеж

9161161030

Крепеж

9162140610

Крепеж

9165140616

Крепеж

9165160618

Крепеж

9331514010

Крепеж

9338215014

Крепеж

9412041000

Крепеж

9461211001

Крепеж

9461410600

Крепеж

9611110880

Крепеж

9616000800

Крепеж

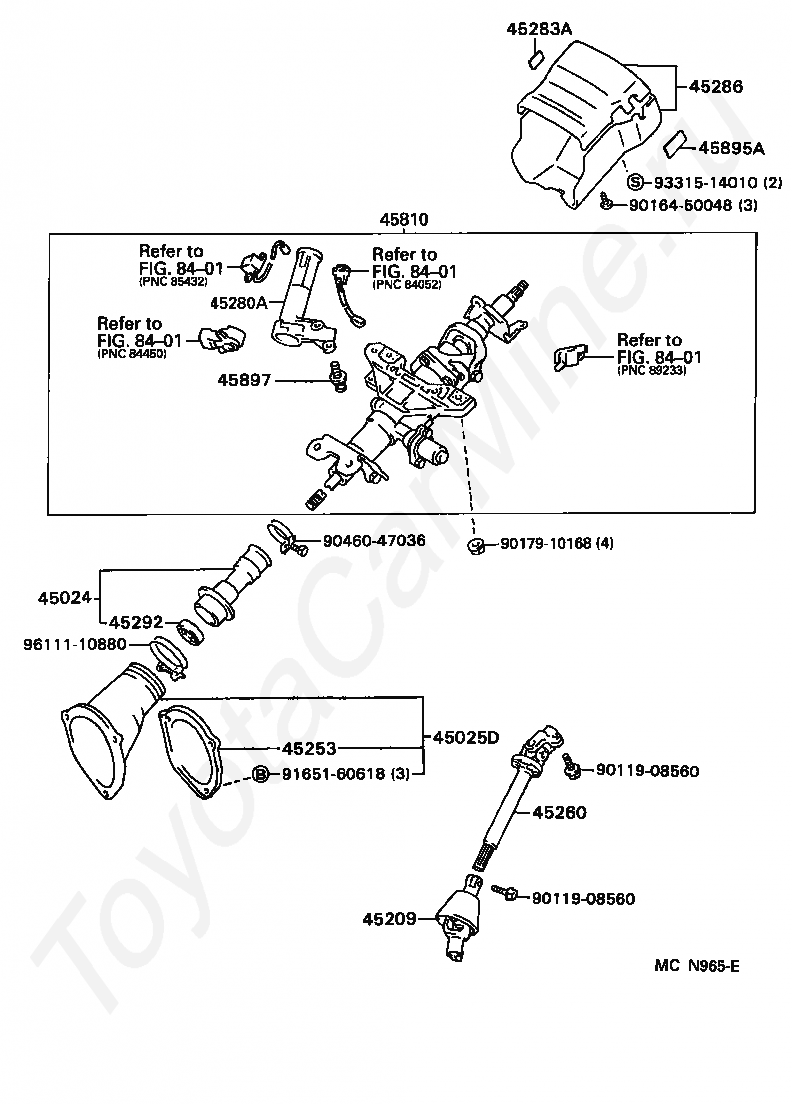

Код

Описание

45024

COVER SUB-ASSY, STEERING COLUMN, LOWER

45025D

COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

45209

YOKE SUB-ASSY, STEERING SLIDING

45253

COVER, STEERING COLUMN HOLE

45260

SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45280A

BRACKET ASSY, STEERING COLUMN, UPPER

45283A

PLATE, BEAM CHANGE & TURN SIGNAL CAUTION

45286

COVER, STEERING COLUMN

45292

SEAL, MAIN SHAFT LOWER DUST

45810

GEAR ASSY, TILT STEERING, W/MOTOR

45895A

PLATE, TILT STEERING CAUTION

45897

BOLT, STEERING LOCK SET

8401

переход к группе запчастей

9011908560

Крепеж

9016450048

Крепеж

9017910168

Крепеж

9046047036

Крепеж

9165160618

Крепеж

9331514010

Крепеж

9611110880

Крепеж

Рулевая колонка TOYOTA CHASER, 1993/10 - 1996/09, 2,5 литра, 24 клапана DOHC, EFI, AVANT TYPE, JZX93, автомат
