Топливный бак и горловина TOYOTA CENTURY, 1997/04 - 2005/01, 5 литров, 48 клапана DOHC, EFI, GZG50, АКПП, 4 ступени

Каталог

Япония

Модель

CENTURY

Двигатель

5 литров, 48 клапана DOHC, EFI

Фрейм

GZG50

Трансмиссия

АКПП, 4 ступени

Опции

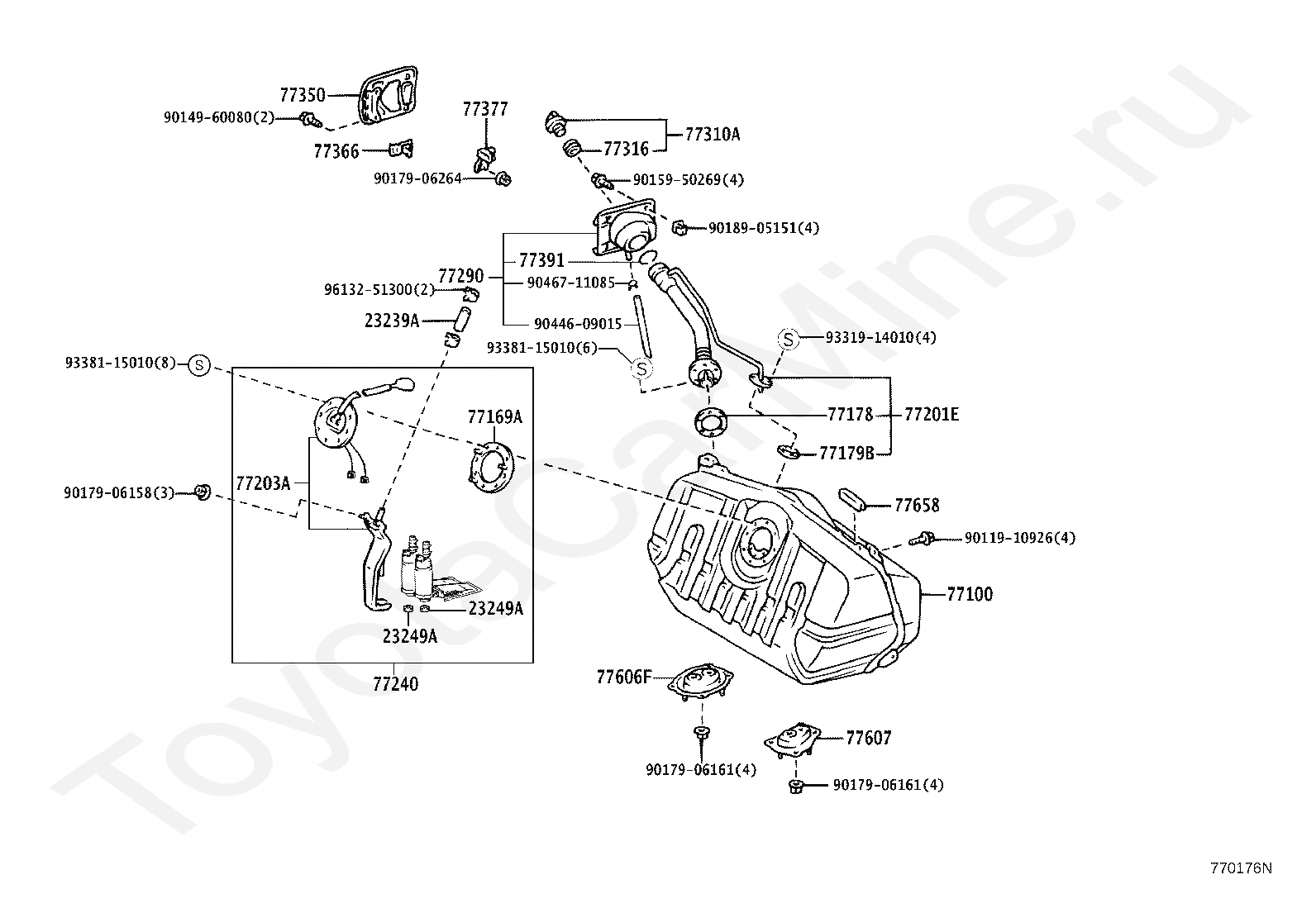

Код

Описание

23239A

HOSE

23249A

RUBBER, CUSHION(FOR FUEL PUMP)

77100

TANK ASSY, FUEL

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77179B

GASKET, FUEL TANK EVAPORATION VENT TUBE

77201E

PIPE SUB-ASSY, FUEL TANK FILLER

77203A

TUBE SUB-ASSY, FUEL SUCTION

77240

TUBE ASSY, FUEL SUCTION

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77606F

CASE SUB-ASSY, FUEL TANK COVER VENT

77607

CASE SUB-ASSY, FUEL TANK COVER VENT, LH

77658

MOULDING, FUEL TANK EDGE

9011910926

Крепеж

9014960080

Крепеж

9015950269

Крепеж

9017906158

Крепеж

9017906161

Крепеж

9017906264

Крепеж

9018905151

Крепеж

9044609015

Крепеж

9046711085

Крепеж

9331914010

Крепеж

9338115010

Крепеж

9613251300

Крепеж

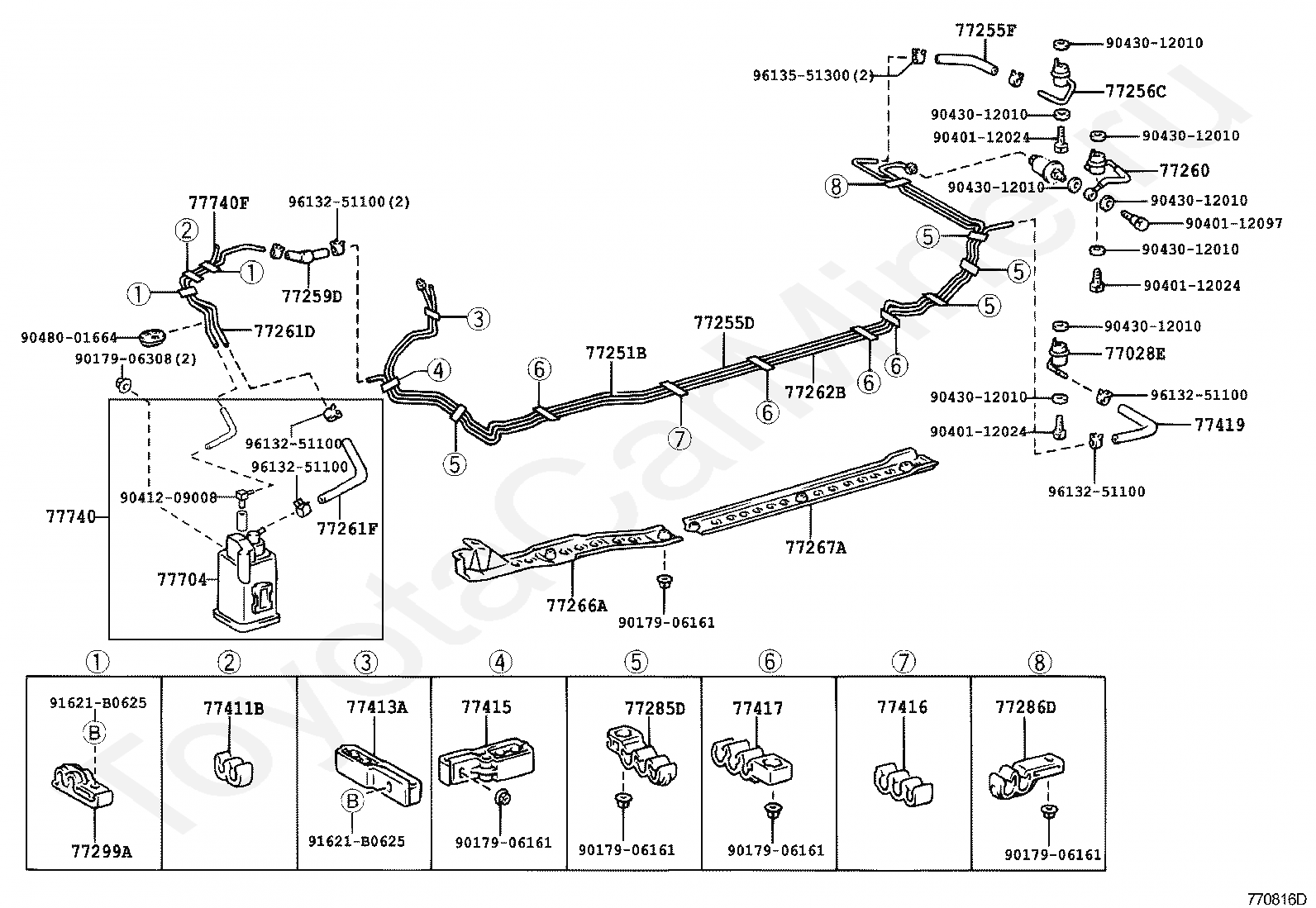

Код

Описание

77028E

TUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR

77251B

TUBE, FUEL MAIN

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77256C

TUBE, FUEL RETURN, NO.2

77259D

HOSE, FUEL, NO.1

77260

HOSE ASSY, FUEL MAIN

77261D

TUBE, FUEL TANK TO CANISTER

77261F

HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

77262B

TUBE, FUEL TANK TO CANISTER, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77267A

PROTECTOR, FUEL TUBE, NO.2

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77299A

CLAMP, FUEL TUBE, NO.5

77411B

SUPPORT, FUEL TUBE GROMMET, NO.1

77413A

SUPPORT, FUEL TUBE GROMMET, NO.3

77415

SUPPORT, FUEL TUBE GROMMET, NO.5

77416

SUPPORT, FUEL TUBE GROMMET, NO.6

77417

SUPPORT, FUEL TUBE GROMMET, NO.7

77419

HOSE, FUEL, NO.3

77740

CANISTER ASSY, CHARCOAL

77740F

TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77770

TANK ASSY, CHARCOAL CANISTER

9017906161

Крепеж

9017906308

Крепеж

9040112024

Крепеж

9040112097

Крепеж

9043012010

Крепеж

9048001664

Крепеж

91621B0625

Крепеж

9613251100

Крепеж

9613551300

Крепеж

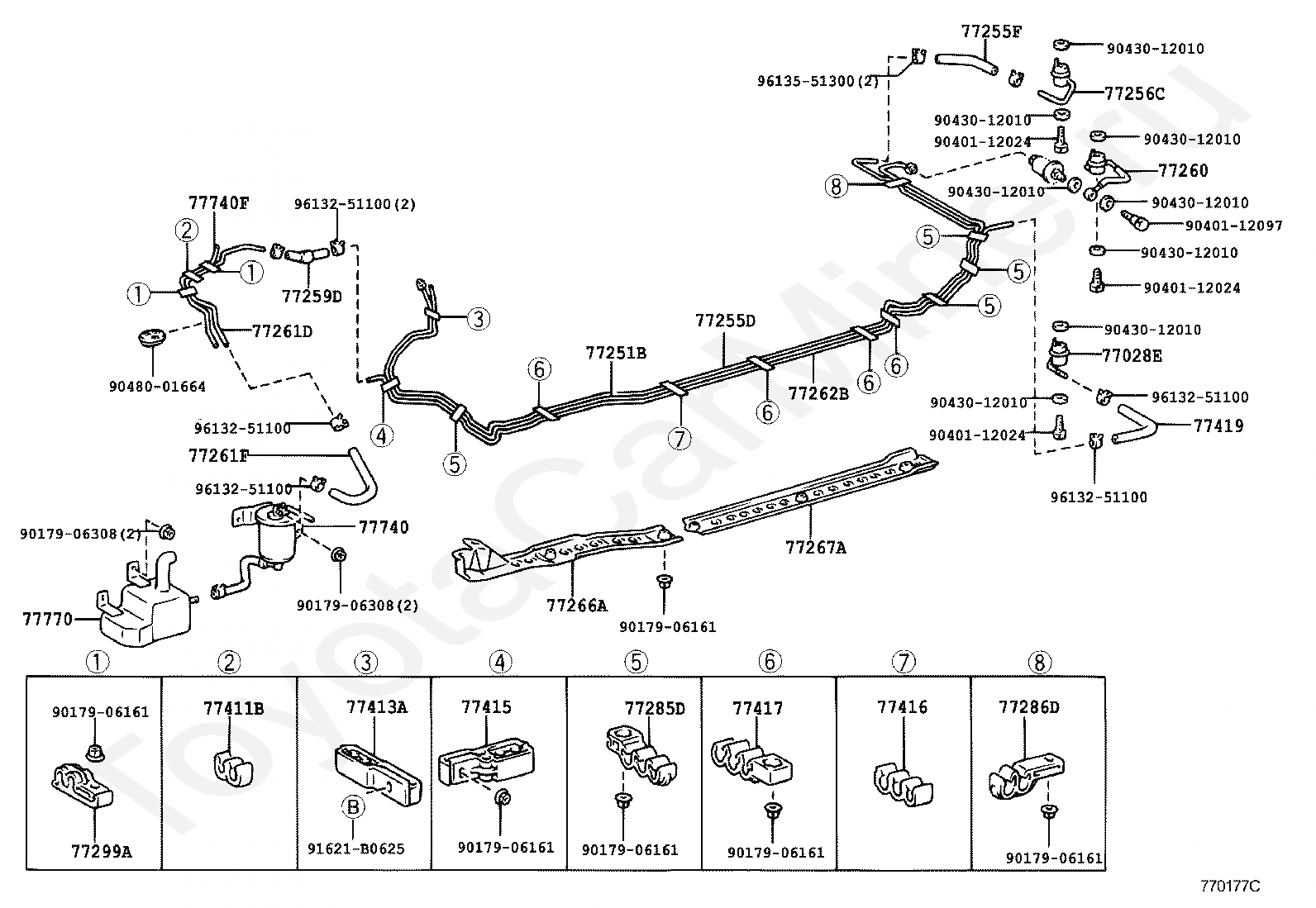

Код

Описание

77028E

TUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR

77251B

TUBE, FUEL MAIN

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77256C

TUBE, FUEL RETURN, NO.2

77259D

HOSE, FUEL, NO.1

77260

HOSE ASSY, FUEL MAIN

77261D

TUBE, FUEL TANK TO CANISTER

77261F

HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

77262B

TUBE, FUEL TANK TO CANISTER, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77267A

PROTECTOR, FUEL TUBE, NO.2

77285D

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77299A

CLAMP, FUEL TUBE, NO.5

77411B

SUPPORT, FUEL TUBE GROMMET, NO.1

77413A

SUPPORT, FUEL TUBE GROMMET, NO.3

77415

SUPPORT, FUEL TUBE GROMMET, NO.5

77416

SUPPORT, FUEL TUBE GROMMET, NO.6

77417

SUPPORT, FUEL TUBE GROMMET, NO.7

77419

HOSE, FUEL, NO.3

77704

CANISTER SUB-ASSY, CHARCOAL

77740

CANISTER ASSY, CHARCOAL

77740F

TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

9017906161

Крепеж

9017906308

Крепеж

9040112024

Крепеж

9040112097

Крепеж

9041209008

Крепеж

9043012010

Крепеж

9048001664

Крепеж

91621B0625

Крепеж

9613251100

Крепеж

9613551300

Крепеж

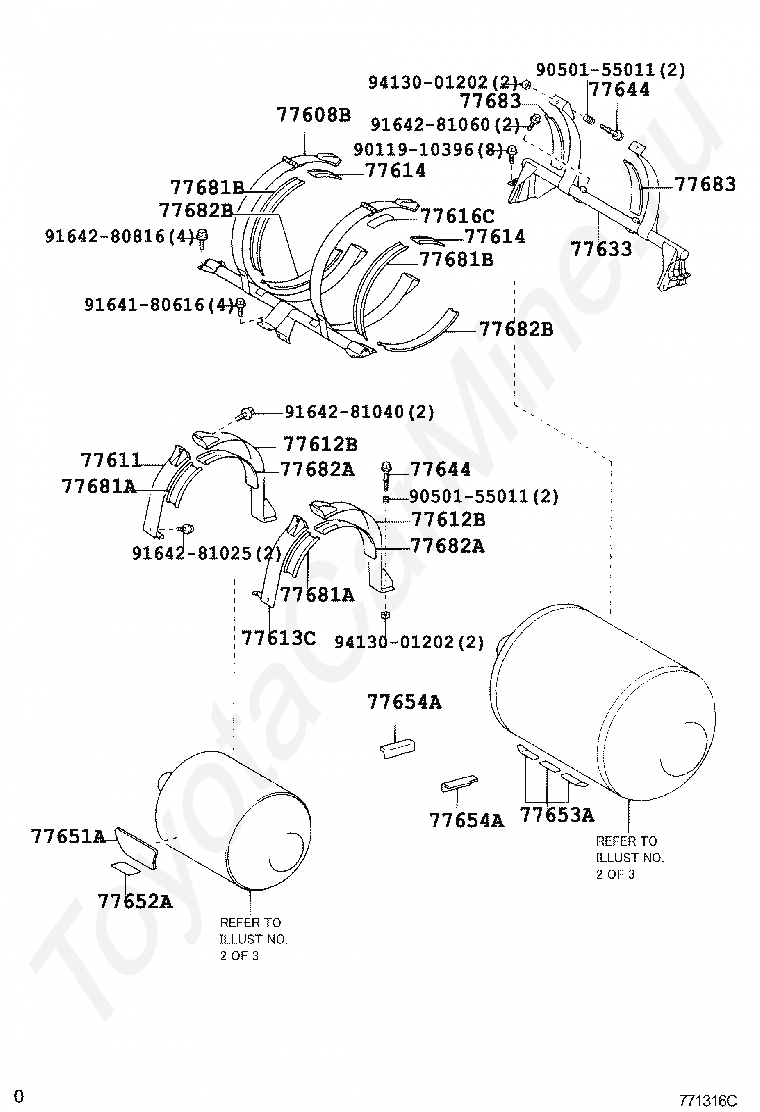

Код

Описание

77608B

FRAME SUB-ASSY, FUEL TANK, LOWER

77611

BAND, FUEL TANK

77612B

BAND, FUEL TANK, NO.2

77613C

BAND, FUEL TANK, NO.3

77614

SEAT, FUEL TANK BAND

77616C

SEAT, FUEL TANK BAND

77633

STAY, FUEL TANK

77644

BOLT, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77654A

CUSHION, FUEL TANK, NO.4

77681A

SEAT, FUEL TANK BAND

77681B

SEAT, FUEL TANK BAND

77682A

SEAT, FUEL TANK BAND, NO.2

77682B

SEAT, FUEL TANK BAND, NO.2

77683

SEAT, FUEL TANK BAND, NO.3

9011910396

Крепеж

9050155011

Крепеж

9164180616

Крепеж

9164280816

Крепеж

9164281025

Крепеж

9164281040

Крепеж

9164281060

Крепеж

9413001202

Крепеж

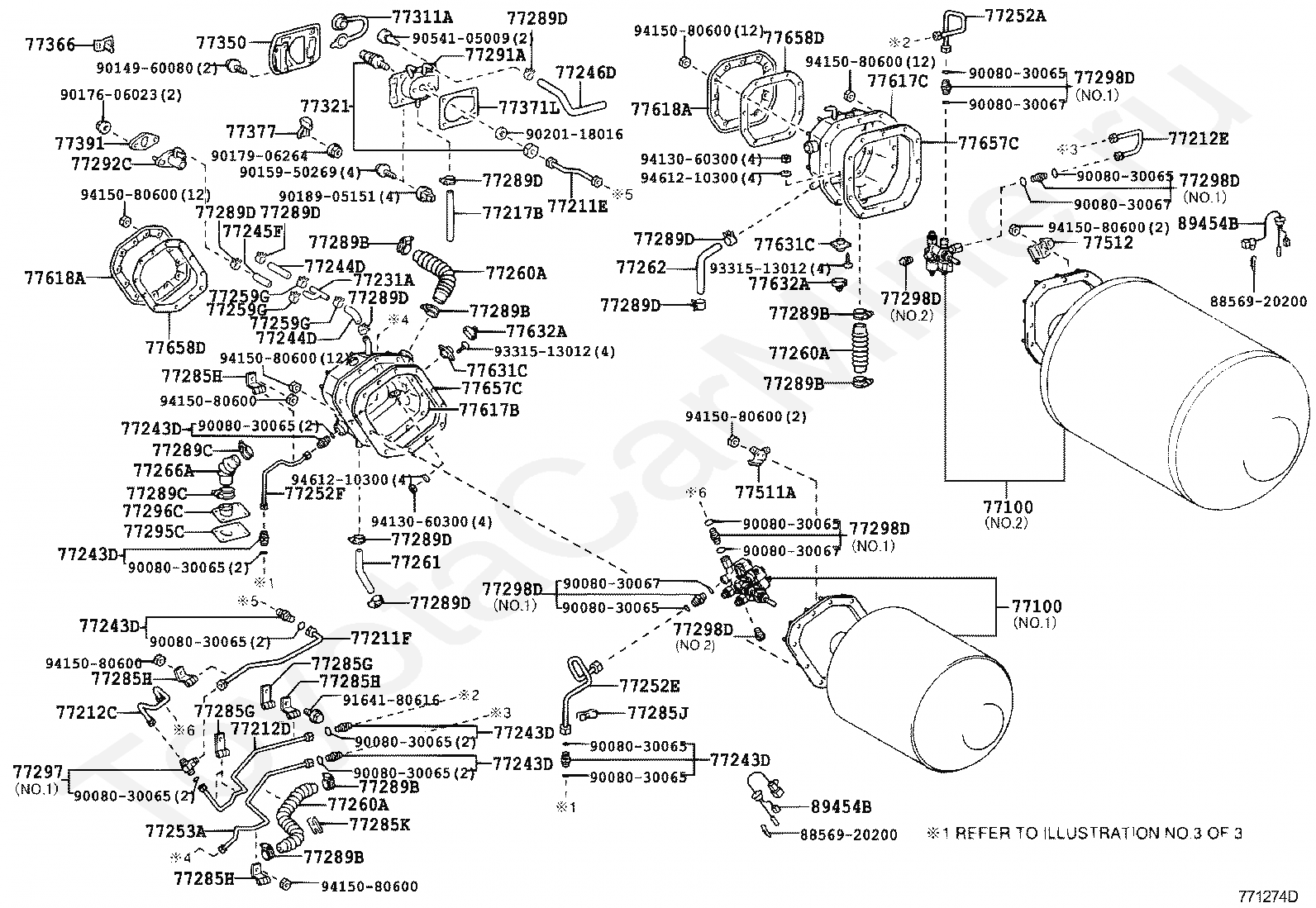

Код

Описание

77100

TANK ASSY, FUEL

77211E

TUBE, FUEL TANK FILLER, NO.1

77211F

TUBE, FUEL TANK FILLER, NO.1

77212C

TUBE, FUEL TANK FILLER, NO.2

77212D

TUBE, FUEL TANK FILLER, NO.2

77212E

TUBE, FUEL TANK FILLER, NO.2

77217B

HOSE, FUEL TANK INLET

77231A

CONNECTOR, FUEL TANK BREATHER TUBE

77243D

JOINT, FUEL TUBE, NO.1

77244D

TUBE, FUEL EVAPORATION BREATHER, NO.1

77245F

TUBE, FUEL EVAPORATION BREATHER, NO.2

77246D

TUBE, FUEL EVAPORATION BREATHER, NO.3

77252A

TUBE, FUEL MAIN, NO.2

77252E

TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)

77252F

TUBE, FUEL MAIN, REAR

77253A

TUBE, FUEL MAIN, NO.3

77259G

CLIP, FUEL HOSE

77260A

DUCT ASSY, FUEL TANK VALVE COVER

77261

TUBE SUB-ASSY, FUEL EMISSION

77262

TUBE, FUEL EMISSION, NO.2

77266A

PROTECTOR, FUEL TUBE, NO.1

77285G

CLAMP, FUEL TUBE, NO.1

77285H

CLAMP, FUEL TUBE, NO.1

77285J

CLAMP, FUEL TUBE, NO.1

77285K

CLAMP, FUEL TUBE, NO.1

77289B

CLAMP, FUEL TUBE, NO.3

77289C

CLAMP, FUEL TUBE, NO.4

77289D

CLAMP, FUEL TUBE, NO.5

77291A

SHIELD, FUEL TANK FILLER PIPE

77292C

SHIELD, FUEL TANK FILLER PIPE, NO.2

77295C

GROMMET, FUEL TUBE

77296C

PLATE, FUEL HOSE GROMMET SUPPORT

77297

CONNECTOR, FUEL TUBE

77298D

ADAPTER, FUEL TUBE JOINT

77311A

CAP, FUEL INLET COUPLER

77321

COUPLER, FUEL INLET

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77371L

RING, FUEL TANK FILLER PIPE SHIELD

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77391

RING, FUEL INLET BOX

77511A

BRACKET, FUEL TANK

77512

BRACKET, FUEL TANK, REAR

77617B

COVER, FUEL TANK VALVE, REAR

77617C

COVER, FUEL TANK VALVE, REAR

77618A

COVER, FUEL TANK VALVE, LOWER

77631C

COVER, FUEL TANK VALVE HANDLE, UPPER

77632A

COVER, FUEL TANK VALVE HANDLE, LOWER

77657C

SEAL, FUEL TANK VALVE COVER, NO.1

77658D

SEAL, FUEL TANK VALVE COVER, NO.2

8856920200

Крепеж

89454B

SENSOR, FUEL TEMPERATURE

9008030065

Крепеж

9008030067

Крепеж

9014960080

Крепеж

9015950269

Крепеж

9017606023

Крепеж

9017906264

Крепеж

9018905151

Крепеж

9020118016

Крепеж

9054105009

Крепеж

9164180616

Крепеж

9331513012

Крепеж

9413060300

Крепеж

9415080600

Крепеж

9461210300

Крепеж

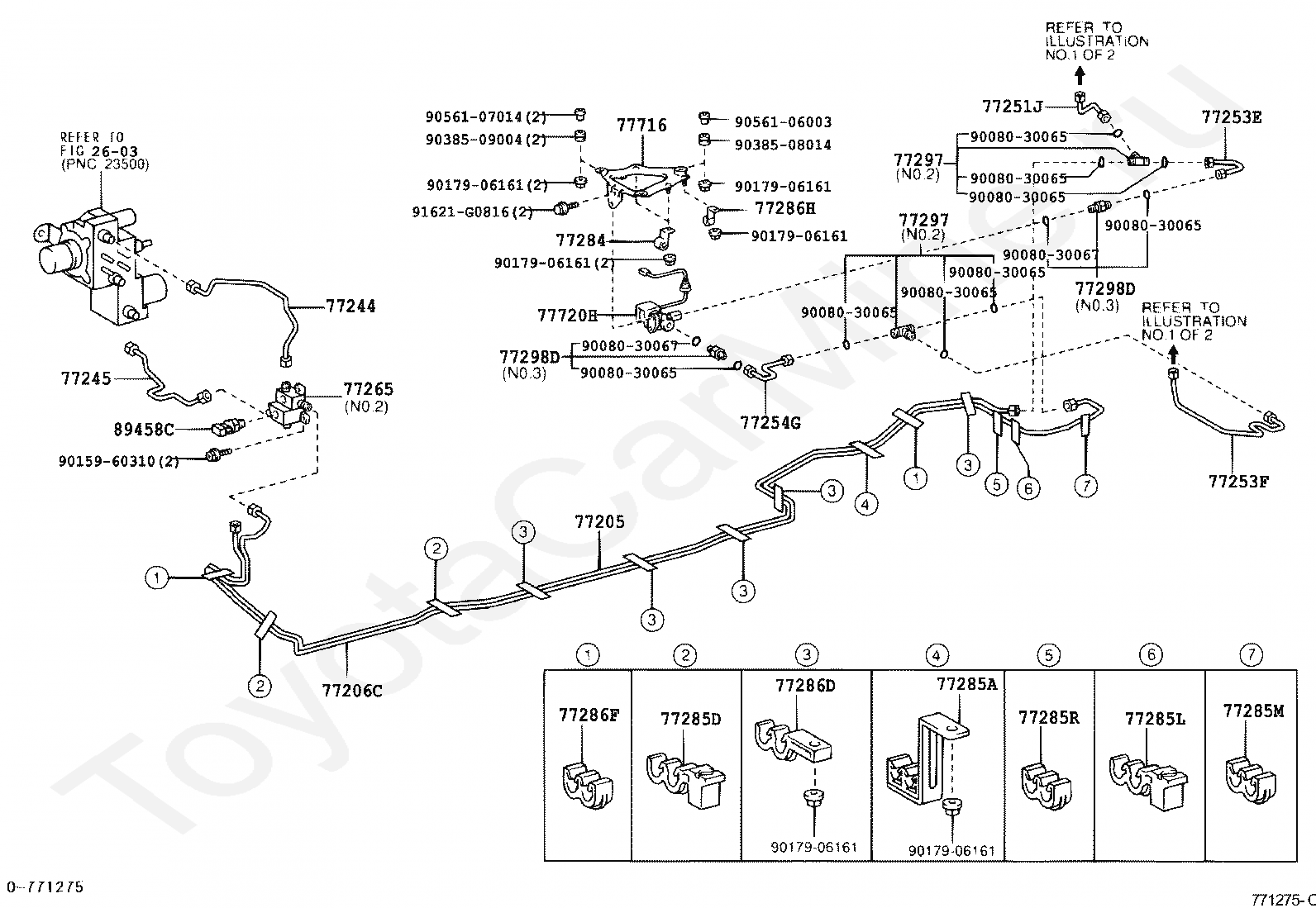

Код

Описание

2603

переход к группе запчастей

77205

TUBE SUB-ASSY, FUEL MAIN

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77244

TUBE, FUEL MAIN, NO.4

77245

TUBE, FUEL MAIN, NO.5

77251J

TUBE, FUEL MAIN, NO.1

77253E

TUBE, FUEL MAIN, NO.2

77253F

TUBE, FUEL MAIN, NO.3

77254G

TUBE, FUEL MAIN, NO.4

77265

CONNECTOR, FUEL MAIN TUBE

77284

CLAMP, FUEL TUBE

77285A

SUPPORT, FUEL RETURN AND MAIN TUBE

77285D

CLAMP, FUEL TUBE, NO.1

77285L

CLAMP, FUEL TUBE, NO.1

77285M

CLAMP, FUEL TUBE, NO.1

77285R

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286F

CLAMP, FUEL TUBE, NO.2

77286H

CLAMP, FUEL TUBE, NO.3

77297

CONNECTOR, FUEL TUBE

77298D

ADAPTER, FUEL TUBE JOINT

77716

BRACKET, FUEL SOLENOID VALVE MAIN

77720H

VALVE ASSY, FUEL OUTLET

89458C

SENSOR, FUEL PRESSURE

9008030065

Крепеж

9008030067

Крепеж

9015960310

Крепеж

9017906161

Крепеж

9038508014

Крепеж

9038509004

Крепеж

9056106003

Крепеж

9056107014

Крепеж

91621G0816

Крепеж

Топливный бак и горловина TOYOTA CENTURY, 1997/04 - 2005/01, 5 литров, 48 клапана DOHC, EFI, GZG50, АКПП, 4 ступени
