Передние кресла TOYOTA CELSIOR, 2000/08 - 2003/07, 4,3 литра, 32 клапана, DOHC, EFI, амперы, UCF30, АКПП, 5 скоростей

Каталог

Япония

Модель

CELSIOR

Двигатель

4,3 литра, 32 клапана, DOHC, EFI

Класс

амперы

Фрейм

UCF30

Трансмиссия

АКПП, 5 скоростей

Опции

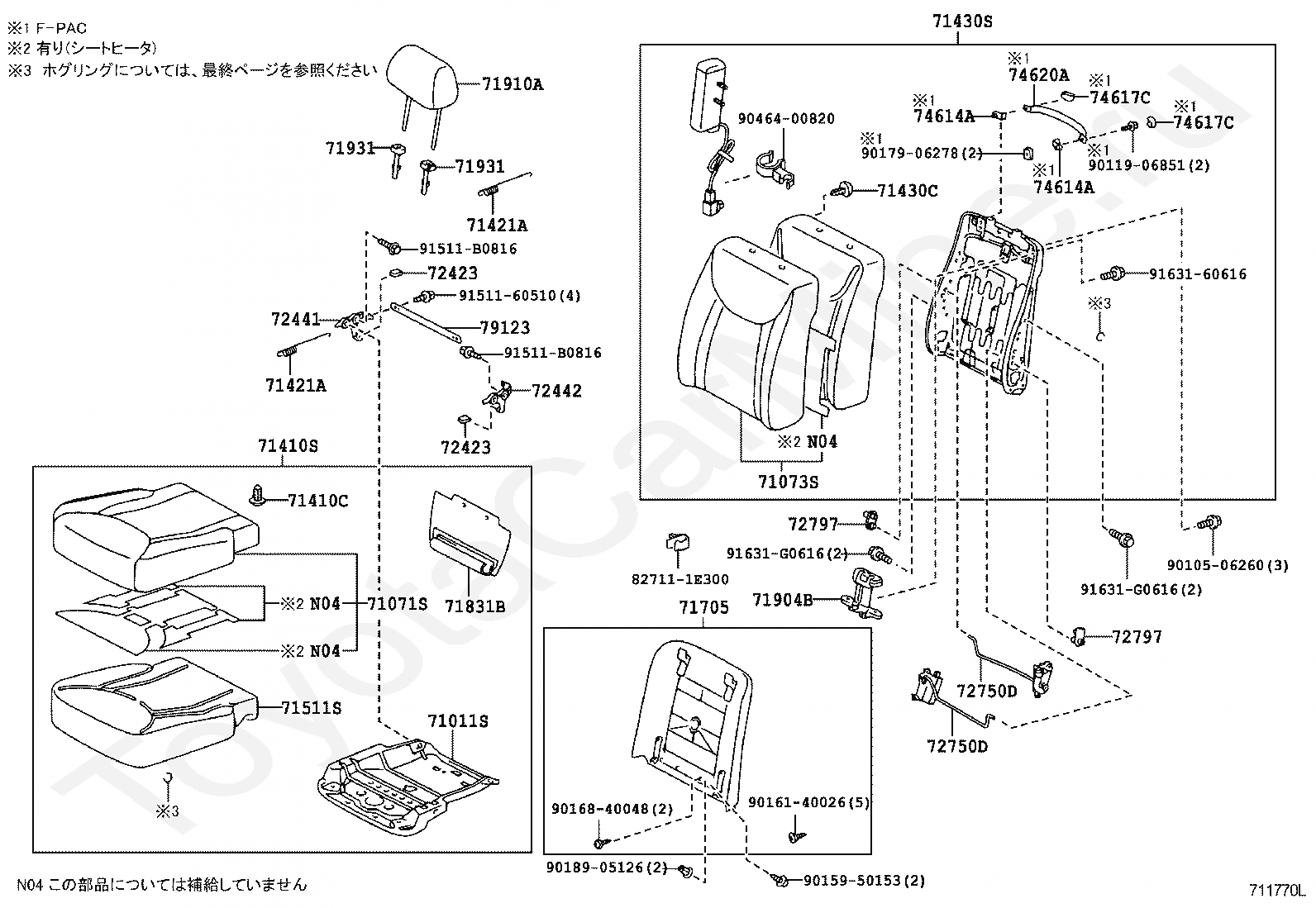

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71421A

SPRING, FRONT SEAT CUSHION

71430C

CLIP

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71831B

COVER, FRONT SEAT HINGE, RH

71904B

ADJUSTER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72423

HOOK, VERTICAL ADJUSTER SPRING

72441

LINK, VERTICAL TRAVEL

72442

LINK, FRONT SEAT TRAVEL, NO.2

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72797

SPACER, LUMBAR SUPPORT

74614A

PLATE, ASSIST GRIP LOCK

74617C

PLUG, ASSIST GRIP

74620A

GRIP ASSY, ASSIST, REAR

79123

PLATE, NO.1 SEAT CUSHION

827111E300

Крепеж

9010506260

Крепеж

9011906851

Крепеж

9015950153

Крепеж

9016140026

Крепеж

9016840048

Крепеж

9017906278

Крепеж

9018905126

Крепеж

9046400820

Крепеж

9151160510

Крепеж

91511B0816

Крепеж

9163160616

Крепеж

91631G0616

Крепеж

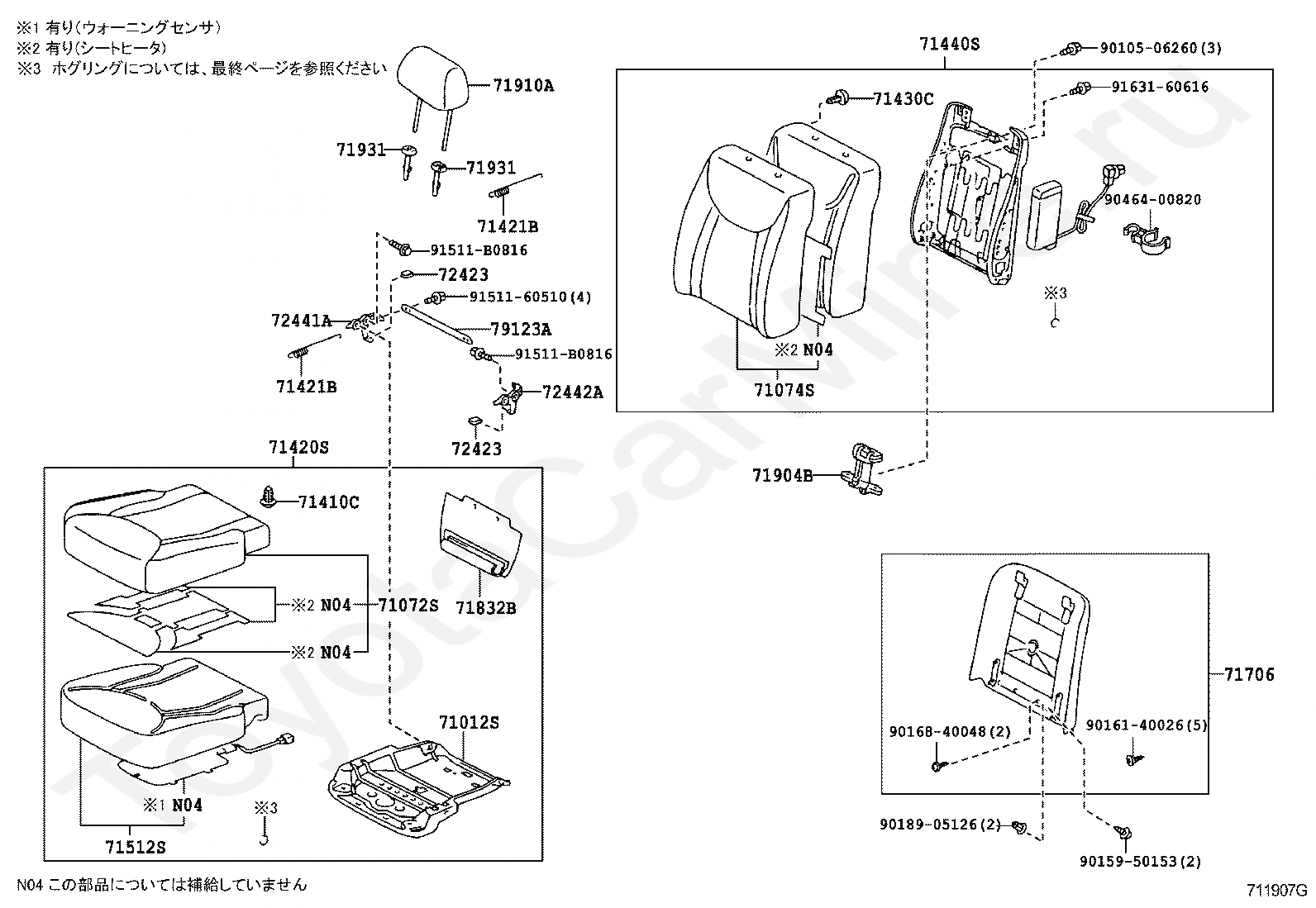

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71421B

SPRING, FRONT SEAT CUSHION

71430C

CLIP

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71832B

COVER, FRONT SEAT HINGE, LH

71904B

ADJUSTER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72423

HOOK, VERTICAL ADJUSTER SPRING

72441A

LINK, FRONT SEAT TRAVEL, NO.1

72442A

LINK, FRONT SEAT TRAVEL, NO.2

79123A

PLATE, NO.1 SEAT CUSHION

9010506260

Крепеж

9015950153

Крепеж

9016140026

Крепеж

9016840048

Крепеж

9018905126

Крепеж

9046400820

Крепеж

9151160510

Крепеж

91511B0816

Крепеж

9163160616

Крепеж

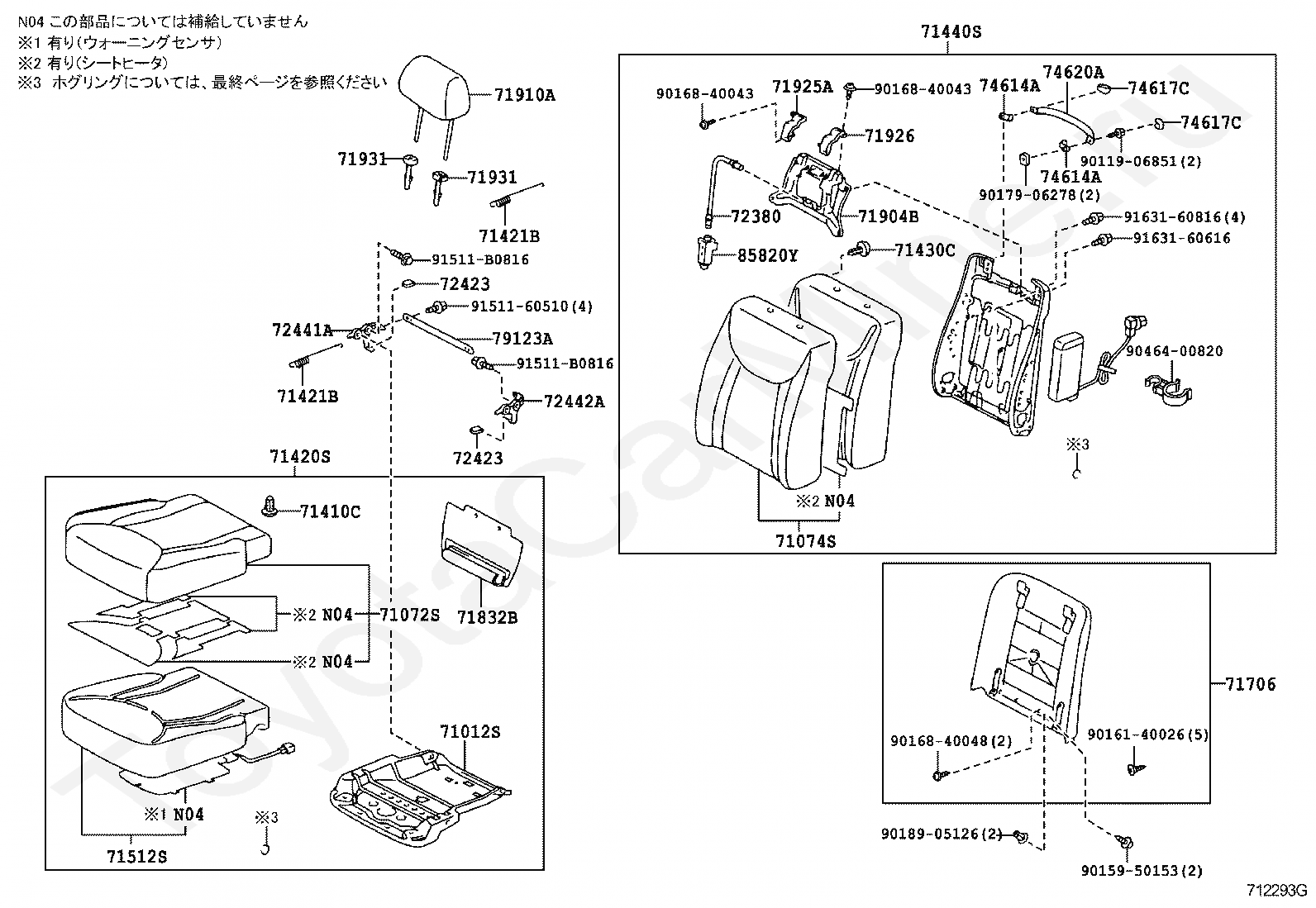

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410C

CLIP(FOR FRONT SEAT CUSHION)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71421B

SPRING, FRONT SEAT CUSHION

71430C

CLIP

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71832B

COVER, FRONT SEAT HINGE, LH

71904B

ADJUSTER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71925A

COVER, FRONT SEAT HEADREST STAY,RH

71926

COVER, FRONT SEAT HEADREST STAY,LH

71931

SUPPORT, FRONT SEAT HEADREST

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72423

HOOK, VERTICAL ADJUSTER SPRING

72441A

LINK, FRONT SEAT TRAVEL, NO.1

72442A

LINK, FRONT SEAT TRAVEL, NO.2

74614A

PLATE, ASSIST GRIP LOCK

74617C

PLUG, ASSIST GRIP

74620A

GRIP ASSY, ASSIST, REAR

79123A

PLATE, NO.1 SEAT CUSHION

85820Y

MOTOR ASSY, POWER SEAT

9011906851

Крепеж

9015950153

Крепеж

9016140026

Крепеж

9016840043

Крепеж

9016840048

Крепеж

9017906278

Крепеж

9018905126

Крепеж

9046400820

Крепеж

9151160510

Крепеж

91511B0816

Крепеж

9163160616

Крепеж

9163160816

Крепеж

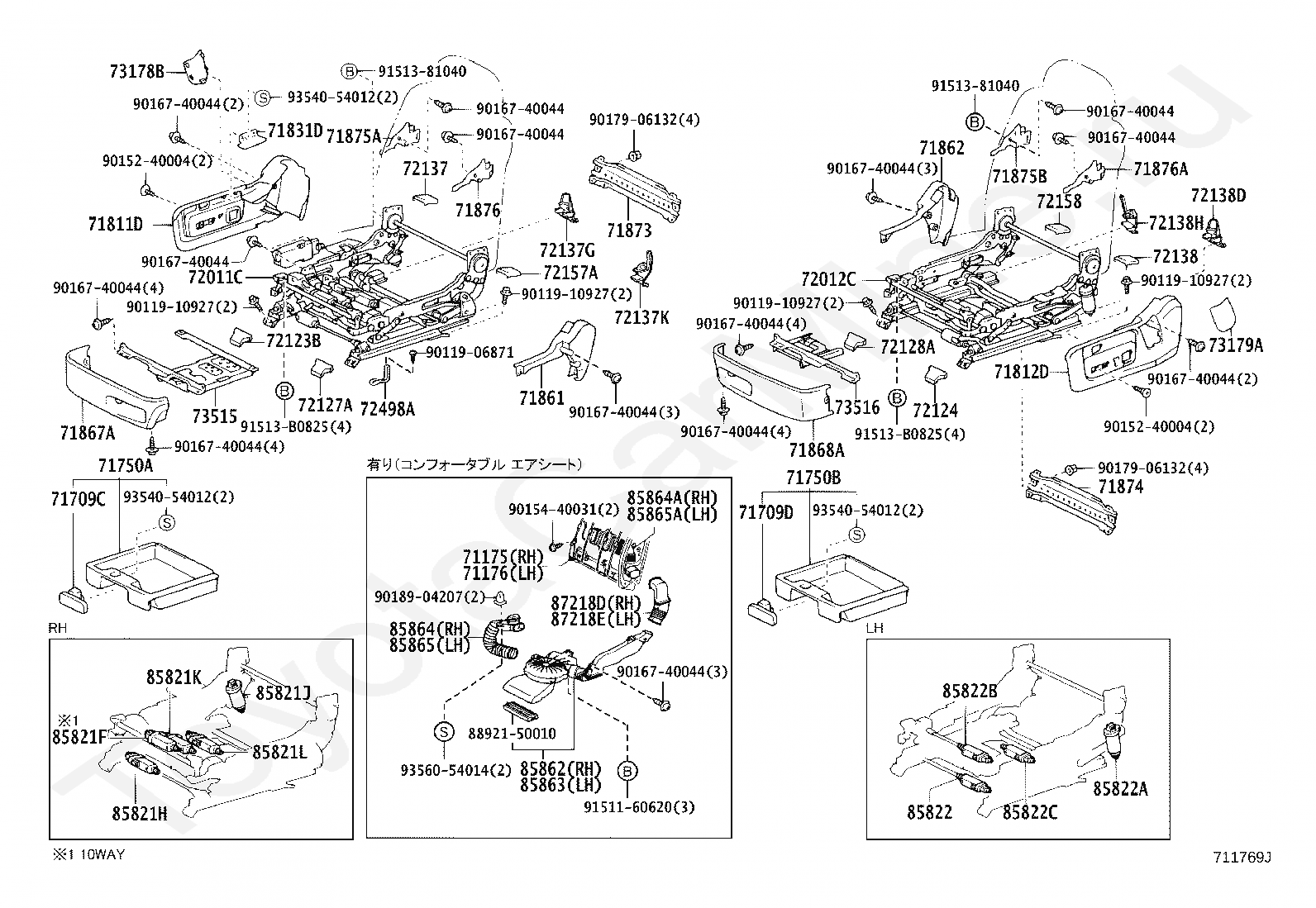

Код

Описание

71175

PLATE, FRONT SEAT BACK SPRING SET, INSIDE RH

71176

PLATE, FRONT SEAT BACK SPRING SET, INSIDE LH

71709C

LOCK SUB-ASSY, SEAT UNDER TRAY

71709D

LOCK SUB-ASSY, SEAT UNDER TRAY

71750A

TRAY ASSY, FRONT SEAT UNDER

71750B

TRAY ASSY, FRONT SEAT UNDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71831D

COVER, FRONT SEAT HINGE, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137

COVER, SEAT TRACK, OUTER RH

72137G

COVER, SEAT TRACK, OUTER RH

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72138

COVER, SEAT TRACK, OUTER LH

72138D

COVER, SEAT TRACK, OUTER, LH

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72498A

COVER, VERTICAL ADJUSTER BRACKET, LH

73178B

CAP, SEAT BELT ANCHOR COVER

73179A

CAP, SEAT BELT ANCHOR COVER, LH

73515

RAIL, FRONT SEAT UNDER TRAY, NO.1

73516

RAIL, FRONT SEAT UNDER TRAY, NO.2

85821F

MOTOR ASSY, POWER SEAT RH

85821H

MOTOR ASSY, POWER SEAT SLIDE, RH

85821J

MOTOR ASSY, POWER SEAT RECLINING, RH

85821K

MOTOR ASSY, POWER SEAT TILT, RH

85821L

MOTOR ASSY, POWER SEAT LIFTER, RH

85822

MOTOR ASSY, POWER SEAT SLIDE, LH

85822A

MOTOR ASSY, POWER SEAT RECLINING, LH

85822B

MOTOR ASSY, POWER SEAT TILT, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

85862

BLOWER, SEAT CLIMATE CONTROL, RH

85863

BLOWER, SEAT CLIMATE CONTROL, LH

85864

CONTROLLER, SEAT CLIMATE CONTROL,RH

85864A

CONTROLLER, SEAT CLIMATE CONTROL, RH

85865

CONTROLLER, SEAT CLIMATE CONTROL,LH

85865A

CONTROLLER, SEAT CLIMATE CONTROL, LH

87218D

DUCT, AIR, RR NO.6

87218E

DUCT, AIR, RR NO.6

8892150010

Крепеж

9011906871

Крепеж

9011910927

Крепеж

9015240004

Крепеж

9015440031

Крепеж

9016740044

Крепеж

9017906132

Крепеж

9018904207

Крепеж

9151160620

Крепеж

9151381040

Крепеж

91513B0825

Крепеж

9354054012

Крепеж

9356054014

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA CELSIOR, 2000/08 - 2003/07, 4,3 литра, 32 клапана, DOHC, EFI, амперы, UCF30, АКПП, 5 скоростей
