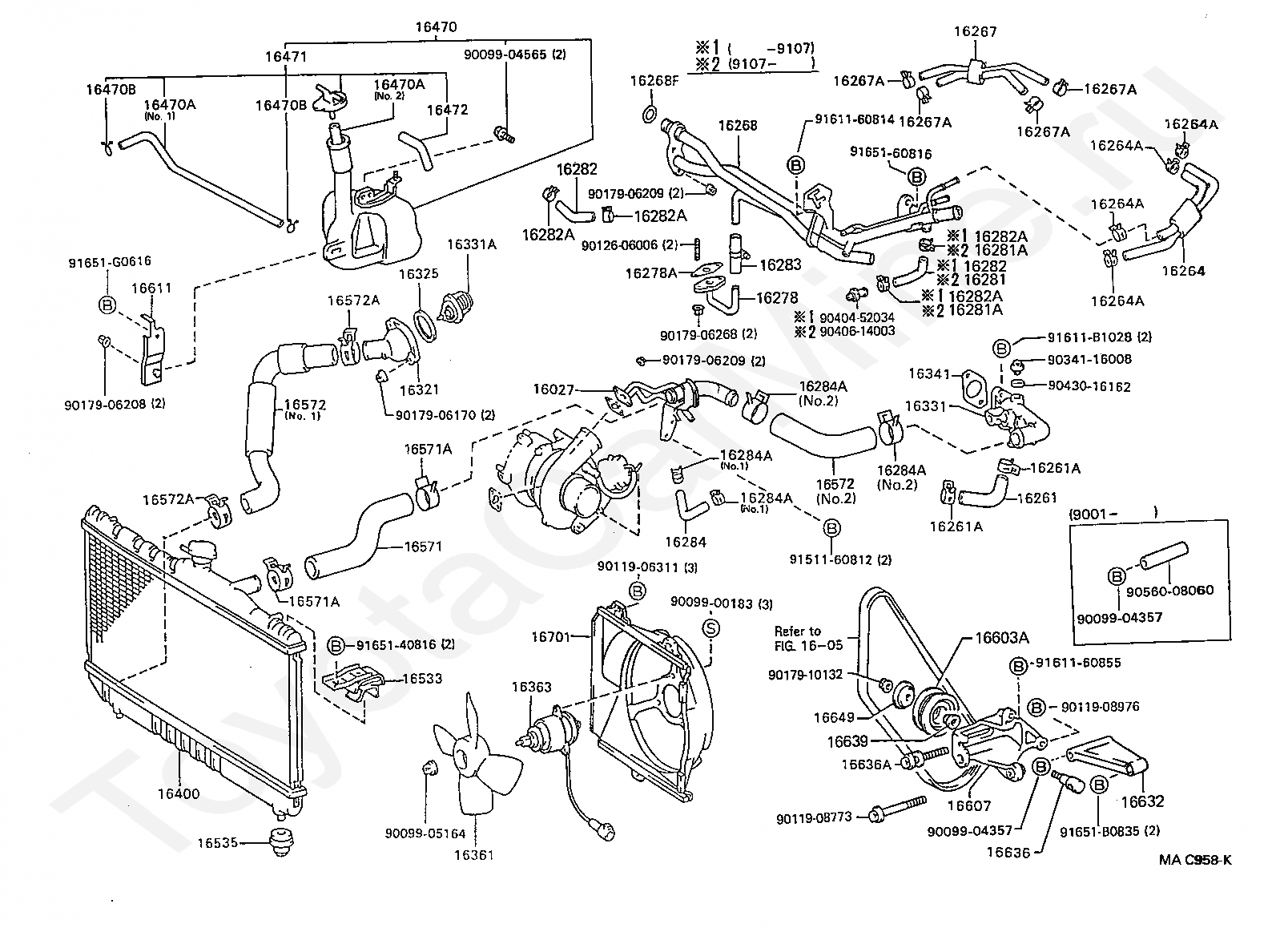

Радиатор и шланги TOYOTA CELICA, 1989/10 - 1993/09, 2 литра, 16 клапанов, DOHC, EFI, турбо, POUNDS, TURBO 4WD TYPE, ST185, механика

Каталог

Европа

Модель

CELICA

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

POUNDS

Класс

TURBO 4WD TYPE

Фрейм

ST185

Трансмиссия

механика

Опции

WIDE BODY Канада

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

1605

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16278

PIPE, WATER BY-PASS, NO.2

16278A

GASKET, WATER BY-PASS

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16603A

PULLEY SUB-ASSY, IDLER, NO.1

16607

BRACKET SUB-ASSY, IDLER PULLEY, NO.1

16611

BRACKET, RADIATOR RESERVE TANK

16632

BRACKET, IDLER PULLEY, NO.2

16636

SHAFT, IDLER PULLY, NO.1

16636A

BOLT(FOR IDLER PULLY TENSION)

16639

SPACER, IDLER PULLEY

16649

PLATE, IDLER PULLEY COVER

16701

SHROUD SUB-ASSY, FAN

9009900183

Крепеж

9009904357

Крепеж

9009904565

Крепеж

9009905164

Крепеж

9011906311

Крепеж

9011908773

Крепеж

9011908976

Крепеж

9012606006

Крепеж

9017906170

Крепеж

9017906208

Крепеж

9017906209

Крепеж

9017906268

Крепеж

9017910132

Крепеж

9034116008

Крепеж

9040452034

Крепеж

9040614003

Крепеж

9043016162

Крепеж

9056008060

Крепеж

9151160812

Крепеж

9161160814

Крепеж

9161160855

Крепеж

91611B1028

Крепеж

9165140816

Крепеж

9165160816

Крепеж

91651B0835

Крепеж

91651G0616

Крепеж

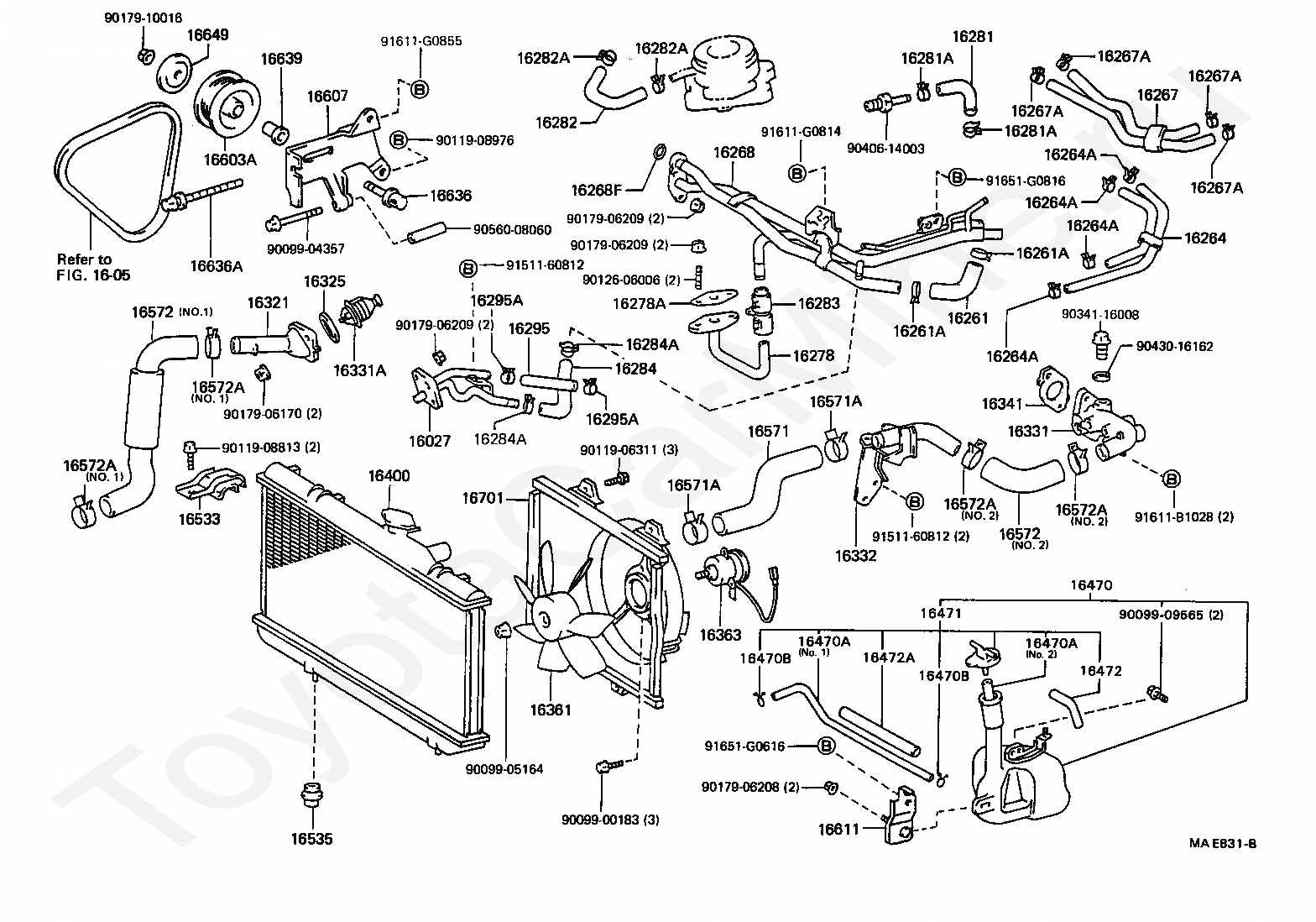

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

1605

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16278

PIPE, WATER BY-PASS, NO.2

16278A

GASKET, WATER BY-PASS

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16332

PIPE, WATER OUTLET, NO.1

16341

GASKET, WATER OUTLET

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16472A

PROTECTOR, HOSE

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16603A

PULLEY SUB-ASSY, IDLER, NO.1

16607

BRACKET SUB-ASSY, IDLER PULLEY, NO.1

16611

BRACKET, RADIATOR RESERVE TANK

16636

SHAFT, IDLER PULLY, NO.1

16636A

BOLT(FOR IDLER PULLY TENSION)

16639

SPACER, IDLER PULLEY

16649

PLATE, IDLER PULLEY COVER

16701

SHROUD SUB-ASSY, FAN

9009900183

Крепеж

9009904357

Крепеж

9009905164

Крепеж

9009909565

Крепеж

9011906311

Крепеж

9011908813

Крепеж

9011908976

Крепеж

9012606006

Крепеж

9017906170

Крепеж

9017906208

Крепеж

9017906209

Крепеж

9017910016

Крепеж

9034116008

Крепеж

9040614003

Крепеж

9043016162

Крепеж

9056008060

Крепеж

9151160812

Крепеж

91611B1028

Крепеж

91611G0814

Крепеж

91611G0855

Крепеж

91651G0616

Крепеж

91651G0816

Крепеж

Код

Описание

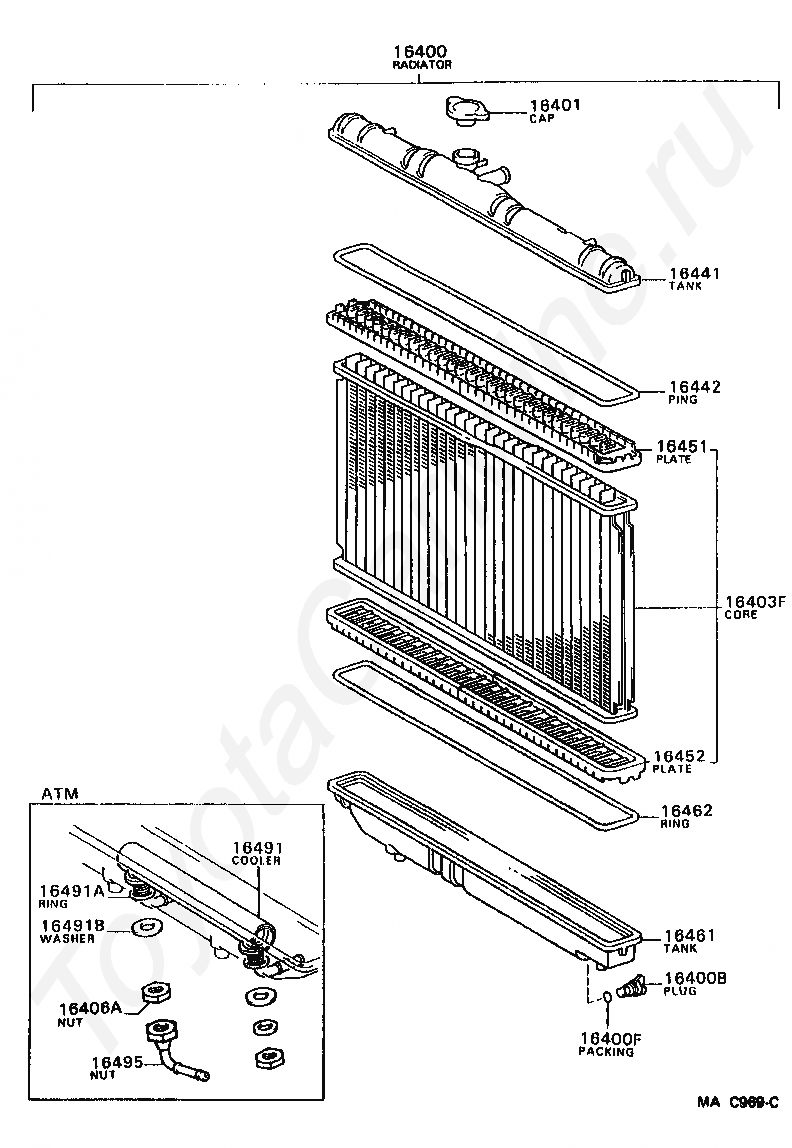

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

Радиатор и шланги TOYOTA CELICA, 1989/10 - 1993/09, 2 литра, 16 клапанов, DOHC, EFI, турбо, POUNDS, TURBO 4WD TYPE, ST185, механика
