Каталог
ЕвропаМодель
CELICAДвигатель
2 литра, 16 клапанов, DOHC, EFIКузов
купеКласс
GT TYPEФрейм
ST162Трансмиссия
автомат АКПП, 4 ступениОпции
Канада

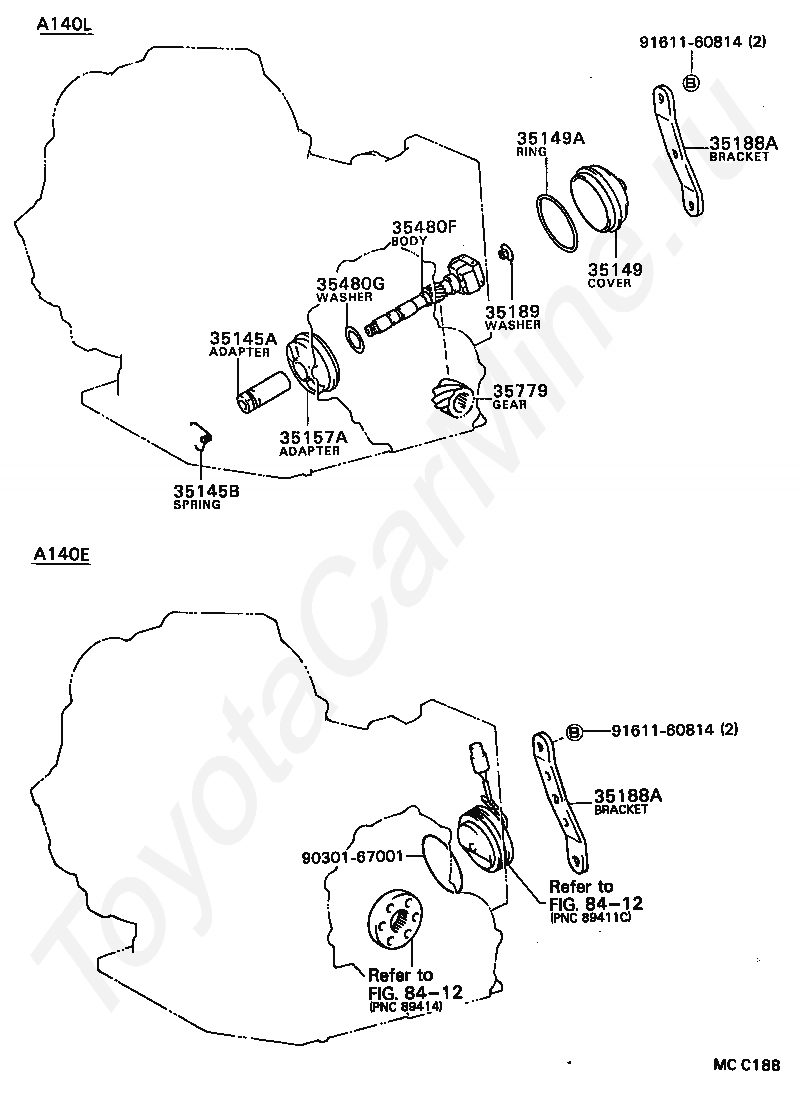

Код
Описание
35145A
ADAPTER, GOVERNOR PRESSURE
35145B
SPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)
35149
COVER, GOVERNOR
35149A
RING, O (FOR GOVERNOR COVER)
35157A
ADAPTER, GOVERNOR BODY
35188A
BRACKET, GOVERNOR COVER
35189
WASHER, GOVERNOR THRUST, NO.1
35480F
BODY ASSY, GOVERNOR
35480G
WASHER, PLATE (FOR GOVERNOR BODY)
35779
GEAR, GOVERNOR DRIVE
8412
переход к группе запчастей
9030167001
Крепеж
9161160814
Крепеж

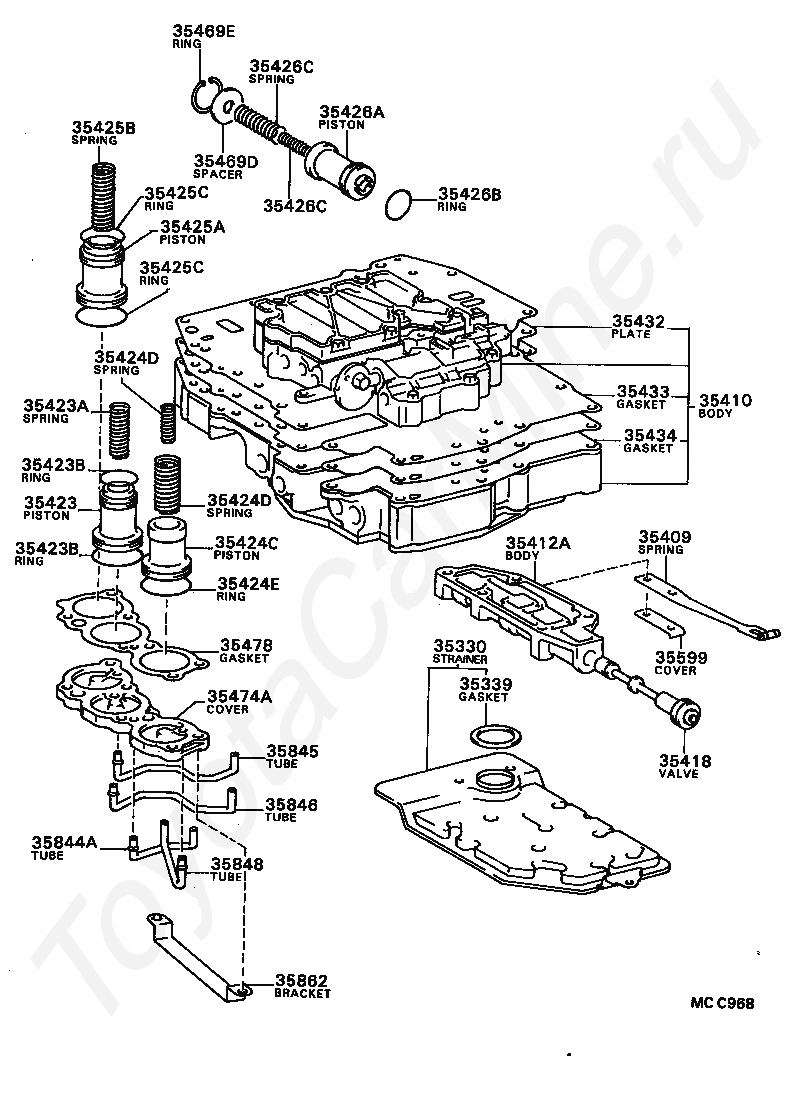

Код
Описание
35330
STRAINER ASSY, VALVE BODY OIL
35339
GASKET, OIL STRAINER
35409
SPRING SUB-ASSY, MANUAL DETENT
35410
BODY ASSY, TRANSMISSION VALVE
35412A
BODY, MANUAL VALVE
35418
VALVE, MANUAL
35423
PISTON, B-2 ACCUMULATOR
35423A
SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423B
RING, O (FOR B-2 ACCUMULATOR PISTON)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35426A
PISTON, C-0 ACCUMULATOR
35426B
RING, O (FOR C-0 ACCUMULATOR PISTON)
35426C
SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35469D
SPACER (FOR C-0 ACCUMULATOR PISTON)
35469E
RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)
35474A
COVER, ACCUMULATOR
35478
GASKET, ACCUMULATOR COVER
35599
COVER, MANUAL DETENT SPRING
35844A
TUBE, ACCUMULATOR BACK PRESSURE, NO.1
35845
TUBE, RR CLUTCH ACCUMULATOR
35846
TUBE, BRAKE ACCUMULATOR
35848
TUBE, FORWARD CLUTCH ACCUMULATOR
35862
BRACKET, ACCUMULATOR APPLY TUBE
Код
Описание

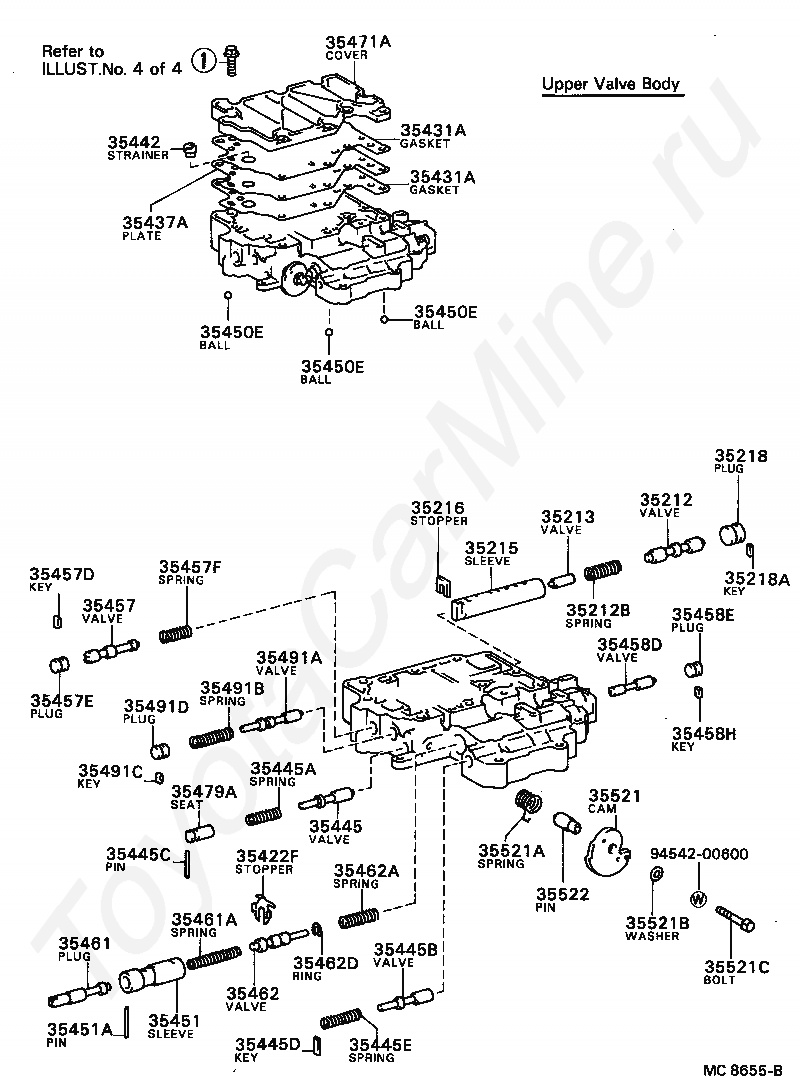

35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213
VALVE, LOCK UP RELAY CONTROL
35215
SLEEVE, LOCK UP RELAY VALVE
35216
STOPPER, VALVE SLEEVE
35218
PLUG, LOCK UP RELAY VALVE
35218A
KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG)
35422F
STOPPER, VALVE VIBRATING
35431A
GASKET, UPPER VALVE BODY COVER
35437A
PLATE, UPPER VALVE BODY COVER
35442
STRAINER, THROTTLE MODULATOR OIL
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35445B
VALVE, 2ND MODULATOR
35445C
PIN, STRAIGHT (FOR LOW MODULATOR VALVE)
35445D
KEY, STRAIGHT (FOR 2ND MODULATOR VALVE)
35445E
SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE)
35450E
BALL (FOR UPPER VALVE BODY)
35451
SLEEVE, THROTTLE VALVE
35451A
PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)
35457
VALVE, THROTTLE MODULATOR
35457D
KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE)
35457E
PLUG (FOR THROTTLE MODULATOR VALVE)
35457F
SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458H
KEY, STRAIGHT (FOR CUT BACK VALVE)
35461
PLUG, DOWN SHIFT
35461A
SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35462D
RING, E (FOR THROTTLE VALVE)
35471A
COVER, UPPER VALVE BODY
35479A
SEAT, LOW MODULATOR VALVE SPRING
35491A
VALVE, ACCUMULATOR CONTROL, NO.1
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C
KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D
PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)
35521
CAM, THROTTLE VALVE
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35521C
BOLT (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
9454200600
Крепеж
