Каталог
ЕвропаМодель
CELICAДвигатель
2,8 литра, DOHC, EFIКузов
POUNDSКласс
SPUTTERINGФрейм
MA61Трансмиссия
автомат АКПП, 4 ступениОпции
правый руль TWIN CAM Европа Европа
Код
Описание

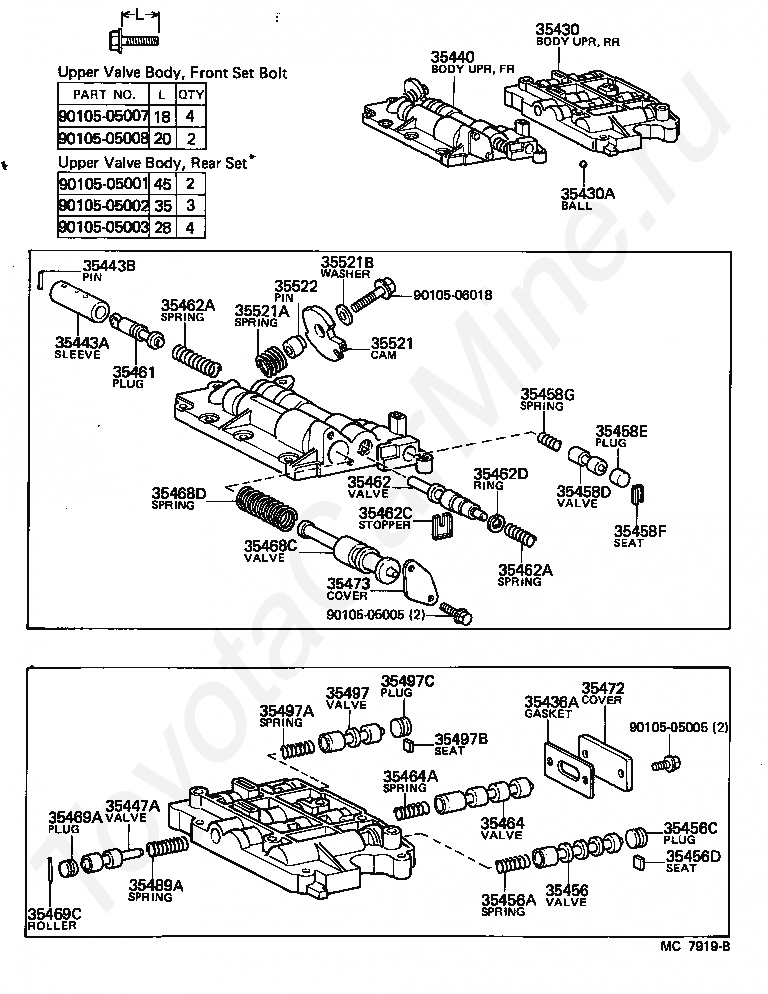

35430
BODY ASSY, REAR UPPER VALVE
35430A
BALL (FOR REAR UPPER VALVE BODY)
35436A
GASKET, VALVE BODY PLATE, NO.4
35440
BODY ASSY, FRONT UPPER VALVE
35443A
SLEEVE, DOWN SHIFT PLUG
35443B
PIN (FOR DOWN SHIFT PLUG SLEEVE)
35447A
VALVE, REVERSE CLUTCH SEQUENCE
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456D
SEAT (FOR 2-3 SHIFT VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458F
SEAT (FOR CUT BACK VALVE)
35458G
SPRING, COMPRESSION (FOR CUT BACK VALVE)
35461
PLUG, DOWN SHIFT
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35462C
STOPPER, VALVE VIBRATING
35462D
RING, E (FOR THROTTLE VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35469A
PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE
35469C
ROLLER, SHIFT VALVE PLUG
35472
COVER, VALVE BODY, NO.2
35473
COVER, TRANSMISSION VALVE BODY
35489A
SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497B
SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35521
CAM, THROTTLE VALVE
35521A
SPRING (FOR THROTTLE VALVE CAM RETURN)
35521B
WASHER (FOR THROTTLE VALVE CAM SET)
35522
PIN, THROTTLE VALVE CAM
9010505001
Крепеж
9010505002
Крепеж
9010505003
Крепеж
9010505005
Крепеж
9010505007
Крепеж
9010505008
Крепеж
9010506018
Крепеж
Код
Описание

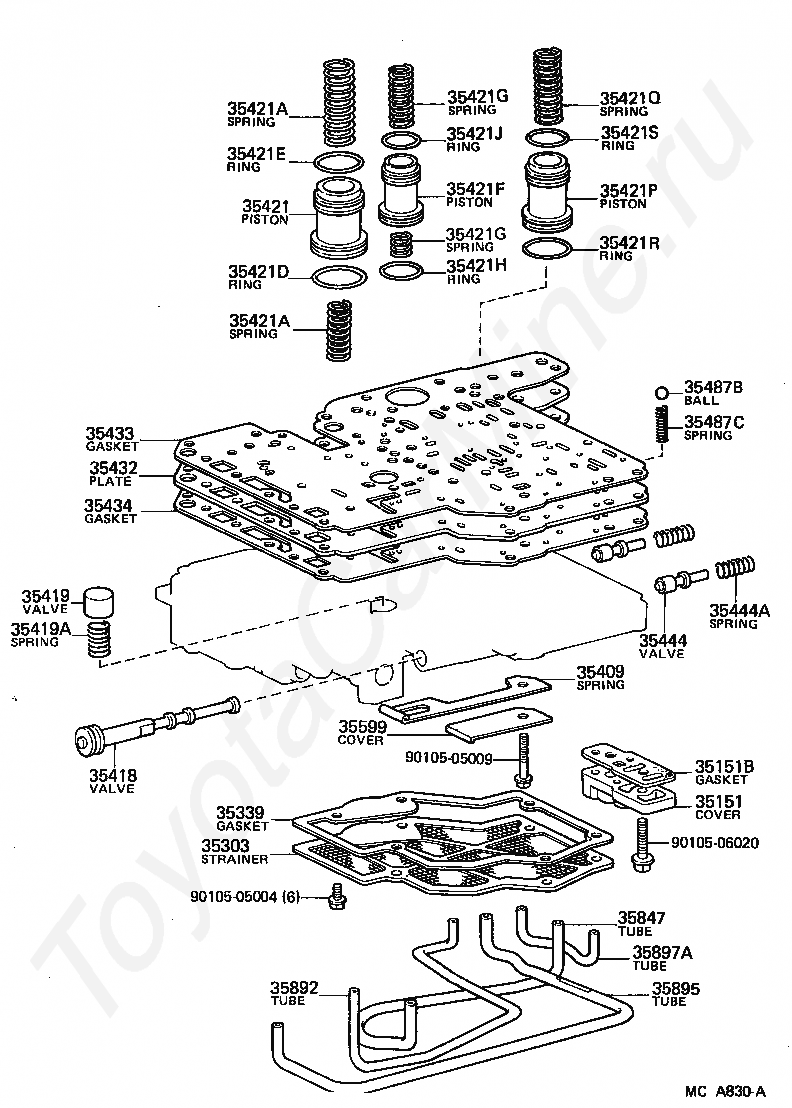

35151
COVER, TRANSMISSION CASE, LOWER
35151B
GASKET, TRANSMISSION CASE LOWER COVER
35303
STRAINER SUB-ASSY, OIL
35339
GASKET, OIL STRAINER
35409
SPRING SUB-ASSY, MANUAL DETENT
35418
VALVE, MANUAL
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35421
PISTON, ACCUMULATOR, NO.1
35421A
SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
35421D
RING (FOR ACCUMULATOR PISTON NO.1)
35421E
RING (FOR ACCUMULATOR PISTON NO.1)
35421F
PISTON, ACCUMULATOR, NO.2
35421G
SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
35421H
RING (FOR ACCUMULATOR PISTON NO.2)
35421J
RING (FOR ACCUMULATOR PISTON NO.2)
35421P
PISTON, ACCUMULATOR, NO.3
35421Q
SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)
35421R
RING (FOR ACCUMULATOR PISTON NO.3)
35421S
RING (FOR ACCUMULATOR PISTON NO.3)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35444
VALVE, INTERMEDIATE MODULATOR
35444A
SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
35487B
BALL, CHECK, NO.4
35487C
SPRING, COMPRESSION (FOR CHECK BALL)
35599
COVER, MANUAL DETENT SPRING
35847
TUBE, TRANSMISSION LUBE APPLY
35892
TUBE, OVERDRIVE BRAKE
35895
TUBE, FRONT CLUTCH APPLY
35897A
TUBE, 1ST & REVERSE BRAKE, NO.1
9010505004
Крепеж
9010505009
Крепеж
9010506020
Крепеж
Код
Описание

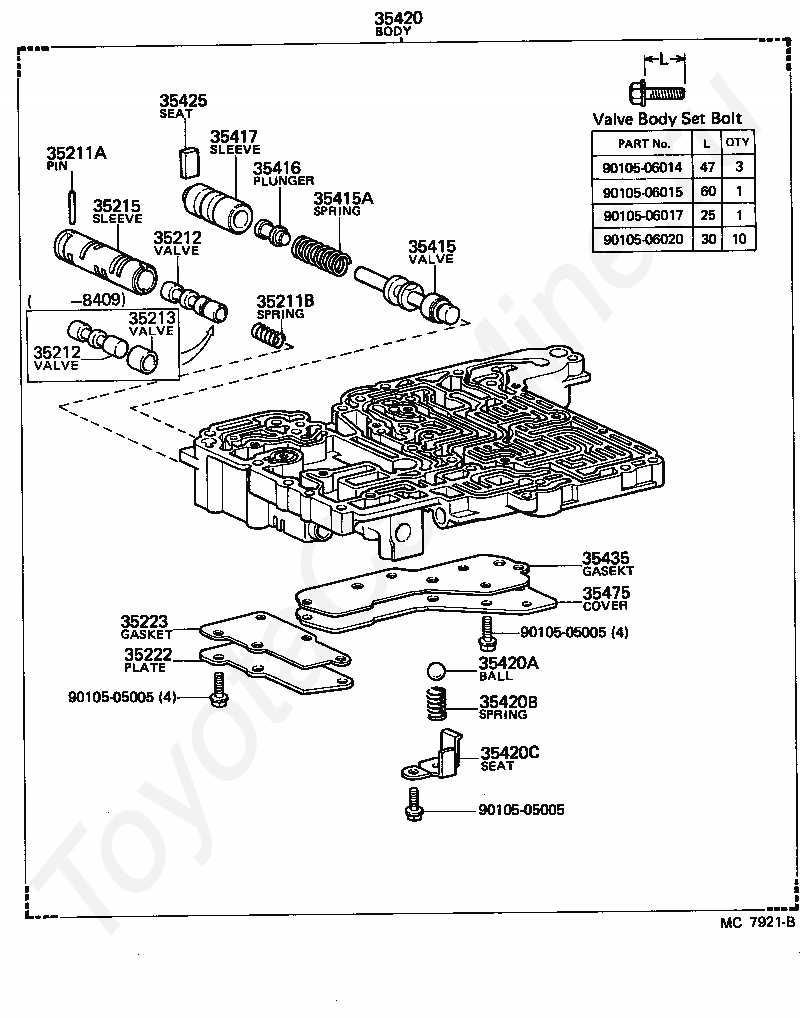

35211A
PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)
35211B
SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)
35212
VALVE, LOCK UP RELAY
35213
VALVE, LOCK UP RELAY CONTROL
35215
SLEEVE, LOCK UP RELAY VALVE
35222
PLATE, LOCK UP RELAY VALVE BODY
35223
GASKET, LOCK UP RELAY VALVE BODY
35415
VALVE, PRESSURE REGULATOR
35415A
SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417
SLEEVE, PRESSURE REGULATOR VALVE
35420
BODY ASSY, LOWER VALVE
35420A
BALL (FOR PRESSURE RELIEF)
35420B
SPRING (FOR PRESSURE RELIEF)
35420C
SEAT (FOR PRESSURE RELIEF)
35425
SEAT, PRESSURE REGULATOR VALVE SLEEVE
35435
GASKET, VALVE BODY PLATE, NO.3
35475
COVER, VALVE BODY, NO.5
9010505005
Крепеж
9010506014
Крепеж
9010506015
Крепеж
9010506017
Крепеж
9010506020
Крепеж
