Топливная система TOYOTA CELICA, 1981/08 - 1985/12, 2,8 литра, DOHC, EFI, POUNDS, SPUTTERING, MA61, механика, МКПП, 5 скоростей

Каталог

Америка

Модель

CELICA

Двигатель

2,8 литра, DOHC, EFI

Кузов

POUNDS

Класс

SPUTTERING

Фрейм

MA61

Трансмиссия

механика МКПП, 5 скоростей

Опции

электронная система впрыска топлива Канада

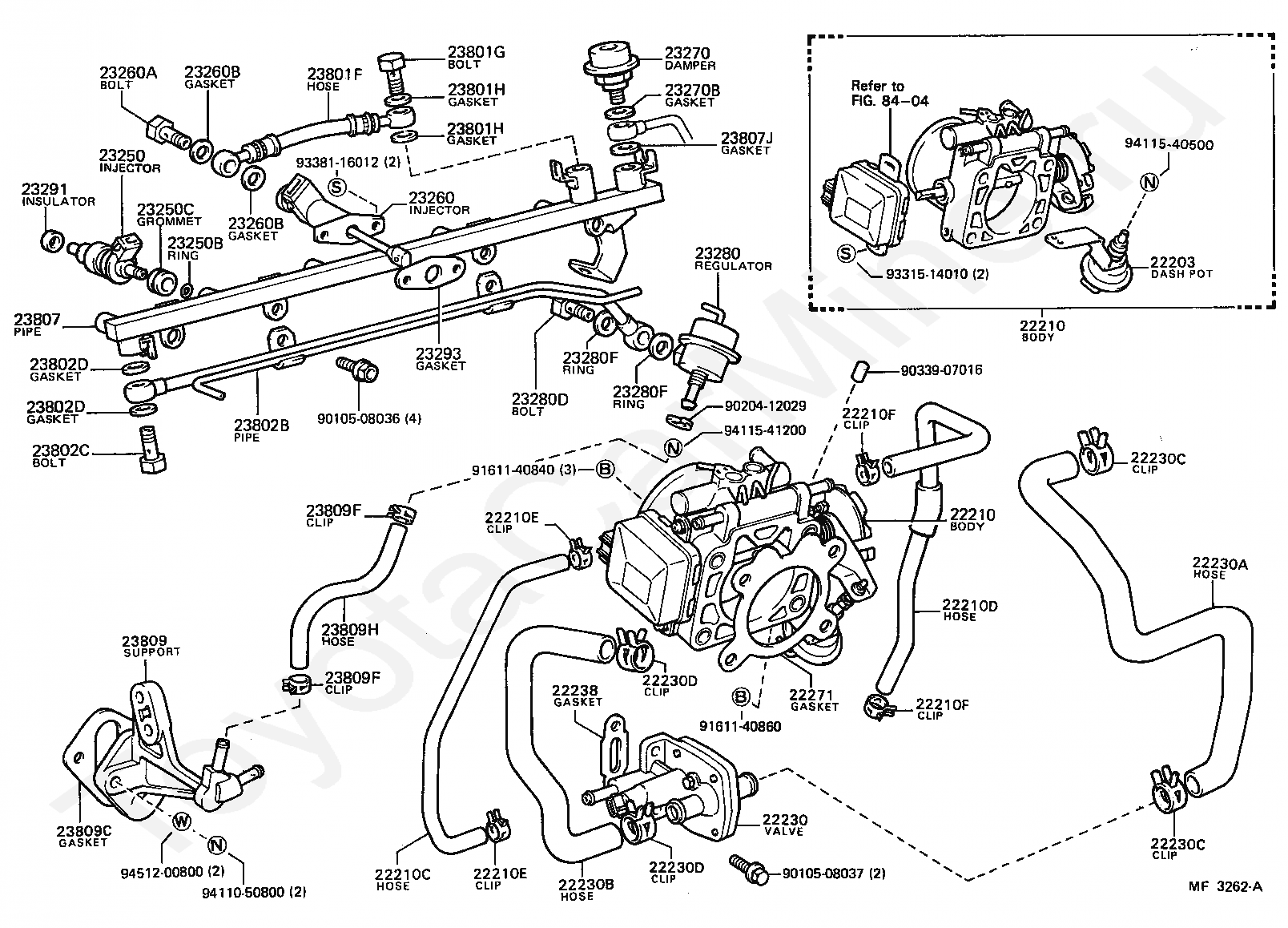

Код

Описание

22203

DASH POT SUB-ASSY(FOR THROTTLE BODY)

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22230

VALVE ASSY, AUXILIARY AIR

22230A

HOSE, AUXILIARY AIR VALVE, NO.1

22230B

HOSE, AUXILIARY AIR VALVE, NO.2

22230C

CLIP, AUXILIARY AIR VALVE HOSE, NO.1

22230D

CLIP, AUXILIARY AIR VALVE HOSE, NO.2

22238

GASKET, AUXILIARY AIR VALVE

22271

GASKET, THROTTLE BODY

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23260

INJECTOR ASSY, COLD START FUEL

23260A

BOLT, UNION

23260B

GASKET

23270

DAMPER ASSY, FUEL PRESSURE PULSATION

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23280

REGULATOR ASSY, FUEL PRESSURE

23280D

BOLT, UNION(FOR FUEL PIPE OR HOSE SET)

23280F

GASKET(FOR FUEL PRESSURE REGULATOR)

23291

INSULATOR, INJECTOR VIBRATION

23293

GASKET, COLD START INJECTOR

23801F

HOSE, FUEL, NO.1

23801G

BOLT, UNION(FOR FUEL PIPE)

23801H

GASKET(FOR FUEL PIPE)

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807J

GASKET, PIPE FUEL DELIVARY INLET

23809

SUPPORT SUB-ASSY, FUEL PIPE

23809C

GASKET, FUEL PIPE SUPPORT

23809F

CLIP(FOR FUEL PIPE SUPPORT)

23809H

HOSE, FUEL PIPE SUPPORT TO REGULATOR

8404

переход к группе запчастей

9010508036

Крепеж

9010508037

Крепеж

9020412029

Крепеж

9033907016

Крепеж

9161140840

Крепеж

9161140860

Крепеж

9331514010

Крепеж

9338116012

Крепеж

9411050800

Крепеж

9411540500

Крепеж

9411541200

Крепеж

9451200800

Крепеж

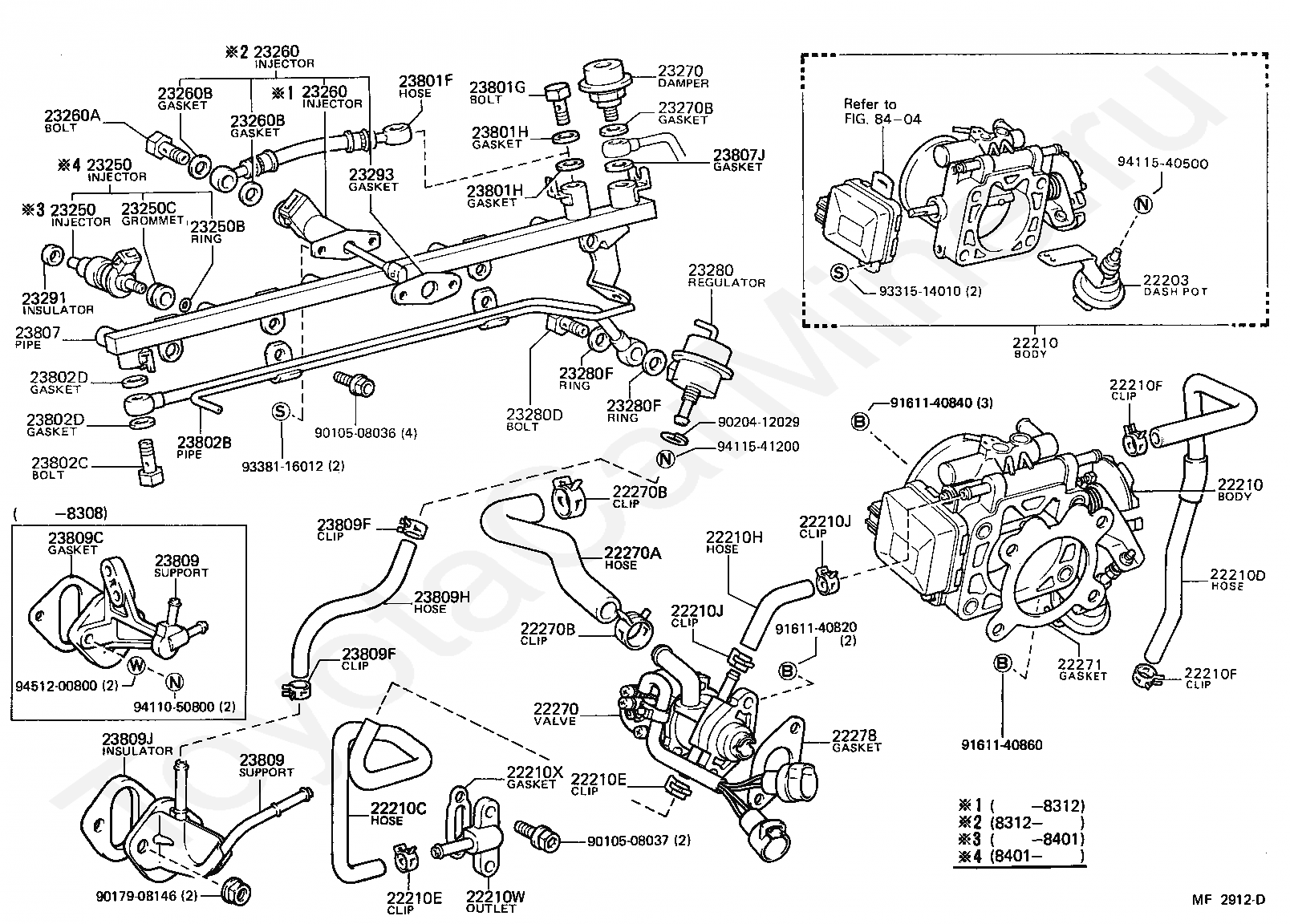

Код

Описание

22203

DASH POT SUB-ASSY(FOR THROTTLE BODY)

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22210H

HOSE, WATER BY-PASS, NO.3

22210J

CLIP(FOR WATER BY-PASS HOSE NO.3)

22210W

OUTLET, WATER BY-PASS

22210X

GASKET, WATER OUTLET

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22270A

HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

22270B

CLIP(FOR AIR HOSE)

22271

GASKET, THROTTLE BODY

22278

GASKET, IDLE SPEED CONTROL VALVE

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23260

INJECTOR ASSY, COLD START FUEL

23260A

BOLT, UNION

23260B

GASKET

23270

DAMPER ASSY, FUEL PRESSURE PULSATION

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23280

REGULATOR ASSY, FUEL PRESSURE

23280D

BOLT, UNION(FOR FUEL PIPE OR HOSE SET)

23280F

GASKET(FOR FUEL PRESSURE REGULATOR)

23291

INSULATOR, INJECTOR VIBRATION

23293

GASKET, COLD START INJECTOR

23801F

HOSE, FUEL, NO.1

23801G

BOLT, UNION(FOR FUEL PIPE)

23801H

GASKET(FOR FUEL PIPE)

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807J

GASKET, PIPE FUEL DELIVARY INLET

23809

SUPPORT SUB-ASSY, FUEL PIPE

23809C

GASKET, FUEL PIPE SUPPORT

23809F

CLIP(FOR FUEL PIPE SUPPORT)

23809H

HOSE, FUEL PIPE SUPPORT TO REGULATOR

23809J

INSULATOR, FUEL PIPE SUPPORT

8404

переход к группе запчастей

9010508036

Крепеж

9010508037

Крепеж

9017908146

Крепеж

9020412029

Крепеж

9161140820

Крепеж

9161140840

Крепеж

9161140860

Крепеж

9331514010

Крепеж

9338116012

Крепеж

9411050800

Крепеж

9411540500

Крепеж

9411541200

Крепеж

9451200800

Крепеж

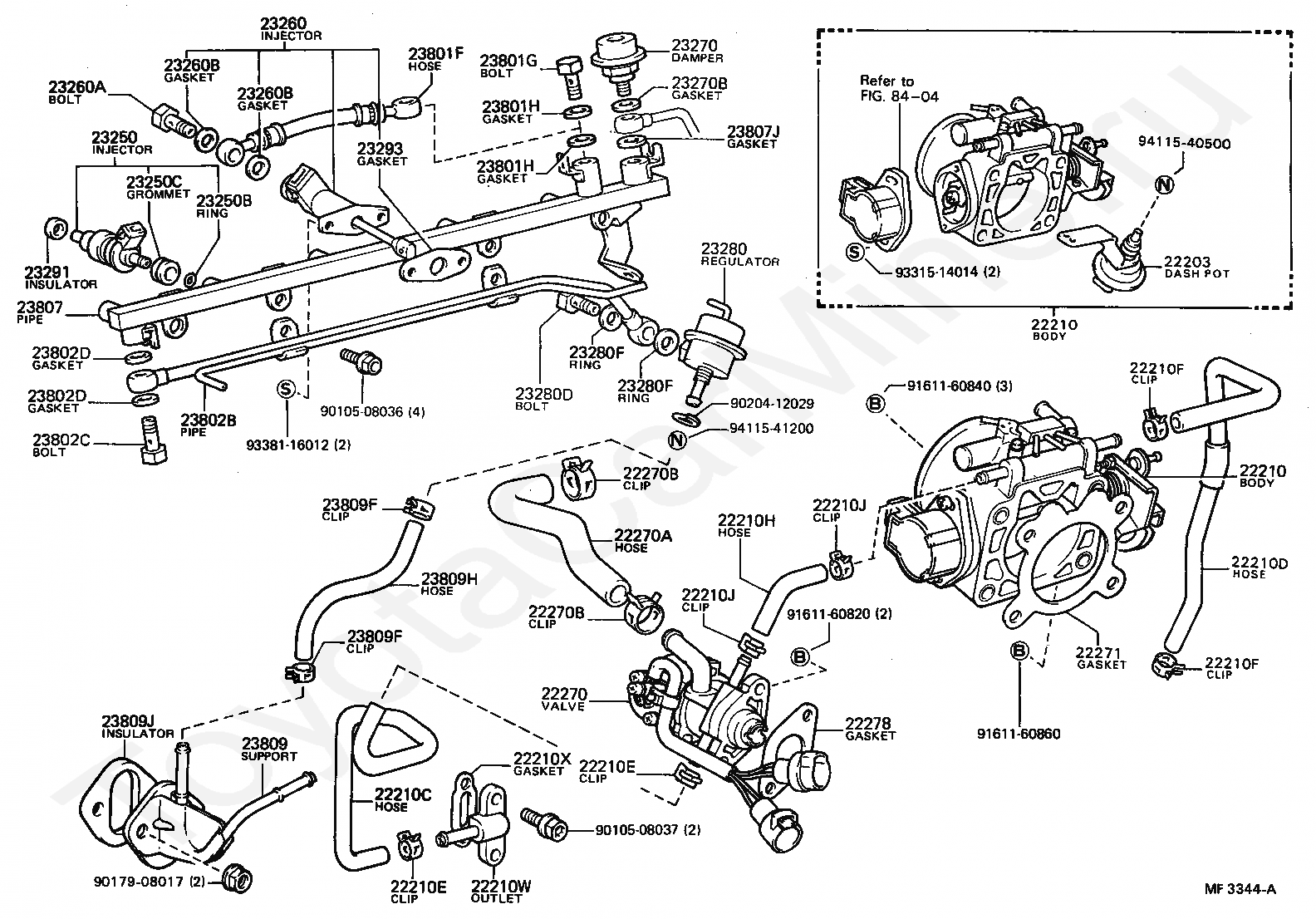

Код

Описание

22203

DASH POT SUB-ASSY(FOR THROTTLE BODY)

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22210H

HOSE, WATER BY-PASS, NO.3

22210J

CLIP(FOR WATER BY-PASS HOSE NO.3)

22210W

OUTLET, WATER BY-PASS

22210X

GASKET, WATER OUTLET

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22270A

HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

22270B

CLIP(FOR AIR HOSE)

22271

GASKET, THROTTLE BODY

22278

GASKET, IDLE SPEED CONTROL VALVE

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23260

INJECTOR ASSY, COLD START FUEL

23260A

BOLT, UNION

23260B

GASKET

23270

DAMPER ASSY, FUEL PRESSURE PULSATION

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23280

REGULATOR ASSY, FUEL PRESSURE

23280D

BOLT, UNION(FOR FUEL PIPE OR HOSE SET)

23280F

GASKET(FOR FUEL PRESSURE REGULATOR)

23291

INSULATOR, INJECTOR VIBRATION

23293

GASKET, COLD START INJECTOR

23801F

HOSE, FUEL, NO.1

23801G

BOLT, UNION(FOR FUEL PIPE)

23801H

GASKET(FOR FUEL PIPE)

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807J

GASKET, PIPE FUEL DELIVARY INLET

23809

SUPPORT SUB-ASSY, FUEL PIPE

23809F

CLIP(FOR FUEL PIPE SUPPORT)

23809H

HOSE, FUEL PIPE SUPPORT TO REGULATOR

23809J

INSULATOR, FUEL PIPE SUPPORT

8404

переход к группе запчастей

9010508036

Крепеж

9010508037

Крепеж

9017908017

Крепеж

9020412029

Крепеж

9161160820

Крепеж

9161160840

Крепеж

9161160860

Крепеж

9331514014

Крепеж

9338116012

Крепеж

9411540500

Крепеж

9411541200

Крепеж

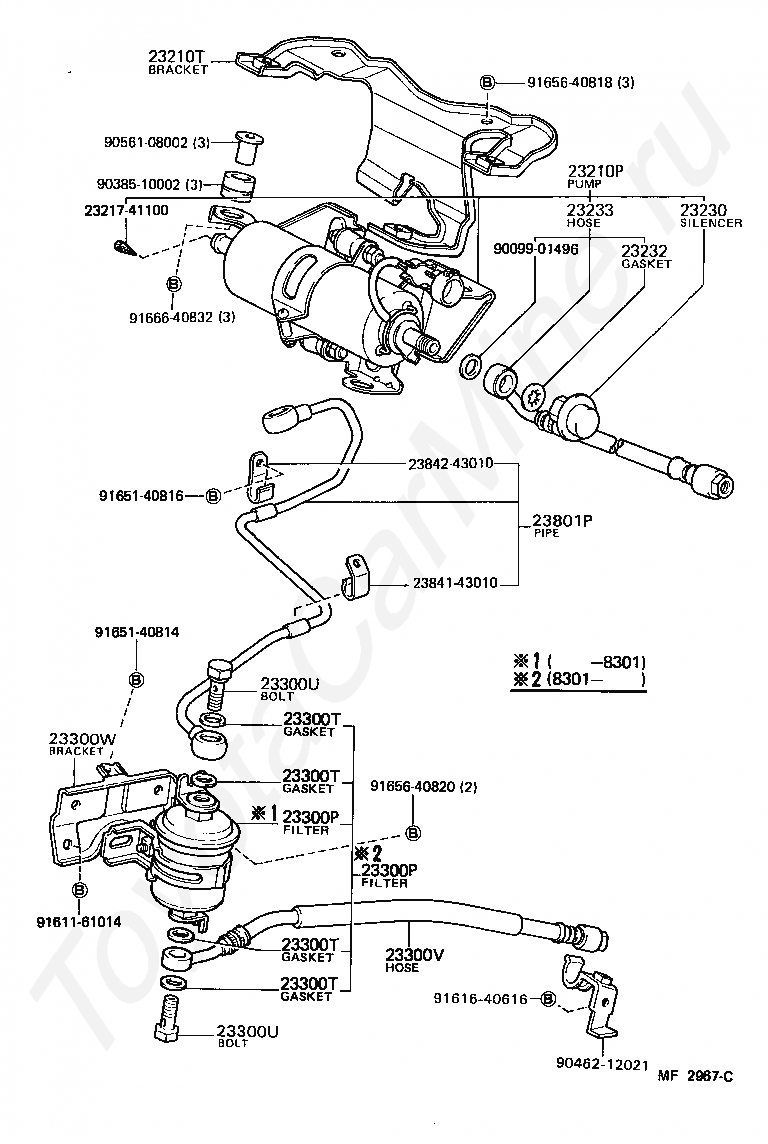

Код

Описание

23210P

PUMP ASSY, FUEL W/MOTOR & BRACKET

23210T

BRACKET, FUEL PUMP

2321741100

Крепеж

23230

SILENCER ASSY

23232

GASKET(FOR FUEL PUMP HOSE)

23233

HOSE, FUEL PUMP

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300V

HOSE, FUEL(FOR FUEL INLET)

23300W

BRACKET, FUEL FILTER

23801P

PIPE SUB-ASSY, FUEL, NO.1

2384143010

Крепеж

2384243010

Крепеж

9009901496

Крепеж

9038510002

Крепеж

9046212021

Крепеж

9056108002

Крепеж

9161161014

Крепеж

9161640616

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165640818

Крепеж

9165640820

Крепеж

9166640832

Крепеж

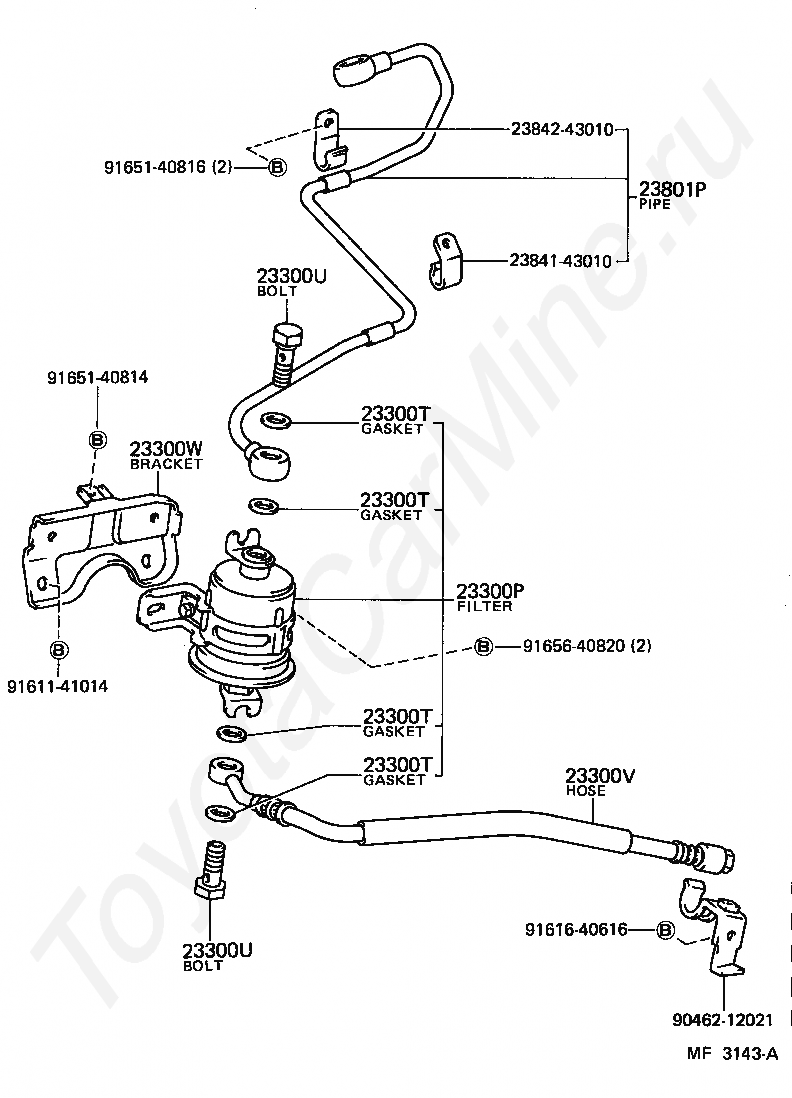

Код

Описание

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23300V

HOSE, FUEL(FOR FUEL INLET)

23300W

BRACKET, FUEL FILTER

23801P

PIPE SUB-ASSY, FUEL, NO.1

2384143010

Крепеж

2384243010

Крепеж

9046212021

Крепеж

9161141014

Крепеж

9161640616

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165640820

Крепеж

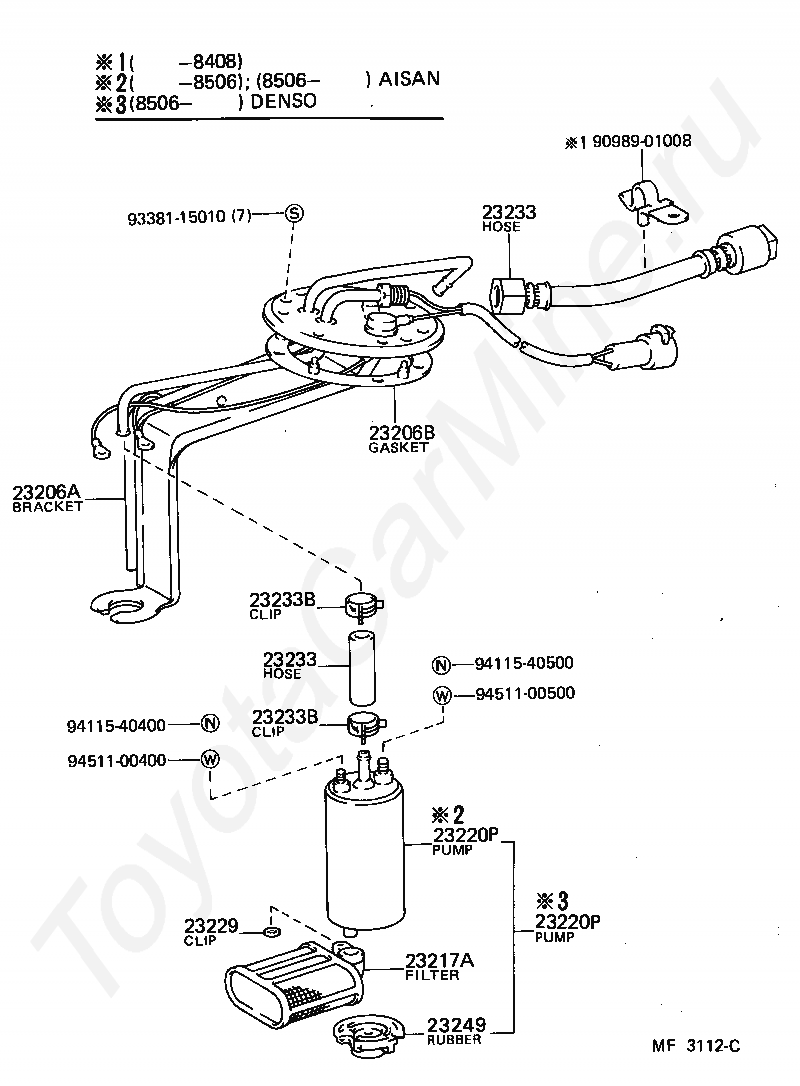

Код

Описание

23206A

BRACKET, FUEL PUMP

23206B

GASKET, FUEL PUMP BRACKET

23217A

FILTER, FUEL PUMP

23220P

PUMP ASSY, FUEL

23229

CLIP(FOR FUEL PUMP FILTER)

23233

HOSE, FUEL PUMP

23233B

CLIP(FOR FUEL PUMP HOSE)

23249

RUBBER, CUSHION(FOR FUEL PUMP)

9098901008

Крепеж

9338115010

Крепеж

9411540400

Крепеж

9411540500

Крепеж

9451100400

Крепеж

9451100500

Крепеж

Топливная система TOYOTA CELICA, 1981/08 - 1985/12, 2,8 литра, DOHC, EFI, POUNDS, SPUTTERING, MA61, механика, МКПП, 5 скоростей
