Каталог
Ближний ВостокМодель
CELICAДвигатель
2 литраКузов
POUNDSКласс
XT TYPEФрейм
RA40Трансмиссия
механика МКПП, 5 скоростейОпции
правый руль Европа Европа

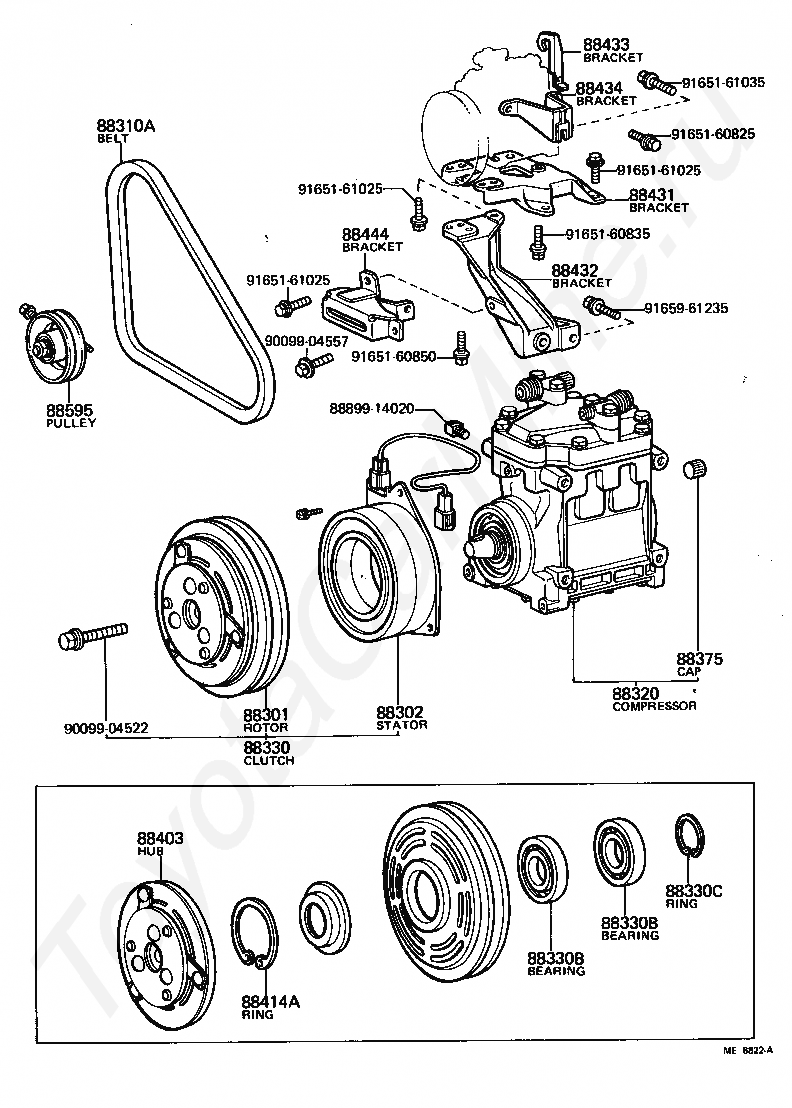

Код
Описание
88301
ROTOR SUB-ASSY, MAGNET CLUTCH
88302
STATOR SUB-ASSY, MAGNET CLUTCH
88310A
BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320
COMPRESSOR ASSY, COOLER
88330
CLUTCH ASSY, MAGNET
88330B
BEARING, MAGNET CLUTCH
88330C
RING, SNAP (FOR MAGNET CLUTCH)
88375
CAP, COOLER COMPRESSOR SERVICE VALVE
88403
HUB SUB-ASSY, MAGNET CLUTCH
88414A
RING, SHIELD SNAP
88431
BRACKET, COMPRESSOR MOUNTING, NO.1
88432
BRACKET, COMPRESSOR MOUNTING, NO.2
88433
BRACKET, COMPRESSOR MOUNTING, NO.3
88434
BRACKET, COMPRESSOR MOUNTING, NO.4
88444
BRACKET, IDLE PULLEY
88595
PULLEY, COOLER COMPRESSOR IDLE
8889914020
Крепеж
9009904522
Крепеж
9009904557
Крепеж
9165160825
Крепеж
9165160835
Крепеж
9165160850
Крепеж
9165161025
Крепеж
9165161035
Крепеж
9165961235
Крепеж
Код
Описание
88301
ROTOR SUB-ASSY, MAGNET CLUTCH
88302
STATOR SUB-ASSY, MAGNET CLUTCH
88310A
BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320
COMPRESSOR ASSY, COOLER
88330
CLUTCH ASSY, MAGNET
88330B
BEARING, MAGNET CLUTCH
88330C
RING, SNAP (FOR MAGNET CLUTCH)
88375
CAP, COOLER COMPRESSOR SERVICE VALVE
88403
HUB SUB-ASSY, MAGNET CLUTCH
88414A
RING, SHIELD SNAP
88431
BRACKET, COMPRESSOR MOUNTING, NO.1
88432
BRACKET, COMPRESSOR MOUNTING, NO.2
88433
BRACKET, COMPRESSOR MOUNTING, NO.3
88434
BRACKET, COMPRESSOR MOUNTING, NO.4
88444
BRACKET, IDLE PULLEY
88595
PULLEY, COOLER COMPRESSOR IDLE
8889914020
Крепеж
9009904522
Крепеж
9009904557
Крепеж
9165160825
Крепеж
9165160835
Крепеж
9165160850
Крепеж
9165161025
Крепеж
9165161035
Крепеж
9165961235
Крепеж

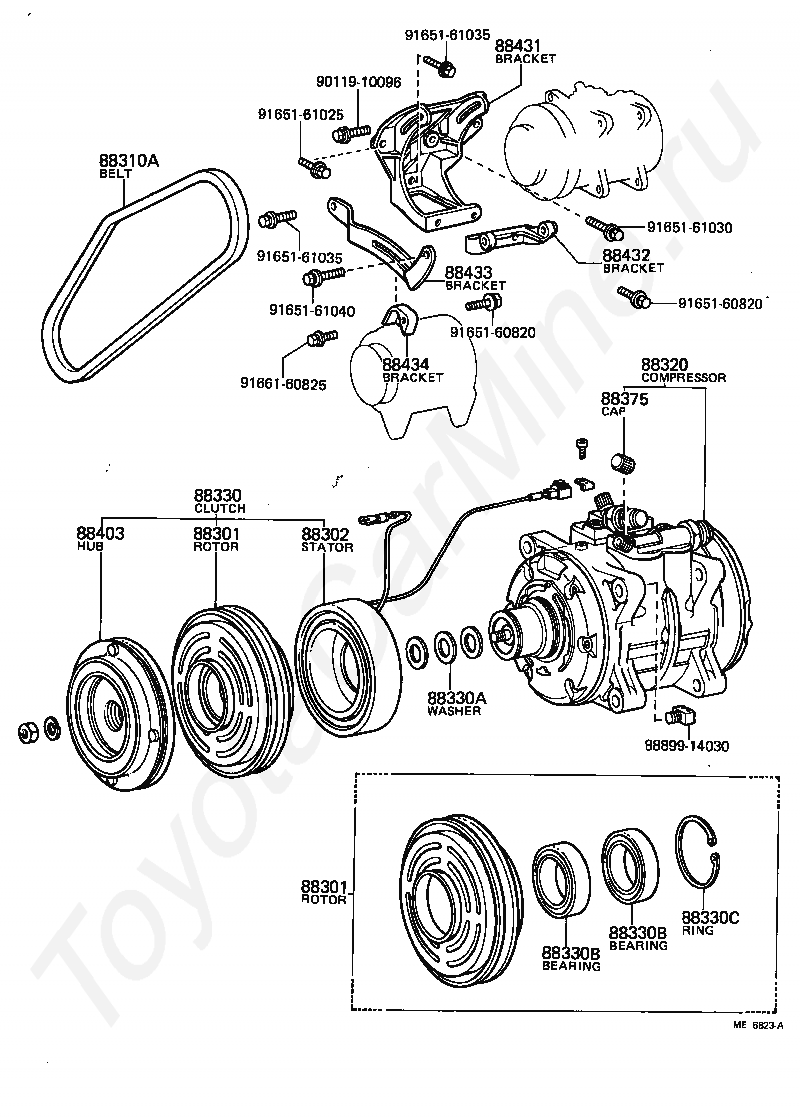

Код
Описание
88301
ROTOR SUB-ASSY, MAGNET CLUTCH
88302
STATOR SUB-ASSY, MAGNET CLUTCH
88310A
BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320
COMPRESSOR ASSY, COOLER
88330
CLUTCH ASSY, MAGNET
88330A
WASHER (FOR MAGNET CLUTCH)
88330B
BEARING, MAGNET CLUTCH
88330C
RING, SNAP (FOR MAGNET CLUTCH)
88375
CAP, COOLER COMPRESSOR SERVICE VALVE
88403
HUB SUB-ASSY, MAGNET CLUTCH
88431
BRACKET, COMPRESSOR MOUNTING, NO.1
88432
BRACKET, COMPRESSOR MOUNTING, NO.2
88433
BRACKET, COMPRESSOR MOUNTING, NO.3
88434
BRACKET, COMPRESSOR MOUNTING, NO.4
8889914030
Крепеж
9011910096
Крепеж
9165160820
Крепеж
9165161025
Крепеж
9165161030
Крепеж
9165161035
Крепеж
9165161040
Крепеж
9166160825
Крепеж

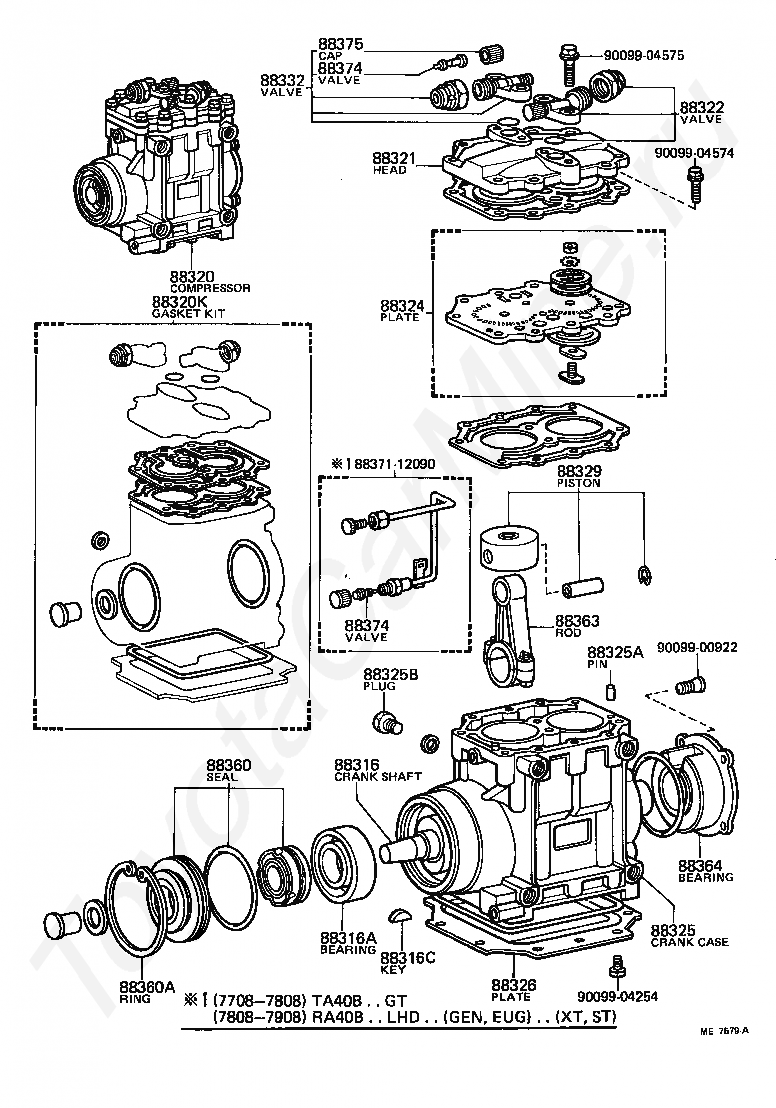

Код
Описание
88316
CRANKSHAFT, COOLER COMPRESSOR
88316A
BEARING, COMPRESSOR CRANKSHAFT, FRONT
88316C
KEY, COMPRESSOR CRANKSHAFT
88320
COMPRESSOR ASSY, COOLER
88320K
GASKET KIT, COOLER COMPRESSOR OVERHAUL
88321
HEAD, COOLER COMPRESSOR CYLINDER
88322
VALVE, COOLER COMPRESSOR SUCTION SERVICE
88324
PLATE SUB-ASSY, COOLER COMPRESSOR VALVE
88325
CRANKCASE, COOLER COMPRESSOR
88325A
PIN, CYLINDER BLOCK
88325B
PLUG, CYLINDER BLOCK OIL
88326
PLATE, COOLER COMPRESSOR BOTTOM
88329
PISTON SUB-ASSY, COOLER COMPRESSOR
88332
VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88360
SEAL ASSY, COOLER COMPRESSOR SHAFT
88360A
RING, COMPRESSOR SEAL PLATE SNAP
88363
ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING
88364
BEARING, COMPRESSOR CRANKSHAFT, REAR
8837112090
Крепеж
88374
VALVE, COOLER COMPRESSOR SERVICE
88375
CAP, COOLER COMPRESSOR SERVICE VALVE
9009900922
Крепеж
9009904254
Крепеж
9009904574
Крепеж
9009904575
Крепеж
Код
Описание
88316
CRANKSHAFT, COOLER COMPRESSOR
88316A
BEARING, COMPRESSOR CRANKSHAFT, FRONT
88316C
KEY, COMPRESSOR CRANKSHAFT
88320
COMPRESSOR ASSY, COOLER
88320K
GASKET KIT, COOLER COMPRESSOR OVERHAUL
88321
HEAD, COOLER COMPRESSOR CYLINDER
88322
VALVE, COOLER COMPRESSOR SUCTION SERVICE
88324
PLATE SUB-ASSY, COOLER COMPRESSOR VALVE
88325
CRANKCASE, COOLER COMPRESSOR
88325A
PIN, CYLINDER BLOCK
88325B
PLUG, CYLINDER BLOCK OIL
88326
PLATE, COOLER COMPRESSOR BOTTOM
88329
PISTON SUB-ASSY, COOLER COMPRESSOR
88332
VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88360
SEAL ASSY, COOLER COMPRESSOR SHAFT
88360A
RING, COMPRESSOR SEAL PLATE SNAP
88363
ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING
88364
BEARING, COMPRESSOR CRANKSHAFT, REAR
8837112090
Крепеж
88374
VALVE, COOLER COMPRESSOR SERVICE
88375
CAP, COOLER COMPRESSOR SERVICE VALVE
9009900922
Крепеж
9009904254
Крепеж
9009904574
Крепеж
9009904575
Крепеж
