Каталог
ЕвропаМодель
CARINA 2Двигатель
1,6 литра, 16 клапанов, DOHCКузов
POUNDSКласс
GL SPECIFICATIONФрейм
AT171Трансмиссия
механика МКПП, 5 скоростейОпции
левый руль WATTS STANDARD CARBURETOR SPECIFICATION

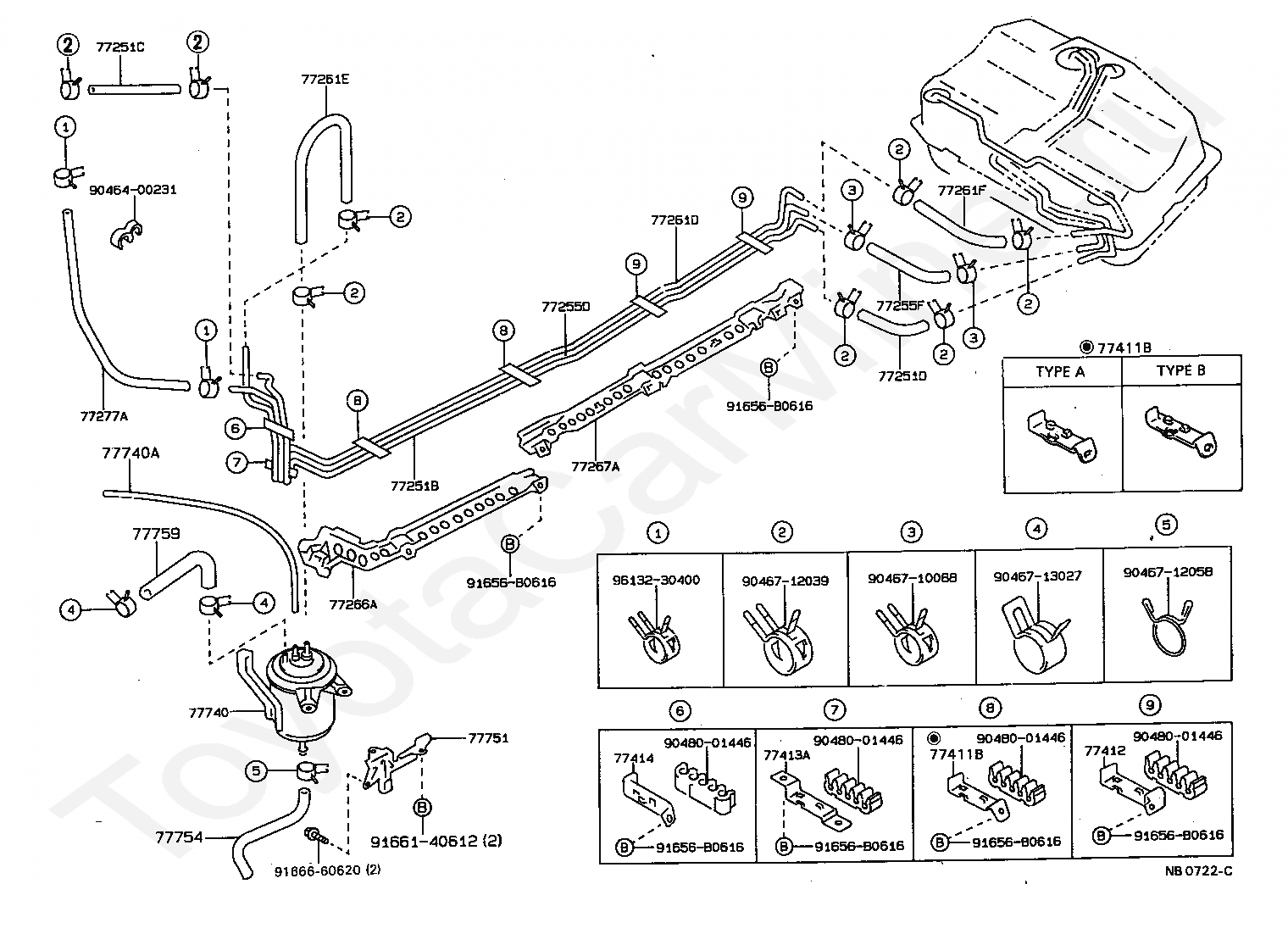

Код
Описание
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77014A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014B
HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77135
BRACKET, CHECK VALVE
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213B
HOSE, FUEL TANK TO FILLER PIPE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77611A
PIN (FOR FUEL TANK BAND)
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
77701U
HOSE, FUEL (FOR CHECK VALVE)
9011910477
Крепеж
9011910502
Крепеж
9015940155
Крепеж
9015950069
Крепеж
9015950217
Крепеж
9015950219
Крепеж
9015960008
Крепеж
9015960301
Крепеж
9017905020
Крепеж
9017910074
Крепеж
9018905072
Крепеж
9018906006
Крепеж
9018906099
Крепеж
9018906107
Крепеж
9046055001
Крепеж
9046712039
Крепеж
9046814004
Крепеж
9151160610
Крепеж
9165140614
Крепеж
91656B0618
Крепеж
9611220240
Крепеж
9613230600
Крепеж
Код
Описание
77251B
TUBE, FUEL MAIN
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251D
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77255D
TUBE, FUEL RETURN
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F
HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77759
HOSE, CHARCOAL CANISTER
9046400231
Крепеж
9046710088
Крепеж
9046712039
Крепеж
9046712058
Крепеж
9046713027
Крепеж
9048001446
Крепеж
91656B0616
Крепеж
9166140612
Крепеж
9166660620
Крепеж
9613230400
Крепеж

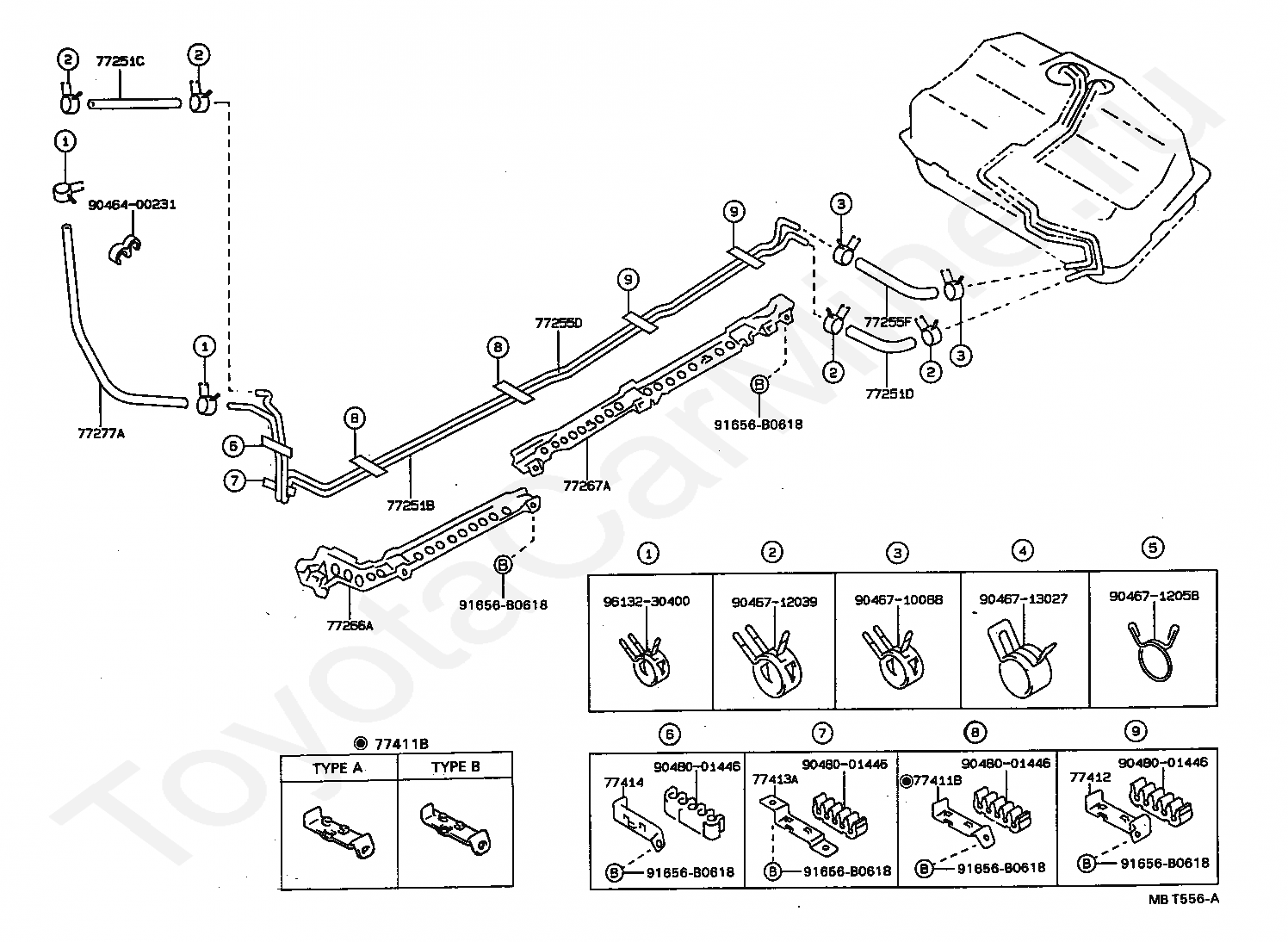

Код
Описание
77251B
TUBE, FUEL MAIN
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251D
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77255D
TUBE, FUEL RETURN
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
9046400231
Крепеж
9046710088
Крепеж
9046712039
Крепеж
9046712058
Крепеж
9046713027
Крепеж
9048001446
Крепеж
91656B0618
Крепеж
9613230400
Крепеж
