Каталог
ЕвропаМодель
CARINA 2Двигатель
1,6 литра, 16 клапанов, DOHCКузов
POUNDSКласс
GL SPECIFICATIONФрейм
AT171Трансмиссия
механика МКПП, 5 скоростейОпции

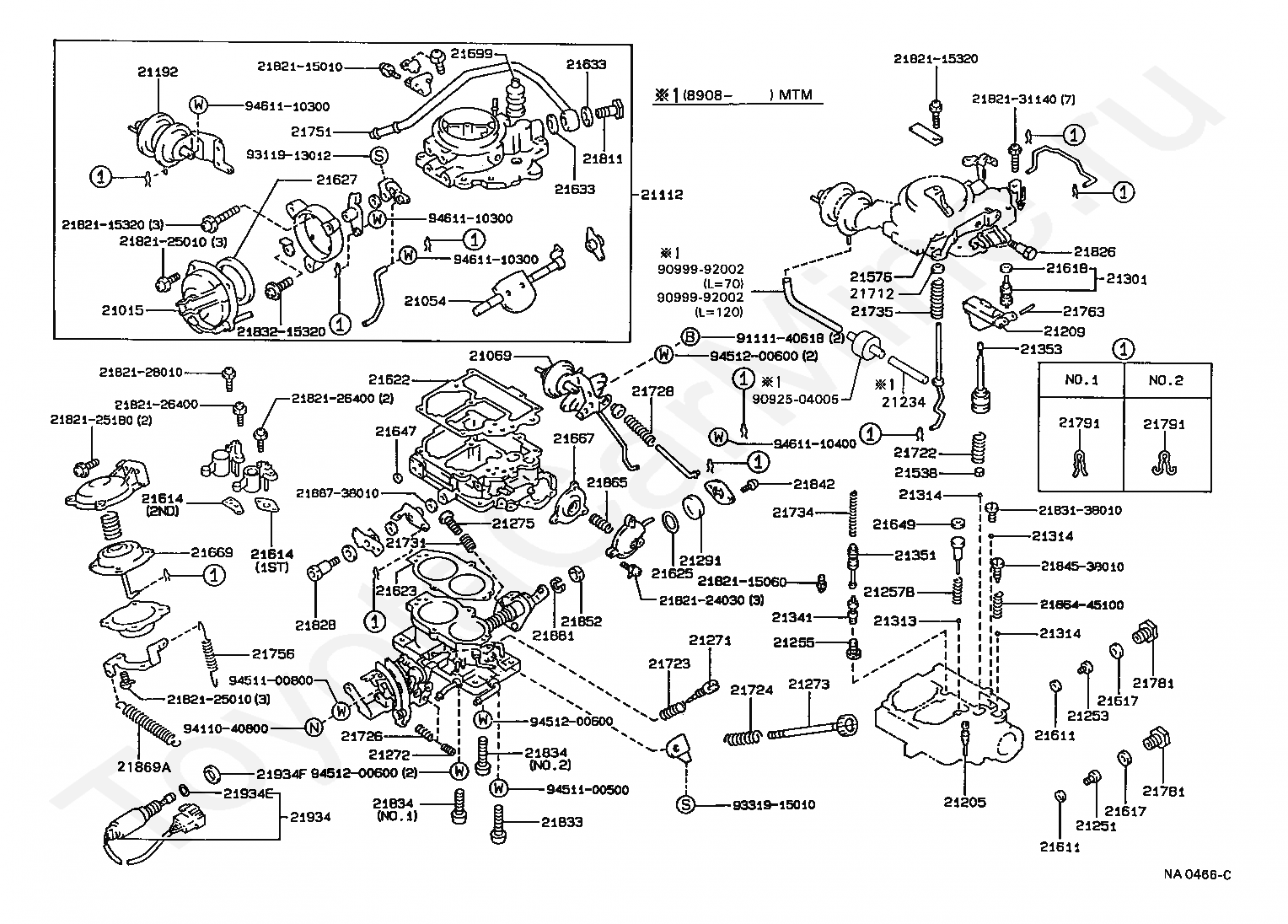

левый руль WATTS STANDARD CARBURETOR SPECIFICATION
Код
Описание
21015
HOUSING SUB-ASSY, COIL
21054
SHAFT, CHOKE
21069
DASH POT SUB-ASSY
21112
HORN, AIR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21234
PIPE OR HOSE
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21538
RETAINER, BALL CHECK
21576
CLIP, PUMP STRAINER
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21625
GASKET, LEVEL GAGE
21627
GASKET, COIL HOUSING
21633
GASKET, UNION NIPPLE
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21667
DIAPHRAGM
21669
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21712
BUSH, SLIDING ROD
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21734
SPRING, POWER PISTON
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182115060
Крепеж
2182115320
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182128010
Крепеж
2182131140
Крепеж
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
2183138010
Крепеж
2183215320
Крепеж
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2184538010
Крепеж
21852
NUT, THROTTLE LEVER SET
2186445100
Крепеж
21865
SPRING
21869A
SPRING(FOR THROTTLE)
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188738010
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9092504005
Крепеж
9099992002
Крепеж
9111140618
Крепеж
9311913012
Крепеж
9331915010
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
