Передние кресла TOYOTA CARINA ED, 1987/08 - 1989/08, 2 литра, 16 клапанов, DOHC, EFI, GRAMS, ST162, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

CARINA ED

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

GRAMS

Фрейм

ST162

Трансмиссия

механика МКПП, 5 скоростей

Опции

Код

Описание

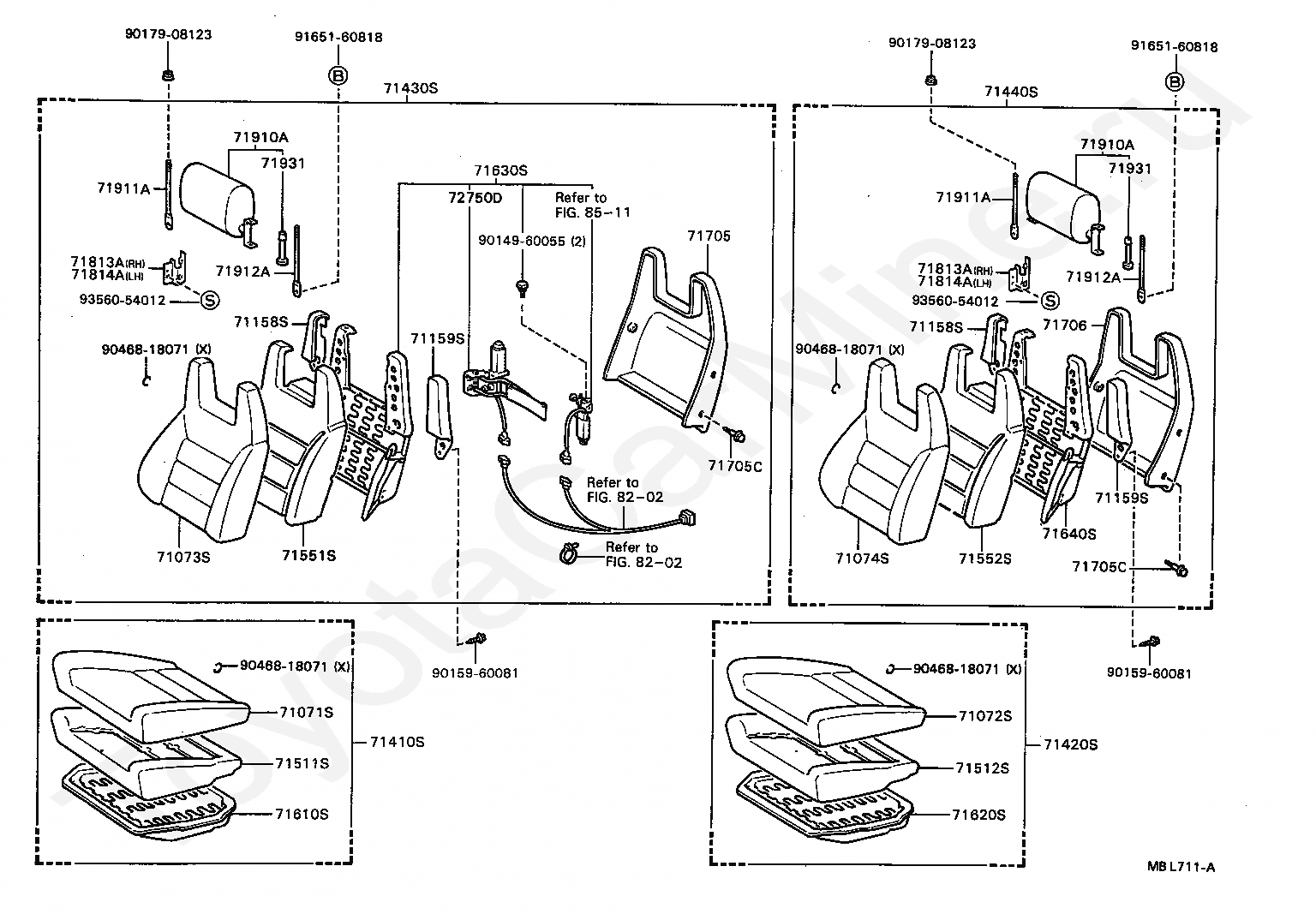

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71158S

FRAME, FRONT SEAT BACK, UPPER RH

71159S

FRAME, FRONT SEAT BACK, UPPER LH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705C

SCREW(FOR FRONT SEAT BACK BOARD)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71813A

SHIELD, FRONT SEAT BACK, RH

71814A

SHIELD, FRONT SEAT BACK, LH

71910A

HEADREST ASSY, FRONT SEAT

71911A

STAY, FRONT SEAT HEADREST, RH

71912A

STAY, FRONT SEAT HEADREST, LH

71931

SUPPORT, FRONT SEAT HEADREST

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

8202

переход к группе запчастей

8511

переход к группе запчастей

9014960055

Крепеж

9015960081

Крепеж

9017908123

Крепеж

9046818071

Крепеж

9165160818

Крепеж

9356054012

Крепеж

Код

Описание

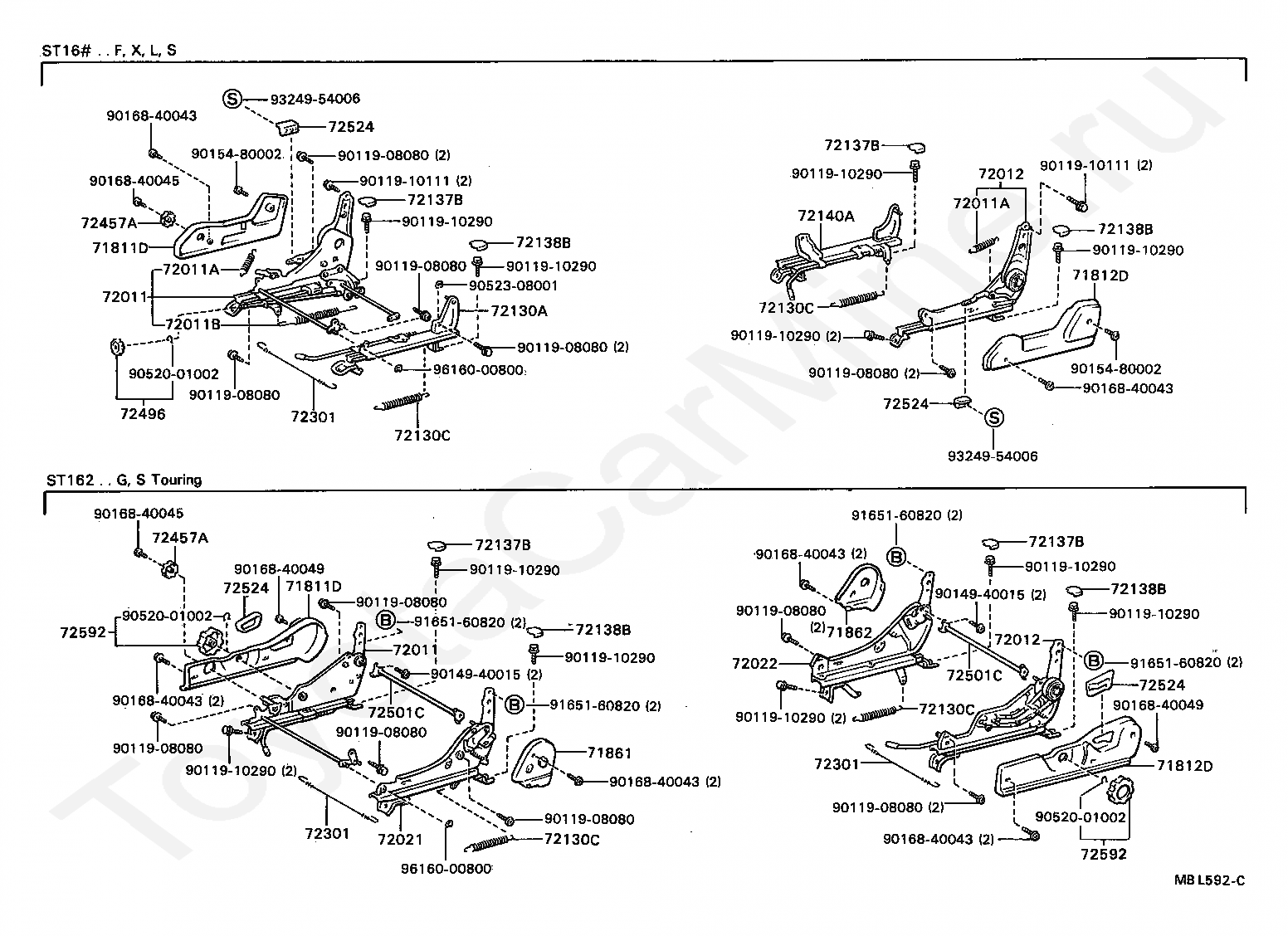

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72011A

SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

72011B

SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72130C

SPRING, TENSION (FOR FRONT SEAT INNER TRACK)

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72457A

KNOB, SEAT ADJUSTER

72496

KNOB, VERTICAL SEAT ADJUSTER, NO.2

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72524

HANDLE, RECLINING ADJUSTER RELEASE

72592

KNOB, RECLINING ADJUSTER

9011908080

Крепеж

9011910111

Крепеж

9011910290

Крепеж

9014940015

Крепеж

9015480002

Крепеж

9016840043

Крепеж

9016840045

Крепеж

9016840049

Крепеж

9052001002

Крепеж

9052308001

Крепеж

9165160820

Крепеж

9324954006

Крепеж

9616000800

Крепеж

Передние кресла TOYOTA CARINA ED, 1987/08 - 1989/08, 2 литра, 16 клапанов, DOHC, EFI, GRAMS, ST162, механика, МКПП, 5 скоростей
