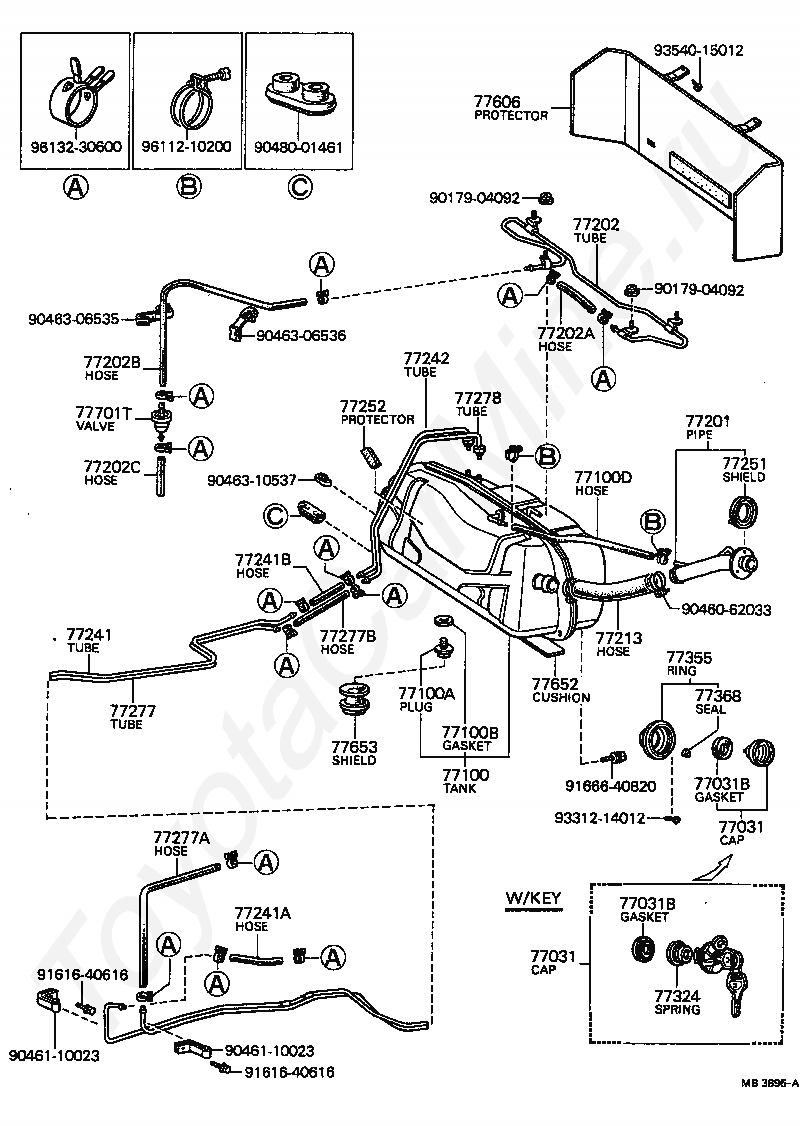

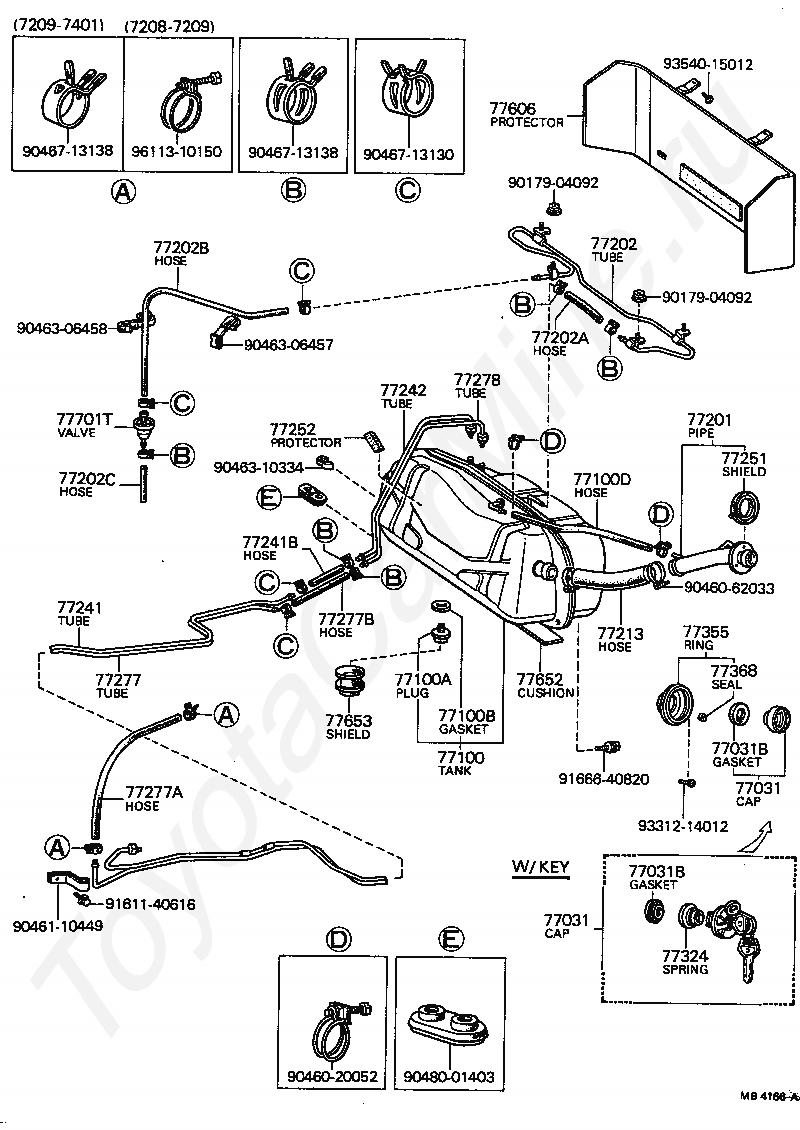

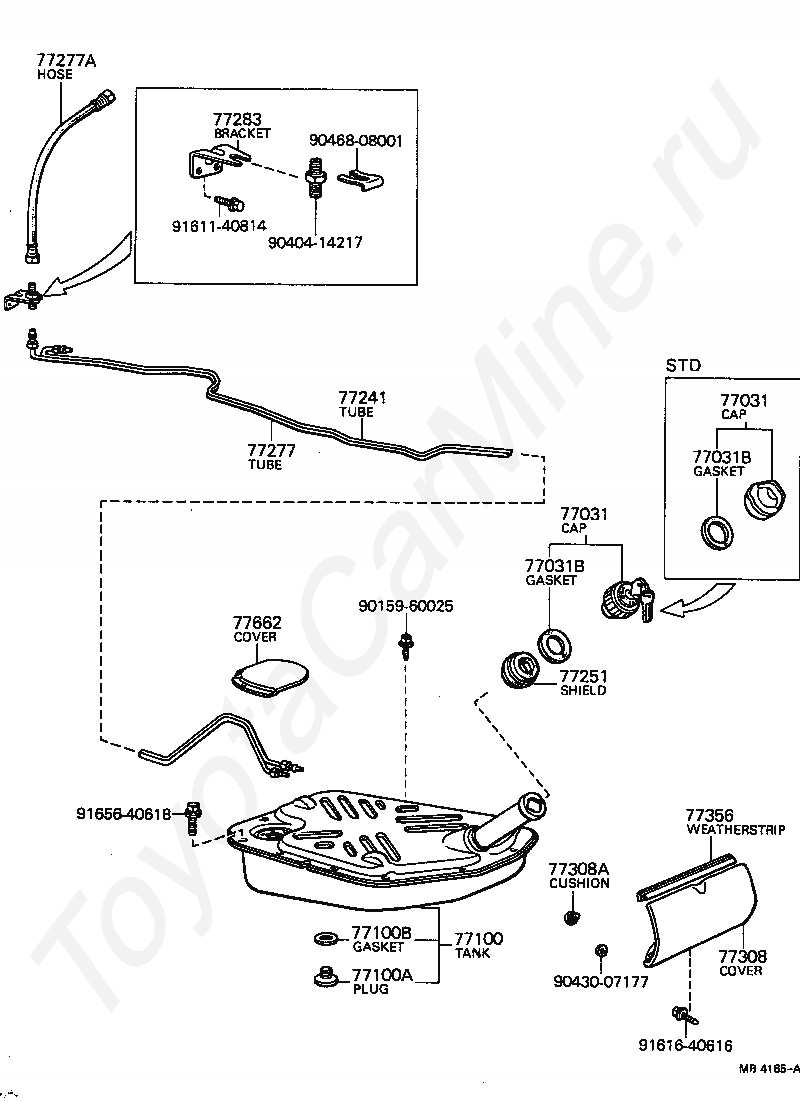

Топливный бак и горловина TOYOTA CARINA, 1970/12 - 1975/09, 1,6 литра, 4 двери, STANDARD TYPE, TA12, автомат, АКПП, 3 ступени

Каталог

Ближний Восток

Модель

CARINA

Двигатель

1,6 литра

Кузов

4 двери

Класс

STANDARD TYPE

Фрейм

TA12

Трансмиссия

автомат АКПП, 3 ступени

Опции

седан левый руль 4 двери

Код

Описание

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77241

TUBE, FUEL MAIN, NO.1

77251

SHIELD, FUEL TANK, INLET, NO.1

77277

TUBE, FUEL RETURN, NO.1

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77283

BRACKET, FUEL TUBE

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77356

WEATHERSTRIP, FUEL TANK FILLER PIPE LID, UPPER

77662

COVER, FUEL TANK GAGE

9015960025

Крепеж

9040414217

Крепеж

9043007177

Крепеж

9046808001

Крепеж

9161140814

Крепеж

9161640616

Крепеж

9165640618

Крепеж

Код

Описание

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77202

TUBE SUB-ASSY, BREATHER

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

77202B

HOSE, FUEL, NO.2 (FOR BREATHER TUBE)

77202C

HOSE, FUEL, NO.3 (FOR BREATHER TUBE)

77213

HOSE, FUEL TANK SUB INLET

77241

TUBE, FUEL MAIN, NO.1

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77242

TUBE, FUEL MAIN, NO.2

77251

SHIELD, FUEL TANK, INLET, NO.1

77252

PROTECTOR, FUEL TUBE

77277

TUBE, FUEL RETURN, NO.1

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77278

TUBE, FUEL RETURN, NO.2

77324

SPRING, FUEL TANK CAP

77355

RING, INLET BOX

77368

SEAL, INLET BOX

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77652

CUSHION, FUEL TANK, NO.1

77653

SHIELD, FUEL TANK DRAIN PLUG

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9017904092

Крепеж

9046020052

Крепеж

9046062033

Крепеж

9046110449

Крепеж

9046306457

Крепеж

9046306458

Крепеж

9046310334

Крепеж

9046713130

Крепеж

9046713138

Крепеж

9048001403

Крепеж

9161140616

Крепеж

9166640820

Крепеж

9331214012

Крепеж

9354015012

Крепеж

9611310150

Крепеж

Код

Описание

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77202

TUBE SUB-ASSY, BREATHER

77202A

HOSE, FUEL, NO.1 (FOR BREATHER TUBE)

77202B

HOSE, FUEL, NO.2 (FOR BREATHER TUBE)

77202C

HOSE, FUEL, NO.3 (FOR BREATHER TUBE)

77213

HOSE, FUEL TANK SUB INLET

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77242

TUBE, FUEL MAIN, NO.2

77251

SHIELD, FUEL TANK, INLET, NO.1

77252

PROTECTOR, FUEL TUBE

77277

TUBE, FUEL RETURN, NO.1

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77277B

HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

77278

TUBE, FUEL RETURN, NO.2

77324

SPRING, FUEL TANK CAP

77355

RING, INLET BOX

77368

SEAL, INLET BOX

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77652

CUSHION, FUEL TANK, NO.1

77653

SHIELD, FUEL TANK DRAIN PLUG

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

9017904092

Крепеж

9046062033

Крепеж

9046110023

Крепеж

9046306535

Крепеж

9046306536

Крепеж

9046310537

Крепеж

9048001461

Крепеж

9161640616

Крепеж

9166640820

Крепеж

9331214012

Крепеж

9354015012

Крепеж

9611210200

Крепеж

9613230600

Крепеж

Топливный бак и горловина TOYOTA CARINA, 1970/12 - 1975/09, 1,6 литра, 4 двери, STANDARD TYPE, TA12, автомат, АКПП, 3 ступени
