Рулевая колонка TOYOTA CARINA, 1970/12 - 1975/09, 1,6 литра, 4 двери, STANDARD TYPE, TA12, автомат, АКПП, 3 ступени

Каталог

Ближний Восток

Модель

CARINA

Двигатель

1,6 литра

Кузов

4 двери

Класс

STANDARD TYPE

Фрейм

TA12

Трансмиссия

автомат АКПП, 3 ступени

Опции

седан левый руль 4 двери

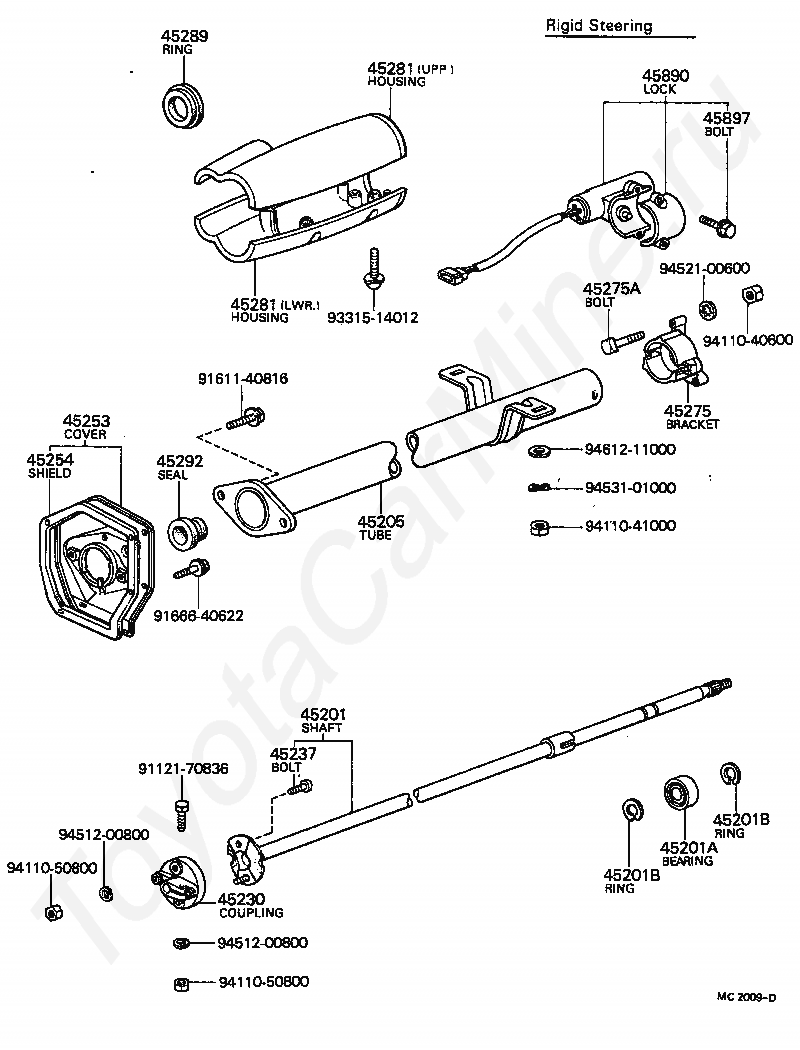

Код

Описание

45201

SHAFT SUB-ASSY, STEERING MAIN

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45230

COUPLING ASSY, FLEXIBLE

45237

BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

45253

COVER, STEERING COLUMN HOLE

45254

SHIELD, STEERING COLUMN HOLE

45275

BRACKET, STEERING COLUMN, UPPER

45275A

BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

45281

HOUSING, STEERING COLUMN

45289

RING, STEERING COLUMN COVER

45292

SEAL, MAIN SHAFT LOWER DUST

45890

LOCK ASSY, STEERING

45897

BOLT, STEERING LOCK SET

9112170836

Крепеж

9161140816

Крепеж

9166640622

Крепеж

9331514012

Крепеж

9411040600

Крепеж

9411041000

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9452100600

Крепеж

9453101000

Крепеж

9461211000

Крепеж

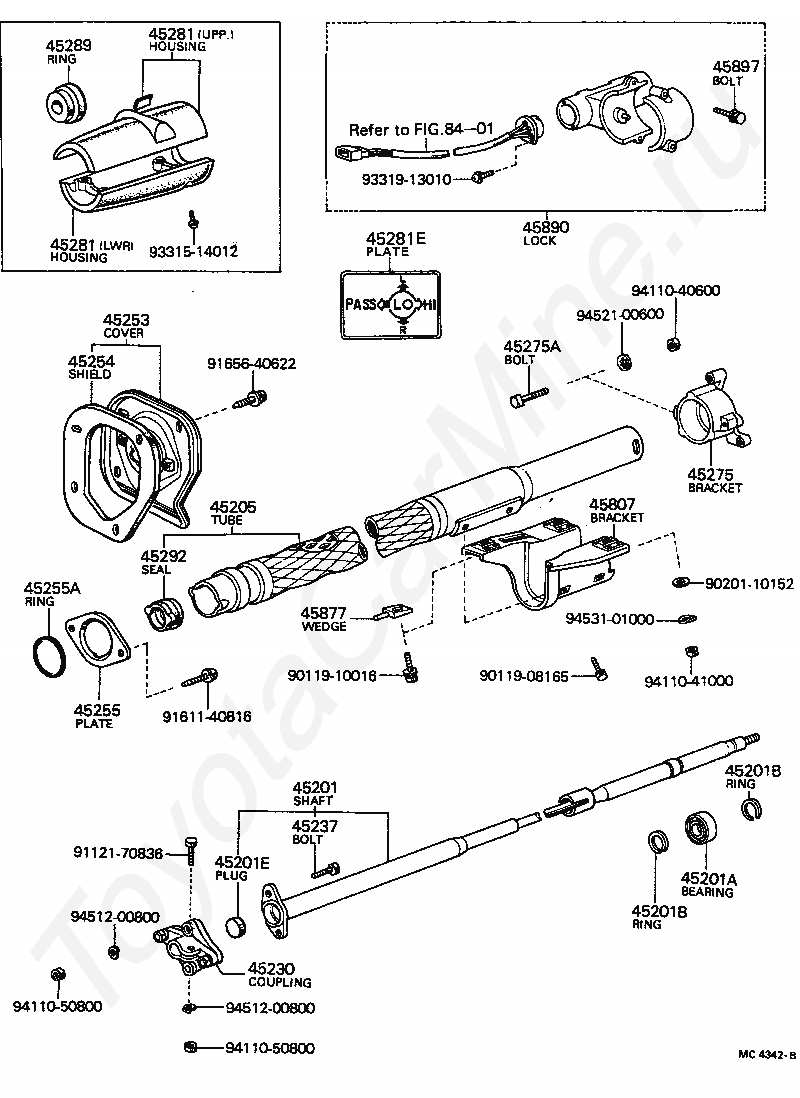

Код

Описание

45201

SHAFT SUB-ASSY, STEERING MAIN

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201E

PLUG, PLATE(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45230

COUPLING ASSY, FLEXIBLE

45237

BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

45253

COVER, STEERING COLUMN HOLE

45254

SHIELD, STEERING COLUMN HOLE

45255

PLATE, STEERING COLUMN HOLE COVER

45255A

GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

45275

BRACKET, STEERING COLUMN, UPPER

45275A

BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

45281

HOUSING, STEERING COLUMN

45281E

PLATE, SAFETY CAUTION

45289

RING, STEERING COLUMN COVER

45292

SEAL, MAIN SHAFT LOWER DUST

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45877

WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)

45890

LOCK ASSY, STEERING

45897

BOLT, STEERING LOCK SET

8401

переход к группе запчастей

9011908165

Крепеж

9011910016

Крепеж

9020110152

Крепеж

9112170836

Крепеж

9161140816

Крепеж

9165640622

Крепеж

9331514012

Крепеж

9331913010

Крепеж

9411040600

Крепеж

9411041000

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9452100600

Крепеж

9453101000

Крепеж

Код

Описание

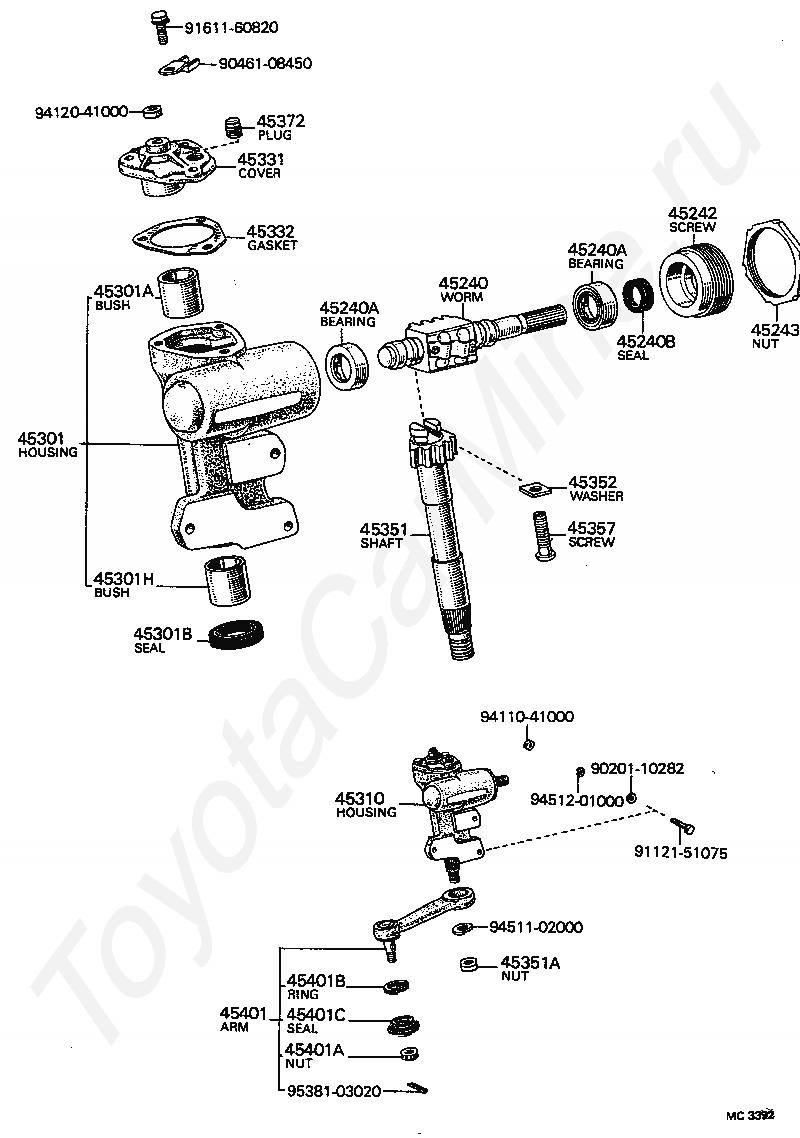

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301

HOUSING SUB-ASSY, STEERING GEAR

45301A

BUSH OR BEARING, SECTOR SHAFT, NO.1

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45301H

BUSH OR BEARING, SECTOR SHAFT, NO.2

45310

HOUSING ASSY, STEERING GEAR

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351

SHAFT, STEERING SECTOR

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

45401A

NUT, CASTLE(FOR PITMAN ARM)

45401B

RING, SET(FOR PITMAN ARM)

45401C

SEAL, DUST(FOR PITMAN ARM)

9020110282

Крепеж

9046108450

Крепеж

9112151075

Крепеж

9161160820

Крепеж

9411041000

Крепеж

9412041000

Крепеж

9451102000

Крепеж

9451201000

Крепеж

9538103020

Крепеж

Рулевая колонка TOYOTA CARINA, 1970/12 - 1975/09, 1,6 литра, 4 двери, STANDARD TYPE, TA12, автомат, АКПП, 3 ступени
