Каталог
Ближний ВостокМодель
CARINAДвигатель
1,6 литраКузов
4 двериКласс
STANDARD TYPEФрейм
TA12Трансмиссия
автомат АКПП, 3 ступениОпции
седан левый руль 4 двери

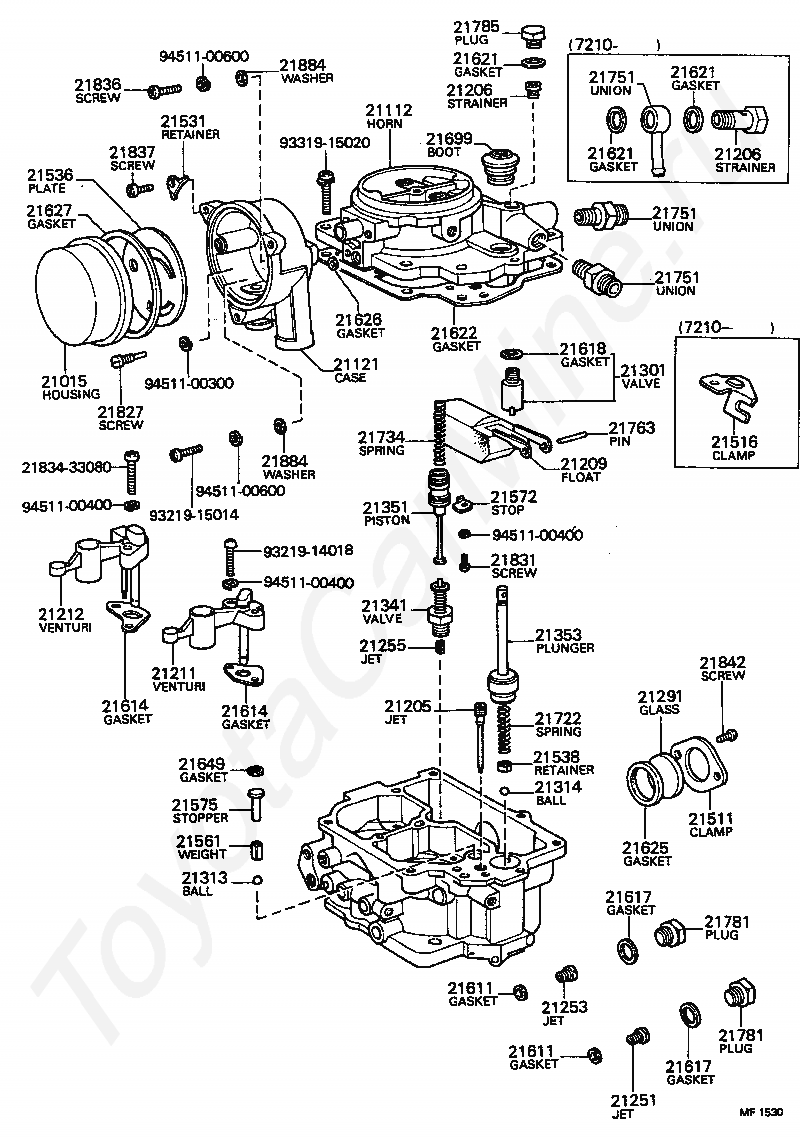

Код
Описание
21015
HOUSING SUB-ASSY, COIL
21112
HORN, AIR
21121
CASE, THERMOSTAT
21205
JET SUB-ASSY, SLOW
21206
STRAINER SUB-ASSY
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21212
VENTURI, 2ND SMALL
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21511
CLAMP, LEVEL GAGE
21516
CLAMP, CONNECTOR
21531
RETAINER, COIL HOUSING
21536
PLATE, COIL HOUSING
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
21572
STOP, POWER PISTON
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21626
GASKET, CASE
21627
GASKET, COIL HOUSING
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785
PLUG, CARBURETOR FUEL INLET STRAINER
21827
SCREW, CONNECTOR SET
21831
SCREW, POWER PISTON STOP
2183433080
Крепеж
21836
SCREW, THERMOSTAT CASE SET
21837
SCREW, COIL HOUSING SET
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21884
WASHER, THERMOSTAT CASE SET
9321914018
Крепеж
9321915014
Крепеж
9331915020
Крепеж
9451100300
Крепеж
9451100400
Крепеж
9451100600
Крепеж

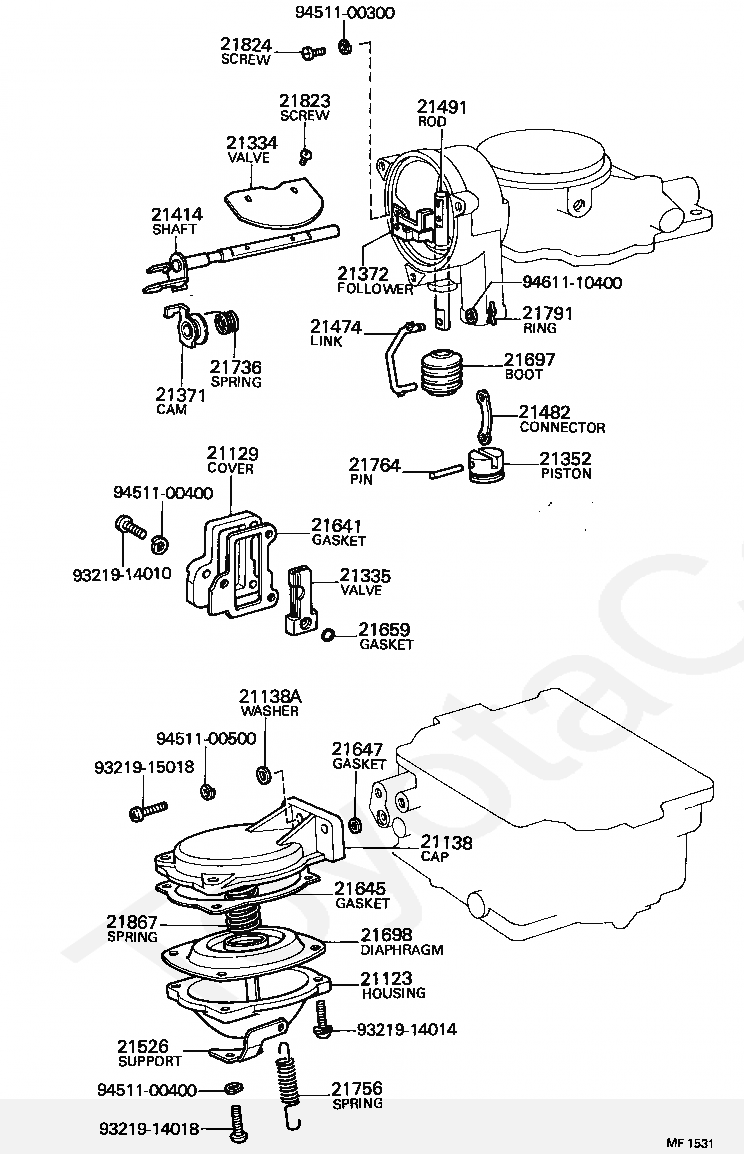

Код
Описание
21123
HOUSING, DIAPHRAGM
21129
COVER(FOR THERMOSTATIC VALVE)
21138
CAP, DIAPHRAGM
21138A
WASHER(FOR DIAPHRAGM CAP SET)
21334
VALVE, CHOKE
21335
VALVE, THERMOSTATIC
21352
PISTON, VACUUM
21371
CAM, 1ST IDLE
21372
FOLLOWER, 1ST IDLE CAM
21414
SHAFT, CHOKE
21474
LINK, CONNECTING
21482
CONNECTOR, PISTON
21491
ROD, SLIDING
21526
SUPPORT, BACK SPRING
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21659
RING, O(FOR THERMOSTATIC VALVE)
21697
BOOT(FOR SLIDING ROD)
21698
DIAPHRAGM
21736
SPRING, 1ST IDLE CAM
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21764
PIN, PISTON(FOR VACUUM PISTON)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21823
SCREW, CHOKE, VALVE SET
21824
SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21867
SPRING, DIAPHRAGM
9321914010
Крепеж
9321914014
Крепеж
9321914018
Крепеж
9321915018
Крепеж
9451100300
Крепеж
9451100400
Крепеж
9451100500
Крепеж
9461110400
Крепеж

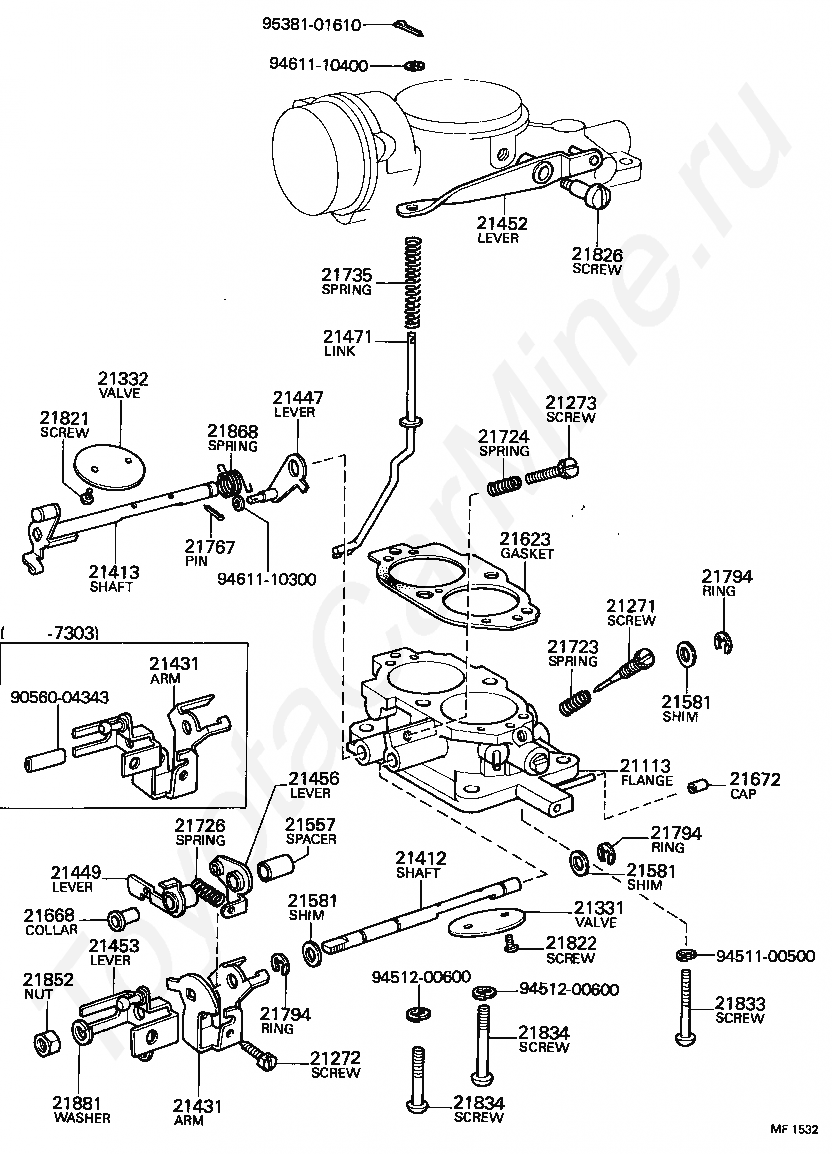

Код
Описание
21113
FLANGE, CARBURETOR
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21331
VALVE, 1ST THROTTLE
21332
VALVE, 2ND THROTTLE
21412
SHAFT, 1ST THROTTLE
21413
SHAFT, 2ND THROTTLE
21431
ARM, 1ST THROTTLE SHAFT
21447
LEVER, DIAPHRAGM
21449
LEVER, 2ND KICK
21452
LEVER, PUMP
21453
LEVER, 1ST THROTTLE
21456
LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21471
LINK, PUMP CONNECTING
21557
SPACER(FOR 1ST IDLE CAM)
21581
SHIM, 1ST THROTTLE SHAFT
21623
GASKET, BODY FLANGE
21668
COLLAR
21672
CAP
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21735
SPRING, PUMP ARM
21767
PIN, DIAPHRAGM ROD
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21821
SCREW, 2ND THROTTLE VALVE SET
21822
SCREW, 1ST THROTTLE VALVE SET
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21852
NUT, THROTTLE LEVER SET
21868
SPRING, DIAPHRAGM RELIEF
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
9056004343
Крепеж
9451100500
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9538101610
Крепеж

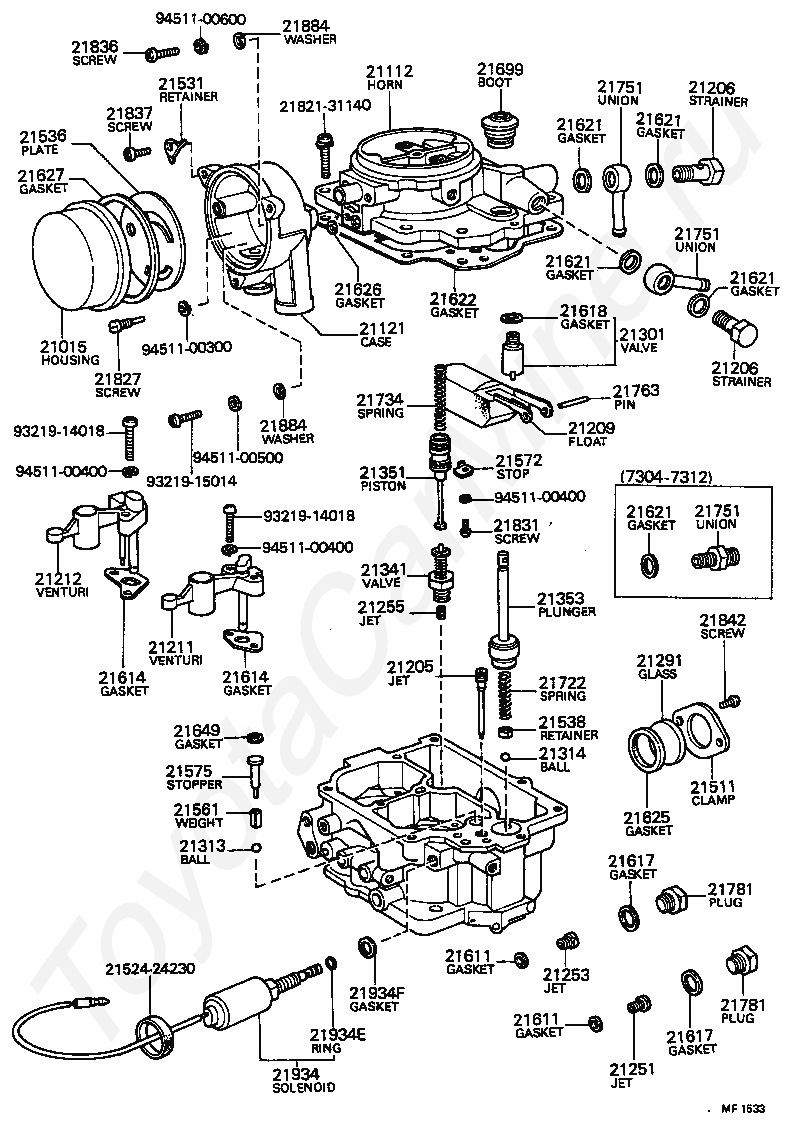

Код
Описание
21015
HOUSING SUB-ASSY, COIL
21112
HORN, AIR
21121
CASE, THERMOSTAT
21205
JET SUB-ASSY, SLOW
21206
STRAINER SUB-ASSY
21209
FLOAT SUB-ASSY
21211
VENTURI, 1ST SMALL
21212
VENTURI, 2ND SMALL
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21255
JET, POWER
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341
VALVE, POWER
21351
PISTON, POWER
21353
PLUNGER, PUMP
21511
CLAMP, LEVEL GAGE
2152424230
Крепеж
21531
RETAINER, COIL HOUSING
21536
PLATE, COIL HOUSING
21538
RETAINER, BALL CHECK
21561
WEIGHT, PUMP DISCHARGE
21572
STOP, POWER PISTON
21575
STOPPER, B(FOR DISCHARGE WEIGHT)
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21626
GASKET, CASE
21627
GASKET, COIL HOUSING
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
2182131140
Крепеж
21827
SCREW, CONNECTOR SET
21831
SCREW, POWER PISTON STOP
21836
SCREW, THERMOSTAT CASE SET
21837
SCREW, COIL HOUSING SET
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21884
WASHER, THERMOSTAT CASE SET
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9321914018
Крепеж
9321915014
Крепеж
9451100300
Крепеж
9451100400
Крепеж
9451100500
Крепеж
9451100600
Крепеж

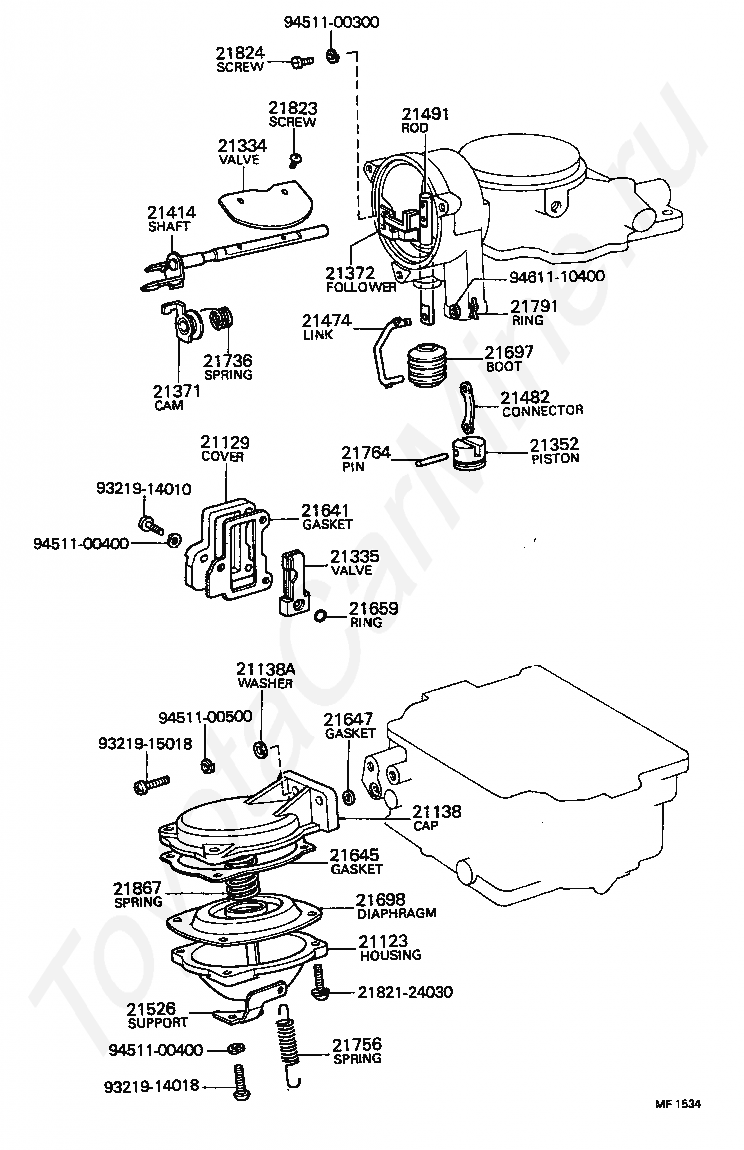

Код
Описание
21123
HOUSING, DIAPHRAGM
21129
COVER(FOR THERMOSTATIC VALVE)
21138
CAP, DIAPHRAGM
21138A
WASHER(FOR DIAPHRAGM CAP SET)
21334
VALVE, CHOKE
21335
VALVE, THERMOSTATIC
21352
PISTON, VACUUM
21371
CAM, 1ST IDLE
21372
FOLLOWER, 1ST IDLE CAM
21414
SHAFT, CHOKE
21474
LINK, CONNECTING
21482
CONNECTOR, PISTON
21491
ROD, SLIDING
21526
SUPPORT, BACK SPRING
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
21645
GASKET, DIAPHRAGM, CAP
21647
GASKET, DIAPHRAGM HOUSING CAP
21659
RING, O(FOR THERMOSTATIC VALVE)
21697
BOOT(FOR SLIDING ROD)
21698
DIAPHRAGM
21736
SPRING, 1ST IDLE CAM
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21764
PIN, PISTON(FOR VACUUM PISTON)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2182124030
Крепеж
21823
SCREW, CHOKE, VALVE SET
21824
SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21867
SPRING, DIAPHRAGM
9321914010
Крепеж
9321914018
Крепеж
9321915018
Крепеж
9451100300
Крепеж
9451100400
Крепеж
9451100500
Крепеж
9461110400
Крепеж

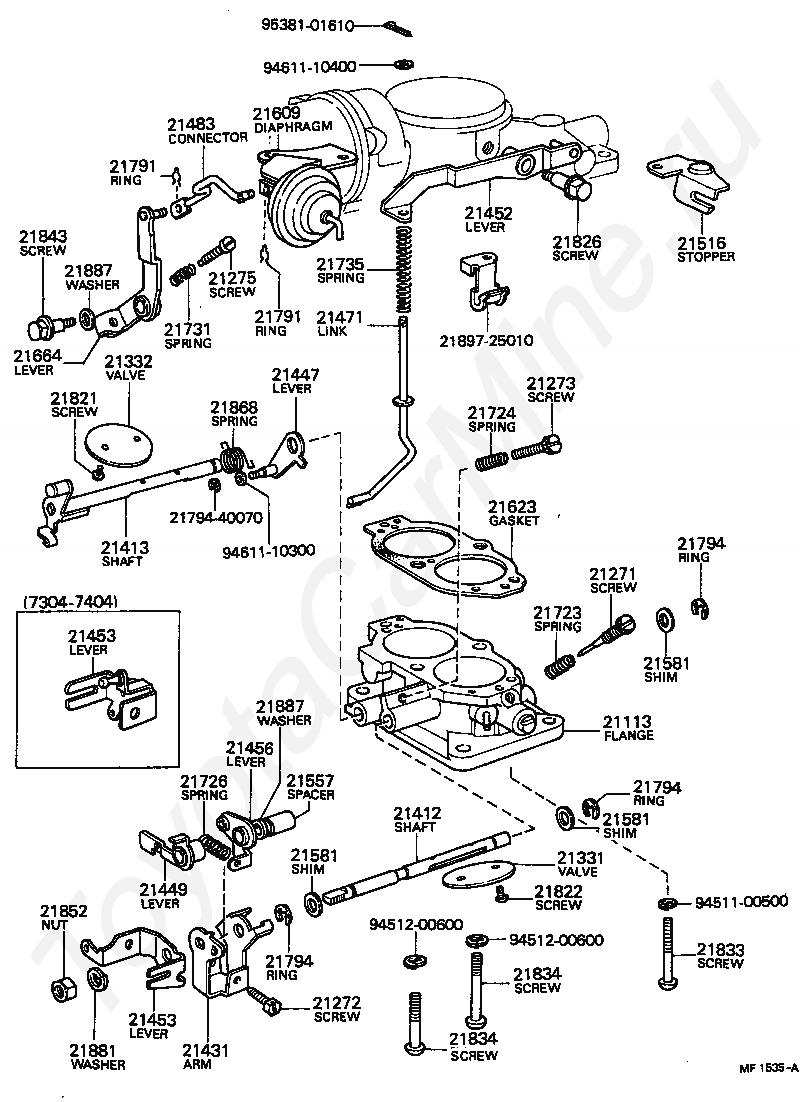

Код
Описание
21113
FLANGE, CARBURETOR
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21331
VALVE, 1ST THROTTLE
21332
VALVE, 2ND THROTTLE
21412
SHAFT, 1ST THROTTLE
21413
SHAFT, 2ND THROTTLE
21431
ARM, 1ST THROTTLE SHAFT
21447
LEVER, DIAPHRAGM
21449
LEVER, 2ND KICK
21452
LEVER, PUMP
21453
LEVER, 1ST THROTTLE
21456
LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21471
LINK, PUMP CONNECTING
21483
CONNECTOR, NO.1
21516
CLAMP, CONNECTOR
21557
SPACER(FOR 1ST IDLE CAM)
21581
SHIM, 1ST THROTTLE SHAFT
21609
DIAPHRAGM SUB-ASSY
21623
GASKET, BODY FLANGE
21664
LEVER(FOR DASH POT OR POSITIONER)
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21735
SPRING, PUMP ARM
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794
RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
2179440070
Крепеж
21821
SCREW, 2ND THROTTLE VALVE SET
21822
SCREW, 1ST THROTTLE VALVE SET
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21843
SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21852
NUT, THROTTLE LEVER SET
21868
SPRING, DIAPHRAGM RELIEF
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21887
WASHER(FOR CONNECTING LINK SETTING)
2189725010
Крепеж
9451100500
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9538101610
Крепеж
