Каталог
ЕвропаМодель
CAMRYДвигатель
2,2 литра, 16 клапанов, DOHC, EFIКузов
седанКласс
GL SPECIFICATIONФрейм
SXV20Трансмиссия
автоматОпции
правый руль

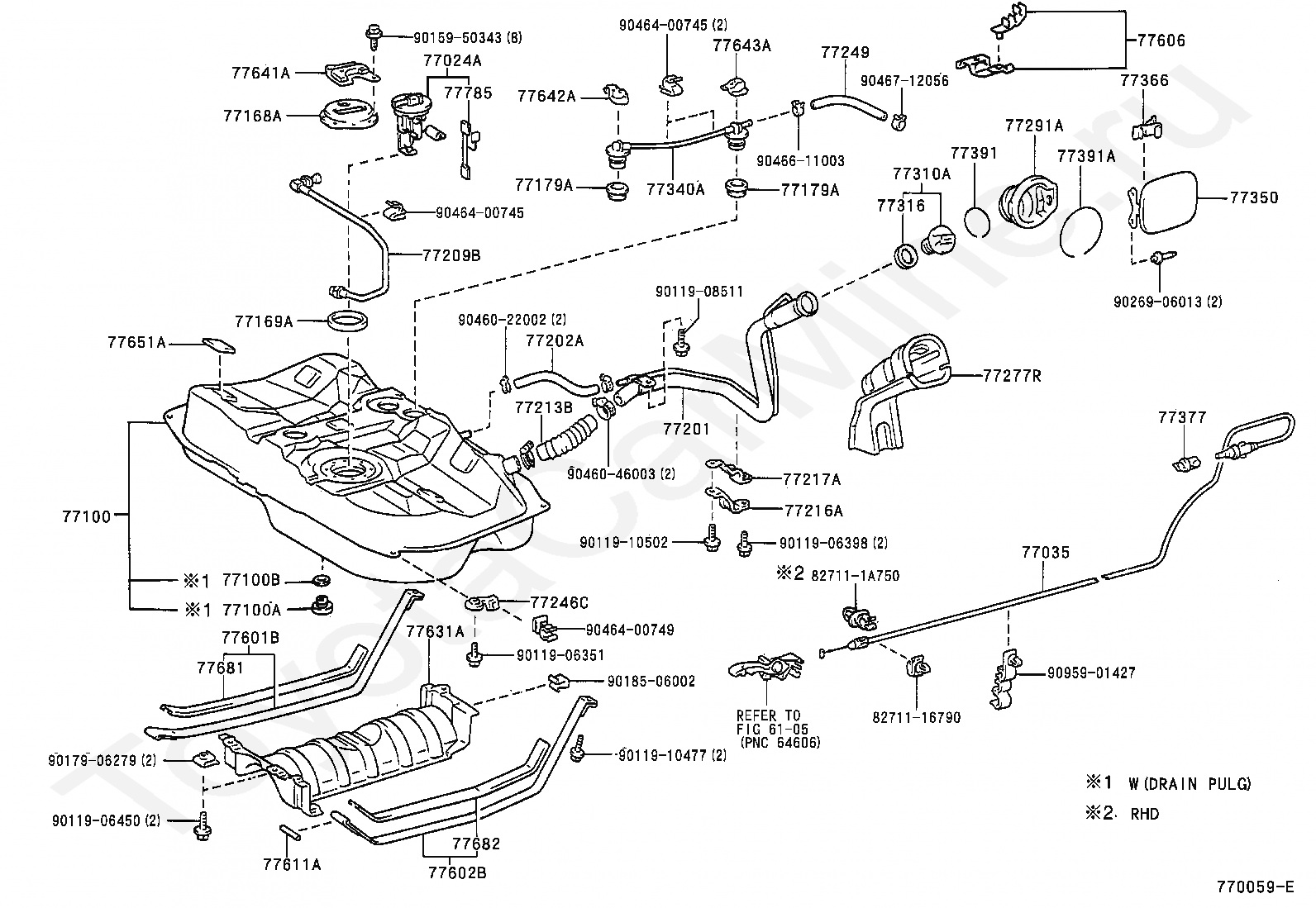

Код
Описание
6105
переход к группе запчастей
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77246C
SUPPORT, FUEL MAIN TUBE
77249
HOSE, FUEL EMISSION
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611A
PIN (FOR FUEL TANK BAND)
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77643A
PROTECTOR, FUEL TANK, NO.3
77651A
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
77785
HARNESS, FUEL PUMP
8271116790
Крепеж
827111A750
Крепеж
9011906351
Крепеж
9011906398
Крепеж
9011906450
Крепеж
9011908511
Крепеж
9011910477
Крепеж
9011910502
Крепеж
9015950343
Крепеж
9017906279
Крепеж
9018506002
Крепеж
9026906013
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046400745
Крепеж
9046400749
Крепеж
9046611003
Крепеж
9046712056
Крепеж
9095901427
Крепеж

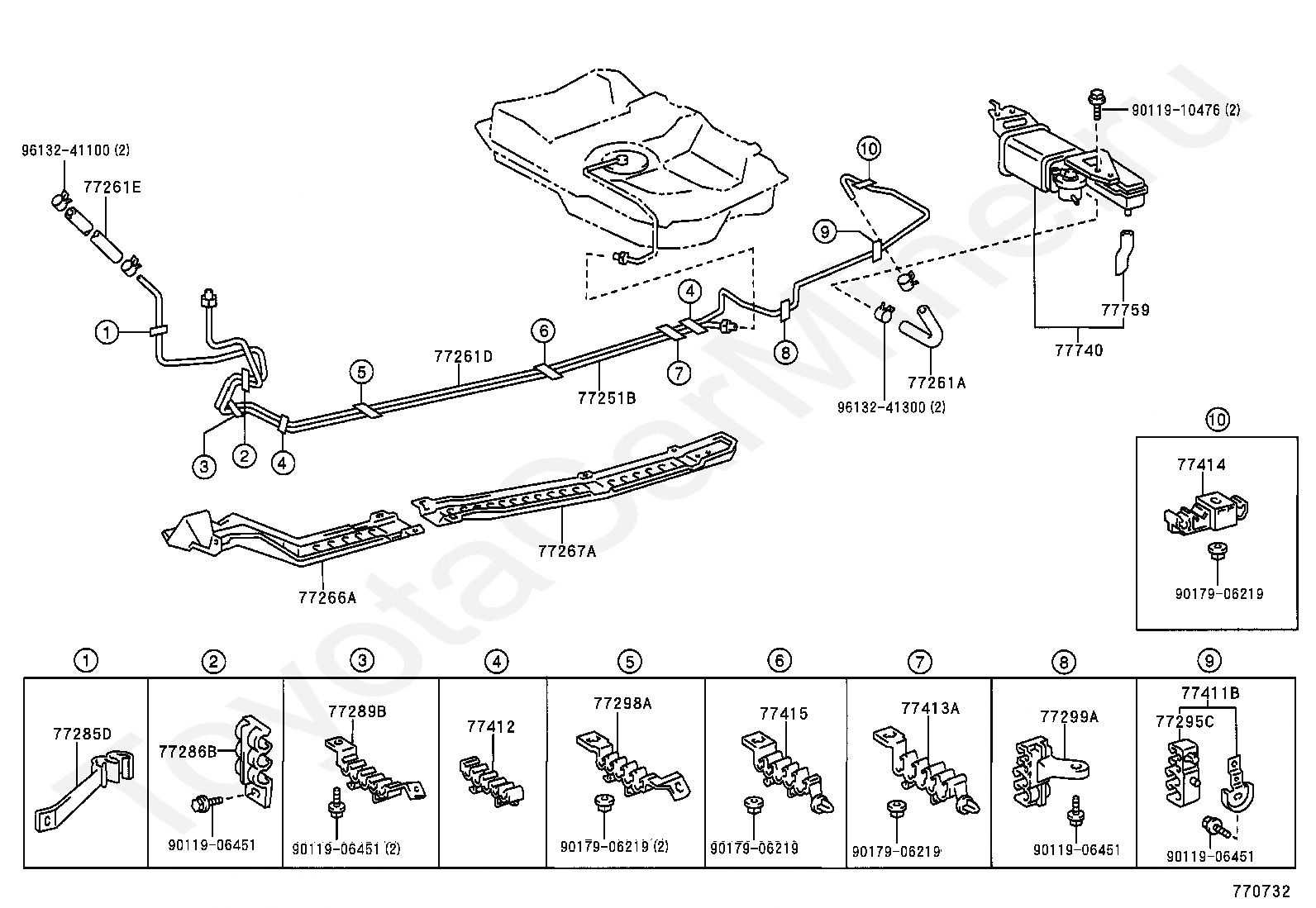

Код
Описание
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77285D
CLAMP, FUEL TUBE, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77298A
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77415
SUPPORT, FUEL TUBE GROMMET, NO.5
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
9011906451
Крепеж
9011906642
Крепеж
9017906219
Крепеж
9033330004
Крепеж
9095901530
Крепеж
9613241100
Крепеж

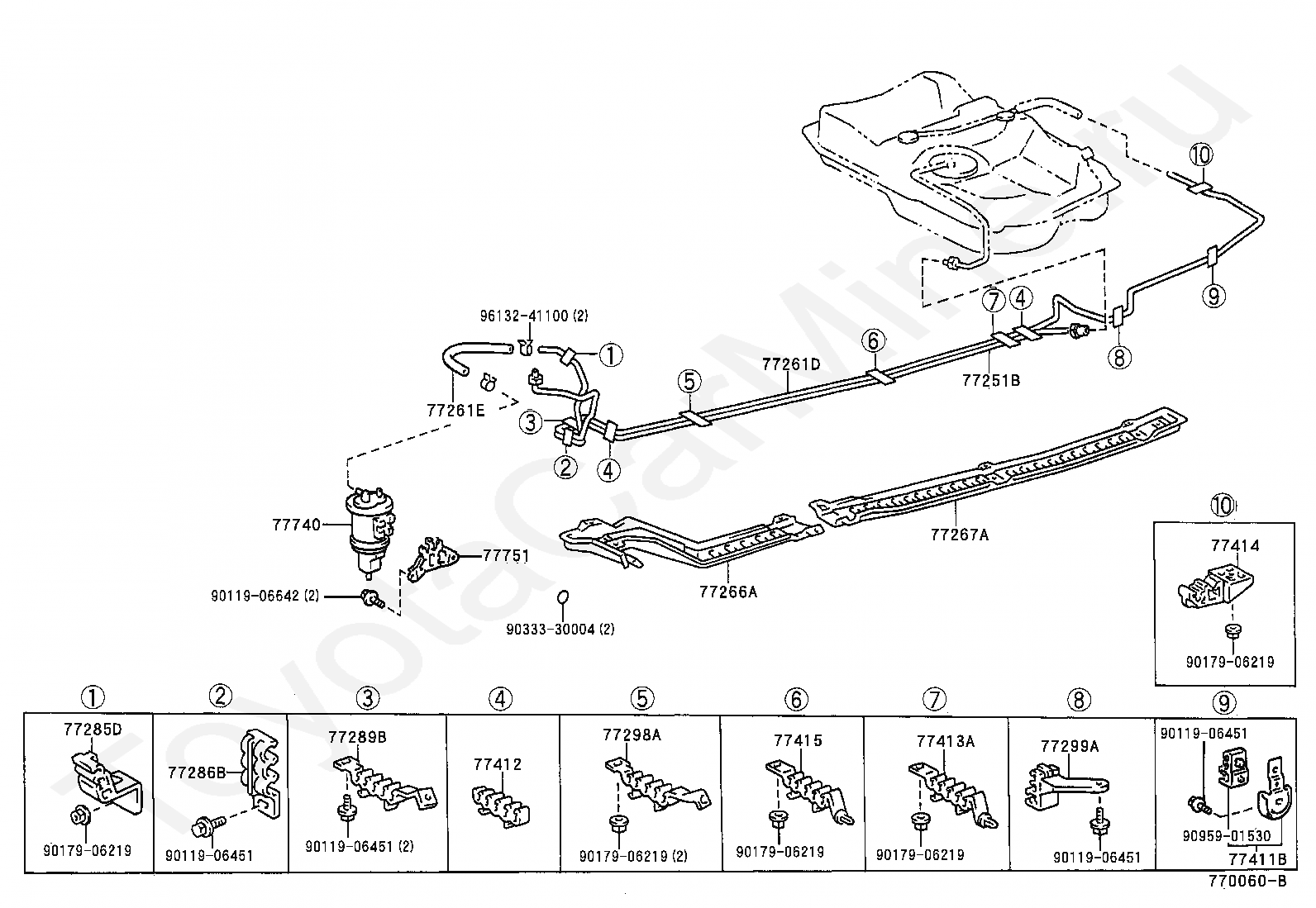

Код
Описание
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77285D
CLAMP, FUEL TUBE, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77298A
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77415
SUPPORT, FUEL TUBE GROMMET, NO.5
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
9011906451
Крепеж
9011906642
Крепеж
9017906219
Крепеж
9033330004
Крепеж
9095901530
Крепеж
9613241100
Крепеж
Код
Описание
77251B
TUBE, FUEL MAIN
77261A
HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77285D
CLAMP, FUEL TUBE, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77295C
GROMMET, FUEL TUBE
77298A
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77415
SUPPORT, FUEL TUBE GROMMET, NO.5
77740
CANISTER ASSY, CHARCOAL
77759
HOSE, CHARCOAL CANISTER
9011906451
Крепеж
9011910476
Крепеж
9017906219
Крепеж
9613241100
Крепеж
9613241300
Крепеж
