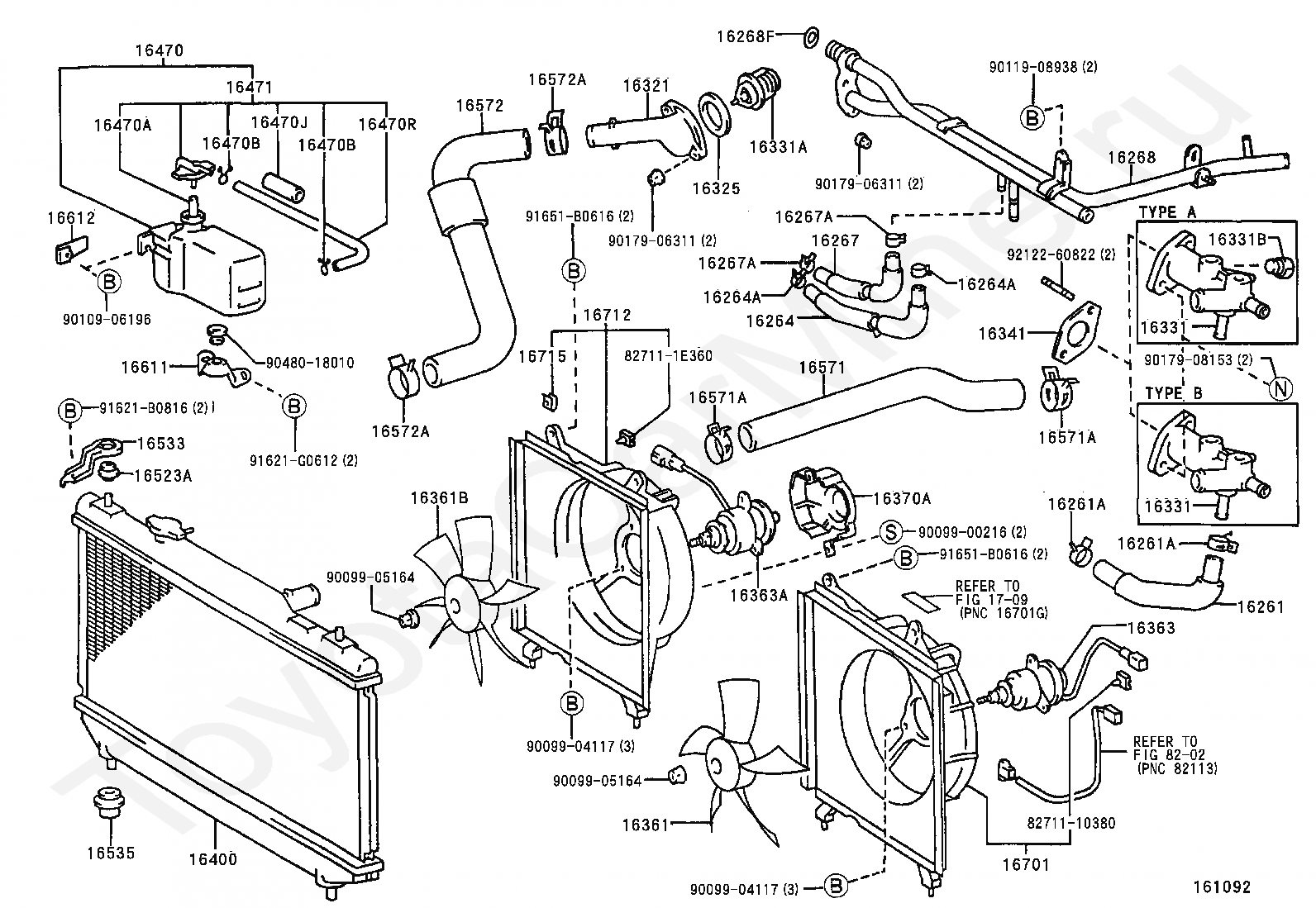

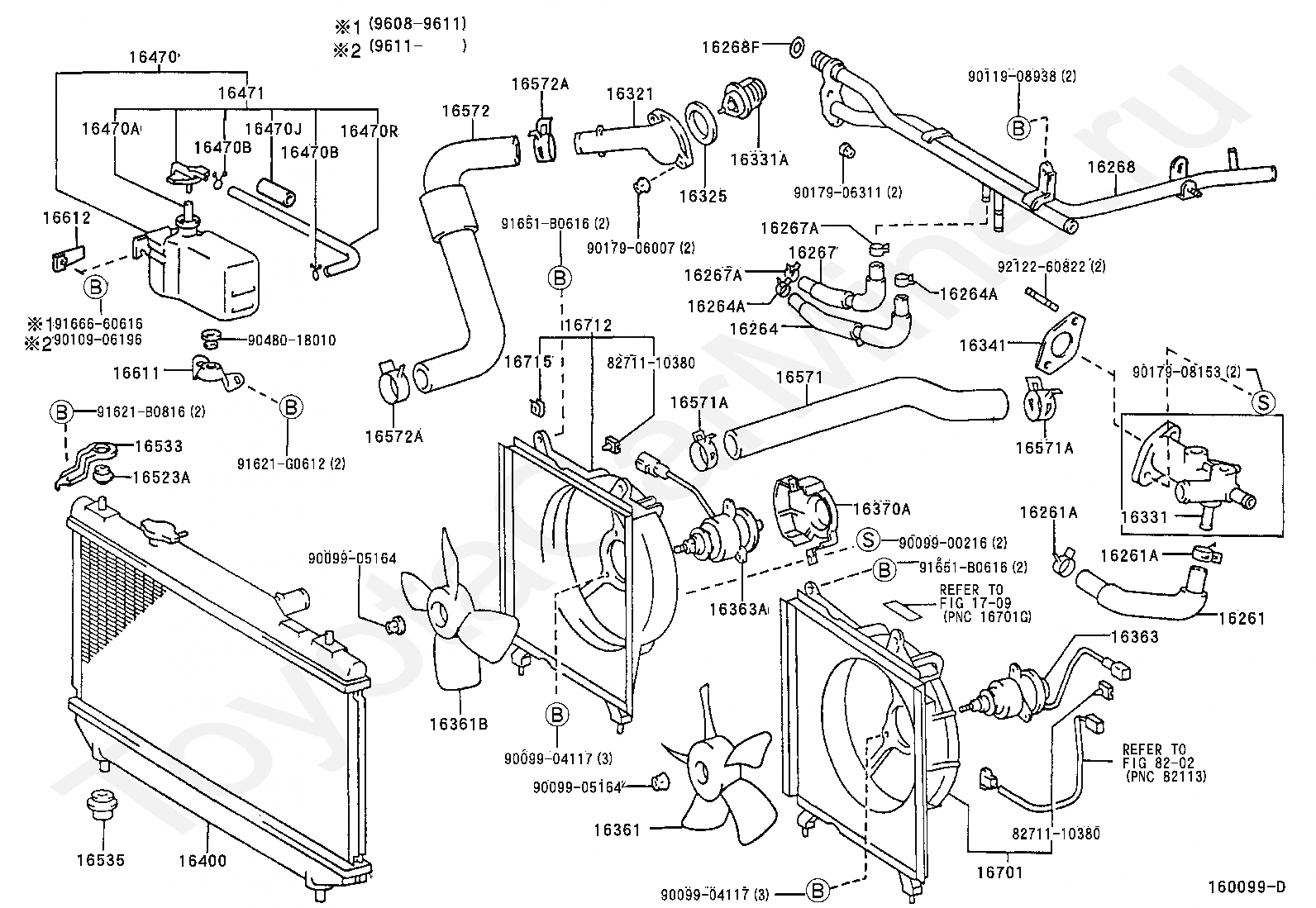

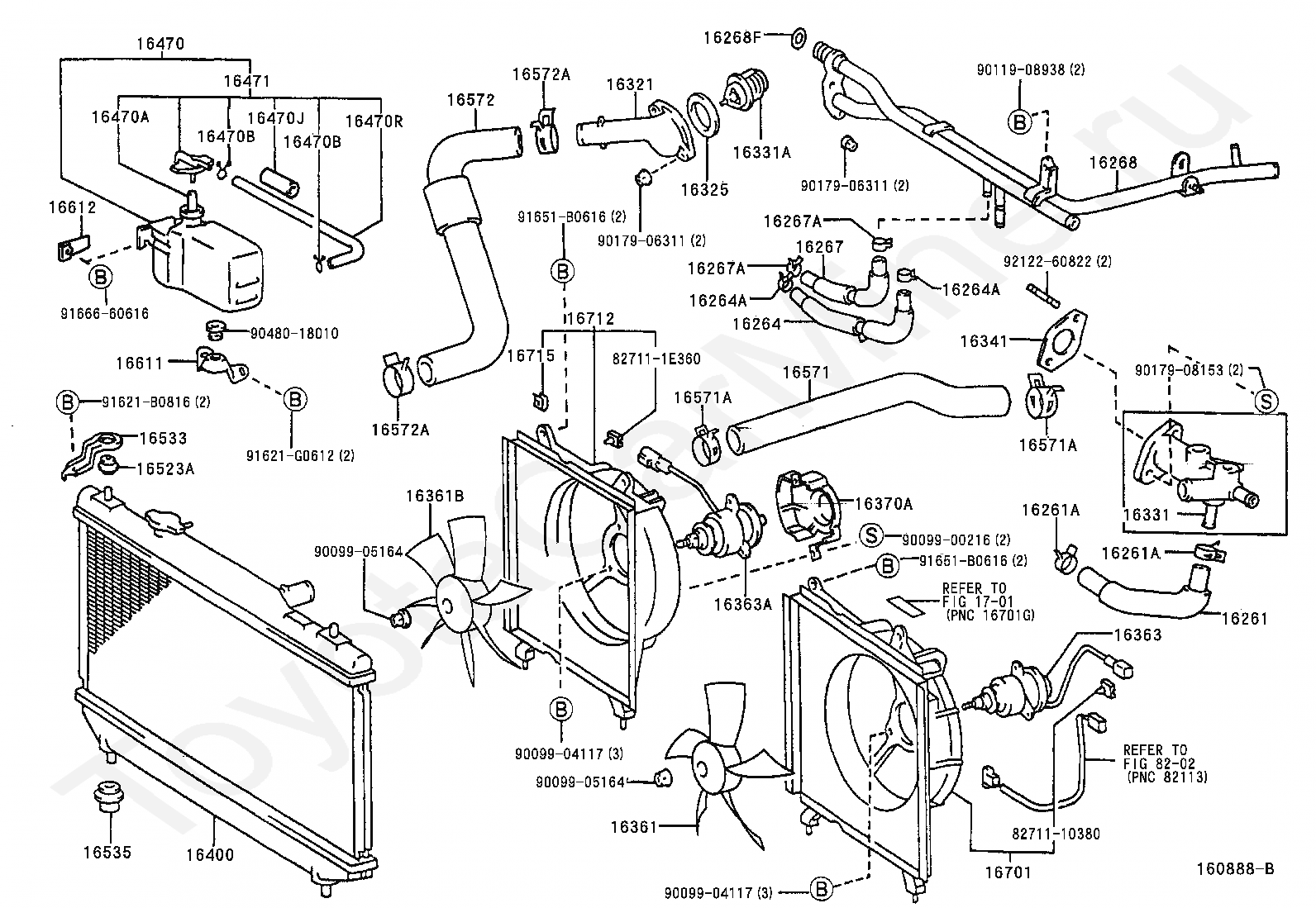

Радиатор и шланги TOYOTA CAMRY, 1996/08 - 2001/09, 2,2 литра, 16 клапанов, DOHC, EFI, седан, GL SPECIFICATION, SXV20, автомат

Каталог

Европа

Модель

CAMRY

Двигатель

2,2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

GL SPECIFICATION

Фрейм

SXV20

Трансмиссия

автомат

Опции

правый руль

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16370A

PLATE COVER

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470J

HOSE, NO.3(FOR RADIATOR RESERVE TANK)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16611

BRACKET, RADIATOR RESERVE TANK

16612

BRACKET, RADIATOR RESERVE TANK, NO.2

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

16715

BRACKET, FAN SHROUD

1709

переход к группе запчастей

8202

переход к группе запчастей

8271110380

Крепеж

9009900216

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9010906196

Крепеж

9011908938

Крепеж

9017906007

Крепеж

9017906311

Крепеж

9017908153

Крепеж

9048018010

Крепеж

91621B0816

Крепеж

91621G0612

Крепеж

91651B0616

Крепеж

9166660616

Крепеж

9212260822

Крепеж

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16370A

PLATE COVER

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470J

HOSE, NO.3(FOR RADIATOR RESERVE TANK)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16611

BRACKET, RADIATOR RESERVE TANK

16612

BRACKET, RADIATOR RESERVE TANK, NO.2

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

16715

BRACKET, FAN SHROUD

1701

переход к группе запчастей

8202

переход к группе запчастей

8271110380

Крепеж

827111E360

Крепеж

9009900216

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9011908938

Крепеж

9017906311

Крепеж

9017908153

Крепеж

9048018010

Крепеж

91621B0816

Крепеж

91621G0612

Крепеж

91651B0616

Крепеж

9166660616

Крепеж

9212260822

Крепеж

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16331B

PLUG(FOR WATER OUTLET)

16341

GASKET, WATER OUTLET

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16370A

PLATE COVER

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470J

HOSE, NO.3(FOR RADIATOR RESERVE TANK)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16611

BRACKET, RADIATOR RESERVE TANK

16612

BRACKET, RADIATOR RESERVE TANK, NO.2

16701

SHROUD SUB-ASSY, FAN

16712

SHROUD, FAN, NO.2

16715

BRACKET, FAN SHROUD

1709

переход к группе запчастей

8202

переход к группе запчастей

8271110380

Крепеж

827111E360

Крепеж

9009900216

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9010906196

Крепеж

9011908938

Крепеж

9017906311

Крепеж

9017908153

Крепеж

9048018010

Крепеж

91621B0816

Крепеж

91621G0612

Крепеж

91651B0616

Крепеж

9212260822

Крепеж

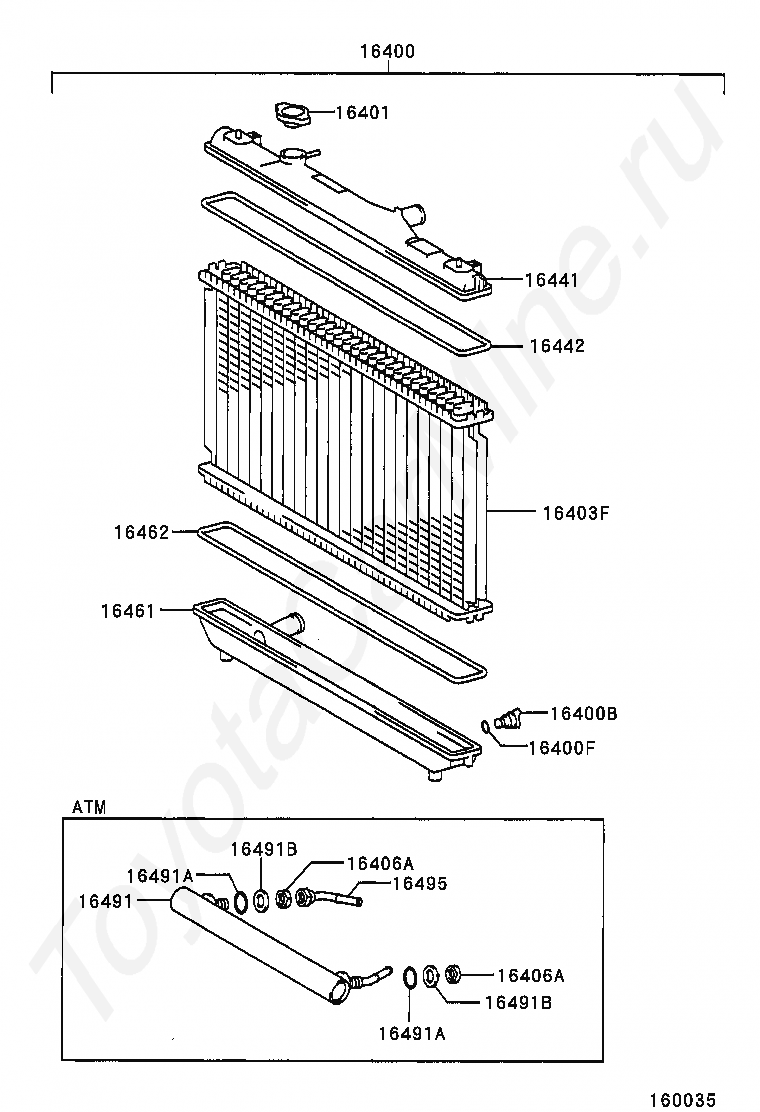

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

Радиатор и шланги TOYOTA CAMRY, 1996/08 - 2001/09, 2,2 литра, 16 клапанов, DOHC, EFI, седан, GL SPECIFICATION, SXV20, автомат
