Каталог
ЕвропаМодель
CAMRY (JPP)Двигатель
3 литра, 24 клапана DOHC, EFIКузов
седанКласс
LE TYPEФрейм
MCV10Трансмиссия
автоматОпции
JAPAN PRODUCT США

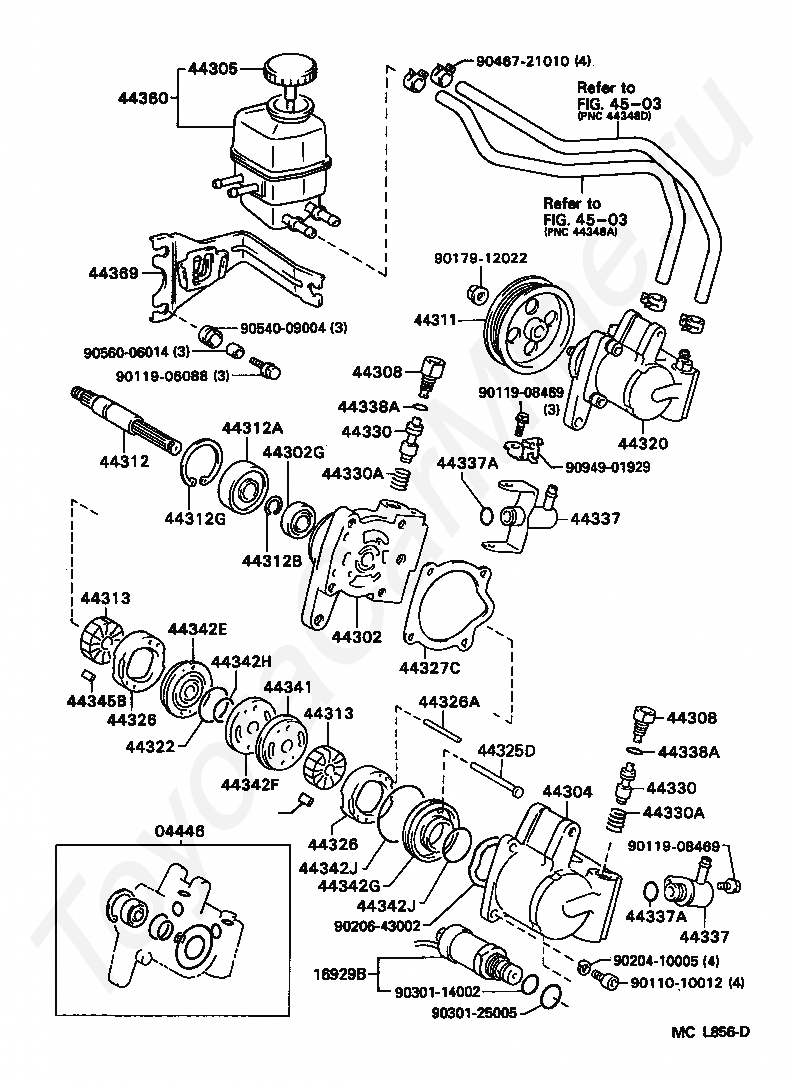

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
16929B
VALVE, HYDRAULIC MOTOR CONTROL
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308
UNION SUB-ASSY, PRESSURE PORT
44311
PULLEY, VANE PUMP
44312
SHAFT, VANE PUMP
44312A
BEARING(FOR VANE PUMP SHAFT)
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44312G
RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
44313
ROTOR, VANE PUMP
44320
PUMP ASSY, VANE
44322
SEAL, VANE PUMP SIDE PLATE
44325D
PIN, RING(FOR VANE PUMP CAM RING)
44326
RING, CAM(FOR VANE PUMP)
44326A
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327C
GASKET, VANE PUMP HOUSING
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338A
RING, O(FOR PRESSURE PORT UNION)
44341
PLATE, VANE PUMP SIDE, FRONT
44342E
PLATE, VANE PUMP SIDE, REAR NO.1
44342F
PLATE, VANE PUMP SIDE, REAR NO.2
44342G
PLATE, VANE PUMP SIDE, REAR NO.3
44342H
RING, O(FOR VANE PUMP SIDE PLATE REAR NO.1)
44342J
RING, O(FOR VANE PUMP SIDE PLATE REAR NO.2)
44345B
PLATE, VANE PUMP
44360
RESERVOIR ASSY, VANE PUMP OIL
44369
BRACKET, OIL RESERVOIR, NO.1
4503
переход к группе запчастей
9011010012
Крепеж
9011906088
Крепеж
9011908469
Крепеж
9017912022
Крепеж
9020410005
Крепеж
9020643002
Крепеж
9030114002
Крепеж
9030125005
Крепеж
9046721010
Крепеж
9054009004
Крепеж
9056006014
Крепеж
9094901929
Крепеж

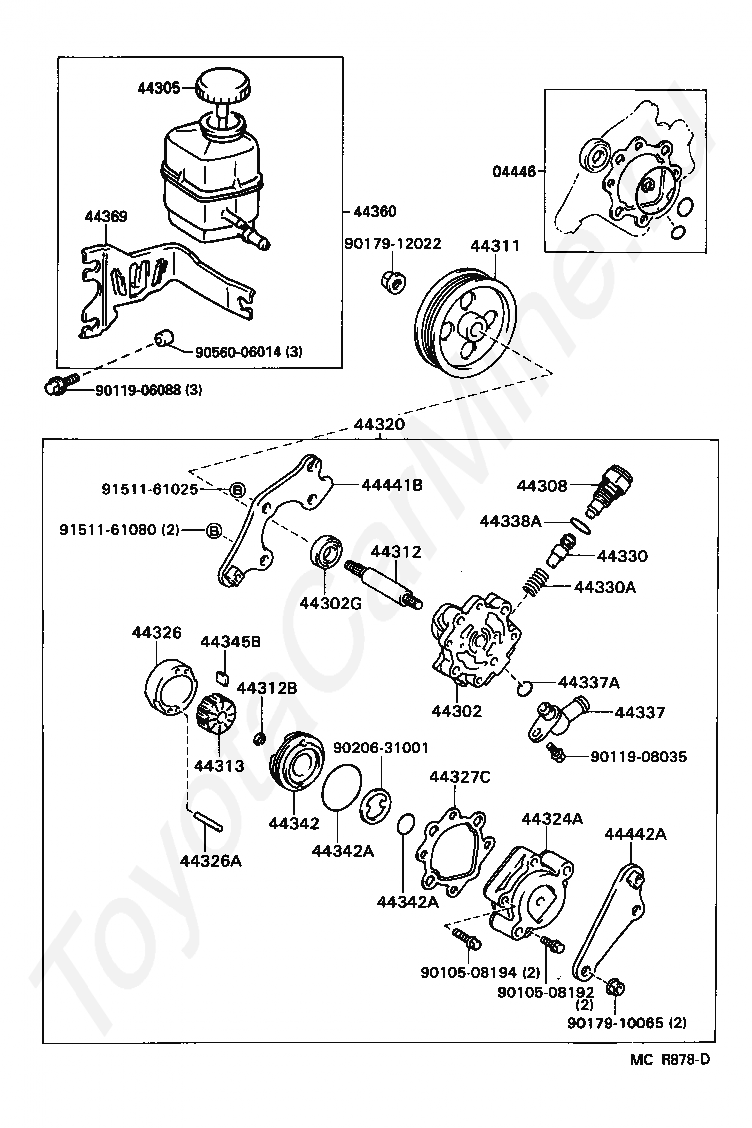

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308
UNION SUB-ASSY, PRESSURE PORT
44311
PULLEY, VANE PUMP
44312
SHAFT, VANE PUMP
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44320
PUMP ASSY, VANE
44324A
HOUSING, PUMP, REAR
44326
RING, CAM(FOR VANE PUMP)
44326A
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327C
GASKET, VANE PUMP HOUSING
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338A
RING, O(FOR PRESSURE PORT UNION)
44342
PLATE, VANE PUMP SIDE, REAR
44342A
RING, O(FOR VANE PUMP SIDE PLATE REAR)
44345B
PLATE, VANE PUMP
44360
RESERVOIR ASSY, VANE PUMP OIL
44369
BRACKET, OIL RESERVOIR, NO.1
44441B
BRACKET, PUMP, FRONT
44442A
BRACKET, VANE PUMP, REAR
9010508192
Крепеж
9010508194
Крепеж
9011906088
Крепеж
9011908035
Крепеж
9017910065
Крепеж
9017912022
Крепеж
9020631001
Крепеж
9056006014
Крепеж
9151161025
Крепеж
9151161080
Крепеж
