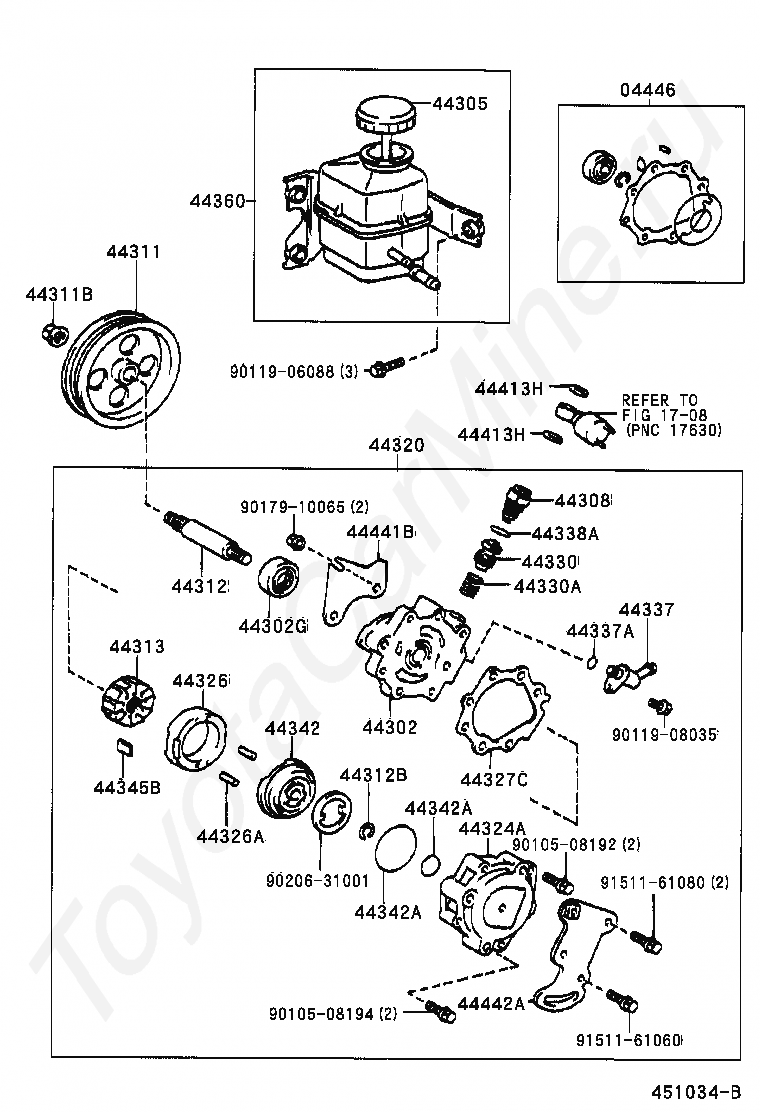

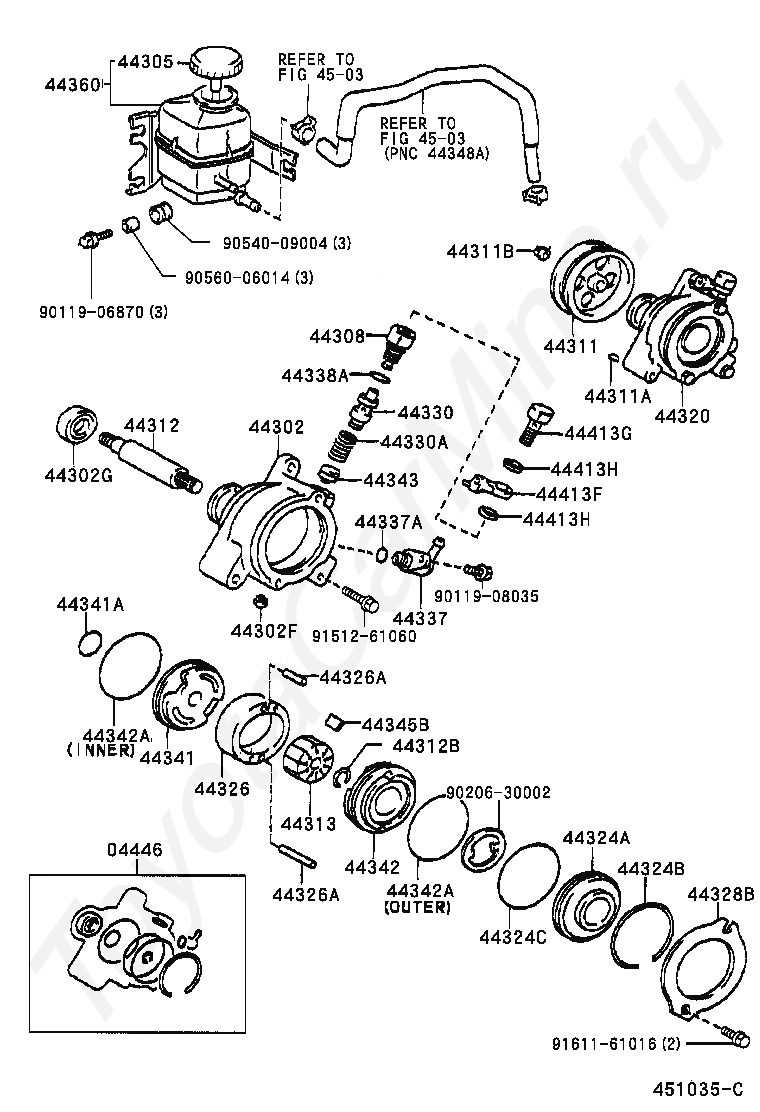

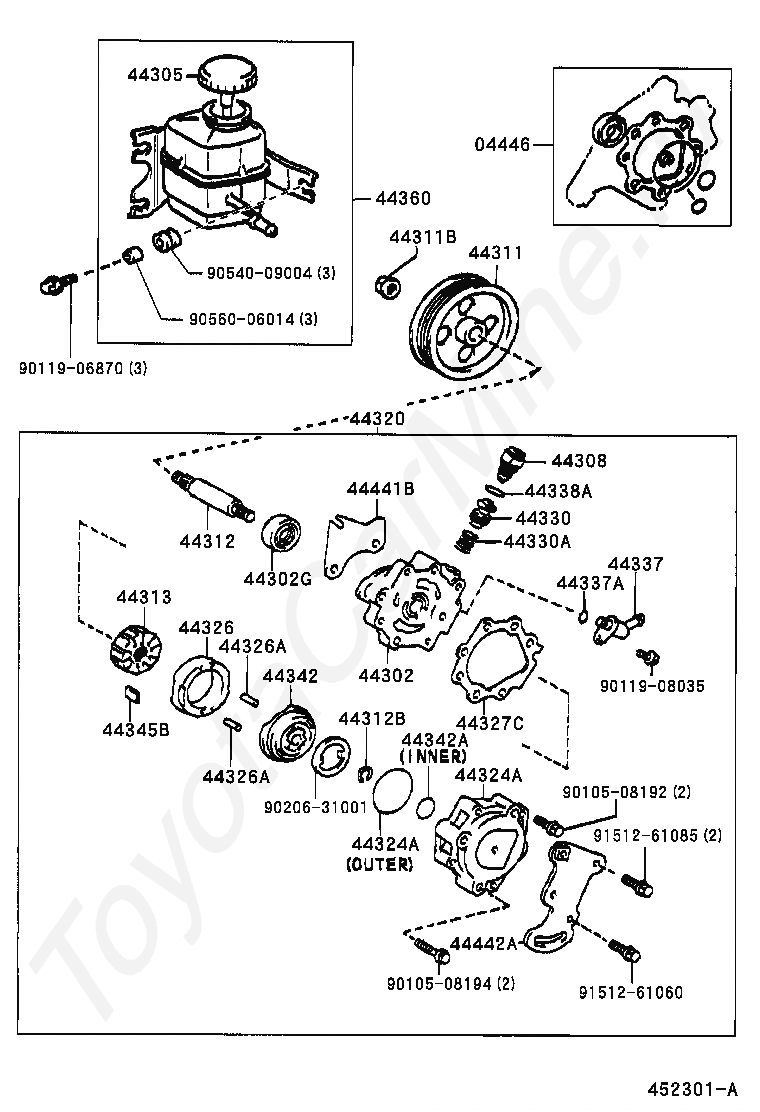

VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA CAMRY (JPP/SED), 1992/08 - 2001/04, 2,2 литра, 16 клапанов, DOHC, EFI, седан, SEI TYPE, SXV10, автомат

Каталог

Ближний Восток

Модель

CAMRY (JPP/SED)

Двигатель

2,2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

SEI TYPE

Фрейм

SXV10

Трансмиссия

автомат

Опции

JAPAN PRODUCT правый руль

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

1708

переход к группе запчастей

44302

HOUSING SUB-ASSY, VANE PUMP, FRONT

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44311B

NUT(FOR VANE PUMP PULLEY)

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44324A

HOUSING, PUMP, REAR

44326

RING, CAM(FOR VANE PUMP)

44326A

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44327C

GASKET, VANE PUMP HOUSING

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44337

UNION, POWER STEERING SUCTION PORT

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44345B

PLATE, VANE PUMP

44360

RESERVOIR ASSY, VANE PUMP OIL

44413H

GASKET(FOR PRESSURE FEED TUBE NO.2)

44441B

BRACKET, PUMP, FRONT

44442A

BRACKET, VANE PUMP, REAR

9010508192

Крепеж

9010508194

Крепеж

9011906088

Крепеж

9011908035

Крепеж

9017910065

Крепеж

9020631001

Крепеж

9151161060

Крепеж

9151161080

Крепеж

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

44302

HOUSING SUB-ASSY, VANE PUMP, FRONT

44302F

SEAT, UNION(FOR VANE PUMP HOUSING)

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44311A

KEY, VANE PUMP PULLEY

44311B

NUT(FOR VANE PUMP PULLEY)

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44324A

HOUSING, PUMP, REAR

44324B

RING, HOLE SNAP(FOR PUMP HOUSING REAR)

44324C

RING, O(FOR PUMP HOUSING REAR)

44326

RING, CAM(FOR VANE PUMP)

44326A

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44328B

END, VANE PUMP HOUSING

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44337

UNION, POWER STEERING SUCTION PORT

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44341

PLATE, VANE PUMP SIDE, FRONT

44341A

RING, O(FOR VANE PUMP FRONT SIDE PLATE)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44343

SEAT, FLOW CONTROL SPRING

44345B

PLATE, VANE PUMP

44360

RESERVOIR ASSY, VANE PUMP OIL

44413F

TUBE, PRESSURE FEED, NO.2

44413G

BOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

44413H

GASKET(FOR PRESSURE FEED TUBE NO.2)

4503

переход к группе запчастей

9011906870

Крепеж

9011908035

Крепеж

9020630002

Крепеж

9054009004

Крепеж

9056006014

Крепеж

9151261060

Крепеж

9161161016

Крепеж

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

44302

HOUSING SUB-ASSY, VANE PUMP, FRONT

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44311B

NUT(FOR VANE PUMP PULLEY)

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44324A

HOUSING, PUMP, REAR

44326

RING, CAM(FOR VANE PUMP)

44326A

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44327C

GASKET, VANE PUMP HOUSING

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44337

UNION, POWER STEERING SUCTION PORT

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44345B

PLATE, VANE PUMP

44360

RESERVOIR ASSY, VANE PUMP OIL

44441B

BRACKET, PUMP, FRONT

44442A

BRACKET, VANE PUMP, REAR

9010508192

Крепеж

9010508194

Крепеж

9011906870

Крепеж

9011908035

Крепеж

9020631001

Крепеж

9054009004

Крепеж

9056006014

Крепеж

9151261060

Крепеж

9151261085

Крепеж

VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA CAMRY (JPP/SED), 1992/08 - 2001/04, 2,2 литра, 16 клапанов, DOHC, EFI, седан, SEI TYPE, SXV10, автомат
