Топливная система TOYOTA CAMRY (JPP/SED), 1992/08 - 2001/04, 2,2 литра, 16 клапанов, DOHC, EFI, седан, SEI TYPE, SXV10, автомат

Каталог

Ближний Восток

Модель

CAMRY (JPP/SED)

Двигатель

2,2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

SEI TYPE

Фрейм

SXV10

Трансмиссия

автомат

Опции

JAPAN PRODUCT правый руль

Код

Описание

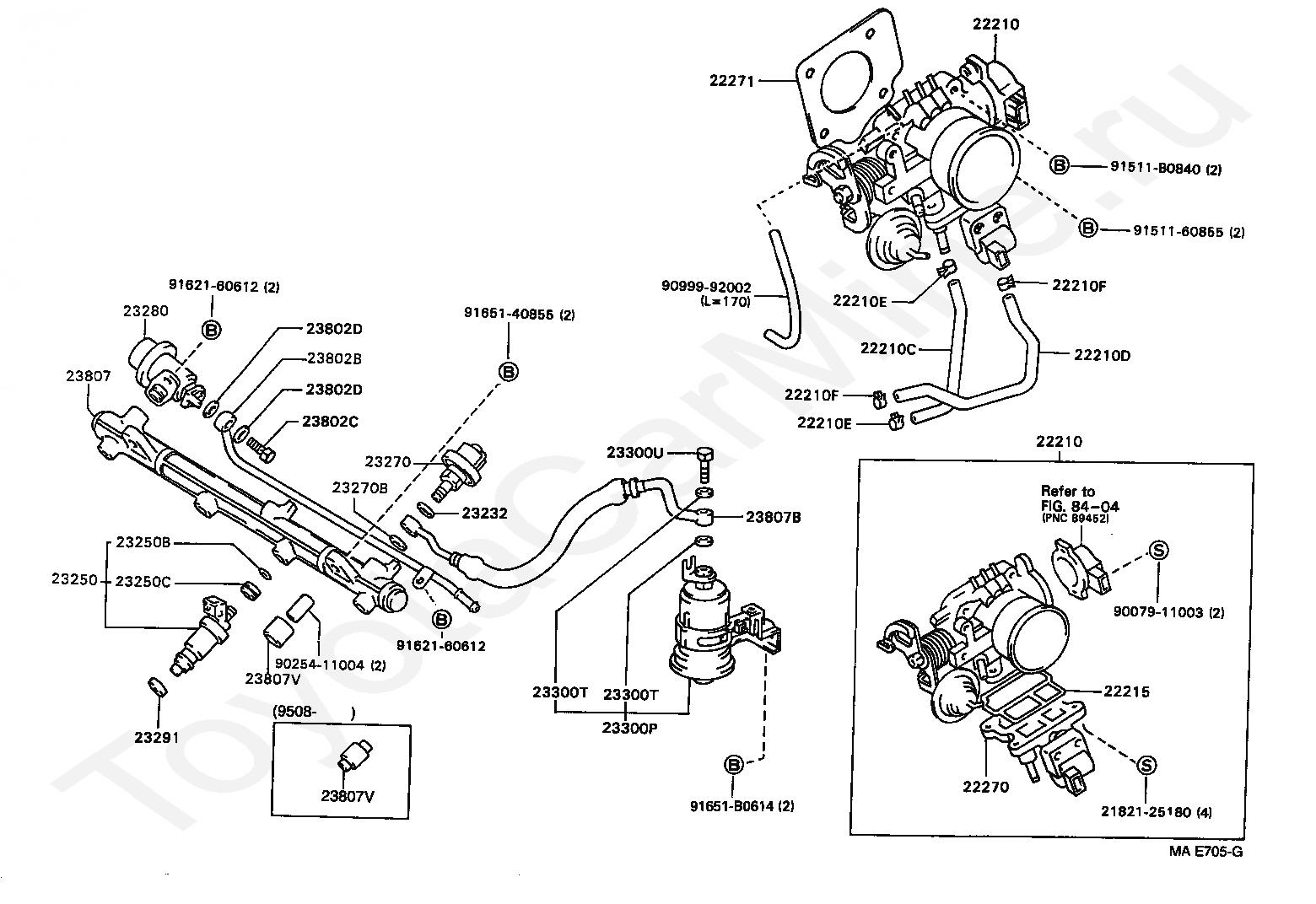

2182125180

Крепеж

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23232

GASKET(FOR FUEL PUMP HOSE)

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23270

DAMPER ASSY, FUEL PRESSURE PULSATION

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23280

REGULATOR ASSY, FUEL PRESSURE

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807B

HOSE, FUEL DELIVERY PIPE

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

8404

переход к группе запчастей

9007911003

Крепеж

9025411004

Крепеж

9099992002

Крепеж

9151160855

Крепеж

91511B0840

Крепеж

9162160612

Крепеж

9165140855

Крепеж

91651B0614

Крепеж

Код

Описание

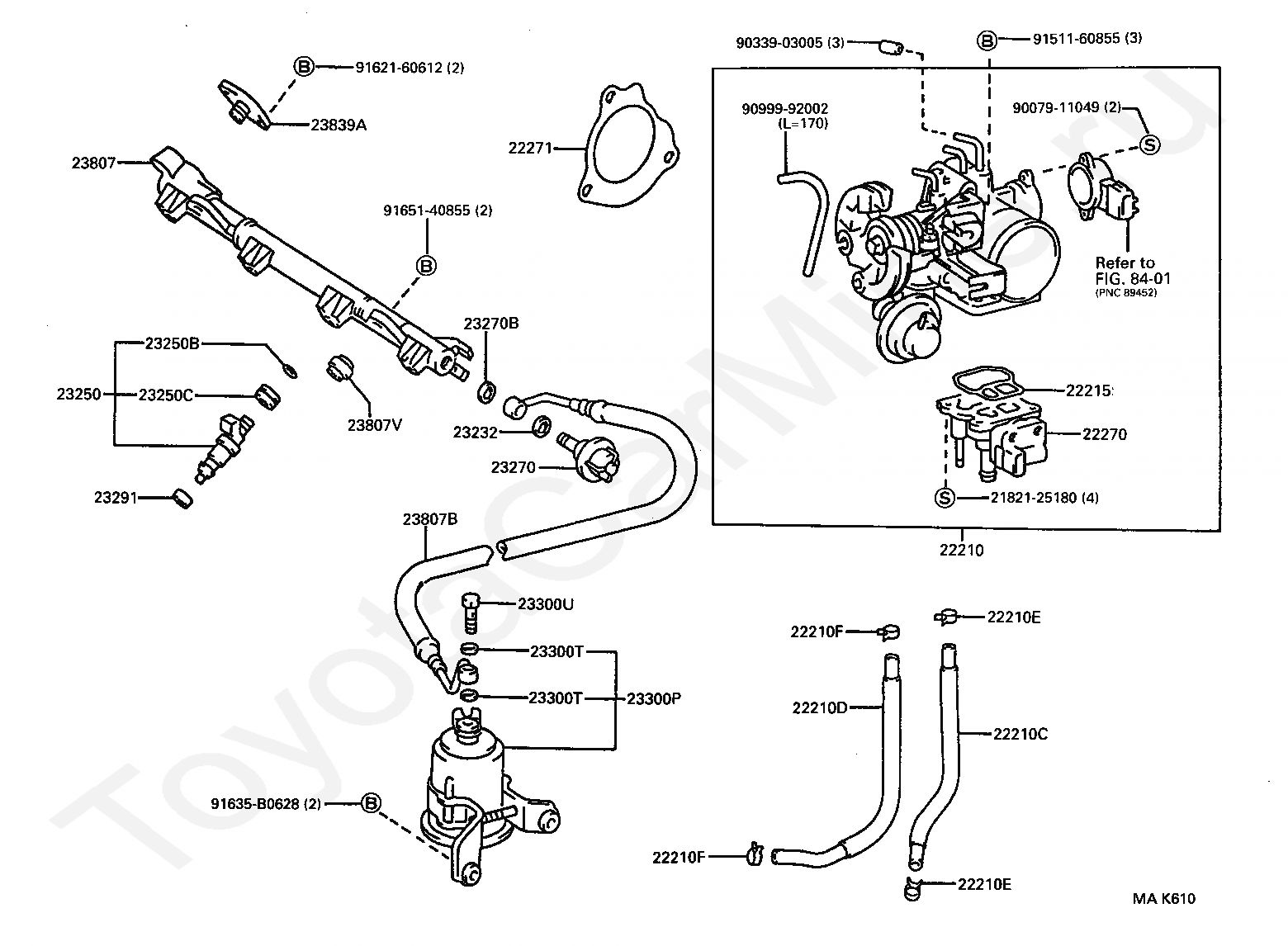

2182125180

Крепеж

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23232

GASKET(FOR FUEL PUMP HOSE)

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23270

DAMPER ASSY, FUEL PRESSURE PULSATION

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807B

HOSE, FUEL DELIVERY PIPE

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

23839A

PLUG, FUEL PIPE, NO.1

8401

переход к группе запчастей

9007911049

Крепеж

9033903005

Крепеж

9099992002

Крепеж

9151160855

Крепеж

9162160612

Крепеж

91635B0628

Крепеж

9165140855

Крепеж

Код

Описание

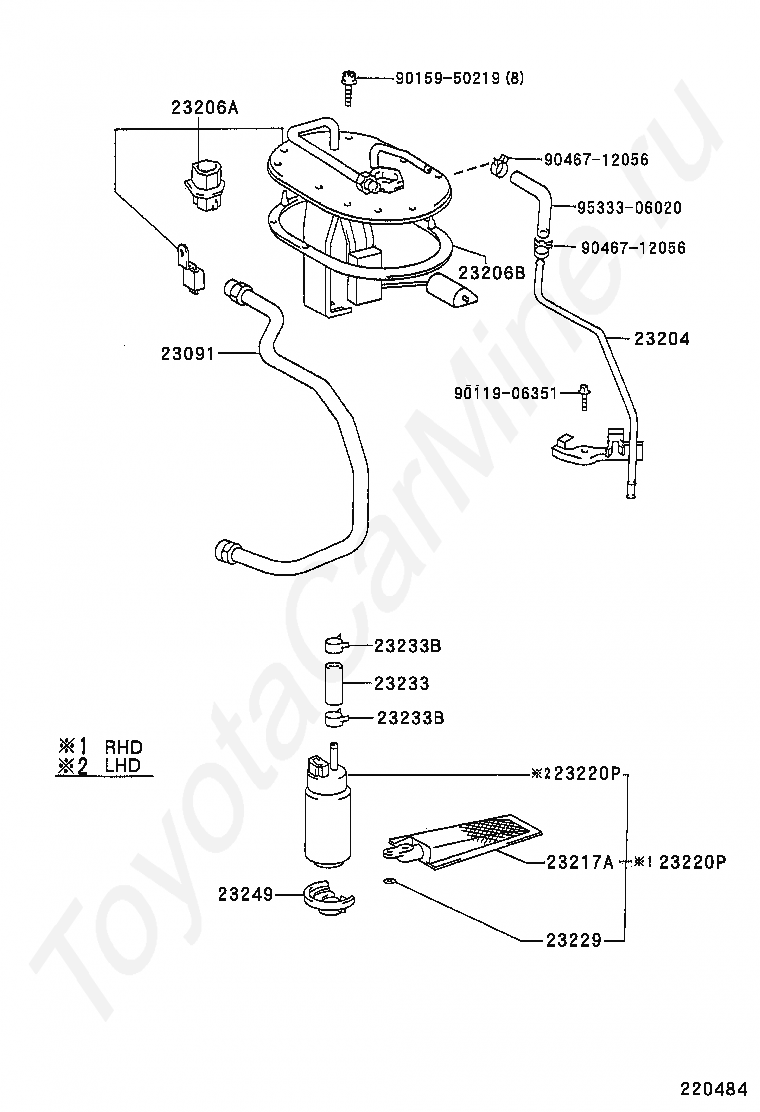

23091

TUBE SUB-ASSY, FUEL PUMP

23204

TUBE SUB-ASSY, FUEL PUMP RETURN

23206A

BRACKET, FUEL PUMP

23206B

GASKET, FUEL PUMP BRACKET

23217A

FILTER, FUEL PUMP

23220P

PUMP ASSY, FUEL

23229

CLIP(FOR FUEL PUMP FILTER)

23233

HOSE, FUEL PUMP

23233B

CLIP(FOR FUEL PUMP HOSE)

23249

RUBBER, CUSHION(FOR FUEL PUMP)

9011906351

Крепеж

9015950219

Крепеж

9046712056

Крепеж

9533306020

Крепеж

Код

Описание

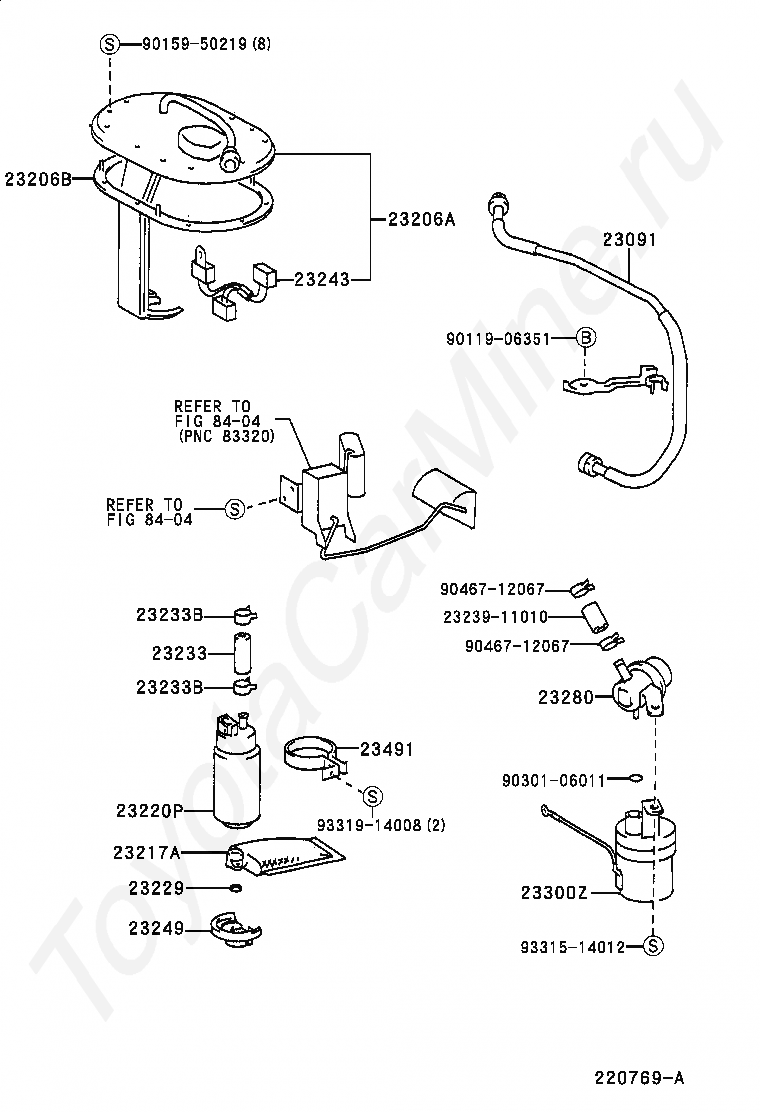

23091

TUBE SUB-ASSY, FUEL PUMP

23206A

BRACKET, FUEL PUMP

23206B

GASKET, FUEL PUMP BRACKET

23217A

FILTER, FUEL PUMP

23220P

PUMP ASSY, FUEL

23229

CLIP(FOR FUEL PUMP FILTER)

23233

HOSE, FUEL PUMP

23233B

CLIP(FOR FUEL PUMP HOSE)

2323911010

Крепеж

23243

WIRE, FUEL PUMP MOTOR

23249

RUBBER, CUSHION(FOR FUEL PUMP)

23280

REGULATOR ASSY, FUEL PRESSURE

23300Z

FILTER, FUEL(FOR FUEL TANK)

23491

CLAMP, FUEL FILTER EARTH

8404

переход к группе запчастей

9011906351

Крепеж

9015950219

Крепеж

9030106011

Крепеж

9046712067

Крепеж

9331514012

Крепеж

9331914008

Крепеж

Топливная система TOYOTA CAMRY (JPP/SED), 1992/08 - 2001/04, 2,2 литра, 16 клапанов, DOHC, EFI, седан, SEI TYPE, SXV10, автомат
