Тормозная магистраль TOYOTA CAMRY/VISTA, 1994/06 - 1998/06, 1,8 литра, 16 клапанов, DOHC, EFI, седан, ZX TYPE, SV40, автомат

Каталог

Япония

Модель

CAMRY/VISTA

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

ZX TYPE

Фрейм

SV40

Трансмиссия

автомат

Опции

Камри

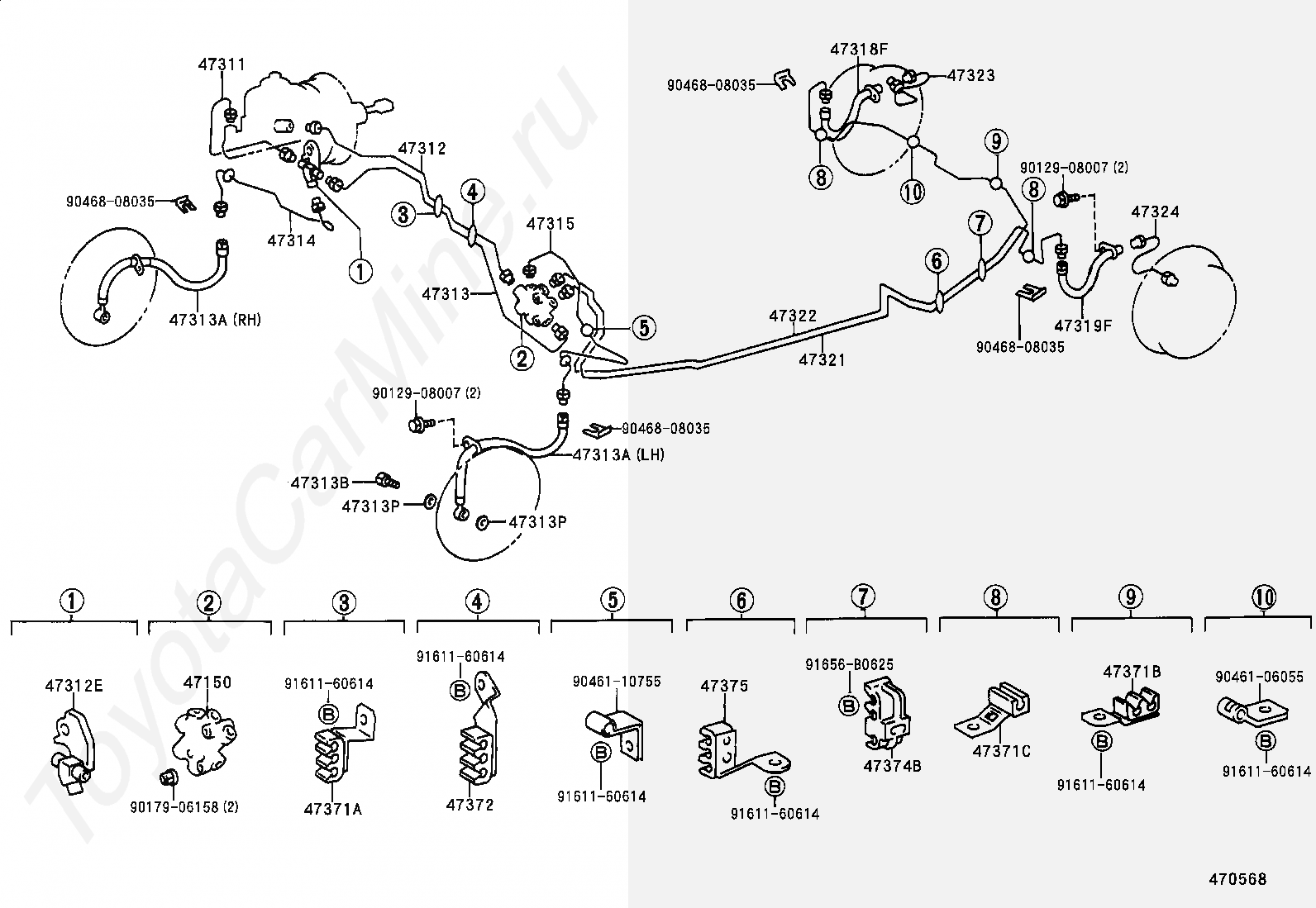

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9012908007

Крепеж

9017906158

Крепеж

9046106055

Крепеж

9046110755

Крепеж

9046808035

Крепеж

9161160614

Крепеж

91656B0625

Крепеж

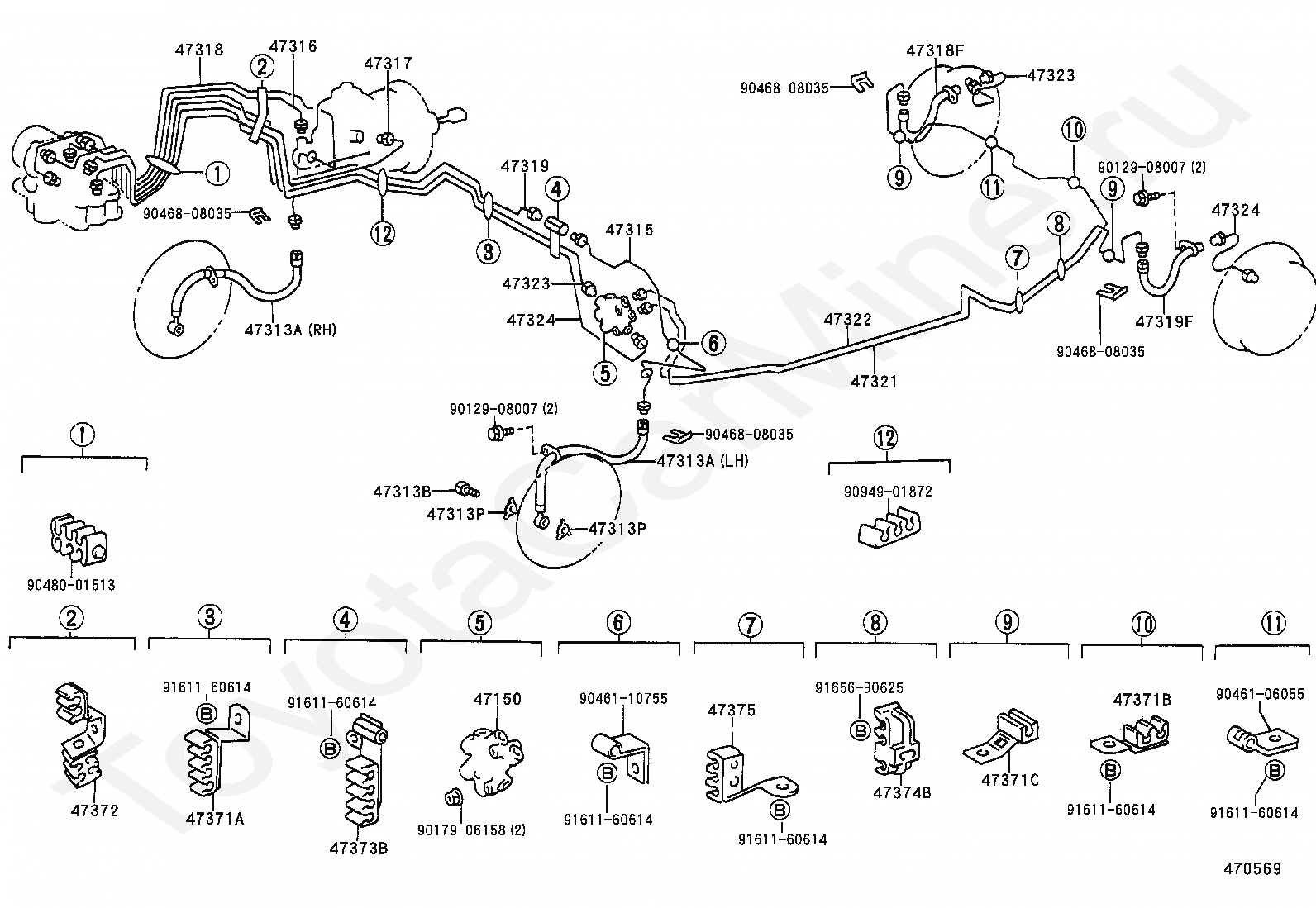

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319

TUBE, FRONT BRAKE, NO.9

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9012908007

Крепеж

9017906158

Крепеж

9046106055

Крепеж

9046110755

Крепеж

9046808035

Крепеж

9048001513

Крепеж

9094901872

Крепеж

9161160614

Крепеж

91656B0625

Крепеж

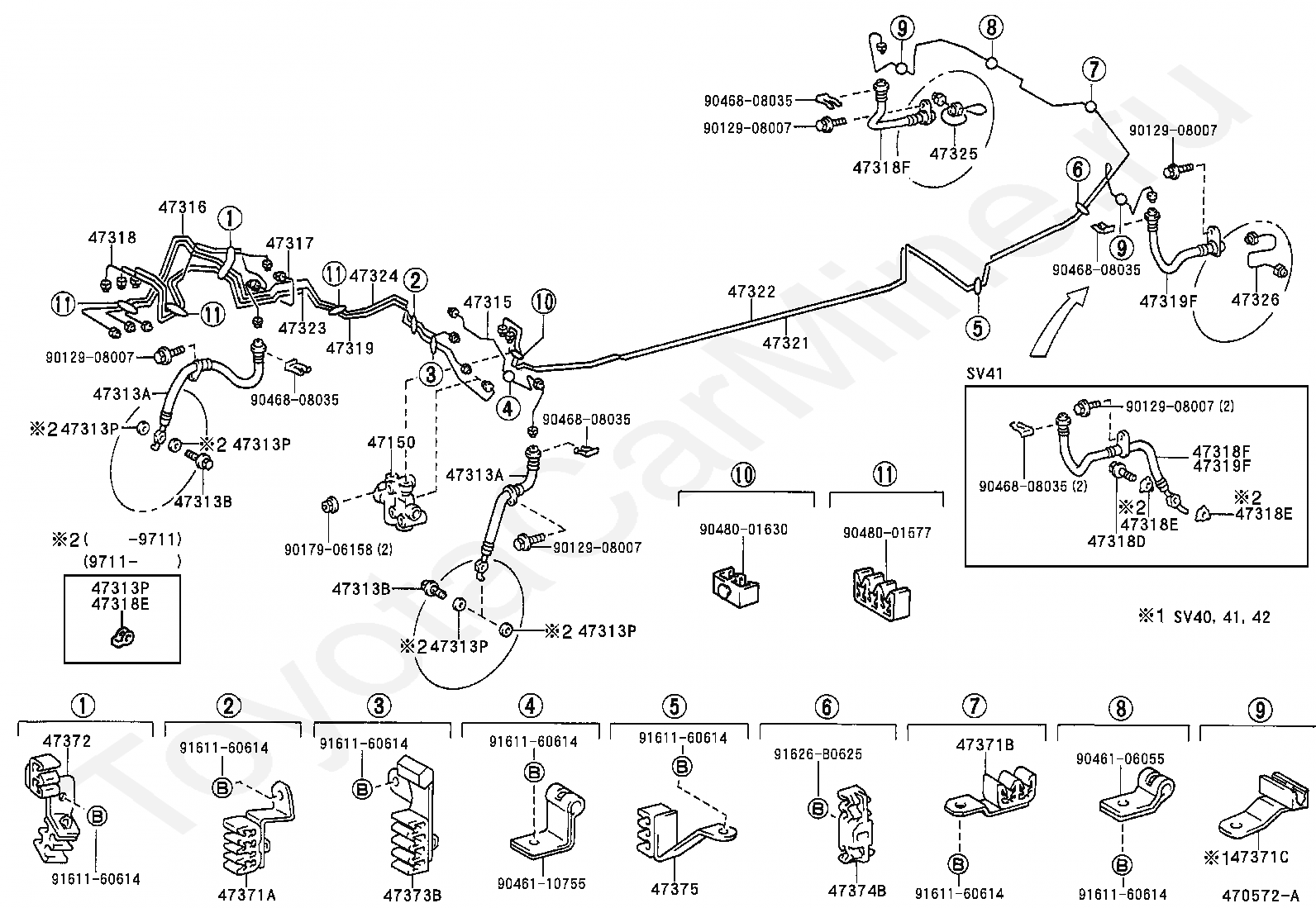

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319

TUBE, FRONT BRAKE, NO.9

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9012908007

Крепеж

9017906158

Крепеж

9046106055

Крепеж

9046110755

Крепеж

9046808035

Крепеж

9048001577

Крепеж

9048001630

Крепеж

9161160614

Крепеж

91626B0625

Крепеж

Код

Описание

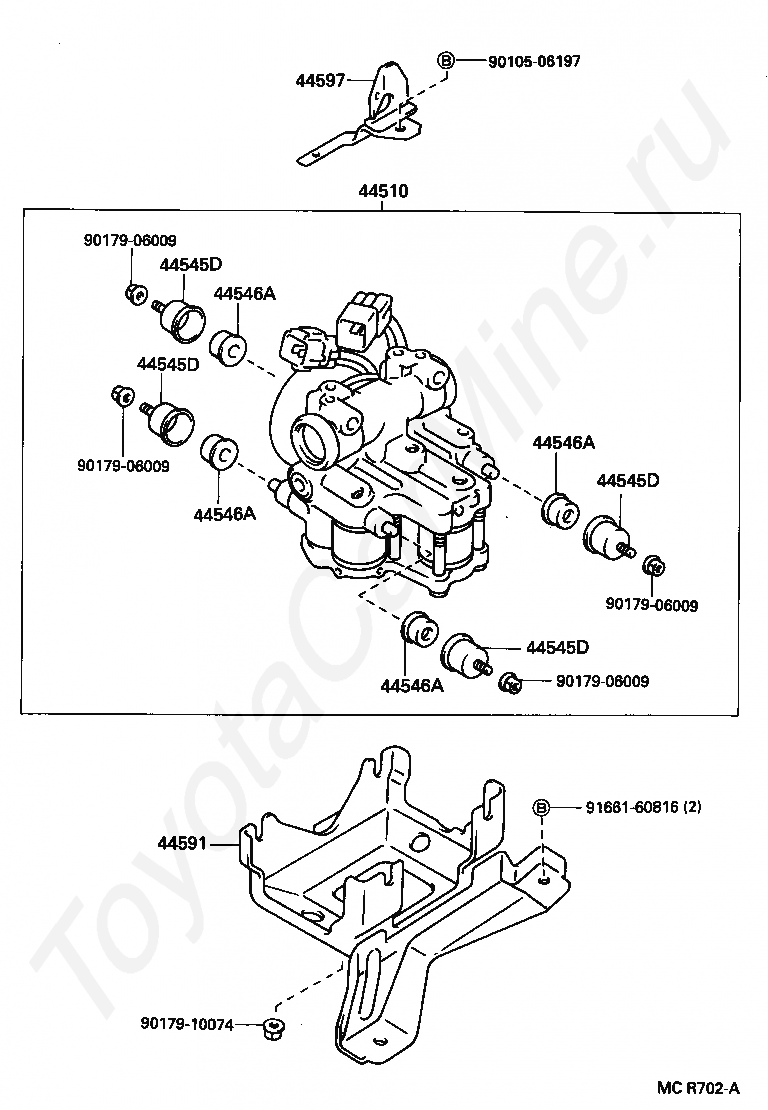

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44591

BRACKET, BRAKE ACTUATOR, NO.1

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

9010506197

Крепеж

9017906009

Крепеж

9017910074

Крепеж

9166160816

Крепеж

Код

Описание

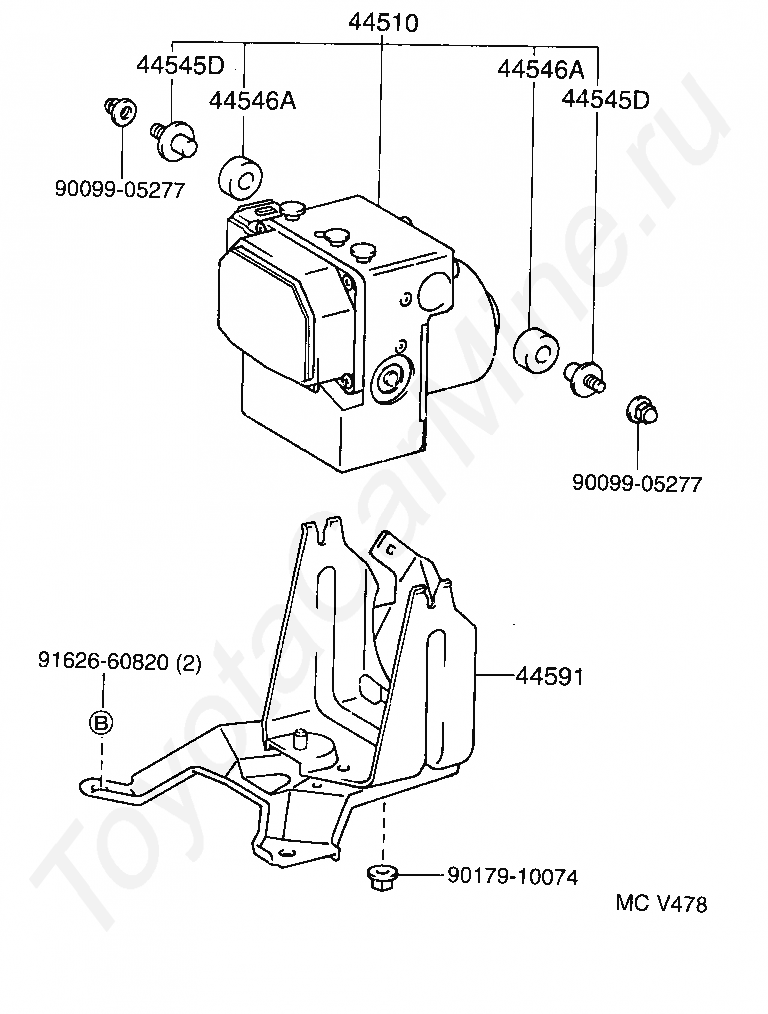

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44591

BRACKET, BRAKE ACTUATOR, NO.1

9009905277

Крепеж

9017910074

Крепеж

9162660820

Крепеж

Тормозная магистраль TOYOTA CAMRY/VISTA, 1994/06 - 1998/06, 1,8 литра, 16 клапанов, DOHC, EFI, седан, ZX TYPE, SV40, автомат
