Каталог
ЯпонияМодель
CAMRY/VISTAДвигатель
2 литра, 16 клапанов, DOHC, EFIКузов
седанКласс
VX TYPEФрейм
SV33Трансмиссия
АКПП, 4 ступениОпции
VISTA MODEL

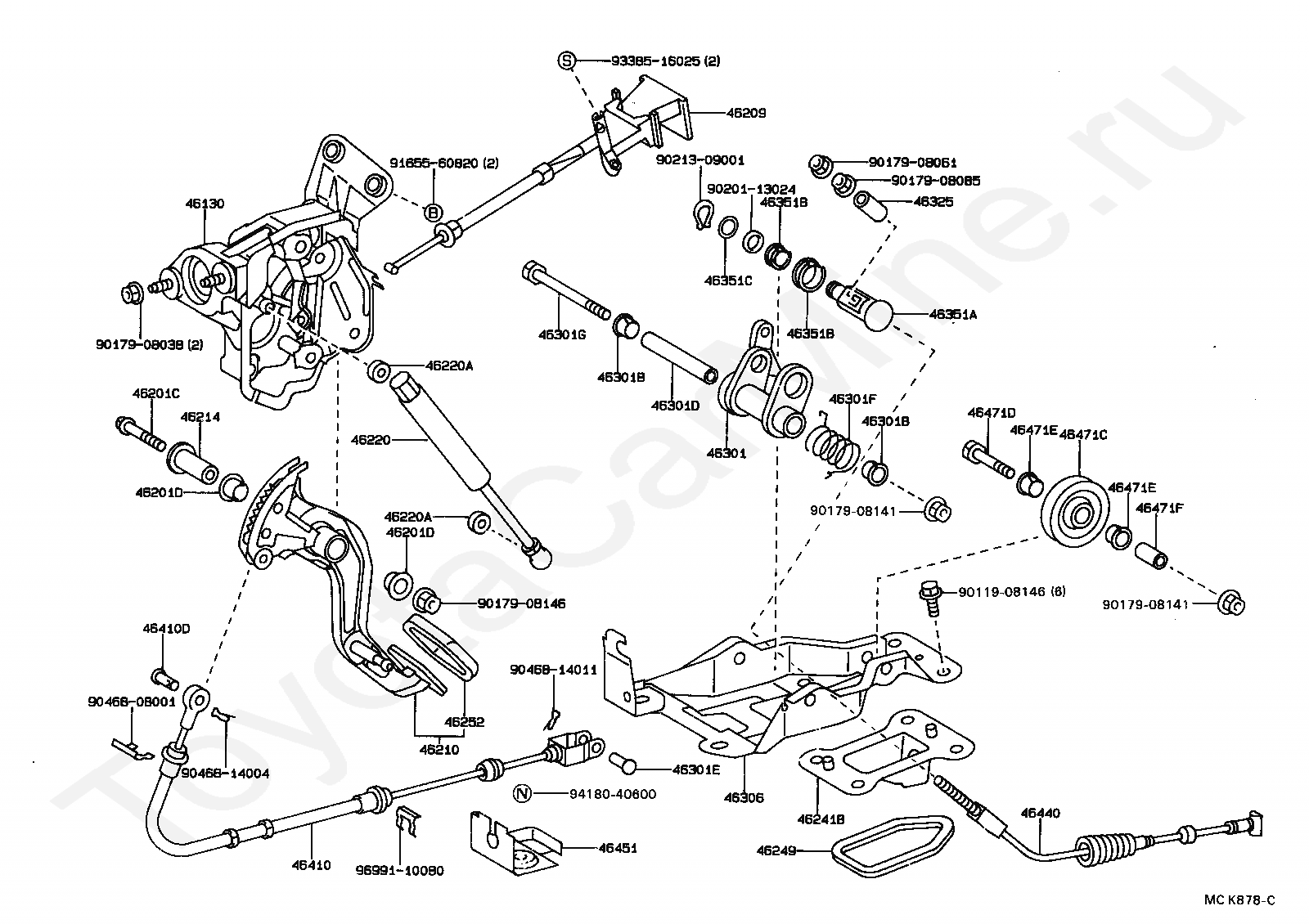

Код
Описание
46130
BRACKET ASSY, PARKING BRAKE PEDAL
46201C
SHAFT, PEDAL
46201D
BUSH(FOR PARKING BRAKE PEDAL)
46209
CABLE SUB-ASSY, PARKING BRAKE RELEASE
46210
LEVER ASSY, PARKING BRAKE
46214
BOSS, PARKING BRAKE PEDAL
46220
ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220A
CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46241B
BOOT, INTERMEDIATE LEVER
46249
SHIELD, PARKING BRAKE HOLE
46252
PAD, PARKING PEDAL
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301B
BUSH(FOR INTERMEDIATE LEVER)
46301D
COLLAR(FOR INTERMEDIATE LEVER)
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46301F
SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46301G
BOLT(FOR INTERMEDIATE LEVER)
46306
BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46325
SLEEVE, PARKING BRAKE CABLE
46351A
SHAFT, INTERMEDIATE LEVER
46351B
BUSH(FOR INTERMEDIATE LEVER SHAFT)
46351C
SHIM(FOR INTERMEDIATE LEVER SHAFT)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
46440
CABLE ASSY, PARKING BRAKE, NO.4
46451
BRACKET, CABLE SUPPORT
46471C
PULLEY, INTERMEDIATE LEVER
46471D
BOLT(FOR INTERMEDIATE LEVER PULLEY)
46471E
BUSH(FOR INTERMEDIATE LEVER PULLEY)
46471F
COLLAR(FOR INTERMEDIATE LEVER PULLEY)
9011908146
Крепеж
9017908038
Крепеж
9017908061
Крепеж
9017908085
Крепеж
9017908141
Крепеж
9017908146
Крепеж
9020113024
Крепеж
9021309001
Крепеж
9046808001
Крепеж
9046814004
Крепеж
9046814011
Крепеж
9165560820
Крепеж
9338516025
Крепеж
9418040600
Крепеж
9699110080
Крепеж
Код
Описание
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420A
CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420B
CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420J
CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420K
CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
46439
INSULATOR, PARKING BRAKE CABLE HEAT
46458
RETAINER, CABLE
9011906197
Крепеж
9011906198
Крепеж
9011906315
Крепеж
9017906125
Крепеж
9161160612
Крепеж
9165640622
Крепеж
9165640822
Крепеж
9418040600
Крепеж
Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
46550H
SHIM(FOR PARKING BRAKE SHOE)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47447E
PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447F
PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47611
LEVER, PARKING BRAKE SHOE, RH
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
9017910030
Крепеж
