Каталог
ЕвропаМодель
CAMRY/HYBRIDДвигатель
2,5 литра, 16 клапанов, DOHCКузов
седанФрейм
AXVA70Трансмиссия
автомат АКПП, 8 скоростейОпции
JAPAN PRODUCT левый руль 4 двери Европа N(MODEL MARK) 813W

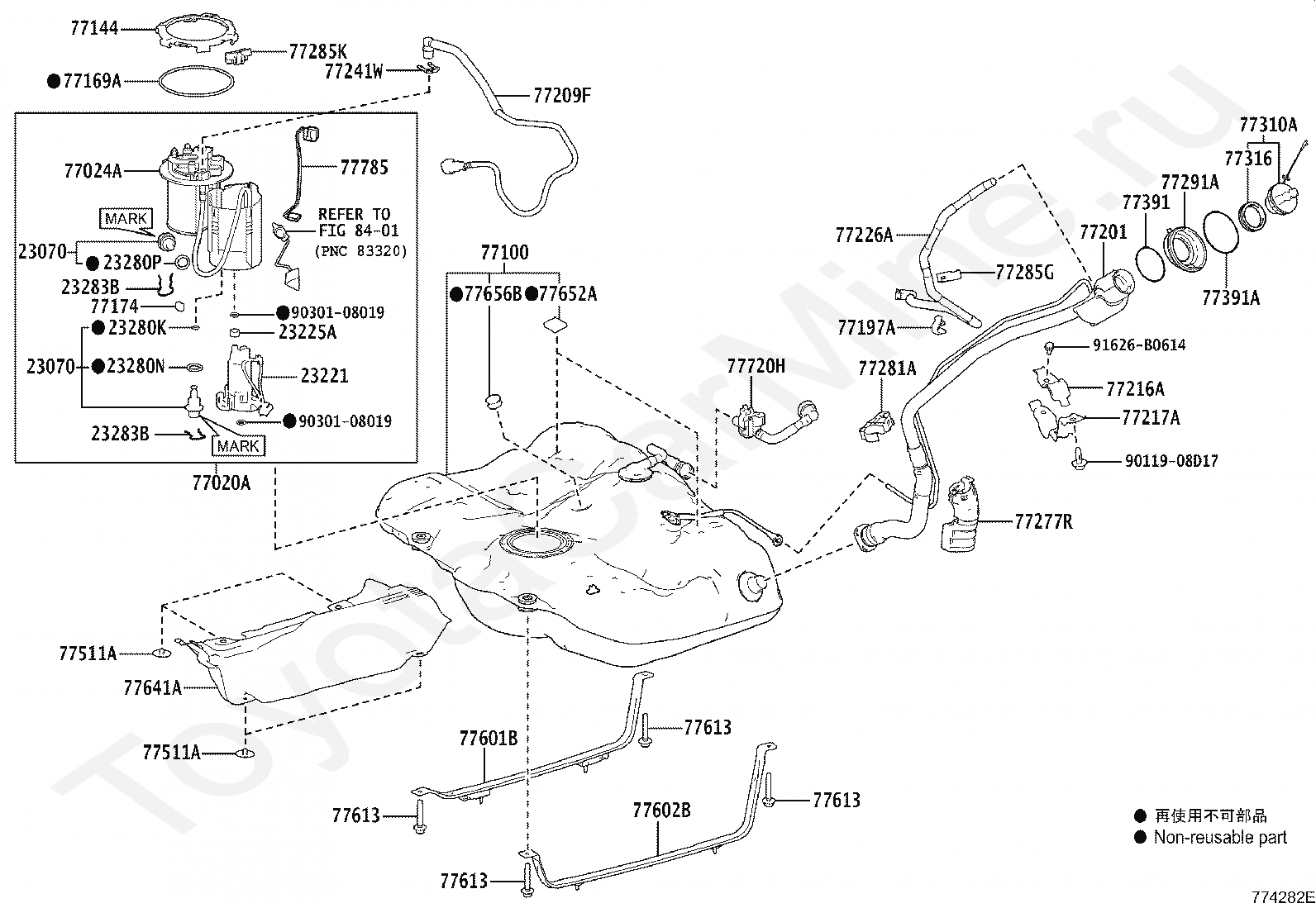

Код
Описание
23070
VALVE ASSY, FUEL MAIN
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
23280N
RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23280P
RING, O(FOR FUEL PRESSURE REGULATOR), NO.3
23283B
HOLDER, FUEL PRESSURE REGULATOR
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77197A
CLAMP, EVAPORATION VENT TUBE, NO.2
77201
PIPE SUB-ASSY, FUEL TANK INLET
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77226A
TUBE, FUEL TANK BREATHER, NO.6
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77285G
CLAMP, FUEL TUBE, NO.1
77285K
CLAMP, FUEL TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613
BOLT, FUEL TANK BAND SET
77641A
PROTECTOR, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77656B
CUSHION, FUEL TANK, NO.6
77720H
VALVE ASSY, FUEL OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9030108019
Крепеж
91626B0614
Крепеж
Код
Описание
23070
VALVE ASSY, FUEL MAIN
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
23280N
RING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23280P
RING, O(FOR FUEL PRESSURE REGULATOR), NO.3
23283B
HOLDER, FUEL PRESSURE REGULATOR
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77201
PIPE SUB-ASSY, FUEL TANK INLET
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77213E
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77226A
TUBE, FUEL TANK BREATHER, NO.6
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77281A
CLAMP, FUEL FILLER PIPE
77281R
CLAMP, FUEL FILLER PIPE, NO.2
77285K
CLAMP, FUEL TUBE, NO.1
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613
BOLT, FUEL TANK BAND SET
77641A
PROTECTOR, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77656B
CUSHION, FUEL TANK, NO.6
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9030108019
Крепеж
9046022002
Крепеж
9046040007
Крепеж
9046050008
Крепеж
9046712056
Крепеж
91626B0614
Крепеж
9613641501
Крепеж

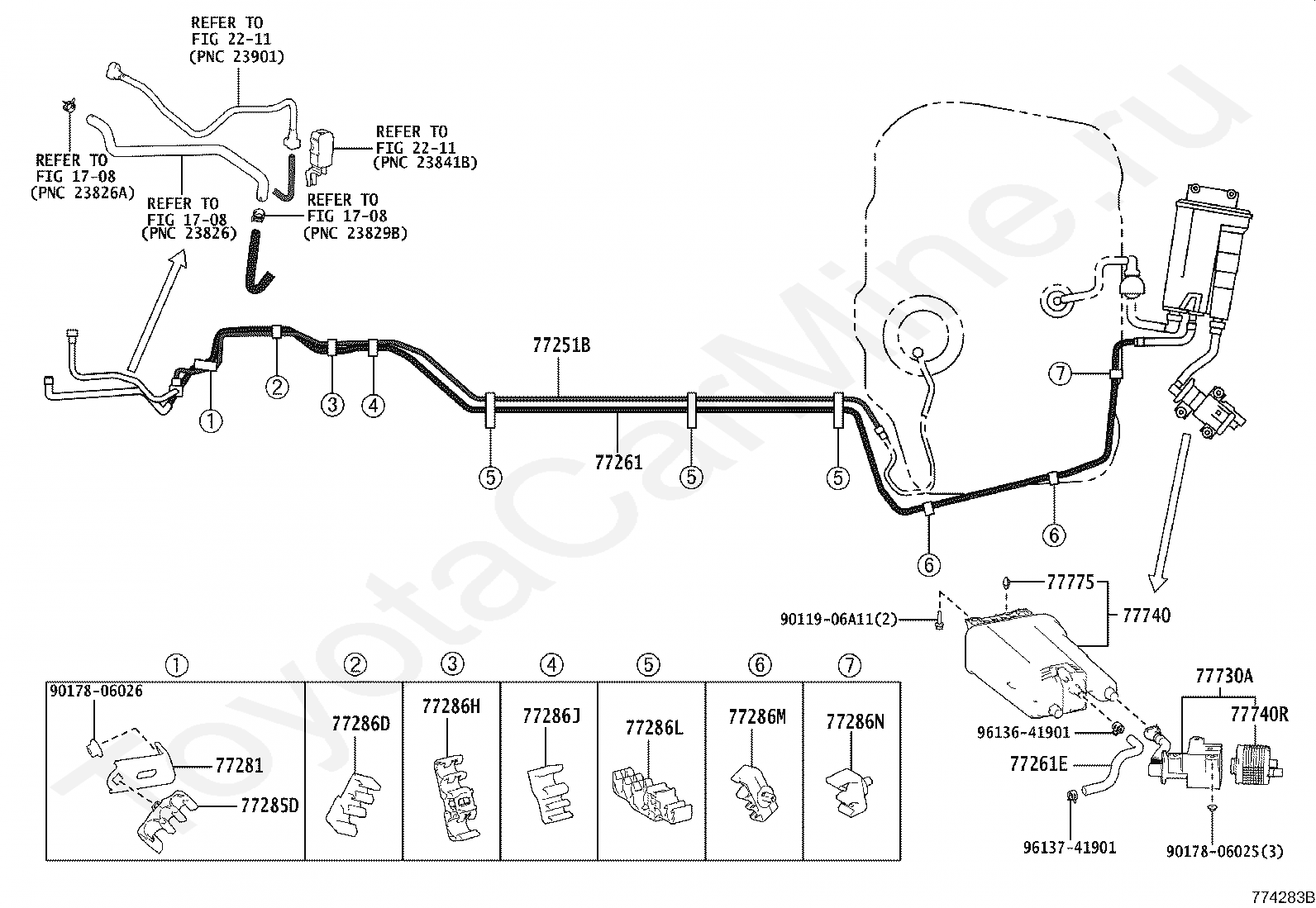

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261
TUBE SUB-ASSY, FUEL EMISSION
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77281
BRACKET, FUEL MAIN TUBE, NO.1
77285D
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286H
CLAMP, FUEL TUBE, NO.3
77286J
CLAMP, FUEL TUBE, NO.4
77286L
CLAMP, FUEL TUBE, NO.5
77286M
CLAMP, FUEL TUBE, NO.6
77286N
CLAMP, FUEL TUBE, NO.7
77730A
CANISTER ASSY, TRAP W/OUTLET VALVE
77740
CANISTER ASSY, CHARCOAL
77740R
PUMP SUB-ASSY, LEAK DETECTION
77775
GUIDE, CHARCOAL CANISTER OUTLET
9011906A11
Крепеж
9017806025
Крепеж
9017806026
Крепеж
9613641901
Крепеж
9613741901
Крепеж
Код
Описание
77030A
LOCK ASSY, FUEL LID W/MOTOR
77350
LID ASSY, FUEL FILLER OPENING
77360A
SPRING ASSY, FUEL FILLER OPENING LID
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77378A
COVER, FUEL FILLER OPENING LID LOCK
77379
SPACER, FUEL INLET BOX COVER, NO.2
9026906017
Крепеж
9026906021
Крепеж
9054106069
Крепеж
