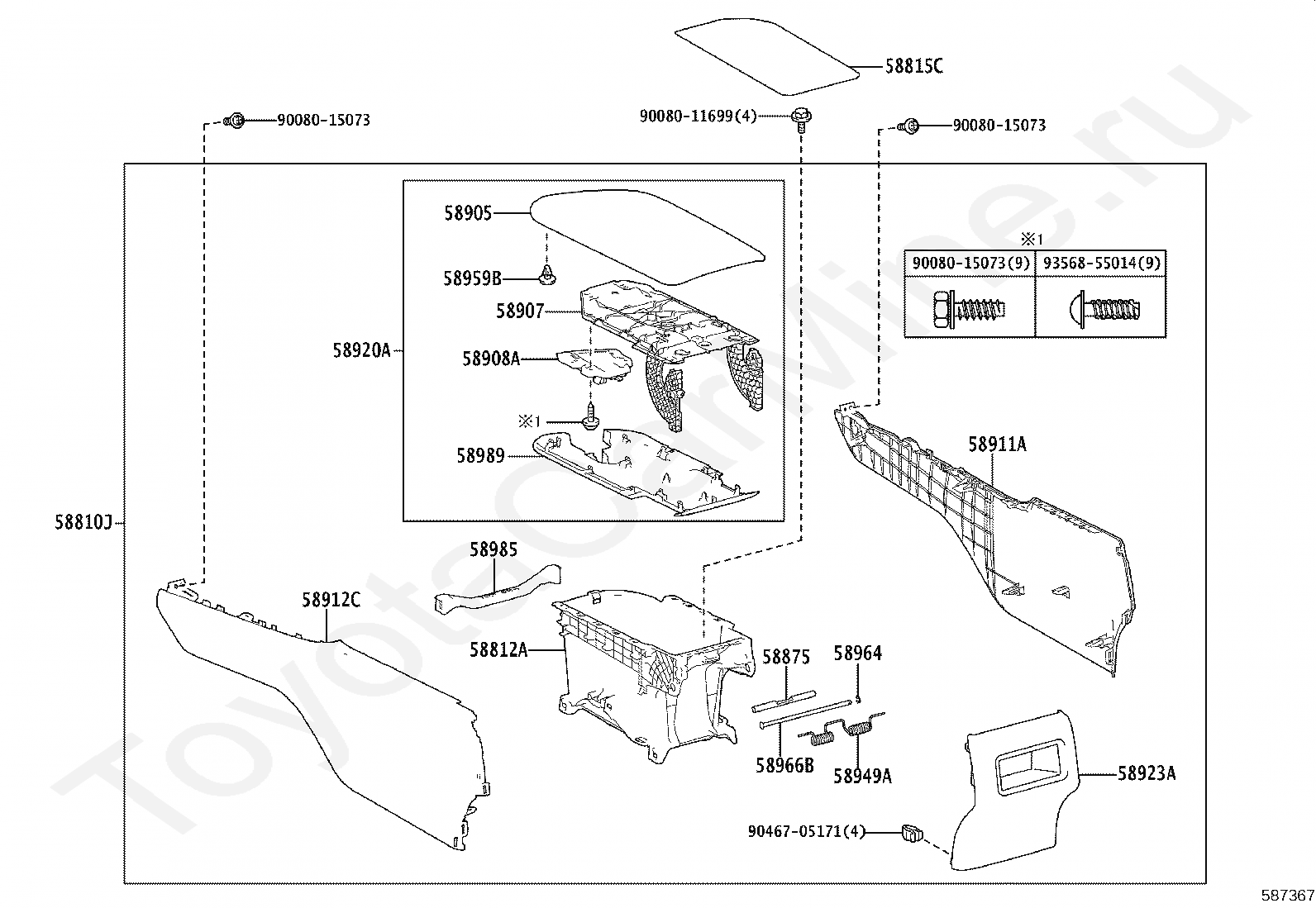

CONSOLE BOX & BRACKET TOYOTA CAMRY/HYBRID (NAP), 2020/10 - 2025, 2,5 литра, 16 клапанов, DOHC, седан, XLE TYPE, AXVA70, автомат, АКПП, 8 скоростей

Каталог

Америка

Модель

CAMRY/HYBRID (NAP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

седан

Класс

XLE TYPE

Фрейм

AXVA70

Трансмиссия

автомат АКПП, 8 скоростей

Опции

4 двери 812W

Код

Описание

58810J

BOX ASSY, CONSOLE

58812A

BOX, CONSOLE, LOWER

58815C

CARPET, CONSOLE BOX

58875

SPACER, CONSOLE BOX

58905

DOOR SUB-ASSY, CONSOLE COMPARTMENT

58907

HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

58908A

LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

58911A

PANEL, BOX SIDE, NO.1

58912C

PANEL, BOX SIDE, NO.2

58920A

ARMREST ASSY, REAR CONSOLE

58923A

PANEL, CONSOLE REAR END

58949A

SPRING, CONSOLE BOX MOUNTING BRACKET

58959B

CUSHION, CONSOLE COMPARTMENT DOOR

58964

STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

58966B

PIN, CONSOLE COMPARTMENT DOOR STOPPER

58985

RETAINER, CONSOLE BOX

58989

PANEL, CONSOLE COMPARTMENT DOOR

9008011699

Крепеж

9008015073

Крепеж

9046705171

Крепеж

9356855014

Крепеж

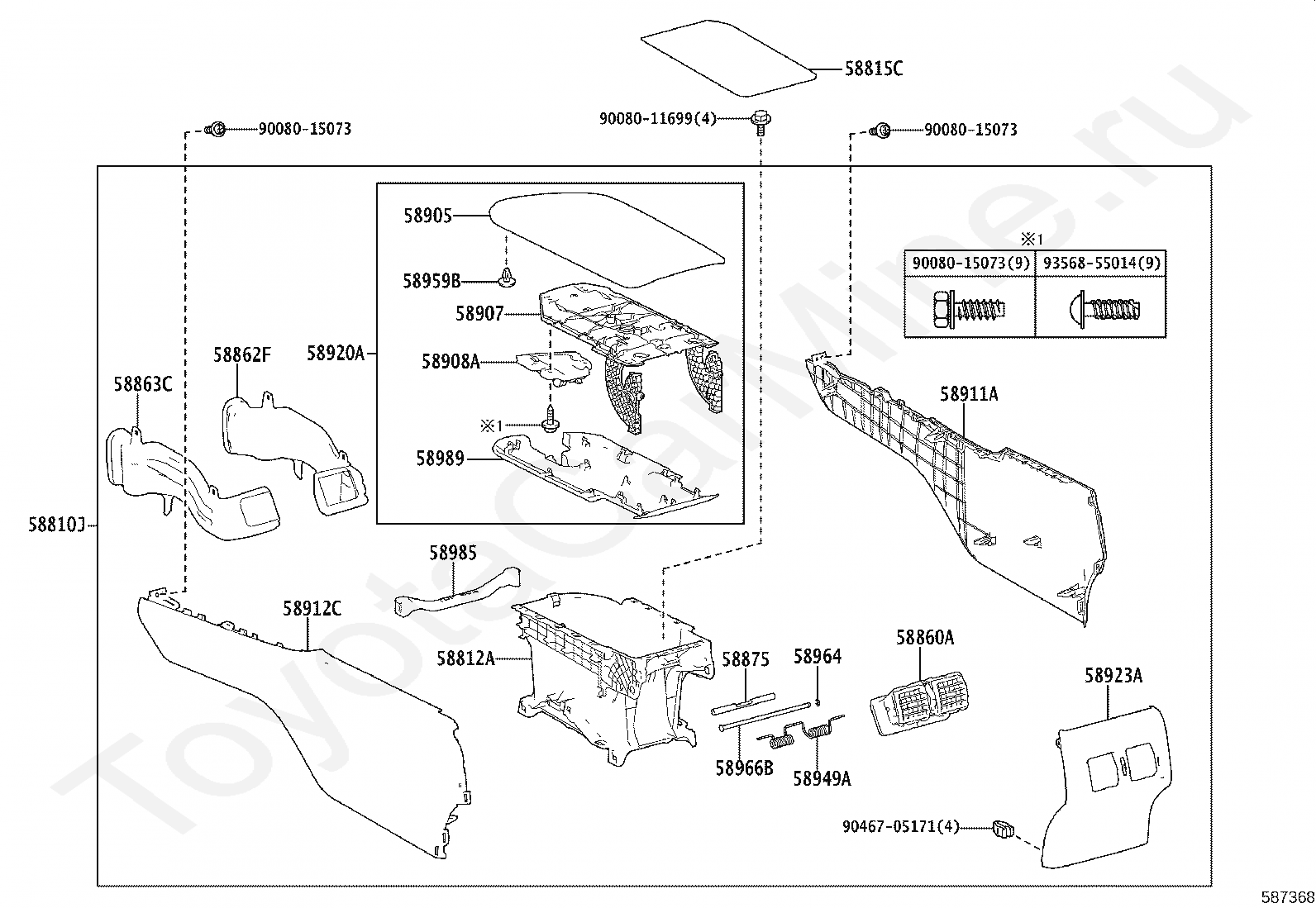

Код

Описание

58810J

BOX ASSY, CONSOLE

58812A

BOX, CONSOLE, LOWER

58815C

CARPET, CONSOLE BOX

58860A

58862F

DUCT, CONSOLE BOX, NO.2

58863C

DUCT, CONSOLE BOX, NO.3

58875

SPACER, CONSOLE BOX

58905

DOOR SUB-ASSY, CONSOLE COMPARTMENT

58907

HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

58908A

LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

58911A

PANEL, BOX SIDE, NO.1

58912C

PANEL, BOX SIDE, NO.2

58920A

ARMREST ASSY, REAR CONSOLE

58923A

PANEL, CONSOLE REAR END

58949A

SPRING, CONSOLE BOX MOUNTING BRACKET

58959B

CUSHION, CONSOLE COMPARTMENT DOOR

58964

STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

58966B

PIN, CONSOLE COMPARTMENT DOOR STOPPER

58985

RETAINER, CONSOLE BOX

58989

PANEL, CONSOLE COMPARTMENT DOOR

9008011699

Крепеж

9008015073

Крепеж

9046705171

Крепеж

9356855014

Крепеж

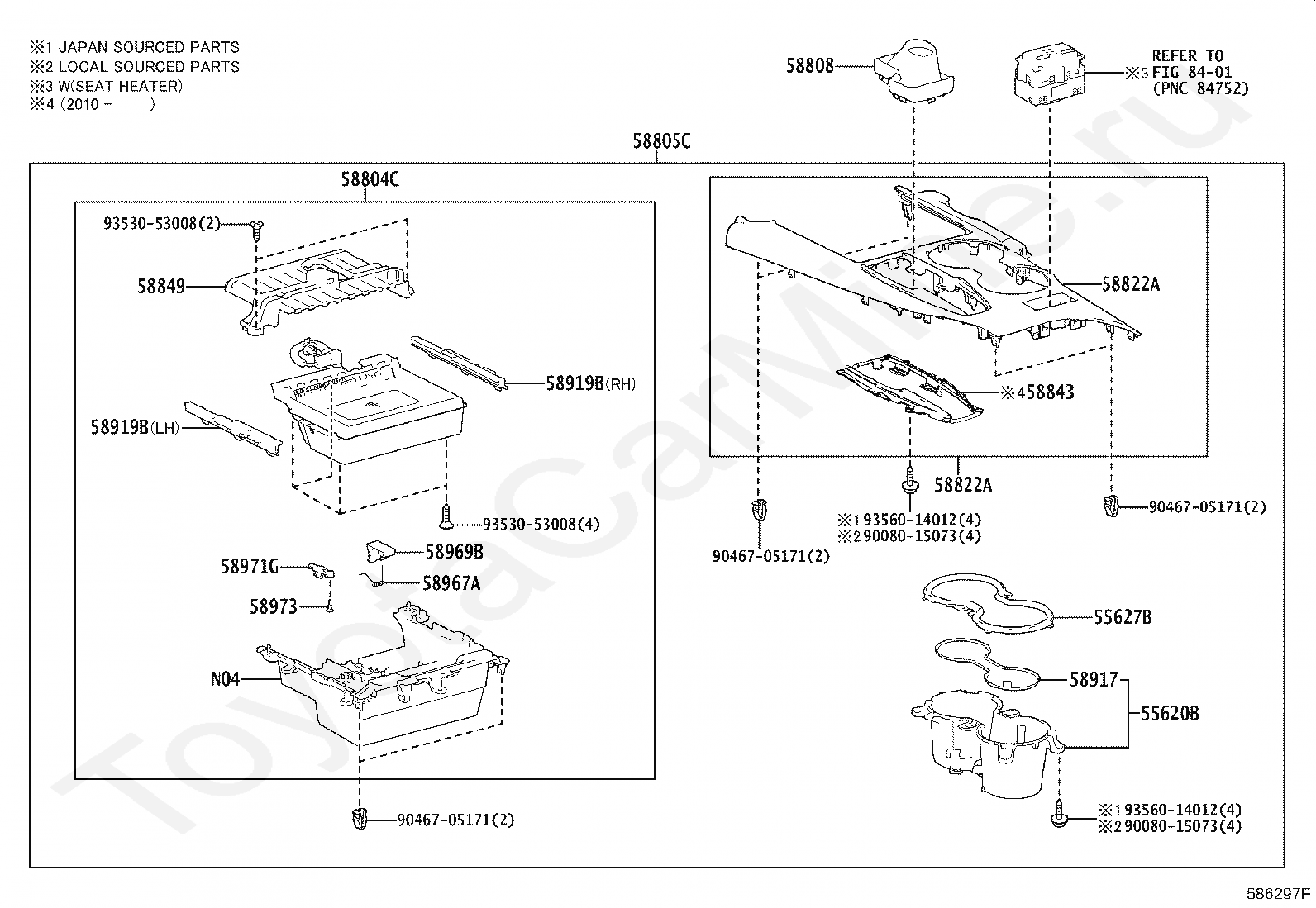

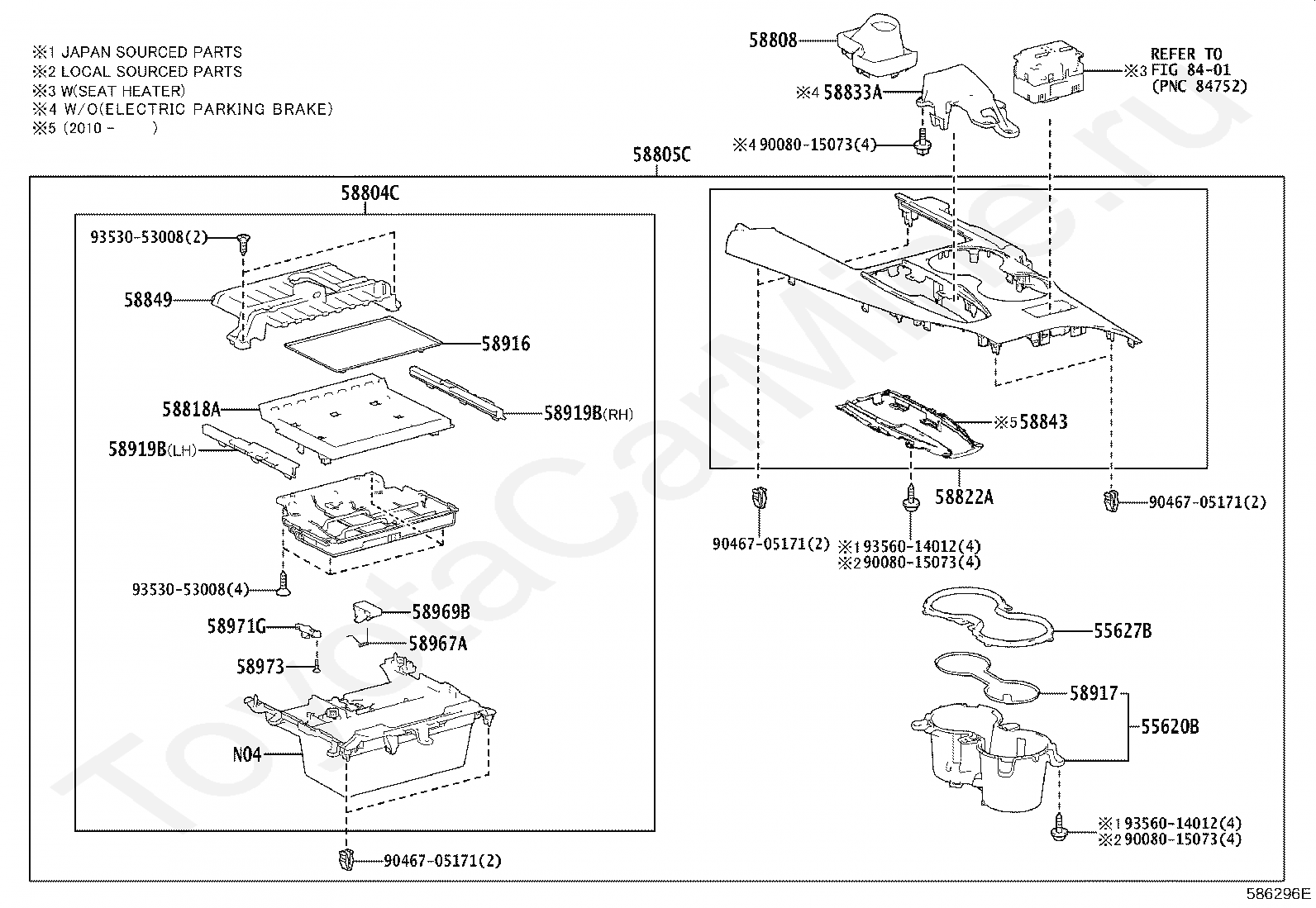

Код

Описание

55620B

HOLDER, INSTRUMENT PANEL CUP

55627B

RAIL, CONSOLE BOX CUP HOLDER

58804C

INSERT SUB-ASSY, CONSOLE BOX, FRONT

58805C

PANEL SUB-ASSY, CONSOLE, UPPER REAR

58808

COVER SUB-ASSY, SHIFTING HOLE

58818A

COVER, CONSOLE BOX, FR

58822A

PANEL, CONSOLE, UPPER REAR

58833A

COVER, CONSOLE, UPPER

58843

BEZEL, SHIFTING HOLE

58849

COVER, CONSOLE BOX HOLE, NO.2

58916

MAT, BOX BOTTOM

58917

MAT, BOX BOTTOM, NO.2

58919B

PLATE, CONSOLE BOX

58967A

SPRING, CONSOLE DOOR STOPPER

58969B

STOPPER, CONSOLE COMPARTMENT DOOR, NO.3

58971G

LEVER, CONSOLE COMPARTMENT DOOR LOCK, NO.2

58973

PIN, CONSOLE COMPARTMENT DOOR LOCK

8401

переход к группе запчастей

9008015073

Крепеж

9046705171

Крепеж

9353053008

Крепеж

9356014012

Крепеж

Код

Описание

55620B

HOLDER, INSTRUMENT PANEL CUP

55627B

RAIL, CONSOLE BOX CUP HOLDER

58804C

INSERT SUB-ASSY, CONSOLE BOX, FRONT

58805C

PANEL SUB-ASSY, CONSOLE, UPPER REAR

58808

COVER SUB-ASSY, SHIFTING HOLE

58822A

PANEL, CONSOLE, UPPER REAR

58843

BEZEL, SHIFTING HOLE

58849

COVER, CONSOLE BOX HOLE, NO.2

58917

MAT, BOX BOTTOM, NO.2

58919B

PLATE, CONSOLE BOX

58967A

SPRING, CONSOLE DOOR STOPPER

58969B

STOPPER, CONSOLE COMPARTMENT DOOR, NO.3

58971G

LEVER, CONSOLE COMPARTMENT DOOR LOCK, NO.2

58973

PIN, CONSOLE COMPARTMENT DOOR LOCK

8401

переход к группе запчастей

9008015073

Крепеж

9046705171

Крепеж

9353053008

Крепеж

9356014012

Крепеж
