Радиатор и шланги TOYOTA CAMRY/HYBRID (NAP), 2020/10 - 2025, 2,5 литра, 16 клапанов, DOHC, седан, XLE TYPE, AXVA70, автомат, АКПП, 8 скоростей

Каталог

Америка

Модель

CAMRY/HYBRID (NAP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

седан

Класс

XLE TYPE

Фрейм

AXVA70

Трансмиссия

автомат АКПП, 8 скоростей

Опции

4 двери 812W

Код

Описание

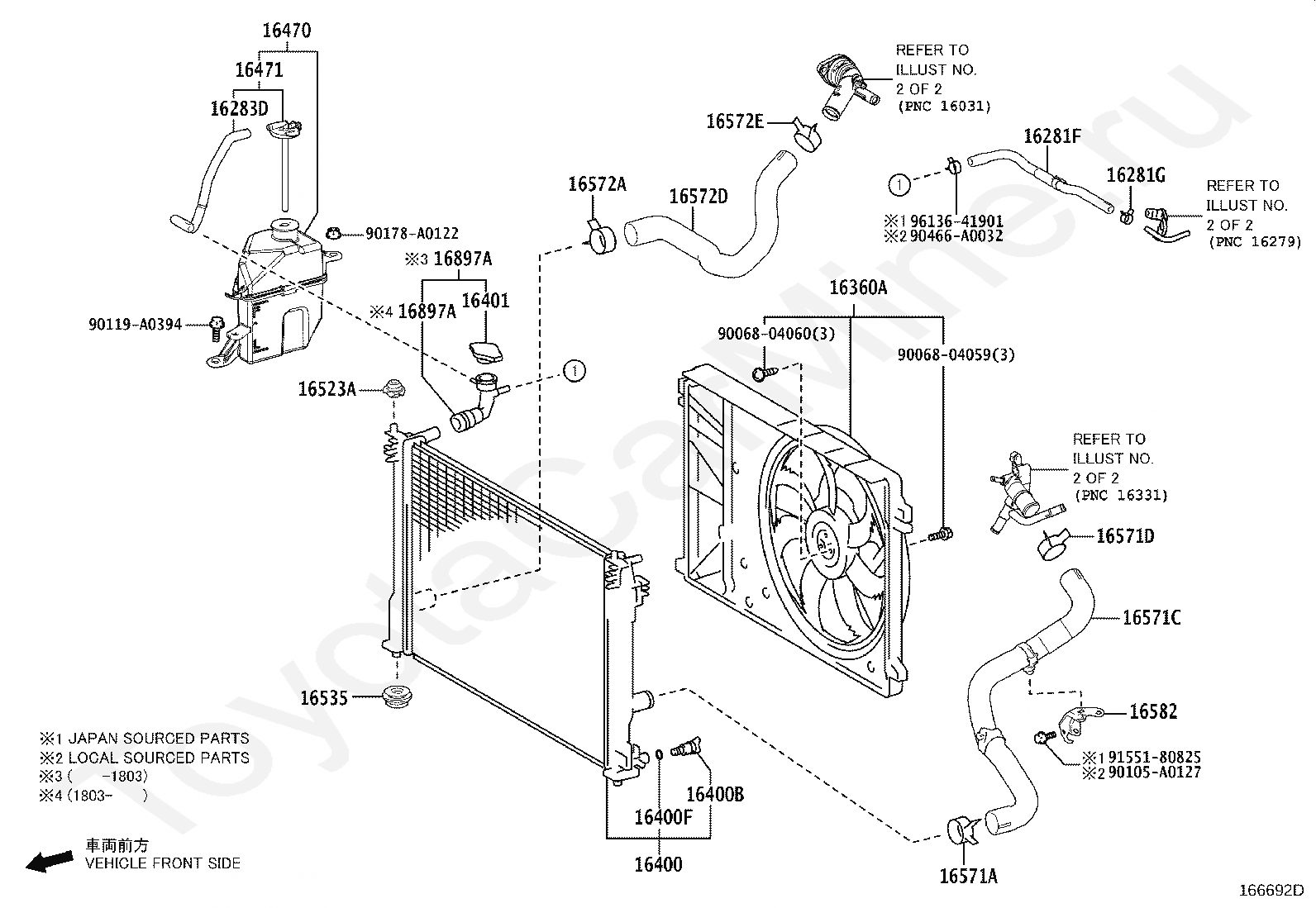

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16283D

HOSE, WATER BY-PASS, NO.6

16360A

FAN ASSY, W/MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16582

BRACKET, RADIATOR, NO.1

16897A

NECK, FILLER

9006804059

Крепеж

9006804060

Крепеж

90105A0127

Крепеж

90119A0394

Крепеж

90178A0122

Крепеж

90466A0032

Крепеж

9155180825

Крепеж

9613641901

Крепеж

Код

Описание

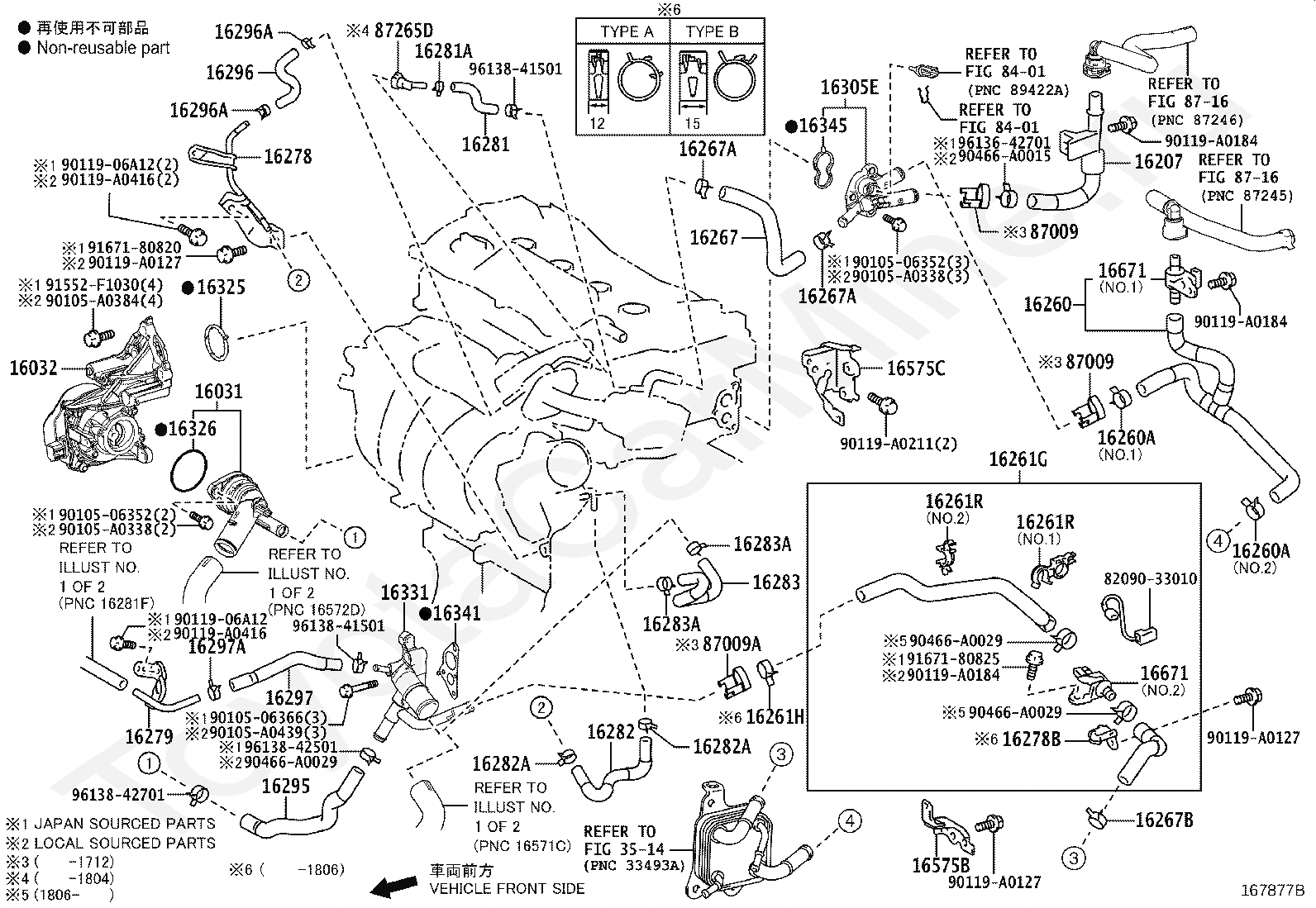

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16278

PIPE, WATER BY-PASS, NO.2

16278B

BRACKET, WATER BY-PASS PIPE

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16305E

OUTLET SUB-ASSY, WATER BY-PASS

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16671

VALVE, WATER

3514

переход к группе запчастей

8209033010

Крепеж

8401

переход к группе запчастей

87009

HOSE SET, WATER, NO.1

87009A

HOSE SET, WATER, NO.2

8716

переход к группе запчастей

87265D

CONNECTOR, HEATER WATER HOSE

9010506352

Крепеж

9010506366

Крепеж

90105A0338

Крепеж

90105A0384

Крепеж

90105A0439

Крепеж

9011906A12

Крепеж

90119A0127

Крепеж

90119A0184

Крепеж

90119A0211

Крепеж

90119A0416

Крепеж

90466A0015

Крепеж

90466A0029

Крепеж

91552F1030

Крепеж

9167180820

Крепеж

9167180825

Крепеж

9613642701

Крепеж

9613841501

Крепеж

9613842501

Крепеж

9613842701

Крепеж

Код

Описание

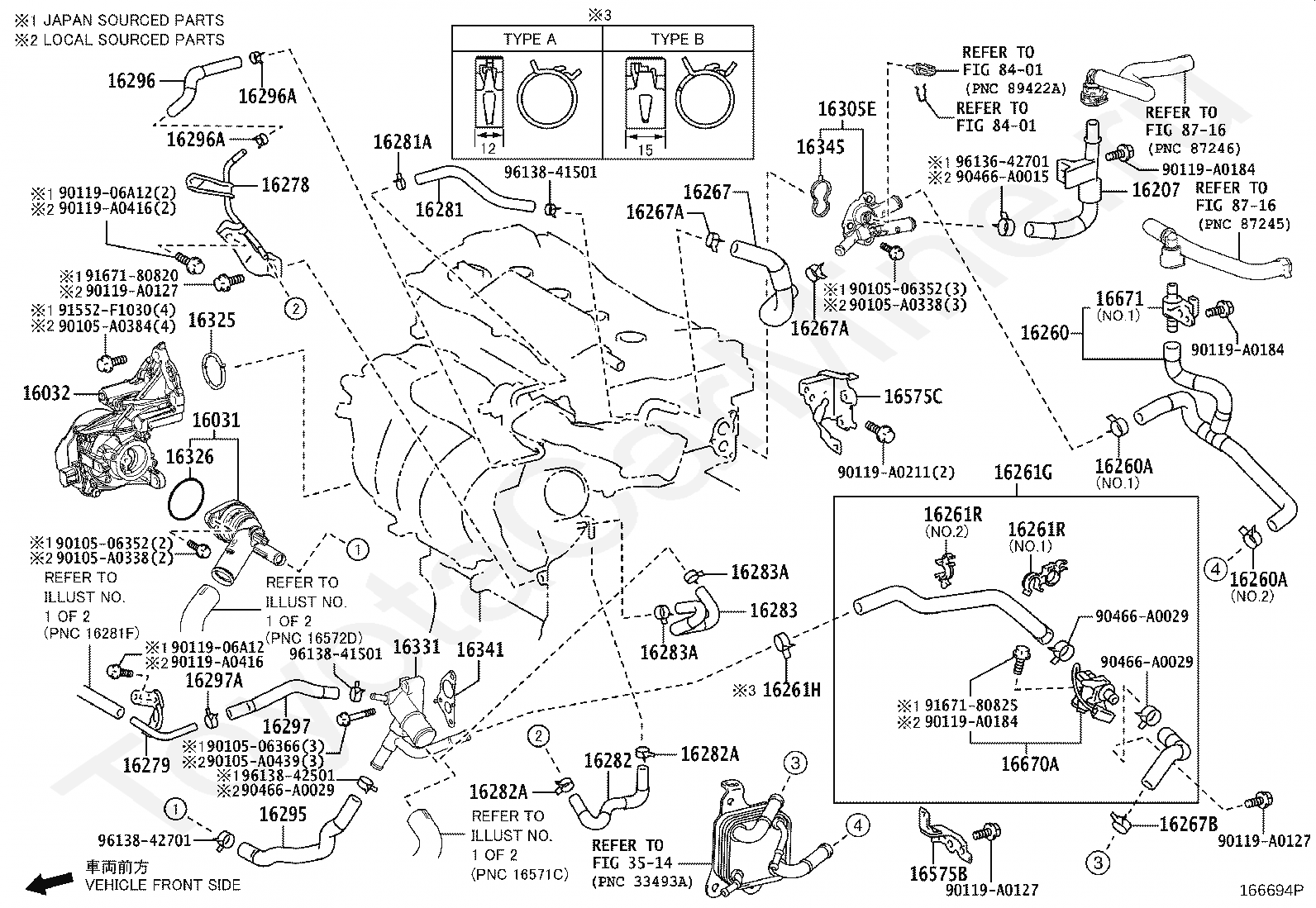

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16305E

OUTLET SUB-ASSY, WATER BY-PASS

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16670A

VALVE ASSY, WATER W/BRACKET

16671

VALVE, WATER

3514

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

9010506352

Крепеж

9010506366

Крепеж

90105A0338

Крепеж

90105A0384

Крепеж

90105A0439

Крепеж

9011906A12

Крепеж

90119A0127

Крепеж

90119A0184

Крепеж

90119A0211

Крепеж

90119A0416

Крепеж

90466A0015

Крепеж

90466A0029

Крепеж

91552F1030

Крепеж

9167180820

Крепеж

9167180825

Крепеж

9613642701

Крепеж

9613841501

Крепеж

9613842501

Крепеж

9613842701

Крепеж

Радиатор и шланги TOYOTA CAMRY/HYBRID (NAP), 2020/10 - 2025, 2,5 литра, 16 клапанов, DOHC, седан, XLE TYPE, AXVA70, автомат, АКПП, 8 скоростей
