Каталог
ЕвропаМодель
CAMRY/HYBRIDДвигатель
3,5 литра, 24 клапана, DOHCКузов
седанФрейм
GSV70Трансмиссия
автомат АКПП, 8 скоростейОпции
JAPAN PRODUCT левый руль 4 двери Европа GRAMS 664W

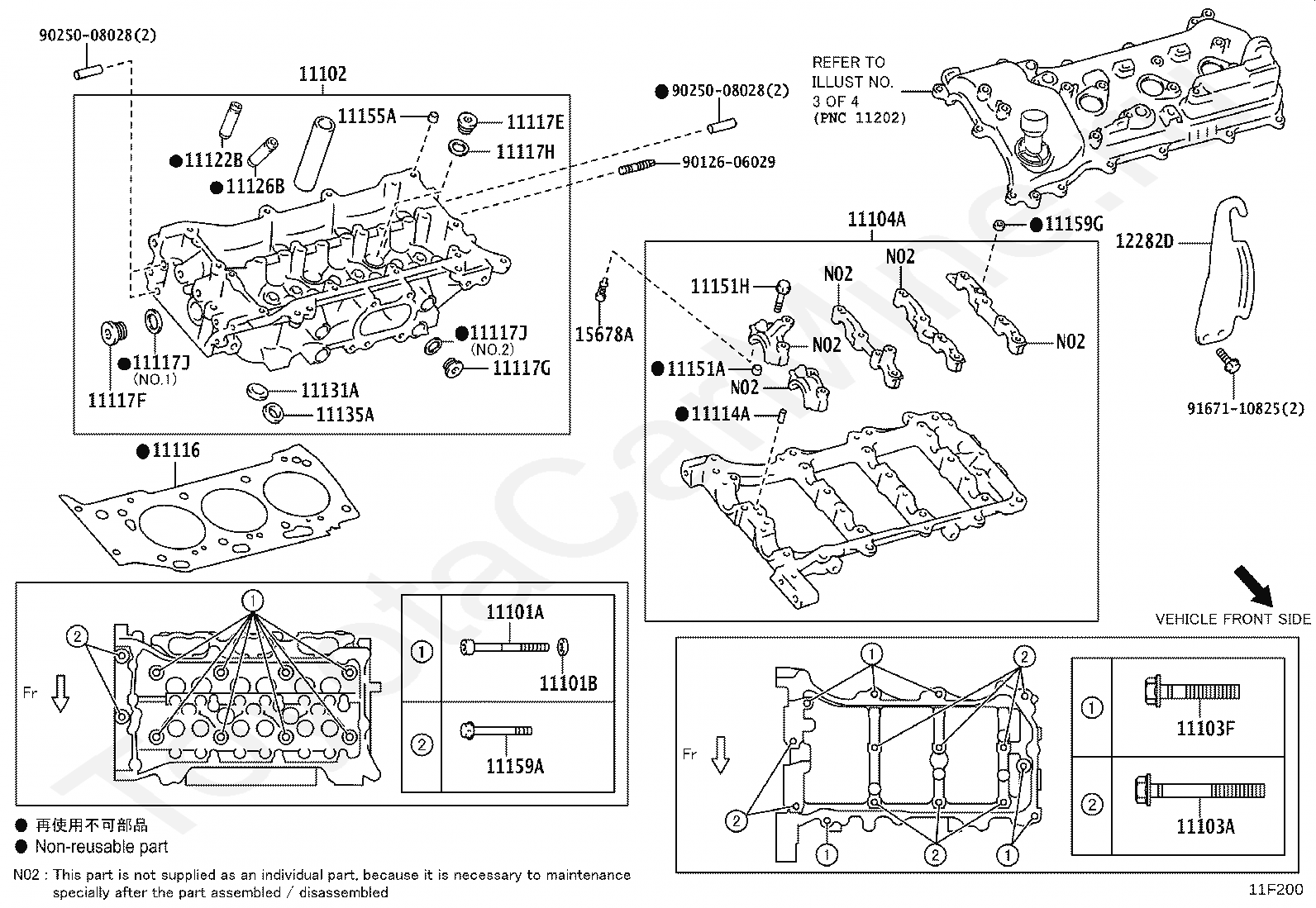

Код
Описание
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11102
HEAD, CYLINDER, LH
11103A
BOLT(FOR CAMSHAFT HOUSING SET)
11103F
BOLT(FOR CAMSHAFT HOUSING SET)
11104A
HOUSING SUB-ASSY, CAMSHAFT, LH
11114A
PIN, STRAIGHT
11116
GASKET, CYLINDER HEAD, NO.2
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11117F
PLUG, W/HEAD STRAIGHT SCREW, NO.2
11117G
PLUG, W/HEAD STRAIGHT SCREW, NO.3
11117H
GASKET(FOR WATER HOLE)
11117J
GASKET(FOR CYLINDER HEAD SCREW PLUG)
11122B
BUSH, INTAKE VALVE GUIDE, NO.2
11126B
BUSH, EXHAUST VALVE GUIDE, NO.2
11131A
SEAT, INTAKE VALVE, NO.2
11135A
SEAT, EXHAUST VALVE, NO.2
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151H
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155A
PIN, RING W/HEAD
11159A
BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159G
GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282D
HANGER, ENGINE, NO.2
15678A
FILTER, OIL CONTROL VALVE
9012606029
Крепеж
9025008028
Крепеж
9167110825
Крепеж

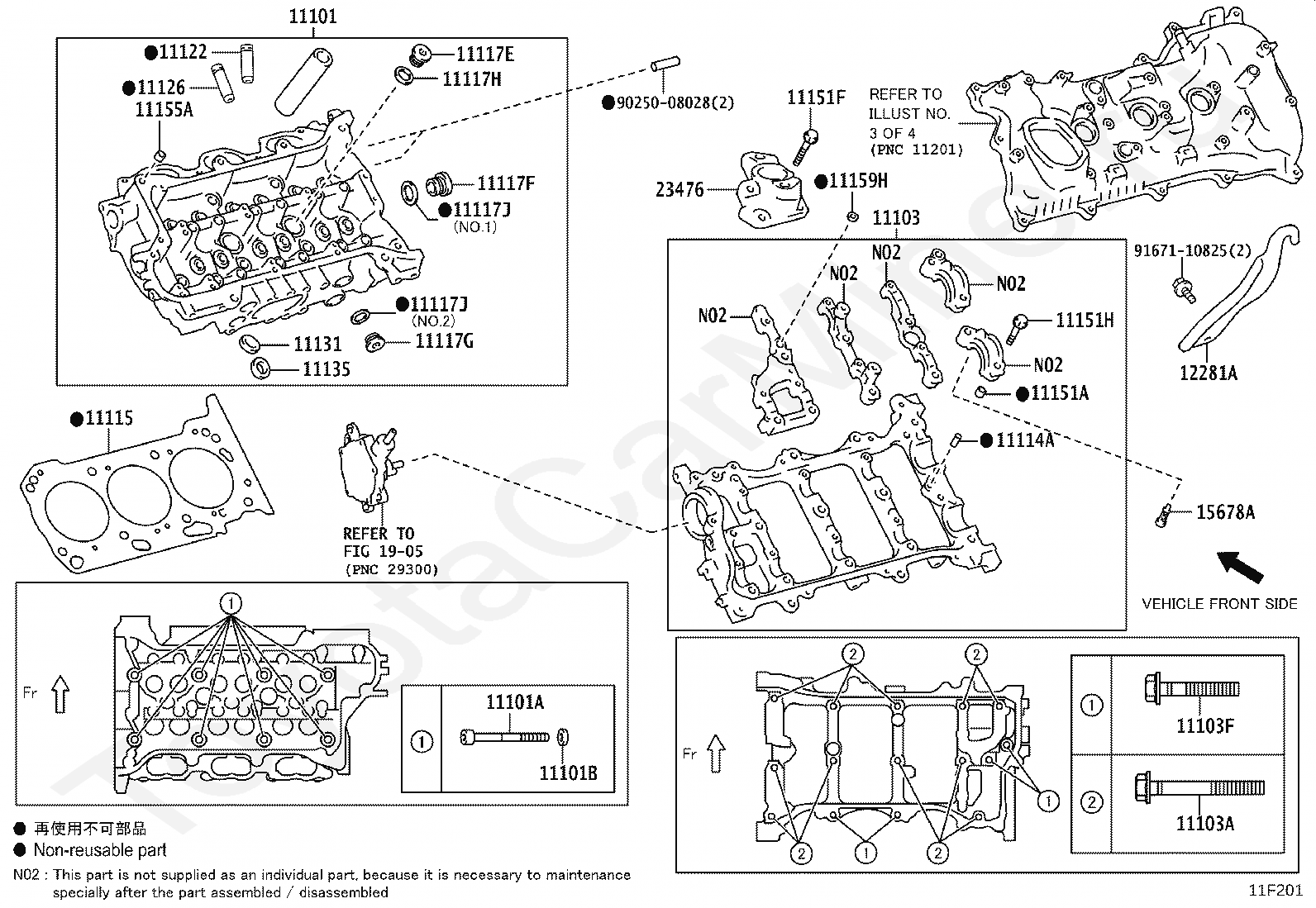

Код
Описание
11101
HEAD SUB-ASSY, CYLINDER
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11103
HOUSING SUB-ASSY, CAMSHAFT
11103A
BOLT(FOR CAMSHAFT HOUSING SET)
11103F
BOLT(FOR CAMSHAFT HOUSING SET)
11114A
PIN, STRAIGHT
11115
GASKET, CYLINDER HEAD
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11117F
PLUG, W/HEAD STRAIGHT SCREW, NO.2
11117G
PLUG, W/HEAD STRAIGHT SCREW, NO.3
11117H
GASKET(FOR WATER HOLE)
11117J
GASKET(FOR CYLINDER HEAD SCREW PLUG)
11122
BUSH, INTAKE VALVE GUIDE
11126
BUSH, EXHAUST VALVE GUIDE
11131
SEAT, INTAKE VALVE
11135
SEAT, EXHAUST VALVE
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151F
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11151H
BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155A
PIN, RING W/HEAD
11159H
GASKET, CAMSHAFT BEARING CAP OIL HOLE
12281A
HANGER, ENGINE, NO.1
15678A
FILTER, OIL CONTROL VALVE
1905
переход к группе запчастей
23476
HOUSING, FUEL PUMP LIFTER
9025008028
Крепеж
9167110825
Крепеж

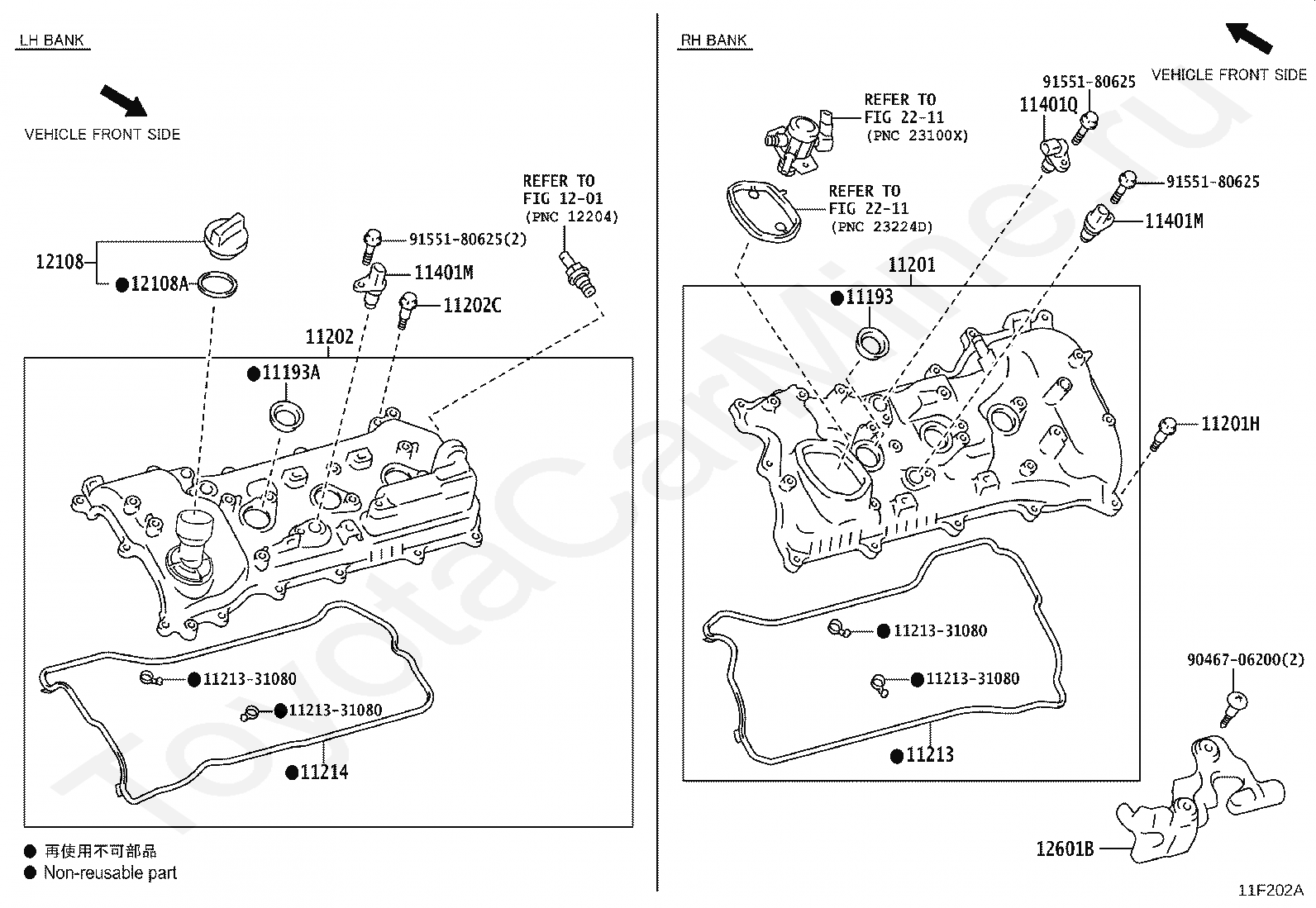

Код
Описание
11193
GASKET, SPARK PLUG TUBE
11193A
GASKET, SPARK PLUG TUBE, LH
11201
COVER SUB-ASSY, CYLINDER HEAD
11201H
BOLT(FOR CYLINDER HEAD COVER)
11202
COVER SUB-ASSY, CYLINDER HEAD, LH
11202C
BOLT(FOR CYLINDER HEAD COVER LH)
11213
GASKET, CYLINDER HEAD COVER
1121331080
Крепеж
11214
GASKET, CYLINDER HEAD COVER, NO.2
11401M
SENSOR, CRANK POSITION, NO.2
11401Q
SENSOR, CRANK POSITION
1201
переход к группе запчастей
12108
CAP SUB-ASSY, OIL FILLER
12108A
GASKET(FOR OIL FILLER CAP)
12601B
COVER SUB-ASSY, ENGINE, NO.1
2211
переход к группе запчастей
9046706200
Крепеж
9155180625
Крепеж

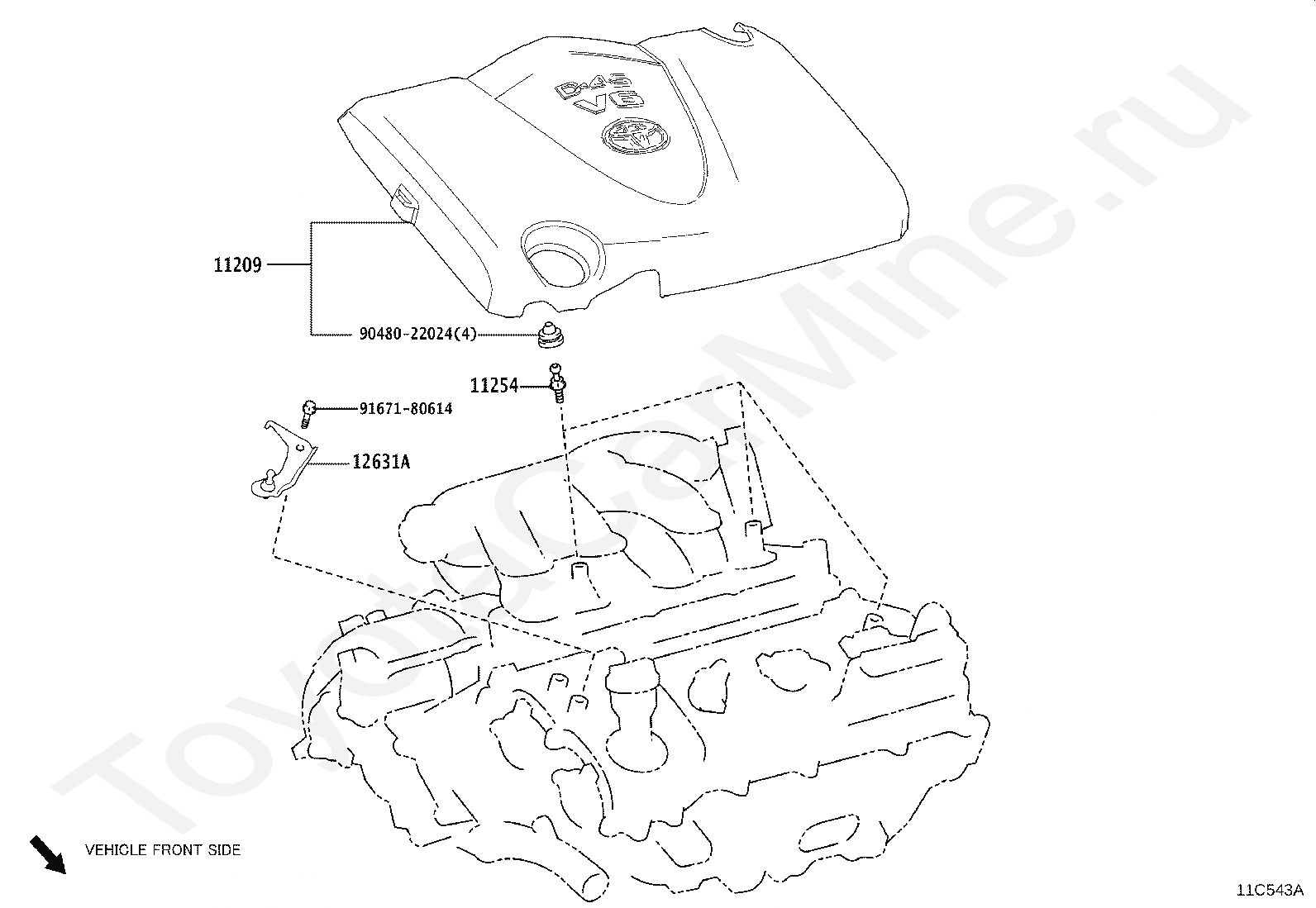

Код
Описание
11209
COVER SUB-ASSY, V-BANK
11254
BRACKET, V-BANK COVER, NO.1
12631A
BRACKET, ENGINE COVER
9048022024
Крепеж
9167180614
Крепеж
