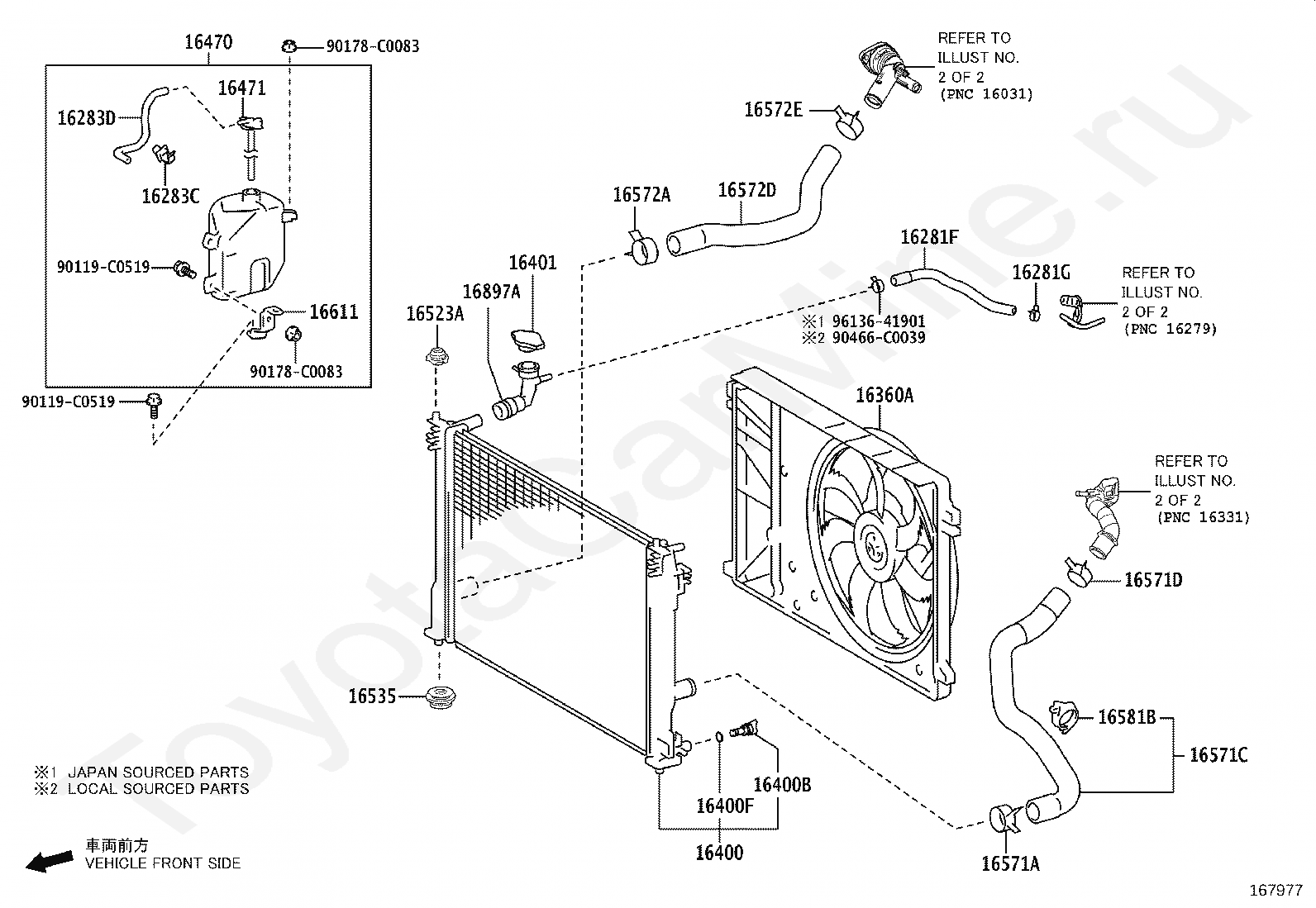

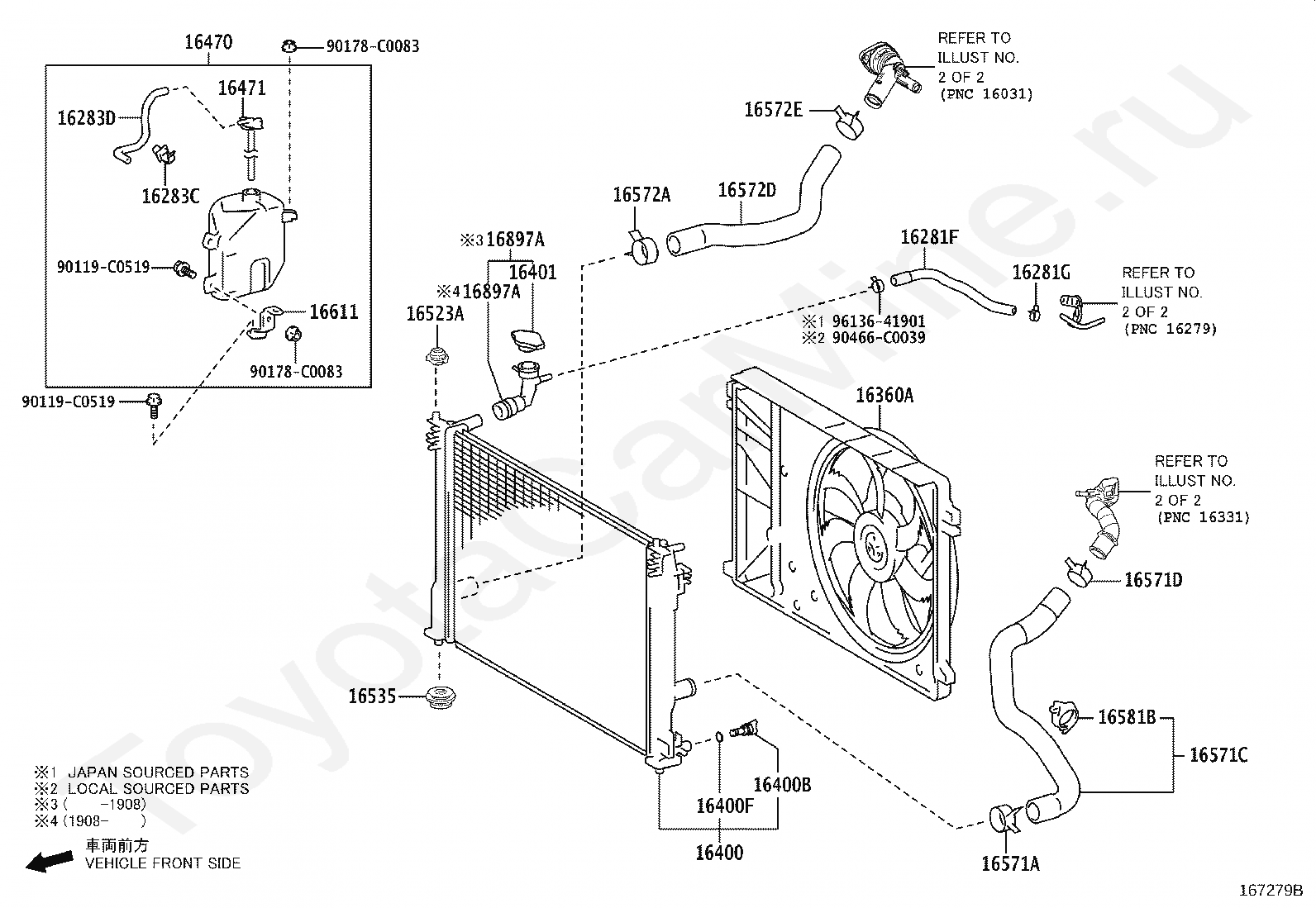

Радиатор и шланги TOYOTA CAMRY/HYBRID (CHINA), 2019/03 - 2025, 2000CC 16-VALVE DOHC, седан, MXVA71, вариатор

Каталог

Ближний Восток

Модель

CAMRY/HYBRID (CHINA)

Двигатель

2000CC 16-VALVE DOHC

Кузов

седан

Фрейм

MXVA71

Трансмиссия

вариатор

Опции

левый руль 4 двери E(MODEL MARK) Китай 666W

Код

Описание

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16283C

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16283D

HOSE, WATER BY-PASS, NO.6

16360A

FAN ASSY, W/MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16611

BRACKET, RADIATOR RESERVE TANK

16897A

NECK, FILLER

90119C0519

Крепеж

90178C0083

Крепеж

90466C0039

Крепеж

9613641901

Крепеж

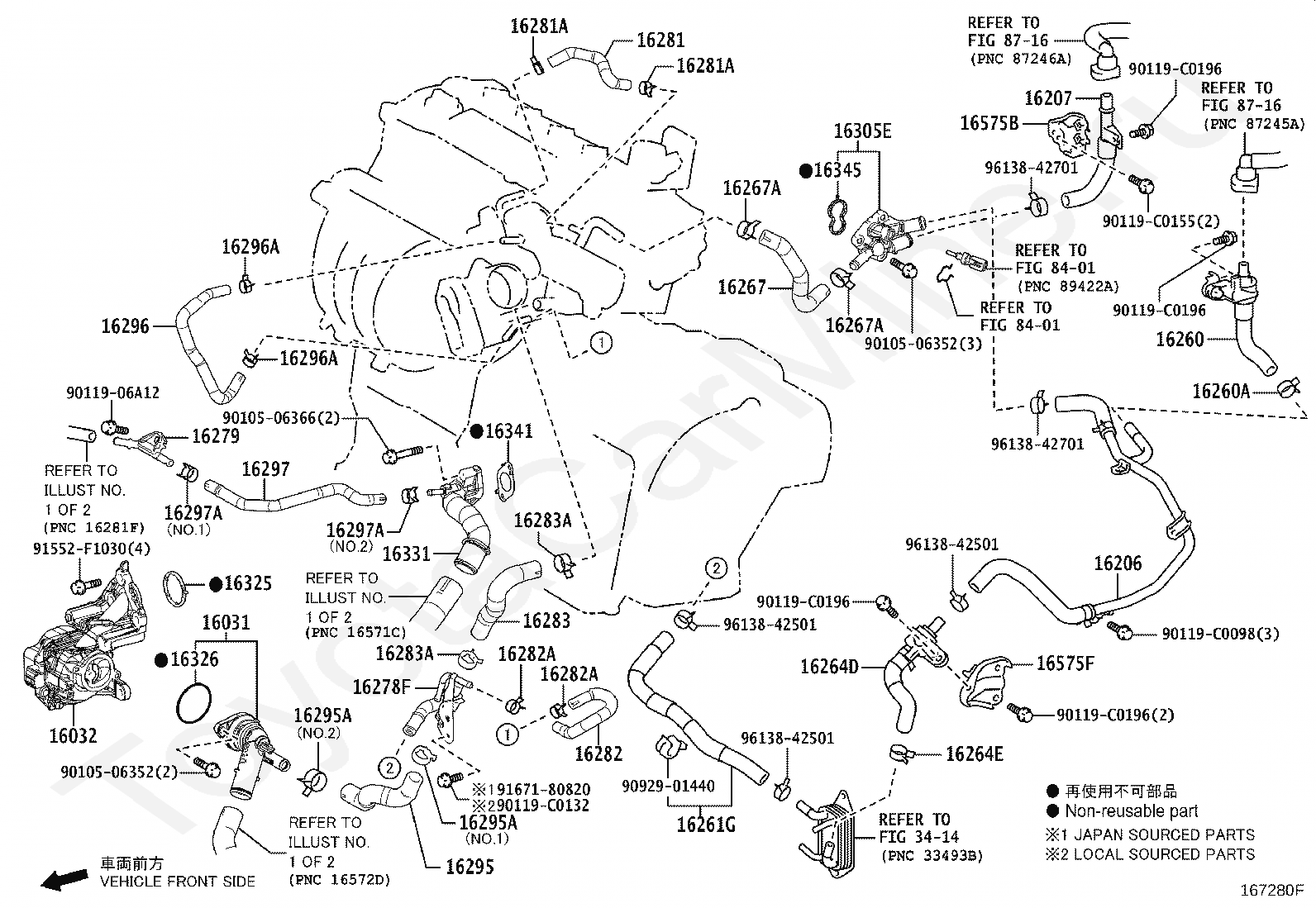

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278F

HOSE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16305E

OUTLET SUB-ASSY, WATER BY-PASS

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16575F

BRACKET, WATER HOSE CLAMP, NO.3

3414

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

9010506352

Крепеж

9010506366

Крепеж

9011906A12

Крепеж

90119C0098

Крепеж

90119C0132

Крепеж

90119C0155

Крепеж

90119C0196

Крепеж

9092901440

Крепеж

91552F1030

Крепеж

9167180820

Крепеж

9613842501

Крепеж

9613842701

Крепеж

Код

Описание

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16283C

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16283D

HOSE, WATER BY-PASS, NO.6

16360A

FAN ASSY, W/MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16611

BRACKET, RADIATOR RESERVE TANK

16897A

NECK, FILLER

90119C0519

Крепеж

90178C0083

Крепеж

90466C0039

Крепеж

9613641901

Крепеж

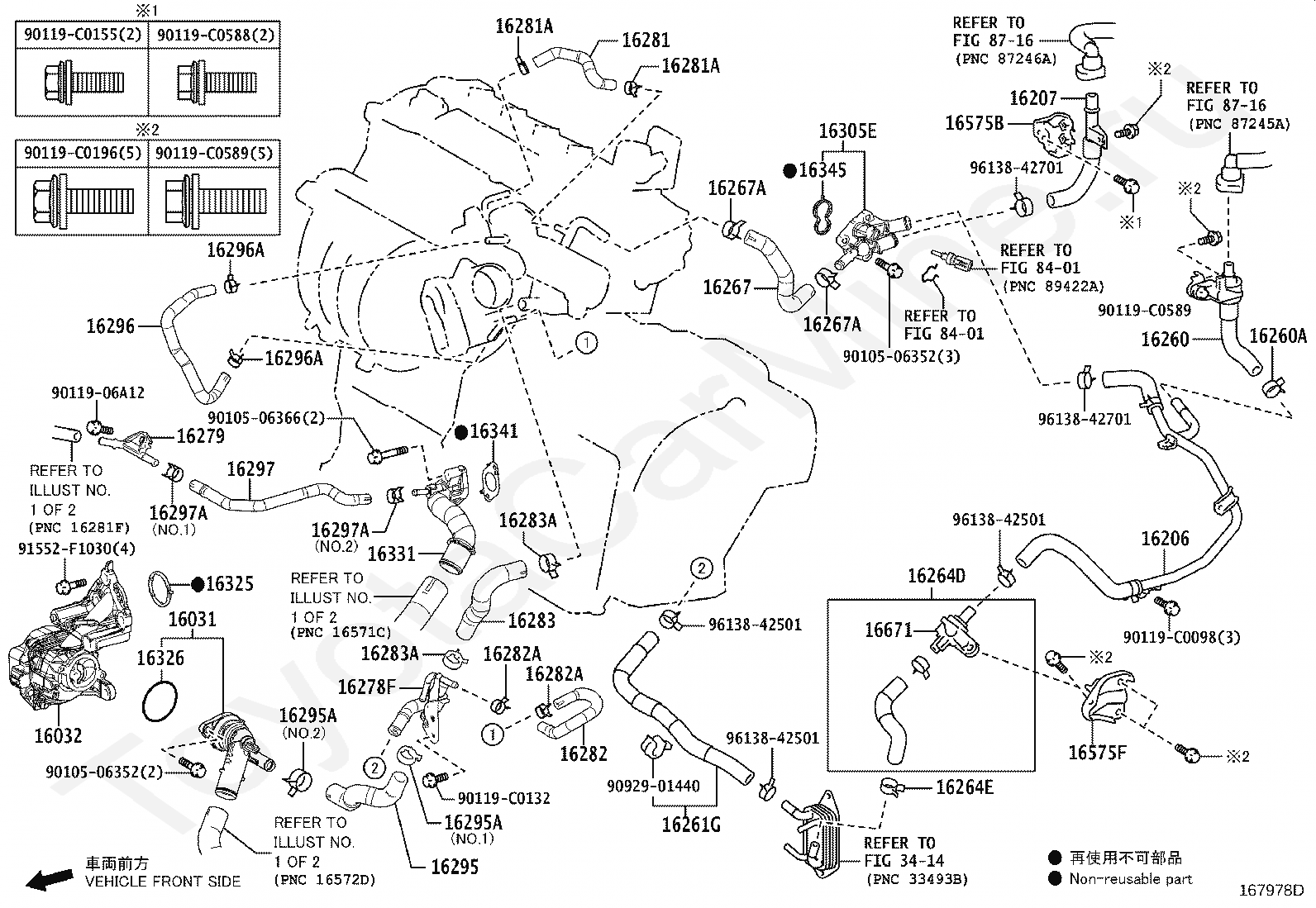

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261G

HOSE, WATER BY-PASS, NO.1

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278F

HOSE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16305E

OUTLET SUB-ASSY, WATER BY-PASS

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16575F

BRACKET, WATER HOSE CLAMP, NO.3

16671

VALVE, WATER

3414

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

9010506352

Крепеж

9010506366

Крепеж

9011906A12

Крепеж

90119C0098

Крепеж

90119C0132

Крепеж

90119C0155

Крепеж

90119C0196

Крепеж

90119C0588

Крепеж

90119C0589

Крепеж

9092901440

Крепеж

91552F1030

Крепеж

9613842501

Крепеж

9613842701

Крепеж

Радиатор и шланги TOYOTA CAMRY/HYBRID (CHINA), 2019/03 - 2025, 2000CC 16-VALVE DOHC, седан, MXVA71, вариатор
