Рулевая рейка и наконечники TOYOTA CAMI, 2000/08 - 2005/12, 1,3 литра, 16 клапанов, DOHC, EFI, турбо, Q TYPE, J102E, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

CAMI

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI, турбо

Класс

Q TYPE

Фрейм

J102E

Трансмиссия

автомат АКПП, 4 ступени

Опции

WITH TURBO (HARGER)

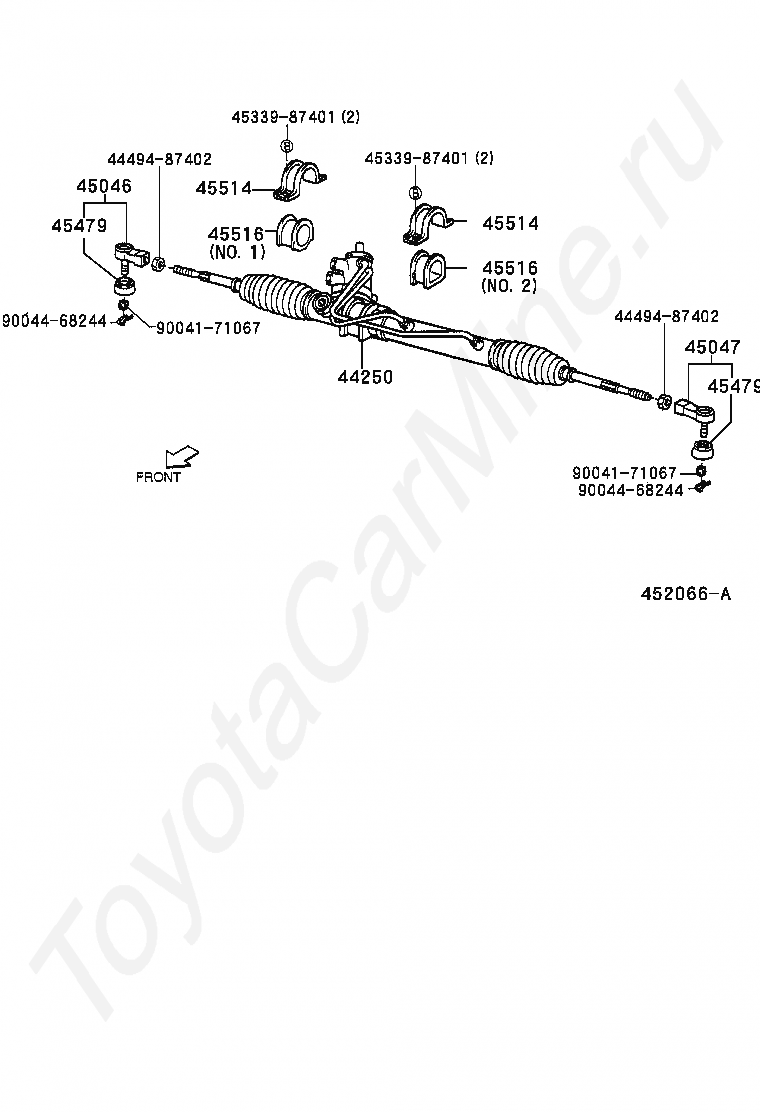

Код

Описание

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

4449487402

Крепеж

45046

END SUB-ASSY, TIE ROD, RH

45047

END SUB-ASSY, TIE ROD, LH

4533987401

Крепеж

45479

SEAL, STEERING LINK JOINT DUST

45514

BRACKET, STEERING RACK HOUSING, NO.1

45516

GROMMET, STEERING RACK HOUSING, NO.1

9004171067

Крепеж

9004468244

Крепеж

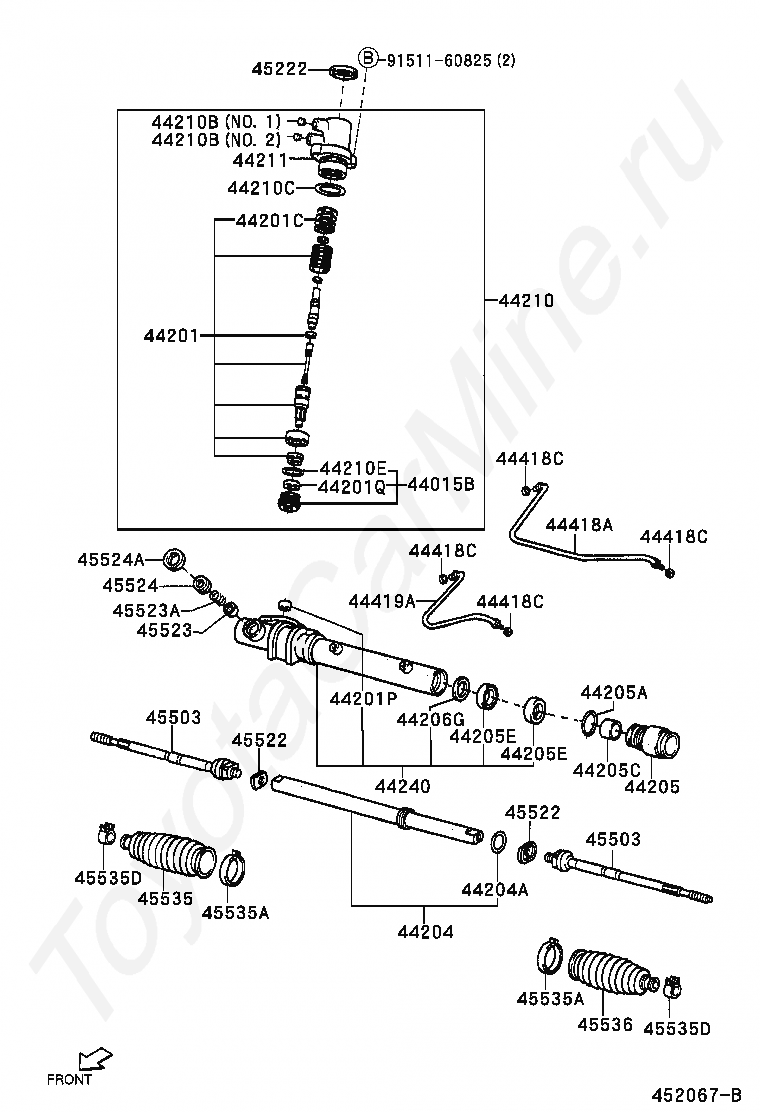

Код

Описание

44015B

RING, O(FOR BEARING GUIDE NUT)

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201P

BEARING(FOR POWER STEERING CONTROL VALVE LOWER)

44201Q

RING, O(FOR POWER STEERING CONTROL VALVE)

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44205

STOPPER SUB-ASSY, CYLINDER END

44205A

RING, O(FOR CYLINDER END STOPPER)

44205C

BUSH SUB-ASSY, POWER STEERING RACK

44205E

SEAL, OIL(FOR POWER STEERING RACK BUSH)

44206G

SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44210E

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44240

HOUSING ASSY, POWER STEERING RACK

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418C

RING, O(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

45222

COVER, STEERING GEAR DUST

45503

END SUB-ASSY, STEERING RACK

45522

BUSH, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535A

CLAMP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

45536

BOOT, STEERING RACK, NO.2

9151160825

Крепеж

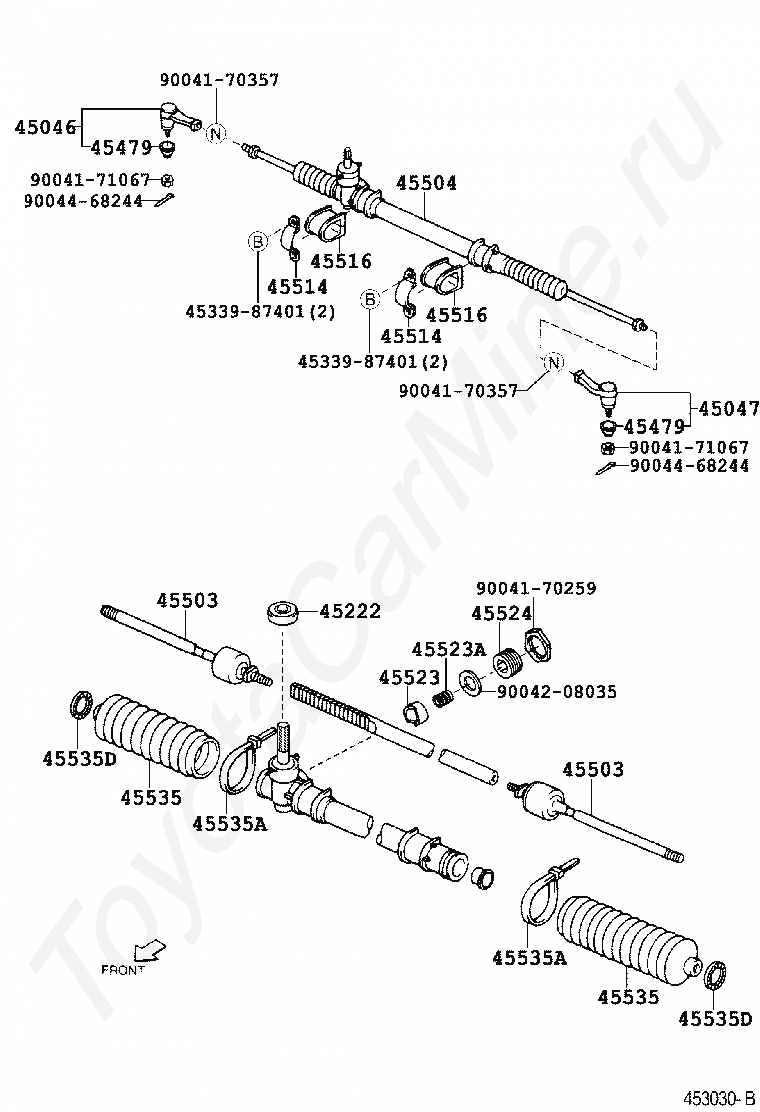

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45047

END SUB-ASSY, TIE ROD, LH

45222

COVER, STEERING GEAR DUST

4533987401

Крепеж

45479

SEAL, STEERING LINK JOINT DUST

45503

END SUB-ASSY, STEERING RACK

45504

END SUB-ASSY, STEERING RACK, NO.2

45514

BRACKET, STEERING RACK HOUSING, NO.1

45516

GROMMET, STEERING RACK HOUSING, NO.1

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45535

BOOT, STEERING RACK, NO.1

45535A

CLAMP(FOR STEERING RACK BOOT)

45535D

CLAMP(FOR STEERING RACK BOOT NO.1)

9004170259

Крепеж

9004170357

Крепеж

9004171067

Крепеж

9004208035

Крепеж

9004468244

Крепеж

Рулевая рейка и наконечники TOYOTA CAMI, 2000/08 - 2005/12, 1,3 литра, 16 клапанов, DOHC, EFI, турбо, Q TYPE, J102E, автомат, АКПП, 4 ступени
