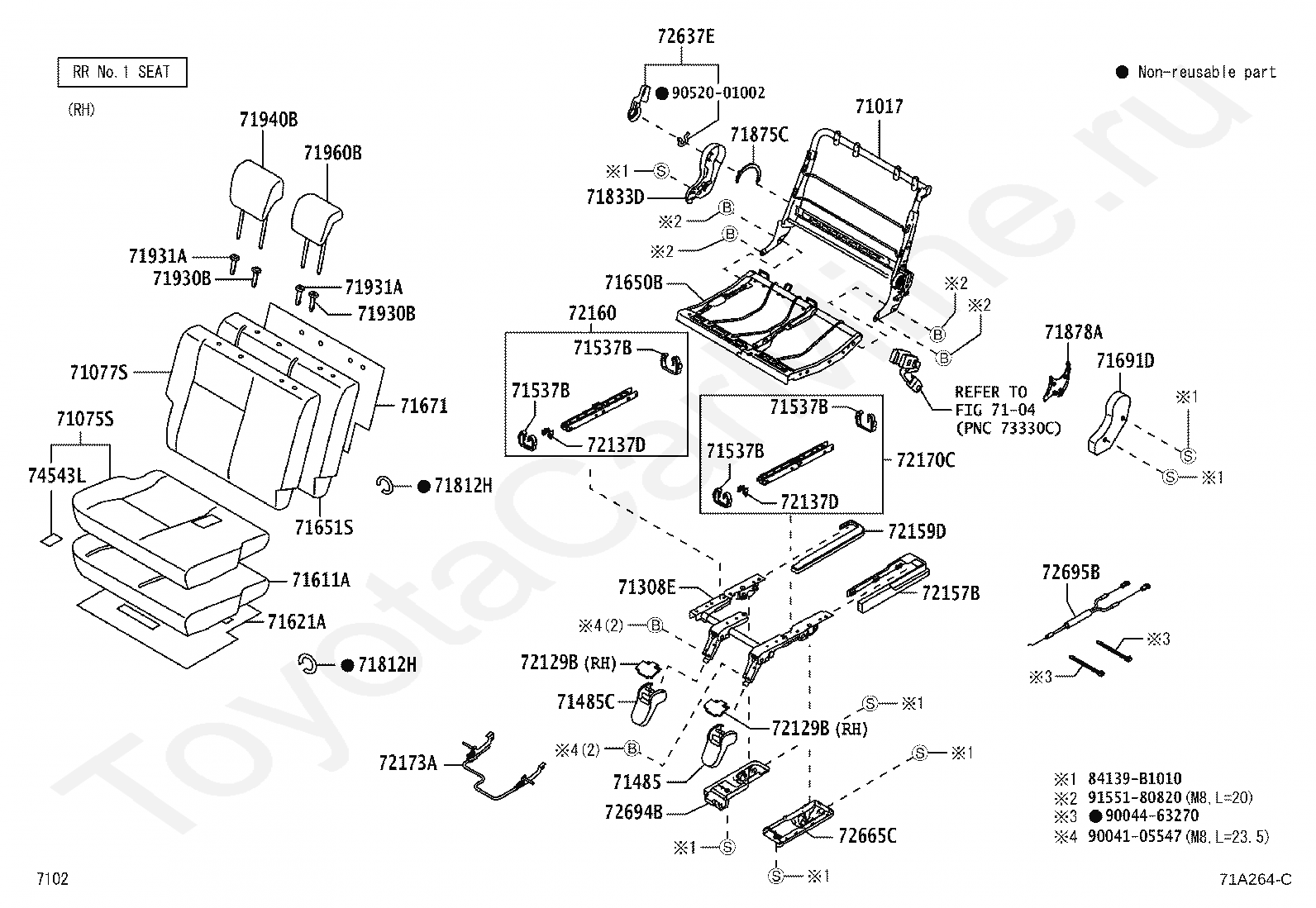

Задние кресла TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

CALYA

Двигатель

1,2 литра

Класс

GRAMS

Фрейм

B401

Трансмиссия

автомат АКПП, 4 ступени

Опции

правый руль

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71308E

LEG SUB-ASSY, REAR SEAT, RH

71485

COVER, REAR SEAT HINGE

71485C

COVER, REAR SEAT HINGE, RH

71537B

PROTECTOR, REAR SEAT CUSHION

71611A

PAD, REAR SEAT CUSHION, RH

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71650B

SPRING ASSY, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71671

PAD, REAR SEAT BACK SILENCER, A

71691D

COVER, REAR SEAT CUSHION HINGE, UPPER RH

71812H

RING, HOG, SMALL (FOR REAR SEAT)

71833D

COVER REAR SEAT RECLINING, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71960B

HEADREST ASSY, REAR SEAT, CENTER

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72137D

COVER, REAR SEAT TRACK, RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72159D

COVER, REAR SEAT TRACK BRACKET, OUTER RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170C

TRACK ASSY, REAR NO.1 SEAT, INNER RH

72173A

HANDLE, REAR SEAT TRACK ADJUSTING, RH

72637E

HANDLE, REAR SEAT LOCK, RH

72665C

COVER, REAR SEAT LOCK, RH

72694B

COVER, REAR SEAT CUSHION LOCK, RH

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

74543L

LABEL, REAR SEAT CAUTION, NO.1

84139B1010

Крепеж

9004105547

Крепеж

9004463270

Крепеж

9052001002

Крепеж

9155180820

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71308E

LEG SUB-ASSY, REAR SEAT, RH

71485

COVER, REAR SEAT HINGE

71485C

COVER, REAR SEAT HINGE, RH

71537B

PROTECTOR, REAR SEAT CUSHION

71611A

PAD, REAR SEAT CUSHION, RH

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71650B

SPRING ASSY, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71671

PAD, REAR SEAT BACK SILENCER, A

71691D

COVER, REAR SEAT CUSHION HINGE, UPPER RH

71812H

RING, HOG, SMALL (FOR REAR SEAT)

71833D

COVER REAR SEAT RECLINING, RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71960B

HEADREST ASSY, REAR SEAT, CENTER

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72137D

COVER, REAR SEAT TRACK, RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72159D

COVER, REAR SEAT TRACK BRACKET, OUTER RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72170C

TRACK ASSY, REAR NO.1 SEAT, INNER RH

72173A

HANDLE, REAR SEAT TRACK ADJUSTING, RH

72637E

HANDLE, REAR SEAT LOCK, RH

72665C

COVER, REAR SEAT LOCK, RH

72694B

COVER, REAR SEAT CUSHION LOCK, RH

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

74543L

LABEL, REAR SEAT CAUTION, NO.1

84139B1010

Крепеж

9004105547

Крепеж

9004463270

Крепеж

9052001002

Крепеж

9155180820

Крепеж

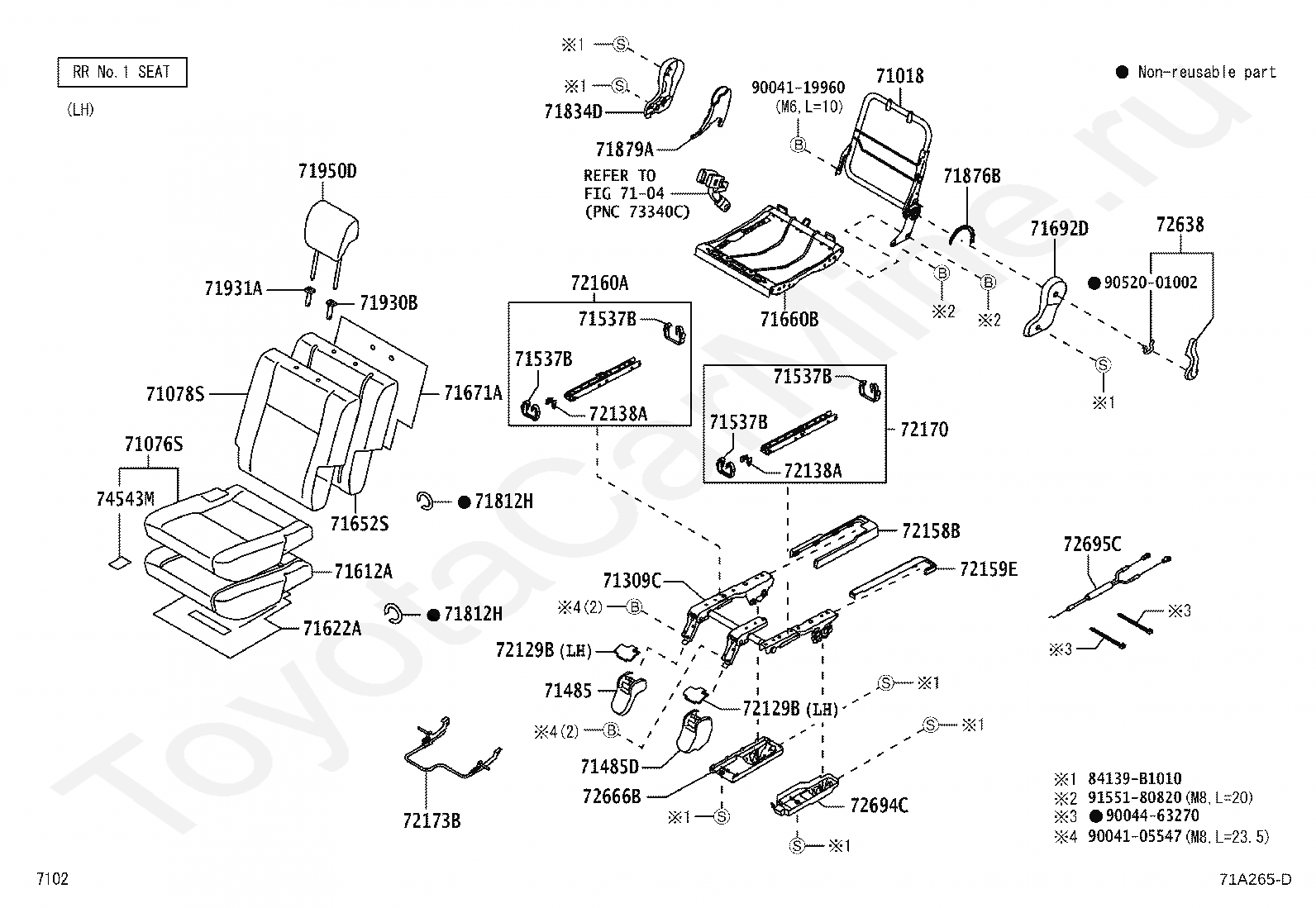

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71309C

LEG SUB-ASSY, REAR SEAT, REAR LH

71485

COVER, REAR SEAT HINGE

71485D

COVER, REAR SEAT HINGE, LH

71537B

PROTECTOR, REAR SEAT CUSHION

71612A

PAD, REAR SEAT CUSHION, LH

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71660B

SPRING ASSY, REAR SEAT CUSHION, LH

71671A

PAD, REAR SEAT BACK SILENCER, A

71692D

COVER, REAR SEAT CUSHION HINGE, UPPER LH

71812H

RING, HOG, SMALL (FOR REAR SEAT)

71834D

COVER, REAR SEAT RECLINING, LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71950D

HEADREST ASSY, REAR SEAT, LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72138A

COVER, REAR SEAT TRACK, LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72159E

COVER, REAR SEAT TRACK BRACKET, OUTER LH

72160A

TRACK ASSY, REAR SEAT, LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72173B

HANDLE, REAR SEAT TRACK ADJUSTING, LH

72638

HANDLE, REAR SEAT LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72694C

COVER, REAR SEAT CUSHION LOCK, LH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

74543M

LABEL, REAR SEAT CAUTION, NO.2

84139B1010

Крепеж

9004105547

Крепеж

9004119960

Крепеж

9004463270

Крепеж

9052001002

Крепеж

9155180820

Крепеж

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71309C

LEG SUB-ASSY, REAR SEAT, REAR LH

71485

COVER, REAR SEAT HINGE

71485D

COVER, REAR SEAT HINGE, LH

71537B

PROTECTOR, REAR SEAT CUSHION

71612A

PAD, REAR SEAT CUSHION, LH

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71660B

SPRING ASSY, REAR SEAT CUSHION, LH

71671A

PAD, REAR SEAT BACK SILENCER, A

71692D

COVER, REAR SEAT CUSHION HINGE, UPPER LH

71812H

RING, HOG, SMALL (FOR REAR SEAT)

71834D

COVER, REAR SEAT RECLINING, LH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71950D

HEADREST ASSY, REAR SEAT, LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72138A

COVER, REAR SEAT TRACK, LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72159E

COVER, REAR SEAT TRACK BRACKET, OUTER LH

72160A

TRACK ASSY, REAR SEAT, LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72173B

HANDLE, REAR SEAT TRACK ADJUSTING, LH

72638

HANDLE, REAR SEAT LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72694C

COVER, REAR SEAT CUSHION LOCK, LH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

74543M

LABEL, REAR SEAT CAUTION, NO.2

84139B1010

Крепеж

9004105547

Крепеж

9004119960

Крепеж

9004463270

Крепеж

9052001002

Крепеж

9155180820

Крепеж

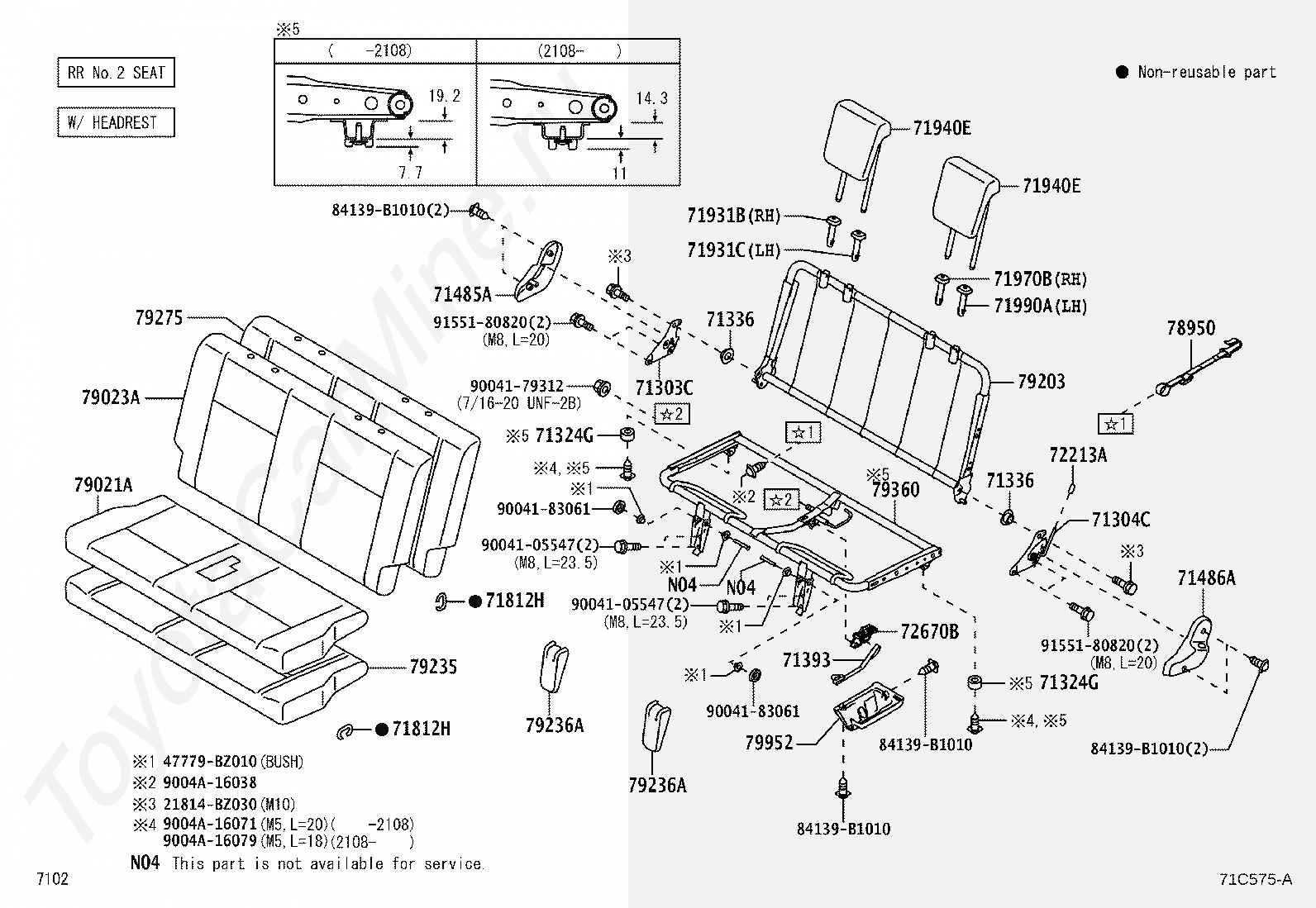

Код

Описание

21814BZ021

Крепеж

21814BZ030

Крепеж

47779BZ010

Крепеж

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71324G

CUSHION, REAR NO.2 SEAT

71336

BUSH OR SPACER, REAR SEAT BACK HINGE

71393

BAND, REAR SEAT CUSHION

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71486A

COVER, REAR SEAT HINGE, NO.2 LH

71812H

RING, HOG, SMALL (FOR REAR SEAT)

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79203

FRAME SUB-ASSY, NO.2 SEAT BACK

79235

PAD, NO.2 SEAT CUSHION

79236A

COVER, NO.2 SEAT LEG

79275

PAD, NO.2 SEAT BACK

79360

SPRING ASSY, NO.3 SEAT CUSHION

79952

COVER, NO.2 SEAT CUSHION

84139B1010

Крепеж

9004105547

Крепеж

9004179312

Крепеж

9004183061

Крепеж

9004A16038

Крепеж

9004A16071

Крепеж

9155180820

Крепеж

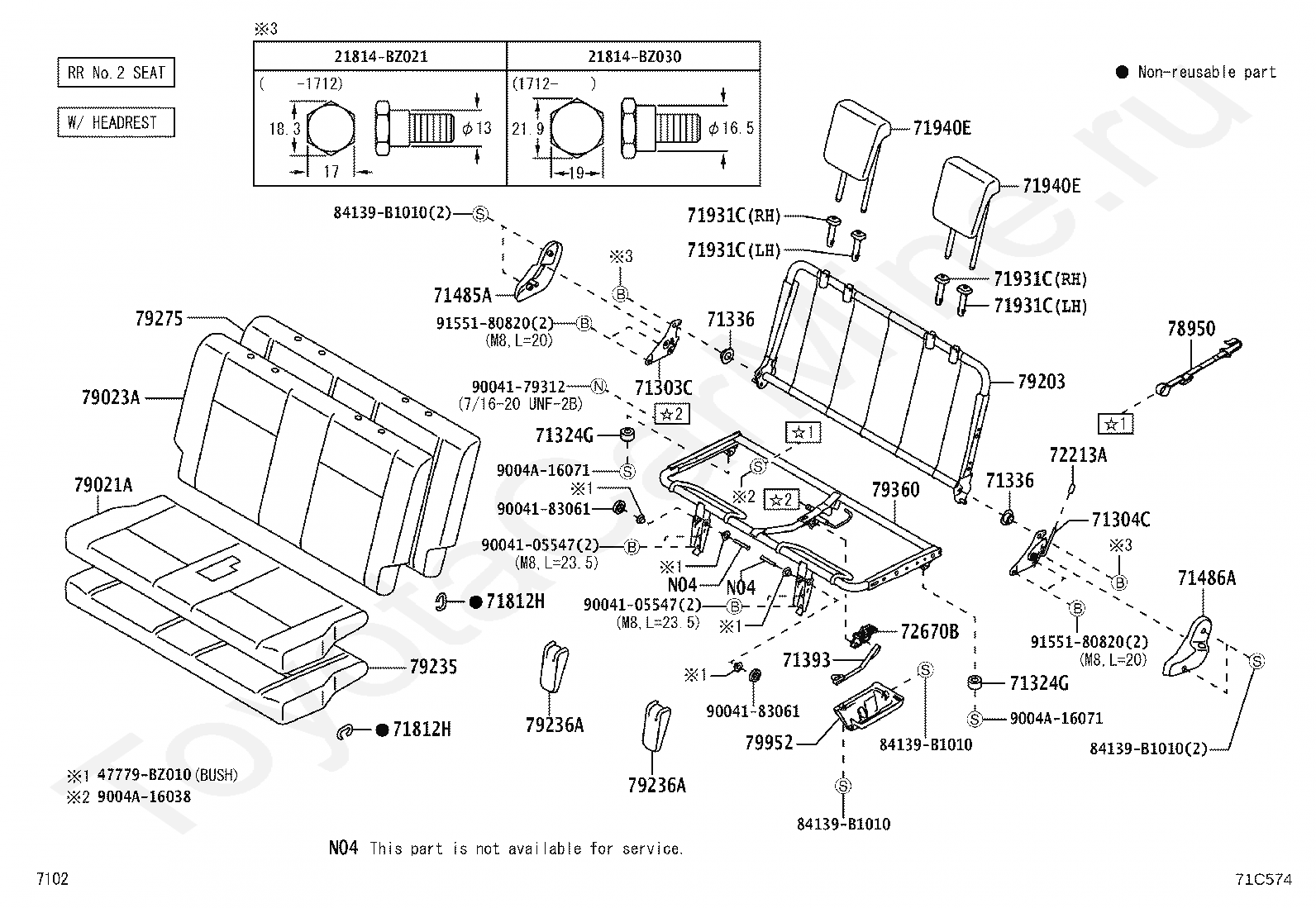

Код

Описание

21814BZ030

Крепеж

47779BZ010

Крепеж

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71324G

CUSHION, REAR NO.2 SEAT

71336

BUSH OR SPACER, REAR SEAT BACK HINGE

71393

BAND, REAR SEAT CUSHION

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71486A

COVER, REAR SEAT HINGE, NO.2 LH

71812H

RING, HOG, SMALL (FOR REAR SEAT)

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

71970B

SUPPORT ASSY, REAR SEAT HEADREST, RH

71990A

SUPPORT ASSY, REAR SEAT HEADREST, LH

72213A

KNOB, SEAT TRACK ADJUSTING HANDLE

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79203

FRAME SUB-ASSY, NO.2 SEAT BACK

79235

PAD, NO.2 SEAT CUSHION

79236A

COVER, NO.2 SEAT LEG

79275

PAD, NO.2 SEAT BACK

79360

SPRING ASSY, NO.3 SEAT CUSHION

79952

COVER, NO.2 SEAT CUSHION

84139B1010

Крепеж

9004105547

Крепеж

9004179312

Крепеж

9004183061

Крепеж

9004A16038

Крепеж

9004A16071

Крепеж

9004A16079

Крепеж

9155180820

Крепеж

Задние кресла TOYOTA CALYA, 2016/06 - 2022/07, 1,2 литра, GRAMS, B401, автомат, АКПП, 4 ступени
