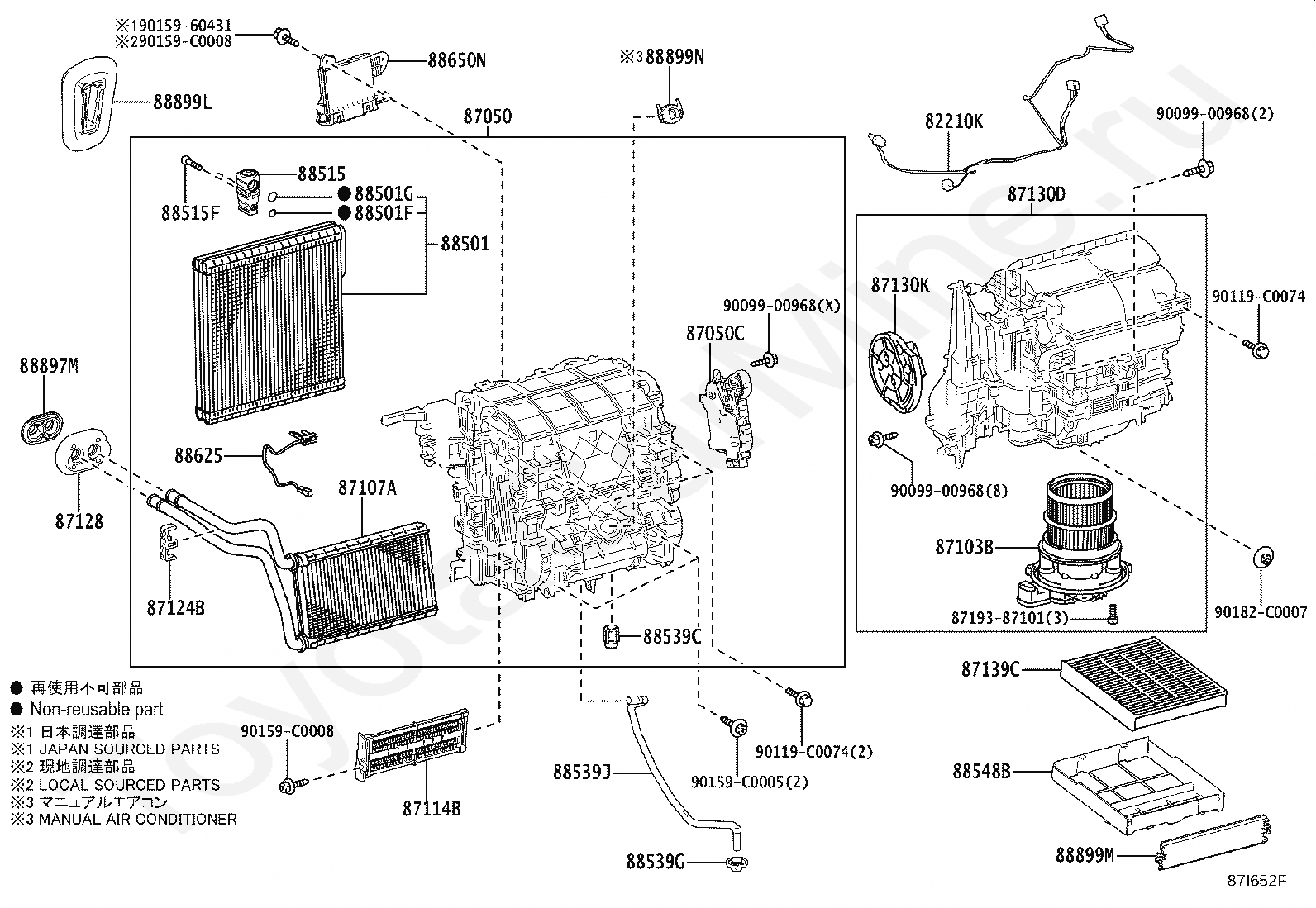

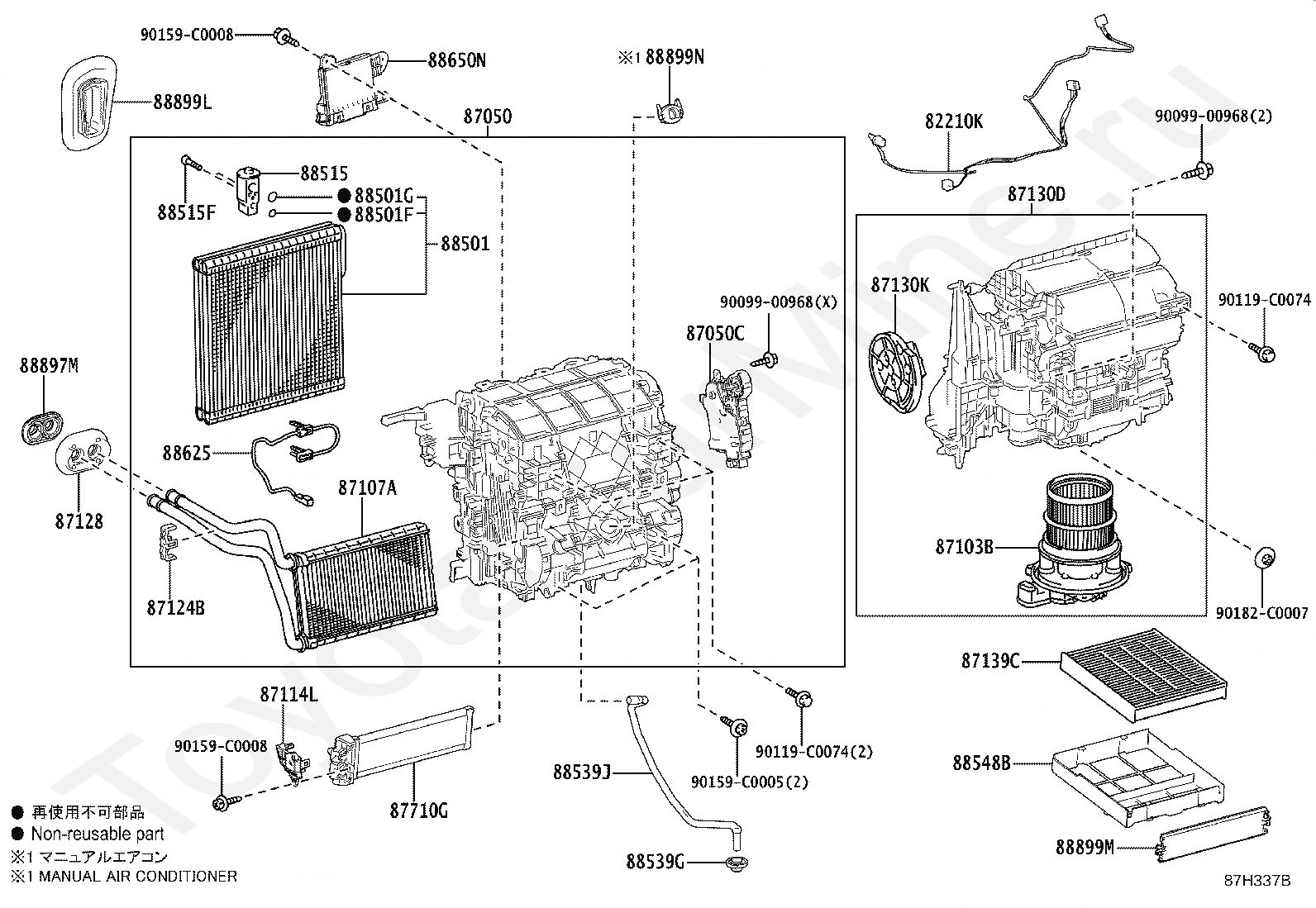

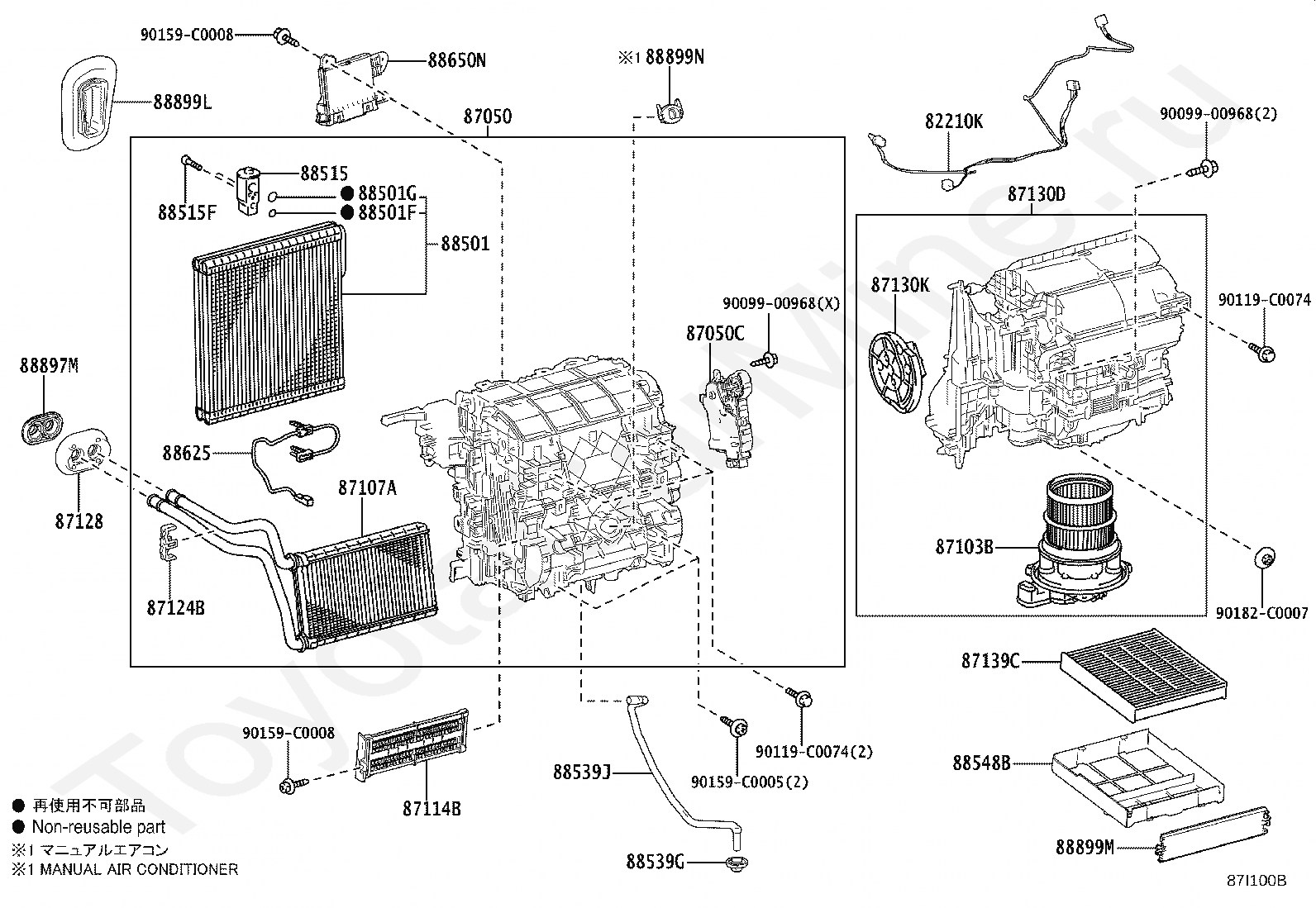

Кондиционер: охлаждающая система TOYOTA C-HR(CHINA), 2021/06 - 2025, 2000CC 16-VALVE DOHC, MAXA10, вариатор

Каталог

Ближний Восток

Модель

C-HR(CHINA)

Двигатель

2000CC 16-VALVE DOHC

Фрейм

MAXA10

Трансмиссия

вариатор

Опции

левый руль 5 дверей GRAMS 844W

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114L

COVER, HEATER, NO.2

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

87139C

FILTER, CLEAN AIR

87710G

QUICK HEATER ASSY

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88897M

GROMMET (FOR HEATER PIPE)

88899L

PARTS, COOLING UNIT

88899M

PLATE, COVER(FOR AIR FILTER)

88899N

PLATE, COVER

9009900968

Крепеж

90119C0074

Крепеж

90159C0005

Крепеж

90159C0008

Крепеж

90182C0007

Крепеж

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

87139C

FILTER, CLEAN AIR

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88897M

GROMMET (FOR HEATER PIPE)

88899L

PARTS, COOLING UNIT

88899M

PLATE, COVER(FOR AIR FILTER)

88899N

PLATE, COVER

9009900968

Крепеж

90119C0074

Крепеж

90159C0005

Крепеж

90159C0008

Крепеж

90182C0007

Крепеж

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

87139C

FILTER, CLEAN AIR

8719387101

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88897M

GROMMET (FOR HEATER PIPE)

88899L

PARTS, COOLING UNIT

88899M

PLATE, COVER(FOR AIR FILTER)

88899N

PLATE, COVER

9009900968

Крепеж

90119C0074

Крепеж

9015960431

Крепеж

90159C0005

Крепеж

90159C0008

Крепеж

90182C0007

Крепеж

Кондиционер: охлаждающая система TOYOTA C-HR(CHINA), 2021/06 - 2025, 2000CC 16-VALVE DOHC, MAXA10, вариатор
