Каталог
Ближний ВостокМодель
C-HR(CHINA)Двигатель
2000CC 16-VALVE DOHCФрейм
MAXA10Трансмиссия
вариаторОпции
левый руль 5 дверей GRAMS 844W

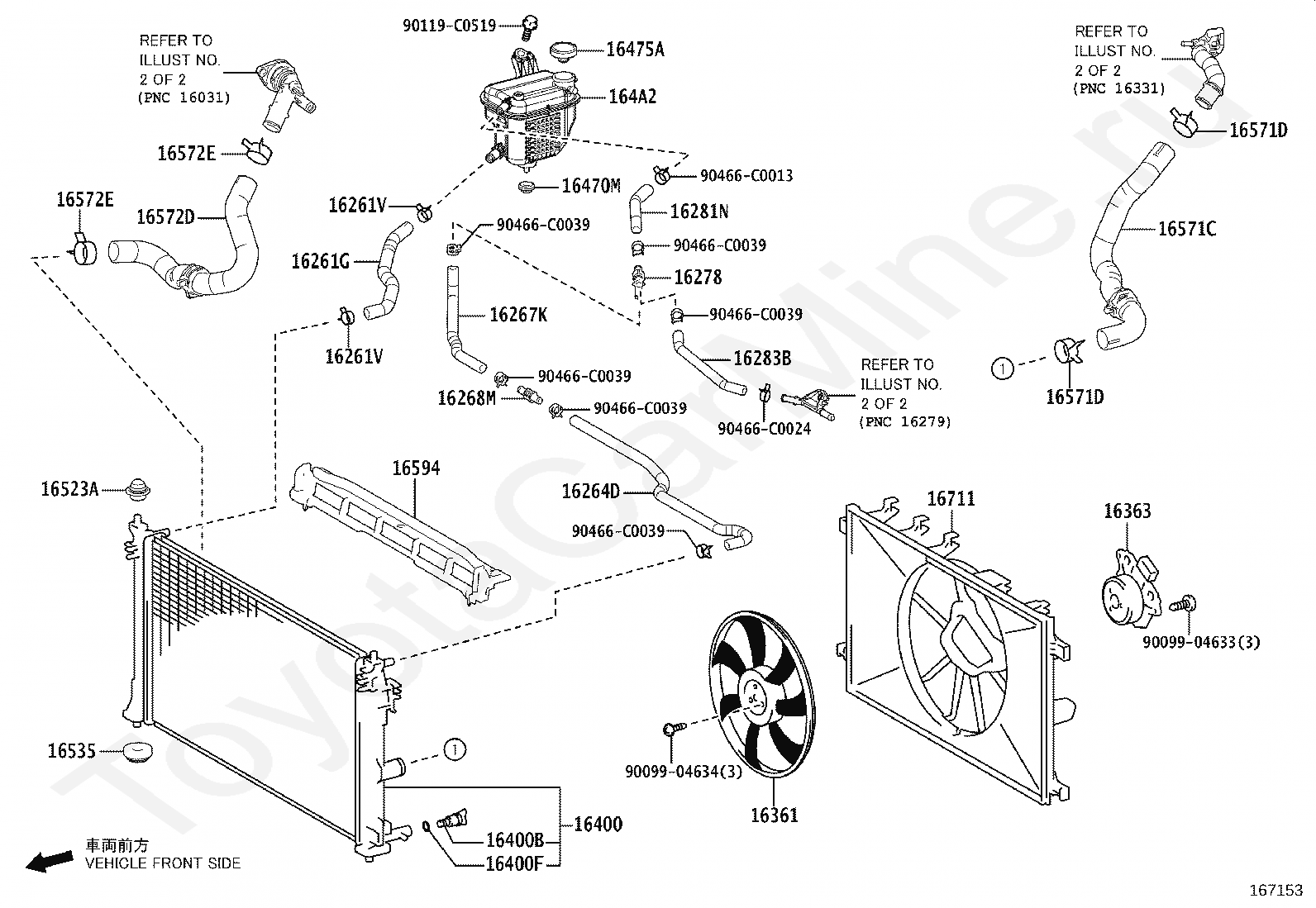

Код
Описание
16261G
HOSE, WATER BY-PASS, NO.1
16261V
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264D
HOSE, WATER BY-PASS, NO.2
16267K
HOSE, WATER BY-PASS, NO.3
16268M
PIPE, WATER BY-PASS, NO.3
16278
PIPE, WATER BY-PASS, NO.2
16281N
HOSE, WATER BY-PASS, NO.4
16283B
HOSE, WATER BY-PASS
16361
FAN
16363
MOTOR, COOLING FAN
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470M
GROMMET
16475A
CAP, RESERVE TANK
164A2
TANK, RESERVE SEALED W/O CAP
16523A
CUSHION, RADIATOR SUPPORT
16535
SUPPORT, RADIATOR, LOWER
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16594
GUIDE, RADIATOR AIR, NO.2
16711
SHROUD, FAN
9009904633
Крепеж
9009904634
Крепеж
90119C0519
Крепеж
90466C0013
Крепеж
90466C0024
Крепеж
90466C0039
Крепеж
Код
Описание

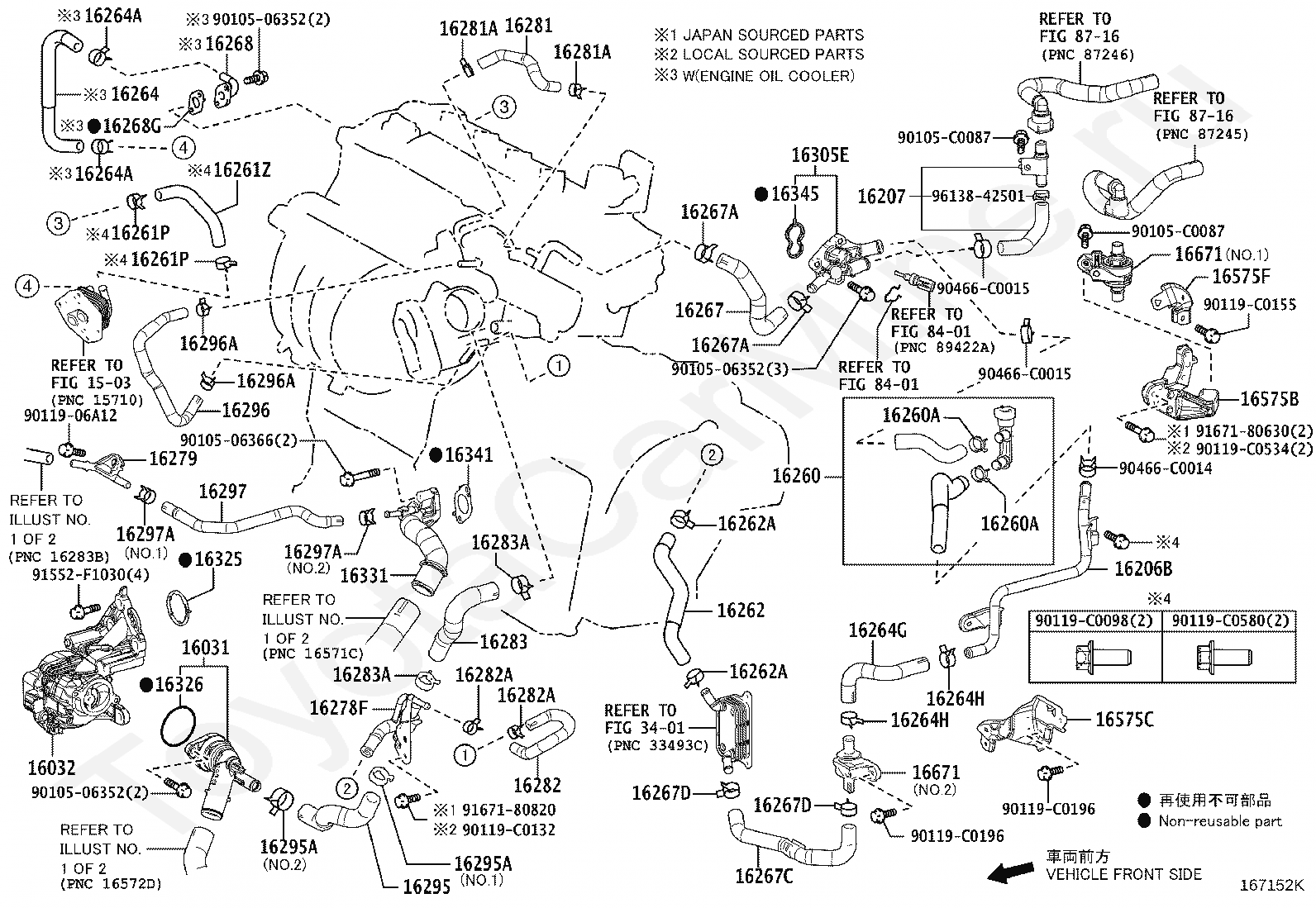

1503
переход к группе запчастей
16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16032
HOUSING SUB-ASSY, WATER INLET W/WATER PUMP
16206B
PIPE SUB-ASSY, WATER BY-PASS, NO.3
16207
PIPE SUB-ASSY, WATER BY-PASS, NO.2
16260
HOSE ASSY, WATER BY-PASS
16260A
CLIP(FOR WATER BY-PASS HOSE ASSY)
16261P
CLIP(FOR WATER BY-PASS HOSE NO.2)
16261Z
HOSE, WATER BY-PASS, NO.1
16262
HOSE, WATER INLET
16262A
CLIP(FOR WATER INLET HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264G
HOSE, WATER BY-PASS, NO.3
16264H
CLIP(FOR WATER BY-PASS HOSE NO.3)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267C
HOSE, WATER BY-PASS, NO.4
16267D
CLIP(FOR WATER BY-PASS HOSE NO.4)
16268
PIPE, WATER BY-PASS, NO.1
16268G
GASKET(FOR WATER BY-PASS PIPE)
16278F
HOSE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16305E
OUTLET SUB-ASSY, WATER BY-PASS
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16331
OUTLET, WATER
16341
GASKET, WATER OUTLET
16345
GASKET, WATER OUTLET PIPE
16575B
BRACKET, WATER HOSE CLAMP, NO.2
16575C
BRACKET, WATER HOSE CLAMP, NO.1
16575F
BRACKET, WATER HOSE CLAMP, NO.3
16671
VALVE, WATER
3401
переход к группе запчастей
8401
переход к группе запчастей
8716
переход к группе запчастей
9010506352
Крепеж
9010506366
Крепеж
90105C0087
Крепеж
9011906A12
Крепеж
90119C0098
Крепеж
90119C0132
Крепеж
90119C0155
Крепеж
90119C0196
Крепеж
90119C0534
Крепеж
90119C0580
Крепеж
90466C0014
Крепеж
90466C0015
Крепеж
91552F1030
Крепеж
9167180630
Крепеж
9167180820
Крепеж
9613842501
Крепеж
