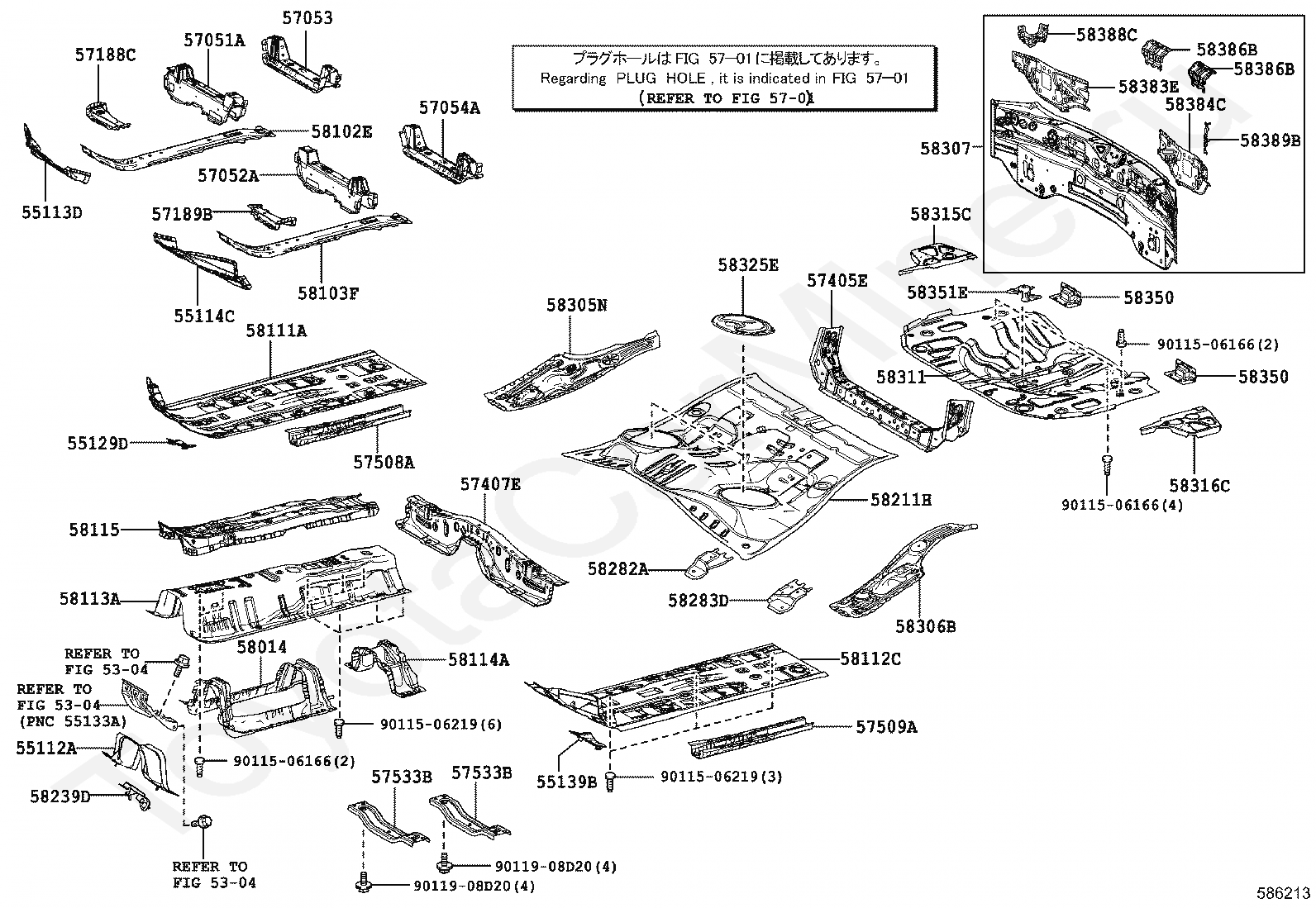

FLOOR PAN & LOWER BACK PANEL TOYOTA C-HR (JPP), 2016/12 - 2025, 1,2 литра, 16 клапанов, DOHC, D4, ACTIVE TYPE, NGX50, вариатор

Каталог

Ближний Восток

Модель

C-HR (JPP)

Двигатель

1,2 литра, 16 клапанов, DOHC, D4

Класс

ACTIVE TYPE

Фрейм

NGX50

Трансмиссия

вариатор

Опции

правый руль 5 дверей Австралия 689W

Код

Описание

5304

переход к группе запчастей

55112A

PANEL, DASH, NO.2

55113D

PANEL, DASH, LOWER RH

55114C

PANEL, DASH, LOWER LH

55129D

COVER, DASH PANEL HOLE, RH

55139B

COVER, DASH PANEL HOLE, LH

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57188C

REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

57189B

REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

57405E

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

57407E

MEMBER SUB-ASSY, CENTER FLOOR CROSS

57508A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

57509A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

57533B

BRACE, FRONT FLOOR, CENTER

58014

PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

58102E

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

58103F

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58115

REINFORCEMENT, FRONT FLOOR PANEL, FRONT

58211H

PAN, CENTER FLOOR

58239D

BRACKET, CABLE CLAMP

58282A

BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

58283D

BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

58305N

EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

58306B

EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58315C

EXTENSION, REAR FLOOR SIDE PANEL, RH

58316C

EXTENSION, REAR FLOOR SIDE PANEL, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58350

REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

58351E

BRACKET, SPARE WHEEL CLAMP

58383E

REINFORCEMENT, BODY LOWER BACK, NO.2 RH

58384C

REINFORCEMENT, BODY LOWER BACK, NO.2 LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58388C

PLATE, BODY LOWER BACK REINFORCEMENT, RH

58389B

PLATE, BODY LOWER BACK REINFORCEMENT, LH

9011506166

Крепеж

9011506219

Крепеж

9011908D20

Крепеж
