Каталог
Ближний ВостокМодель
C-HR (JPP)Двигатель
1,2 литра, 16 клапанов, DOHC, D4Класс
ACTIVE TYPEФрейм
NGX50Трансмиссия
вариаторОпции
правый руль 5 дверей Австралия 689W

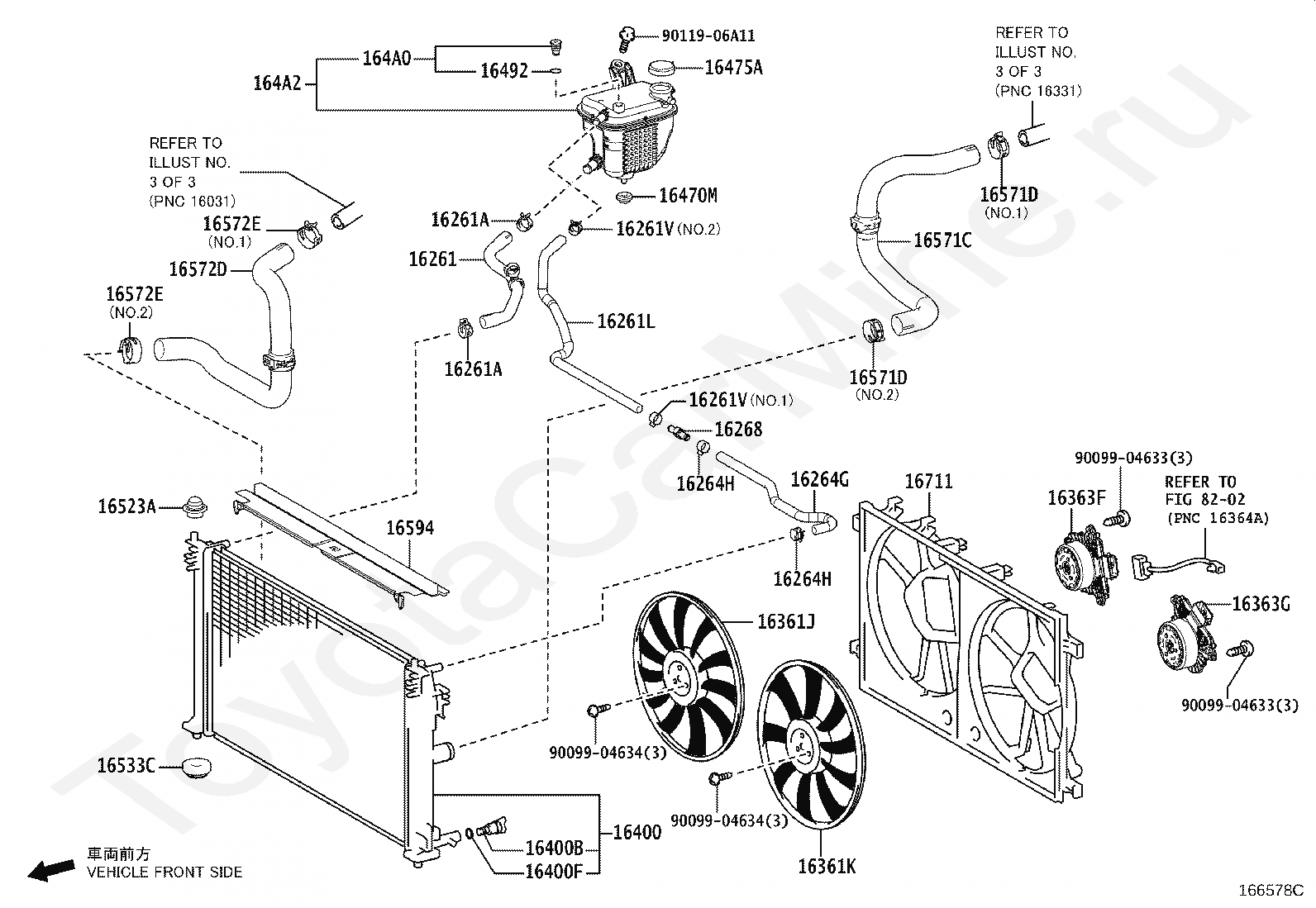

Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261L
HOSE, WATER BY-PASS
16261V
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264G
HOSE, WATER BY-PASS, NO.3
16264H
CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16361J
FAN, RH
16361K
FAN, LH
16363F
MOTOR, COOLING FAN, RH
16363G
MOTOR, COOLING FAN, LH
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470M
GROMMET
16475A
CAP, RESERVE TANK
16492
RING, O(FOR RADIATOR RESERVE TANK COCK)
164A0
COCK ASSY, RESERVE TANK
164A2
TANK, RESERVE SEALED W/O CAP
16523A
CUSHION, RADIATOR SUPPORT
16533C
GROMMET(FOR RADIATOR SUPPORT)
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16594
GUIDE, RADIATOR AIR, NO.2
16711
SHROUD, FAN
8202
переход к группе запчастей
9009904633
Крепеж
9009904634
Крепеж
9011906A11
Крепеж

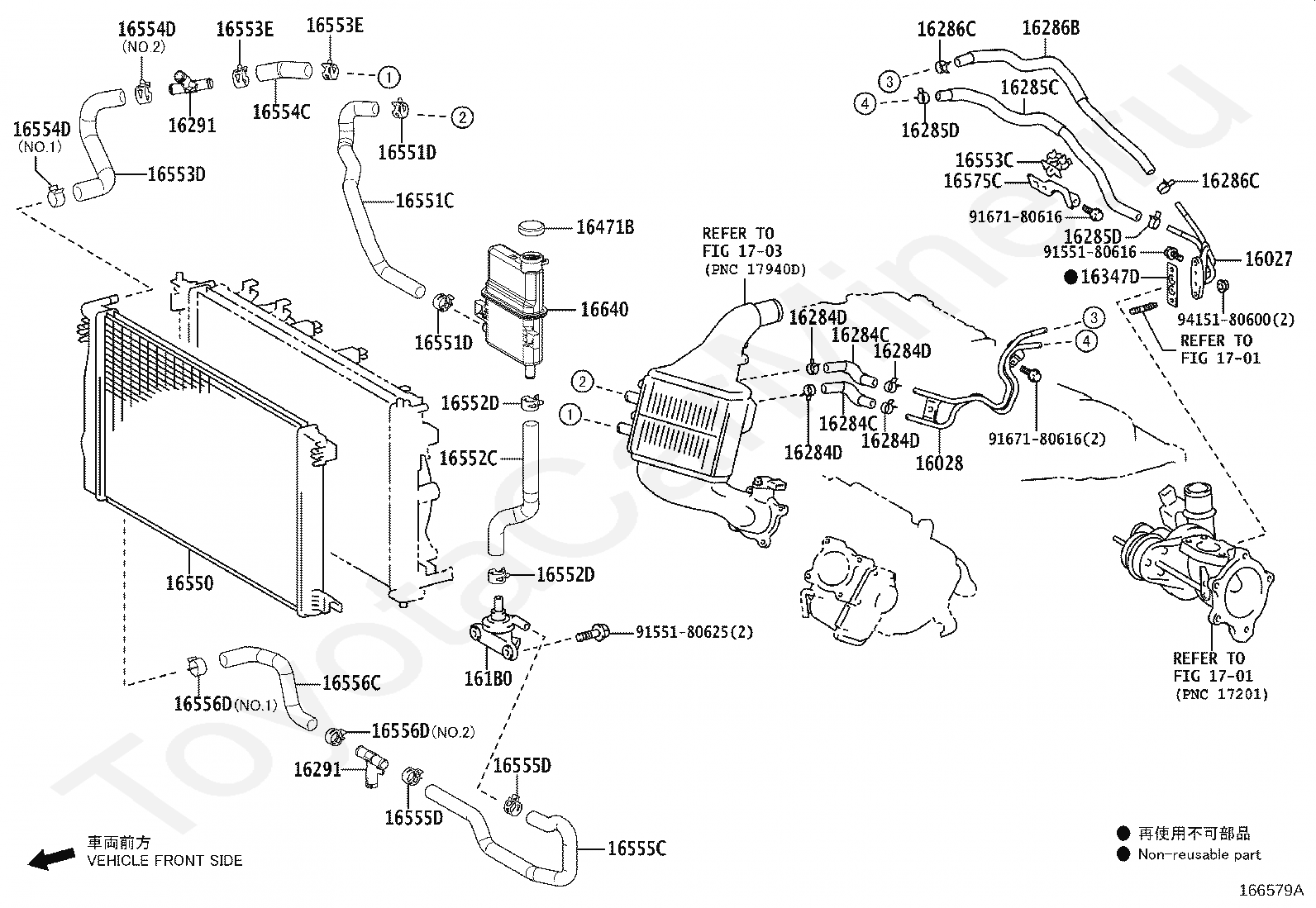

Код
Описание
16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16028
PIPE SUB-ASSY, TURBO WATER, NO.2
161B0
PUMP ASSY, ELECTRIC WATER
16284C
HOSE, INTERCOOLER WATER, NO.1
16284D
CLIP(FOR INTERCOOLER WATER HOSE NO.1)
16285C
HOSE, INTERCOOLER WATER, NO.2
16285D
CLIP(FOR INTERCOOLER WATER HOSE NO.2)
16286B
HOSE, INTERCOOLER WATER, NO.3
16286C
CLIP(FOR INTERCOOLER WATER HOSE NO.3)
16291
JOINT, WATER HOSE
16347D
GASKET, WATER BY-PASS
16471B
CAP, RESERVE TANK
16550
RADIATOR ASSY, INTERCOOLER COOLING
16551C
HOSE, INTERCOOLER COOLING WATER, NO.1
16551D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C
HOSE, INTERCOOLER COOLING WATER, NO.2
16552D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16553C
CLAMP, HOSE
16553D
HOSE, INTERCOOLER COOLING WATER, NO.3
16553E
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554C
HOSE, INTERCOOLER COOLING WATER, NO.4
16554D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C
HOSE, INTERCOOLER COOLING WATER, NO.5
16555D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C
HOSE, INTERCOOLER COOLING WATER, NO.6
16556D
CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16575C
BRACKET, WATER HOSE CLAMP, NO.1
16640
TANK ASSY, INTERCOOLER RESERVE
1701
переход к группе запчастей
1703
переход к группе запчастей
9155180616
Крепеж
9155180625
Крепеж
9167180616
Крепеж
9415180600
Крепеж

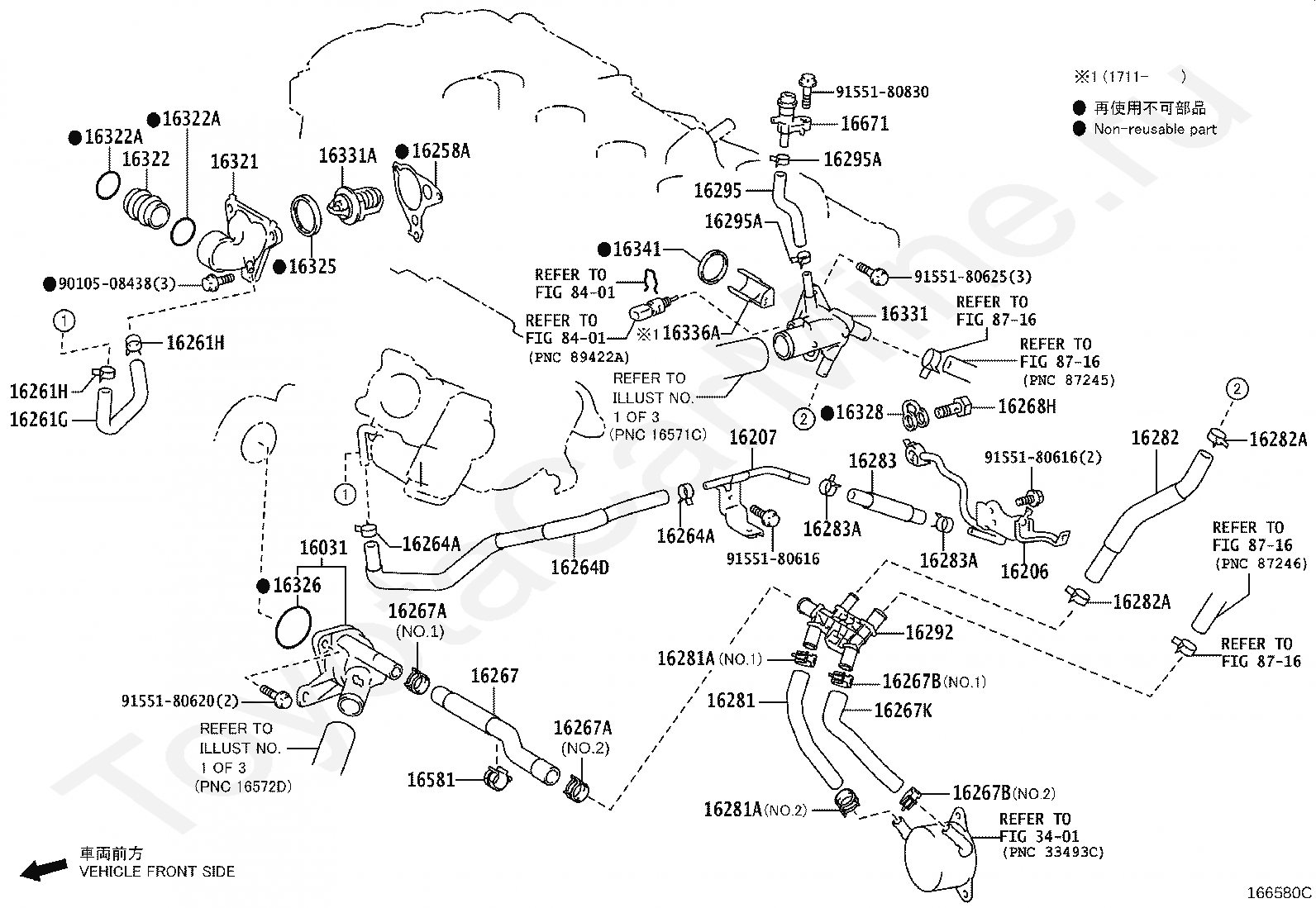

Код
Описание
16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16206
PIPE SUB-ASSY, WATER BY-PASS
16207
PIPE SUB-ASSY, WATER BY-PASS, NO.2
16258A
GASKET(FOR HEATER RETURN)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16267K
HOSE, WATER BY-PASS, NO.3
16268H
BOLT, UNION(FOR WATER BY-PASS PIPE)
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16292
JOINT, WATER HOSE, NO.2
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16321
INLET, WATER
16322
PIPE, WATER INLET
16322A
RING, O(FOR WATER INLET)
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16328
GASKET, WATER INLET PIPE
16331
OUTLET, WATER
16331A
THERMOSTAT
16336A
INSERT, WATER OUTLET
16341
GASKET, WATER OUTLET
16581
CLAMP, HOSE(FOR WATER HOSE)
16671
VALVE, WATER
3401
переход к группе запчастей
8401
переход к группе запчастей
8716
переход к группе запчастей
9010508438
Крепеж
9155180616
Крепеж
9155180620
Крепеж
9155180625
Крепеж
9155180830
Крепеж
