Каталог
ЕвропаМодель
C-HRДвигатель
1,8 литра, 16 клапанов, DOHC, EFIФрейм
ZYX10Трансмиссия
вариаторОпции
левый руль N(MODEL MARK) Европа 660W

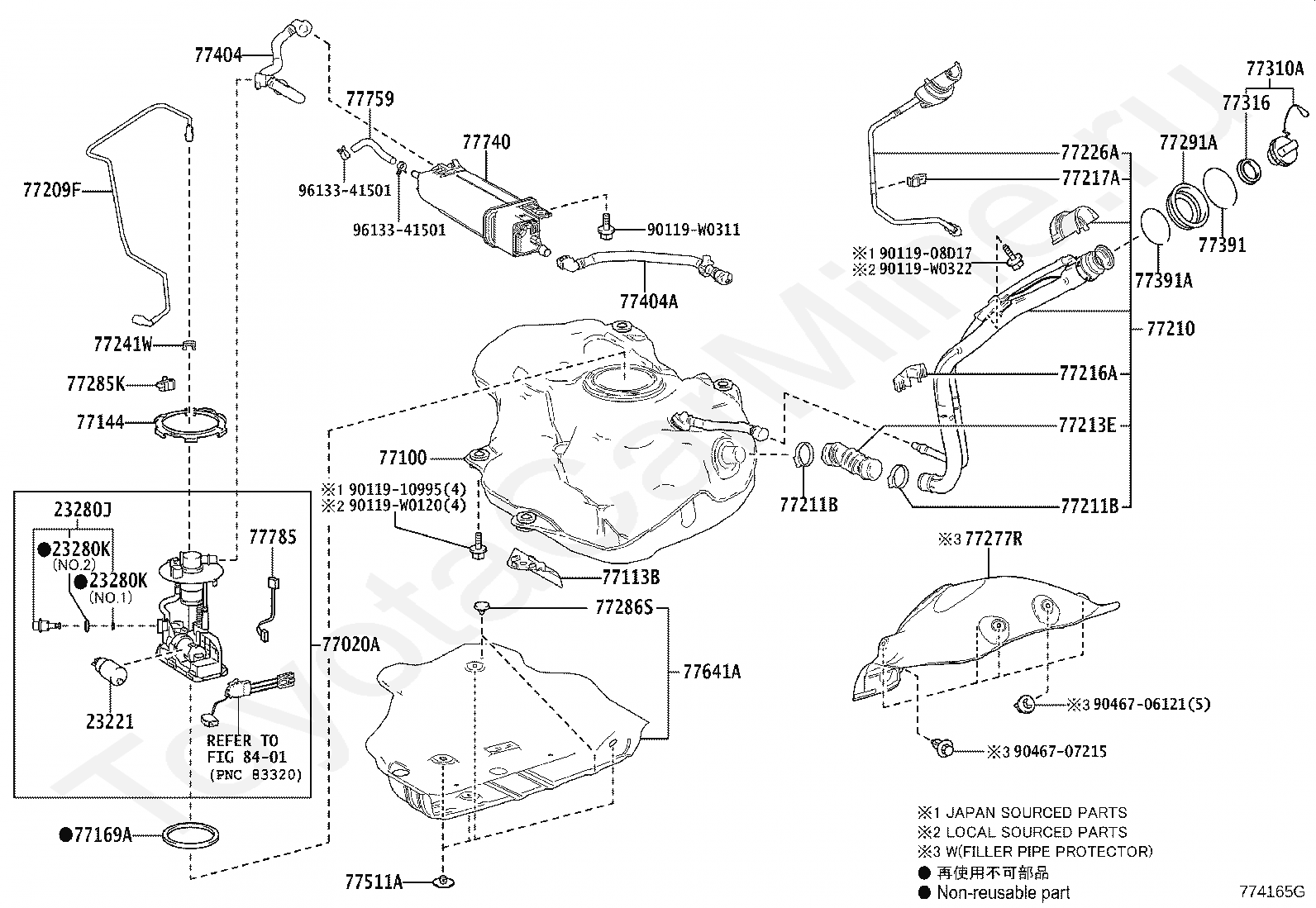

Код
Описание
23221
PUMP, FUEL
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77100
TANK ASSY, FUEL
77113B
PLATE, FUEL TANK SIDE
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77210
PIPE ASSY, FUEL TANK FILLER
77211B
CLAMP (FOR FUEL FILLER PIPE)
77213E
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77226A
TUBE, FUEL TANK BREATHER, NO.6
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77285K
CLAMP, FUEL TUBE, NO.1
77286S
CUSHION, FUEL TANK PROTECTOR
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77404
HOSE SUB-ASSY, FUEL TANK VENT
77404A
HOSE SUB-ASSY, FUEL TANK VENT
77511A
BRACKET, FUEL TANK
77641A
PROTECTOR, FUEL TANK, NO.1
77740
CANISTER ASSY, CHARCOAL
77759
HOSE, CHARCOAL CANISTER
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9011910995
Крепеж
90119W0120
Крепеж
90119W0311
Крепеж
90119W0322
Крепеж
9046706121
Крепеж
9046707215
Крепеж
9613341501
Крепеж

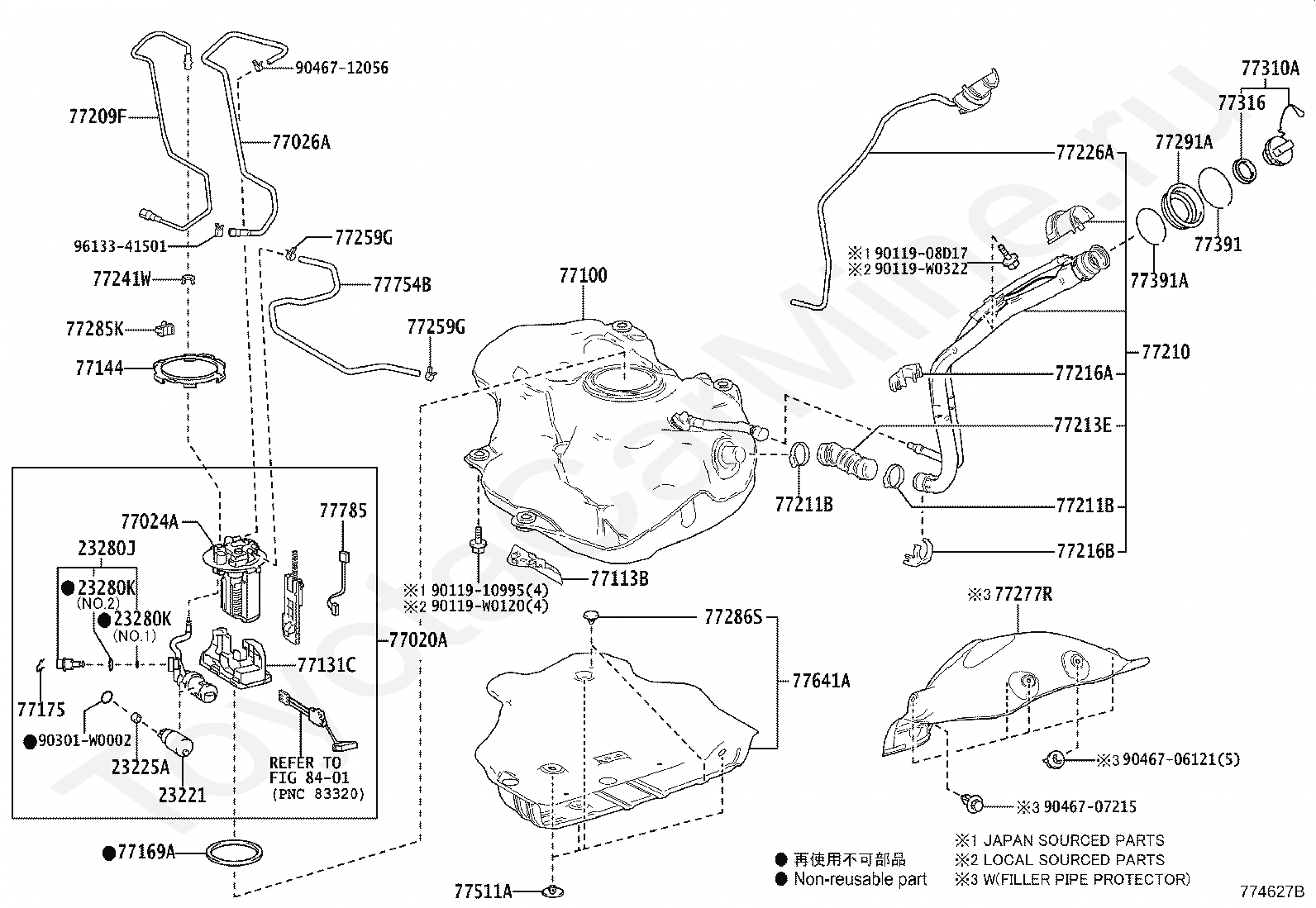

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77113B
PLATE, FUEL TANK SIDE
77131C
SUB-TANK, FUEL, NO.1
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77210
PIPE ASSY, FUEL TANK FILLER
77211B
CLAMP (FOR FUEL FILLER PIPE)
77213E
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216B
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77226A
TUBE, FUEL TANK BREATHER, NO.6
77241W
CLIP, TUBE JOINT
77259G
CLIP, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77285K
CLAMP, FUEL TUBE, NO.1
77286S
CUSHION, FUEL TANK PROTECTOR
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
77641A
PROTECTOR, FUEL TANK, NO.1
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9011910995
Крепеж
90119W0120
Крепеж
90119W0322
Крепеж
90301W0002
Крепеж
9046706121
Крепеж
9046707215
Крепеж
9046712056
Крепеж
9613341501
Крепеж

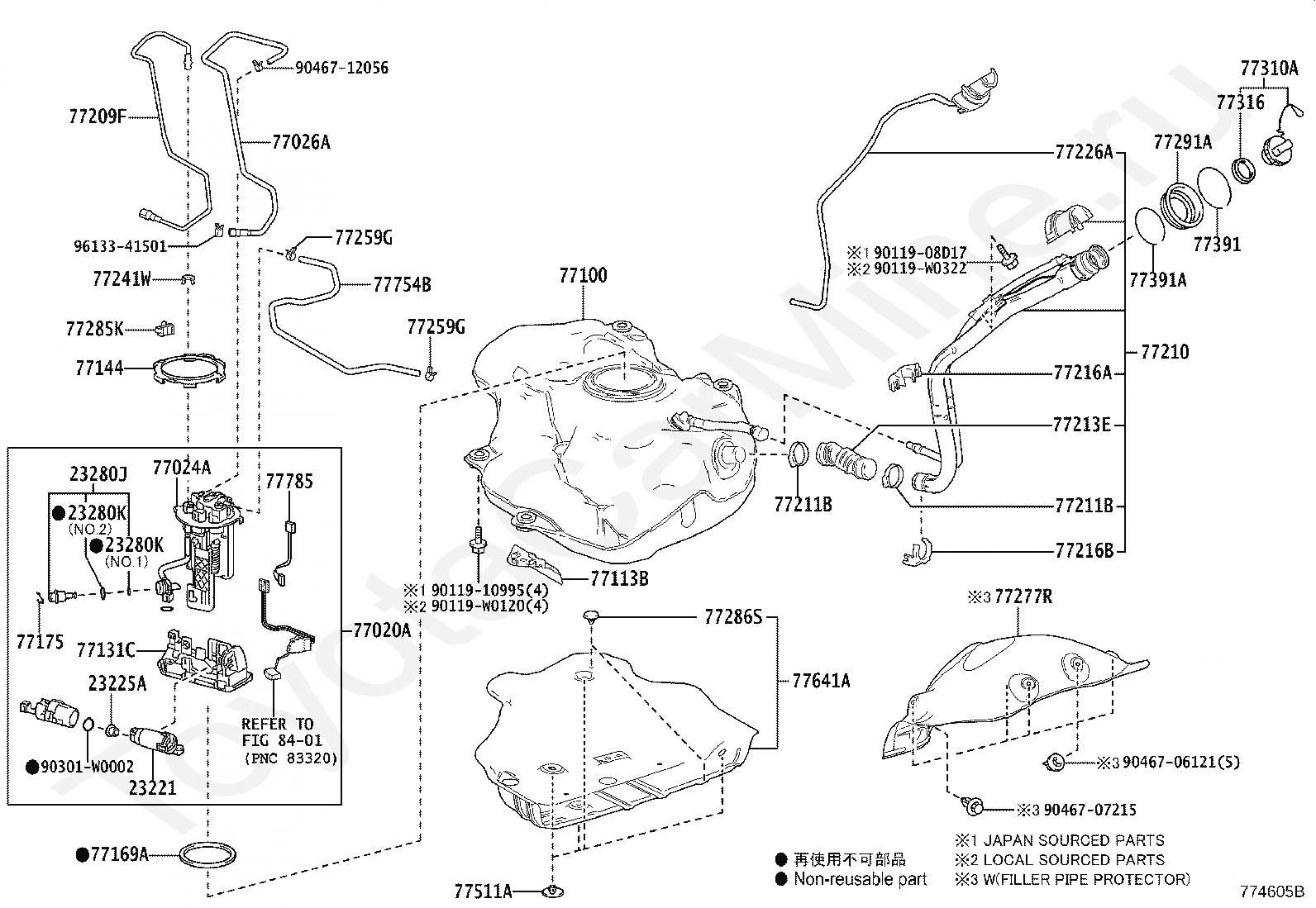

Код
Описание
23221
PUMP, FUEL
23225A
SPACER, FUEL PUMP
23280J
REGULATOR ASSY, FUEL PRESSURE
23280K
RING, O(FOR FUEL PRESSURE REGULATOR)
77020A
TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100
TANK ASSY, FUEL
77113B
PLATE, FUEL TANK SIDE
77131C
SUB-TANK, FUEL, NO.1
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77209F
TUBE SUB-ASSY, FUEL TANK MAIN
77210
PIPE ASSY, FUEL TANK FILLER
77211B
CLAMP (FOR FUEL FILLER PIPE)
77213E
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216B
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77226A
TUBE, FUEL TANK BREATHER, NO.6
77241W
CLIP, TUBE JOINT
77259G
CLIP, FUEL HOSE
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77285K
CLAMP, FUEL TUBE, NO.1
77286S
CUSHION, FUEL TANK PROTECTOR
77291A
SHIELD, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77511A
BRACKET, FUEL TANK
77641A
PROTECTOR, FUEL TANK, NO.1
77754B
HOSE, CHARCOAL CANISTER OUTLET
77785
HARNESS, FUEL PUMP
8401
переход к группе запчастей
9011908D17
Крепеж
9011910995
Крепеж
90119W0120
Крепеж
90119W0322
Крепеж
90301W0002
Крепеж
9046706121
Крепеж
9046707215
Крепеж
9046712056
Крепеж
9613341501
Крепеж

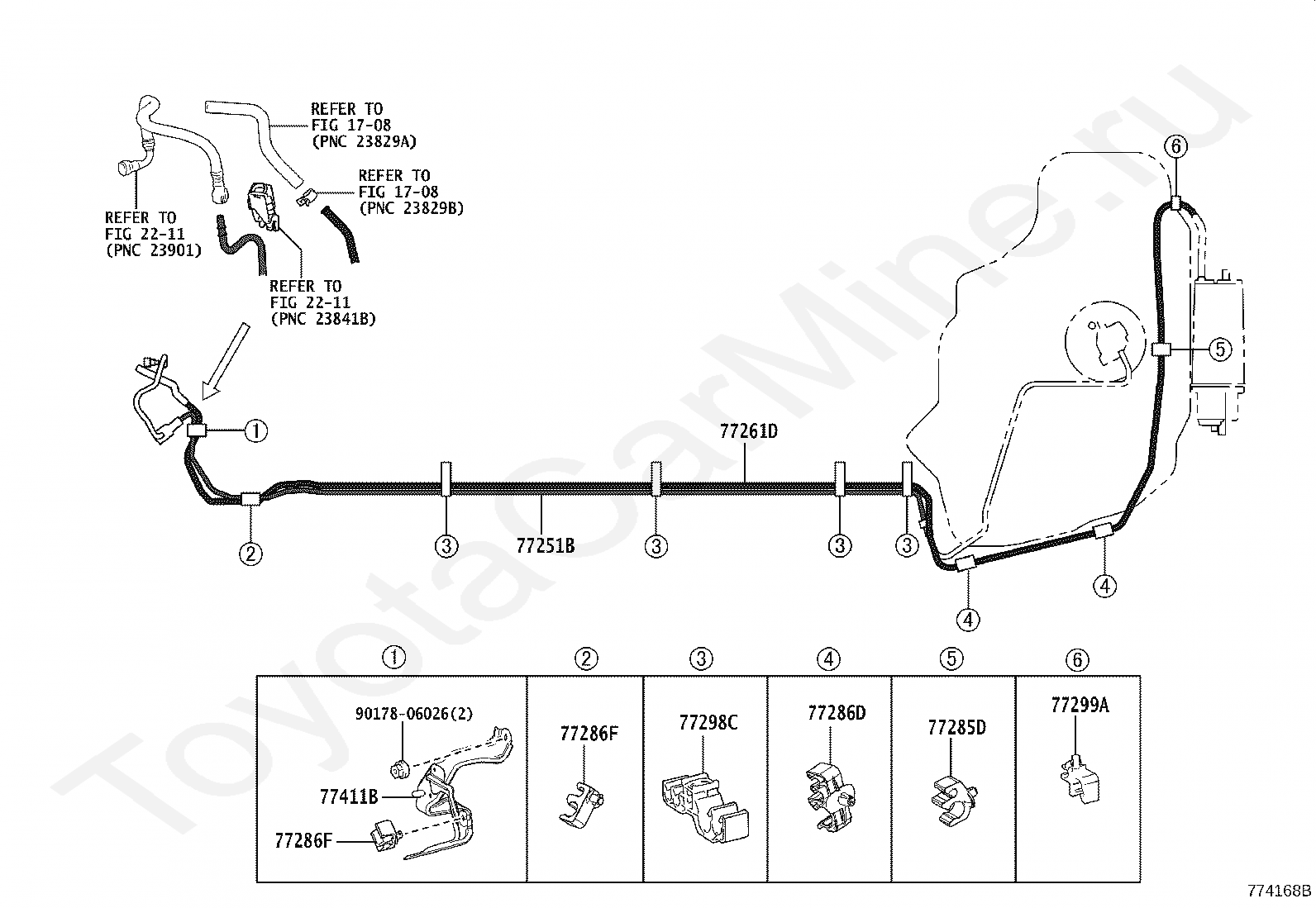

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77285D
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286F
CLAMP, FUEL TUBE, NO.2
77298C
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
9017806026
Крепеж

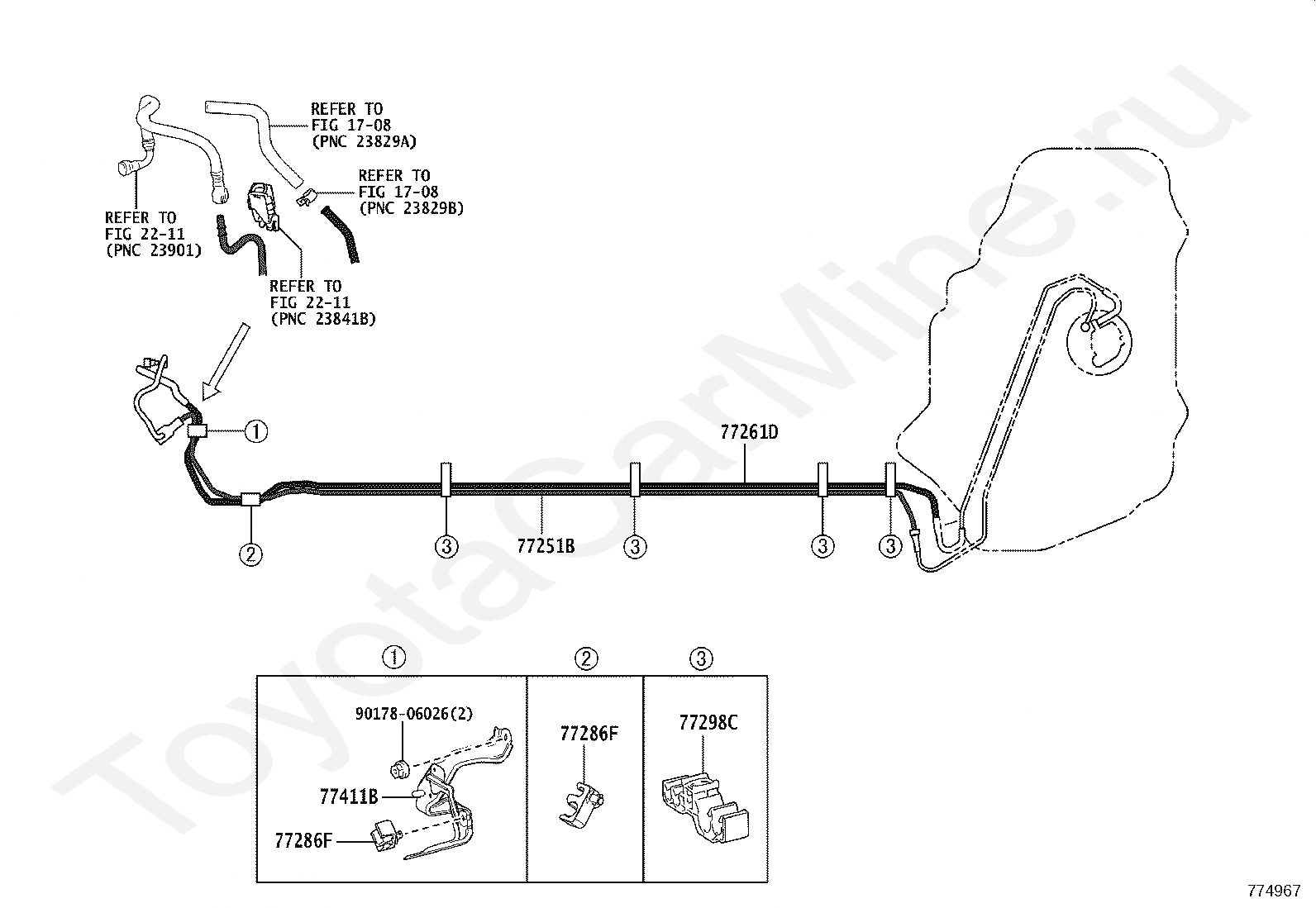

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77286F
CLAMP, FUEL TUBE, NO.2
77298C
CLAMP, FUEL TUBE, NO.4
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
9017806026
Крепеж
Код
Описание
77030A
LOCK ASSY, FUEL LID W/MOTOR
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77379
SPACER, FUEL INLET BOX COVER, NO.2
77399A
COVER, FUEL FILLER OPENING LID
9026906017
Крепеж
9054106070
Крепеж
