Каталог
ЯпонияМодель
BLIZZARDДвигатель
2,4 литра, дизельКузов
DECELERATION CONTROL SYSTEMКласс
DELUX SPECIFICATIONФрейм
LD20Трансмиссия
МКПП, 5 скоростейОпции
4-местный дизель

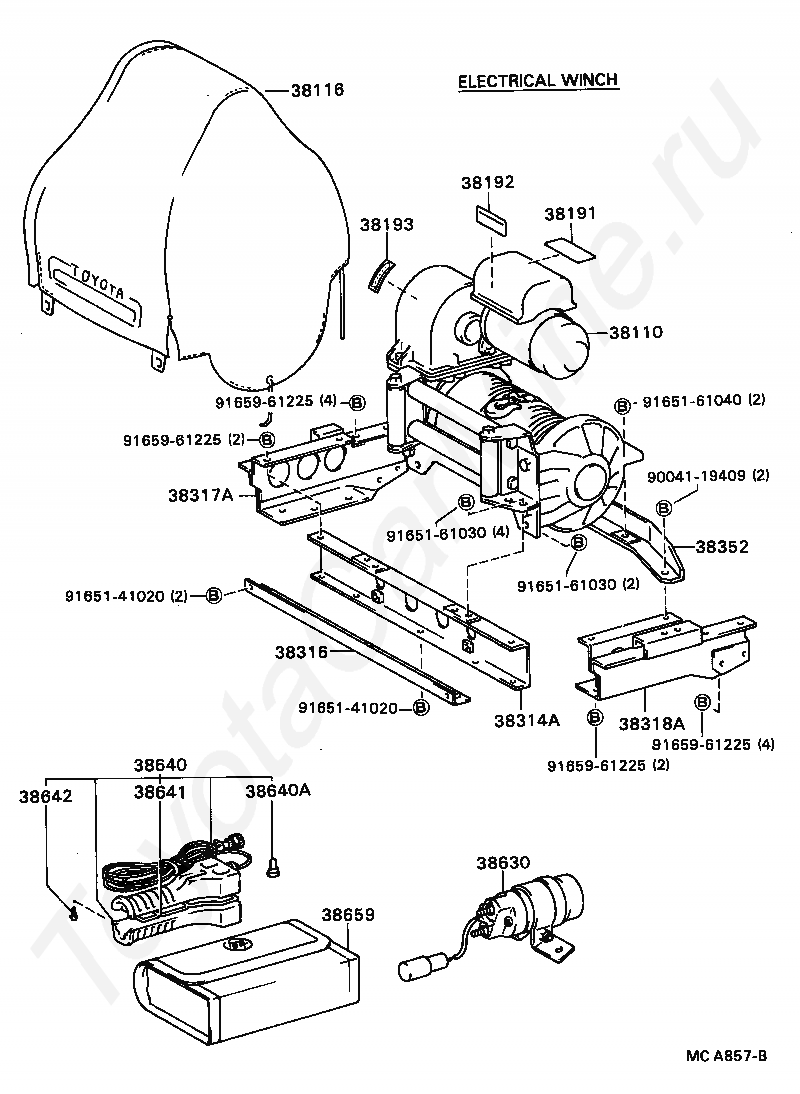

Код
Описание
38110
WINCH ASSY
38116
COVER, WINCH
38191
PLATE, WINCH CAUTION, NO.1
38192
PLATE, WINCH CAUTION, NO.2
38193
PLATE, WINCH CAUTION, NO.3
38314A
CROSSMEMBER, WINCH SUPPORT, FRONT
38316
REINFORCEMENT, WINCH SUPPORT, FRONT
38317A
EXTENSION, WINCH SUPPORT, RH
38318A
EXTENSION, WINCH SUPPORT, LH
38352
SUPPORT, WINCH BASE
38630
SWITCH ASSY, MAGNET, NO.1
38640
SWITCH ASSY, WINCH CONTROL
38640A
BULB (FOR WINCH CONTROL SWITCH)
38641
GASKET (FOR WINCH CONTROL SWITCH)
38642
SCREW (FOR WINCH CONTROL SWITCH)
38659
COVER, WINCH CONTROL SWITCH
9004119409
Крепеж
9165141020
Крепеж
9165161030
Крепеж
9165161040
Крепеж
9165961225
Крепеж

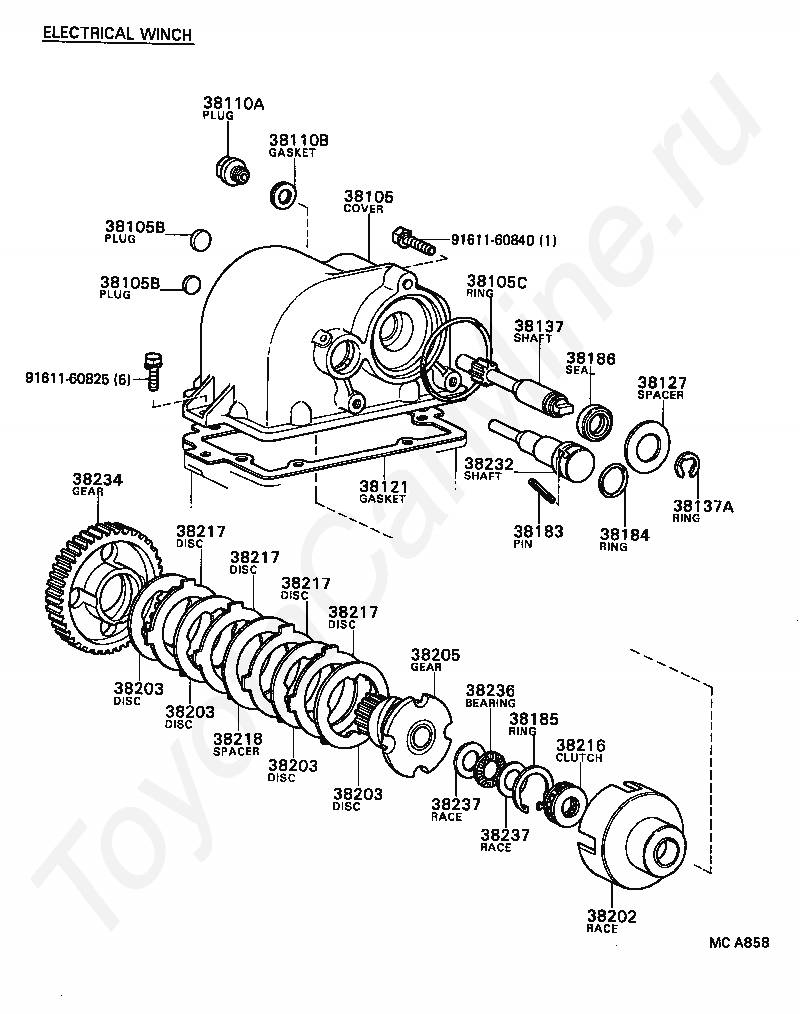

Код
Описание
38105
COVER SUB-ASSY, WINCH GEAR CASE
38105B
PLUG, TIGHT (FOR WINCH GEAR CASE COVER)
38105C
RING, O (FOR WINCH GEAR CASE COVER)
38110A
PLUG, FILLER
38110B
GASKET (FOR FILLER PLUG)
38121
GASKET, WINCH GEAR CASE COVER
38127
SPACER, INPUT SHAFT
38137
SHAFT, WINCH INPUT
38137A
RING, E (FOR WINCH INPUT SHAFT)
38183
PIN, BRAKE SHAFT LOCK
38184
RING, BRAKE SHAFT, O
38185
RING, CLUTCH OUTER RACE SNAP
38186
SEAL, GEAR CASE COVER OIL
38202
RACE SUB-ASSY, CLUTCH, OUTER
38203
DISC SUB-ASSY, WINCH CLUTCH, INNER
38205
GEAR SUB-ASSY, BRAKE SHAFT DRIVEN
38216
CLUTCH, WINCH 1 WAY
38217
DISC, WINCH CLUTCH, OUTER
38218
SPACER, CLUTCH DISC
38232
SHAFT, WINCH BRAKE
38234
GEAR, BRAKE SHAFT DRIVE
38236
BEARING, GEAR THRUST
38237
RACE, GEAR THRUST BEARING
9161160825
Крепеж
9161160840
Крепеж

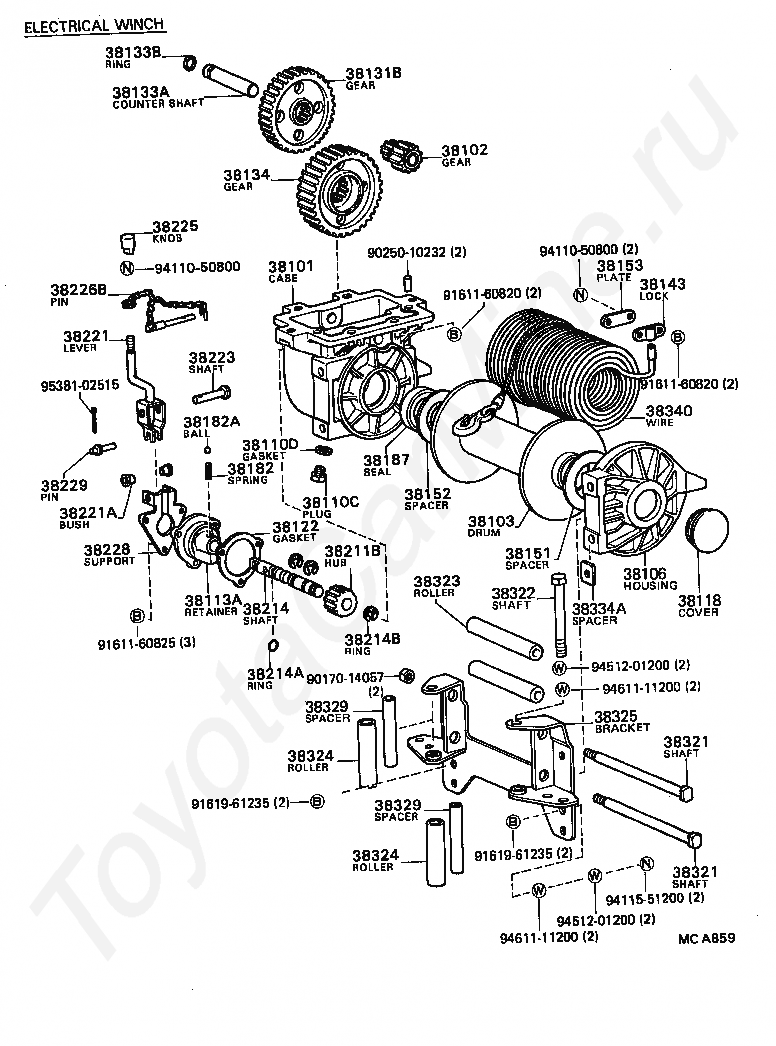

Код
Описание
38101
CASE SUB-ASSY, WINCH GEAR
38102
GEAR SUB-ASSY, COUNTERSHAFT
38103
DRUM SUB-ASSY, WINCH
38106
HOUSING SUB-ASSY, WINCH DRUM
38110C
PLUG, DRAIN
38110D
GASKET (FOR DRAIN PLUG)
38113A
RETAINER, SHIFT SHAFT
38118
COVER, WINCH DRUM HOUSING
38122
GASKET, SHIFT SHAFT RETAINER
38131B
GEAR, COUNTER, NO.1
38133A
COUNTER SHAFT
38133B
RING, O (FOR COUNTER SHAFT)
38134
GEAR, WINCH OUTPUT
38143
LOCK, WIRE
38151
SPACER, WINCH DRUM, NO.1
38152
SPACER, WINCH DRUM, NO.2
38153
PLATE, WIRE LOCK
38182
SPRING, SHIFT LOCK
38182A
BALL (FOR SHIFT LOCK SPRING)
38187
SEAL, GEAR CASE OIL
38211B
HUB, WINCH CLUTCH
38214
SHIM, WINCH WORM ADJUST, NO.2
38214A
RING, O (FOR CLUTCH HUB SHIFT SHAFT)
38214B
RING, E (FOR CLUTCH HUB SHIFT SHAFT)
38221
LEVER, CLUTCH HUB SHIFT
38221A
BUSH (FOR CLUTCH HUB SHIFT LEVER)
38223
SHAFT, CLUTCH SHIFT LEVER
38225
KNOB, WINCH CLUTCH LEVER
38226B
PIN, CLUTCH SHIFT LEVER LOCK
38228
SUPPORT, CLUTCH SHIFT LEVER
38229
PIN, CLUTCH SHIFT LEVER
38321
SHAFT, WINCH ROLLER
38322
SHAFT, WINCH ROLLER, NO.2
38323
ROLLER, WINCH WIRE GUIDE, NO.1
38324
ROLLER, WINCH WIRE GUIDE, NO.2
38325
BRACKET, WINCH ROLLER, NO.1
38329
SPACER, WINCH WIRE GUIDE ROLLER
38334A
SPACER, REAR MEMBER
38340
WIRE ASSY, WINCH CHAIN
9017014057
Крепеж
9025010232
Крепеж
9161160820
Крепеж
9161160825
Крепеж
9161961235
Крепеж
9411050800
Крепеж
9411551200
Крепеж
9451201200
Крепеж
9461111200
Крепеж
9538102515
Крепеж

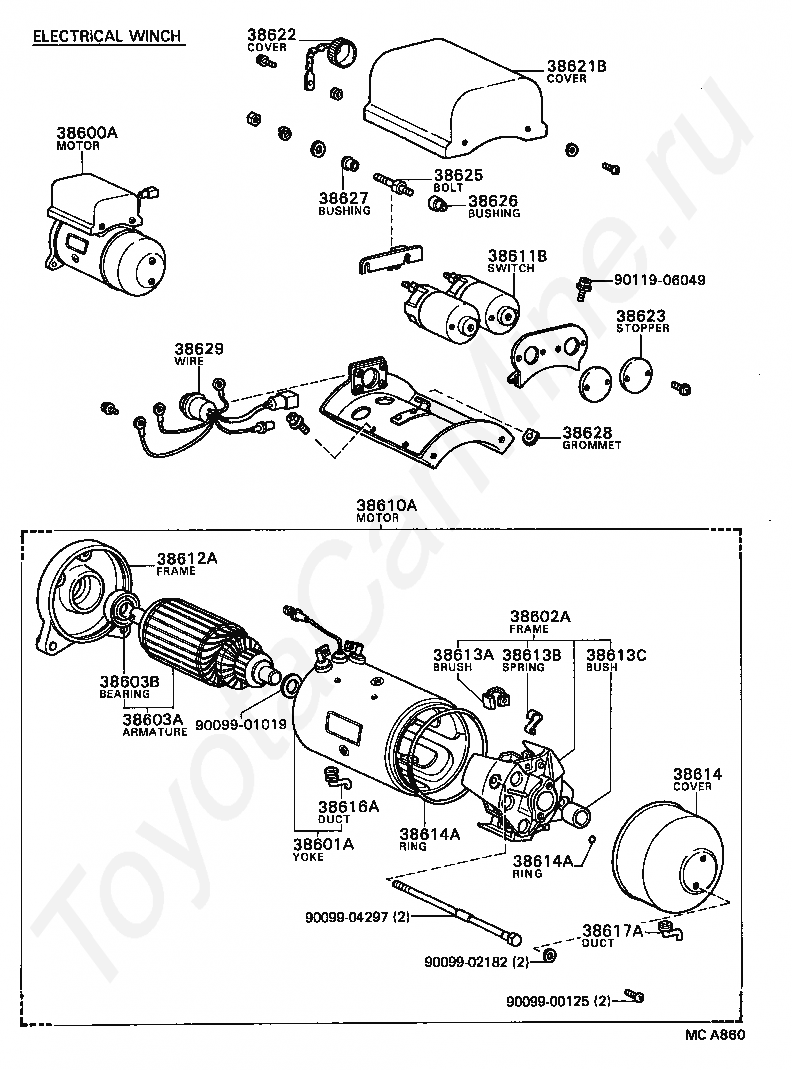

Код
Описание
38600A
MOTOR ASSY, W/MAGNET SWITCH, WINCH
38601A
YOKE SUB-ASSY, WINCH MOTOR
38602A
FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER)
38603A
ARMATURE SUB-ASSY, WINCH MOTOR
38603B
BEARING, NO.1 (FOR WINCH MOTOR ARMATURE)
38610A
MOTOR ASSY, WINCH
38611B
SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)
38612A
FRAME, WINCH MOTOR END
38613A
BRUSH, WINCH MOTOR
38613B
SPRING, WINCH MOTOR BRUSH
38613C
BUSH (FOR WINCH MOTOR)
38614
COVER, COMMUTATOR WINCH
38614A
RING, O(FOR WINCH MOTOR)
38616A
DUCT, YOKE WINCH
38617A
DUCT, COVER WINCH
38621B
COVER, MAGNET SWITCH WINCH
38622
COVER, CONNECTOR WINCH
38623
STOPPER, WINCH MOTOR
38625
BOLT, STUD WINCH MOTOR
38626
BUSHING, STEPPED FEMALE WINCH MOTOR
38627
BUSHING, STEPPED MALE WINCH MOTOR
38628
GROMET, WINCH
38629
WIRE, WINCH MOTOR
9009900125
Крепеж
9009901019
Крепеж
9009902182
Крепеж
9009904297
Крепеж
9011906049
Крепеж

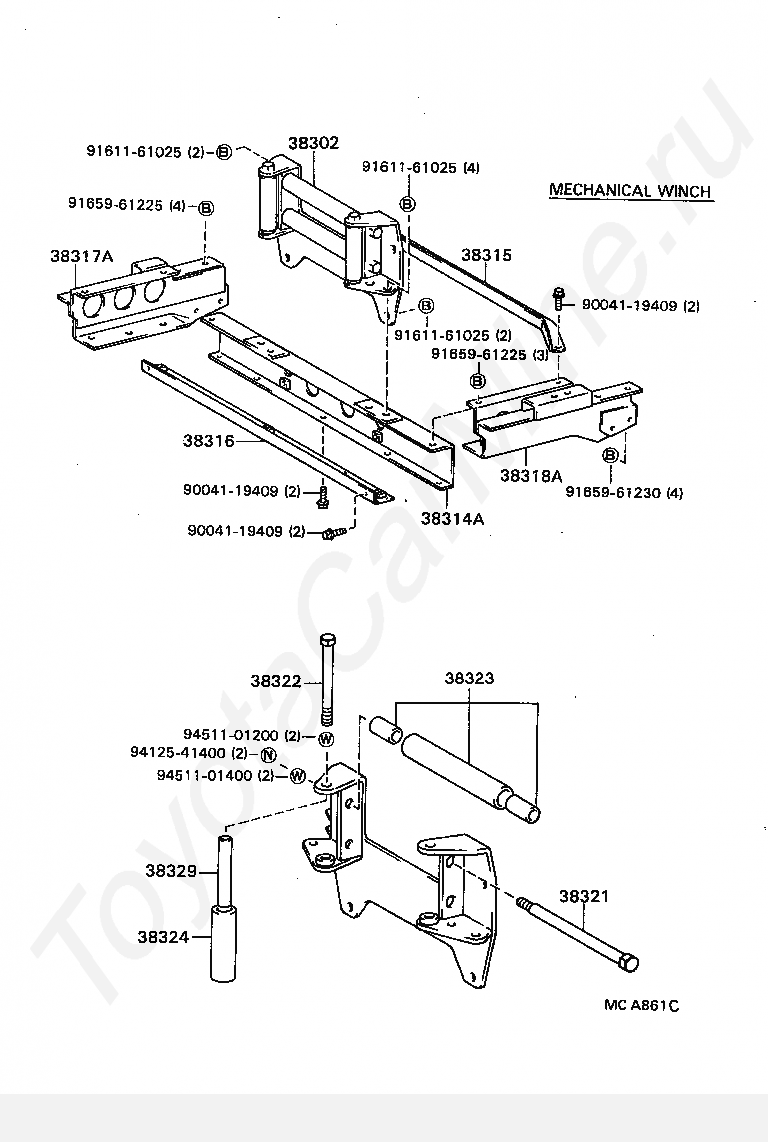

Код
Описание
38302
ROLLER SUB-ASSY, WINCH WIRE GUIDE
38314A
CROSSMEMBER, WINCH SUPPORT, FRONT
38315
CROSSMEMBER, WINCH SUPPORT, REAR
38316
REINFORCEMENT, WINCH SUPPORT, FRONT
38317A
EXTENSION, WINCH SUPPORT, RH
38318A
EXTENSION, WINCH SUPPORT, LH
38321
SHAFT, WINCH ROLLER
38322
SHAFT, WINCH ROLLER, NO.2
38323
ROLLER, WINCH WIRE GUIDE, NO.1
38324
ROLLER, WINCH WIRE GUIDE, NO.2
38329
SPACER, WINCH WIRE GUIDE ROLLER
9004119409
Крепеж
9161161025
Крепеж
9165961225
Крепеж
9165961230
Крепеж
9412541400
Крепеж
9451101200
Крепеж
9451101400
Крепеж

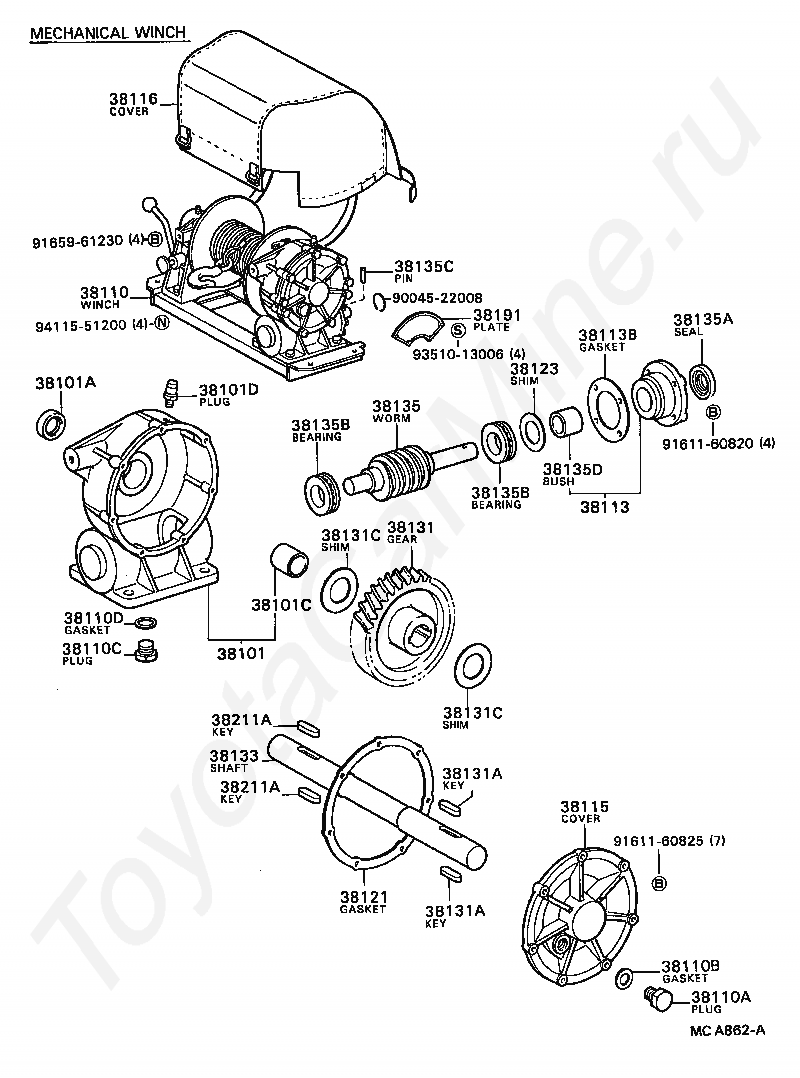

Код
Описание
38101
CASE SUB-ASSY, WINCH GEAR
38101A
SEAL, TYPE T OIL (FOR WINCH GEAR CASE)
38101C
BUSH, SOLID (FOR WINCH GEAR CASE)
38101D
PLUG, BREATHER (FOR WINCH GEAR CASE)
38110
WINCH ASSY
38110A
PLUG, FILLER
38110B
GASKET (FOR FILLER PLUG)
38110C
PLUG, DRAIN
38110D
GASKET (FOR DRAIN PLUG)
38113
RETAINER, WORM BEARING
38113B
GASKET, WORM BEARING REATAINER
38115
COVER, WINCH GEAR CASE
38116
COVER, WINCH
38121
GASKET, WINCH GEAR CASE COVER
38123
SHIM, ADJUST
38131
GEAR, WORM
38131A
KEY, SLIDING (FOR WINCH WORM GEAR)
38131C
SHIM, WORM GEAR
38133
SHAFT, WORM GEAR
38135
WORM, WINCH
38135A
SEAL, TYPE T OIL (FOR WINCH WORM)
38135B
BEARING (FOR WINCH WORM)
38135C
PIN, SAFETY LOCK
38135D
BUSH (FOR WINCH WORM)
38191
PLATE, WINCH CAUTION, NO.1
38211A
KEY, WINCH CLUTCH
9004522008
Крепеж
9161160820
Крепеж
9161160825
Крепеж
9165961230
Крепеж
9351013006
Крепеж
9411551200
Крепеж

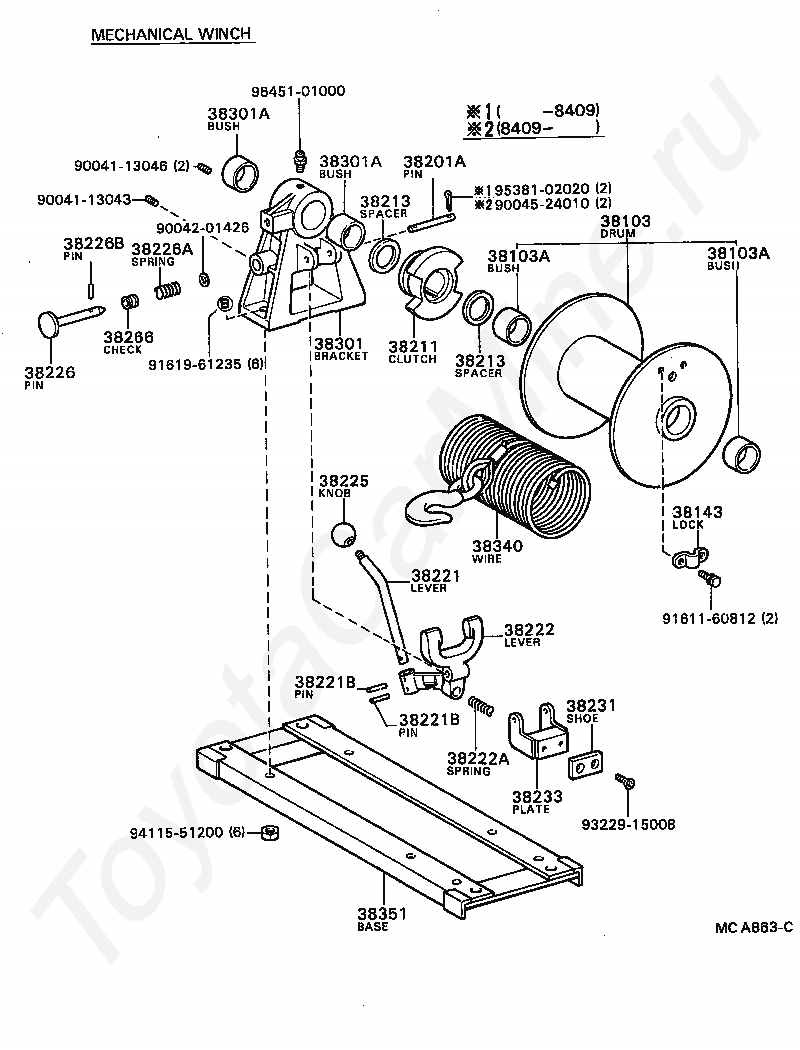

Код
Описание
38103
DRUM SUB-ASSY, WINCH
38103A
BUSH (FOR WINCH DRUM)
38143
LOCK, WIRE
38201A
PIN, WINCH CLUTCH LEVER
38211
CLUTCH, WINCH
38213
SPACER, CLUTCH FEATHER KEY
38221
LEVER, CLUTCH HUB SHIFT
38221B
PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER)
38222
LEVER, WINCH CLUTCH, LOWER
38222A
SPRING (FOR WINCH CLUTCH LOWER LEVER)
38225
KNOB, WINCH CLUTCH LEVER
38226
PIN, LEVER SHIFT LOCK
38226A
SPRING, LEVER SHIFT LOCK PIN
38226B
PIN, CLUTCH SHIFT LEVER LOCK
38231
SHOE, BRAKE
38233
PLATE, BRAKE
38266
CHECK, LEVER SHIFT LOCK
38301
BRACKET SUB-ASSY, WINCH END
38301A
BUSH (FOR WINCH END BRACKET)
38340
WIRE ASSY, WINCH CHAIN
38351
BASE, WINCH
9004113043
Крепеж
9004113046
Крепеж
9004201426
Крепеж
9004524010
Крепеж
9161160812
Крепеж
9161961235
Крепеж
9322915008
Крепеж
9411551200
Крепеж
9538102020
Крепеж
9645101000
Крепеж
