Кресла TOYOTA BLIZZARD, 1980/03 - 1982/10, L TYPE, V(MODEL MARK), DELUX SPECIFICATION, LD10, МКПП, 4 ступени

Каталог

Япония

Модель

BLIZZARD

Двигатель

L TYPE

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LD10

Трансмиссия

МКПП, 4 ступени

Опции

STEEL PLATE TOP TYPE 4-местный

Код

Описание

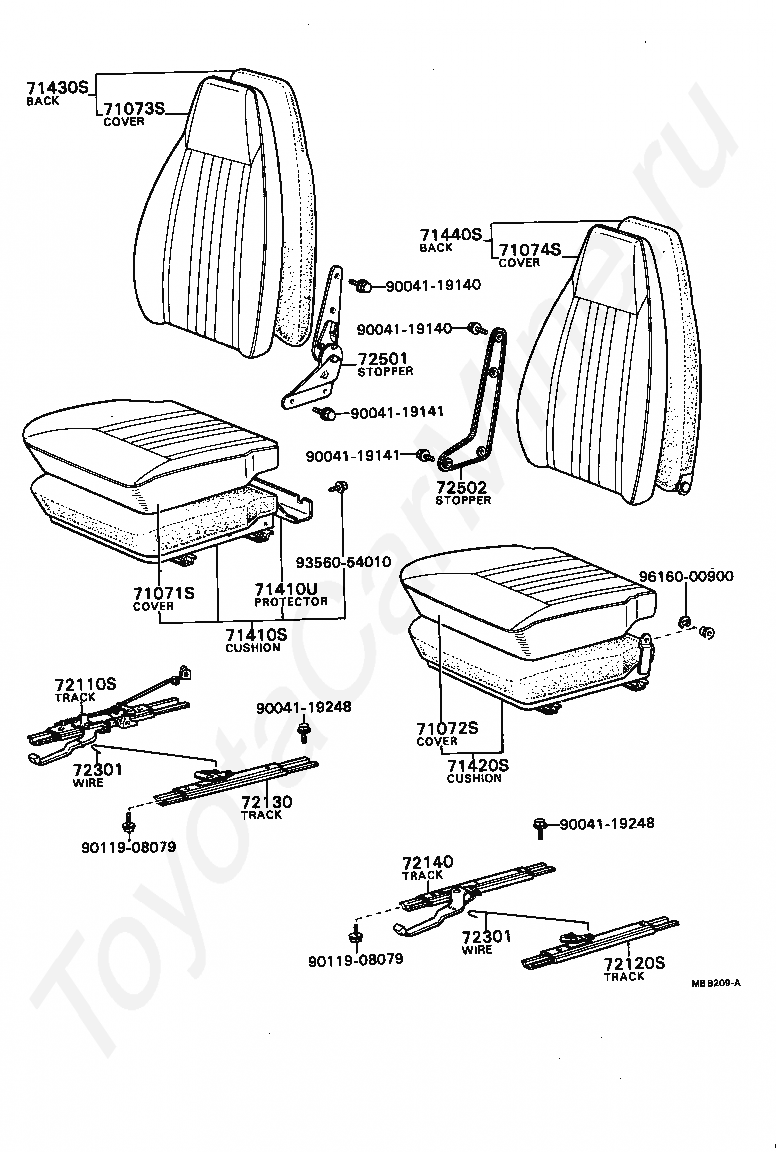

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71410U

PROTECTOR, FRONT SEAT CUSHION FRAME

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72140

TRACK ASSY, LH SEAT, INNER

72301

WIRE SUB-ASSY, SEAT TRACK EQUALIZING

72501

STOPPER ASSY, FRONT SEAT BACK, RH

72502

STOPPER ASSY, FRONT SEAT BACK, LH

9004119140

Крепеж

9004119141

Крепеж

9004119248

Крепеж

9011908079

Крепеж

9356054010

Крепеж

9616000900

Крепеж

Код

Описание

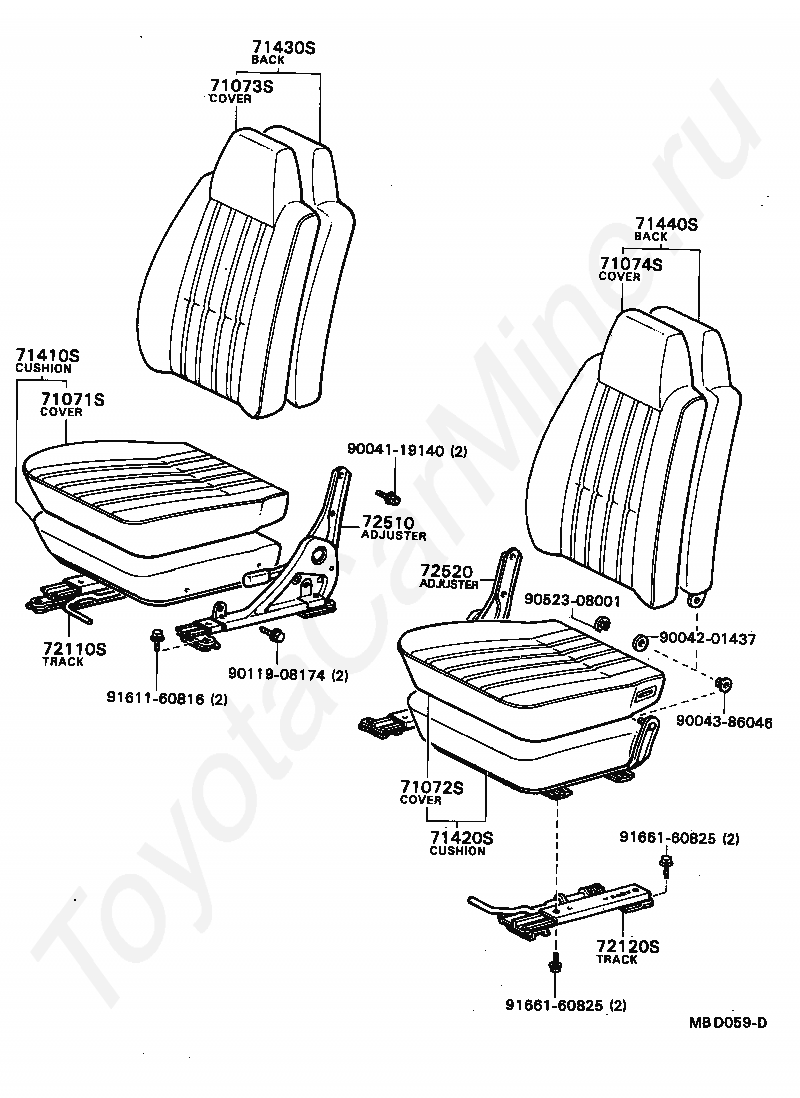

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

9004119140

Крепеж

9004201437

Крепеж

9004386046

Крепеж

9011908174

Крепеж

9052308001

Крепеж

9161160816

Крепеж

9166160825

Крепеж

Код

Описание

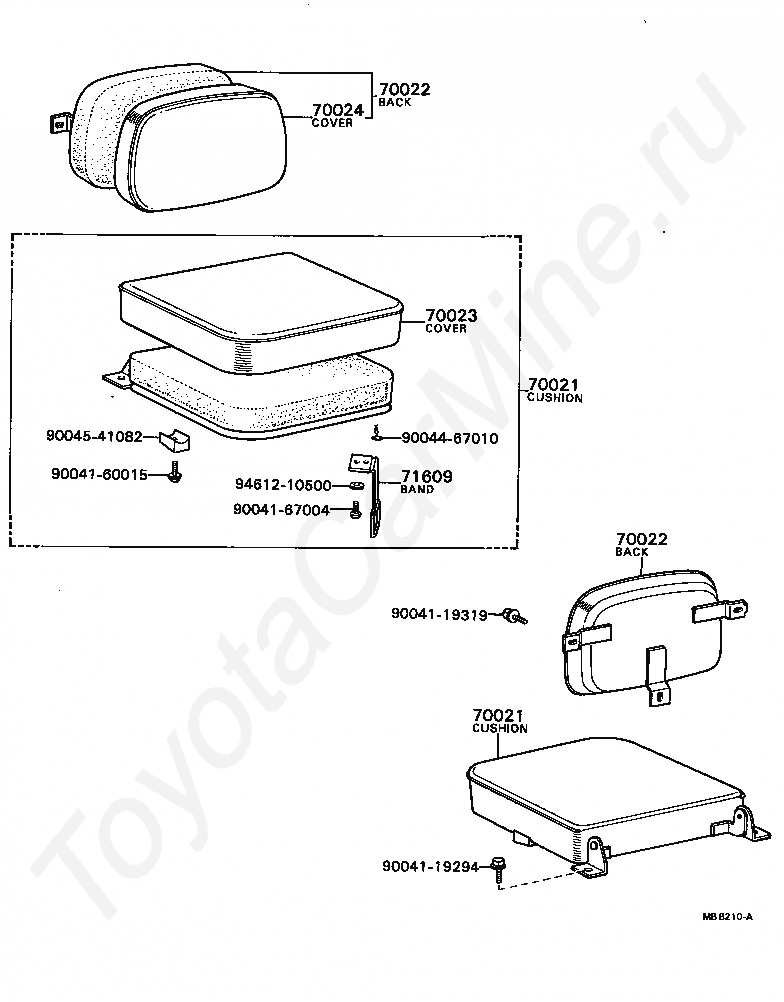

70021

CUSHION ASSY, NO.2 SEAT

70022

BACK ASSY, NO.2 SEAT

70023

COVER ASSY, NO.2 SEAT CUSHION

70024

COVER ASSY, NO.2 SEAT BACK

71609

BAND SUB-ASSY, REAR SIDE SEAT

9004119294

Крепеж

9004119319

Крепеж

9004160015

Крепеж

9004167004

Крепеж

9004467010

Крепеж

9004541082

Крепеж

9461210500

Крепеж

Кресла TOYOTA BLIZZARD, 1980/03 - 1982/10, L TYPE, V(MODEL MARK), DELUX SPECIFICATION, LD10, МКПП, 4 ступени
