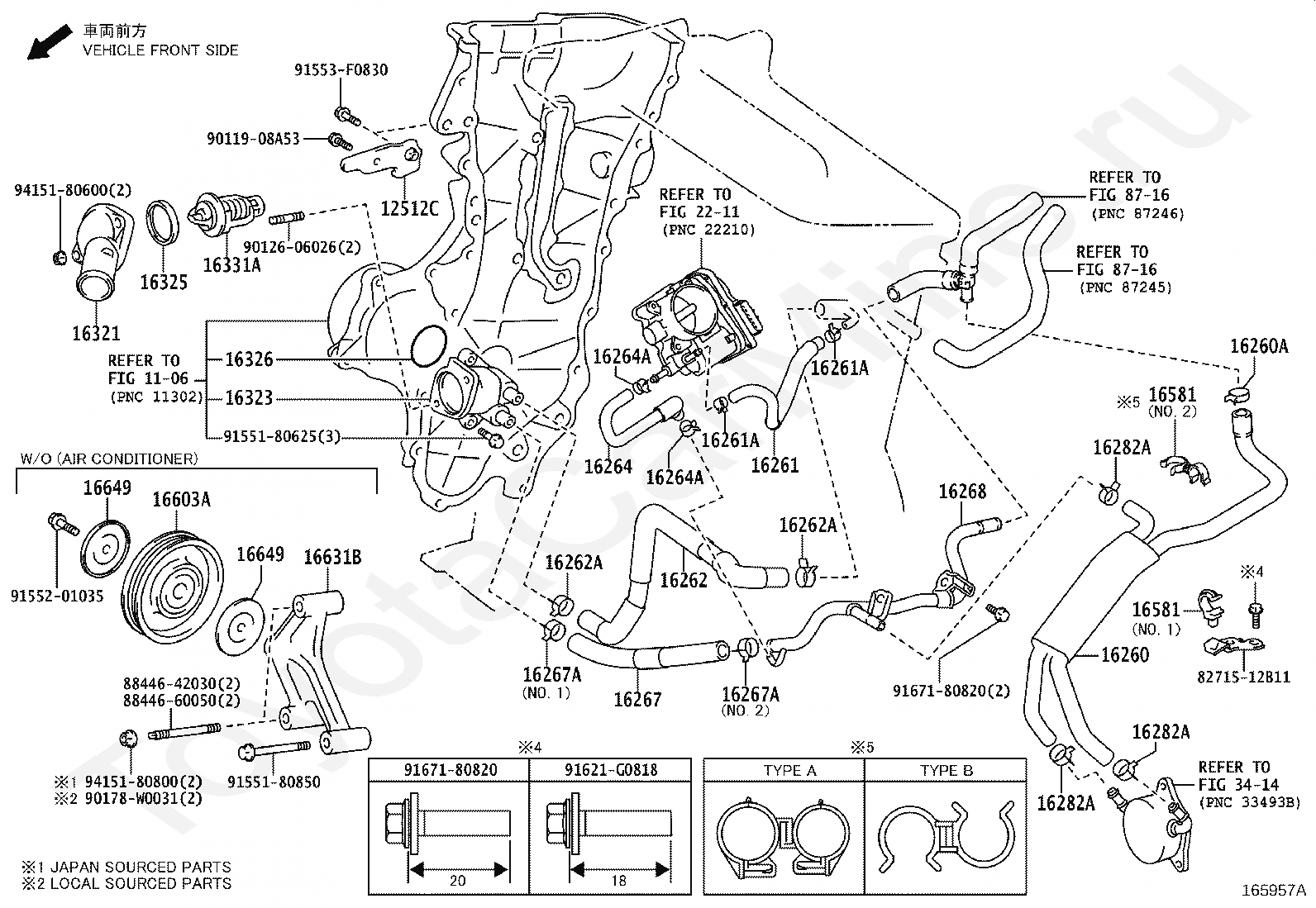

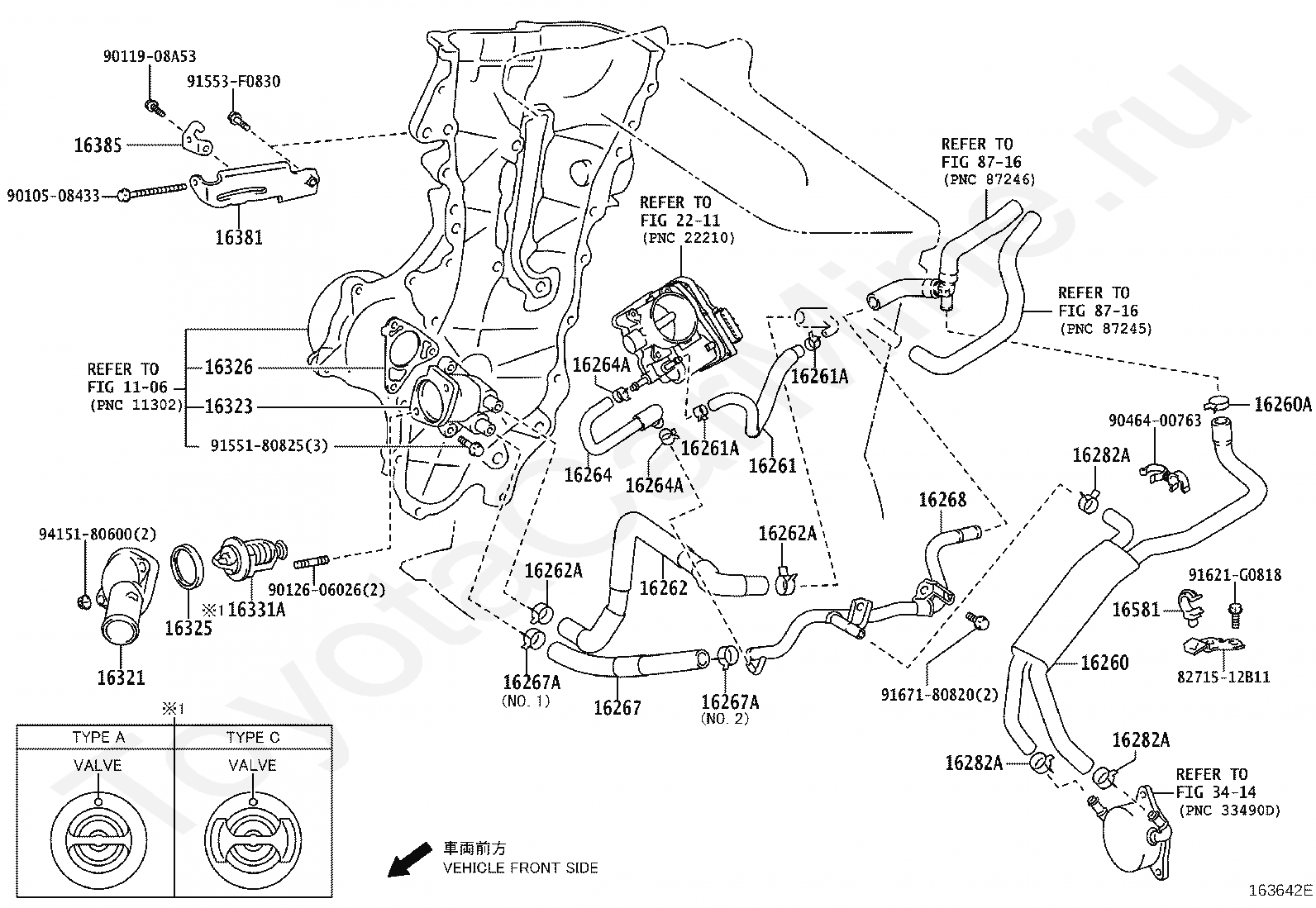

Радиатор и шланги TOYOTA AVENSIS, 2015/05 - 2018/07, 1,8 литра, 16 клапанов, DOHC, EFI, фургон, ZRT271, вариатор

Каталог

Европа

Модель

AVENSIS

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Фрейм

ZRT271

Трансмиссия

вариатор

Опции

правый руль HIGH EFFICIENCY TWIN CAM (VALVEMATIC) E(MODEL MARK) 626W

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267K

HOSE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471B

CAP, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

16577C

PIPE, RADIATOR

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

8401

переход к группе запчастей

8718

переход к группе запчастей

9009904119

Крепеж

9009904612

Крепеж

9009905164

Крепеж

9011906887

Крепеж

90119W0061

Крепеж

91673J0818

Крепеж

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267K

HOSE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471B

CAP, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

16577C

PIPE, RADIATOR

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

8401

переход к группе запчастей

8718

переход к группе запчастей

9009904119

Крепеж

9009904612

Крепеж

9009905164

Крепеж

9011906887

Крепеж

90119W0037

Крепеж

90119W0061

Крепеж

91673J0818

Крепеж

Код

Описание

1106

переход к группе запчастей

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16581

CLAMP, HOSE(FOR WATER HOSE)

2211

переход к группе запчастей

3414

переход к группе запчастей

8271512B11

Крепеж

8716

переход к группе запчастей

9010508433

Крепеж

9011908A53

Крепеж

9012606026

Крепеж

9046400763

Крепеж

9155180825

Крепеж

91553F0830

Крепеж

91621G0818

Крепеж

9167180820

Крепеж

9415180600

Крепеж

Код

Описание

1106

переход к группе запчастей

12512C

BRACKET, ALTERNATOR, NO.2

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16581

CLAMP, HOSE(FOR WATER HOSE)

16603A

PULLEY SUB-ASSY, IDLER, NO.1

16631B

BRACKET, IDLER PULLEY

16649

PLATE, IDLER PULLEY COVER

2211

переход к группе запчастей

3414

переход к группе запчастей

8271512B11

Крепеж

8716

переход к группе запчастей

8844642030

Крепеж

8844660050

Крепеж

9011908A53

Крепеж

9012606026

Крепеж

90178W0031

Крепеж

9155180625

Крепеж

9155180850

Крепеж

9155201035

Крепеж

91553F0830

Крепеж

91621G0818

Крепеж

9167180820

Крепеж

9415180600

Крепеж

9415180800

Крепеж
