Кресла TOYOTA AVANZA, 2022/01 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, S TYPE, W101, вариатор

Каталог

Ближний Восток

Модель

AVANZA

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Класс

S TYPE

Фрейм

W101

Трансмиссия

вариатор

Опции

левый руль Филиппины D33H

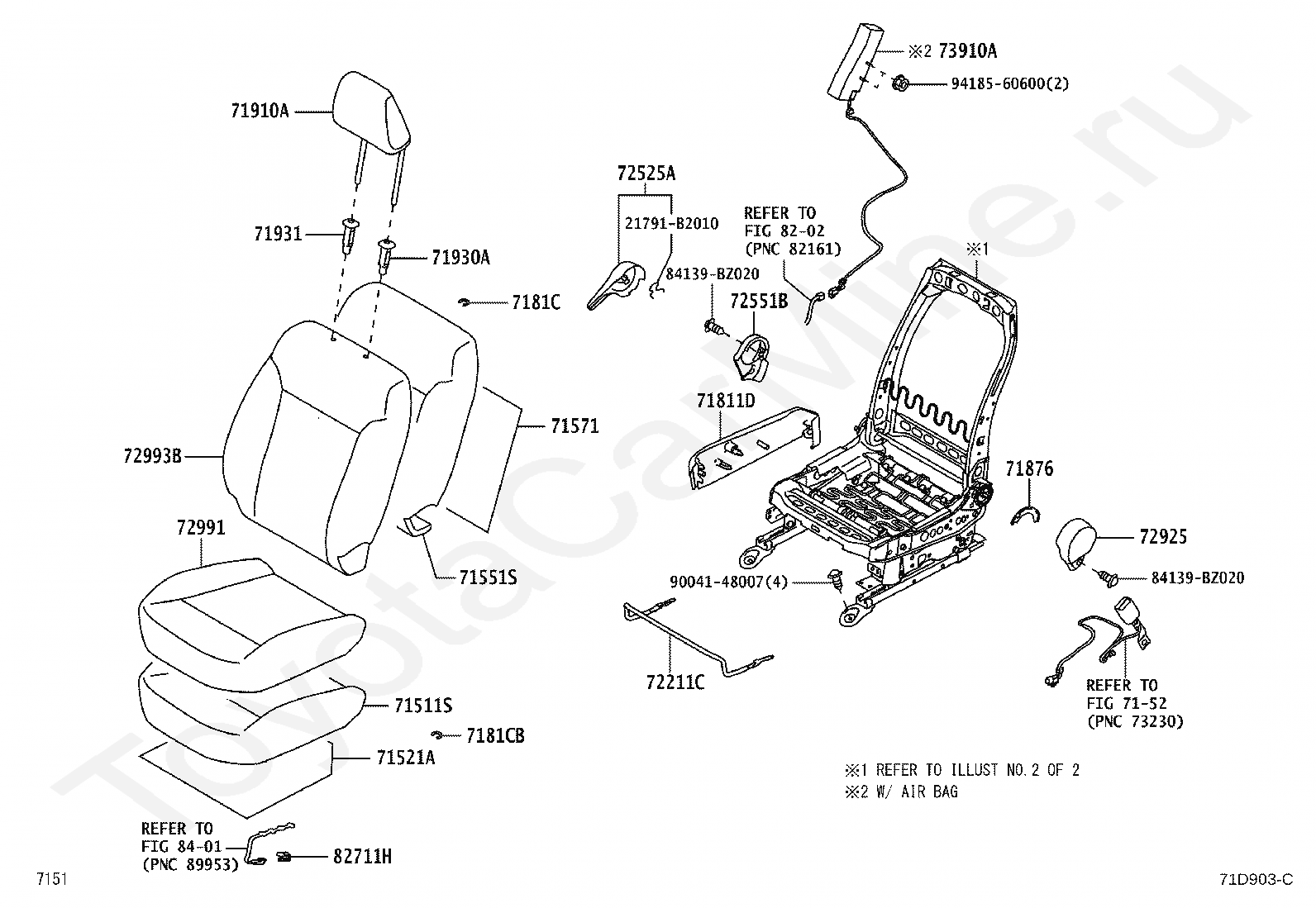

Код

Описание

21791B2010

Крепеж

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521A

PAD,FRONT SEAT CUSHION SILENCER

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71571

PAD, FRONT SEAT BACK SILENCER, A

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72211C

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

72925

COVER, FRONT SEAT CUSHION

72991

COVER, FRONT SEAT CUSHION, RH

72993B

COVER, FRONT SEAT BACK, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

84139BZ020

Крепеж

9004148007

Крепеж

9418560600

Крепеж

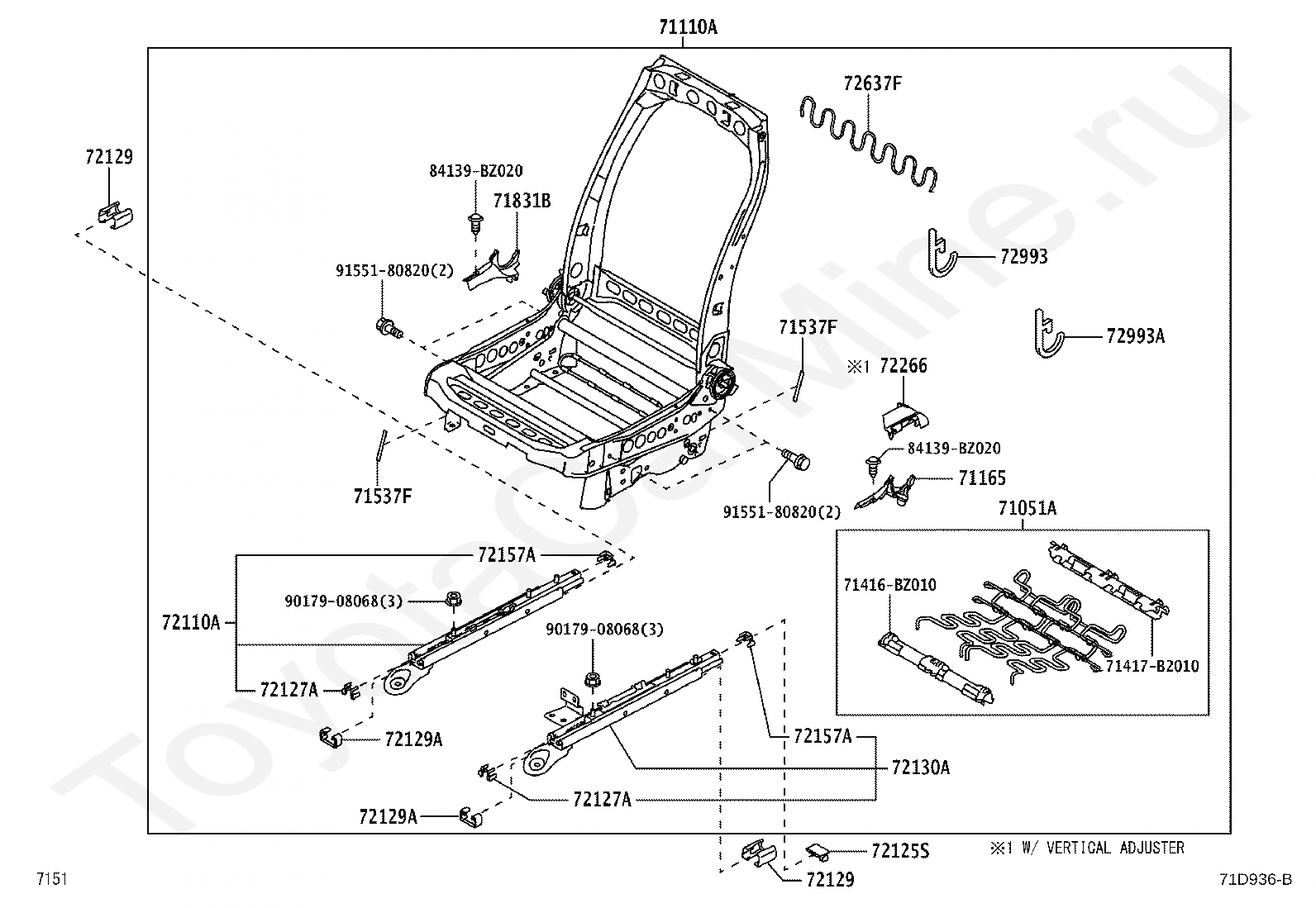

Код

Описание

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71165

COVER, FRONT RH SEAT HINGE

71416BZ010

Крепеж

71417B2010

Крепеж

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

71831B

COVER, FRONT SEAT HINGE, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72637F

SPRING, SEAT BACK, RH

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

84139BZ020

Крепеж

9017908068

Крепеж

9155180820

Крепеж

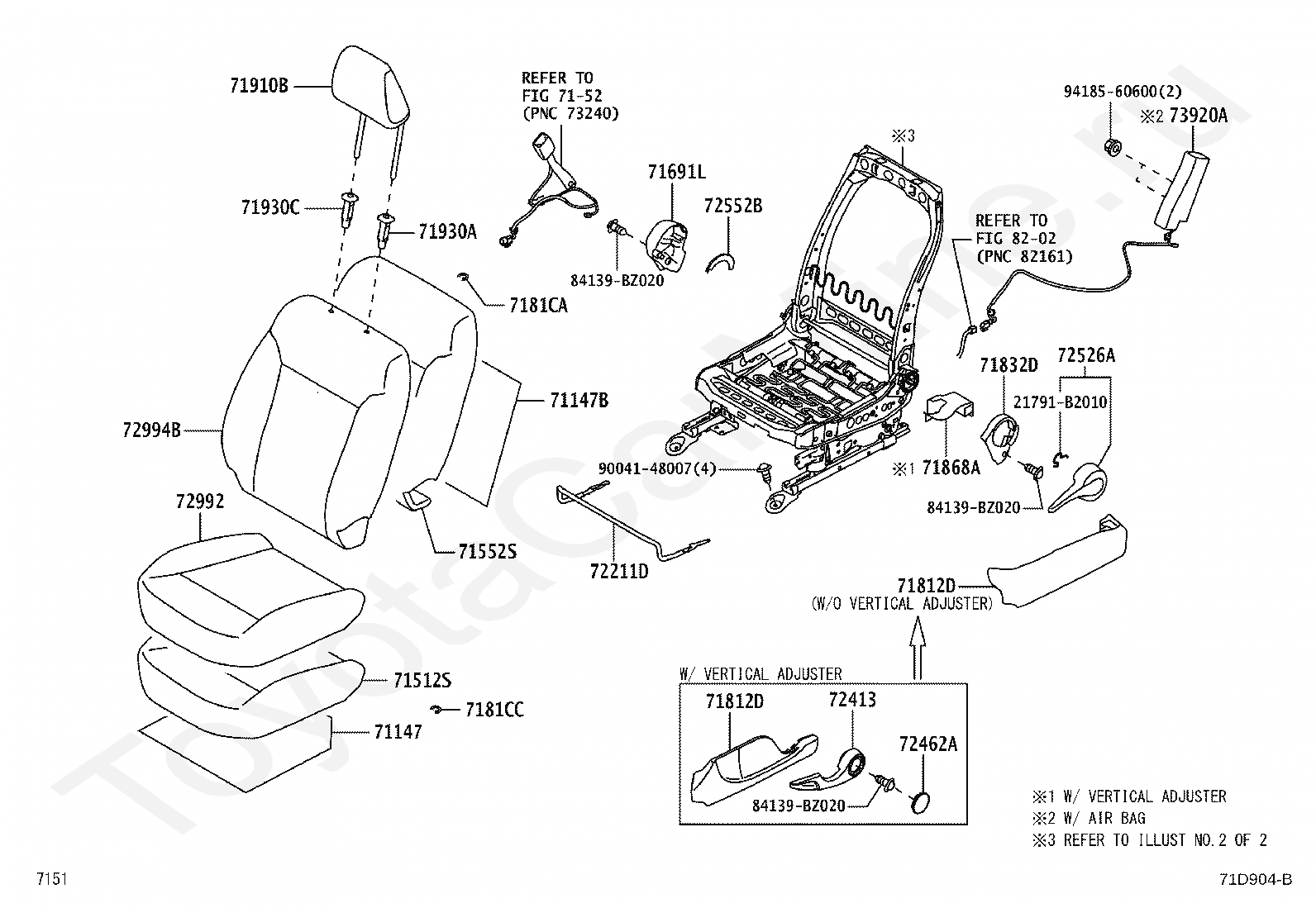

Код

Описание

21791B2010

Крепеж

71147

SILENCER, SEAT SPRING

71147B

SILENCER, SEAT SPRING

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71691L

COVER, FRONT SEAT CUSHION HINGE, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71832D

COVER, FRONT SEAT HINGE, LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71910B

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930C

SUPPORT, FRONT SEAT HEADREST, LH

72211D

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462A

COVER, VERTICAL ADJUSTER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

72992

COVER, FRONT SEAT CUSHION, LH

72994B

COVER, FRONT SEAT BACK, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

84139BZ020

Крепеж

9004148007

Крепеж

9418560600

Крепеж

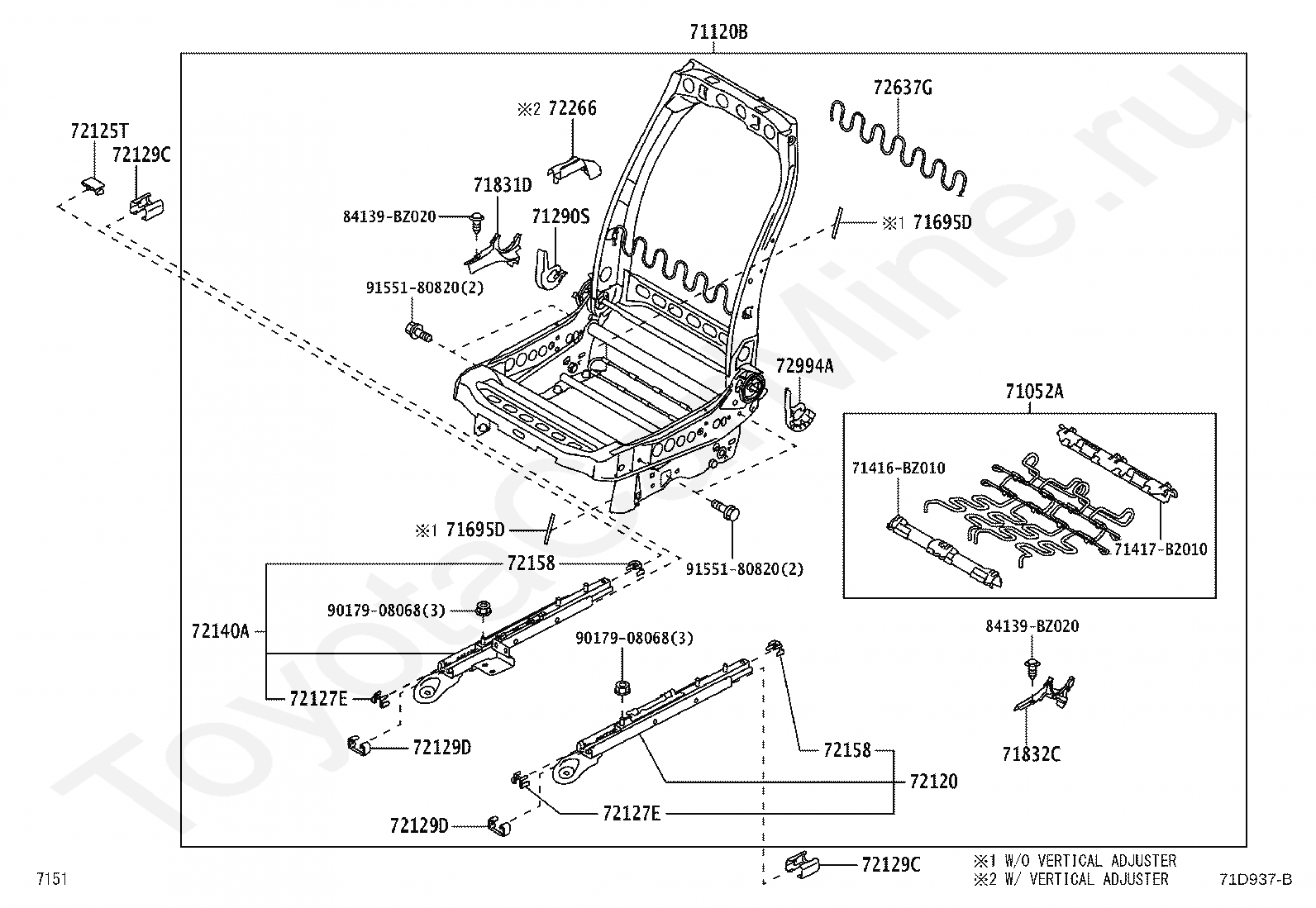

Код

Описание

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71290S

COVER, FRONT SEAT BACK, LH

71416BZ010

Крепеж

71417B2010

Крепеж

71695D

PROTECTOR, SEAT

71831D

COVER, FRONT SEAT HINGE, RH

71832C

COVER, FRONT LH SEAT HINGE

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72129C

PROTECTOR, SEAT TRACK LOWER RAIL, NO.3

72129D

PROTECTOR, SEAT TRACK LOWER RAIL, NO.4

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72637G

SPRING, SEAT BACK, LH

72994A

COVER, FRONT SEAT BACK

84139BZ020

Крепеж

9017908068

Крепеж

9155180820

Крепеж

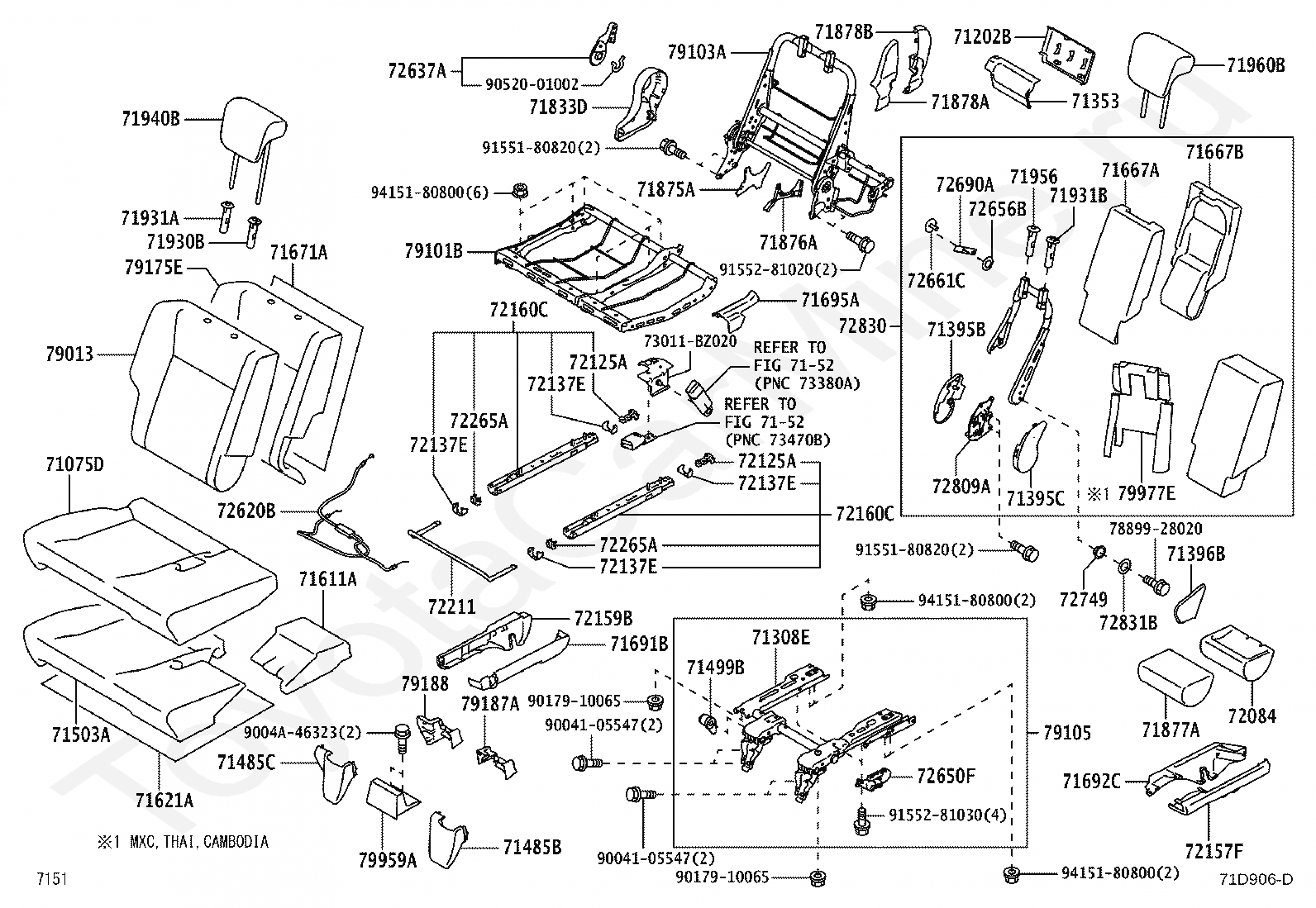

Код

Описание

71075D

COVER SUB-ASSY, REAR SEAT CUSHION, RH

71202B

PANEL, REAR SEAT BACK

71308E

LEG SUB-ASSY, REAR SEAT, RH

71353

PANEL, CENTER SEAT BACK

71395B

COVER, CENTER SEAT HINGE, RH

71395C

COVER, CENTER SEAT HINGE, RH

71396B

COVER, CENTER SEAT HINGE, LH

71485B

COVER, REAR SEAT HINGE

71485C

COVER, REAR SEAT HINGE, RH

71499B

DAMPER, SEAT CUSHION SPRING

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71667A

PAD, REAR SEAT BACK, CENTER A

71667B

PAD, REAR SEAT BACK, CENTER B

71671A

PAD, REAR SEAT BACK SILENCER, A

71691B

COVER, REAR SEAT LOCK, OUTER RH

71692C

COVER, REAR SEAT LOCK, INNER LH

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71833D

COVER REAR SEAT RECLINING, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71877A

COVER SUB-ASSY, REAR NO.1 SEAT ARMREST

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71930B

SUPPORT ASSY, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940B

HEADREST ASSY, REAR SEAT, RH

71956

SUPPORT, HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72084

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2

72125A

COVER, SEAT TRACK, UPPER REAR

72137E

COVER, SEAT TRACK, NO.1

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72159B

COVER, REAR SEAT TRACK BRACKET, OUTER

72160C

TRACK ASSY, REAR NO.1 SEAT, OUTER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72637A

HANDLE, REAR SEAT LOCK

72650F

LOCK ASSY, REAR SEAT, RH

72656B

BUTTON, REAR SEAT BACK STOP RELEASE

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72690A

STRAP ASSY, REAR SEAT LOCK RELEASE

72749

SPACER, REAR SEAT RECLINING

72809A

LOCK SUB-ASSY, CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

73011BZ020

Крепеж

7889928020

Крепеж

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79175E

PAD, NO.1 SEAT BACK, RH

79187A

COVER, NO.1 SEAT INNER BRACKET, LH

79188

COVER, NO.1 SEAT OUTER BRACKET

79959A

COVER, REAR SEAT LEG, RH

79977E

FELT, SEAT BACK, RH

9004105547

Крепеж

9004A46323

Крепеж

9017910065

Крепеж

9052001002

Крепеж

9155180820

Крепеж

9155281020

Крепеж

9155281030

Крепеж

9415180800

Крепеж

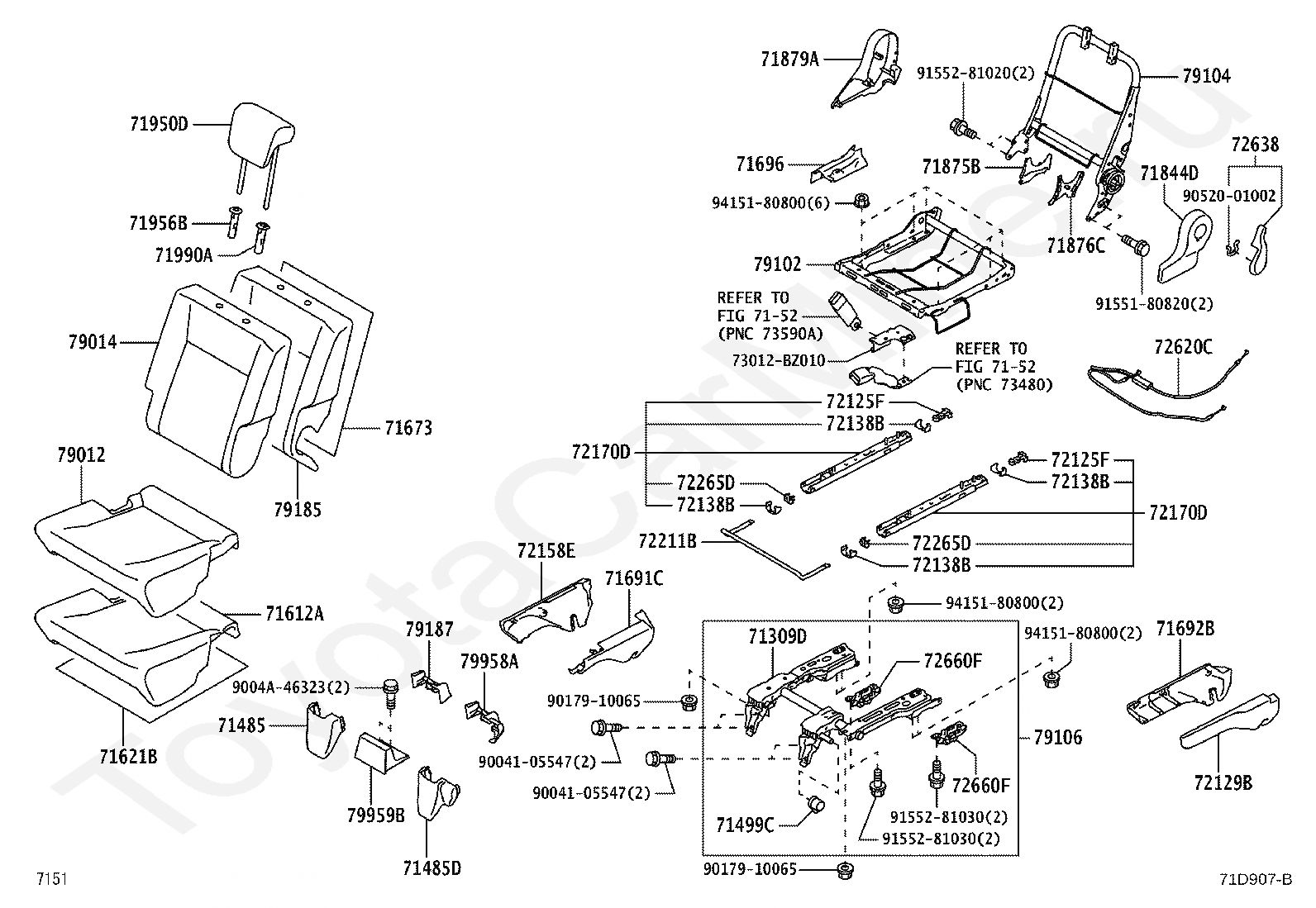

Код

Описание

71309D

LEG SUB-ASSY, REAR SEAT, LH

71485

COVER, REAR SEAT HINGE

71485D

COVER, REAR SEAT HINGE, LH

71499C

DAMPER, REAR SEAT CUSHION SPRING

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71621B

PAD, REAR SEAT CUSHION SILENCER, NO.2

71673

PAD, REAR SEAT BACK SILENCER, C

71691C

COVER, REAR SEAT LOCK, INNER RH

71692B

COVER, REAR SEAT LOCK, OUTER LH

71696

PROTECTOR, REAR SEAT, NO.2

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71950D

HEADREST ASSY, REAR SEAT, LH

71956B

SUPPORT, REAR SEAT HEADREST

71990A

SUPPORT ASSY, REAR SEAT HEADREST, LH

72125F

COVER, SEAT TRACK, UPPER REAR LH

72129B

PROTECTOR, SEAT TRACK LOWER RAIL

72138B

COVER, SEAT TRACK, LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72170D

TRACK ASSY, REAR SEAT, OUTER LH

72211B

HANDLE, SEAT TRACK ADJUSTING

72265D

COVER, SEAT TRACK UPPER RAIL

72620C

CABLE ASSY, REAR NO.1 SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72660F

LOCK ASSY, REAR SEAT, LH

73012BZ010

Крепеж

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79185

PAD, NO.1 SEAT BACK, LH

79187

COVER, NO.1 SEAT INNER BRACKET

79958A

COVER, REAR SEAT REAR BRACKET, LH

79959B

COVER, REAR SEAT LEG, LH

9004105547

Крепеж

9004A46323

Крепеж

9017910065

Крепеж

9052001002

Крепеж

9155180820

Крепеж

9155281020

Крепеж

9155281030

Крепеж

9415180800

Крепеж

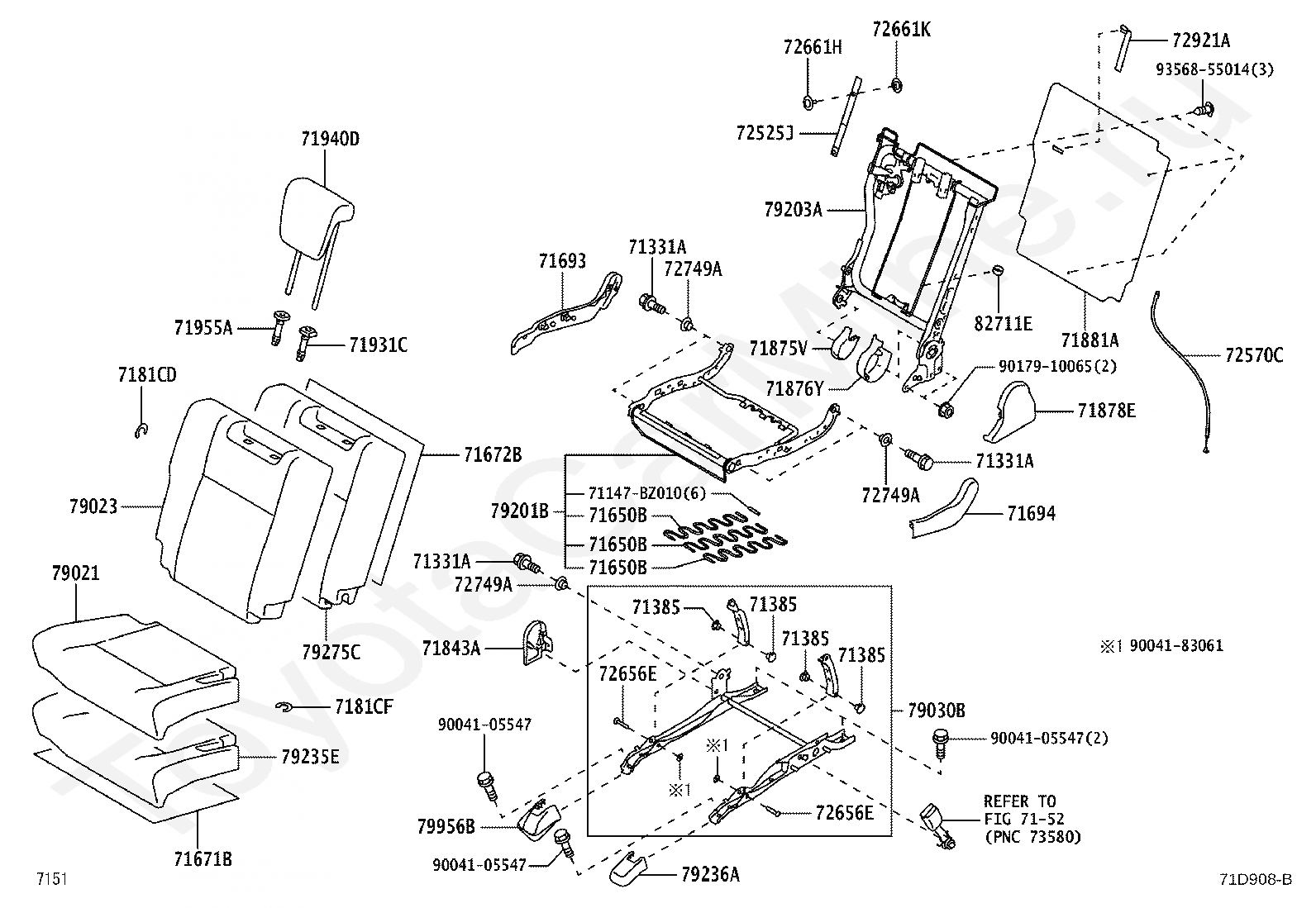

Код

Описание

71147BZ010

Крепеж

71331A

PIN, REAR SEAT HINGE

71385

SPACER, REAR SEAT HINGE

7152

переход к группе запчастей

71650B

SPRING ASSY, REAR SEAT CUSHION, RH

71671B

PAD, REAR SEAT CUSHION SILENCER, A

71672B

SILENCER, REAR SEAT BACK, RH

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

7181CD

RING, HOG, SMALL (FOR REAR SEAT BACK)

7181CF

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71875V

COVER, RECLINING ADJUSTER INSIDE, RH

71876Y

COVER, RECLINING ADJUSTER INSIDE, LH

71878E

COVER, REAR SEAT RECLINING, INNER RH

71881A

BOARD, REAR SEAT BACK

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940D

HEADREST ASSY, REAR NO.2 SEAT, RH

71955A

SUPPORT, REAR SEAT HEADREST

72525J

HANDLE, RECLINING ADJUSTER RELEASE, RH

72570C

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH

72656E

PIN, REAR SEAT CUSHION SUPPORT

72661H

BUTTON, REAR SEAT BACK LOCK RELEASE, RH

72661K

BUTTON, REAR SEAT BACK LOCK RELEASE, NO.2 RH

72749A

SPACER, REAR SEAT RECLINING

72921A

STRAP, REAR NO.2 SEAT, NO.1

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79030B

LEG ASSY, REAR NO.2 SEAT, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235E

PAD, NO.2 SEAT CUSHION, RH

79236A

COVER, NO.2 SEAT LEG

79275C

PAD, NO.2 SEAT BACK, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

82711E

CLAMP, WIRING HARNESS

9004105547

Крепеж

9004183061

Крепеж

9017910065

Крепеж

9356855014

Крепеж

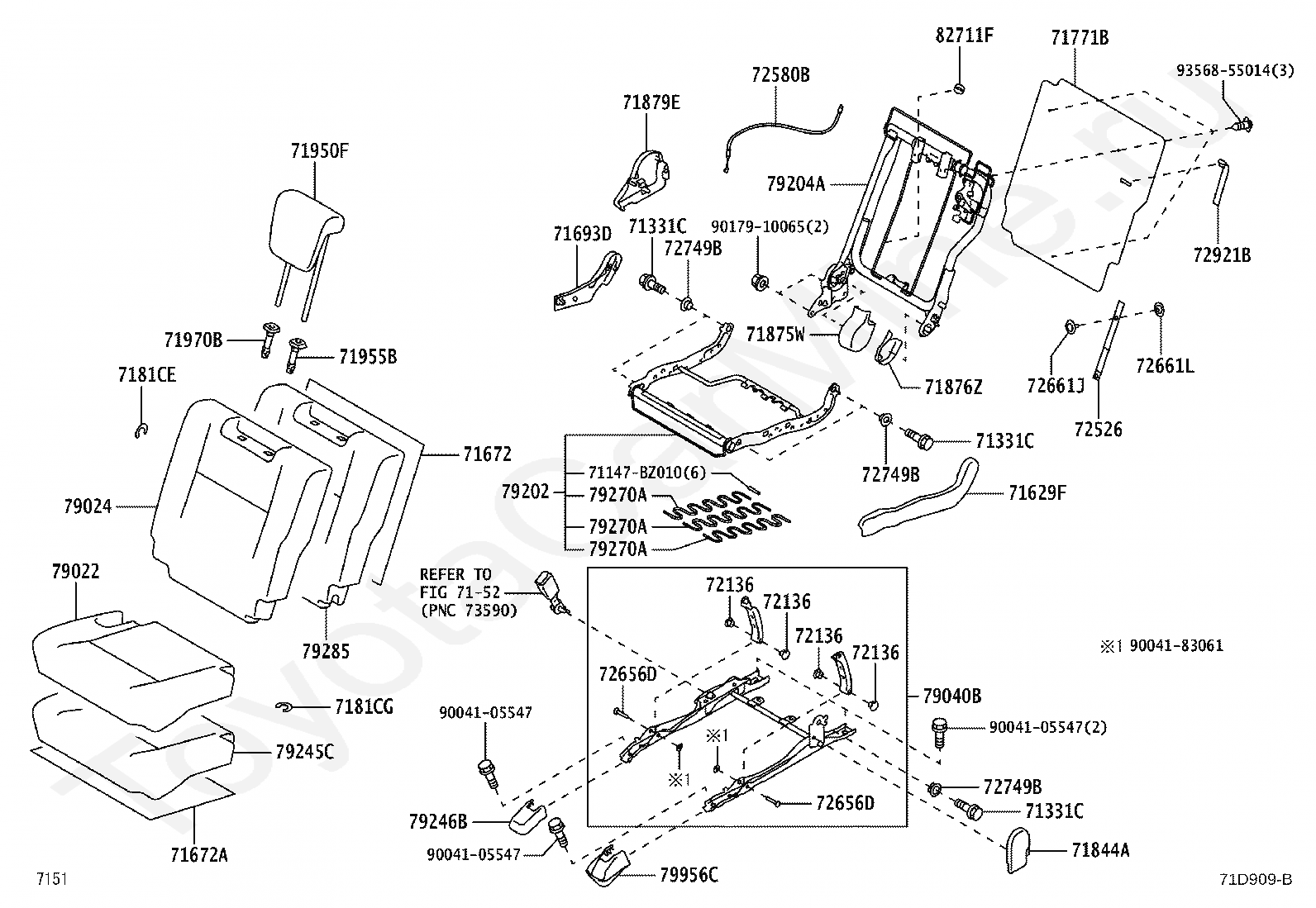

Код

Описание

71147BZ010

Крепеж

71331C

PIN, REAR SEAT HINGE, LH

7152

переход к группе запчастей

71629F

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71672

PAD, REAR SEAT BACK SILENCER, B

71672A

PAD, REAR SEAT CUSHION SILENCER, B

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71771B

BOARD, REAR SEAT BACK

7181CE

RING, HOG, SMALL (FOR REAR SEAT BACK)

7181CG

RING, HOG, SMALL (FOR REAR SEAT CUSHION)

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71875W

COVER, RECLINING ADJUSTER INSIDE, RH

71876Z

COVER, RECLINING ADJUSTER INSIDE, LH

71879E

COVER, REAR SEAT RECLINING, INNER LH

71950F

HEADREST ASSY, REAR NO.2 SEAT, LH

71955B

SUPPORT, REAR SEAT HEADREST

71970B

SUPPORT ASSY, REAR SEAT HEADREST, RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72580B

CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH

72656D

PIN, REAR SEAT CUSHION SUPPORT

72661J

BUTTON, REAR SEAT BACK LOCK RELEASE, LH

72661L

BUTTON, REAR SEAT BACK LOCK RELEASE, NO.2 LH

72749B

SPACER, REAR SEAT RECLINING, NO.1

72921B

STRAP, REAR NO.2 SEAT, NO.2

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79040B

LEG ASSY, REAR NO.2 SEAT, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245C

PAD, NO.2 SEAT CUSHION, LH

79246B

COVER, NO.2 SEAT LEG, B

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79285

PAD, NO.2 SEAT BACK, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

82711F

CLAMP, WIRING HARNESS

9004105547

Крепеж

9004183061

Крепеж

9017910065

Крепеж

9356855014

Крепеж

Кресла TOYOTA AVANZA, 2022/01 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, S TYPE, W101, вариатор

Товар добавлен в корзину!

Заполните форму
