Кресла TOYOTA AVANZA, 2011/12 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, VAN, MULTI INFORMATION DISPLAY, F652, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

AVANZA

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

VAN

Класс

MULTI INFORMATION DISPLAY

Фрейм

F652

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль WITH VVT MEXICO 484W

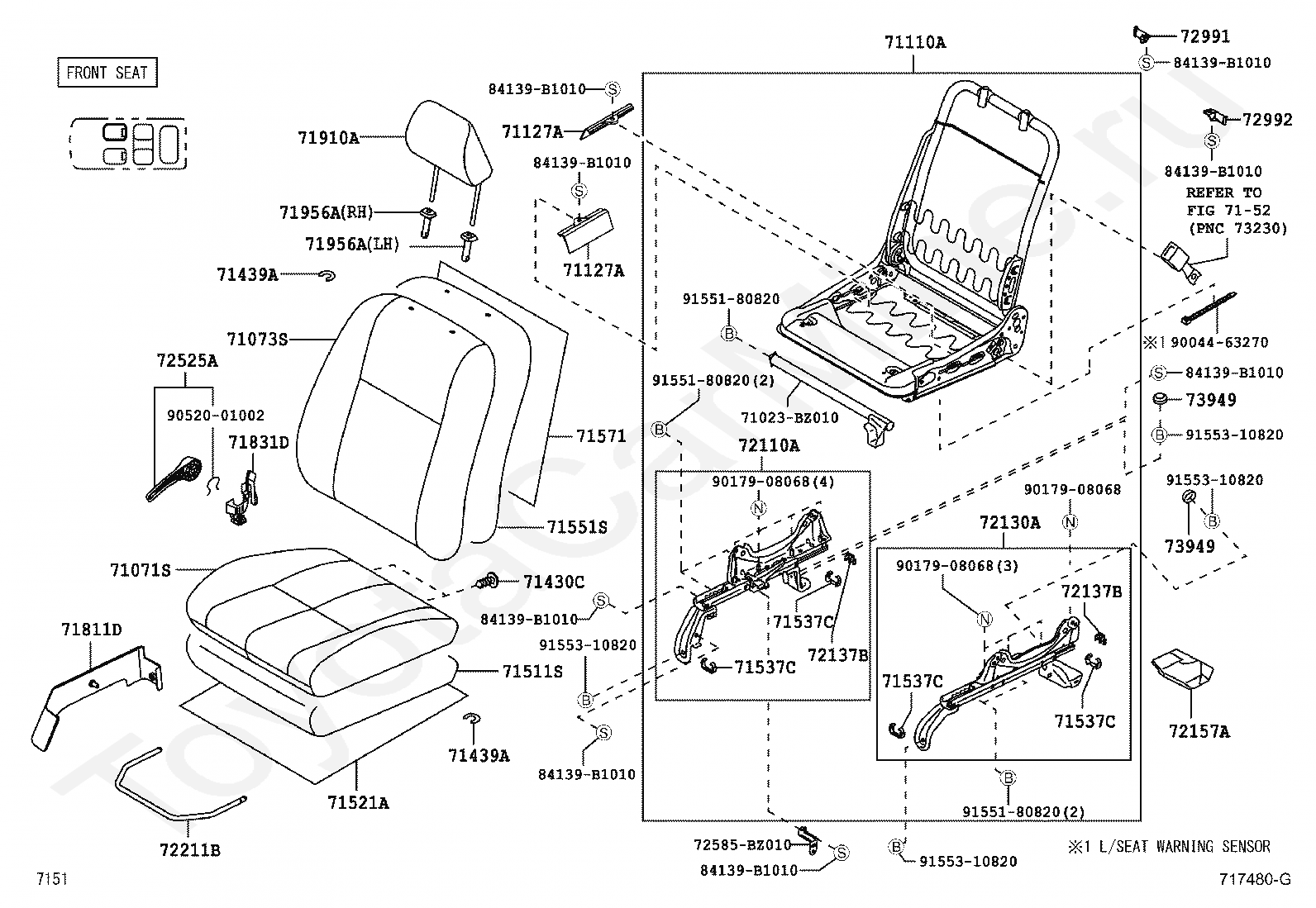

Код

Описание

71023BZ010

Крепеж

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71430C

CLIP

71439A

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521A

PAD,FRONT SEAT CUSHION SILENCER

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71571

PAD, FRONT SEAT BACK SILENCER, A

71811D

SHIELD, FRONT SEAT CUSHION, RH

71831D

COVER, FRONT SEAT HINGE, RH

71910A

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211B

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72585BZ010

Крепеж

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

73949

CAP

84139B1010

Крепеж

9004463270

Крепеж

9017908068

Крепеж

9052001002

Крепеж

9155180820

Крепеж

9155310820

Крепеж

Код

Описание

71024BZ010

Крепеж

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71430C

CLIP

71439A

CLIP

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521A

PAD,FRONT SEAT CUSHION SILENCER

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71571

PAD, FRONT SEAT BACK SILENCER, A

71812D

SHIELD, FRONT SEAT CUSHION, LH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72211B

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72585BZ010

Крепеж

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

73949

CAP

84139B1010

Крепеж

9004463270

Крепеж

9017908068

Крепеж

9052001002

Крепеж

9155180820

Крепеж

9155310820

Крепеж

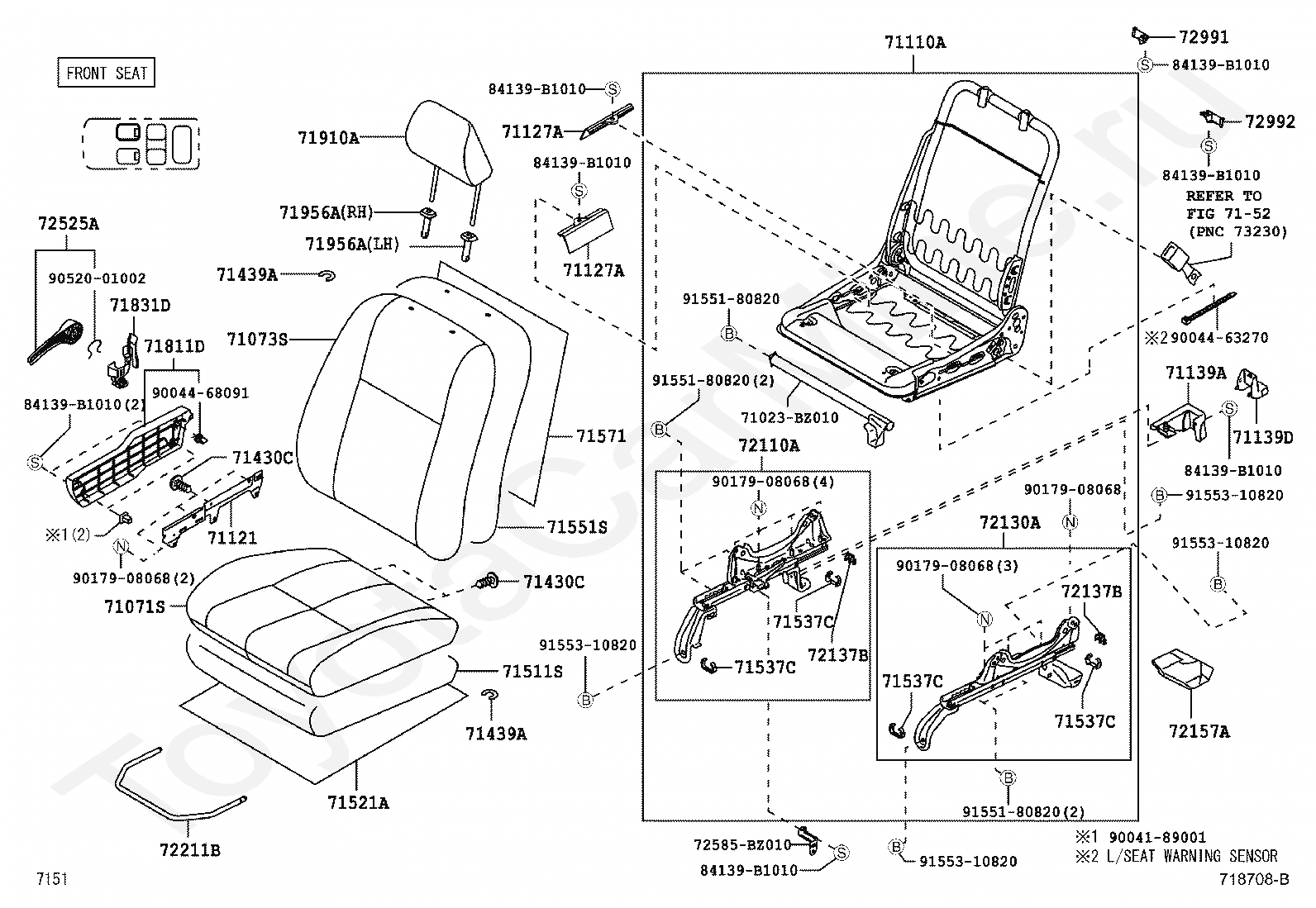

Код

Описание

71023BZ010

Крепеж

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71121

BRACKET, FRONT SEAT CUSHION, RH

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71139A

COVER, FRONT SEAT LEG, NO.1

71139D

COVER, FRONT SEAT LEG NO.1

71430C

CLIP

71439A

CLIP

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521A

PAD,FRONT SEAT CUSHION SILENCER

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71571

PAD, FRONT SEAT BACK SILENCER, A

71811D

SHIELD, FRONT SEAT CUSHION, RH

71831D

COVER, FRONT SEAT HINGE, RH

71910A

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211B

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72585BZ010

Крепеж

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

84139B1010

Крепеж

9004189001

Крепеж

9004463270

Крепеж

9004468091

Крепеж

9017908068

Крепеж

9052001002

Крепеж

9155180820

Крепеж

9155310820

Крепеж

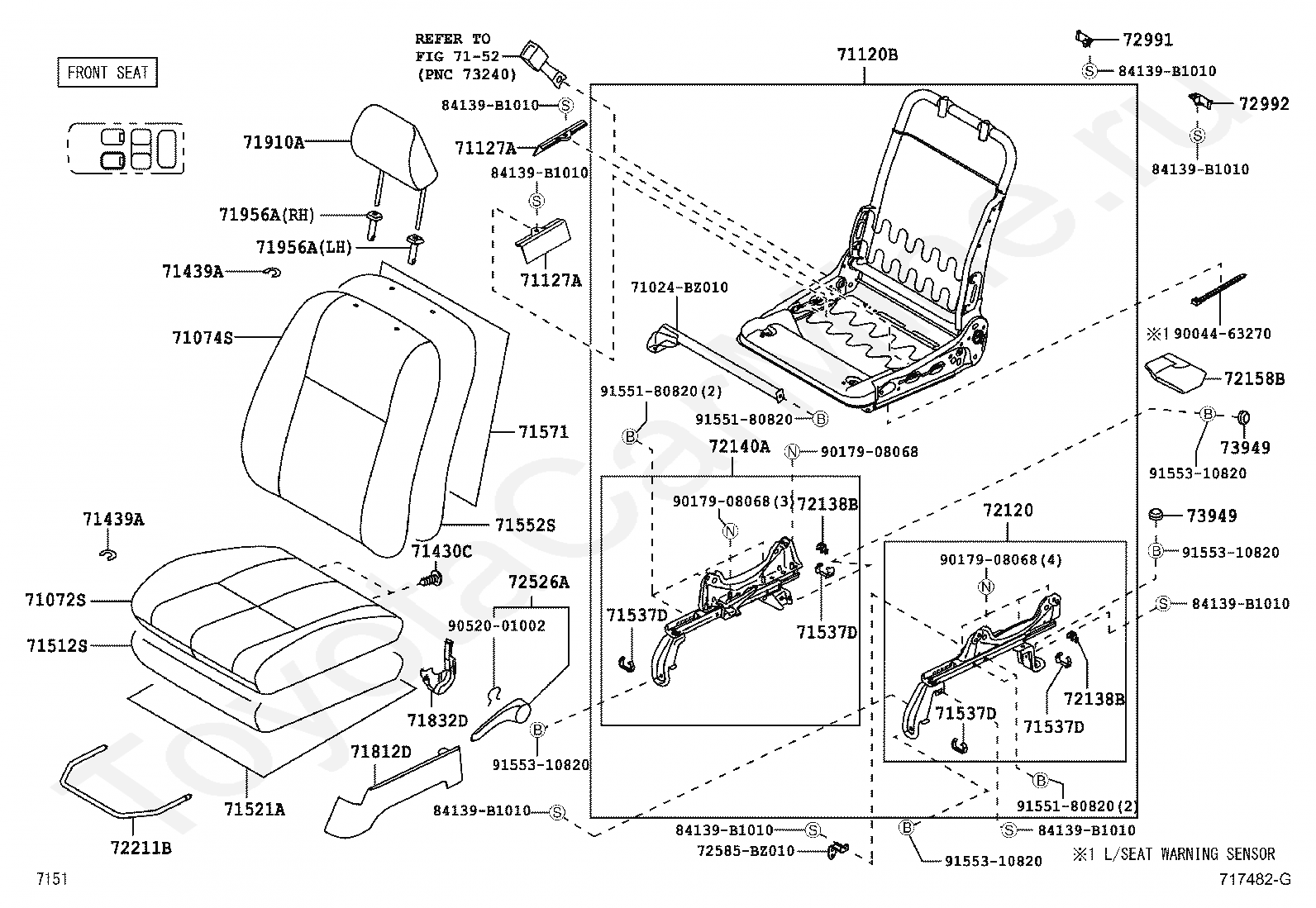

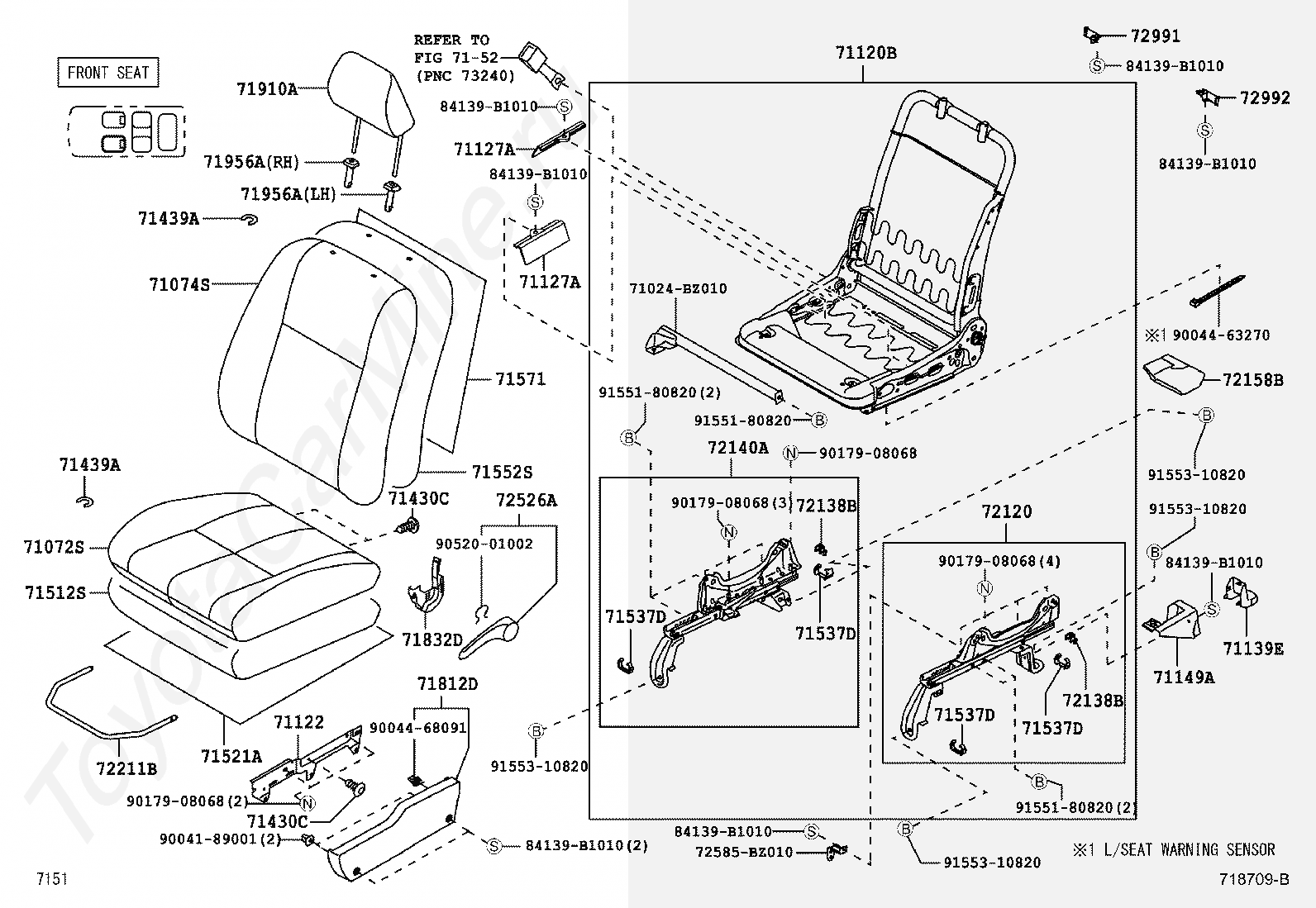

Код

Описание

71024BZ010

Крепеж

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71122

BRACKET, FRONT SEAT CUSHION, LH

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71139E

COVER, FRONT SEAT LEG NO.2

71149A

COVER, FRONT SEAT LEG, LH

71430C

CLIP

71439A

CLIP

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521A

PAD,FRONT SEAT CUSHION SILENCER

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71571

PAD, FRONT SEAT BACK SILENCER, A

71812D

SHIELD, FRONT SEAT CUSHION, LH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72211B

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72585BZ010

Крепеж

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

84139B1010

Крепеж

9004189001

Крепеж

9004463270

Крепеж

9004468091

Крепеж

9017908068

Крепеж

9052001002

Крепеж

9155180820

Крепеж

9155310820

Крепеж

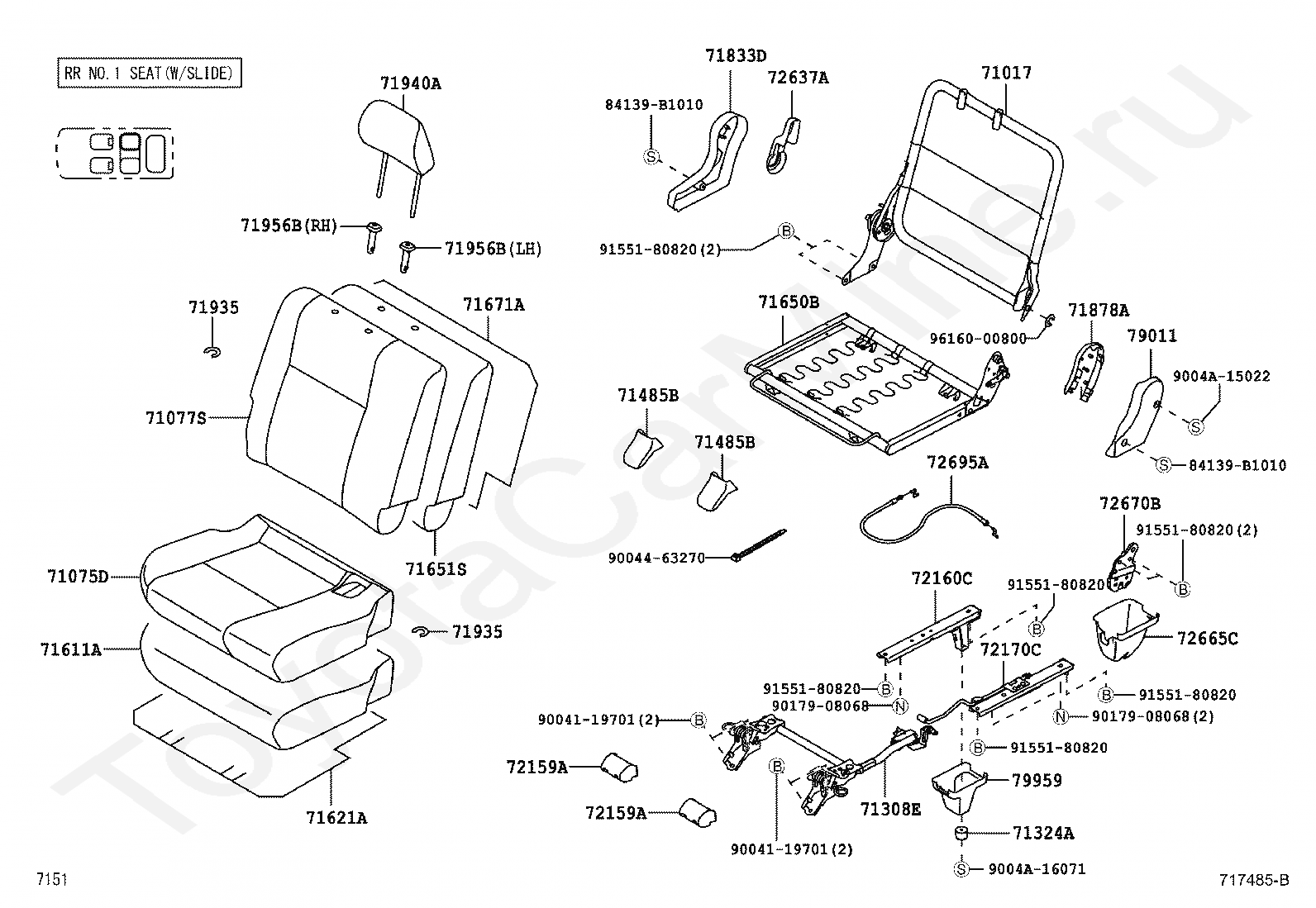

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075D

COVER SUB-ASSY, REAR SEAT CUSHION, RH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71308E

LEG SUB-ASSY, REAR SEAT, RH

71324A

CUSHION, REAR SEAT

71485B

COVER, REAR SEAT HINGE

71611A

PAD, REAR SEAT CUSHION, RH

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71650B

SPRING ASSY, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71671A

PAD, REAR SEAT BACK SILENCER, A

71833D

COVER REAR SEAT RECLINING, RH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71935

CLIP

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

72159A

COVER, REAR SEAT TRACK BRACKET

72160C

TRACK ASSY, REAR NO.1 SEAT, OUTER RH

72170C

TRACK ASSY, REAR NO.1 SEAT, INNER RH

72637A

HANDLE, REAR SEAT LOCK

72665C

COVER, REAR SEAT LOCK, RH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72695A

CABLE, REAR SEAT LOCK CONTROL

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79959

COVER, RR SEAT LEG

84139B1010

Крепеж

9004119701

Крепеж

9004463270

Крепеж

9004A15022

Крепеж

9004A16071

Крепеж

9017908068

Крепеж

9155180820

Крепеж

9616000800

Крепеж

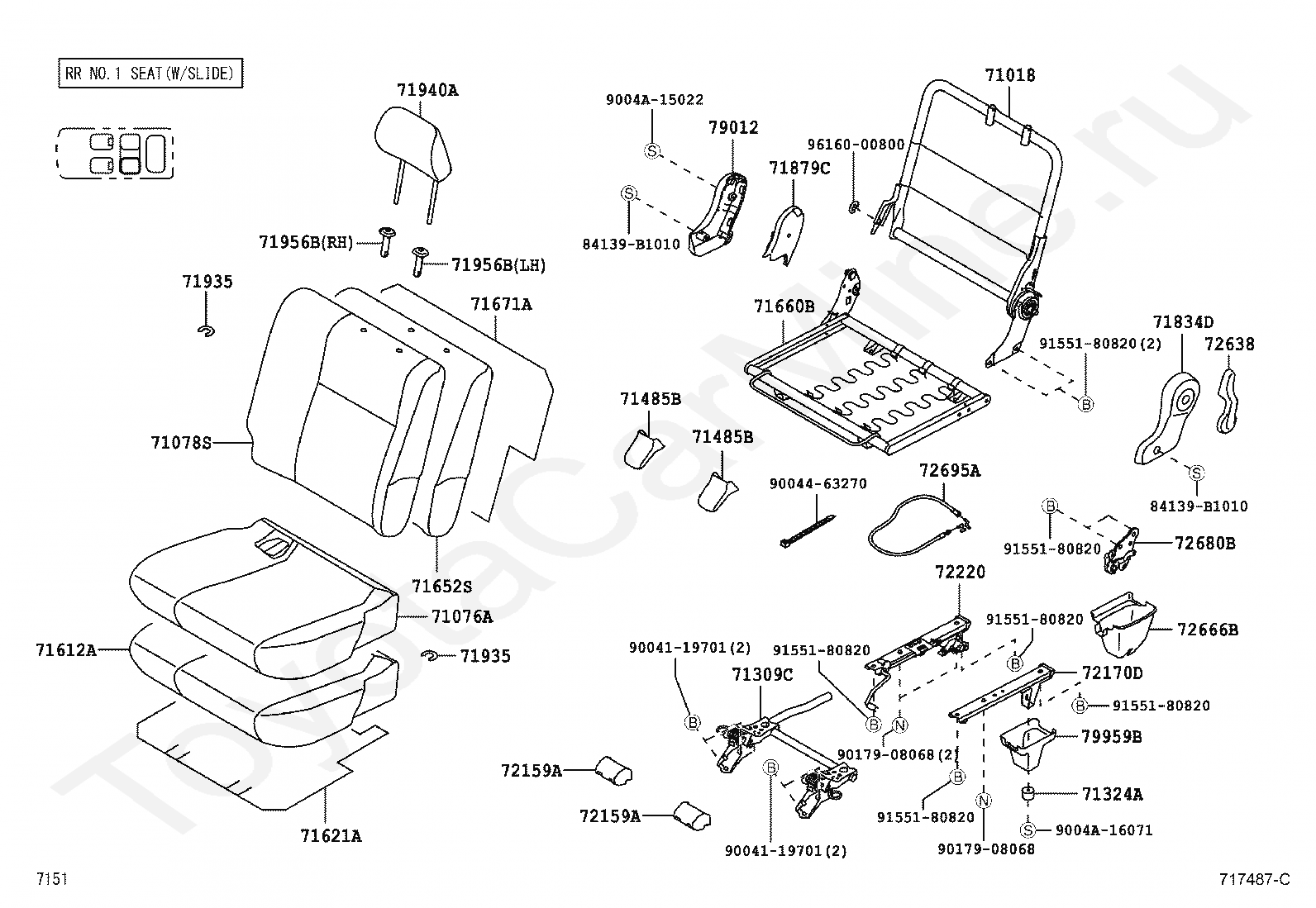

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076A

COVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71309C

LEG SUB-ASSY, REAR SEAT, REAR LH

71324A

CUSHION, REAR SEAT

71485B

COVER, REAR SEAT HINGE

71612A

PAD, REAR SEAT CUSHION, LH

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71660B

SPRING ASSY, REAR SEAT CUSHION, LH

71671A

PAD, REAR SEAT BACK SILENCER, A

71834D

COVER, REAR SEAT RECLINING, LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71935

CLIP

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

72159A

COVER, REAR SEAT TRACK BRACKET

72170D

TRACK ASSY, REAR SEAT, OUTER LH

72220

TRACK ASSY, REAR NO.1 SEAT, INNER LH

72638

HANDLE, REAR SEAT LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72695A

CABLE, REAR SEAT LOCK CONTROL

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79959B

COVER, REAR SEAT LEG, LH

84139B1010

Крепеж

9004119701

Крепеж

9004463270

Крепеж

9004A15022

Крепеж

9004A16071

Крепеж

9017908068

Крепеж

9155180820

Крепеж

9616000800

Крепеж

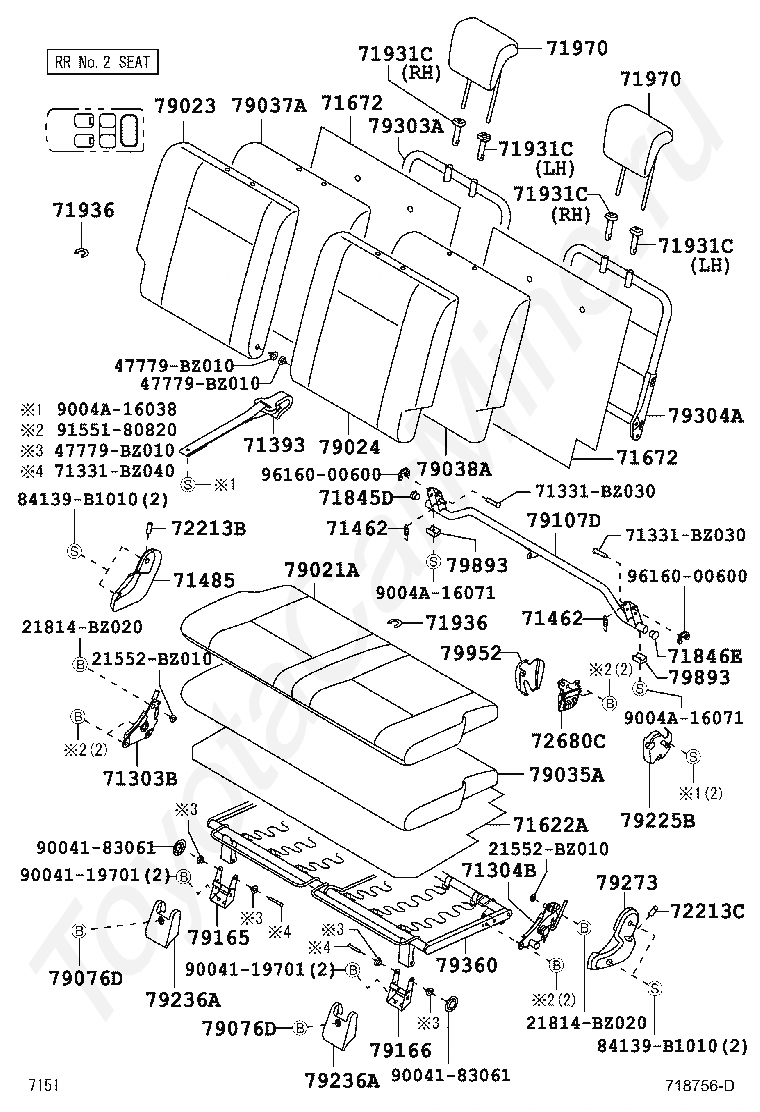

Код

Описание

21552BZ010

Крепеж

21814BZ020

Крепеж

47779BZ010

Крепеж

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71331BZ030

Крепеж

71331BZ040

Крепеж

71393

BAND, REAR SEAT CUSHION

71462

SPRING, REAR SEAT CUSHION, NO.2

71485

COVER, REAR SEAT HINGE

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71672

PAD, REAR SEAT BACK SILENCER, B

71845D

CAP, REAR SEAT COVER, RH

71846E

CAP, REAR SEAT COVER, LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71936

CLIP

71970

HEADREST ASSY, REAR SEAT

72213B

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72213C

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72680C

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79038A

PAD SUB-ASSY, NO.3 SEAT BACK, LH

79076D

CLIP, SEAT LEG COVER

79107D

LEG SUB-ASSY, NO.2 SEAT, REAR

79165

BRACKET, NO.3 SEAT LEG, REAR RH

79166

BRACKET, NO.3 SEAT LEG, REAR LH

79225B

CARPET, REAR NO.2 SEAT CUSHION, LH

79236A

COVER, NO.2 SEAT LEG

79273

COVER, NO.2 SEAT HINGE

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79360

SPRING ASSY, NO.3 SEAT CUSHION

79893

CUSHION, FOLD SEAT LEG

79952

COVER, NO.2 SEAT CUSHION

84139B1010

Крепеж

9004119701

Крепеж

9004A16038

Крепеж

9004A16071

Крепеж

9155180820

Крепеж

9616000600

Крепеж

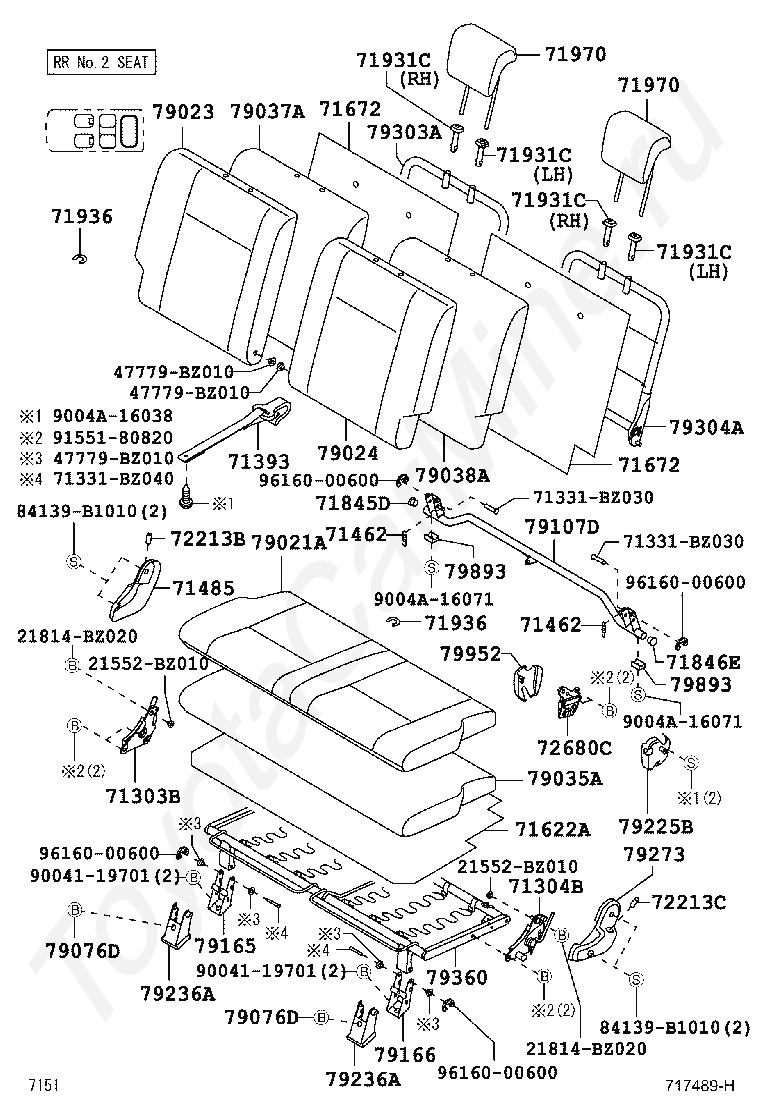

Код

Описание

21552BZ010

Крепеж

21814BZ020

Крепеж

47779BZ010

Крепеж

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71331BZ030

Крепеж

71331BZ040

Крепеж

71393

BAND, REAR SEAT CUSHION

71462

SPRING, REAR SEAT CUSHION, NO.2

71485

COVER, REAR SEAT HINGE

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71672

PAD, REAR SEAT BACK SILENCER, B

71845D

CAP, REAR SEAT COVER, RH

71846E

CAP, REAR SEAT COVER, LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71936

CLIP

71970

HEADREST ASSY, REAR SEAT

72213B

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72213C

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72680C

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79038A

PAD SUB-ASSY, NO.3 SEAT BACK, LH

79076D

CLIP, SEAT LEG COVER

79107D

LEG SUB-ASSY, NO.2 SEAT, REAR

79165

BRACKET, NO.3 SEAT LEG, REAR RH

79166

BRACKET, NO.3 SEAT LEG, REAR LH

79225B

CARPET, REAR NO.2 SEAT CUSHION, LH

79236A

COVER, NO.2 SEAT LEG

79273

COVER, NO.2 SEAT HINGE

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79360

SPRING ASSY, NO.3 SEAT CUSHION

79893

CUSHION, FOLD SEAT LEG

79952

COVER, NO.2 SEAT CUSHION

84139B1010

Крепеж

9004119701

Крепеж

9004183061

Крепеж

9004A16038

Крепеж

9004A16071

Крепеж

9155180820

Крепеж

9616000600

Крепеж

Кресла TOYOTA AVANZA, 2011/12 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, VAN, MULTI INFORMATION DISPLAY, F652, МКПП, 5 скоростей

Товар добавлен в корзину!

Заполните форму
