Кресла TOYOTA AVANZA, 2006/10 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, VAN, S TYPE, F602, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

AVANZA

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

VAN

Класс

S TYPE

Фрейм

F602

Трансмиссия

АКПП, 4 ступени

Опции

правый руль WITH VVT GENERAL COUNTRIES PS2

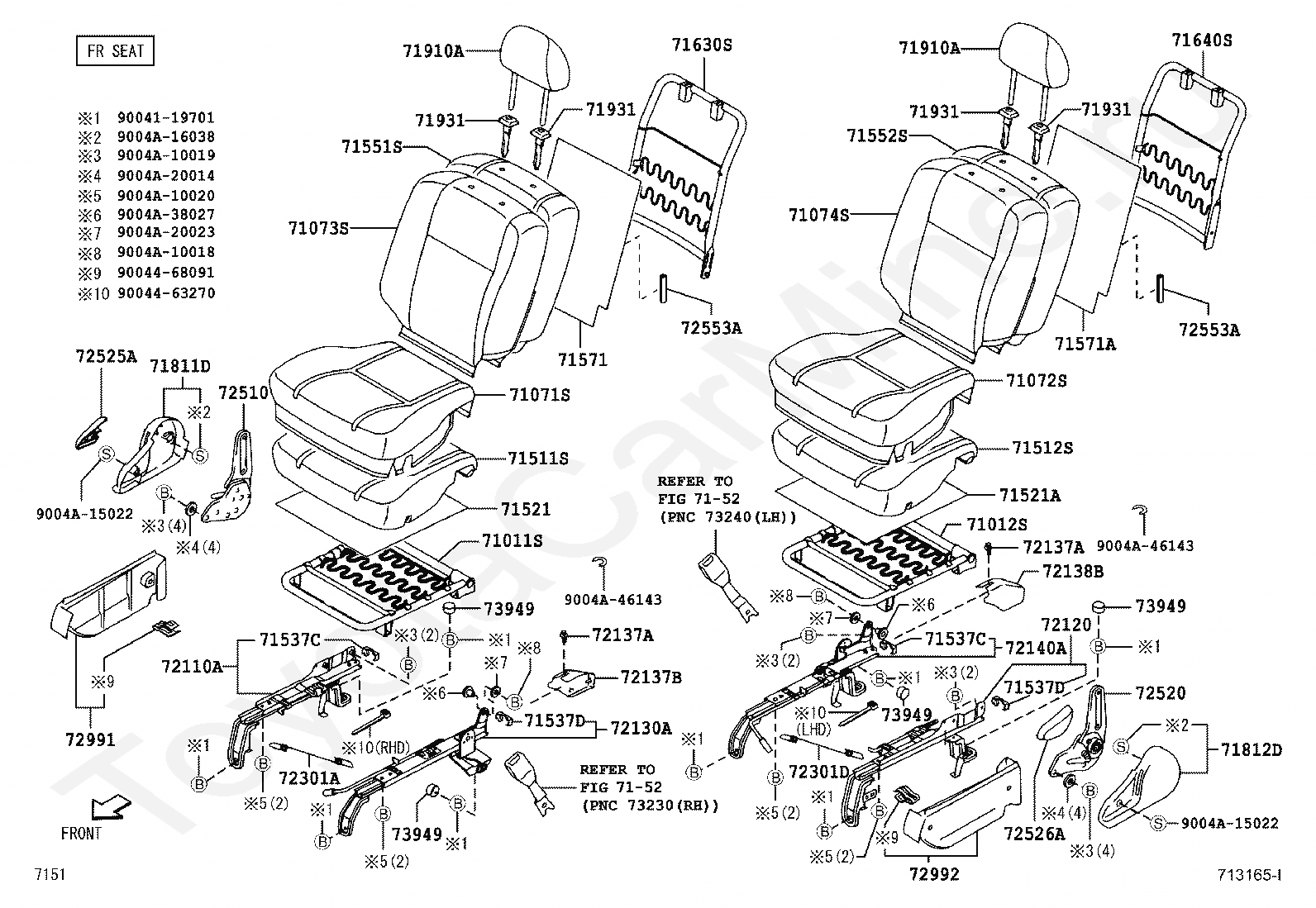

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71521

PAD, FRONT SEAT CUSHION SILENCER, A

71521A

PAD,FRONT SEAT CUSHION SILENCER

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71571

PAD, FRONT SEAT BACK SILENCER, A

71571A

PAD, FRONT SEAT BACK SILENCER, LH

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137A

CLIP (FOR SEAT TRACK COVER)

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72553A

PROTECTOR, RECLINING COVER, RH

72991

COVER, FRONT SEAT CUSHION, RH

72992

COVER, FRONT SEAT CUSHION, LH

73949

CAP

9004119701

Крепеж

9004463270

Крепеж

9004468091

Крепеж

9004A10018

Крепеж

9004A10019

Крепеж

9004A10020

Крепеж

9004A15022

Крепеж

9004A16038

Крепеж

9004A20014

Крепеж

9004A20023

Крепеж

9004A38027

Крепеж

9004A46143

Крепеж

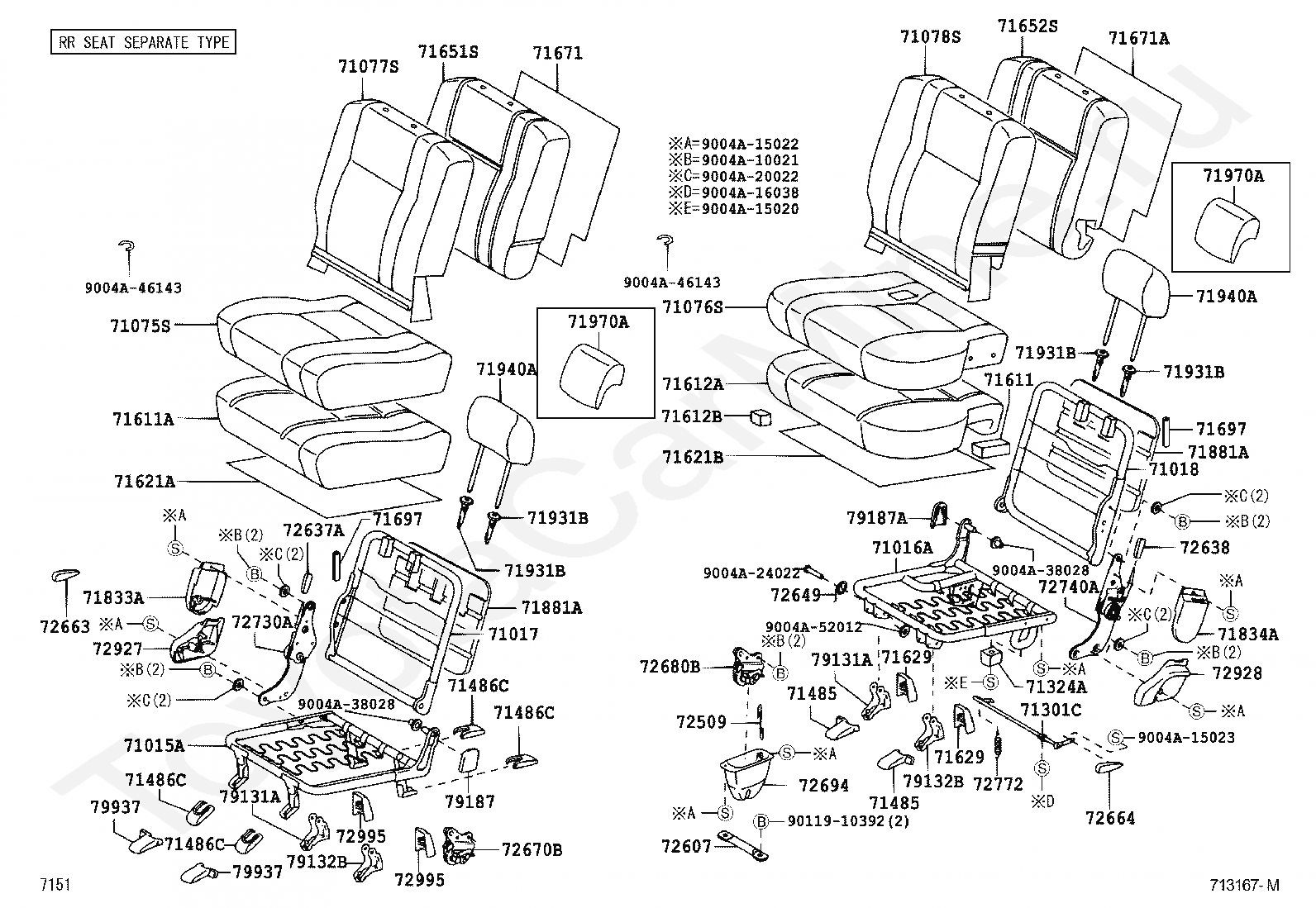

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301C

LINK SUB-ASSY, REAR SEAT CUSHION

71324A

CUSHION, REAR SEAT

71485

COVER, REAR SEAT HINGE

71486C

COVER, REAR SEAT HINGE, LH

71611

PAD, REAR SEAT CUSHION

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71612B

PAD, REAR SEAT CUSHION, B

71621A

PAD, REAR SEAT CUSHION SILENCER, A

71621B

PAD, REAR SEAT CUSHION SILENCER, NO.2

71629

COVER, REAR SEAT CUSHION HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71671

PAD, REAR SEAT BACK SILENCER, A

71671A

PAD, REAR SEAT BACK SILENCER, A

71697

PROTECTOR, REAR SEAT BACK EDGE

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71881A

BOARD, REAR SEAT BACK

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71970A

COVER, REAR SEAT HEADREST

72509

WIRE SUB-ASSY, ADJUSTER EQULIZING

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72637A

HANDLE, REAR SEAT LOCK

72638

HANDLE, REAR SEAT LOCK, LH

72649

SPRING, REAR SEAT CUSHION SUPPORT

72663

LEVER, REAR SEAT LOCK CONTROL, NO.1

72664

LEVER, REAR SEAT LOCK CONTROL, LH

72670B

LOCK ASSY, REAR SEAT CUSHION, RH

72680B

LOCK ASSY, REAR SEAT CUSHION, LH

72694

COVER, REAR SEAT CUSHION LOCK

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72772

SPRING, REAR SEAT TURN NO.2

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

72995

COVER, REAR SEAT CUSHION, RH

79131A

LEG, NO.1 SEAT, FRONT RH

79132B

LEG, NO.1 SEAT, FRONT LH

79187

COVER, NO.1 SEAT INNER BRACKET

79187A

COVER, NO.1 SEAT INNER BRACKET, LH

79937

COVER, REAR SEAT LEG, NO.2

9004A10021

Крепеж

9004A15020

Крепеж

9004A15022

Крепеж

9004A15023

Крепеж

9004A16038

Крепеж

9004A20022

Крепеж

9004A24022

Крепеж

9004A38028

Крепеж

9004A46143

Крепеж

9004A52012

Крепеж

9011910392

Крепеж

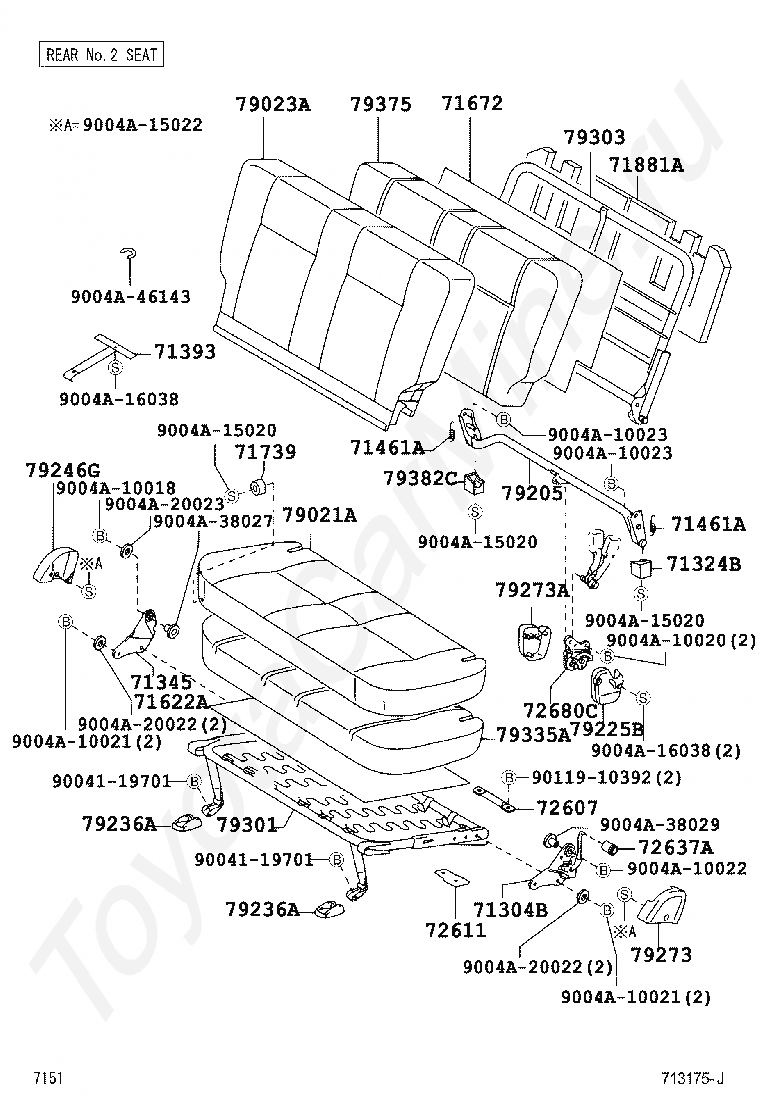

Код

Описание

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71324B

CUSHION, REAR SEAT

71345

HINGE, REAR SEAT BACK

71393

BAND, REAR SEAT CUSHION

71461A

SPRING, REAR SEAT CUSHION, NO.1

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71672

PAD, REAR SEAT BACK SILENCER, B

71739

CUSHION, SEAT SUPPORT

71881A

BOARD, REAR SEAT BACK

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72611

BRACKET, REAR SEAT LOCK, RH

72637A

HANDLE, REAR SEAT LOCK

72680C

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79205

LEG SUB-ASSY, NO.2 SEAT

79225B

CARPET, REAR NO.2 SEAT CUSHION, LH

79236A

COVER, NO.2 SEAT LEG

79246G

COVER, NO.2 SEAT BACK, RH

79273

COVER, NO.2 SEAT HINGE

79273A

COVER, NO.2 SEAT HINGE, NO.2

79301

FRAME SUB-ASSY, NO.3 SEAT CUSHION

79303

FRAME SUB-ASSY, NO.3 SEAT BACK

79335A

PAD, NO.3 SEAT CUSHION, RH

79375

PAD, NO.3 SEAT BACK

79382C

CUSHION, NO.2 SEAT

9004119701

Крепеж

9004A10018

Крепеж

9004A10020

Крепеж

9004A10021

Крепеж

9004A10022

Крепеж

9004A10023

Крепеж

9004A15020

Крепеж

9004A15022

Крепеж

9004A16038

Крепеж

9004A20022

Крепеж

9004A20023

Крепеж

9004A38027

Крепеж

9004A38029

Крепеж

9004A46143

Крепеж

9011910392

Крепеж

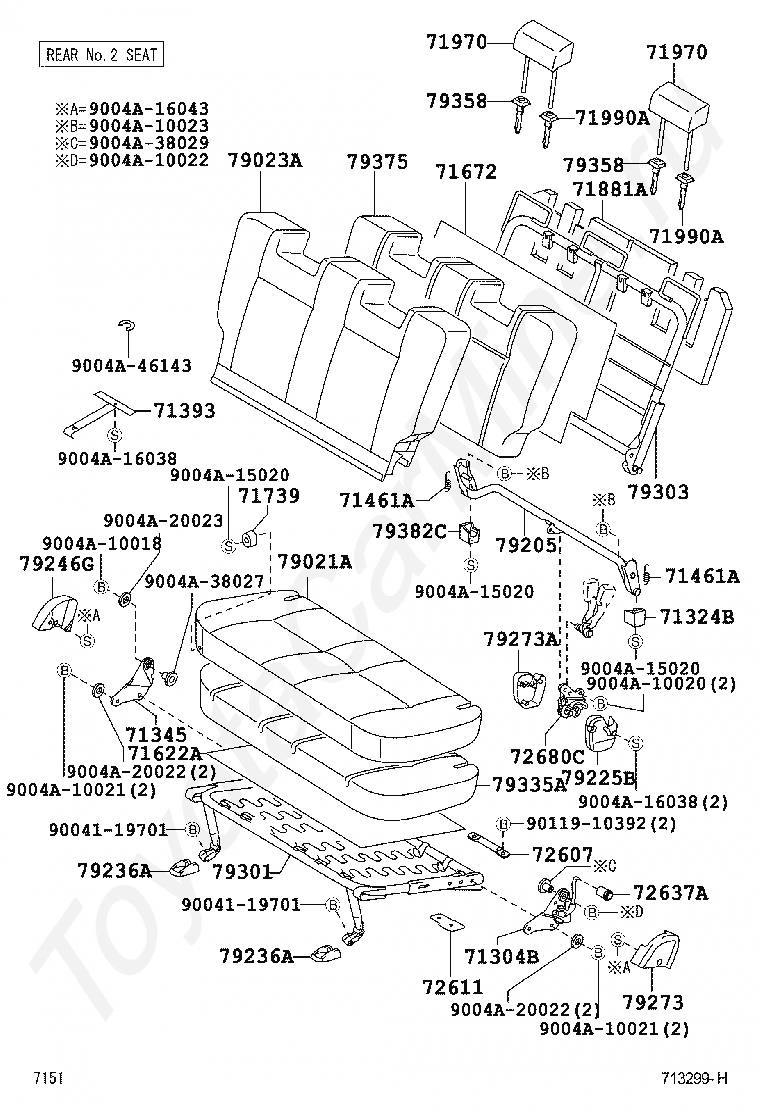

Код

Описание

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71324B

CUSHION, REAR SEAT

71345

HINGE, REAR SEAT BACK

71393

BAND, REAR SEAT CUSHION

71461A

SPRING, REAR SEAT CUSHION, NO.1

71622A

PAD, REAR SEAT CUSHION SILENCER, B

71672

PAD, REAR SEAT BACK SILENCER, B

71739

CUSHION, SEAT SUPPORT

71881A

BOARD, REAR SEAT BACK

71970

HEADREST ASSY, REAR SEAT

71990A

SUPPORT ASSY, REAR SEAT HEADREST, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72611

BRACKET, REAR SEAT LOCK, RH

72637A

HANDLE, REAR SEAT LOCK

72680C

LOCK ASSY, REAR SEAT CUSHION, NO.2 LH

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79205

LEG SUB-ASSY, NO.2 SEAT

79225B

CARPET, REAR NO.2 SEAT CUSHION, LH

79236A

COVER, NO.2 SEAT LEG

79246G

COVER, NO.2 SEAT BACK, RH

79273

COVER, NO.2 SEAT HINGE

79273A

COVER, NO.2 SEAT HINGE, NO.2

79301

FRAME SUB-ASSY, NO.3 SEAT CUSHION

79303

FRAME SUB-ASSY, NO.3 SEAT BACK

79335A

PAD, NO.3 SEAT CUSHION, RH

79358

SUPPORT, NO.3 SEAT BACK, RH

79375

PAD, NO.3 SEAT BACK

79382C

CUSHION, NO.2 SEAT

9004119701

Крепеж

9004A10018

Крепеж

9004A10020

Крепеж

9004A10021

Крепеж

9004A10022

Крепеж

9004A10023

Крепеж

9004A15020

Крепеж

9004A16038

Крепеж

9004A16043

Крепеж

9004A20022

Крепеж

9004A20023

Крепеж

9004A38027

Крепеж

9004A38029

Крепеж

9004A46143

Крепеж

9011910392

Крепеж

Кресла TOYOTA AVANZA, 2006/10 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, VAN, S TYPE, F602, АКПП, 4 ступени
