Каталог
Ближний ВостокМодель
AVANZAДвигатель
1,3 литра, 16 клапанов, DOHC, EFIКузов
VANКласс
S TYPEФрейм
F601Трансмиссия
АКПП, 4 ступениОпции
правый руль WITH VVT FOR THAILAND PS1

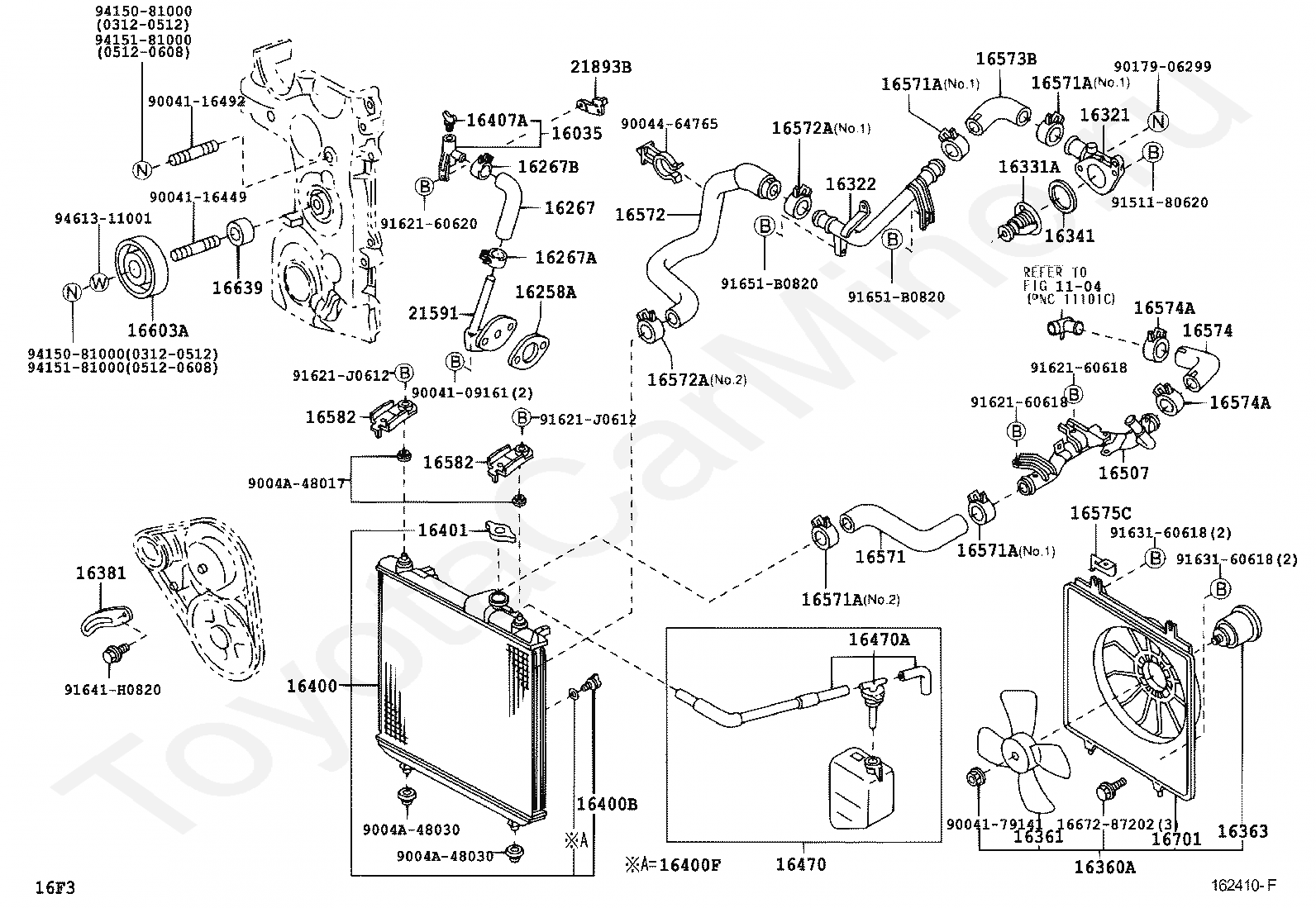

Код
Описание
1104
переход к группе запчастей
16035
JOINT, WATER HOSE
16258A
GASKET(FOR HEATER RETURN)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16321
INLET, WATER
16322
PIPE, WATER INLET
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16360A
FAN ASSY, W/MOTOR
16361
FAN
16363
MOTOR, COOLING FAN
16381
BAR, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16407A
COCK SUB-ASSY, RADIATOR DRAIN
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16507
PIPE SUB-ASSY, RADIATOR
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16574
HOSE, RADIATOR, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16575C
BRACKET, WATER HOSE CLAMP, NO.1
16582
BRACKET, RADIATOR, NO.1
16603A
PULLEY SUB-ASSY, IDLER, NO.1
16639
SPACER, IDLER PULLEY
1667287202
Крепеж
16701
SHROUD SUB-ASSY, FAN
21591
PLATE, WATER BY-PASS
21893B
BRACKET
9004109161
Крепеж
9004116449
Крепеж
9004116492
Крепеж
9004179141
Крепеж
9004464765
Крепеж
9004A48017
Крепеж
9004A48030
Крепеж
9017906299
Крепеж
9151180620
Крепеж
9162160618
Крепеж
9162160620
Крепеж
91621J0612
Крепеж
9163160618
Крепеж
91641H0820
Крепеж
91651B0820
Крепеж
9415081000
Крепеж
9415181000
Крепеж
9461311001
Крепеж
Код
Описание
1104
переход к группе запчастей
16035
JOINT, WATER HOSE
16258A
GASKET(FOR HEATER RETURN)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16321
INLET, WATER
16322
PIPE, WATER INLET
16331A
THERMOSTAT
16341
GASKET, WATER OUTLET
16360A
FAN ASSY, W/MOTOR
16361
FAN
16363
MOTOR, COOLING FAN
16381
BAR, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16407A
COCK SUB-ASSY, RADIATOR DRAIN
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16507
PIPE SUB-ASSY, RADIATOR
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16573B
HOSE, RADIATOR, NO.3
16574
HOSE, RADIATOR, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16575C
BRACKET, WATER HOSE CLAMP, NO.1
16582
BRACKET, RADIATOR, NO.1
16603A
PULLEY SUB-ASSY, IDLER, NO.1
16639
SPACER, IDLER PULLEY
1667287202
Крепеж
16701
SHROUD SUB-ASSY, FAN
21591
PLATE, WATER BY-PASS
21893B
BRACKET
9004109161
Крепеж
9004116449
Крепеж
9004116492
Крепеж
9004179141
Крепеж
9004464765
Крепеж
9004A48017
Крепеж
9004A48030
Крепеж
9017906299
Крепеж
9151180620
Крепеж
9162160618
Крепеж
9162160620
Крепеж
91621J0612
Крепеж
9163160618
Крепеж
91641H0820
Крепеж
91651B0820
Крепеж
9415081000
Крепеж
9461311001
Крепеж

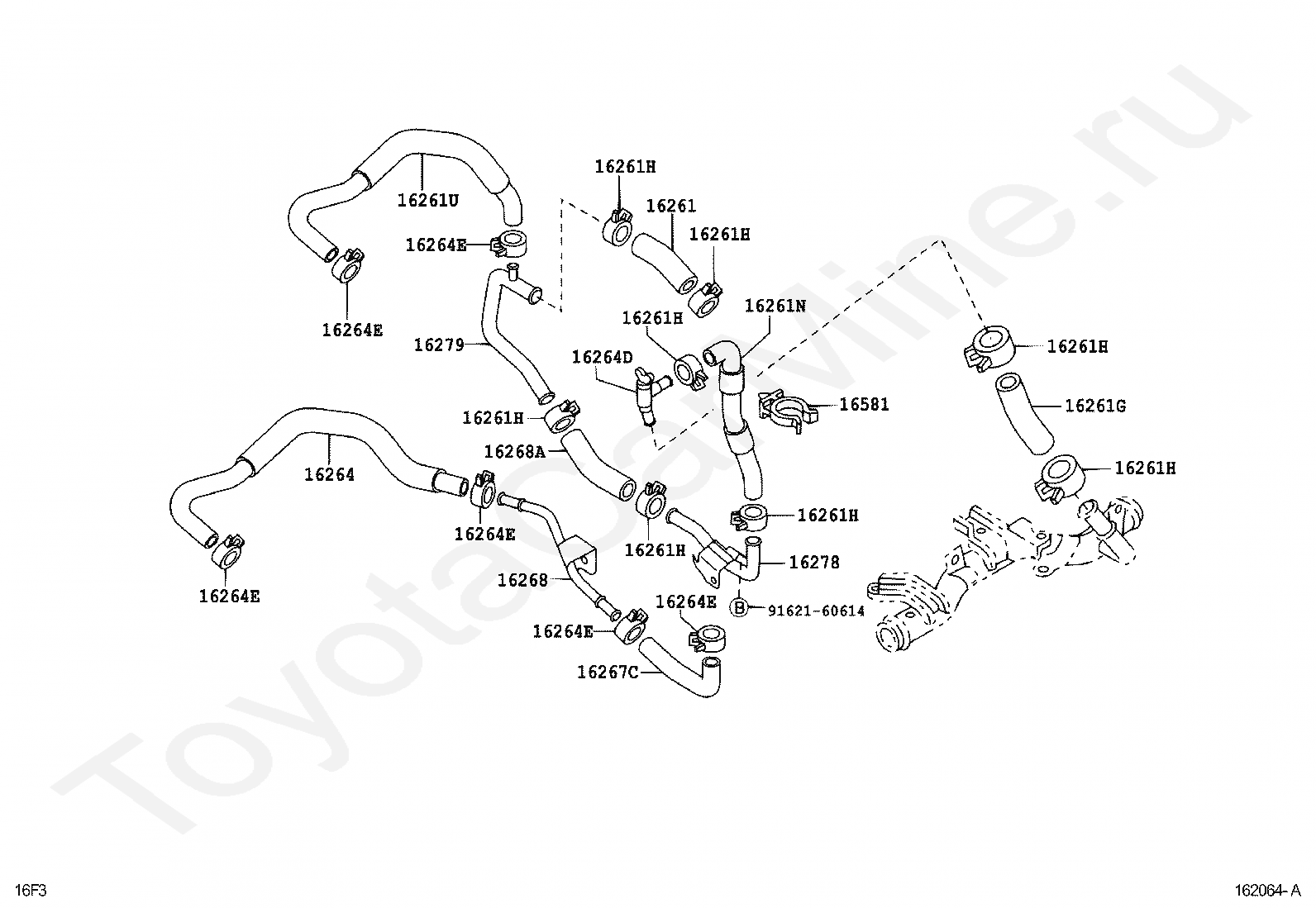

Код
Описание
16261
HOSE, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261N
HOSE, WATER BY-PASS, NO.2
16261U
WATER BY-PASS HOSE NO.1, HEAT STRAGE
16264
HOSE, WATER BY-PASS, NO.2
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267C
HOSE, WATER BY-PASS, NO.4
16268
PIPE, WATER BY-PASS, NO.1
16268A
HOSE(FOR WATER BY-PASS PIPE)
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16581
CLAMP, HOSE(FOR WATER HOSE)
17182A
ORIFICE, WATER
9162160614
Крепеж
Код
Описание
16261
HOSE, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261N
HOSE, WATER BY-PASS, NO.2
16261U
WATER BY-PASS HOSE NO.1, HEAT STRAGE
16264
HOSE, WATER BY-PASS, NO.2
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267C
HOSE, WATER BY-PASS, NO.4
16268
PIPE, WATER BY-PASS, NO.1
16268A
HOSE(FOR WATER BY-PASS PIPE)
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16581
CLAMP, HOSE(FOR WATER HOSE)
9162160614
Крепеж
