Передние кресла TOYOTA AVALON (CHINA), 2019/03 - 2021/06, 2,5 литра, 16 клапанов, DOHC, седан, AXXA50, автомат, АКПП, 8 скоростей

Каталог

Ближний Восток

Модель

AVALON (CHINA)

Двигатель

2,5 литра, 16 клапанов, DOHC

Кузов

седан

Фрейм

AXXA50

Трансмиссия

автомат АКПП, 8 скоростей

Опции

левый руль 4 двери GRAMS Китай 749W

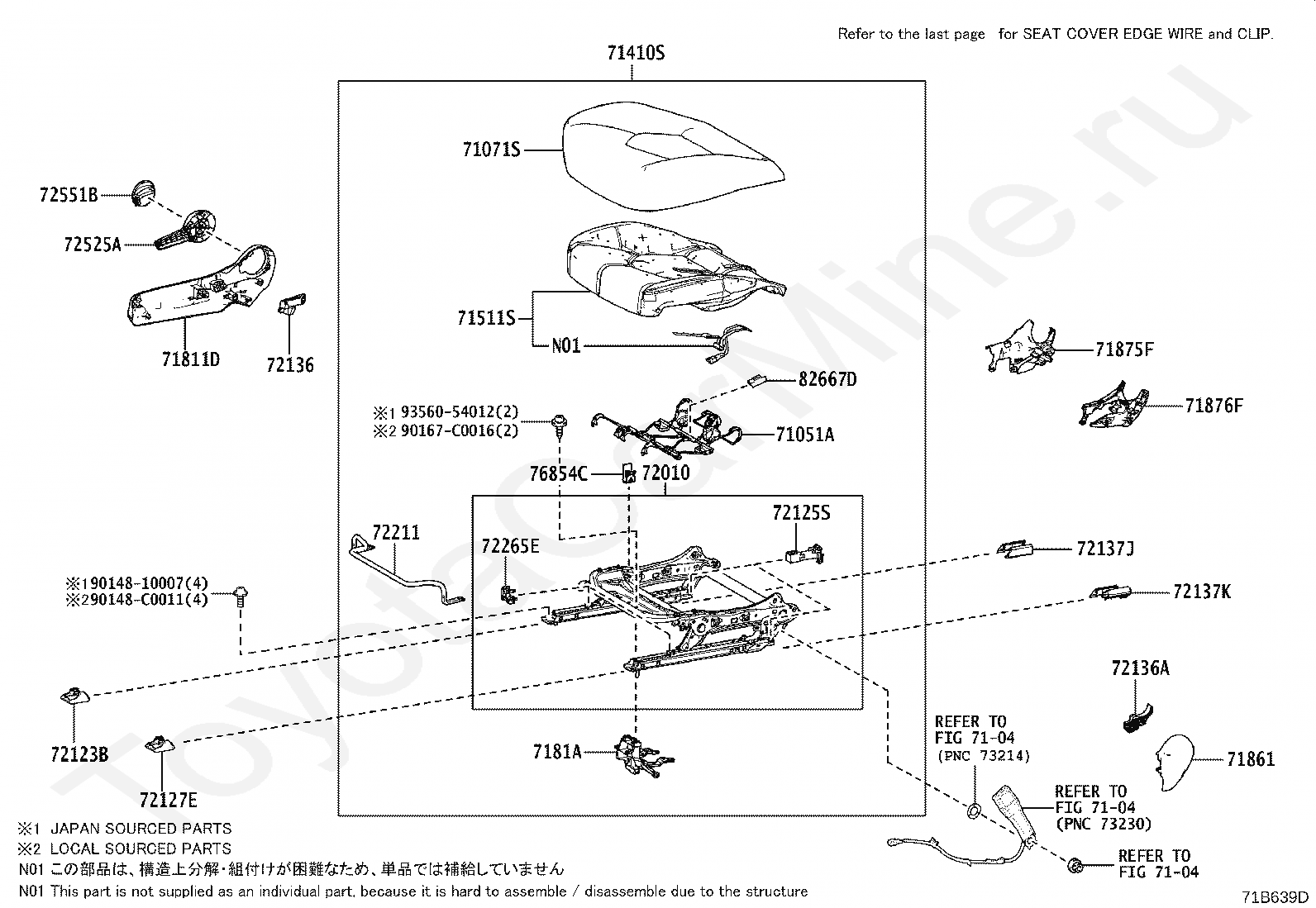

Код

Описание

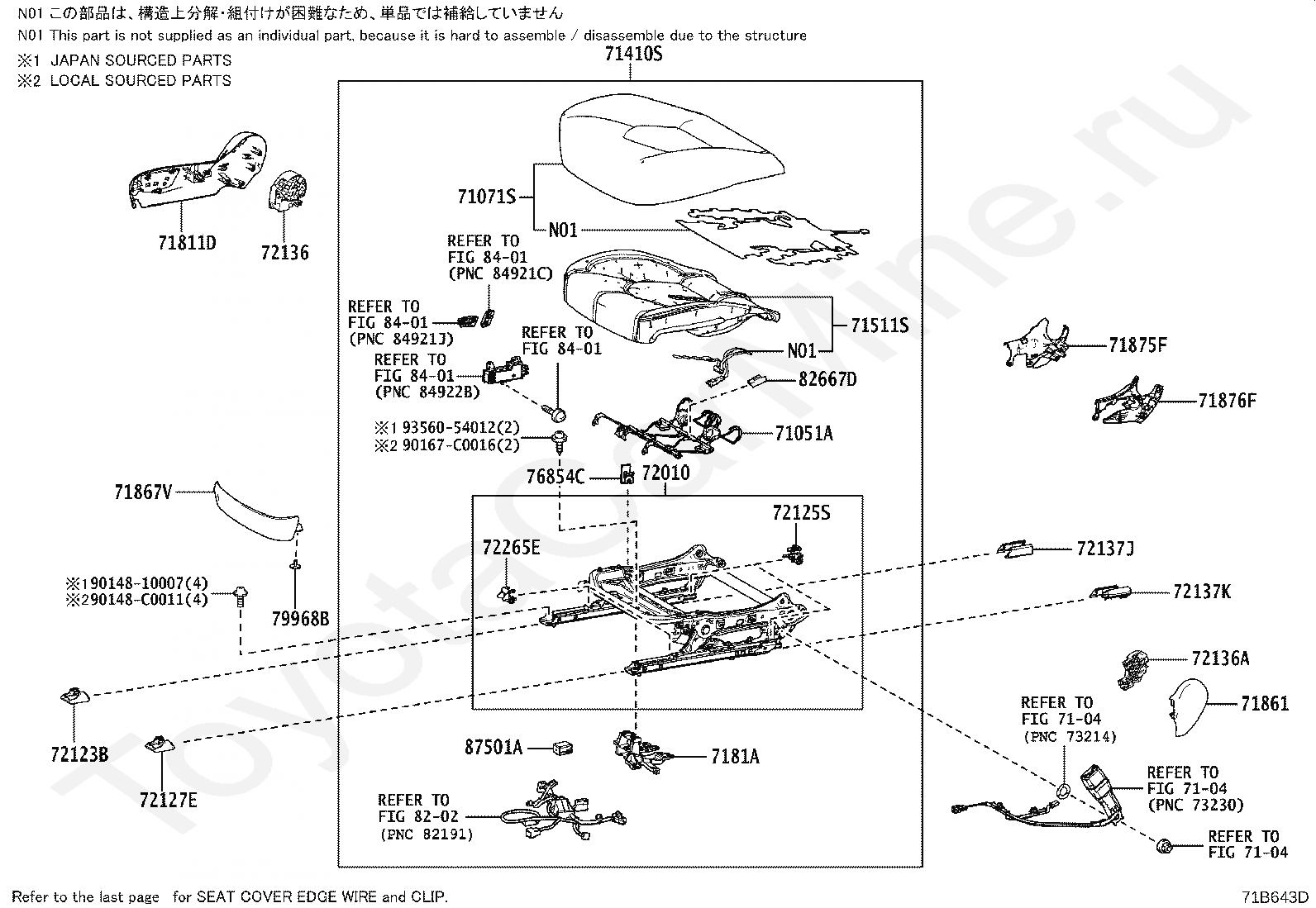

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72136

SPACER, SEAT TRACK, LOWER NO.1

72136A

SPACER, SEAT TRACK, LOWER NO.2

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

76854C

RETAINER, FRONT SEAT CUSHION COVER

82667D

HOLDER, CONNECTOR

9014810007

Крепеж

90148C0011

Крепеж

90167C0016

Крепеж

9356054012

Крепеж

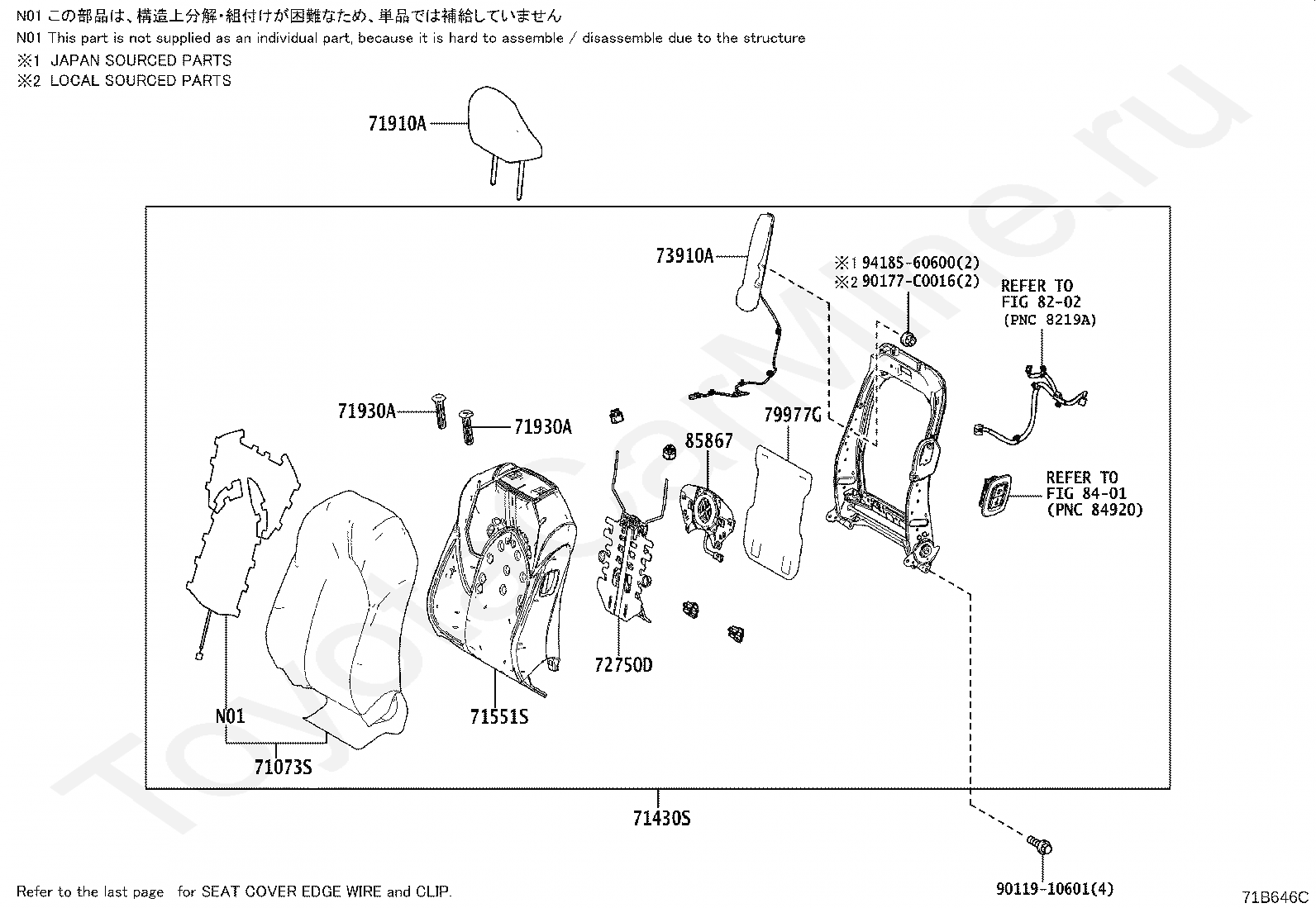

Код

Описание

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

73910A

AIR BAG ASSY, FRONT SEAT, RH

9011910601

Крепеж

90177C0016

Крепеж

9418560600

Крепеж

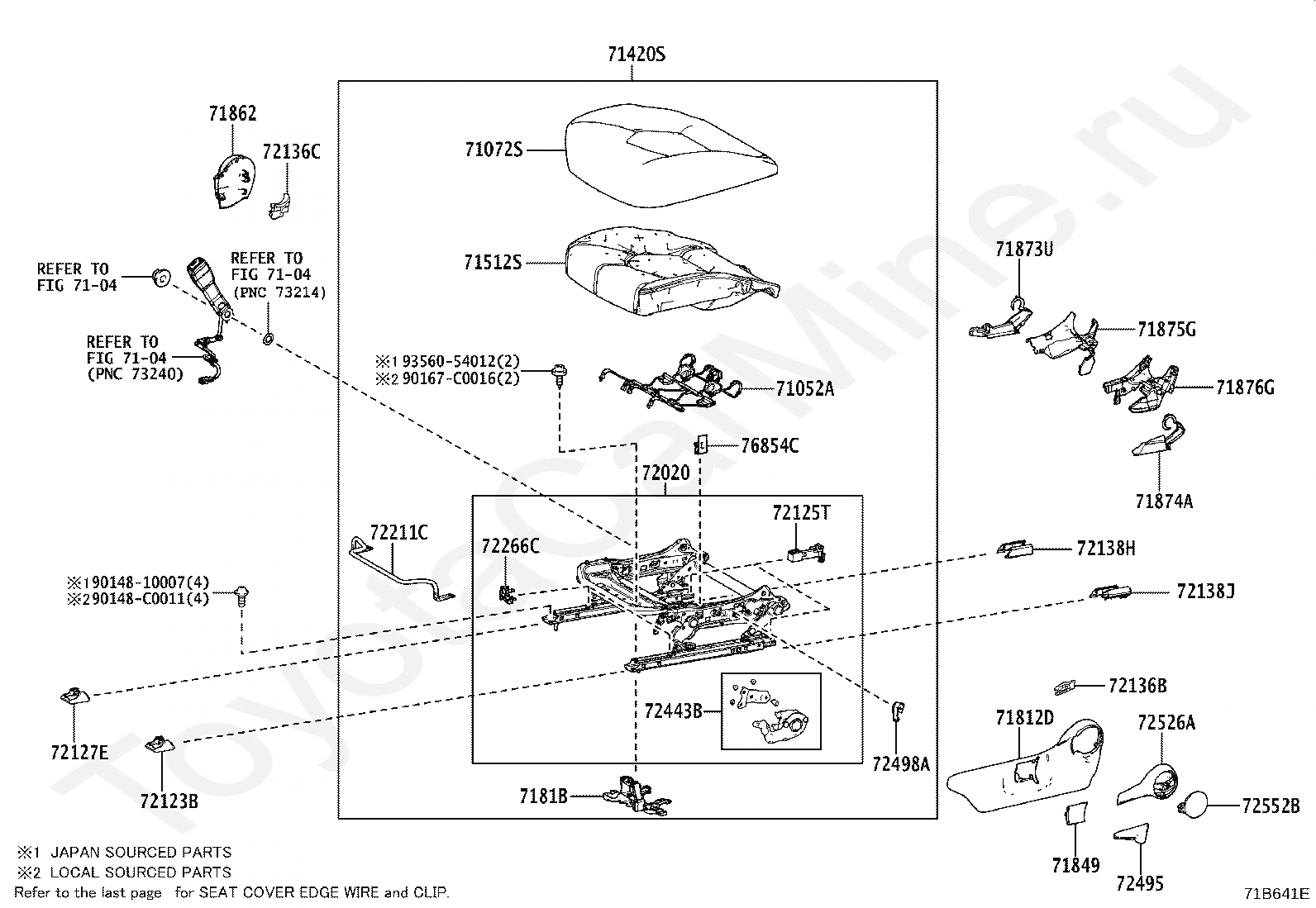

Код

Описание

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72136B

SPACER, SEAT TRACK, LOWER NO.3

72136C

SPACER, SEAT TRACK, LOWER NO.4

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72211C

HANDLE, SEAT TRACK ADJUSTING

72266C

COVER, SEAT TRACK UPPER RAIL, LH

72443B

GEAR, VERTICAL ADJUSTER, LH

72495

HANDLE, VERTICAL ADJUSTING, LH

72498A

COVER, VERTICAL ADJUSTER BRACKET, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

76854C

RETAINER, FRONT SEAT CUSHION COVER

9014810007

Крепеж

90148C0011

Крепеж

90167C0016

Крепеж

9356054012

Крепеж

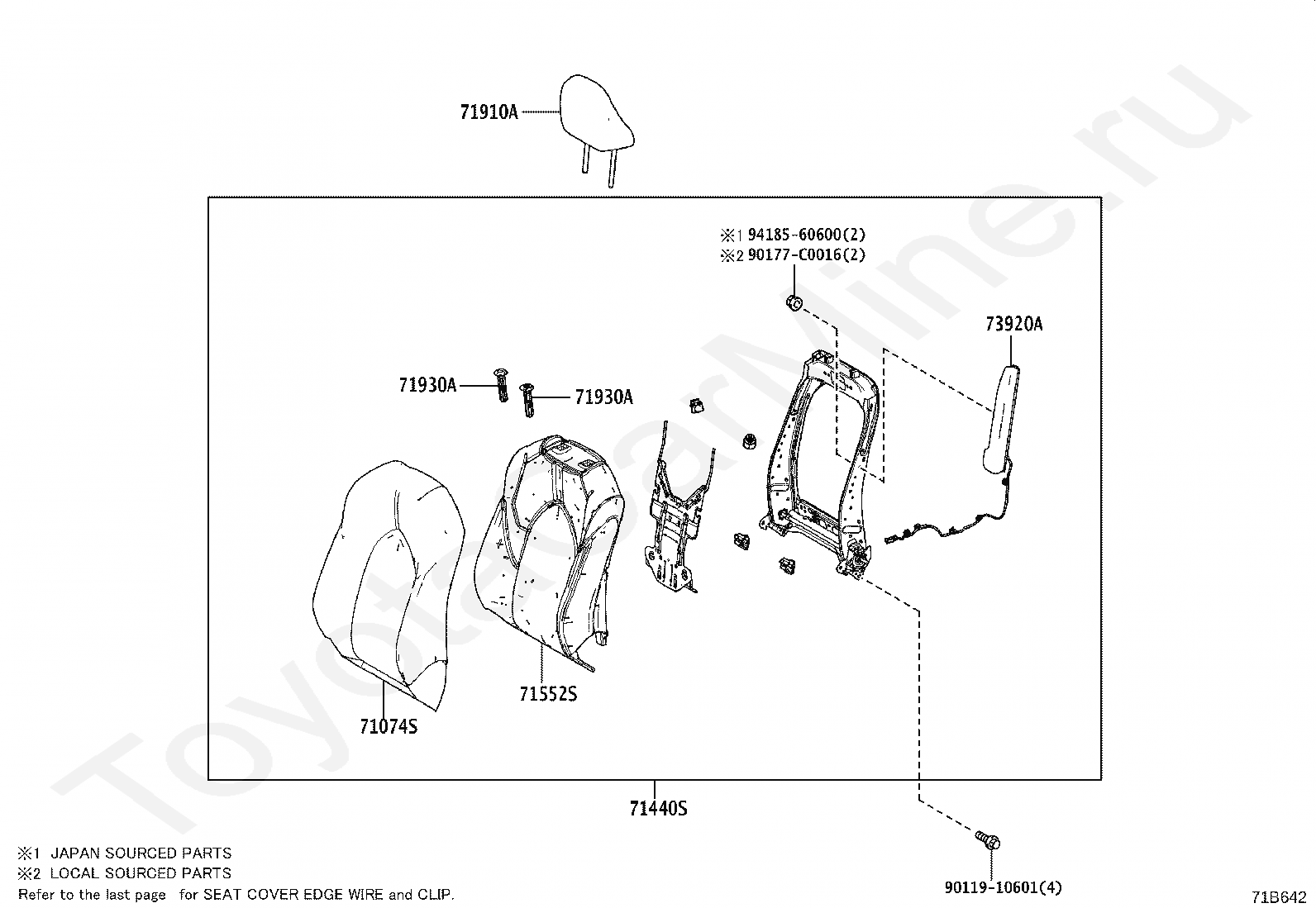

Код

Описание

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

73920A

AIR BAG ASSY, FRONT SEAT, LH

9011910601

Крепеж

90177C0016

Крепеж

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72136

SPACER, SEAT TRACK, LOWER NO.1

72136A

SPACER, SEAT TRACK, LOWER NO.2

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72265E

COVER, SEAT TRACK UPPER RAIL, RH

76854C

RETAINER, FRONT SEAT CUSHION COVER

79968B

CLIP

8202

переход к группе запчастей

82667D

HOLDER, CONNECTOR

8401

переход к группе запчастей

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

9014810007

Крепеж

90148C0011

Крепеж

90167C0016

Крепеж

9356054012

Крепеж

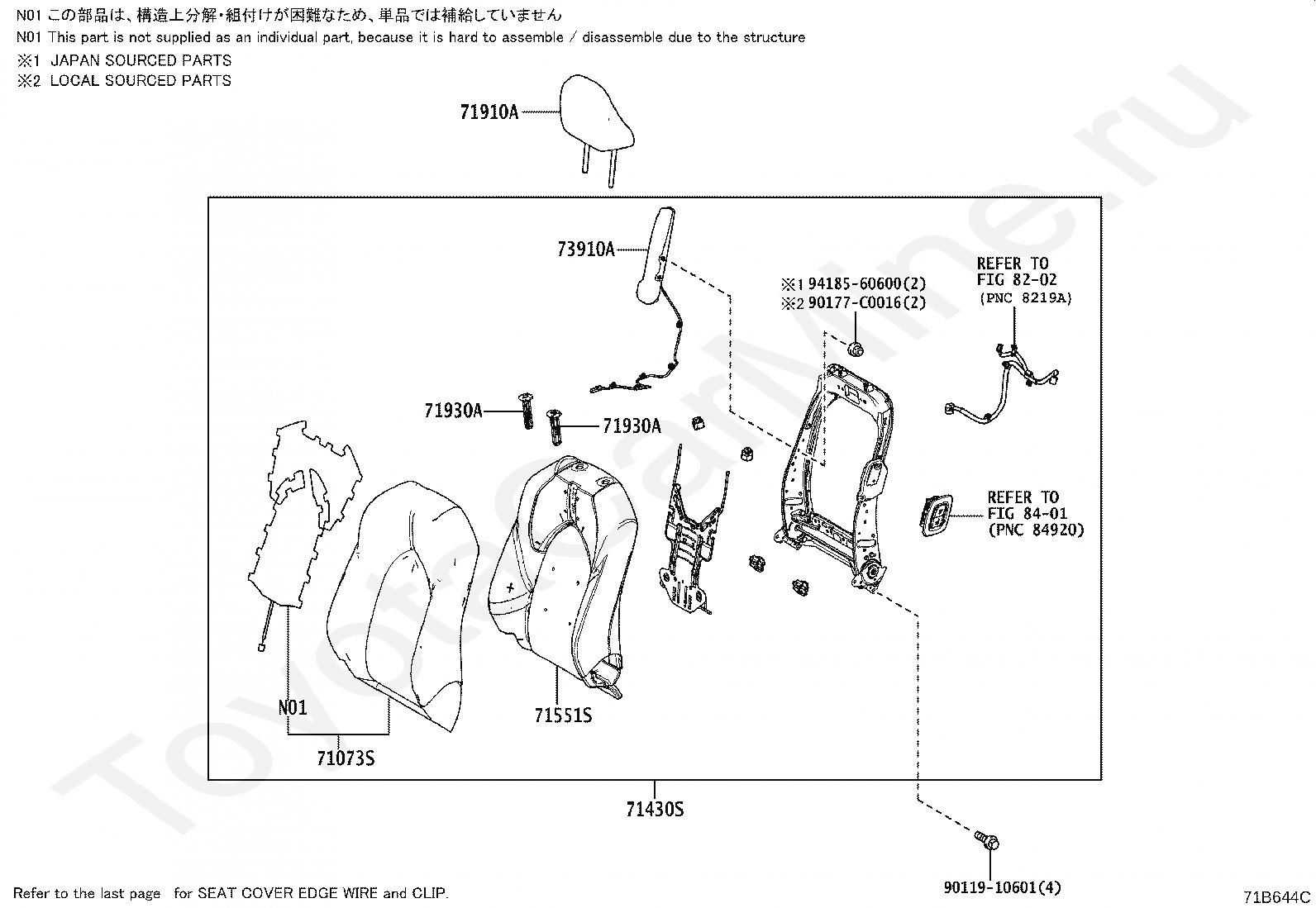

Код

Описание

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

90177C0016

Крепеж

9418560600

Крепеж

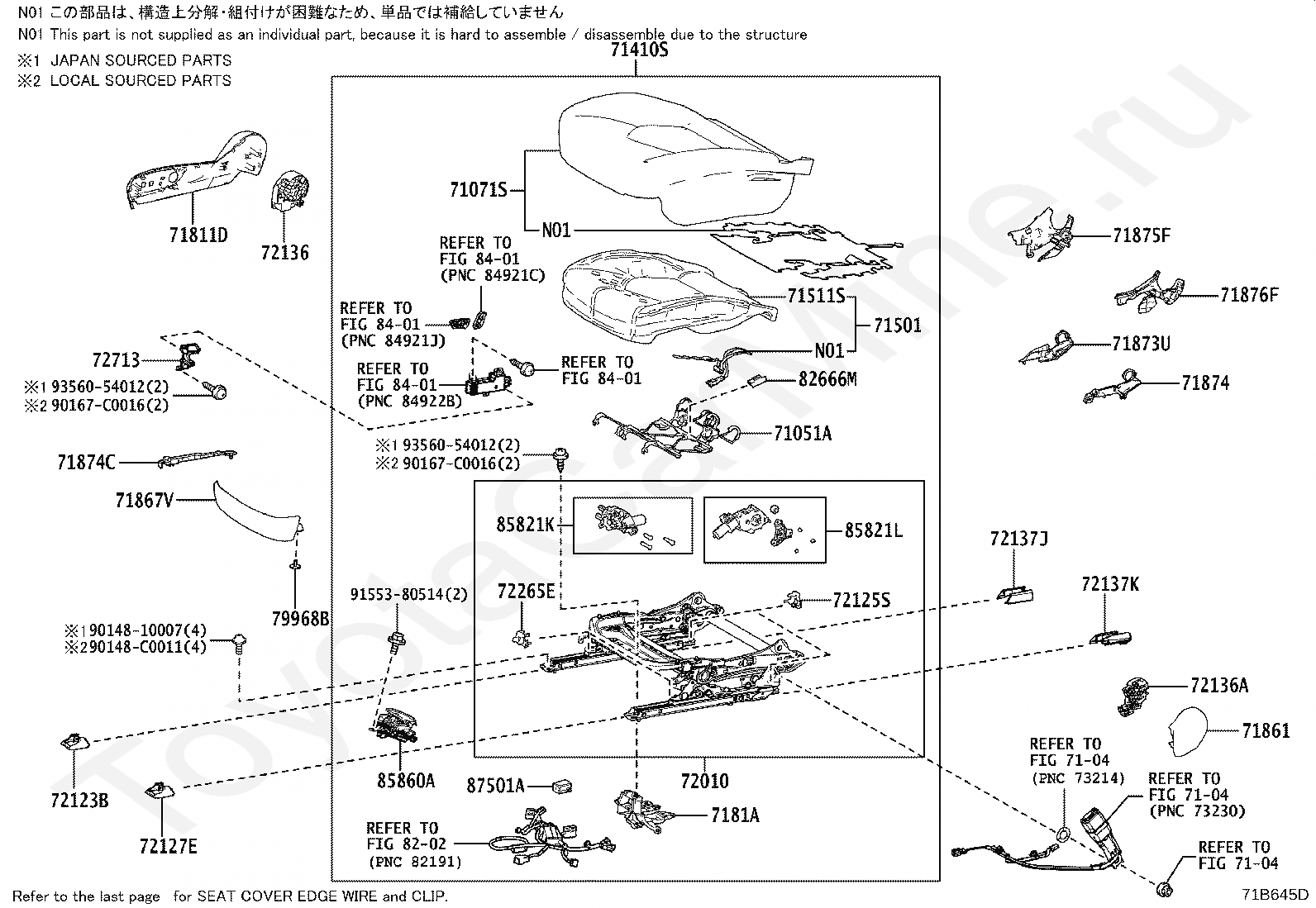

Код

Описание

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71501

PAD SUB-ASSY, FRONT SEAT CUSHION, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72136

SPACER, SEAT TRACK, LOWER NO.1

72136A

SPACER, SEAT TRACK, LOWER NO.2

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72713

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

79968B

CLIP

8202

переход к группе запчастей

82666M

HOLDER, CONNECTOR

8401

переход к группе запчастей

85821K

MOTOR ASSY, POWER SEAT TILT, RH

85821L

MOTOR ASSY, POWER SEAT LIFTER, RH

85860A

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

9014810007

Крепеж

90148C0011

Крепеж

90167C0016

Крепеж

9155380514

Крепеж

9356054012

Крепеж

Код

Описание

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977G

FELT, FRONT SEAT BACK, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

85867

BLOWER, SEAT BACK CLIMATE CONTROL, RH

9011910601

Крепеж

90177C0016

Крепеж

9418560600

Крепеж

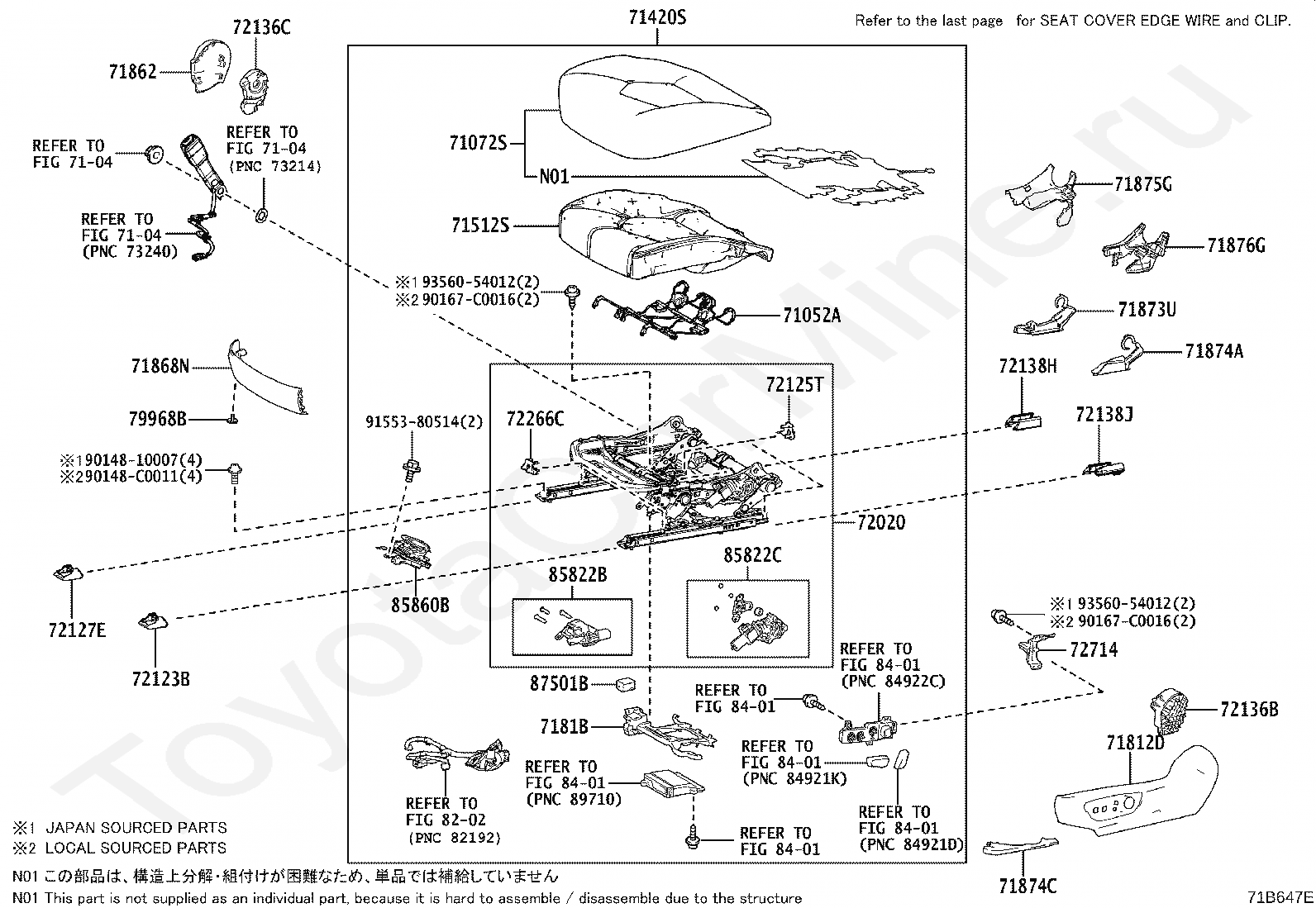

Код

Описание

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868N

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72136B

SPACER, SEAT TRACK, LOWER NO.3

72136C

SPACER, SEAT TRACK, LOWER NO.4

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72266C

COVER, SEAT TRACK UPPER RAIL, LH

72714

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

79968B

CLIP

8202

переход к группе запчастей

8401

переход к группе запчастей

85822B

MOTOR ASSY, POWER SEAT TILT, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

85860B

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

9014810007

Крепеж

90148C0011

Крепеж

90167C0016

Крепеж

9155380514

Крепеж

9356054012

Крепеж

Код

Описание

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

85867A

BLOWER, SEAT BACK CLIMATE CONTROL, LH

9011910601

Крепеж

90177C0016

Крепеж

9418560600

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA AVALON (CHINA), 2019/03 - 2021/06, 2,5 литра, 16 клапанов, DOHC, седан, AXXA50, автомат, АКПП, 8 скоростей
