Каталог
Ближний ВостокМодель
AVALONДвигатель
3 литра, 24 клапана DOHC, EFIКласс
XLS TYPEФрейм
MCX10Трансмиссия
АКПП, 4 ступениОпции

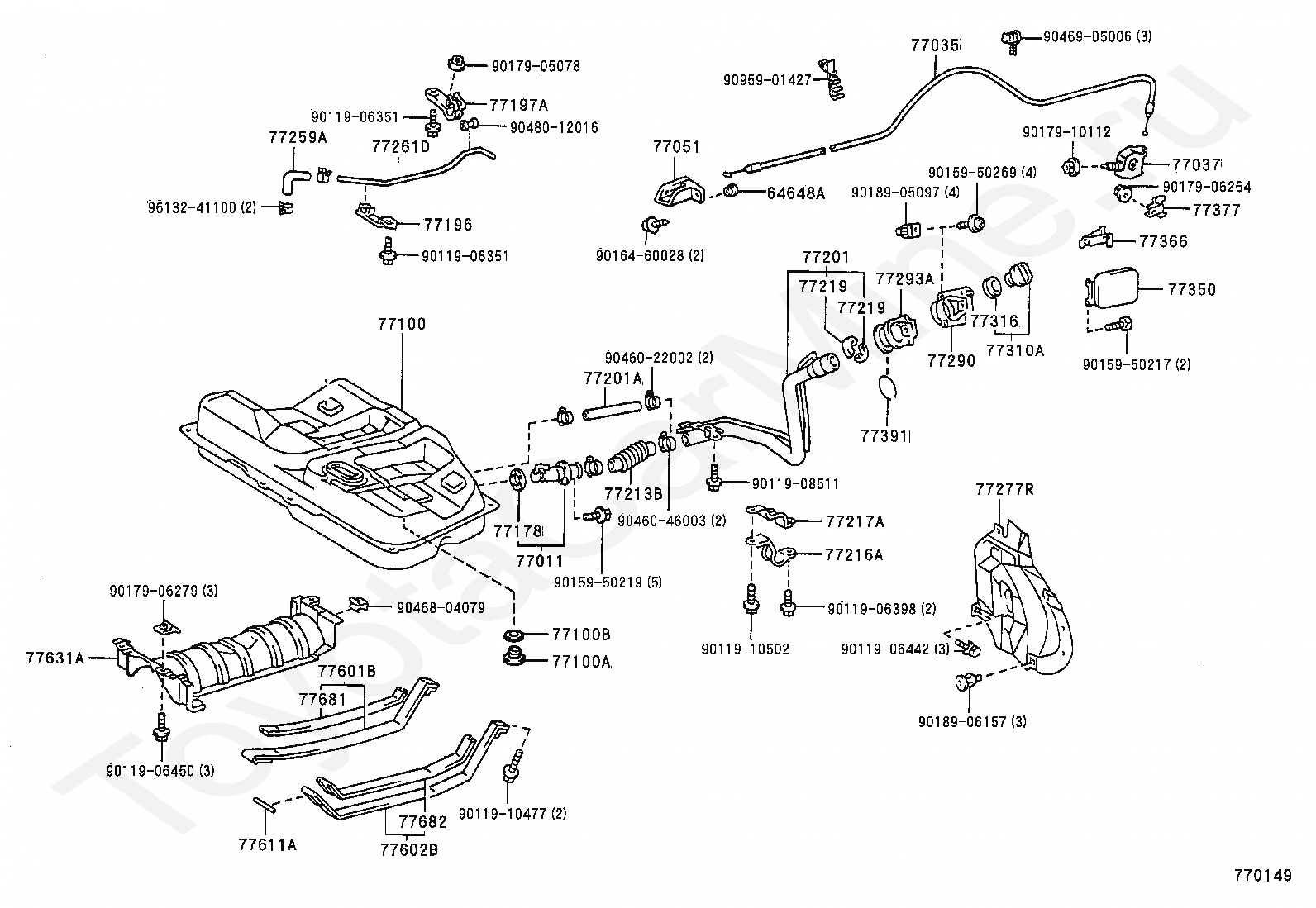

Код
Описание
64648A
GROMMET, LUGGAGE DOOR LOCK OPENER
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051
LEVER SUB-ASSY, FUEL LID OPEN
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77196
CLAMP, EVAPORATION VENT TUBE, NO.1
77197A
CLAMP, EVAPORATION VENT TUBE, NO.2
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77219
COVER, FUEL TANK FILLER PIPE
77259A
HOSE, FUEL(FOR BREATHER TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77611A
PIN (FOR FUEL TANK BAND)
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
9011906351
Крепеж
9011906398
Крепеж
9011906442
Крепеж
9011906450
Крепеж
9011908511
Крепеж
9011910477
Крепеж
9011910502
Крепеж
9015950217
Крепеж
9015950219
Крепеж
9015950269
Крепеж
9016460028
Крепеж
9017905078
Крепеж
9017906264
Крепеж
9017906279
Крепеж
9017910112
Крепеж
9018905097
Крепеж
9018906157
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046804079
Крепеж
9046905006
Крепеж
9048012016
Крепеж
9095901427
Крепеж
9613241100
Крепеж

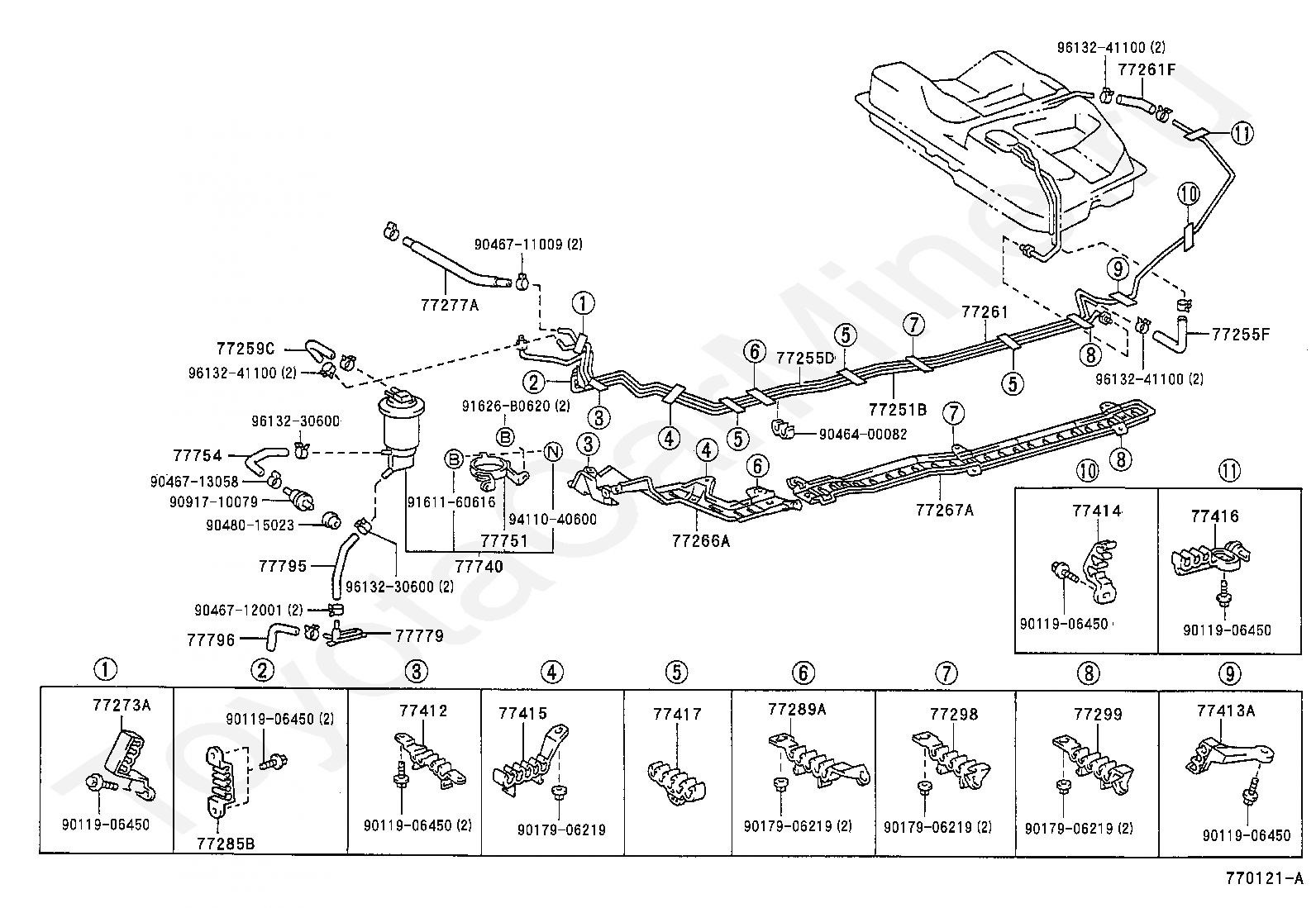

Код
Описание
77251B
TUBE, FUEL MAIN
77255D
TUBE, FUEL RETURN
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77259C
HOSE, FUEL
77261
TUBE SUB-ASSY, FUEL EMISSION
77261F
HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77273A
CLAMP, FUEL TUBE W/GROMMET, NO.6
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77285B
CLAMP, FUEL TUBE W/GROMMET, NO.1
77289A
CLAMP, FUEL TUBE W/GROMMET, NO.3
77298
CLAMP, FUEL TUBE W/GROMMET, NO.4
77299
CLAMP, FUEL TUBE W/GROMMET, NO.5
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77415
SUPPORT, FUEL TUBE GROMMET, NO.5
77416
SUPPORT, FUEL TUBE GROMMET, NO.6
77417
SUPPORT, FUEL TUBE GROMMET, NO.7
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77779
TUBE, CHARCOAL CANISTER OUTLET
77795
HOSE, CHARCOAL CANISTER OUTLET, NO.2
77796
HOSE, CHARCOAL CANISTER OUTLET, NO.3
9011906450
Крепеж
9017906219
Крепеж
9046400082
Крепеж
9046711009
Крепеж
9046712001
Крепеж
9046713058
Крепеж
9048015023
Крепеж
9091710079
Крепеж
9161160616
Крепеж
91626B0620
Крепеж
9411040600
Крепеж
9613230600
Крепеж
9613241100
Крепеж

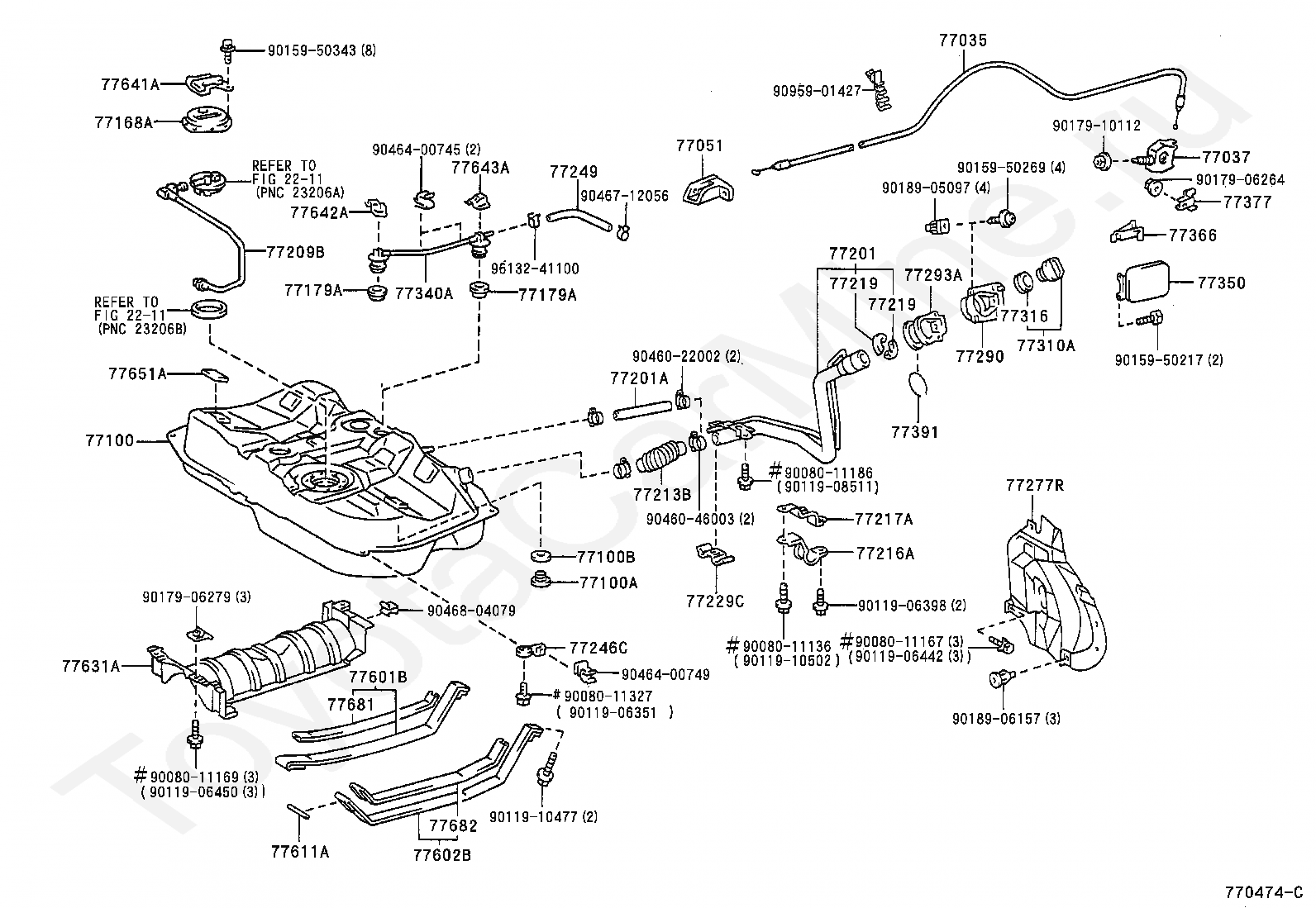

Код
Описание
2211
переход к группе запчастей
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051
LEVER SUB-ASSY, FUEL LID OPEN
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77168A
PLATE, FUEL TANK VENT TUBE SET
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77219
COVER, FUEL TANK FILLER PIPE
77229C
CLAMP, BREATHER TUBE
77246C
SUPPORT, FUEL MAIN TUBE
77249
HOSE, FUEL EMISSION
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77611A
PIN (FOR FUEL TANK BAND)
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77643A
PROTECTOR, FUEL TANK, NO.3
77651A
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
9008011136
Крепеж
9008011167
Крепеж
9008011169
Крепеж
9008011186
Крепеж
9008011327
Крепеж
9011906351
Крепеж
9011906398
Крепеж
9011906442
Крепеж
9011906450
Крепеж
9011908511
Крепеж
9011910477
Крепеж
9011910502
Крепеж
9015950217
Крепеж
9015950269
Крепеж
9015950343
Крепеж
9017906264
Крепеж
9017906279
Крепеж
9017910112
Крепеж
9018905097
Крепеж
9018906157
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046400745
Крепеж
9046400749
Крепеж
9046712056
Крепеж
9046804079
Крепеж
9095901427
Крепеж
9613241100
Крепеж

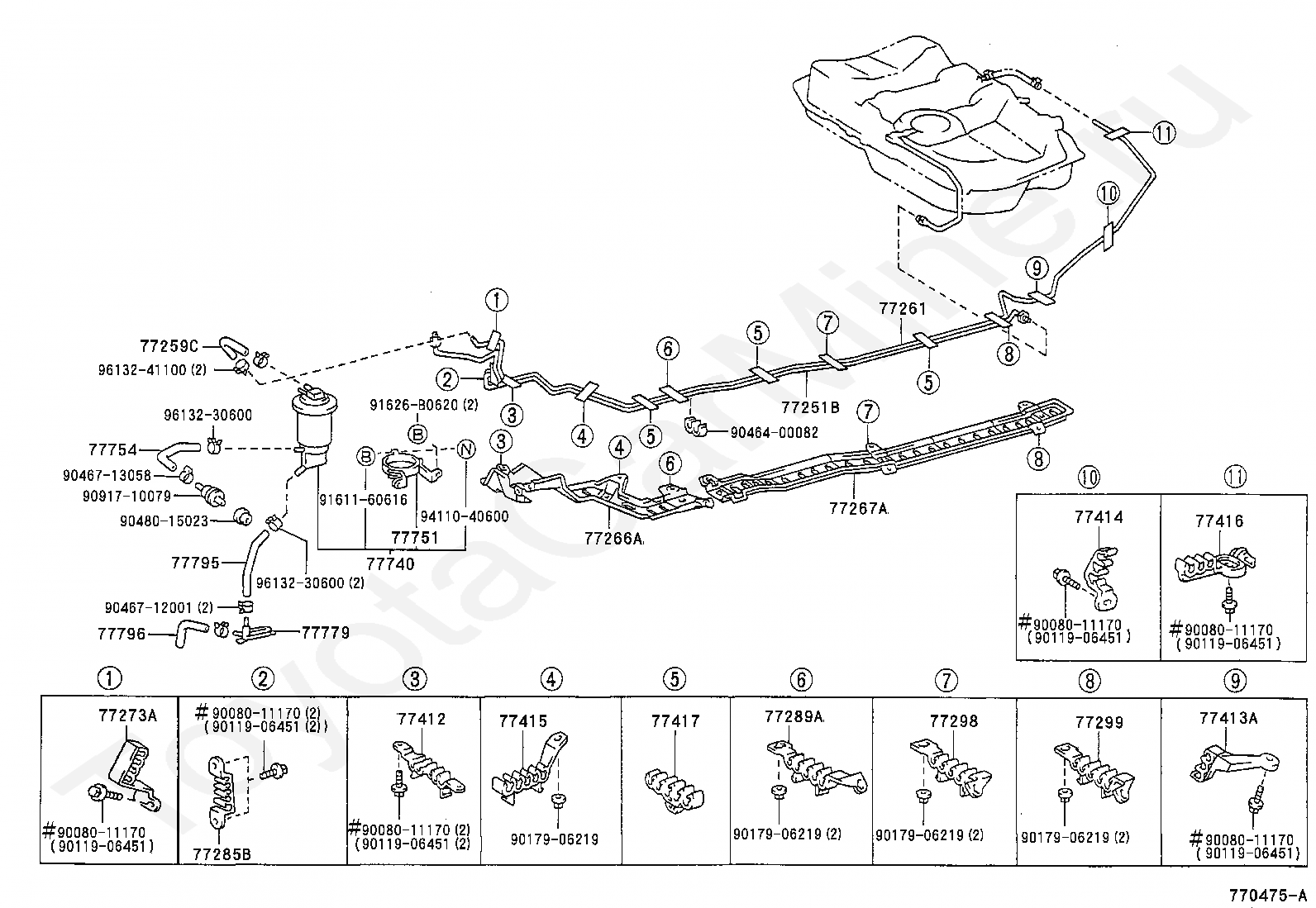

Код
Описание
77251B
TUBE, FUEL MAIN
77259C
HOSE, FUEL
77261
TUBE SUB-ASSY, FUEL EMISSION
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77273A
CLAMP, FUEL TUBE W/GROMMET, NO.6
77285B
CLAMP, FUEL TUBE W/GROMMET, NO.1
77289A
CLAMP, FUEL TUBE W/GROMMET, NO.3
77298
CLAMP, FUEL TUBE W/GROMMET, NO.4
77299
CLAMP, FUEL TUBE W/GROMMET, NO.5
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77415
SUPPORT, FUEL TUBE GROMMET, NO.5
77416
SUPPORT, FUEL TUBE GROMMET, NO.6
77417
SUPPORT, FUEL TUBE GROMMET, NO.7
77740
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77779
TUBE, CHARCOAL CANISTER OUTLET
77795
HOSE, CHARCOAL CANISTER OUTLET, NO.2
77796
HOSE, CHARCOAL CANISTER OUTLET, NO.3
9008011170
Крепеж
9011906451
Крепеж
9017906219
Крепеж
9046400082
Крепеж
9046712001
Крепеж
9046713058
Крепеж
9048015023
Крепеж
9091710079
Крепеж
9161160616
Крепеж
91626B0620
Крепеж
9411040600
Крепеж
9613230600
Крепеж
9613241100
Крепеж
