Ручной тормоз TOYOTA AVALON, 1995/08 - 1999/08, 3 литра, 24 клапана DOHC, EFI, XLS TYPE, MCX10, АКПП, 4 ступени

Каталог

Ближний Восток

Модель

AVALON

Двигатель

3 литра, 24 клапана DOHC, EFI

Класс

XLS TYPE

Фрейм

MCX10

Трансмиссия

АКПП, 4 ступени

Опции

Код

Описание

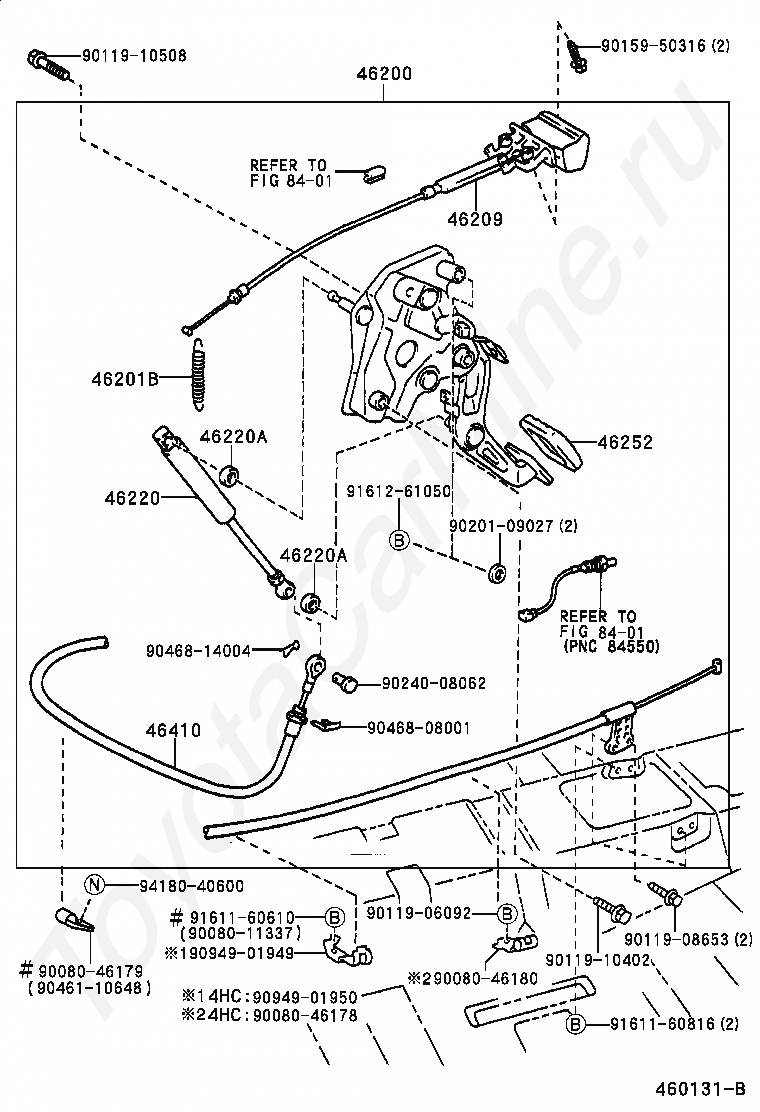

46200

PEDAL ASSY, PARKING BRAKE CONTROL

46201B

SPRING, TENSION

46209

CABLE SUB-ASSY, PARKING BRAKE RELEASE

46220

ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

46220A

CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

46252

PAD, PARKING PEDAL

46410

CABLE ASSY, PARKING BRAKE, NO.1

8401

переход к группе запчастей

9008011337

Крепеж

9008046178

Крепеж

9008046179

Крепеж

9008046180

Крепеж

9011906092

Крепеж

9011908653

Крепеж

9011910402

Крепеж

9011910508

Крепеж

9015950316

Крепеж

9020109027

Крепеж

9024008062

Крепеж

9046110648

Крепеж

9046808001

Крепеж

9046814004

Крепеж

9094901949

Крепеж

9094901950

Крепеж

9161160610

Крепеж

9161160816

Крепеж

9161261050

Крепеж

9418040600

Крепеж

Код

Описание

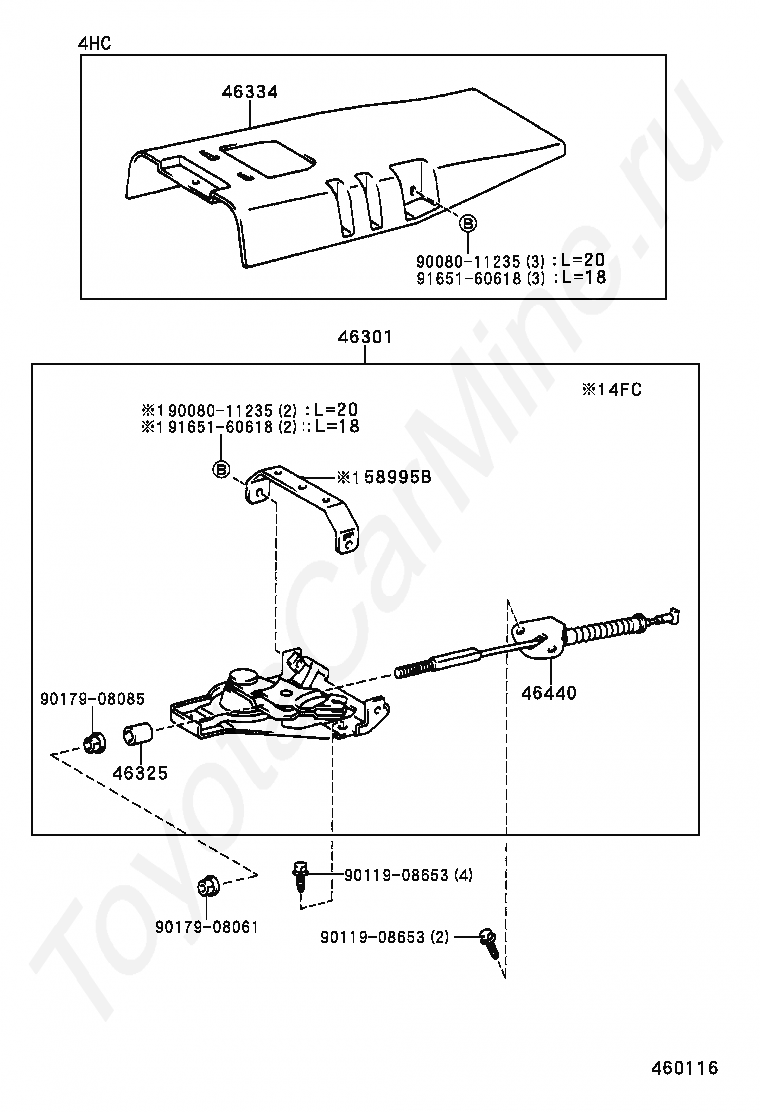

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46325

SLEEVE, PARKING BRAKE CABLE

46334

PROTECTOR, INTERMEDIATE LEVER

46440

CABLE ASSY, PARKING BRAKE, NO.4

58995B

BRACKET, CONSOLE BOX MOUNTING, NO.1

9008011235

Крепеж

9011908653

Крепеж

9017908061

Крепеж

9017908085

Крепеж

9165160618

Крепеж

Код

Описание

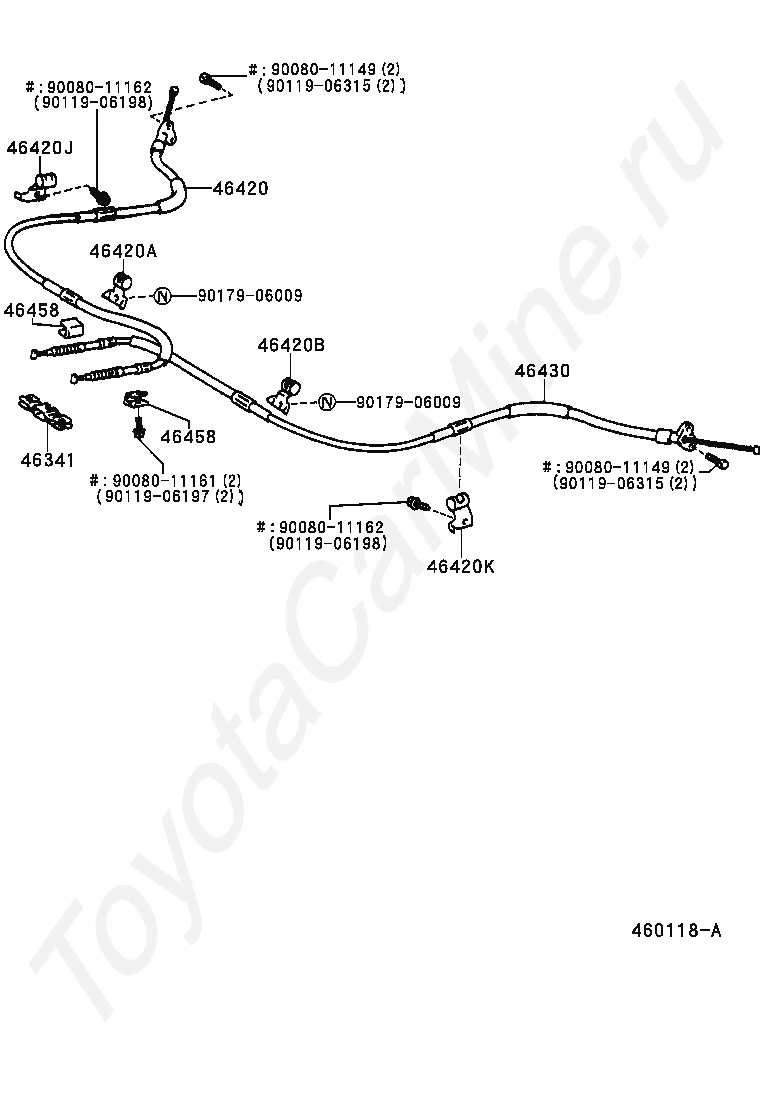

46341

EQUALIZER, PARKING BRAKE

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420B

CLAMP, NO.2(FOR PARKING BRAKE CABLE)

46420J

CLAMP, NO.3(FOR PARKING BRAKE CABLE)

46420K

CLAMP, NO.4(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46458

RETAINER, CABLE

9008011149

Крепеж

9008011161

Крепеж

9008011162

Крепеж

9011906197

Крепеж

9011906198

Крепеж

9011906315

Крепеж

9017906009

Крепеж

Код

Описание

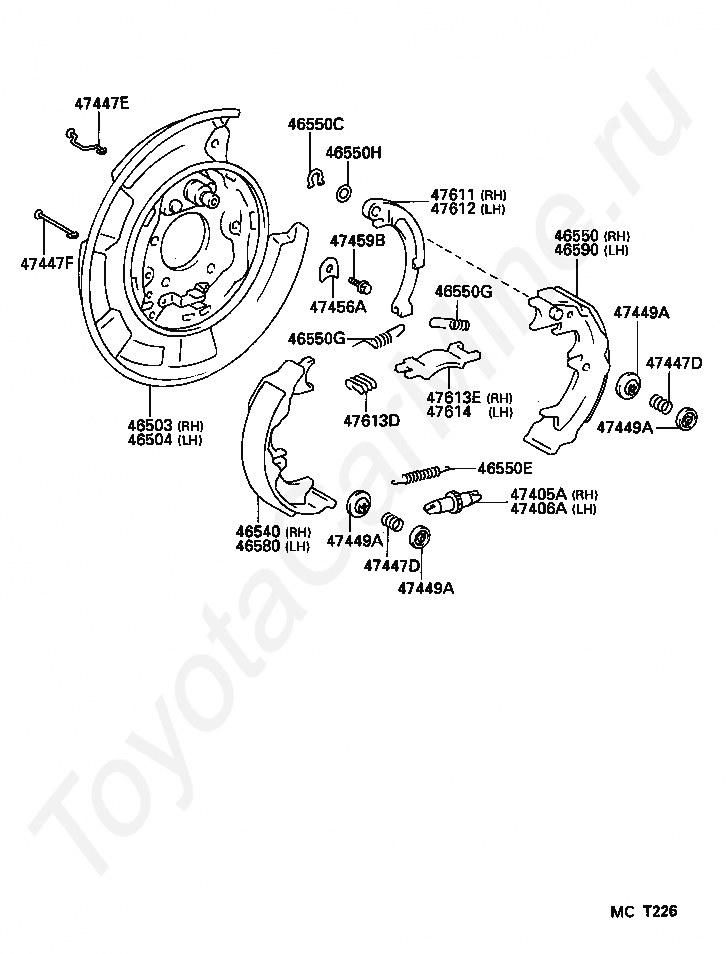

46503

PLATE SUB-ASSY, PARKING BRAKE, RH

46504

PLATE SUB-ASSY, PARKING BRAKE, LH

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46550G

SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)

46550H

SHIM(FOR PARKING BRAKE SHOE)

46580

SHOE ASSY, PARKING BRAKE, LH NO.1

46590

SHOE ASSY, PARKING BRAKE, LH NO.2

47405A

SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)

47406A

SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)

47447D

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)

47447E

PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

47447F

PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)

47449A

CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

47456A

PLATE, SHOE GUIDE(FOR PARKING BRAKE)

47459B

BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)

47611

LEVER, PARKING BRAKE SHOE, RH

47612

LEVER, PARKING BRAKE SHOE, LH

47613D

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47613E

STRUT, PARKING BRAKE SHOE, RH

47614

STRUT, PARKING BRAKE SHOE, LH
