Каталог
Ближний ВостокМодель
AVALONДвигатель
3 литра, 24 клапана DOHC, EFIКласс
XLS TYPEФрейм
MCX10Трансмиссия
АКПП, 4 ступениОпции

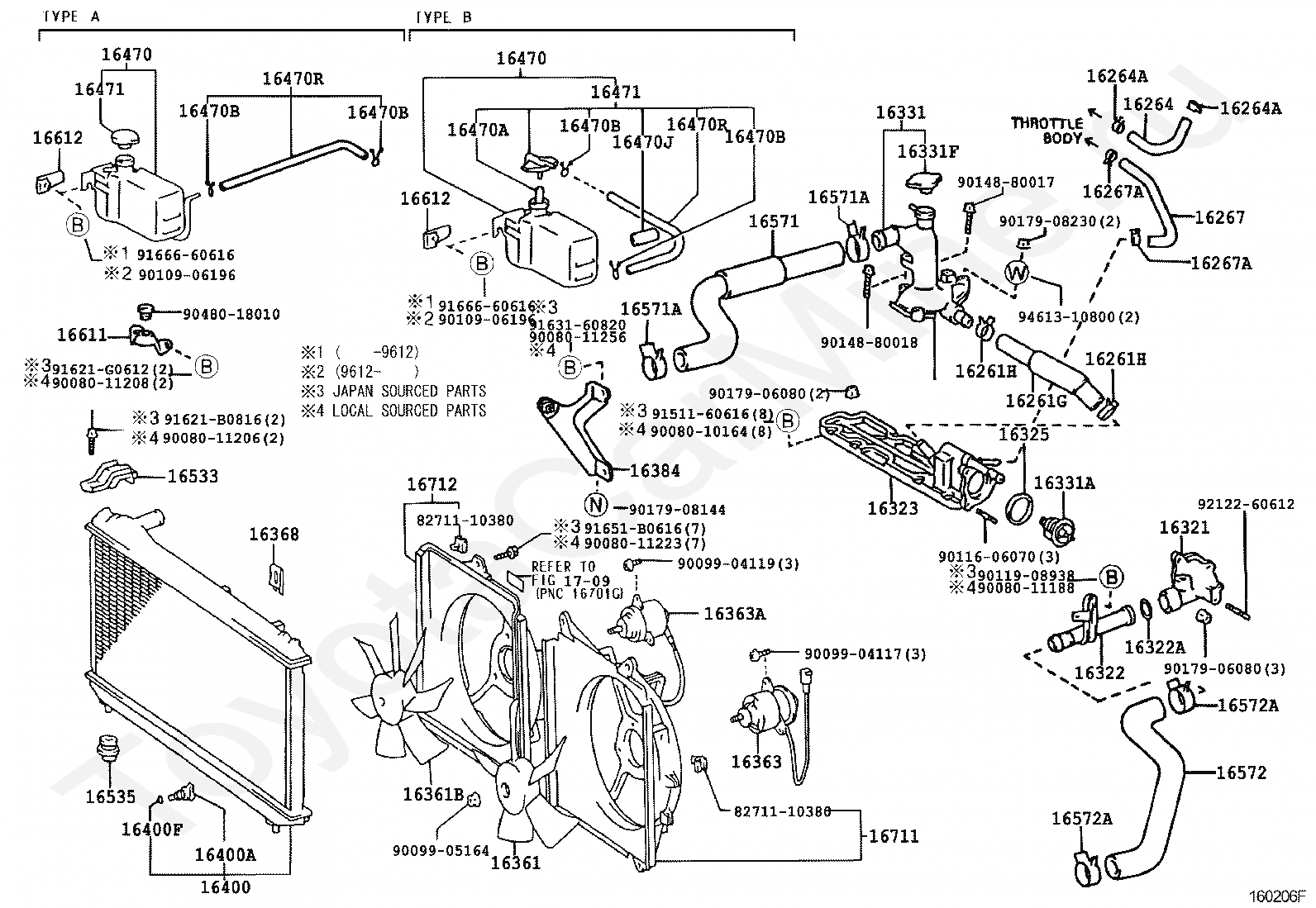

Код
Описание
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16321
INLET, WATER
16322
PIPE, WATER INLET
16322A
RING, O(FOR WATER INLET)
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331F
CAP SUB-ASSY(FOR WATER OUTLET)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16363A
MOTOR, COOLING FAN, NO.2
16368
BRACKET, COOLING MOTOR
16384
BRACKET, FAN BELT ADJUSTING BAR
16400
RADIATOR ASSY
16400A
COCK SUB-ASSY, RADIATOR DRAIN
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470J
HOSE, NO.3(FOR RADIATOR RESERVE TANK)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611
BRACKET, RADIATOR RESERVE TANK
16612
BRACKET, RADIATOR RESERVE TANK, NO.2
16711
SHROUD, FAN
16712
SHROUD, FAN, NO.2
1709
переход к группе запчастей
8271110380
Крепеж
9009904117
Крепеж
9009904119
Крепеж
9009905164
Крепеж
9011606070
Крепеж
9011906029
Крепеж
9011906195
Крепеж
9011908938
Крепеж
9014880017
Крепеж
9014880018
Крепеж
9017906080
Крепеж
9017908144
Крепеж
9017908230
Крепеж
904670502001
Крепеж
9048018010
Крепеж
9151160616
Крепеж
91621B0816
Крепеж
91621G0612
Крепеж
9163160820
Крепеж
9212260612
Крепеж
9461310800
Крепеж

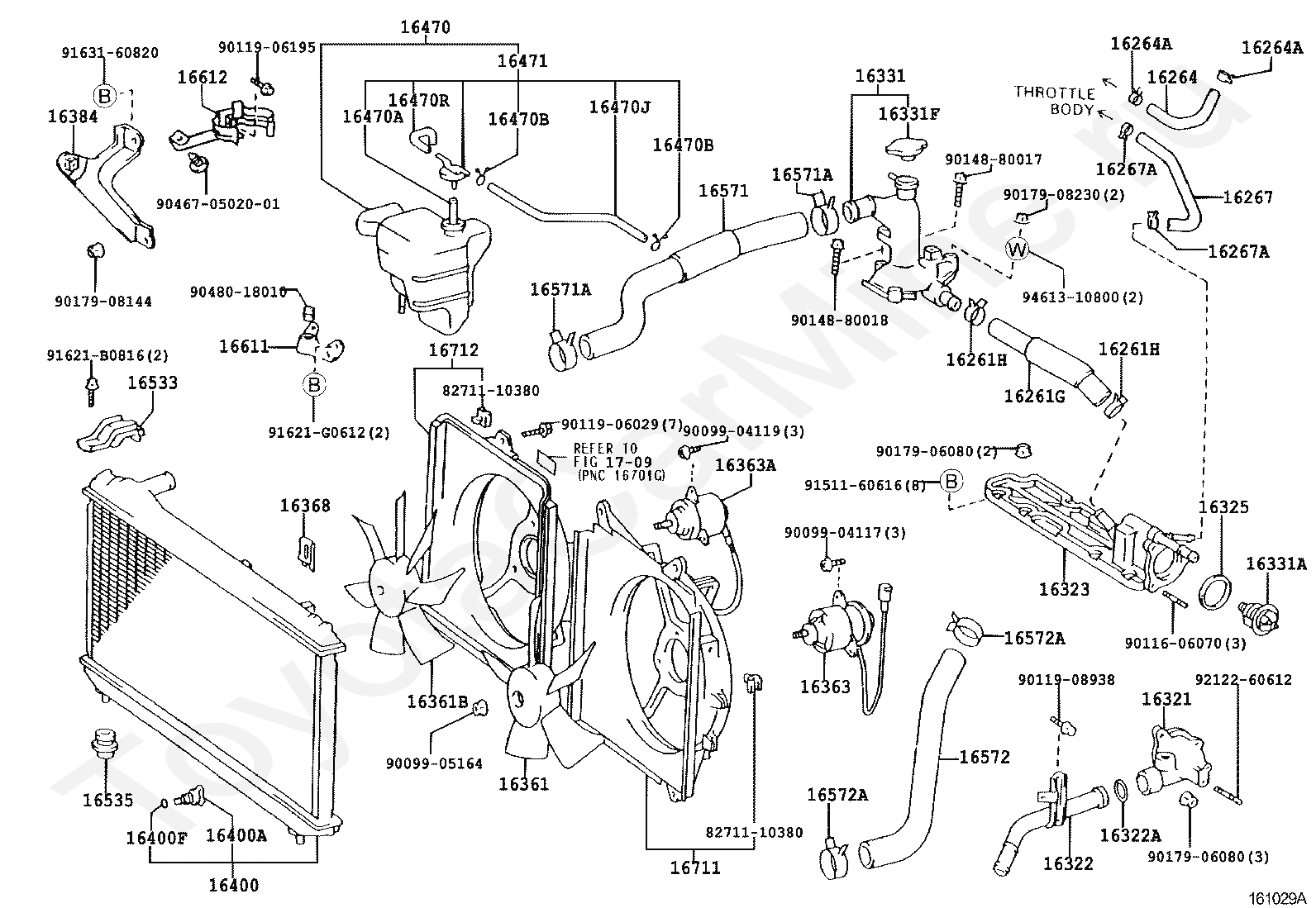

Код
Описание
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16321
INLET, WATER
16322
PIPE, WATER INLET
16322A
RING, O(FOR WATER INLET)
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16331
OUTLET, WATER
16331A
THERMOSTAT
16331F
CAP SUB-ASSY(FOR WATER OUTLET)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16363A
MOTOR, COOLING FAN, NO.2
16368
BRACKET, COOLING MOTOR
16384
BRACKET, FAN BELT ADJUSTING BAR
16400
RADIATOR ASSY
16400A
COCK SUB-ASSY, RADIATOR DRAIN
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470J
HOSE, NO.3(FOR RADIATOR RESERVE TANK)
16470R
HOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471
CAP SUB-ASSY, RESERVE TANK
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611
BRACKET, RADIATOR RESERVE TANK
16612
BRACKET, RADIATOR RESERVE TANK, NO.2
16711
SHROUD, FAN
16712
SHROUD, FAN, NO.2
1709
переход к группе запчастей
8271110380
Крепеж
9008010164
Крепеж
9008011188
Крепеж
9008011206
Крепеж
9008011208
Крепеж
9008011223
Крепеж
9008011256
Крепеж
9009904117
Крепеж
9009904119
Крепеж
9009905164
Крепеж
9010906196
Крепеж
9011606070
Крепеж
9011908938
Крепеж
9014880017
Крепеж
9014880018
Крепеж
9017906080
Крепеж
9017908144
Крепеж
9017908230
Крепеж
9048018010
Крепеж
9151160616
Крепеж
91621B0816
Крепеж
91621G0612
Крепеж
9163160820
Крепеж
91651B0616
Крепеж
9166660616
Крепеж
9212260612
Крепеж
9461310800
Крепеж
Код
Описание
16400
RADIATOR ASSY
16400A
COCK SUB-ASSY, RADIATOR DRAIN
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16403F
CORE SUB-ASSY, RADIATOR
16406A
SUPPORT(FOR OIL COOLER)
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16491
COOLER, OIL(FOR ATM)
16491A
RING, O(FOR ATM OIL COOLER)
16491B
WASHER, PLATE(FOR ATM OIL COOLER)
16495
NUT, FLARE(FOR ATM OIL COOLER)
16495A
NUT, FLARE, NO.2(FOR ATM OIL COOLER)

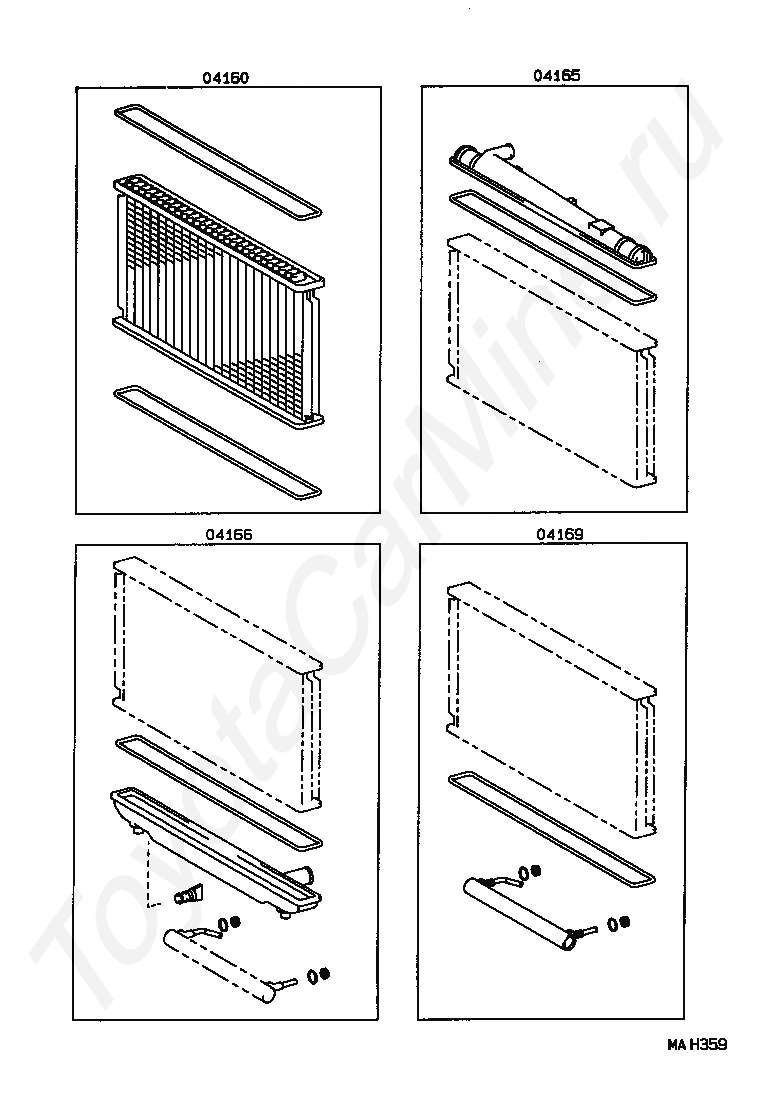

Код
Описание
04160
CORE KIT, RADIATOR
04165
TANK KIT, RADIATOR, UPPER
04166
TANK KIT, RADIATOR, LOWER
04169
COOLER KIT, OIL(FOR ATM)
