Каталог
Ближний ВостокМодель
ALPHARD/VELLFIRE/HVДвигатель
2,5 литра, 16 клапанов DOHC, EFIФрейм
AGH30Трансмиссия
вариаторОпции
правый руль VELLFIRE 7-местный RATIO HIGH EFFICIENCY TWIN CAM 807W

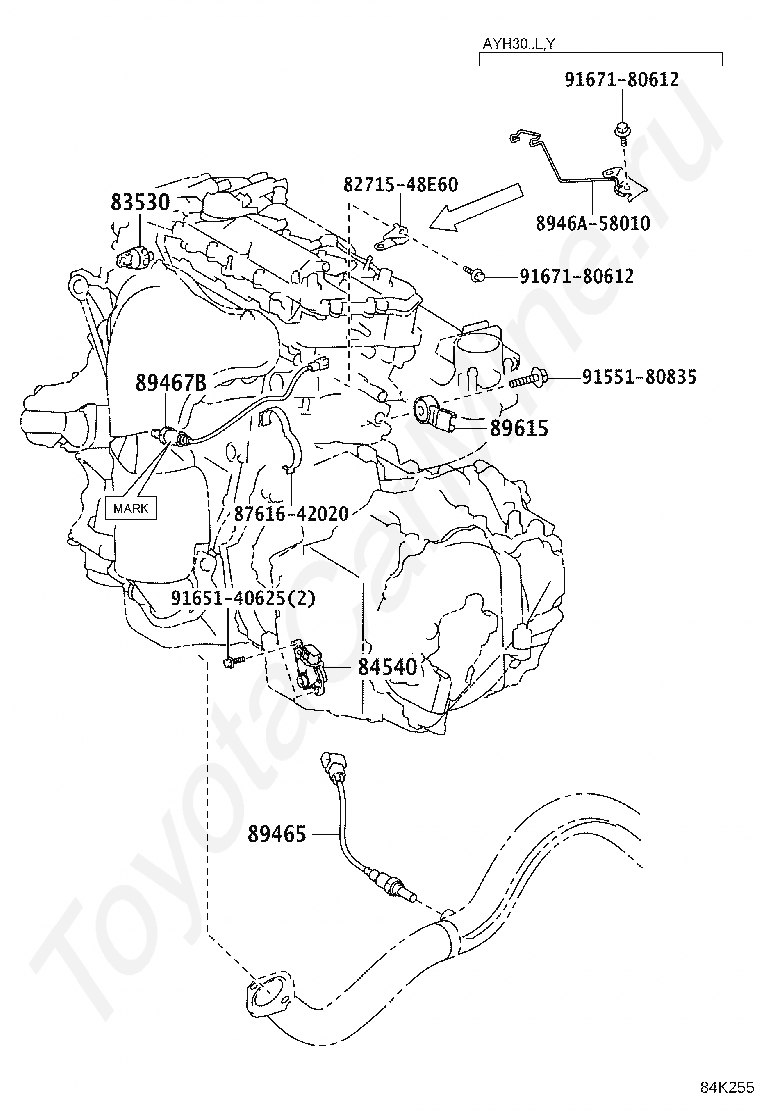

Код
Описание
8271548E60
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84540
SWITCH ASSY, NEUTRAL START
8761642020
Крепеж
89465
SENSOR, OXYGEN
89467B
SENSOR, AIR FUEL RATIO
8946A58010
Крепеж
89615
SENSOR, KNOCK CONTROL
9155180835
Крепеж
9165140625
Крепеж
9167180612
Крепеж

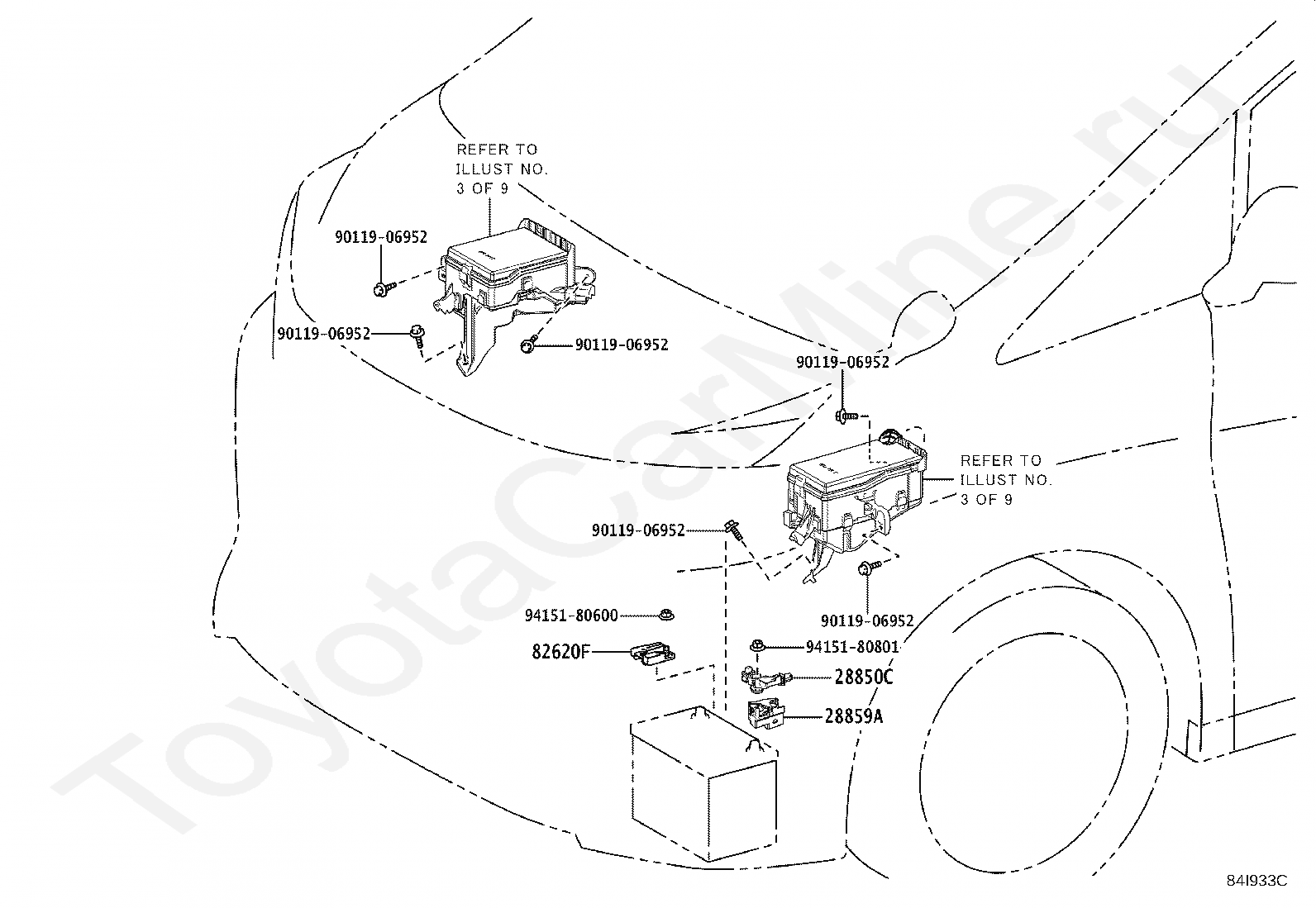

Код
Описание
28850C
SENSOR ASSY, BATTERY STATE
28859A
HOLDER, BATTERY CURRENT SENSOR
82620F
BLOCK ASSY, FUSIBLE LINK
9011906952
Крепеж
9415180600
Крепеж
9415180801
Крепеж
Код
Описание
28300E
RELAY ASSY, STARTER, NO.1
28300F
RELAY ASSY, STARTER, NO.2
28371E
RELAY, IGNITION, NO.4

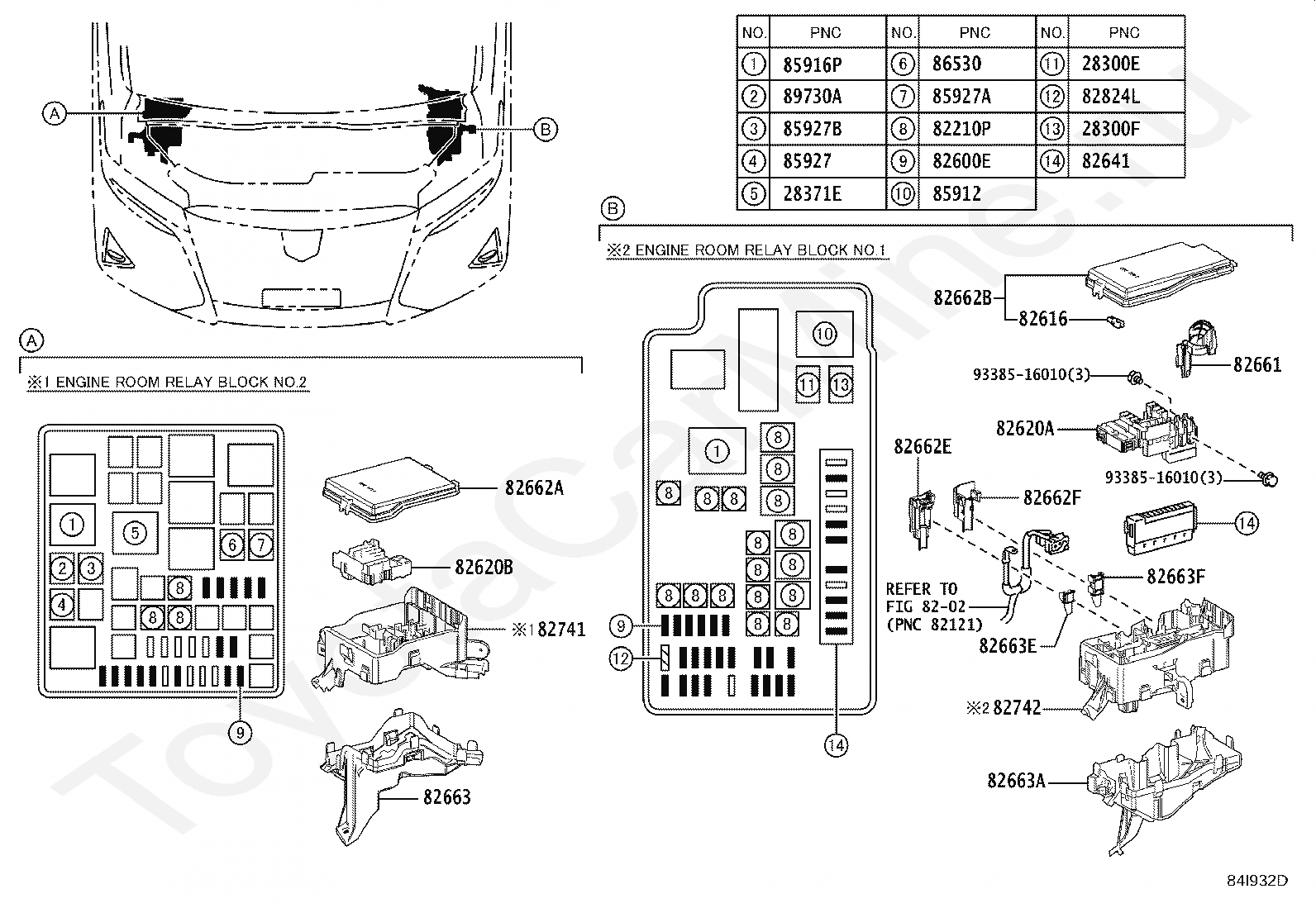

8202
переход к группе запчастей
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82620B
BLOCK ASSY, FUSIBLE LINK
82641
RELAY, INTEGRATION NO.1
82661
COVER, RELAY BLOCK, NO.1
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82662E
COVER, RELAY BLOCK, UPPER, NO.7
82662F
COVER, RELAY BLOCK, UPPER, NO.8
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82663E
COVER, RELAY BLOCK, LOWER, NO.7
82663F
COVER, RELAY BLOCK, LOWER, NO.8
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
82824L
PIN, SHORT
85912
RELAY, DEFOGGER
85916P
RELAY, HEADLAMP
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
85927B
RELAY, COOLING FAN, NO.3
86530
RELAY ASSY, HORN
89730A
RELAY(FOR SECURITY WARNING)
9338516010
Крепеж

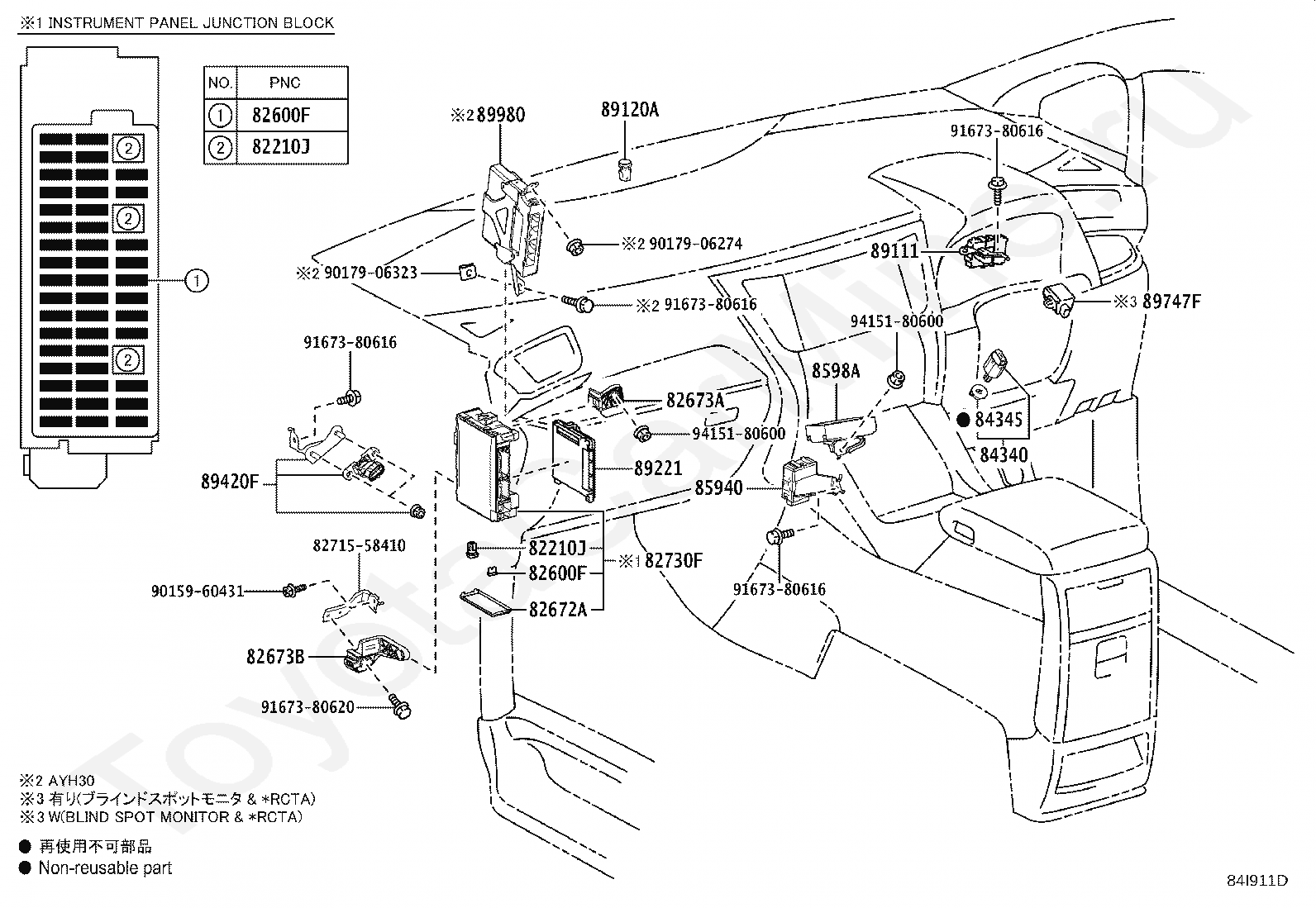

Код
Описание
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82672A
COVER, JUNCTION BLOCK
82673A
BRACKET, JUNCTION BLOCK
82673B
BRACKET, JUNCTION BLOCK
8271558410
Крепеж
82730F
BLOCK ASSY, JUNCTION, LH
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
85940
RELAY ASSY, WINDSHIELD WIPER
8598A
BATTERY, DOOR CONTROL
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89420F
SENSOR ASSY, VACUUM
89747F
BUZZER, BLIND SPOT MONITOR
89980
COMPUTER ASSY, HYBRID VEHICLE CONTROL
9015960431
Крепеж
9017906274
Крепеж
9017906323
Крепеж
9167380616
Крепеж
9167380620
Крепеж
9415180600
Крепеж

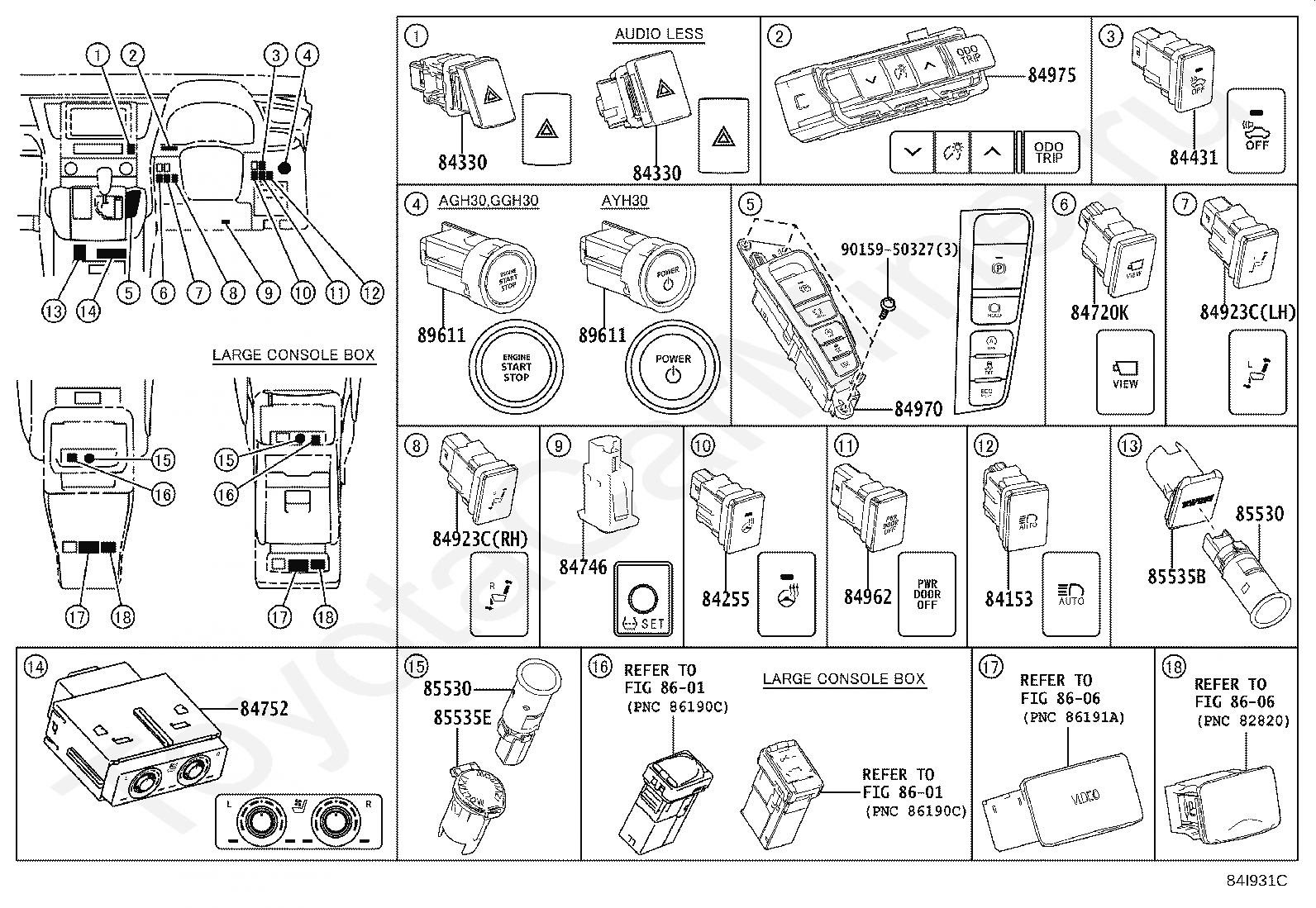

Код
Описание
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84431
SWITCH, VEHICLE APPROACHING SPEAKER
84720K
SWITCH ASSY, PATTERN SELECT
84746
SWITCH, TIRE PRESSURE WARNING
84752
SWITCH, REFRESHING SEAT
84923C
SWITCH, REAR POWER SEAT RETURN
84962
SWITCH, POWER SLIDE DOOR MAIN
84970
SWITCH ASSY, COMBINATION
84975
SWITCH, TRIP
85530
SOCKET ASSY, POWER OUTLET, NO.1
85535B
COVER, POWER OUTLET SOCKET, NO.1
85535E
COVER, POWER OUTLET SOCKET, NO.2
8601
переход к группе запчастей
8606
переход к группе запчастей
89611
SWITCH, PUSH START
9015950327
Крепеж

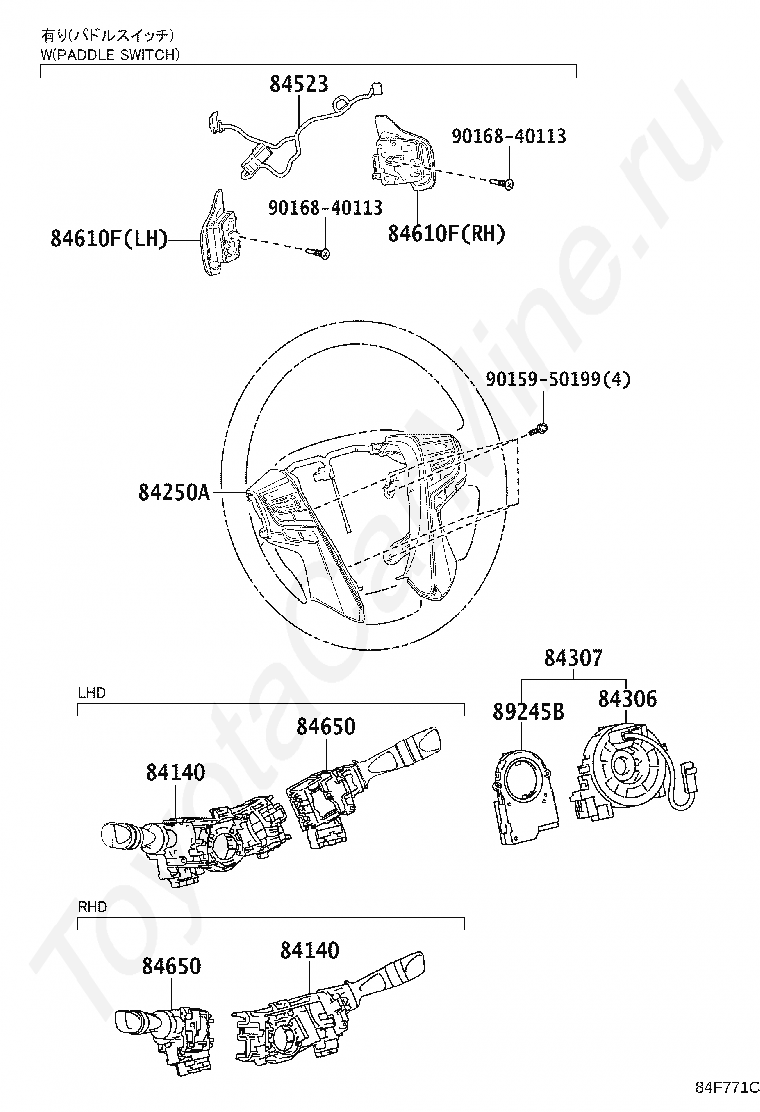

Код
Описание
84140
SWITCH ASSY, HEADLAMP DIMMER
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84307
CABLE SUB-ASSY, SPIRAL W/SENSOR
84523
WIRE, SWITCH NO.1
84610F
SWITCH ASSY, TRANSMISSION SHIFT
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
9015950199
Крепеж
9016840113
Крепеж

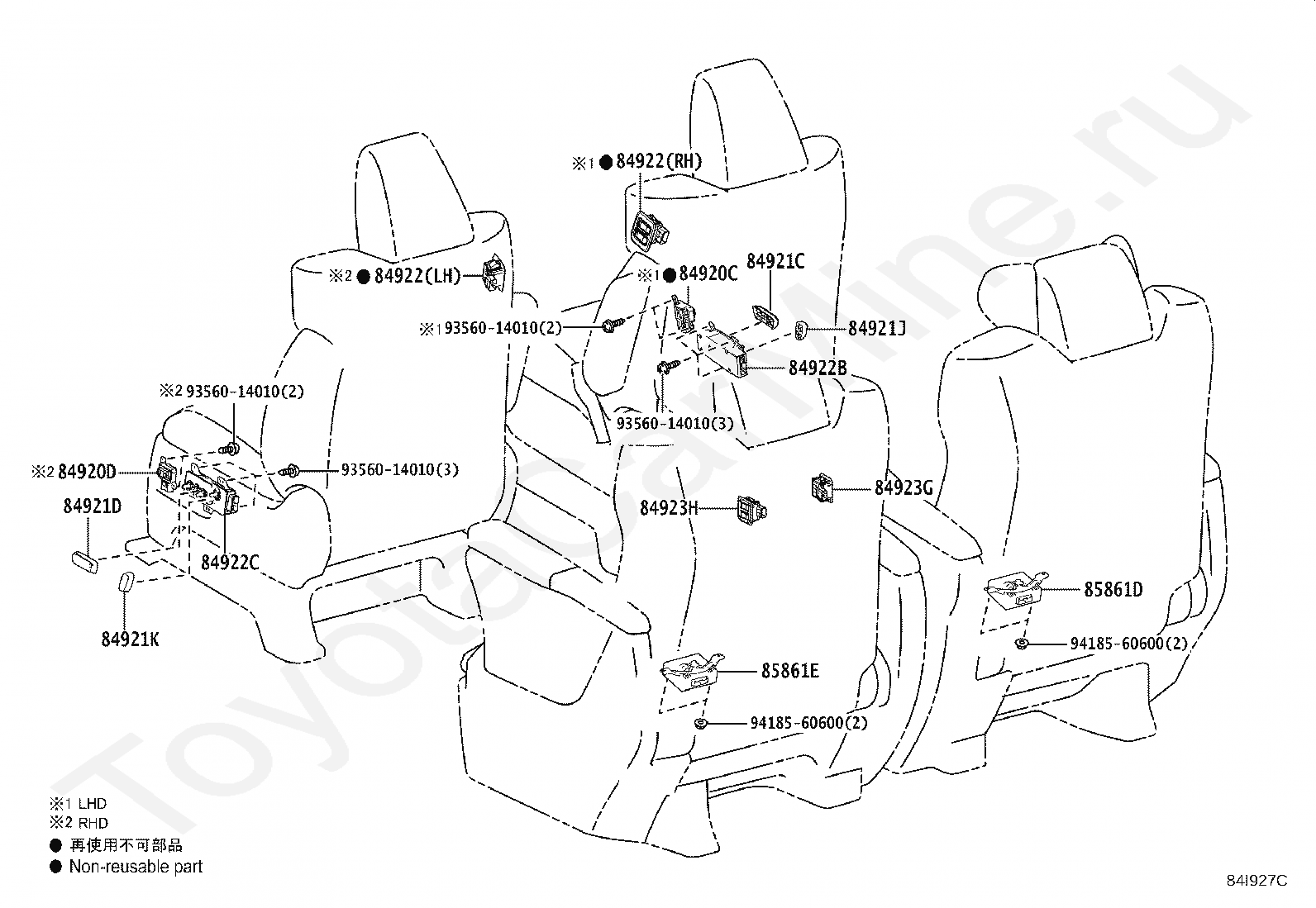

Код
Описание
84920C
SWITCH ASSY, POWER SEAT FRONT, RH
84920D
SWITCH ASSY, POWER SEAT FRONT, LH
84921C
KNOB, POWER SEAT SWITCH, RH
84921D
KNOB, POWER SEAT SWITCH, LH
84921J
KNOB, POWER SEAT SWITCH, RH
84921K
KNOB, POWER SEAT SWITCH, LH
84922
SWITCH, FRONT POWER SEAT
84922B
SWITCH, FRONT POWER SEAT, RH
84922C
SWITCH, FRONT POWER SEAT, LH
84923G
SWITCH, REAR POWER SEAT, NO.1, RH
84923H
SWITCH, REAR POWER SEAT, NO.1, LH
85861D
COMPUTER, SEAT CLIMATE CONTROL, REAR RH
85861E
COMPUTER, SEAT CLIMATE CONTROL, REAR LH
9356014010
Крепеж
9418560600
Крепеж

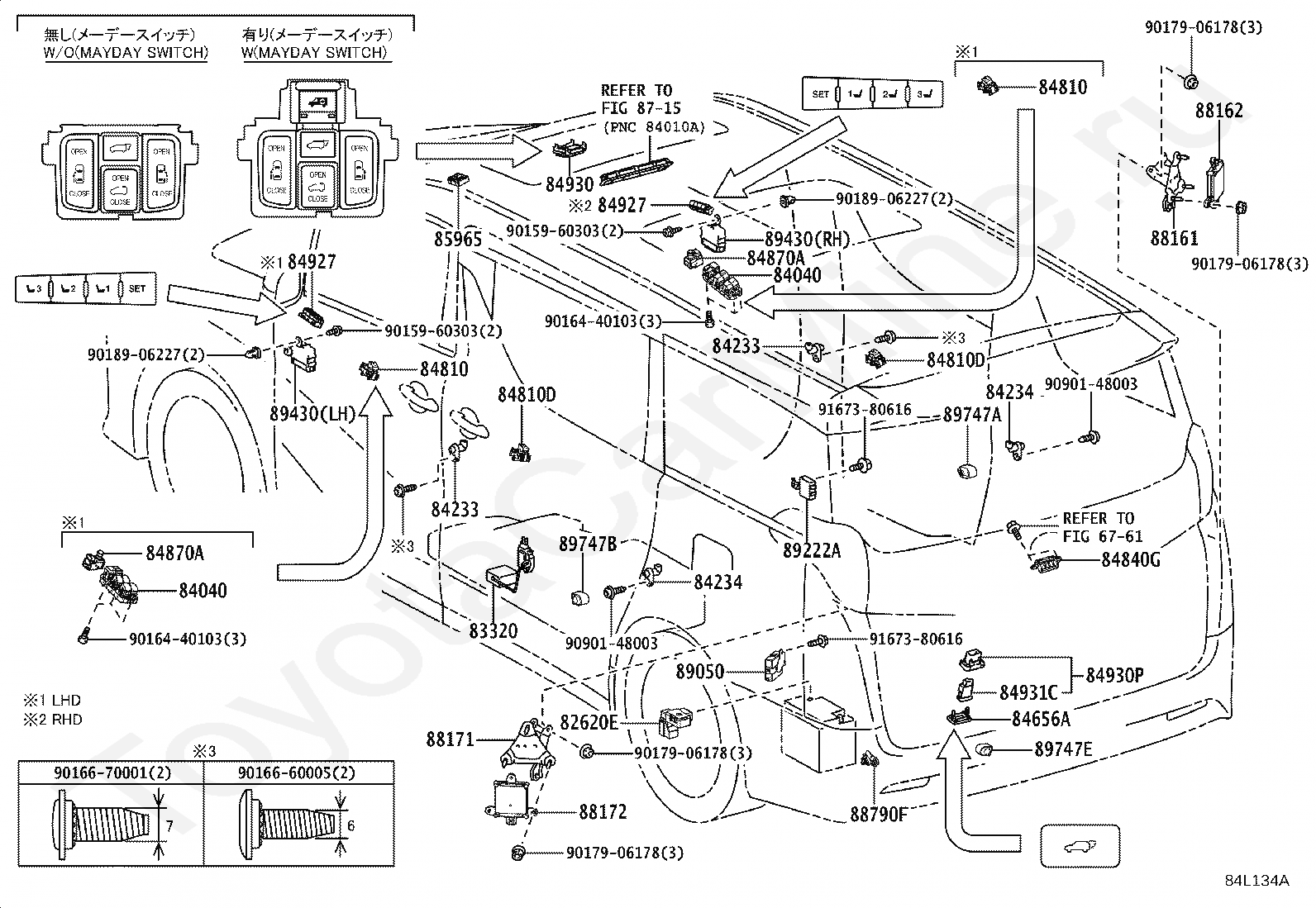

Код
Описание
6761
переход к группе запчастей
82620E
BLOCK ASSY, FUSIBLE LINK
83320
GAGE ASSY, FUEL SENDER
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84656A
BEZEL, SWITCH
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84840G
SWITCH ASSY, BACK DOOR OPENER
84870A
SWITCH ASSY, OUTER MIRROR
84927
SWITCH, SEAT MEMORY
84930
SWITCH ASSY, DOOR CONTROL
84930P
SWITCH ASSY, DOOR CONTROL
84931C
SWITCH, BACK DOOR CONTROL
85965
RELAY, ROOM LAMP CONTROL
8715
переход к группе запчастей
88161
BRACKET, BLIND SPOT MONITOR, RH
88162
SENSOR, BLIND SPOT MONITOR, RH
88171
BRACKET, BLIND SPOT MONITOR, LH
88172
SENSOR, BLIND SPOT MONITOR, LH
88790F
THERMISTOR ASSY
89050
COMPUTER ASSY, PARKING BRAKE
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89430
COMPUTER ASSY, OUTER MIRROR CONTROL
89747A
BUZZER, POWER SLIDE DOOR WARNING, RH
89747B
BUZZER, POWER SLIDE DOOR WARNING, LH
89747E
BUZZER, POWER BACK DOOR WARNING
9015960303
Крепеж
9016440103
Крепеж
9016660005
Крепеж
9016670001
Крепеж
9017906178
Крепеж
9018906227
Крепеж
9090148003
Крепеж
9167380616
Крепеж
