REAR SEAT & SEAT TRACK TOYOTA ALPHARD G/V, 2002/05 - 2005/04, 3 литра, 24 клапана DOHC, EFI, MX SPECIFICATION, MNH10, АКПП, 4 ступени

Каталог

Япония

Модель

ALPHARD G/V

Двигатель

3 литра, 24 клапана DOHC, EFI

Класс

MX SPECIFICATION

Фрейм

MNH10

Трансмиссия

АКПП, 4 ступени

Опции

7-местный 229W

Код

Описание

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72155B

BRACKET, SEAT TRACK HANDLE SUPPORT

72201E

HANDLE SUB-ASSY, SEAT TRACK RH

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72213K

KNOB, SEAT TRACK ADJUSTING HANDLE, RH

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

7270228070

Крепеж

72771A

SPRING, REAR SEAT TURN NO.1

72830U

ARMREST ASSY, REAR SEAT, RH

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72877E

COVER, NO.1 SEAT ARMREST, RH

72959A

SPACER, REAR SEAT TURN SIDE

72960C

TABLE ASSY, NO.1 SEAT TURN, RH

72973K

COVER, REAR SEAT TURN TABLE, RH

72973L

COVER, REAR SEAT TURN TABLE, NO.1

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79910A

CABLE ASSY, REAR SEAT TURN, NO.1

79937C

COVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)

79937H

COVER, REAR SEAT LEG, NO.2

79959E

COVER, NO.1 SEAT LEG, RH

9010511036

Крепеж

9011908766

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9017912032

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9151581025

Крепеж

91611G0612

Крепеж

9324955006

Крепеж

Код

Описание

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834R

COVER, REAR SEAT RECLINING, LH

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76G

COVER, RECLINING ADJUSTER INSIDE, LH

72155B

BRACKET, SEAT TRACK HANDLE SUPPORT

72201F

HANDLE SUB-ASSY, SEAT TRACK LH

72203D

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72210W

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2

72213L

KNOB, SEAT TRACK ADJUSTING HANDLE, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

7270228070

Крепеж

72772A

SPRING, REAR SEAT TURN NO.2

72840J

ARMREST ASSY, REAR SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72878C

COVER, NO.1 SEAT ARMREST, LH

72959A

SPACER, REAR SEAT TURN SIDE

72970A

TABLE ASSY, NO.1 SEAT TURN, LH

72973M

COVER, REAR SEAT TURN TABLE, NO.2

72974B

COVER, REAR SEAT TURN TABLE, LH

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79937H

COVER, REAR SEAT LEG, NO.2

79959F

COVER, NO.1 SEAT LEG, LH

9010511036

Крепеж

9011908766

Крепеж

9011910911

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9017912032

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9151581025

Крепеж

91611G0612

Крепеж

9324955006

Крепеж

Код

Описание

7124858010

Крепеж

71303E

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

7152

переход к группе запчастей

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71843

COVER, REAR SEAT RECLINING, NO.2 RH

71878G

COVER, NO.3 SEAT RECLINING, INNER RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71878K

COVER, REAR NO.2 SEAT RECLINING, INNER RH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72211H

HANDLE, SEAT TRACK ADJUSTING, RH

72226A

BRACKET, SEAT TRACK, NO.1

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72551V

CLIP(FOR RECLINING HINGE)

72665H

COVER, REAR SEAT BACK LOCK

72665J

COVER, REAR SEAT LOCK, RH

72681E

HOOK, REAR SEAT

7270258060

Крепеж

7282558010

Крепеж

72877F

COVER, SEAT ARMREST

72890D

ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)

72927F

COVER, REAR SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

7889958010

Крепеж

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79275F

PAD, NO.2 SEAT BACK, RH

79621B

STOPPER, NO.2 SEAT CUSHION

79959G

COVER, NO.2 SEAT LEG, RH NO.1

9010508271

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9020120016

Крепеж

9020612003

Крепеж

9046313003

Крепеж

9321056016

Крепеж

9353054010

Крепеж

9356054008

Крепеж

9356054014

Крепеж

9454201400

Крепеж

Код

Описание

7124858010

Крепеж

71302H

STOPPER SUB-ASSY, REAR SEAT LEG

71304A

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

7152

переход к группе запчастей

71615F

PAD, REAR SEAT CUSHION, E

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71879G

COVER, NO.3 SEAT RECLINING, INNER LH

71879H

COVER, REAR SEAT RECLINING, INNER LH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71879K

COVER, REAR NO.2 SEAT RECLINING, INNER LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

72057G

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

72065E

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72125G

COVER, SEAT TRACK LOCK PLATE, NO.1

72125H

COVER, SEAT TRACK LOCK PLATE, NO.2

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72211J

HANDLE, SEAT TRACK ADJUSTING, LH

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72551V

CLIP(FOR RECLINING HINGE)

72665H

COVER, REAR SEAT BACK LOCK

72666F

COVER, REAR SEAT LOCK, LH

72681E

HOOK, REAR SEAT

7270258060

Крепеж

7282558010

Крепеж

72877F

COVER, SEAT ARMREST

72880E

ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)

72928E

COVER, REAR SEAT CUSHION UNDER, LH

72995K

COVER, REAR NO.2 SEAT CUSHION

7889958010

Крепеж

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79285C

PAD, NO.2 SEAT BACK, LH

79621B

STOPPER, NO.2 SEAT CUSHION

79959J

COVER, NO.2 SEAT LEG, LH NO.1

9010508235

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9020120016

Крепеж

9020612003

Крепеж

9046313003

Крепеж

9046816019

Крепеж

9321056016

Крепеж

9353054010

Крепеж

9356054008

Крепеж

9356054014

Крепеж

9454201400

Крепеж

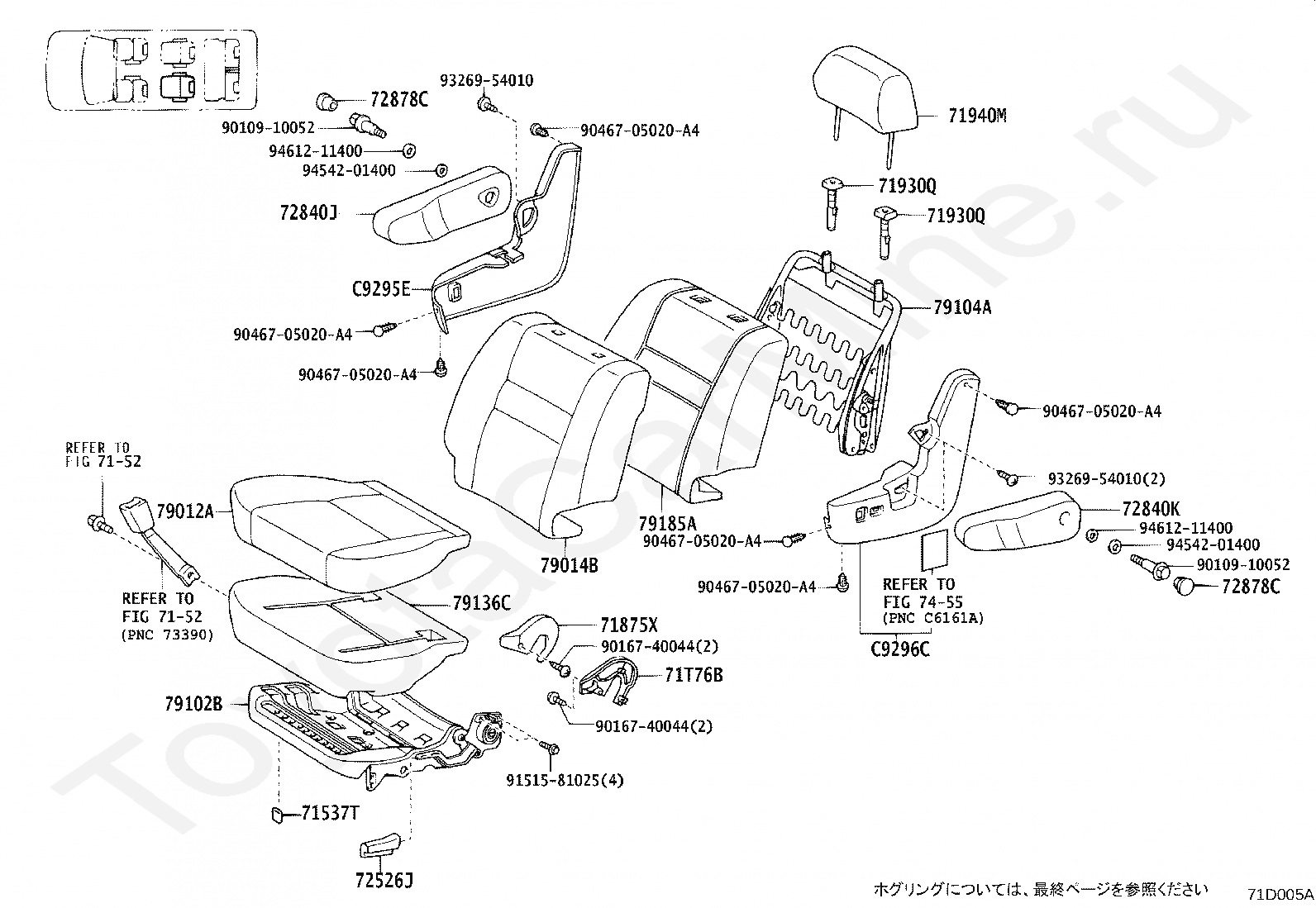

Код

Описание

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72840J

ARMREST ASSY, REAR SEAT, LH

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72878C

COVER, NO.1 SEAT ARMREST, LH

7455

переход к группе запчастей

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

9010910052

Крепеж

9016740044

Крепеж

9046705020A4

Крепеж

9151581025

Крепеж

9326954010

Крепеж

9454201400

Крепеж

9461211400

Крепеж

C9295E

COVER, POWER LIFT ARM, RH

C9296C

COVER, POWER LIFT ARM, LH

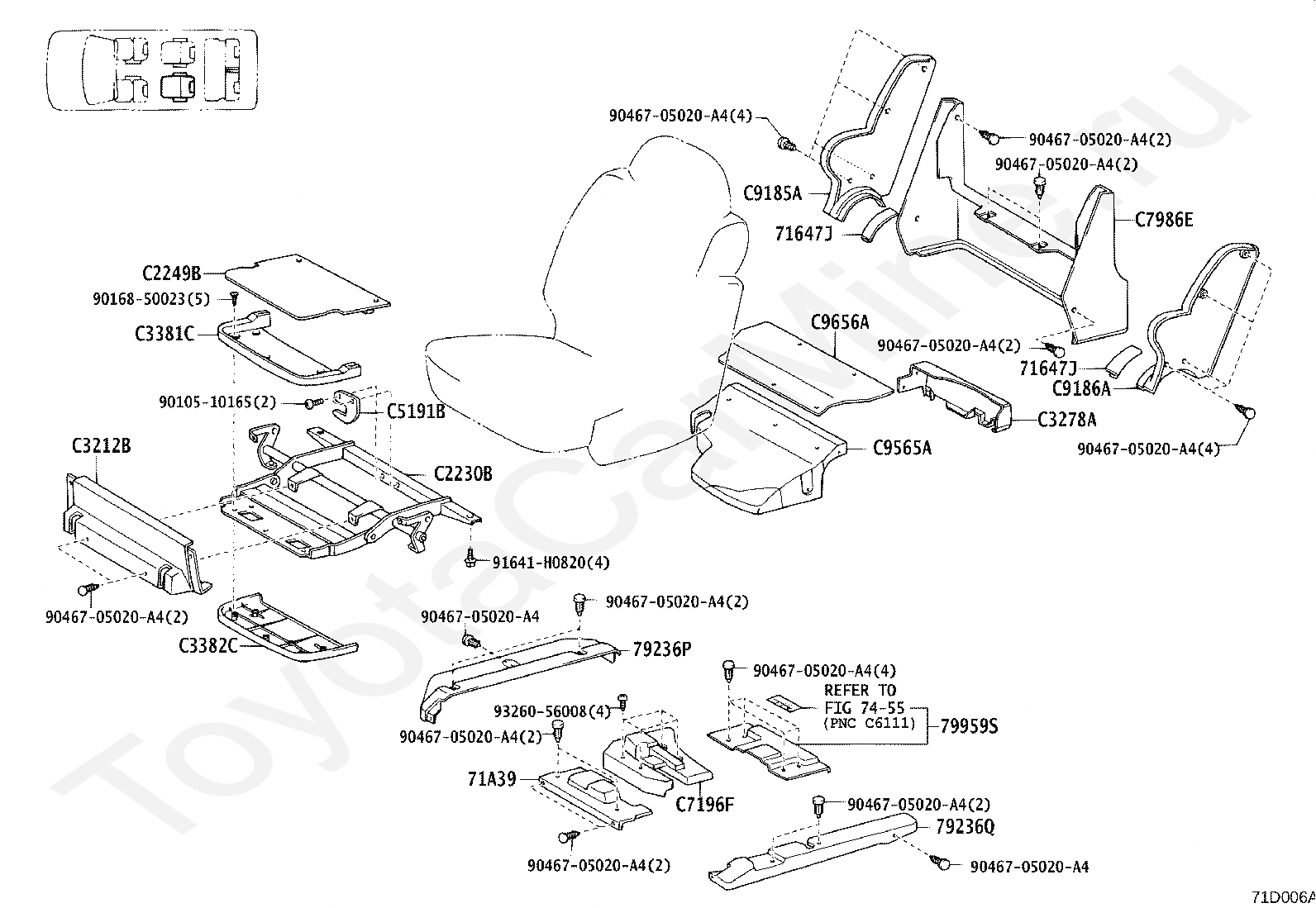

Код

Описание

71647J

PROTECTOR, REAR SEAT CUSHION EDGE, LH

71A39

COVER, REAR SEAT LEG, NO.1

7455

переход к группе запчастей

79236P

COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)

79236Q

COVER, NO.1 SEAT LEG, NO.2(FOR LH SEAT)

79959S

COVER, REAR SEAT LEG, RH

9010510165

Крепеж

9016850023

Крепеж

9046705020A4

Крепеж

91641H0820

Крепеж

9326056008

Крепеж

C2230B

STEP ASSY, REAR

C2249B

PROTECTOR, REAR STEP

C3212B

COVER, FRONT GUARD

C3278A

COVER, REAR SEAT LEG GARNISH

C3381C

COVER, SLIDE STEP, NO.1

C3382C

COVER, SLIDE STEP, NO.2

C5191B

BRACKET, REAR SEAT ANCHOR, NO.1

C7196F

COVER, TURN TABLE, NO.1

C7986E

COVER, REAR SEAT TURN GUARD

C9185A

COVER, LIFT GUIDE RAIL REAR END, RH

C9186A

COVER, LIFT GUIDE RAIL REAR END, LH

C9565A

COVER, POWER LIFT CYLINDER, NO.1

C9656A

COVER, TAIL GATE CYLINDER ROD

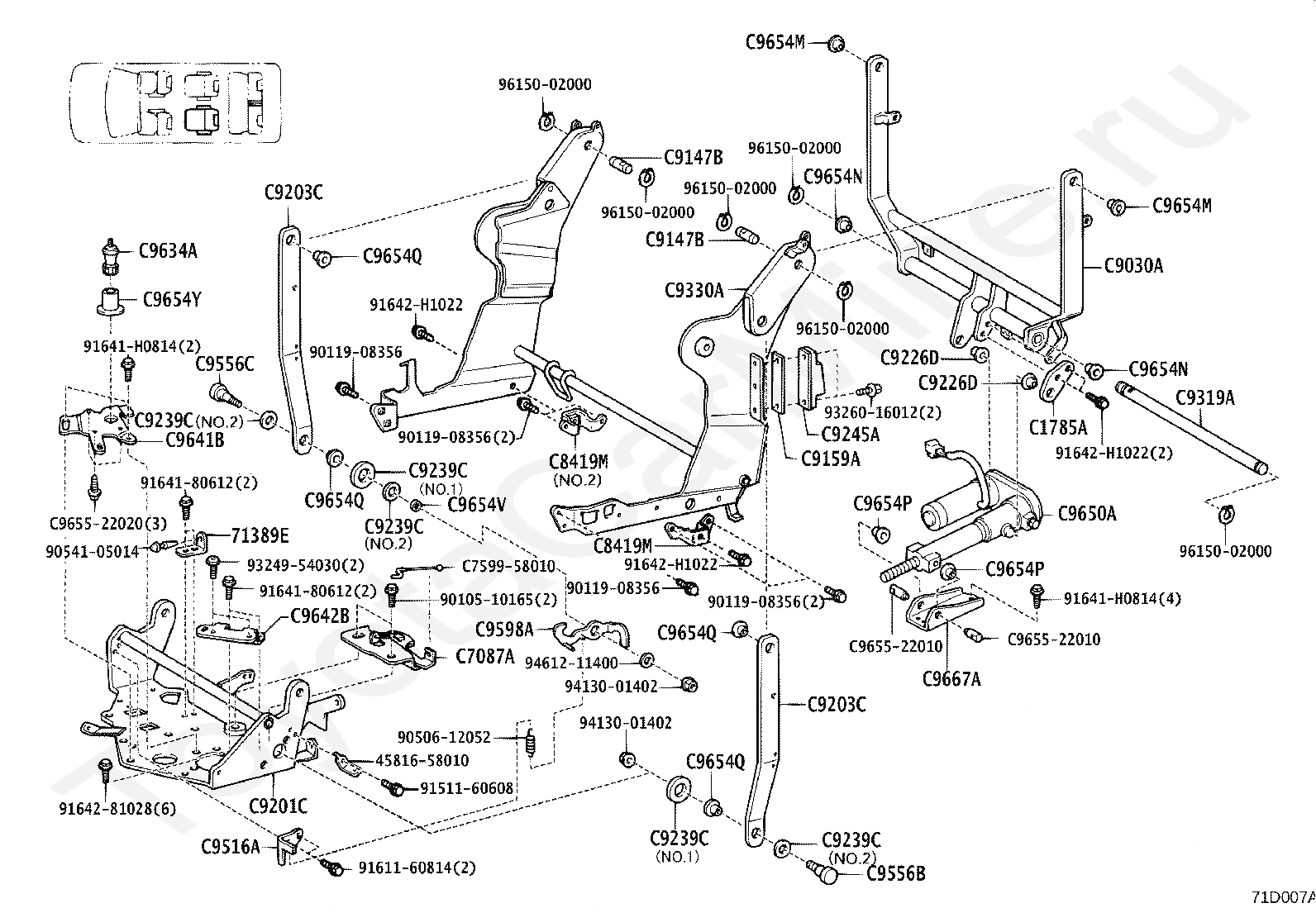

Код

Описание

4581658010

Крепеж

71389E

PLATE, REAR SEAT CUSHION BRACKET

9010510165

Крепеж

9011908356

Крепеж

9050612052

Крепеж

9054105014

Крепеж

9151160608

Крепеж

9161160814

Крепеж

9164180612

Крепеж

91641H0814

Крепеж

9164281028

Крепеж

91642H1022

Крепеж

9324954030

Крепеж

9326016012

Крепеж

9413001402

Крепеж

9461211400

Крепеж

9615002000

Крепеж

C1785A

BRACKET, CONTROL STAY, NO.2 RH

C7087A

LOCK SUB-ASSY, REAR SEAT TURN, NO.1

C759958010

Крепеж

C8419M

BRACKET, LIMIT SWITCH, NO.2

C9030A

LINK ASSY, POWER LIFT ARM, NO.2

C9147B

SHAFT, CHAIR LIFT BASE

C9159A

SPACER, LIFT ARM GUIDE STOPPER

C9201C

GUIDE SUB-ASSY, POWER LIFT

C9203C

LINK SUB-ASSY, POWER LIFT ARM, NO.1

C9226D

COLLAR, PLATFORM SUPPORT SHAFT, NO.1

C9239C

SPACER, LIFT ARM LINK, NO.2

C9245A

CUSHION, POWER LIFT PLATFORM

C9319A

PIN, PLATFORM HINGE

C9330A

HOLDER ASSY, POWER LIFT PLATFORM

C9516A

SUPPORT, RETURN SPRING PIPE

C9556B

SHAFT, PLATFORM GUIDE ROLLER, NO.1

C9556C

SHAFT, PLATFORM GUIDE ROLLER, NO.2

C9598A

CATCH, PLATFORM SAFETY HOOK

C9634A

GEAR, POWER LIFT, NO.4

C9641B

BRACKET, POWER LIFT MOTOR, NO.1

C9642B

BRACKET, POWER LIFT MOTOR, NO.2

C9650A

CYLINDER ASSY, POWER LIFT

C9654M

COLLAR, POWER LIFT CYLINDER, NO.1

C9654N

COLLAR, POWER LIFT CYLINDER, NO.2

C9654P

COLLAR, POWER LIFT CYLINDER, NO.3

C9654Q

COLLAR, POWER LIFT CYLINDER, NO.4

C9654V

COLLAR, POWER LIFT CYLINDER, NO.5

C9654Y

COLLAR, POWER LIFT CYLINDER, NO.8

C965522010

Крепеж

C965522020

Крепеж

C9667A

SUPPORT, POWER LIFT CYLINDER, NO.1

Код

Описание

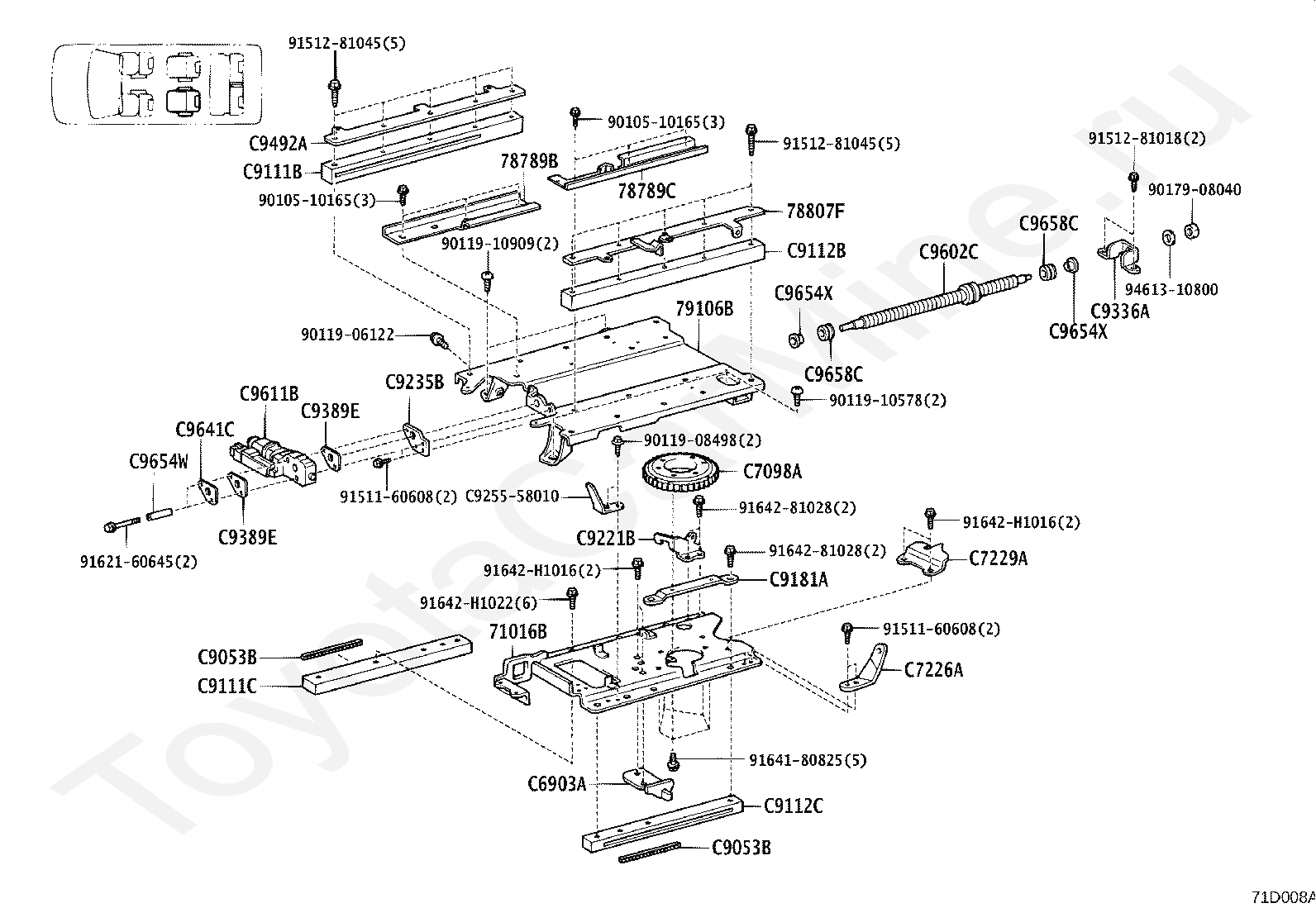

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

78789B

BRACKET, SUB SEAT LEG, NO.1

78789C

BRACKET, SUB SEAT LEG, NO.2

78807F

BRACKET SUB-ASSY, SUB SEAT, REAR

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

9010510165

Крепеж

9011906122

Крепеж

9011908498

Крепеж

9011910578

Крепеж

9011910909

Крепеж

9017908040

Крепеж

9151160608

Крепеж

9151281018

Крепеж

9151281045

Крепеж

9162160645

Крепеж

9164180825

Крепеж

9164281028

Крепеж

91642H1016

Крепеж

91642H1022

Крепеж

9461310800

Крепеж

C6903A

BRACKET SUB-ASSY, SLIDE BED LOCK

C7098A

PLATE SUB-ASSY, REAR SEAT TURN, LOWER

C7226A

BRACKET, NO.1 SEAT LEG, NO.2

C7229A

PLATE, NO.1 SEAT LEG

C9053B

ROLLER SUB-ASSY, PLATFORM GUIDE

C9111B

RAIL, POWER LIFT ARM GUIDE MAIN, RH NO.1

C9111C

RAIL, POWER LIFT ARM GUIDE MAIN, RH NO.2

C9112B

RAIL, POWER LIFT ARM GUIDE MAIN, LH NO.1

C9112C

RAIL, POWER LIFT ARM GUIDE MAIN, LH NO.2

C9181A

BRACKET, BEAM TO FRAME

C9221B

HOOK, POWER LIFT GUIDE

C9235B

PLATE, POWER LIFT ARM GUIDE STOP

C925558010

Крепеж

C9336A

GUSSET, POWER LIFT PLATFORM

C9389E

CUSHION, PLATFORM STOPPER

C9492A

STOPPER, POWER LIFT SAFETY, NO.2

C9602C

ROD SUB-ASSY, POWER LIFT CYLINDER

C9611B

MOTOR, POWER LIFT, NO.1

C9641C

BRACKET, POWER LIFT MOTOR, NO.2

C9654W

COLLAR, POWER LIFT CYLINDER, NO.6

C9654X

COLLAR, POWER LIFT CYLINDER, NO.7

C9658C

PLATE, POWER LIFT CYLINDER ROD

Код

Описание

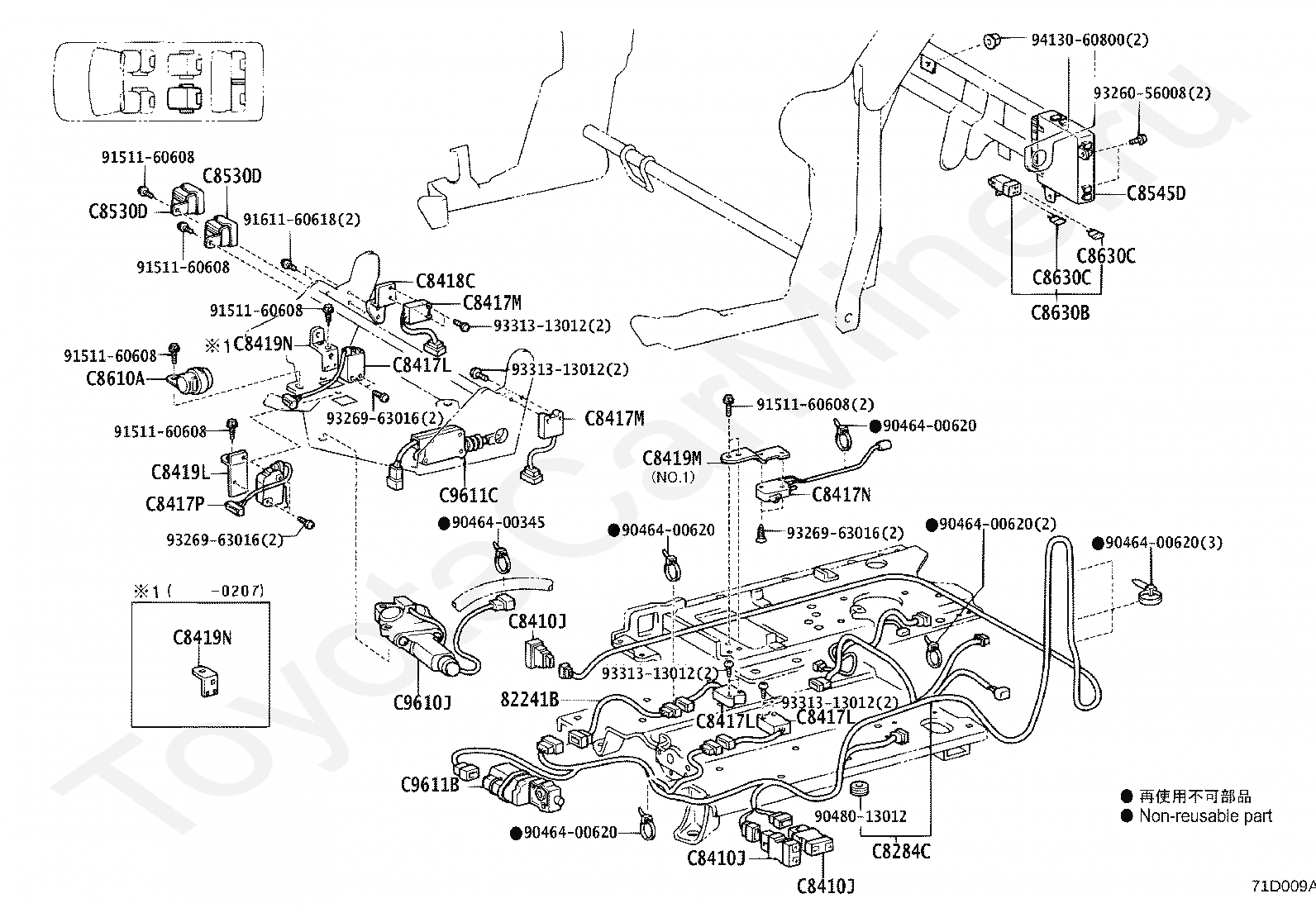

82241B

WIRE, RELAY

9046400345

Крепеж

9046400620

Крепеж

9048013012

Крепеж

9151160608

Крепеж

9161160618

Крепеж

9326056008

Крепеж

9326963016

Крепеж

9331313012

Крепеж

9413060800

Крепеж

C8284C

WIRE, POWER LIFT MAIN

C8410J

SWITCH ASSY, POWER LIFT CONTROL

C8417L

SWITCH, LIMIT, NO.1

C8417M

SWITCH, LIMIT, NO.2

C8417N

SWITCH, LIMIT, NO.3

C8417P

SWITCH, LIMIT, NO.4

C8418C

PLATE, LIMIT SWITCH

C8419L

BRACKET, LIMIT SWITCH, NO.1

C8419M

BRACKET, LIMIT SWITCH, NO.2

C8419N

BRACKET, LIMIT SWITCH, NO.3

C8530D

RELAY ASSY, POWER LIFT MOTOR

C8545D

RELAY, POWER LIFT CONTROL

C8610A

BUZZER ASSY

C8630B

HOLDER ASSY, FUSE

C8630C

FUSE

C9610J

MOTOR ASSY, POWER LIFT

C9611B

MOTOR, POWER LIFT, NO.1

C9611C

MOTOR, POWER LIFT, NO.2

Код

Описание

5301928020

Крепеж

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71811V

COVER, NO.1 SEAT RECLINING ADJUSTER, INNER(FOR LH SEAT)

71812Z

COVER, RECLINING ADJUSTER, LH

72907G

COVER SUB-ASSY, REAR SEAT TURN

79236G

COVER, NO.2 SEAT LEG, RH

79236K

COVER, NO.1 SEAT LEG, NO.1

79959S

COVER, REAR SEAT LEG, RH

8401

переход к группе запчастей

9010910164

Крепеж

9011908C39

Крепеж

9011910409

Крепеж

9011910656

Крепеж

9011910843

Крепеж

9011910909

Крепеж

9011910918

Крепеж

9016850023

Крепеж

9018304057

Крепеж

9020115023

Крепеж

904670502022

Крепеж

9046705020A4

Крепеж

9046705063C0

Крепеж

9046705096A2

Крепеж

9331354008

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9454201400

Крепеж

9461210800

Крепеж

C3381C

COVER, SLIDE STEP, NO.1

C3382C

COVER, SLIDE STEP, NO.2

C7120D

LEG ASSY, WELCAB SEAT

C7120H

LEG ASSY, WELCAB SEAT, NO.2

C7196F

COVER, TURN TABLE, NO.1

C7227C

CARPET, WELCAB SEAT FOOTREST STEP

C9055H

COVER SUB-ASSY, POWER LIFT, NO.1

C9691C

COVER, POWER LIFT MOTOR

C991010012

Крепеж

C991640001

Крепеж

Код

Описание

71537U

PROTECTOR, REAR SEAT CUSHION, NO.2

85H20

MOTOR ASSY, POWER SEAT

9017608039

Крепеж

9020110280

Крепеж

9151281022

Крепеж

9454101000

Крепеж

C7003B

LIFT UNIT, REAR SEAT

C7408D

ROD SUB-ASSY, WELCAB SEAT, NO.1

C7485K

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7485L

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7488C

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C9654Y

COLLAR, POWER LIFT CYLINDER, NO.8

C9658C

PLATE, POWER LIFT CYLINDER ROD

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

REAR SEAT & SEAT TRACK TOYOTA ALPHARD G/V, 2002/05 - 2005/04, 3 литра, 24 клапана DOHC, EFI, MX SPECIFICATION, MNH10, АКПП, 4 ступени

Товар добавлен в корзину!

Заполните форму
